Novex AP-1, AP-2, AP-4, AP-7, AP-5 Data sheet [EN]

AP series

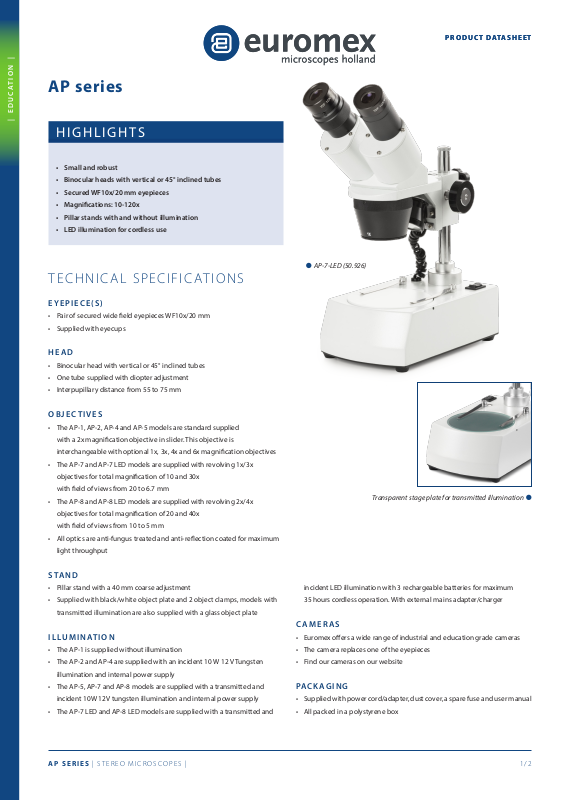

PRODUCT DATASHEET

PRODUCT DATASHEET

| EDUCATION |

HIGHLIGHTS

• Small and robust

• Binocular heads with vertical or 45° inclined tubes

• Secured WF10x/20 mm eyepieces

• Magnications: 10-120x

• Pillar stands with and without illumination

• LED illumination for cordless use

AP-7-LED (50.926)

TECHNICAL SPECIFICATIONS

EYEPIECE(S)

• Pair of secured wide eld eyepieces WF10x/20 mm

• Supplied with eyecups

HEAD

• Binocular head with vertical or 45° inclined tubes

• One tube supplied with diopter adjustment

• Interpupillary distance from 55 to 75 mm

OBJECTIVES

• The AP-1, AP-2, AP-4 and AP-5 models are standard supplied

with a 2x magnication objective in slider. This objective is

interchangeable with optional 1x, 3x, 4x and 6x magnication objectives

• The AP-7 and AP-7 LED models are supplied with revolving 1x/3x

objectives for total magnication of 10 and 30x

with eld of views from 20 to 6.7 mm

• The AP-8 and AP-8 LED models are supplied with revolving 2x/4x

objectives for total magnication of 20 and 40x

with eld of views from 10 to 5 mm

• All optics are anti-fungus treated and anti-reection coated for maximum

light throughput

STAND

• Pillar stand with a 40 mm coarse adjustment

• Supplied with black/white object plate and 2 object clamps, models with

transmitted illumination are also supplied with a glass object plate

ILLUMINATION

• The AP-1 is supplied without illumination

• The AP-2 and AP-4 are supplied with an incident 10 W 12 V Tungsten

illumination and internal power supply

• The AP-5, AP-7 and AP-8 models are supplied with a transmitted and

incident 10W 12V tungsten illumination and internal power supply

• The AP-7 LED and AP-8 LED models are supplied with a transmitted and

Transparent stage plate for transmitted illumination

incident LED illumination with 3 rechargeable batteries for maximum

35 hours cordless operation. With external mains adapter/charger

CAMERAS

• Euromex oers a wide range of industrial and education grade cameras

• The camera replaces one of the eyepieces

• Find our cameras on our website

PACKAGING

• Supplied with power cord/adapter, dust cover, a spare fuse and user manual

• All packed in a polystyrene box

AP SERIES | STEREO MICROSCOPES |

1/2

PRODUCT DATASHEET

PRODUCT DATASHEET

| EDUCATION |

MODELS

Vertical

head

45°

head

Interchangeable

2x objective

1x/3x

objective

2x/4x

objective

Transmitted

tungsten illumination

Incident

tungsten illumination

Transmitted

LED illumination

LED illumination

50.890 AP-1 • •

50.900 AP-2 • • •

50.915 AP-4 • • •

50.920 AP-5 • • • •

50.925 AP-7 • • • •

50.926 AP-7 LED • • • •

50.930 AP-8 • • • •

50.931 AP-8 LED • • • •

Incident

ACCESSORIES AND SPARE PARTS

50.805 Pair of wide eld eyepieces WF 5x/22 mm

50. 810 Pair of wide eld eyepieces WF 10x/20 mm

50 .811 Micrometer eyepiece WF 10x/20 mm

50.815 Pair of wide eld eyepieces WF 15x/16 mm

50.820 Pair of wide eld eyepieces WF 20x/10 mm

50.840 Pair of eyecups

Suitable for AP-1, AP-2, AP-4 and AP-5:

50. 831 Paired achromatic objectives 1x. Working distance 57 mm

50.832 Paired achromatic objectives 2x. Working distance 80 mm

50.833 Paired achromatic objectives 3x. Working distance 61 mm

50.834 Paired achromatic objectives 4x. Working distance 57 mm

50.836 Paired achromatic objectives 6x. Working distance 40 mm

50.871 Black/White stage plate 94 mm diameter

50.873 Glass stage plate 94 mm diameter

50.874 Black /White stage plate 60 mm diameter (AP1, 2, 3 and 4)

AP-4 (50.915) AP-5 (50.920)AP-1 (50.890) AP-2 (50.900)

50. 875 Adjustable GEM object clamp for AP series

50. 876 Dark eld attachment

50.884 Spare bulb 1o W 12 V for AP-series

50.975 External 100-240 V mains adapter

AE .1112 Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 par ts,

100 µm per division

PB.5245 Lens cleaning paper, 100 sheets per pack

PB.5274 Iso propyl alcohol 99%, 200 ml

PB. 5275 Cleaning kit: lens uid, lint free lens tissue/paper, brush, air blower,

cotton swabs
