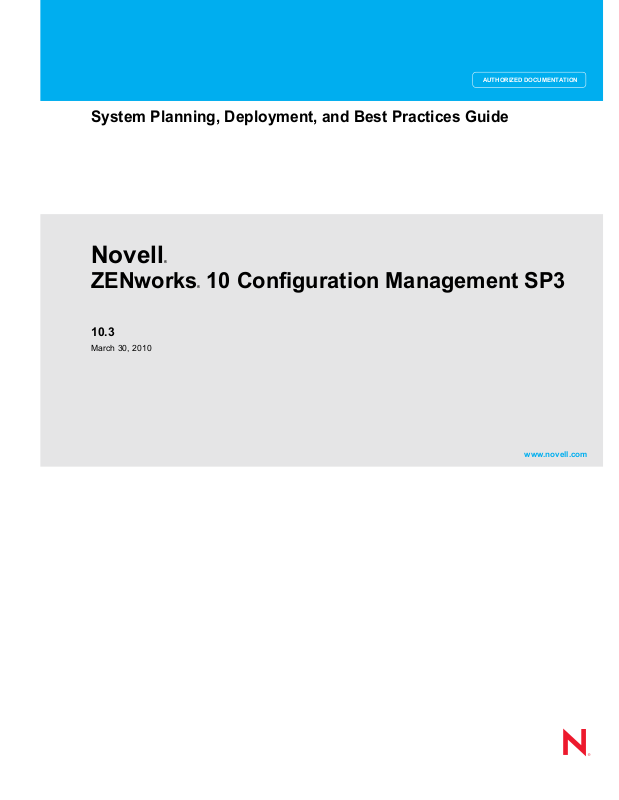

AUTHORIZED DOCUMENTATION
System Planning, Deployment, and Best Practices Guide
ZENworks® 10 Configuration Management SP3
novdocx (en) 16 April 2010
10.3
March 30, 2010
System Planning, Deployment, and Best Practices Guide
Legal Notices
Novell, Inc., makes no representations or warranties with respect to the contents or use of this documentation, and
specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose.
Further, Novell, Inc., reserves the right to revise this publication and to make changes to its content, at any time,
without obligation to notify any person or entity of such revisions or changes.
Further, Novell, Inc., makes no representations or warranties with respect to any software, and specifically disclaims
any express or implied warranties of merchantability or fitness for any particular purpose. Further, Novell, Inc.,
reserves the right to make changes to any and all parts of Novell software, at any time, without any obligation to
notify any person or entity of such changes.
Any products or technical information provided under this Agreement may be subject to U.S. export controls and the
trade laws of other countries. You agree to comply with all export control regulations and to obtain any required
licenses or classification to export, re-export or import deliverables. You agree not to export or re-export to entities on
the current U.S. export exclusion lists or to any embargoed or terrorist countries as specified in the U.S. export laws.
You agree to not use deliverables for prohibited nuclear, missile, or chemical biological weaponry end uses. See the
Novell International Trade Services Web page (http://www.novell.com/info/exports/) for more information on
exporting Novell software. Novell assumes no responsibility for your failure to obtain any necessary export
approvals.
novdocx (en) 16 April 2010
Copyright © 2007-2010 Novell, Inc. All rights reserved. No part of this publication may be reproduced, photocopied,
stored on a retrieval system, or transmitted without the express written consent of the publisher.
Novell, Inc.
404 Wyman Street, Suite 500
Waltham, MA 02451
U.S.A.
www.novell.com
Online Documentation: To access the latest online documentation for this and other Novell products, see
the Novell Documentation Web page (http://www.novell.com/documentation).
Novell Trademarks
For Novell trademarks, see the Novell Trademark and Service Mark list (http://www.novell.com/company/legal/
trademarks/tmlist.html).
Third-Party Materials
All third-party trademarks are the property of their respective owners.
novdocx (en) 16 April 2010
novdocx (en) 16 April 2010
4 System Planning, Deployment, and Best Practices Guide
Contents
About This Guide 9
1 ZENworks Configuration Management: A Single Solution for Systems
Management 11
1.1 The Goal: Total Management, Zero Effort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 The Management Paradigm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.1 Management by Exception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.2 User-Based Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.3 Device-Based Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3 The Solution: ZENworks Configuration Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Performing Pre-Design Activities 15
2.1 Perform a Business Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Perform a Technical Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Gather Other Critical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.4 Develop High-Level Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.5 Develop Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.6 Outputs from Pre-Design Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
novdocx (en) 16 April 2010
3 Gathering Critical Information for Design Activities 21
3.1 Design Criteria/Decisions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.1.1 Decisions to Make Before Installing the Primary Server . . . . . . . . . . . . . . . . . . . . . . 21
3.1.2 Infrastructure Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.1.3 Infrastructure Scale Assumptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 Scalability of the Primary Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2.1 Factors Influencing Scalability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2.2 Load Testing in the Novell SuperLab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2.3 Achieving Scalability in the Real World . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3 Scalability of Satellite Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.3.1 Factors Influencing Scalability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.3.2 Load Testing in the Novell SuperLab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.3.3 Achieving Scalability in the Real World . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.4 Scalability, Fault Tolerance, Maintenance, and Sizing of the Database Server. . . . . . . . . . . . 34
3.4.1 Sybase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.4.2 Microsoft SQL Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.4.3 Oracle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.4.4 Database Sizing and Performance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.5 Virtualization Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.6 Ports Used by ZENworks Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.7 Network Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.7.1 Infrastructure vs. Bandwidth: Satellite Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.7.2 DNS and DHCP Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.7.3 Time Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.7.4 Support for the NetWare Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Contents 5
4 Performing Design Activities 45
4.1 Design Workshops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.2 Developing a Detailed Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.2.1 Device Folder and Group Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4.2.2 User Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4.2.3 Role-Based Administrative Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.2.4 Configuration Settings for the Management Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4.2.5 Device Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.2.6 Adaptive Agent Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4.2.7 Registration Rules and Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4.2.8 Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.2.9 Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.2.10 Application Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
4.2.11 Policy Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.2.12 Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.2.13 Configuring a Layer 4 Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.2.14 ZENworks Systems Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4.3 Lab Testing and Validation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4.4 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
novdocx (en) 16 April 2010
5 Deploying ZENworks Configuration Management 81
5.1 Pre-Deployment Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5.2 Pre-Deployment Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.3 Pre-Deployment Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.4 Pilots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.5 Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.6 Wider Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.7 Post-Deployment Documentation and Validation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6 Deployment and Migration Scenarios 85
6.1 New ZENworks Customer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.1.1 Build a Model Office Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.1.2 Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
6.1.3 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
6.2 Migrating From a Previous Version of ZENworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
6.2.1 Application Deployment Strategy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
6.2.2 Application and Policy Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
6.2.3 Novell eDirectory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
6.2.4 Repurpose Hardware Used by Previous Zenworks Products . . . . . . . . . . . . . . . . . . 92
A ZENworks Services 93
A.1 ZENworks Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
A.1.1 Checking the Status of a ZENworks Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
A.1.2 Starting a ZENworks Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
A.1.3 Stopping a ZENworks Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
A.1.4 Restarting a ZENworks Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
A.1.5 ZENworks Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
A.2 Useful URLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
A.2.1 Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
A.2.2 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
A.3 Critical File Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
A.3.1 Installation Directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
6 System Planning, Deployment, and Best Practices Guide
A.3.2 The ZENworks Content Repository . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
A.4 Logging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
A.4.1 Local Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
A.4.2 Installation Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
A.4.3 Registration Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
A.5 Backing Up and Restoring the ZENworks Certificate Authority . . . . . . . . . . . . . . . . . . . . . . . 100
B The ZENworks Configuration Management Architecture 101
B.1 ZENworks Architecture Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
B.1.1 Standard Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
B.1.2 ZENworks Primary Server Architectural Components . . . . . . . . . . . . . . . . . . . . . . . 103
B.1.3 Agent Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
B.1.4 Agent Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
B.2 Detailed ZENworks Components Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
C ZENworks Configuration Management Tuning Parameters For Bundle
Distribution 109
C.1 JAVA Memory Allocation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
C.2 Threads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
C.3 CLIENT RETRIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
C.4 Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
novdocx (en) 16 April 2010
D Reference Materials 113
D.1 Online Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
D.2 Sample Business Requirements Survey Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
D.3 Sample Technical Requirements Survey Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
D.4 Extended Port Chart Including Port Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Contents 7
novdocx (en) 16 April 2010
8 System Planning, Deployment, and Best Practices Guide
About This Guide
novdocx (en) 16 April 2010
The purpose of this System Planning, Deployment, and Best Practices Guide is to describe the items
that need to be considered when designing a Novell
solution and deploying it across small and large scale enterprises.
The information in this guide is organized as follows:
Chapter 1, “ZENworks Configuration Management: A Single Solution for Systems
Management,” on page 11
Chapter 2, “Performing Pre-Design Activities,” on page 15
Chapter 3, “Gathering Critical Information for Design Activities,” on page 21
Chapter 4, “Performing Design Activities,” on page 45
Chapter 5, “Deploying ZENworks Configuration Management,” on page 81
Chapter 6, “Deployment and Migration Scenarios,” on page 85
Chapter A, “ZENworks Services,” on page 93
Chapter B, “The ZENworks Configuration Management Architecture,” on page 101
Appendix C, “ZENworks Configuration Management Tuning Parameters For Bundle
Distribution,” on page 109
Appendix D, “Reference Materials,” on page 113
Audience
®
ZENworks® 10 Configuration Management
This guide is intended for ZENworks administrators.
Feedback
We want to hear your comments and suggestions about this manual and the other documentation
included with this product. Please use the User Comments feature at the bottom of each page of the
online documentation, or go to the Novell Documentation Feedback site (http://www.novell.com/
documentation/feedback.html) and enter your comments there.
Additional Documentation
ZENworks Configuration Management is supported by other documentation (in both PDF and
HTML formats) that you can use to learn about and implement the product. For additional
documentation, see the ZENworks 10 Configuration Management SP3 (10.3) documentation (http://
www.novell.com/documentation/zcm10/).
Documentation Conventions
In Novell documentation, a greater-than symbol (>) is used to separate actions within a step and
items in a cross-reference path.
®
A trademark symbol (
trademark.
, TM, etc.) denotes a Novell trademark. An asterisk (*) denotes a third-party
About This Guide 9
When a single pathname can be written with a backslash for some platforms or a forward slash for
other platforms, the pathname is presented with a backslash. Users of platforms that require a
forward slash, such as Linux*, should use forward slashes as required by your software.
novdocx (en) 16 April 2010
10 System Planning, Deployment, and Best Practices Guide
1
ZENworks Configuration
novdocx (en) 16 April 2010
Management: A Single Solution
for Systems Management
The purpose of this System Planning, Deployment, and Best Practices Guide is to describe the issues
you need to consider when designing a Novell
solution and deploying it across small and large scale enterprises. This guide is not meant to replace
the other online resources that Novell provides to customers and partners, but to supplement that
material so that you have a better understanding of certain design-related topics and requirements.
ZENworks Configuration Management is also supported by other documentation (in both PDF and
HTML formats) that you can use to learn about and implement the product. For additional
documentation, see the ZENworks 10 Configuration Management SP3 (10.3) documentation (http://
www.novell.com/documentation/zcm10/index.html).
This following sections contain more information:
Section 1.1, “The Goal: Total Management, Zero Effort,” on page 11
Section 1.2, “The Management Paradigm,” on page 12
Section 1.3, “The Solution: ZENworks Configuration Management,” on page 13
®
ZENworks® 10 Configuration Management
1
1.1 The Goal: Total Management, Zero Effort
Over the last decade, Novell ZENworks has provided the gold standard for centralized configuration
and management of network endpoints in today’s complex, heterogeneous corporate networks.
ZENworks Configuration Management is a key implementation of ZENworks technology, enabling
policy-based automation of software and patch deployment, asset tracking, endpoint security, OS
migration, and many other routine tasks.
With ZENworks Configuration Management, IT staff can synchronize the Windows* desktop
environment with their company’s business policies, while saving IT time, budget, and resources for
strategic projects. All of this focuses on the ZENworks goal to provide total network management
while bringing the associated management effort as close to zero as possible.
Introduced in the last quarter of 2007, the latest version of ZENworks Configuration Management
moves toward that goal by using a completely redesigned architecture to greatly simplify,
consolidate, and integrate policy-based management of Windows network endpoints, including
systems running Windows Vista*.
The latest version of ZENworks Configuration Management does the following:
Provides a single modular architecture, platform, and agent for all ZENworks products
Provides a unified, Web-based administration console
Uses only standards-based protocols
Reduces overall wire traffic
ZENworks Configuration Management: A Single Solution for Systems Management
11
Allows full manageability over the Internet
Simplifies and speeds installation, deployment, and updates
1.2 The Management Paradigm
All design features of the new ZENworks Configuration Management architecture flow from the
basic Novell philosophy of the Open Enterprise: a simple, secure, productive, and integrated IT
environment across mixed systems. ZENworks Configuration Management empowers IT staff to
manage systems to support real users, with all their various security, location, device, and other
needs, while keeping simple, centralized control over the entire end-user environment. It also
supports the idea that IT staff should be empowered to manage systems according to the paradigm
that best reflects the organization’s business policies and the IT staff’s preferred working style.
ZENworks Configuration Management provides the flexibility to manage systems tactically (on a
device-by-device basis) or strategically (in synchronization with business policies), using any
combination of the three following distinct management paradigms:
Section 1.2.1, “Management by Exception,” on page 12
Section 1.2.2, “User-Based Management,” on page 12
Section 1.2.3, “Device-Based Management,” on page 13
novdocx (en) 16 April 2010
1.2.1 Management by Exception
Two of the most important considerations when evaluating any configuration management solution
are how well the administration design scales and what burden it places on the IT staff as they
update the solution to accommodate changing business policies. Novell is a pioneer of “management
by exception,” and ZENworks Configuration Management continues to offer this powerful method
of continuously adapting, with minimal IT effort.
Management by exception is a complement to policy-driven management. Management by
exception allows the general rules of configuration management to be at a high level across user or
device groups, while permitting exceptions at a more granular level to accommodate more
specialized needs.
For example, normal business policies might allow employees to remotely access the corporate
network. However, applying this policy across the board to all desktops, including devices in the
finance and legal departments, could expose the company to regulatory penalties and corporate
spies. Exception-based management allows IT staff to create and automatically enforce general
access policies, as well as more restrictive policies that are enforced on top of the general policies to
protect devices and users that require a higher degree of security. In this case, the exception policy
restricts access to normal business hours, on-site, and by authorized users. Exception-based
management allows for complete flexibility in accordance with business policies, without requiring
IT staff to manage separate policy silos for each type of user and machine.
1.2.2 User-Based Management
User-based management, which leverages user identities, group roles, and business policies, is the
gold standard for automation, security, and IT control. User-based management has always been a
Novell specialty. Although the underlying architecture has been dramatically enhanced in
ZENworks Configuration Management, the full power of user-based management has been retained.
12 System Planning, Deployment, and Best Practices Guide
True user-based configuration management separates users from the specific devices they use, and
treats the users as the company’s most valuable asset to be managed. Devices serve their proper role
as tools. Allowing users, rather than devices, to be managed as a first-class configured entity means
that policies, applications, and other configuration details can follow users from device to device.
User-based management also ties IT policies directly to business policies, which increases
responsiveness to changing business conditions. User-based management also leverages identity
stores and business systems across the enterprise to eliminate errors, increase security, standardize
workflows, document regulatory compliance, and support effective decision making.
User-based management can be defined as strategic, while device-based management is tactical. In
ZENworks Configuration Management, both can be mixed and matched according to business and
IT requirements by using management by exception. For example, a general policy can be applied to
a specific device and then overridden, depending on the identity information for the user who is
currently logged on. Or, a general policy based on user identities and roles can be overridden,
depending on the device being used and its context, such as a mobile device attempting to access the
network from beyond the firewall.
1.2.3 Device-Based Management
novdocx (en) 16 April 2010
Many organizations base their configuration management practices on the devices being managed.
In fact, this is the default method used by most of the configuration management products on the
market today. Without user-based and exception-based policy management, products that target
specific device configurations treat actual business policies and user needs as an afterthought—
essentially equating a specific user with a specific device. Applications, policies, and other
configuration information are associated to a managed device or set of managed devices. This
approach tends to force users into rigid roles instead of supporting users as dynamic participants in
evolving business processes. For that reason, Novell has not focused on device-based management
in the past.
However, the new ZENworks Configuration Management architecture adds device-based
management as a tool that can be used, in addition to the other management styles, to fill specialized
needs. For example, manufacturing-floor devices, public kiosks, and call centers where multiple
users work different shifts and share a single device are all instances where device-based
management might be more appropriate than user-based management. Additionally, companies that
normally rely on user-based management might need the ability to quickly set up a device for onetime use. For example, a customer might need to configure a device to auto-run a presentation in a
conference center without the bother of creating a new “user” for this one instance. With the new
ZENworks Configuration Management architecture, customers now have the option of using
device-based management whenever it suits their specific needs.
Because device-based management is the most familiar method to most IT professionals, and
because it is the fastest way to configure a device in the short term, before setting up long-term userbased policies, device-based management is the default management model after installing
ZENworks Configuration Management.
1.3 The Solution: ZENworks Configuration Management
ZENworks Configuration Management is based on an entirely new architecture designed to provide
a secure, highly usable, open environment for managing all of your Windows devices. ZENworks
Configuration Management provides you with a single, modular architecture that maximizes
ZENworks Configuration Management: A Single Solution for Systems Management 13
flexibility and scalability, simplifies and speeds management throughout the device life cycle,
minimizes processing demands on managed clients, reduces bandwidth consumption for
management processes, and uses standards-based protocols to seamlessly integrate with your choice
of user directories and object databases.
ZENworks Configuration Management lets you manage systems based on user identities, roles,
groups, and locations, so IT can work seamlessly with the company’s business organization and
policies. ZENworks Configuration Management gives you a secure, Web-based console for unified
control over all management tasks, from virtually anywhere.
If your organization is undertaking an Information Technology Infrastructure Library (ITIL)
initiative, ZENworks Configuration Management is the right choice for you. It has been built as a
modular set of components that use industry standards to build a product and set of solutions that
completely aligns with ITIL best practices and disciplines.
To find out more about our vision, visit the Novell ZENworks Configuration Management product
page (http://www.novell.com/zenworks) and download the white paper entitled A Blueprint for
Better Management from the Desktop to the Data Center.
novdocx (en) 16 April 2010
14 System Planning, Deployment, and Best Practices Guide
2
Performing Pre-Design Activities
novdocx (en) 16 April 2010
2
A firm understanding of the organization’s business and technical requirements and the existing
infrastructure components that will take part in the Novell
Management system is the first step in developing a solid design that meets the organization’s
immediate and future needs.
IMPORTANT: Throughout this document, we refer to the need for proper documentation.
Documentation is of the utmost importance. Documentation is a complete and accurate reference to
the system you have designed and built, but most importantly, it is a reference for the future. As
individuals transition in and out of the IT organization, the design documents become a reference as
new employees learn the infrastructure they support, including techniques, policies, and design
decisions. Documentation is also a good reference for others inside the organization who might not
be involved in the day-to-day management of the ZENworks Configuration Management
environment, but are involved in the management of other projects that might have an impact on the
ZENworks Configuration Management environment, including dependencies.
The following activities should be performed during the pre-design phase of implementing
ZENworks Configuration Management:
Section 2.1, “Perform a Business Assessment,” on page 15
Section 2.2, “Perform a Technical Assessment,” on page 16
Section 2.3, “Gather Other Critical Information,” on page 17
Section 2.4, “Develop High-Level Design,” on page 18
Section 2.5, “Develop Documentation,” on page 18
®
ZENworks® Configuration
Section 2.6, “Outputs from Pre-Design Activities,” on page 19
2.1 Perform a Business Assessment
Your first need is a detailed business assessment. If you do not have a solid understanding of what
the overall business (or individual business units) needs or desires, you cannot design a solution to
meet business needs.
Systems management software affects the entire business, so the various departments should
provide input and influence on what the system should look like. This does not mean that
departments outside of IT need to understand the technical complexities of the infrastructure and
how it is designed; they simply need to provide business requirements to the IT organization so that
their needs are met.
The best way to handle this is through a set of informal workshops, which include high-level
introduction to the technology, what it does, how the departments and end users benefit, and
possibly a short demonstration of the product. The three main reasons you hold these workshops are
to inform departments of what you are doing, get their buy-in, and get their feedback in the form of
technical requirements. The meetings should sufficiently inform department members so they begin
to give you feedback as to how they will leverage the system.
Performing Pre-Design Activities
15
The following list presents some ideas on how to perform the business assessment. You might think
of more ideas; use your imagination and tailor your business assessment according to each
organization's unique landscape.
Hold informal workshops and invite leaders from each department.
Survey departmental leaders and find out what they need to become more effective in their
roles. Find out how their staff can become more effective, given the software you are
deploying. Getting departmental leaders to answer a written survey can be very effective and
can give you detail that can be used when building both the high-level and the detailed designs.
A sample survey is provided in Section D.2, “Sample Business Requirements Survey
Questions,” on page 113.
Make sure you completely understand how the organization is dispersed and which
departments of the organization are represented at each of its physical locations.
Make sure you understand the monthly cycles for each of the departments in the organization.
This will assist you with determining peak times when the organization cannot afford to be
impacted by downtime.
Determine whether the organization is going through an ITIL (IT Infrastructure Library)
initiative. This has a direct impact on the solution you design and the services you provide. If
there is an initiative underway, you need to be involved in it and be completely informed. You
want to avoid making design changes mid-project because of the output from another project.
novdocx (en) 16 April 2010
2.2 Perform a Technical Assessment
You next need is for a technical assessment to review what you already have, identify what you
need, and document your requirements.
It is important to note that the technical assessment should be performed at the same time as the
business assessment. The two assessments should take no longer than a week to perform, depending
on the size and complexity of the organization and its infrastructure.
You need to have a good understanding of the existing infrastructure well before you introduce
ZENworks Configuration Management into the environment. In order to do this, you should hold a
set of workshops or meetings to obtain the information you need.
The two main outputs from a technical assessment are documentation on your findings, along with a
set of tasks that you need to perform. Information that you should gather includes the following:
Which operating systems must be supported?
How many users must be supported by the proposed solution?
Will there be support for roaming users?
How many offices and sites must the solution support, and how many users are at each
location?
Where are data centers located?
What is the network architecture, with details on link speeds, and so forth?
Will existing servers will be leveraged to support the ZENworks Configuration Management
infrastructure?
16 System Planning, Deployment, and Best Practices Guide
If so, you should gather the following software and hardware information:
Service pack levels (and whether they meet the minimum requirements for ZENworks
Configuration Management as listed in “Primary Server Requirements” in the ZENworks
10 Configuration Management Installation Guide)
Other software, for example, .NET.
CPU and memory requirements (and whether they meet the minimum requirements for
ZENworks Configuration Management)
IP addressing for all servers and other devices that will be part of the ZENworks
Configuration Management infrastructure
Previous versions of ZENworks that might already be hosted
What is the DNS infrastructure?
What is the DHCP infrastructure?
How should the IP subnet design be handled?
Which network access methods (VPN, Access Manager, and so forth) must be supported?
Which network infrastructure components and design (DMZ, NAT, and so forth) must be
supported?
What is the directory services design, including which directory services are being utilized
(Novell eDirectory
®
, Microsoft* Active Directory*, and so forth), and for what purpose
(Application support, LDAP, and so forth)?
novdocx (en) 16 April 2010
2.3 Gather Other Critical Information
You should also be familiar with other services that are running on the network and that rely on the
infrastructure. You should prioritize these services to better understand bandwidth utilization and
service levels that have been assigned to specific functions. If the customer is implementing ITIL
best practices, you should know about all disciplines that are currently being leveraged.
You should collect information about the following:
Which Service Desk software is currently used by the customer, and how does the deployment
of ZENworks Configuration Management fit within this framework?
Does the customer have a formal Service Level Agreement (SLA) process in place? If so, what
is it and can you access the documentation that explains it?
What is the customer’s Disaster Recovery and Service Continuity plans? How does this impact
the ZENworks Configuration Management design?
How does the customer plan for availability of services and resources? Is the customer fully
aware of availability requirements?
Does the customer leverage a Configuration Management Database (CMDB)? If so, which
CMDB? Does the customer have plans to include information that is stored in the ZENworks
database in their CMDB?
Does the customer have a formal method for keeping track of changes to applications that are
published to the end-user communities?
Does the customer have a Definitive Software Library (DSL) and Definitive Hardware Library
(DHL)?
Performing Pre-Design Activities 17
Is the customer using another framework product in its infrastructure, such as IBM* Tivoli*,
CA Unicenter*, or HP* OpenView*?
Does the customer leverage other products, such as SAP?
What other major projects are currently taking place at the customers sites?
2.4 Develop High-Level Design
After you have completed gathering data to use when building the design of the infrastructure, you
can then develop a high-level design. It is important at this point to understand what the
infrastructure is going to look like, so documenting your high-level thoughts and plans is critical to
the success of the project.
Developing a high-level design consists of building two main outputs:
Assessment document: A high-level design document outlines the general placement of
services across the company's infrastructure. This document does not need to identify servers to
be utilized or deployed to host the specific ZENworks services. The document should simply
outline the services themselves, and where they will reside across the network. Your high-level
design should include the following information:
Number of ZENworks Management Zones needed
novdocx (en) 16 April 2010
Placement of Primary Servers
Placement of Satellite devices
Placement of the Database Servers
Services that run at each location, based on the requirements gathered during the business
assessment.
Configuration of network services, such as DNS (forward/reverse lookup), DHCP, and so
forth
Utilization of network infrastructure, such as L4 switches to front the Primary Servers,
Satellite devices, or both
Remote access capabilities
High-level graphical design diagram: As a supplement to the assessment document, you
should also develop a graphical representation of the infrastructure. This diagram should reflect
exactly what you have described in the document, and it should be at a high enough level so
that everyone can see what the infrastructure is going to look like after the ZENworks
Configuration Management deployment is complete.
2.5 Develop Documentation
It is important to develop your documentation and then discuss it with all parties that have an
interest in the success of the project. Discussing the findings and recommendations in detail is
important to the success of this phase of the project and the success of the more detailed design
phase.
After you have conducted meetings to discuss the findings and recommendations, there will be items
in the high-level design that must be modified or changed. This is normal. Ensure that you capture
the changes and include them in documents you created during this phase. This is important so that
you have accurate information throughout the life cycle of the project. The information in these
documents will be leveraged during the design phase, so it needs to be complete and accurate.
18 System Planning, Deployment, and Best Practices Guide
2.6 Outputs from Pre-Design Activities
As mentioned in Section 2.4, “Develop High-Level Design,” on page 18, there are two main outputs
(or deliverables) from your pre-design activities:
Assessment document: This document highlights all of your findings from the business and
technical assessments that you perform. The document is the foundation for performing your
design activities, and needs to be kept up to date. The document includes information such as:
Requirements gathered during meetings and workshops with department leaders and
others inside the organization that will have an influence on the services ZENworks
Configuration Management will deliver.
A detailed summary of your technical findings, and what needs to change in order to
support ZENworks Configuration Management in the infrastructure. Suggestions should
include best practices and detailed recommendations to resolve any known issues.
High-level design information, including general placement of services and other
infrastructure components.
High-level graphical design diagram: This diagram is used to visually understand what the
infrastructure will look like after the deployment is complete. This is a foundational document,
and it should be further refined during the design phase of your project.
novdocx (en) 16 April 2010
Performing Pre-Design Activities 19
novdocx (en) 16 April 2010
20 System Planning, Deployment, and Best Practices Guide
3
Gathering Critical Information for
novdocx (en) 16 April 2010
Design Activities
After you have created your high-level design, you need to gather additional information to help you
design your specific implementation. Introducing Novell
into an environment involves the efforts, considerations, and input from multiple sources.
The following sections highlight the major areas of concern:
Section 3.1, “Design Criteria/Decisions,” on page 21
Section 3.2, “Scalability of the Primary Server,” on page 25
Section 3.3, “Scalability of Satellite Devices,” on page 30
Section 3.4, “Scalability, Fault Tolerance, Maintenance, and Sizing of the Database Server,” on
page 34
Section 3.5, “Virtualization Considerations,” on page 37
Section 3.6, “Ports Used by ZENworks Components,” on page 38
Section 3.7, “Network Considerations,” on page 40
3.1 Design Criteria/Decisions
A fundamental objective of a design is to balance the need for hardware while easing the load on the
customer's network during deployments.
®
ZENworks® Configuration Management
3
The following sections contain more information:
Section 3.1.1, “Decisions to Make Before Installing the Primary Server,” on page 21
Section 3.1.2, “Infrastructure Placement,” on page 24
Section 3.1.3, “Infrastructure Scale Assumptions,” on page 25
3.1.1 Decisions to Make Before Installing the Primary Server
A number of decisions should be made before installing the first ZENworks Primary Server.
The following sections contain more information:
“Required Functionality” on page 22
“Certificate Authority” on page 22
“Management Structure” on page 22
“Application Store” on page 22
“Staging and Grouping” on page 23
Gathering Critical Information for Design Activities
21
Required Functionality
Only the functionality that is needed by the customer should be enabled. Start with a simple
approach, harden the implementation, and then expand it in the future. For example, if Patch
Management, User Sources, and BOE Reporting are not required by the customer, do not enable or
install them.
Certificate Authority
ZENworks Configuration Management provides the choice of using an external Certificate
Authority (CA) or an internal ZENworks CA. The ZENworks CA is created during the installation
of the first ZENworks Primary Server and is used throughout the life of that ZENworks
Management Zone. The current lifespan of the internal certificate is ten years.
As each subsequent Primary Server is installed, its certificate is signed by the CA. The certificate is
distributed to all managed devices as part of the ZENworks Adaptive Agent installation. This lets
each Adaptive Agent connect to any Primary Server because each server’s certificate is signed by
the trusted CA.
Currently, there is no easy automated method for changing the CA. To change it, each server's
certificate must be re-minted and the certificate of the new CA must be delivered to all managed
devices. For this reason, the decision to use an external CA must be considered very carefully.
Certificates provided by VeriSign* usually expire after one or two years. If you use these
certificates, ZENworks Configuration Management loses all functionality on the expiration date
because ZENworks Adaptive Agents cannot check into the ZENworks Management Zone.
novdocx (en) 16 April 2010
Management Structure
With the previous generation of ZENworks, the technology was tied closely to Novell eDirectory
®
In traditional NetWare
or eDirectory file and print environments, ZENworks is structured
®
according to the design of eDirectory and was therefore based on geography. However, geography is
no longer a requirement for the structure of folders in the Management Zone. Because devices can
connect to any Primary Server, and all Primary Servers should be linked over fast links, the structure
of management can be based on other criteria.
Customers might want to base the folder structures for devices on business functions, such as
Human Resources, Finance, Sales, and so forth.
Basing the device folder structure on geography is still possible and might be required by many
customers. Some customers might want to implement policies and applications site by site, room by
room, and so forth.
Application Store
Traditional ZENworks implementations require file repositories to store application content. Users
and devices access this content via mapped network drives or directly via UNC paths defined in the
application object. Although this fits well with a traditional file and print model, it has the following
drawbacks:
Synchronization: If an application is to be made available to all users, the source content must
be copied to all servers. This requires additional products and processes to be introduced to
manage the location of content, such as the Tiered Electronic Distribution component of
ZENworks Server Management.
.
22 System Planning, Deployment, and Best Practices Guide
Rights: When files are stored in a traditional file and print model, the rights to these locations
must be managed carefully. If users roam between sites, they might need access to all
application repositories to ensure that applications can be installed and verified at any location.
With ZENworks Configuration Management, bundles can be created to install applications
from mapped network drives and UNC paths as before. If you used mapped drives and UNC
paths, file synchronization and the rights to those files must be managed outside of ZENworks
Configuration Management.
ZENworks Configuration Management also allows for application content to be injected in to the
ZENworks Content Repository. By default, the Content Repository is synchronized between all
Primary Servers and is downloaded by devices using HTTP. You can, however, specify which
Primary Servers host content (at least one Primary Server must host the content).
Using the ZENworks Content Repository has the following advantages:
Synchronization: Content is automatically synchronized to other Primary Servers and Satellite
devices. This allows devices to download content from the most appropriate location.
Rights: Rights to files do not need to be managed. Only device and users who are assigned to
the content in ZENworks Configuration Management have access to that content. If a user
accesses a ZENworks Content Repository, the content files are encrypted and cannot be used.
In a traditional model, a user with read access to an application store has the ability to manually
install any application that resides there.
novdocx (en) 16 April 2010
Content is firewall and location friendly: Files are delivered encrypted over HTTP. This
means that there is no need for the user to have the correct drive mapping with the necessary
rights. If the user has been assigned the content, it is downloaded via HTTP from the most
suitable location.
Downsides to using the Content Repository include the following:
Disk Space: Additional disk space is required. Many customers have extremely large
application repositories distributed over many servers. These repositories must be re-created in
ZENworks Configuration Management. If a customer has a 100 GB application repository,
ZENworks Configuration Management requires at least 100 GB on each Primary Server to
store applications, in additional to the space needed for other content, such as patches and
system updates.
MSI applications cannot be easily changed: After an MSI application is uploaded to the
Content Repository, it cannot be changed. To make changes, the original MSI must be updated
and then re-injected back into the Content Repository. In this scenario, a master store of all
applications must reside outside of ZENworks Configuration Management to allow for edits.
Staging and Grouping
Grouping devices is very important in ZENworks Configuration Management because it allows
applications, policies, and system updates to be deployed in a staged fashion.
We recommend that the following groups are identified in your customer environment:
Test devices: Identify test devices that are first to receive updates. Ensure that build versions
are represented for each operating system in the field.
IT departments: Identify IT staff that are typically the first users to receive live updates and
applications.
Gathering Critical Information for Design Activities 23
Early adopters: Identify early adopters who will test deployment in each business unit and
geographical location.
Home workers/VPN users: Identify home workers or users who use a VPN so they can help
test deployment via DMZ and VPN connections.
VIP users: Identify important users whose devices require special focus and attention. You
might want to transition executive laptops and workstations at the end of deployment.
General population: Create logical groups for the rest of managed devices, based on business
function or geography.
3.1.2 Infrastructure Placement
In order to calculate what infrastructure is required and where it should be located, you need to plan
for the scalability of ZENworks Configuration Management.
NOTE: At the time of writing this document, the SuperLab facility in Provo, Utah has provided
metrics and results, as seen in various places in this section, that give you a better understanding
about how the individual components scale. These figures will be kept up-to-date as this document
continues to grow over time.
novdocx (en) 16 April 2010
Based on the connection information, the number of ZENworks Primary Servers and Satellite
devices needed to support thousands of devices can be calculated with the following rules in mind:
“Primary Servers” on page 24
“Satellite Devices” on page 24
Primary Servers
Each Primary Server must be connected to every other Primary Server, the database, and the user
source by LAN speed or close links. Placing Primary Servers behind strong links allows for content
synchronization, credential verification from the user source, and access to the ZENworks
Configuration Management Database Server to occur quickly and efficiently. Performance suffers,
including response times when using ZENworks Control Center to perform administrative tasks, if
there are any barriers between Primary Servers and the Database Server,.
Satellite Devices
When configuring satellite devices, consider the following:
Currently, Satellite devices are primarily designed to reduce load on the network, not to reduce
load on the Primary Servers.
Bandwidth calculations are based on ZENworks Configuration Management having access to a
known percentage of the total bandwidth for a given link.
Satellite devices should be located at remote sites to provide content local to devices on the
local network.
24 System Planning, Deployment, and Best Practices Guide
3.1.3 Infrastructure Scale Assumptions
The following scale assumptions should be made when building the design of the infrastructure.
These actual scale assumptions might be different, based on the services you are providing and how
you break up the services across multiple servers.
ZENworks Primary Server: A single ZENworks Primary Server can provide all ZENworks
services (content, collection, and configuration) for as many as 3,000 devices in a ZENworks
Management Zone.
This is based on a Primary Server handling approximately 1,000 concurrent connections for all
service types (content, configuration, and content).
This is not real-world; see Section 3.2, “Scalability of the Primary Server,” on page 25 for
additional details on how these figures can change, and what you need to consider to ensure
that you are scaling to meet the needs of the organization.
Server-grade Satellite device: A single ZENworks Satellite (dedicated server) can provide
content services for as many as 1,000 concurrent devices.
This is not real-world; see Section 3.3, “Scalability of Satellite Devices,” on page 30 for
additional details on how these figures can change, and what you need to consider to ensure
that you are scaling to meet the needs of the organization.
Workstation-grade Satellite device: A single ZENworks Satellite (dedicated workstation)
can provide content services for as many as 250 concurrent devices.
novdocx (en) 16 April 2010
This is not real-world; see Section 3.3, “Scalability of Satellite Devices,” on page 30 for
additional details on how these figures can change, and what you need to consider to ensure
that you are scaling to meet the needs of the organization.
3.2 Scalability of the Primary Server
Understanding the scalability of the individual components that make up the ZENworks
infrastructure is of the greatest importance. You need to understand the limitations and where you
can expect to see performance degradation to ensure that you build an infrastructure that can
perform well, regardless of the load that your end-user community places on it.
The first area that you need to consider is the scalability of the Primary Server. It is important to
design your Primary Server placement based on the information you collected during your
assessment phase and what you anticipate your overall design will require. You should design your
infrastructure so that there are always Primary Servers available to service devices and the
administrators that are managing the system.
The following sections contain more information:
Section 3.2.1, “Factors Influencing Scalability,” on page 26
Section 3.2.2, “Load Testing in the Novell SuperLab,” on page 26
Section 3.2.3, “Achieving Scalability in the Real World,” on page 29
Gathering Critical Information for Design Activities 25
3.2.1 Factors Influencing Scalability
The main physical factors that govern the scalability of the Primary Servers are:
RAM: The majority of operations are performed by two services: zenserver and zenloader.
Each of these services can consume approximately 1.2 GB of RAM.
Disk I/O: Disk I/O is used when serving content for applications and updates.
The minimum hardware recommendations are listed in “Primary Server Requirements” in the
ZENworks 10 Configuration Management Installation Guide. If you can provide hardware that
exceeds these recommendations, your system will perform better. Adding more RAM, however,
does not make the specific ZENworks services (zenserver and zenloader) respond more quickly.
This is a Java* related issue and will be resolved in the future by moving from a 32-bit JVM* to 64bit JVM. If possible, we recommend that you use a 64-bit OS, so that you are ready when this
change is made. Additional processing power and faster drives can make the systems more
responsive, for example:
Using a quad core processor
Using 4 GB RAM
Allocating as much disk space as you can (RAID 5 with separate physical drives to separate
content and ZENworks Configuration Management from the OS)
novdocx (en) 16 April 2010
There are other factors that you need to consider, including:
Device refresh frequency
Number of Primary Servers being used to deliver content to the managed devices (software,
policies, images, patches, inventory collection, and so forth)
Number of administrators who have access to ZENworks Control Center
Frequency of uploading content in the ZENworks Content Repository
Number and frequency of reports run by administrators
3.2.2 Load Testing in the Novell SuperLab
ZENworks Configuration Management is tested in the Novell SuperLab in Provo, Utah to see how
much load can be placed on the individual components, and more importantly, where the individual
components start to break down and when performance is dramatically affected.
These tests provide insight on how far you can stretch the infrastructure design (for example, how
many Primary Servers you need, based on the components and services you plan to deliver).
The following three tests show how Primary Servers react under different loads, and how quickly
they can service individual requests when load is increased.
The test included the following hardware and software:
A Dell* 2950 Dual Quad Core 2.0Ghz, 4 GB RAM, RAID 5 (4 X 300 GB) server was used for
the Primary Server.
Windows Server* 2003 Enterprise on a 64-bit device.
ZENworks Configuration Management shipping code.
Deploying 100 MB of bundles (11 bundles) to an increasing number of devices.
26 System Planning, Deployment, and Best Practices Guide

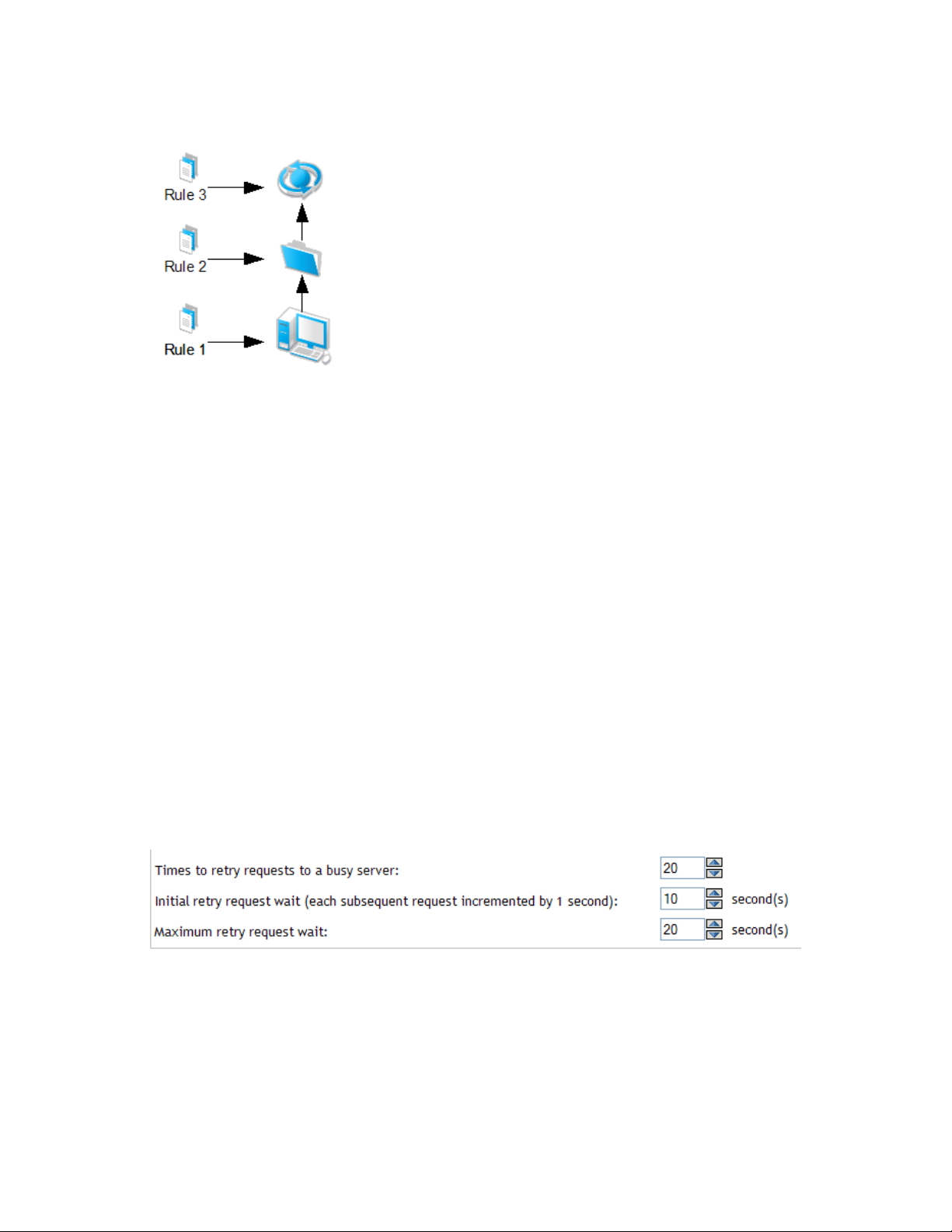

All ZENworks Control Center settings used the default; after the 500-device test, retries were
420
390
360
330
300
270
240
210
180
150
120
90
60
30
0
200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
Number of Devices
Average Time to Refresh
(in seconds)
Single Server
Time to Refresh
(in seconds)
30.20
60.26
116.68
234.31
234.31
boosted to 800/10/20.
Three test passes for each test were run (for example, three test runs with 250 devices).
All devices were refreshed “simultaneously” (within 30 seconds).
The bundles were chained with the first bundle being associated to a device group set to
launch on refresh.
All tests were run on a full gigabit network.
The following sections contain more information:
“Test 1: Average Time to Refresh” on page 27
“Test 2: Average Time to Download” on page 28
“Test 3: Administrative Tasks Performed Under Load” on page 28
Test 1: Average Time to Refresh
In this test, we used a single ZENworks Primary Server and refreshed all machines inside the lab at
the same time. The devices then contacted the Primary Server at approximately the same time. We
calculated the amount of time it took for the refresh of the ZENworks Adaptive Agent to complete.
As the load increased, the average time increased as well. In fact, the time to complete the refresh
increased considerably at the 1,000 device mark. Between 1,000 and 2,000 devices, the amount of
time it takes to complete the refresh more than doubled.
novdocx (en) 16 April 2010
The Primary Server scaled well to this point; however, this does not mean that you should
implement a single Primary Server to manage 3,000 managed devices. You must always consider
the services that are being implemented, and most importantly, fault tolerance and load balancing.
The following graphic shows the average time to refresh managed devices:
Figure 3-1 Average Time to Refresh
Gathering Critical Information for Design Activities 27
Test 2: Average Time to Download
45
40
35
30
25
20
15
10
5
0
200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
Number of Devices
Average Time to Download
(in minutes)
Single Server
Time to Download
(in minutes)
5.11
7.81
15.57
22.84
30.57
This test demonstrates the results of a download of 100 MB of bundle content, spread across 11
bundles that are chained together. The server load increased as the load (in terms of devices)
increased.
The following graphic shows the number of minutes it took to download the content:
Figure 3-2 Average Time to Download
novdocx (en) 16 April 2010
Test 3: Administrative Tasks Performed Under Load
This test used a series of administrative tasks performed on a server with no load and then with a
load. These results demonstrate what to expect in a given environment when a certain load is placed
on a Primary Server that is multi-tasking. This test provides insight into what you can expect if you
do not properly distribute services across multiple Primary Servers. These are conditions that should
not exist in a real-world environment; Novell runs these tests to see when the processes begin to
break. A well-designed infrastructure should perform well for you regardless of the load you are
placing on the servers.
The load consisted of 480 devices running the Daily Use Test.
The Daily Use Test environment in the Super Lab consisted of the following:
Single Server: Windows Server 2003 x86_64
Server hardware: Dell 2950, Quad Core 2.0 MHz, 8 GB RAM
External Microsoft SQL Server* 2005 database
Definition of the “Daily Use” included the following:
24-hour period simulated in four hours
Three bundle pushes of 105 chained bundles (30 MB to 1 KB) per device
One full and three delta inventory scans per device
28 System Planning, Deployment, and Best Practices Guide
One patch distribution per device
Four device refreshes per device
Ten devices continually restoring images
This test environment stretched the limits of what the ZENworks Configuration Management
system is able to achieve, giving us a good idea of where the system starts to reach its limitations. It
comes close to a real-world simulation.
Table 3-1 Tests and results.
novdocx (en) 16 April 2010
Test Name Test Description
BOE Report Run Predefined BOE
report - Bundle
Deployment Status (313
pages)
Inventory Report Run canned report
“Devices By Machine /
Login Name”
Policy Create policy, assign it to
60 devices, and perform
a quicktask on all 60
devices to get the policy
Multicast Create Multicast bundle
and multicast to 60
devices
Bundle Create an MSI Bundle of
OpenOffice, assign it to
60 devices, and refresh
all 60 by using a
quicktask
Primary Server Under No
Load
15 seconds 18 seconds
7 seconds 8 seconds
7 minutes 43 seconds 7 minutes 45 seconds
4 minutes 20 seconds 4 minutes 27 seconds
25 minutes 30 seconds 1 hour 10 minutes 17
Primary Server Under
Load
seconds
When the server is under load, and we created an MSI bundle and assigned it to 60 devices, there is
a large increase in the amount of time it takes to complete the task. In this situation, it is
recommended that you have a dedicated server for ZENworks Control Center so that there would be
virtually no impact on performance.
The ZENworks Control Center is used by administrators to perform administrative tasks, including
the management of content within the system. For environments that are managed by a small
number of administrators (one or two), accessing ZENworks Control Center from a Primary Server
that is also performing work might not be cause performance issue. For larger implementations
(several thousand devices, large amounts of daily content activity, and several administrators),
having a dedicated Primary Server in place for ZENworks Control Center resolves potential
performance issues.
3.2.3 Achieving Scalability in the Real World
Section 3.2.2, “Load Testing in the Novell SuperLab,” on page 26 discussed testing in the Novell
SuperLab to determine the limits of the ZENworks system. Scalability, on the other hand, is
achieved through the proper placement of services, a well thought-out design, and the proper
configuration of services within the ZENworks Configuration Management system itself.
Gathering Critical Information for Design Activities 29
For example, even though we know that a Primary Server can manage 3,000 devices, you should
never deploy only one Primary Server in a 3,000-device environment. For this situation, we
recommend the following as a starting point:
Three Primary Servers to manage load and build a system that is fault tolerant.
A dedicated Database Server using Sybase*, Oracle*, or Microsoft SQL Server.
This system should be further enhanced by considering the following:
Using an L4 switch to manage fault tolerance and load balancing.
Using DNS and aliases for managing the load placed on Primary Servers during deployment
and registration.
Using custom Closest Server Rules to designate certain servers for specific functions (content,
collection, etc.) and to exclude servers from specific functions, or all functions. If a Primary
Server is not listed in the Closest Server Rules, then it does not perform the functions.
Using a dedicated Primary Server for reporting.
Using a dedicated Primary Server for Patch Management.
Using a dedicated Primary Server for imaging.
novdocx (en) 16 April 2010
Using a dedicated Primary Server for ZENworks Control Center.
Using Satellite devices for distribution of content.
The Primary Servers are the heart of your ZENworks Configuration Management environment. You
want to protect these systems from major disruption. Primary Servers can be used for distribution of
content, but this needs to be factored in to your design.
Some of the major factors that you need to consider with ZENworks Configuration Management
and Primary Servers are the following:
Each Primary Server can comfortably handle 1,000 concurrent connections.
Each Primary Server can manage 3,000 devices that are registered into the ZENworks
Management Zone.
A ZENworks Management Zone can scale to 40,000 devices. This has been validated in the
SuperLab and is what Novell recommends as the upper limit to the Management Zone size.
We also recommend that Primary Servers and the Database Server be on the same network, in the
same data center. We do not recommend spanning WAN links with Primary Servers because
replication of the Content Repository could cause utilization issues. Placement of services in a
multi-site environment is done by utilizing the Satellite role, which is discussed in more detail in the
next section.
3.3 Scalability of Satellite Devices
The second area that you should carefully consider is the scalability of the Satellite devices. Satellite
devices are designed to reduce load on the network, not to reduce load on the Primary servers.
Satellite devices help reduce redundant traffic, load, and utilization from the WAN. Even if devices
are located at a remote site, they connect to the central site for authentication and checking in with
the Primary Servers to see if there is work to do. The actual work should be performed with remote
Satellite devices strategically placed to service work requests from managed devices.
30 System Planning, Deployment, and Best Practices Guide
The following sections contain more information:
Section 3.3.1, “Factors Influencing Scalability,” on page 31
Section 3.3.2, “Load Testing in the Novell SuperLab,” on page 31
Section 3.3.3, “Achieving Scalability in the Real World,” on page 33
3.3.1 Factors Influencing Scalability
The major factors influencing scalability of Satellite devices include:
Disk I/O and the requests that the Satellite device is concurrently managing
Size of the subnets and their respective network speed
Services the Satellite device is performing (imaging, inventory collection, and distribution)
Disk capacity (the Satellite device must have enough capacity to cope with the required
content)
Physical memory (RAM) installed on the Satellite device
The number of managed devices the Satellite device is managing
novdocx (en) 16 April 2010
The frequency of distributions and the number of concurrent connections
Whether inventory collection or software distributions are randomized
Whether an L4 switch fronts the Satellite devices at a particular location
Whether Satellite device groups are used
Class of hardware (server-class hardware performs better than workstation-class hardware)
Class of operating system (a Satellite device running on Windows Server can handle more
requests and workload than a Satellite device running on Windows XP or Windows Vista)
Keeping these factors in mind, you should build your design to manage the known devices and
estimated ongoing workload.
3.3.2 Load Testing in the Novell SuperLab
Novell performed Satellite device scale tests using both server-class and workstation-class operating
systems. As with testing that was performed on the Primary Server, the purpose of the tests was to
find the point where the systems began to reach their limits. This gives us an understanding of scale
under severe load.
The tests included the following:
Server-class Satellite devices: Dell PowerEdge 2950, Dual Quad Core 2.0Ghz, 8 GB RAM, 2
X 300 GB SAS hard drives running Windows 2003 Enterprise.
Workstation-class Satellite devices: White box, AMD 3400+, 2 GB RAM, 80 GB SATA hard
drive running Windows XP SP3.
Gathering Critical Information for Design Activities 31
The Novell Corporate Configurations Test (CCT) team, using the baseline test of 250 bundles (1 KB
1400
1200
1000
800
600
400
200
0
6102550
Bundle Size
Number of
Managed
Devices
Server OS
Workstation OS
file bundles), had the following results:
A server operating system (Windows 2003 Enterprise) machine can scale to 1,000 managed
devices.
A workstation operating system (Windows XP SP3) machine can scale to 250 managed
devices.
The following sections contain information about three tests performed in the SuperLab with
Satellite devices:
“Test 1: Bundle Size” on page 32
“Test 2: Server OS Delivering Multiple Chained Bundles” on page 33
“Test 3: Workstation OS Delivering Multiple Chained Bundles” on page 33
Test 1: Bundle Size
Test results show how large a single bundle can be to be distributed by a Satellite device to managed
devices. These results are useful when you begin to estimate how many Satellite devices are
required based on the ongoing estimated load. You need to calculate estimated load during the
design phase as you work with the different groups that manage processes around software
distribution, patch distribution, inventory collection, and image distribution. You need to know how
frequently these processes are required, and the estimated size of the typical distribution or
collection.
novdocx (en) 16 April 2010
Server OS
Bundle Size (MB)
6 1004 1004 259 259
10 1004 1004 259 259
25 1004 968 259 259
50 1004 801 259 248
Number of Managed
Devices in Test
The following graph shows what you can expect in terms of Satellite device scalability given the
conditions of the test:
Figure 3-3 Bundle size.
32 System Planning, Deployment, and Best Practices Guide
Server OS
Number of Managed
Devices Successful
Workstation OS
Number of Managed
Devices in Test
Workstation OS
Number of Managed
Devices Successful
The graph illustrates the probable scalability limitations of the Satellite device. Under normal load,
and through the use of proper configuration parameters (for example, randomizing distributions and
collections) we can comfortably conclude that a Satellite device running on server-class hardware
and Windows Server can scale to approximately 1,000 managed devices, and a Satellite device
running on workstation-class hardware and Windows XP or Vista can scale to approximately 250
managed devices.
Test 2: Server OS Delivering Multiple Chained Bundles
This test shows the results of a Satellite device running on a server OS delivering multiple chained
bundles to connected managed devices. This information is useful when calculating how much load
you can place on the Satellite device running on a Server OS when deploying applications that are
chained. This obviously can differ greatly from deploying single bundles.
novdocx (en) 16 April 2010
Number of Bundles Bundle Sizes in MB
5 10, 15, 20, 25, 30 999 996
4 5, 10, 15, 20 999 996
Total Number of Managed
Devices
Number of Devices
Successful Managed
Test 3: Workstation OS Delivering Multiple Chained Bundles
This test shows the results of a Satellite device running on a workstation OS delivering multiple
chained bundles to connected managed devices. This information is useful when calculating how
much load you can place on the Satellite device on a workstation OS when deploying applications
that are chained together. This obviously can differ greatly from deploying single bundles.
Number of Bundles Bundle Sizes in MB
5 10, 15, 20, 25, 30 259 259
4 5, 10, 15, 20 259 259
Total number of Managed
Devices
Number of Devices
Successfully Managed
3.3.3 Achieving Scalability in the Real World
The testing in the SuperLab tests the upper limits of a Satellite device. It is important to note that if
you are deploying a bundle that is less than 25 MB in size, we see successful distributions to both
250 and 1,000 managed devices from workstation-class and server-class Satellite devices. With this
as a known, we can safely assume that by doing the following, you can achieve these levels of
scalability, and quite possibly much more:
For larger sites (more than 250 managed device):
Have a dedicated Satellite device for imaging purposes.
Have a dedicated Satellite device for inventory collection if the collection frequency is
high. In other words, if you are collecting daily, you want the server to be dedicated, but if
you are collecting monthly, you can collapse this service into another Satellite device
onsite.
Gathering Critical Information for Design Activities 33
Have a dedicated set of Satellite devices for software and patch distributions if the
frequency of distributions is high. You want to randomize the distribution of software and
avoid massive numbers of devices hitting the Satellite device at the same time.
Randomize the refreshes of managed devices at the site with Satellite devices.
For smaller sites (fewer than 250 devices):
Have multiple Satellite device that share load and responsibility.
Do not be significantly concerned about designating specific servers for specific
functions.
Randomize the refreshes of managed devices at the site with Satellite devices.
3.4 Scalability, Fault Tolerance, Maintenance, and Sizing of the Database Server
The primary considerations about database scalability include:
How many devices are you managing? If you need to scale past 5,000 devices, you might want
to consider putting the database in either Oracle or Microsoft SQL Server.
Can you leverage clustering technologies to achieve fault tolerance for the database? This
ensures that the database is always available.
novdocx (en) 16 April 2010
The following table lists the number of devices different databases can handle in a production
environment:
Database Platform Number of devices
Sybase (embedded) As many as 1,000
Sybase (remote) As many as 5,000
Microsoft SQL Server 2005 5,000 to 40,000
Oracle 10g 5,000 to 40,000
Ensure that you use the vendor database backup tools to regularly back up the database. This ensures
that if the database is lost, you can restore from a backup and get back to operations quickly.
The following sections highlight recommended best practices when managing and maintaining your
Database Server:
Section 3.4.1, “Sybase,” on page 34
Section 3.4.2, “Microsoft SQL Server,” on page 35
Section 3.4.3, “Oracle,” on page 36
Section 3.4.4, “Database Sizing and Performance Considerations,” on page 37
3.4.1 Sybase
One of the most important aspects of Sybase database maintenance is regular backups of the
database files. You can use zman commands to back up the Sybase database. For more information,
see “Database Commands” in the ZENworks 10 Configuration Management Command Line
Utilities Reference.
34 System Planning, Deployment, and Best Practices Guide
3.4.2 Microsoft SQL Server
The most important aspects of managing and maintaining a Database Server that is hosted on a
Microsoft SQL Server are the following:
The customer must have the skills in-house, or readily available (contractor, consultant, or
partner) to manage and maintain the Microsoft SQL Server based on the best practices that
Microsoft outlines for regular database management.
There must be regular database backup routines in place. This should also be documented in the
design document.
There must be regular database maintenance routines in place. This should also be documented
in the design document.
Considerations for clustering (high availability) of the Database Server should be made and
documented.
Microsoft SQL Server 2005 has a Maintenance Plan Wizard in the SQL Server Management Studio.
This tool should be readily available to any customer that is utilizing Microsoft SQL Server in their
data centers.
novdocx (en) 16 April 2010
Maintenance tasks that can be scheduled include the following:
Check database integrity
Shrink database
Reorganize index
Rebuild index
Update statistics
Back up database
These tasks should be thoroughly understood before performing them on a live system that is
hosting the ZENworks Configuration Management database.
Microsoft recommends the following when managing Microsoft SQL Server 2005:
Backups should be performed daily.
A Database Integrity Check should be performed every 14 days.
Reorganizing or rebuilding indexes should be done when fragmentation is excessive. If
fragmentation is greater than 30 percent, an index should be rebuilt. To determine the
fragmentation of the indexes in your database, use the dynamic memory view
'sys.dm_db_index_physical_stats'. Novell recommends that rebuilding indexes should be done
at least once per week because the clustered indexes will be fragmented over 75 percent within
a few days of insert/update activity. This scenario is a contributing factor to lag, escalating
locks, and eventual deadlocks.
A good overview of the Maintenance Plan Wizard can be found on the MSSQLTips Web site (http://
www.mssqltips.com/tip.asp?tip=1127).
Microsoft also offers the SQL Server 2005 Best Practices Analyzer Tool. This tool addresses a wide
variety of best practices as outlined by Microsoft. This tool can be found on the Microsoft TechNet
Web site (http://www.microsoft.com/downloads/details.aspx?FamilyId=DA0531E4-E94C-499182FA-F0E3FBD05E63&displaylang=en).
Gathering Critical Information for Design Activities 35
Here are two examples we have seen reported on a ZENworks Configuration Management
installation on SQL Server 2005:
Place data and log files on separate drives for database [zenworks_database] on server
[server_name]
Check database integrity at least every 14 days for database [zenworks_database] on server
[server_name]
The Best Practices Analyzer tool also indicates that log files and data files should be placed on
separate hard drives to improve I/O, thus improving overall performance of the Database Server.
However, this can be a problem if the database files are hosted on a SAN or inside virtual machines,
which are both trends in the industry. This should also be well documented in the design document
created during the design phase.
The Microsoft SQL Server Tuning Wizard makes suggestions about indexes you might want to add
to the database. However, it uses the term “missing indexes,” which is misleading to anyone who
might interpret this as a mandate. Each of these suggestions must be analyzed, balancing the
performance trade-offs between inserting or updating data in a given table versus the variety of
queries that might be made against a table. Indexes slow inserts and updates, while benefiting
specific queries. There are a number of ways this analysis can be performed; the tuning wizard is
just a first step. You should use SQL tracing tools and analyze the SQL demands that ZENworks
Configuration Management is making on the database while it performs various functions, such as
registration, bundle creation and deployment, policy enforcement, inventory, and so forth. After you
have accurate information on what kind of load ZENworks Configuration Management is placing on
the database, you can then add your indexes.
novdocx (en) 16 April 2010
3.4.3 Oracle
For performance and maintenance suggestions in an environment where Oracle is the Database
Server hosting the ZENworks Configuration Management database, you must rely on the knowledge
and expertise of the Oracle database administrator at the customer site. The individuals responsible
for the day-to-day management of the Oracle infrastructure must be involved in the ZENworks
Configuration Management deployment project from the beginning.
However, you should familiarize yourself with some of the administrative concepts about Oracle
database management. The Oracle Database 10g Release 1 (10.1) Documentation Web site (http://
www.oracle.com/technology/documentation/database10g.html) contains information about Oracle
10g and should be used as a reference.
In addition, you should also familiarize yourself with some of the performance tuning concepts for
an Oracle Database Server, especially the reference documentation on the SQL Performance
Analyzer. This information is available in the Oracle Database Performance Tuning Guide (http://
download.oracle.com/docs/cd/B19306_01/server.102/b14211/toc.htm).
Best practice information suggested by Oracle regarding backup and recovery can be found on the
Oracle Web site (http://download.oracle.com/docs/cd/B19306_01/server.102/b14220/
backrec.htm#CNCPT031). The onsite Oracle database administrators should be familiar with these
concepts and procedures. They simply need to know what additional information they need to back
up as a result of the implementation of ZENworks Configuration Management.
36 System Planning, Deployment, and Best Practices Guide
3.4.4 Database Sizing and Performance Considerations
As a general rule of thumb, Novell has seen that the database size increases at a rate of
approximately 1 GB per one thousand (1,000) devices in the Management Zone.
However, this is not the only consideration to make when designing the Database Server. Best
practices for fault tolerance, maintenance, and performance need to be considered along with the
general calculations for overall database size.
Most larger customers have Service Level Agreements that commit to minimal downtime and
require robust storage capabilities. For sites with more than 10,000 devices, RAID (mirror with
stripe) is recommended for the database, the transaction log, the TempDB, and the TempDB log. In
fact, these four items need to be located on four separate LUNs (four separate disks or four separate
logical arrays of disks). This addresses potential reliability issues.
Database Servers are very sensitive to disk performance. More smaller disks are always faster than
fewer larger disks. This must be discussed while planning the database because a single 10 GB drive
for a site with 10,000 devices might not perform adequately, although it might meet the database
sizing formula. Ten smaller drives should perform much better.
novdocx (en) 16 April 2010
Testing and monitoring are an essential part of database configuration. You must measure the
throughput (MB/sec) that the application is demanding of the database, and size the disk array
accordingly. In addition, the operating system and executables do not have high I/O requirements
and can reside on a mirrored array (a single mirrored pair) to provide reliability with no added
performance.
ZENworks Configuration Management requires a dedicated Database Server that is not shared with
other database applications. This needs to be discussed during the design phase so that everyone
involved in the project (especially the database administrator) is fully aware of the requirements.
This might not be the case in very small implementations of ZENworks Configuration Management.
3.5 Virtualization Considerations
A major consideration for the design of the customer’s infrastructure is whether or not the customer
is willing to virtualize some of the ZENworks Configuration Management infrastructure
components. With version 10.2, the components are supported on both VMware* and Xen*. This
could be an excellent low-cost alternative to hosting more ZENworks Configuration Management
servers on fewer physical servers.
For example, if the customer is required to deploy three physical servers in the data center, it might
be possible to increase this number to two or three hosted virtual servers on two physical servers.
This would create additional fault tolerance and redundancy, as well as better performance across
the board.
If the customer is considering running their ZENworks Configuration Management infrastructure on
either SUSE
product set could also assist, including fault-tolerance capabilities provided by PlateSpin Forge
assessment capabilities provided by PowerRecon, and workload management capabilities provided
by PowerConvert.
®
Enterprise Server (SLES) or Windows Server, technologies such as the PlateSpin®
Gathering Critical Information for Design Activities 37
®
,
3.6 Ports Used by ZENworks Components
ZENworks Configuration Management uses a number of ports to communicate, based on specific
functions and features. These ports must be considered when building the design of the
infrastructure because they need to be open on firewalls if services reside behind them.
The following table outlines the ports that are used by ZENworks Configuration Management, and
gives a description of what services use them, and why. This information should be shared early in
the design phase, and should be reviewed by the network services teams.
Table 3-2 ZENworks Configuration Management Ports
Port Description
novdocx (en) 16 April 2010
HTTP (TCP 80)
Stateful
Primary Server and Satellite devices
HTTPS (TCP 443)
Stateful
Open on the Primary Server
Used to transmit content between the Primary Server or
Satellite devices and managed devices.
Primary Server downloads patch license related information
and checksum data over HTTPS (port 443), and the actual
patch content files over HTTP (port 80). ZENworks Patch
Management license information is obtained from the
Lumension* licensing server (http://novell.patchlink.com),
the patch content and checksum data is retrieved from an
AKAMAI hosted content distribution network
(novell.cdn.lumension.com). You must ensure that the
firewall rules allow outbound connections to these
addresses because the patch content distribution network is
a large fault tolerant network of cache servers.
Used to transmit configuration metadata between the
Primary Server and managed devices.
Used for Tomcat secure port. It is also used by default to
download system updates from NCC and to download
Product Recognition Update (PRU).
Primary Server downloads patch license related information
and checksum data over HTTPS (port 443), and the actual
patch content files over HTTP (port 80). ZENworks Patch
Management license information is obtained from the
Lumension* licensing server (http://novell.patchlink.com),
the patch content and checksum data is retrieved from an
AKAMAI hosted content distribution network
(novell.cdn.lumension.com). You must ensure that the
firewall rules allow outbound connections to these
addresses because the patch content distribution network is
a large fault tolerant network of cache servers.
CASA (TCP 2645)
Stateful
Open on the Primary Server
LDAP / LDAPS (TCP 389 / TCP 636)
Stateful
Open on the Directory Server
Used to transmit authentication credentials and tokens
between the Primary Server and managed devices.
Used to transmit directory information between the Primary
Server and Directory Server (Novell eDirectory or Microsoft
Active Directory).
38 System Planning, Deployment, and Best Practices Guide
Port Description
novdocx (en) 16 April 2010
Sybase (TCP 22638)
Stateful
Open on the Database Server
SQL (TCP 1433)
Stateful
Open on the Database Server
Oracle (TCP 1521)
Stateful
Open on the Database Server
Imaging (TCP 998)
Stateful
Open on the Primary Server and imaging
Satellite devices
Proxy DHCP (UDP 67 / UDP 4011)
Open on the Primary Server and imaging
Satellite devices
Used for JDBC* communication between Primary Servers
and an internal or external Sybase database.
Used for JDBC communication between Primary Servers
and an internal or external Microsoft SQL Server database.
Used for JDBC communication between Primary Servers
and an internal or external Oracle database.
Used to transmit images and requests for work to do
between the Primary Server and machines being imaged.
Used to answer DHCP requests for PXE information. The
standard DHCP port (67) is used if the server is not also a
DHCP server; otherwise, the BINL port (4011) should be
used.
TFTP (UDP 69)
Open on the Primary Server and imaging
Satellite devices
ZMGPreboot (UDP 13331)
Open on Primary Server and imaging
Satellite devices
ZENworks VNC (5950)
Open on the managed device
ZENworks VNC Request (5550)
Open on the Administration Console
Windows File and Print Sharing / CIFS
(137-139)
ICMP
Open on devices you want to discover
Used to send and receive TFTP data for PXE devices.
Allows PXE devices to communicate with the PBServ
service to determine work to do. Required because the TCP
stack now exists in the PXE environment.
Allows remote control and other remote operations to be
performed. Communication is between the managed device
and the Administration Console.
Allows remote management requests to be sent by
managed devices. Communication is between the
Administration Console and the managed device.
Communication is between the Primary Server and the
managed device or the WinProxy and the managed device.
Open on devices you want to discover via WinAPI and on
CIFS servers you want to store 3rd party images on
Used to determine if a device exists on the network so that it
can be further interrogated. Communication is between the
Primary Server or WinProxy and the device you want to
discover.
Gathering Critical Information for Design Activities 39
Port Description
novdocx (en) 16 April 2010
Agent Management Port (TCP 7628)
Open on managed devices used to send
quick tasks to the managed device
Remote Management Proxy Port (5750) Used by the remote management proxy to listen for the
Communication is between the Primary Server and the
Agent.
incoming remote management requests from the remote
management viewer.
A more comprehensive version of this table is found in Section D.4, “Extended Port Chart Including
Port Usage,” on page 116.
3.7 Network Considerations
How network services are used plays a big role in the success of the overall deployment. Ensure that
you understand this area very well and involve the right people in the project from the start.
Individuals and departments that you want to notify and involve include:
Network services: The teams that manage the physical network infrastructure and hardware.
Security services: The teams that manage the security aspects of the network infrastructure
and services.
Operations: The teams that manage the provisioning of services and resources to the devices
that ZENworks Configuration Management will manage.
The following sections contain more information:
Section 3.7.1, “Infrastructure vs. Bandwidth: Satellite Devices,” on page 40
Section 3.7.2, “DNS and DHCP Services,” on page 42
Section 3.7.3, “Time Synchronization,” on page 43
Section 3.7.4, “Support for the NetWare Operating System,” on page 43
3.7.1 Infrastructure vs. Bandwidth: Satellite Devices
When considering the requirements for infrastructure, it is important to look at the available
bandwidth for a workstation, in addition to the requirements of the management product. It might be
necessary to update all devices as soon as possible.
By reducing the amount of infrastructure in place, ZENworks Configuration Management becomes
more reliant on the available bandwidth to each device when deploying software.
To calculate the available bandwidth for a given site, a number of formulas can be used. The
following examples indicate the amount of data that can be transmitted to a device within a given
one-hour period. The formula assumes that a local Satellite device is not present. Therefore, all
software downloads must be served by the WAN link to a Primary Server. Although these formula
are not completely accurate, and are based on a number of assumptions, they can be used to indicate
which sites are good candidates for a Satellite device. As a rule of thumb, most remote sites are good
candidates for a Satellite device because your goal is to always deliver content and collect
40 System Planning, Deployment, and Best Practices Guide
information from managed devices quickly and efficiently. Generally speaking, delivering content
Available Bandwith (Mbps)
8
x 3600
(Connected Devices)
= MB per device per hour
5 Mbps
8
x 3600
650
= 3.46 MB per device per hour
across a WAN infrastructure to multiple managed devices is not an efficient use of network
resources.
The following formula defines how to calculate the maximum amount of data that can be
transmitted to a device within a given one-hour period:
The result of this formula provides information on the amount of data that can be transmitted to each
device within a one-hour period.
Available bandwidth in this formula is not the total link speed. Other data is transmitted over the link
within a given hour and must be taken into account, for example:
novdocx (en) 16 April 2010
Internet traffic
File and print
Directory authentication
Line of Business applications
VOIP
In the following examples, sites with different numbers of devices and link speeds are used to
demonstrate the levels of bandwidth available to a device within a one-hour period.
Two sites have been chosen: SITE 1 (650 devices with a 100 MB link) and SITE 2 (20 devices with
a 10 MB link). For the purposes of the calculation, the formula assumes that approximately 95
percent of the available bandwidth is being used by other applications.
Based on link speeds, number of devices, and assumed available bandwidth, the formula gives the
following results for SITE1:
In a one-hour period, it is possible to transmit 3.46 MB to every device at SITE 1 if you use all of the
bandwidth available to ZENworks Configuration Management. This site, because of its size and
lack of bandwidth per device, should be considered as a candidate to host a Satellite device.
Based on link speeds, number of devices, and assumed available bandwidth, the formula gives the
following results for SITE2:
Gathering Critical Information for Design Activities 41
In a one-hour period, it is possible to transmit 11.25 MB to every device at SITE 2 if you use all of
0.5 Mbps
8
x 3600
20
= 11.25 MB per device per hour
the bandwidth available to ZENworks Configuration Management. In this situation, you might not
choose to place a Satellite device at this site because the level of bandwidth per device is relatively
high.
When you take this all into account, the main requirements for choosing which sites should host a
Satellite device vary from one installation to the next. For example, some customers, even though
the available bandwidth with SITE 2 is high, might still want to have a device locally designated as
a Satellite device. In this case, a workstation-class machine should be more than sufficient to
manage the devices at that site.
novdocx (en) 16 April 2010
The suggested placement of Satellite devices should be based on simple rules. Some examples of
sites that are good candidates for Satellite devices are as follows:
Sites with more than 200 devices.
Sites that have high cost or limited access links between the MD and Primary Servers.
Sites where the bandwidth per device per hour is less than x. In the examples above, 5 MB was
chosen because this is the average size of a patch.
Sites that have secure locations to store devices. Customers might not want to place dedicated
Satellite devices in locations where they cannot be secured. In other words, you want to avoid a
situation where a user turns off the Satellite device or physically removes it from the network.
Sites with limited or charged access to WAN Infastructure.
3.7.2 DNS and DHCP Services
You should ensure that your network environment is well designed for ZENworks Configuration
Management. You need to ensure the following:
DNS forward and reverse lookup is properly configured so that you can resolve servers by
using their DNS names and IP addresses. VNC, for example, relies on the DNS infrastructure.
For this reason, it is important that the DNS service is well designed and implemented. If it is
not, the problem needs to be addressed during the design phase, properly documented, and
resolved before deployment begins.
We recommend that you register all of your managed devices in DNS, which makes it easy to
resolve by name. This is possible only if Dynamic DNS is in place and properly configured.
DHCP must be properly configured for imaging purposes, and your network team should work
with you to ensure that you can image across multiple subnets if necessary.
PXE must be enabled on your workstations if you choose to leverage the automated imaging
functionalities.
42 System Planning, Deployment, and Best Practices Guide
3.7.3 Time Synchronization
Time synchronization is an important factor for a stable ZENworks Configuration Management
design. Configuration items and deployment tasks, such as bundles, inventory uploads and access to
user sources, rely on time stamps to ensure secure access to the relevant data. If servers and devices
have different times, this can cause a number of communication issues with the Management Zone.
We recommend that all devices have their time synchronized. This includes Primary Servers, the
ZENworks Database, and managed devices.
For eDirectory customers, we recommend pointing the ZENworks Configuration Management
Servers to eDirectory Time Sources via NTP. All clients usually use the same time source via the
TM
Novell Client
, so the system is synchronized. For all customers, we recommend that a single
source be used for synchronization.
3.7.4 Support for the NetWare Operating System
The introduction of the new ZENworks Configuration Management architecture means
discontinued support for the NetWare operating system for both the Primary Server and the Satellite
devices.
novdocx (en) 16 April 2010
Customers are encouraged to consider migrating to Open Enterprise Server (OES) Linux or to SUSE
Linux Enterprise Server (SLES) 10, which are supported as hosted platforms for the ZENworks
Configuration Management Server services. As part of the migration, consider the following
options:
Migrating existing NetWare servers to OES Linux.
Complete migration away from the NetWare kernel
Virtualized on Xen on top of OES Linux
Running the ZENworks Configuration Management core Server services (Primary Server) on
OES Linux
Running the ZENworks Configuration Management core Server services (Primary Server) on
SLES 10
Running the ZENworks Configuration Management core Server services in a virtualized
instance of either OES Linux, SLES 10, or Windows Server on top of OES Linux or SLES 10.
Refer to the design phase section of this guide for details on how to leverage an existing NetWare
infrastructure for application deployment. Remember that by doing this you also require additional
technologies and products, such as ZENworks Server Management.
Gathering Critical Information for Design Activities 43
novdocx (en) 16 April 2010
44 System Planning, Deployment, and Best Practices Guide
4
Performing Design Activities
The design phase of any project is the most intensive part of any Novell® ZENworks®
Configuration Management deployment or migration. This is where you conduct the most meetings,
and identify granular details for the design document and the plan to get ZENworks Configuration
Management successfully deployed across the infrastructure.
The design phase of the project is where you will spend the most time. Up to 80 percent of the
project time is spent in this phase, so do not approach this lightly.
Success is the critical measure of all deployments. If the design is built correctly and is based on
Novell best practices, the infrastructure should behave properly and you should see fewer
performance issues. A good design should seldom, if ever, need to be changed. You want it to in
place for years to come and simply extend upon it.
A combination of the business and technical assessments gives the design team the ability to
forecast future needs so the design is based on what you foresee the company infrastructure is like in
the future.
novdocx (en) 16 April 2010
4
The following sections contain more information:
Section 4.1, “Design Workshops,” on page 45
Section 4.2, “Developing a Detailed Design,” on page 46
Section 4.3, “Lab Testing and Validation,” on page 79
Section 4.4, “Documentation,” on page 80
4.1 Design Workshops
Before you start the design phase and workshops, you must complete the assessment phase, in its
entirety. This is covered in detail in Chapter 2, “Performing Pre-Design Activities,” on page 15.
The first thing you must do during the design phase is to work with the teams across the organization
to identify who is responsible for what, and identify how to structure the design teams and schedule
the meetings to get everyone with a stake in the project in a room to flesh out the details of the
design elements. Plan to break down the design into manageable chunks, then put it all together as
you develop the detailed design document and infrastructure architecture diagrams.
Conducting design workshops is the best way to consider each of these individual elements of the
overall design. A workshop is an informal gathering of all individuals that have a stake in the
success of that particular element, where you use a detailed agenda to direct the discussion.
For example:
How is a function currently performed?
How will the function be performed after ZENworks Configuration Management has been
fully deployed?
How many locations does the organization have?
How many users work at each location?
How many devices are located at each location?
Performing Design Activities
45
Do users roam from site to site?
Do devices roam from site to site?
What components of ZENworks Configuration Management are required, such as
Configuration Management, Asset Management, and Patch Management?
Is the customer limited to the use of a specific database vendor (Microsoft SQL, Oracle, or
Sybase)?
How do devices connect internally and externally?
VPN?
Internet?
Which platforms should be used for the ZENworks Configuration Management servers?
Which workstation platforms are used by the organization?
Topics for design activities should include, but are not limited to, the following:
1. Infrastructure topics, including Management Zone configuration, user sources, role-based
administrative accounts, folder structure, and placement of services. The overall infrastructure
layout should be developed with the most senior members of the customer's IT departments.
2. Device discovery and agent deployment.
3. Migration tactics, if applicable.
novdocx (en) 16 April 2010
4. Software packaging.
5. Software delivery.
6. Device and user policies.
7. Inventory gathering and reporting.
8. OS deployment, including consolidation of existing OS images (for example, Universal
Imaging).
9. Remote control capabilities.
10. Database design, including maintenance, performance, scalability, fault tolerance, backup, and
restore procedures.
11. Administrative roles, including individual roles required by the customer, and identifying who
is required to have an assigned administrative account with what level of access.
It is important that everyone involved agrees on each of the individual design elements. If you do
not have consensus, you will likely face deviation from the design in the future. The objective of this
phase is to build a solid design for the overall infrastructure that is based on best practices outlined
by Novell. Every intricacy of the design needs to be well documented because this will be a
reference during the deployment and long after the deployment is completed.
4.2 Developing a Detailed Design
After you have held all of the necessary workshops, you must create a design document to detail
your findings and what you have agreed upon.
46 System Planning, Deployment, and Best Practices Guide
The following sections contain information that should be addressed and documented in detail.
These sections cover areas that Novell recommends as best practice when deploying ZENworks
Configuration Management across the infrastructure.
Section 4.2.1, “Device Folder and Group Structures,” on page 47
Section 4.2.2, “User Sources,” on page 48
Section 4.2.3, “Role-Based Administrative Accounts,” on page 49
Section 4.2.4, “Configuration Settings for the Management Zone,” on page 50
Section 4.2.5, “Device Discovery,” on page 60
Section 4.2.6, “Adaptive Agent Deployment,” on page 62
Section 4.2.7, “Registration Rules and Keys,” on page 63
Section 4.2.8, “Remote Management,” on page 66
Section 4.2.9, “Inventory,” on page 67
Section 4.2.10, “Application Management,” on page 69
Section 4.2.11, “Policy Management,” on page 74
Section 4.2.12, “Imaging,” on page 76
Section 4.2.13, “Configuring a Layer 4 Switch,” on page 76
novdocx (en) 16 April 2010
Section 4.2.14, “ZENworks Systems Update,” on page 78
4.2.1 Device Folder and Group Structures
Using ZENworks Control Center, you can manage devices by performing tasks directly on
individual device objects. However, this approach is not very efficient unless you have only a few
devices to manage. To optimize management of a large number of devices, ZENworks
Configuration Management lets you organize devices into folders and groups. You can then perform
tasks on a folder or group to manage its devices.
You can create folders and groups at any time. However, the best practice is to create folders and
groups before you register devices in your Management Zone. This allows you to use registration
keys and rules to automatically add devices to the appropriate folders and groups when the devices
register. Membership for dynamic groups is automatically updated based on the defined schedule.
The following information should be considered when designing folder structure and groups for a
Management Zone:
Do you need to implement site administrators and sub-administrators who have limited rights
to the system or only to part of the Management Zone? For example, you might need a site
administrator who is only responsible for a specific location.
Do you need Help Desk users who are allowed to assign bundles and perform some remote
management tasks, but not allowed to create or modify items such as bundles and polices?
Do you need site-specific settings, such as inventory schedules or system variables?
Do you need department-specific configuration, such as system variables to set working
directories or host IDs?
The following graphic is an example of a company that is organized by country. Further
organizational folders can be included under each of these country folders. You can be as granular as
you want, and this is encouraged to implement specific levels of management.
Performing Design Activities 47
4.2.2 User Sources
LDAP lookup from ZCC
and user login on device
eDirectory
Active Directory
Primary Servers
User GUID
stored in
database
User-based management requires an authoritative source of user information to govern access
privileges, permissions, and configurations. The new architecture allows you link to multiple user
directories for this information, including your choice of Active Directory, eDirectory
Linking system management with authoritative user directories ensures that new hires, terminations,
internal moves, and other business changes immediately result in the appropriate provisioning,
deprovisioning, reconfiguration, and other system management changes. Other systems typically
require you to synchronize or copy Active Directory or eDirectory information to your management
database, which increases the change management burden by requiring installation of additional
software on the authoritative servers. If synchronization happens once a week, for example, users
can wait for several days for the directory to be synchronized—or perhaps have several days when
they can access resources they should not be able to use.
In ZENworks Configuration Management, all communication with authoritative sources is readonly, through LDAP. There is no need to extend schemas, so you avoid a potentially big change
management issue. Also, there is no need to install new software or make any other changes to the
user directories you currently use. Nor is there a need to install an intermediary identity management
system between ZENworks Configuration Management and authoritative sources.
TM
, or both.
novdocx (en) 16 April 2010
Primary servers can link directly to any number of authoritative sources, of any type, and user
groups can span authoritative sources. This architecture allows simple management of resources
through user, user group, and container assignments, without the limitation of a single authoritative
source or the need to install and manage additional infrastructure to mediate between authoritative
sources and ZENworks Configuration Management.
The following graphic illustrates how Primary Servers link to various user sources:
Figure 4-1 Primary Server and User Sources
As a best practice, you should set up your user sources prior to any deployment activities (discovery
of devices and deployment of the ZENworks Adaptive Agent). You must understand your directory
services infrastructure first, and the systems you will be referencing from your ZENworks Primary
Servers. In addition, if your deployment is a migration from an existing ZENworks infrastructure
48 System Planning, Deployment, and Best Practices Guide
(for example, ZENworks 7 Desktop Management), you must have your user sources defined prior to
running any of the migration steps. If you do not do this, you will not be able to migrate user-based
associations (including associations to user groups).
You can connect to Novell eDirectory and Microsoft Active Directory for your user sources. After
you connect to either of these LDAP directories, you define the containers within the directory that
you want exposed. Or, you could reference the top-level containers of the user source as the source
or the containers that contain users. This limits access within the directory to only those containers
that include users.
Both methods have some advantages and disadvantages that are mostly related to administration.
There is no difference in assigning bundles or policies.
Selecting top-level containers ensures that all users in subcontainers and all containers added to the
structure are maintained automatically and can be used for assignments without changes within
ZENworks Configuration Management. However, there is no way to detect deleted containers in the
user source. If you assign a bundle to a container that is later deleted, you cannot see this change in
ZENworks Configuration Management.
In addition, it is not possible to add subcontainers if the parent container is already in list. If you
want to change the structure, you need to delete the parent container and you lose all assignments.
novdocx (en) 16 April 2010
Because of this, we recommend that you use only containers where users reside. This means adding
multiple sublevel folders from an eDirectory or Active Directory rather than only one.
4.2.3 Role-Based Administrative Accounts
The roles feature allows you to specify rights that can be assigned as roles for ZENworks
administrators. You can create a specialized role, then assign administrators to that role to allow or
deny them the ZENworks Control Center rights that you specify for that role. For example, you
could create a Help Desk role with the ZENworks Control Center rights that you want help desk
operators to have. You can also create individual administrative accounts and assign these to
managers of the system.
Common roles in most installations of ZENworks Configuration Management include the
following:
Help Desk: The Help Desk role should include common tasks, such as remote control, remote
view, and so forth, and be bound to specific boundaries (device folders), especially where there
are multiple sites and administration is not centralized.
Application Management: The Application Management role should include tasks and
functions for creating bundle content in specific folders and restricting it to folder boundaries.
Some administrators require more rights than others, so multiple roles could be created.
Backup Administrator: The Backup Administrator role is used if the default administrator
account can no longer be used.
Individual Administrator Accounts: It is also a best practice to create different levels of
administrator accounts and assign these separately to individuals. Do not give the administrator
credentials (the default Administrator account set up during the initial installation) to everyone.
The following graphic is an example of the kinds of roles you should consider when implementing
ZENworks Configuration Management:
Performing Design Activities 49
Figure 4-2 Roles Section in ZENworks Control Center
4.2.4 Configuration Settings for the Management Zone
The Management Zone Settings panel lets you manage the global configuration settings for your
Management Zone. These global configuration settings are inherited by other objects (devices,
users, and folders) within your Management Zone and remain in effect unless they are overridden at
the folder or object level.
novdocx (en) 16 April 2010
You should configure the global settings to accommodate the largest possible number of objects, and
then use the override option on any objects you want to configure differently. For example, you
should use the Device Refresh Schedule setting to define the schedule that you want the majority of
devices to use, and then override the schedule on individual devices or device folders if those
devices require a different schedule. This is the best practice for almost all Management Zone
configuration settings.
This section highlights configuration settings that you should consider setting at the global level,
then adjust as needed at the folder or object level. Not all settings are covered in this section because
they might not be relevant in your given situation, or they might differ greatly to what we would
minimally recommend. For more information, see “Management Zone Configuration Settings” in
the ZENworks 10 Configuration Management System Administration Reference.
The following sections contain more information:
“Content Blackout Schedule” on page 51
“ZENworks Explorer Configuration” on page 51
“System Variables” on page 51
“Content Replication Schedule” on page 52
“Local Device Logging” on page 52
“Device Refresh Schedule” on page 53
“Device Removal Schedule” on page 54
“Dynamic Groups Refresh Schedule” on page 55
“Closest Server Rules” on page 55
“Client Retries” on page 58
“Inventory Schedules” on page 59
50 System Planning, Deployment, and Best Practices Guide
Content Blackout Schedule
You should define a Management Zone setting only if you are sure that you want to use this setting
for all devices. In normal environments, you should not use a common blackout schedule for all
devices.
A content blackout schedule is needed only for special devices, such as device in the finance
department or production PCs that are used for controlling production processes.
The following graphic shows a corporate (global) blackout schedule of the last Friday of every
month, from 12:00 a.m. until 7:00 a.m. In this case, no content is sent to managed devices during
this time.
Figure 4-3 Blackout Schedule in ZENworks Control Center
novdocx (en) 16 April 2010
For more information, see “Management Zone Configuration Settings” in the ZENworks 10
Configuration Management System Administration Reference.
ZENworks Explorer Configuration
This setting defines the uninstall feature. If your customer does not need to uninstall applications,
disable this feature in your Management Zone.
Figure 4-4 General Section in ZENworks Control Center
For more information, see “Content Settings” in the ZENworks 10 Configuration Management
System Administration Reference.
System Variables
System variables are used to define paths, names, and other items in your system. In addition to the
predefined variables, Novell recommends using variables in bundles. This makes it much simpler to
create, manage, and deliver applications moving forward. You need to standardize on this early and
stay with your standard.
Performing Design Activities 51
Common variables are SOURCE_PATH or TARGET_PATH
Define variables for your Management Zone.
Define variables for your folders if you need different or additional settings.
Define variables in your bundles only if the above settings do not fit your needs.
The following is an example of system variables that are set at the Management Zone level. These
can then be used in bundles for distribution. Because these are set at the Management Zone level, it
is assumed that these variables are resolvable on any device registered in the Management Zone.
Figure 4-5 System Variables in ZENworks Control Center
For more information, see “Content” in the ZENworks 10 Configuration Management System
Administration Reference.
novdocx (en) 16 April 2010
Content Replication Schedule
The content replication schedule defines how often a Primary Server that has assigned content
checks the database for updates (new content or deleted content).
Novell recommends changing the default value (5 Minutes) to at least 30 minutes to protect the
system from heavy loads that could lead to utilization issues. This gives you enough time to ensure
that content is always up-to-date across all your systems in the Management Zone.
Figure 4-6 Content Replication Schedule in ZENworks Control Center
Local Device Logging
Use a severity setting of Error for log messages. If you set the severity to Warnings and Above, you
might end up collecting more data than you really need. If you understand the errors you are
encountering, this is more than enough for troubleshooting your infrastructure.
This settings page allows you to set the rollup schedule for a specific time or date. We recommend
that you create a new log file every day to ensure accurate information for troubleshooting purposes.
52 System Planning, Deployment, and Best Practices Guide
Figure 4-7 Log Settings in ZENworks Control Center
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
Device Refresh Schedule
novdocx (en) 16 April 2010
Use the default schedule as a starting point. Discuss the schedules with your customer and adjust
according to their needs. This information should have been collected during the assessment phase
of your project. Remember, shorter refresh schedules means more frequent ZENworks
Configuration Management traffic on the network. This could cause issues with over-utilization of
available bandwidth. Make sure you involve the network management team when you decide on this
setting.
Short refresh times for a large number of devices can also cause extensive server load, which might
cause distribution failures or failures at the server side (uploading inventory and so forth).
Use random refresh rates to future prevent server overload during peak periods. This setting can be
instrumental in increasing the scalability of the infrastructure components. Remember, the tests
Novell performs in the SuperLab are designed to test the breaking point of the components. In the
real world, thousands of devices should not regularly contact a server in the Management Zone.
Performing Design Activities 53
Figure 4-8 Device Refresh Schedule in ZENworks Control Center
novdocx (en) 16 April 2010
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
Device Removal Schedule
This setting needs to be discussed in detail with the customer during the assessment and design
phases to ensure that you are removing devices that should be removed. You want to avoid removing
devices that have been inactive for a certain number of days because the inactivity might result from
circumstances such as maternity leave or a leave of absence. The customer should be able to give
you the details on how long these situations should last, and what is acceptable. After you have this
information, you can configure the schedule appropriately.
Take the following into consideration when setting up the schedule:
How do we maintain actual reporting data? Do you need very accurate data?
How long are the devices off-line (average time)? Possible cases are vacation, illness,
maternity leave, extended leave of absence, and so forth.
Do you need statistics on removed devices?
If devices are to be flagged for removal and not actually removed from the Management Zone, these
devices can be easily found by specifying the Device State as Lost when searching for devices.
If you are required to report on all devices, even if they are not active on the network, managed
devices can be “retired” instead of removed. When a managed device is retired, its identity and
inventory information is retained but all policy and bundle assignments are removed. A retired
device is in a holding state until you unretire or delete the device from the Management Zone.
For more information on retiring devices, see “Retiring or Unretiring Devices”in the ZENworks 10
Configuration Management Discovery, Deployment, and Retirement Reference.
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
54 System Planning, Deployment, and Best Practices Guide
Dynamic Groups Refresh Schedule
Novell recommends the use of dynamic groups wherever possible. The membership of these groups
is recalculated on a regular basis to get the expected (and accurate) results.
For your initial configuration, Novell recommends a daily refresh schedule (All days of the Week).
This ensures that the membership lists of the dynamic groups accurately represent what you have
registered in the system.
Figure 4-9 Refresh Schedule in ZENworks Control Center
novdocx (en) 16 April 2010
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
Closest Server Rules
Understanding and configuring Closest Server Rules is essential to a successful ZENworks
Configuration Management infrastructure. Closest Server Rules are used to inform devices which
Primary Servers and Satellite Devices to contact and in which order. This should take into account
placement of ZENworks Primary Servers and Satellite devices. These rules might change as the
design changes, so ensure that the requirements are tracked.
General rules to follow include:
If you have servers on different subnets, define a rule for each subnet.
If you have devices in different domains or sub-domains, set up a rule for each domain and sub-
domain.
Define the Closest Server Rules by using the OR logic, so fewer rules are required.
The Closest Server Rules are processed sequentially, so the list order is very important. A
simple calculation of Estimated Number of Agents / Filter Sets in a Rule (Subnets) should
determine the best list order.
Performing Design Activities 55
Figure 4-10 Closest Server Rules in ZENworks Control Center
Within each rule, there is a Server list for each function that a ZENworks Primary server performs
for the agent (Collection, Configuration, and Content). Each server list is ordered and the devices
use this order for failover in case of high server utilization or a server-down scenario.
novdocx (en) 16 April 2010
To balance the load, we recommend using Closest Server Groups. A Server Group is a list of
Primary servers and Satellite devices that can be accessed in a random order. By randomizing server
access, it is possible to balance the number of requests sent to each ZCM Server listed in the group.
Figure 4-11 Closest Server Groups
If load balancing and fault tolerance is a fundamental requirement of the infrastructure, the best way
to achieve it is though a Layer 4 (L4) switch. An L4 switch can front either Primary Servers or
Satellite devices, or both, in order to guarantee results when directing traffic to the devices behind
the switch. Most importantly, it ensures that services are always available to the end user
community. If you use an L4 switch, ensure that it is properly configured. If the switch is not
properly configured, the traffic is not properly directed, and there might be issues with connections,
responses, and so forth.
The Layer 4 switch is configured in the Closest Server Rules in a similar way to the Closest Server
Groups. When prompted, specify the Layer 4 definition name, which must be either the DNS name
or IP address of the Layer 4 virtual device.
Keep in mind the following considerations:
The Layer 4 switch definition is displayed in each of the listings, no matter where it is created,
with the selected servers listed under each instance of the Layer 4 switch.
56 System Planning, Deployment, and Best Practices Guide
Servers can be members of multiple groups and L4 switch definitions.
Servers that are members of an L4 switch definition or group are no longer listed at the top
level of the server listing.
If there are no matching Closest Server Rules for a given device, the managed device falls back to
the default Closest Server Rule. This rule is an ordered list of all the ZENworks Configuration
Management Primary and Satellite devices installed in the Management Zone. The list must be
ordered so that all the ZENworks Configuration Management Primary Servers are at the top and all
the ZENworks Configuration Management Satellite devices are at the bottom.
You might want to exclude the default Closest Server Rule for the following reasons:
Agent refresh speed: When a device is refreshed, the applicable ZENworks Configuration
Management Primary and Satellite device list for a device is calculated, serialized, and sent via
the SOAP service. Excluding the default Closest Server Rule optimizes the response from the
server, which also shortens the time required to complete a refresh.
Satellite devices: Devices at one site should not attempt to access a Satellite device or Primary
Server at another location. Excluding the default Closest Server Rule ensures that a device only
connects to Satellite server if it is in the Closest Server rule for that subnet. If a Satellite device
is temporarily unavailable, this ensures that content is not pulled across a WAN connection by
local devices.
novdocx (en) 16 April 2010
Server roles: If a Primary server is dedicated to a particular task, such as reporting, excluding
the default Closest Server Rule ensures that devices do not attempt to use this server for other
services.
Figure 4-12 Excluding Server Rules
If there are duplicate addressing schemes within the environment, such as if two remote sites both
use NAT (Network Address Translation) and the internal IP address scheme for both networks is
192.168.0.0, it is not possible for a Closest Server Rule to differentiate between the two subnets. The
solution is to configure Closest Server Rules for each of these subnets at the folder level and
override the Management Zone settings. This is successful only if the ZENworks folder structure
ensures that the device objects for the two subnets are in separate folders.
Performing Design Activities 57
Figure 4-13 Effective Closest Server Rules
Closest Server Rules can be configured at three levels: Management Zone, Folder and Device. The
rules are evaluated on the device first. If no matching rule is found, the device's folder is evaluated.
If there is no match on the device or the folder, the Management Zone rules are evaluated. Finally, if
the Management Zone Closest Server Rules are not applicable, the default Closest Server Rules are
used. For the diagram above, the order of evaluation is Rule1, Rule2, Rule3.
novdocx (en) 16 April 2010
For more information, see “Infrastructure Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
Client Retries
At every client refresh, all Primary Servers and Satellite devices are marked as Unknown. When a
particular module requires a service, the Connection Manager (based on the Closest Server Rules)
makes a call to the first Primary Server or Satellite device hosting this service. If a Primary Server or
Satellite device is down or is not contactable, it is immediately marked as Bad. If it is in a Busy
state, it returns a busy error and the client waits and retries again.
There are three settings that control how many times and for how long a managed device should
wait before marking a Primary Server or Satellite device as Bad and then moving to the next
Primary Server or Satellite device in the closest server rule. These three client settings are available
in ZENworks Control Center, under Configuration > Device Management > ZENworks Agent.
Figure 4-14 Client Retry Settings
Times to Retry Requests to a Busy Server: The maximum number of retries a device
attempts to contact a Busy Primary Server or Satellite device.
Initial retry request wait: The initial wait time between each of the above retries. All
subsequent waits increment by 1 second. This means that the first wait time is 10 seconds, the
second wait time is 11 seconds, then 12 seconds, 13 seconds and so on, up to the amount in the
Number of Retries setting.
58 System Planning, Deployment, and Best Practices Guide
Maximum retry request wait: The maximum time the device waits between retries.This
overrides the incremental time to wait in the Initial retry request wait setting.
If a Primary Server or Satellite device is contactable but busy, a client waits for the initial wait
period, retries, increments the wait interval by the value specified, then retries again. This process
continues until the number maximum retries has been reached or until the connection load on the
server goes down. The default settings in ZENworks Configuration Management are 20 retries, an
initial wait time of 10, and a maximum wait time of 20. This means that a device waits a maximum
of 345 seconds before marking a busy Primary Server or Satellite device as Bad. All the HTTP or
HTTPS calls are sequential, so if the closest server rules are correctly configured, the wait should be
very short. Connecting to a different Primary Server or Satellite device might not be the best option
because it might be overloaded or across a low-bandwidth, high-latency connection.
These settings should be based on the placement of Primary Servers and Satellite devices within the
environment. If there are many Primary Servers in a location connected to the clients by highbandwidth, low-latency links, these settings can be lowered. If there are fewer Primary Servers and
clients connecting over low-bandwidth, high-latency links, or to a Satellite device across a WAN,
these settings can be increased to “wait out” the busy period. These settings can be overridden on the
device or folder level.
novdocx (en) 16 April 2010
During Novell testing, retries were set at 60/30/60. A server was never marked as Bad, and all
content was delivered. No degradation of performance at the client was observed when the retries
were set high.
Inventory Schedules
Inventory scan frequency depends on how often the hardware and software in the environment
changes, and how accurate the information needs to be. Under normal circumstances, it should be
adequate to collect inventory data on a weekly, biweekly, or monthly basis, but this might not be
sufficient for all deployments. Be aware of the workload placed on the ZENworks Primary Servers.
Every inventory scan a device does must be processed by the ZENworks Primary Server and stored
in the ZENworks database. Ensure that the schedule does not unnecessarily scan thousands of
devices on a daily basis, but if this is necessary, closely monitor the load and performance of both
the Primary and database servers. Inventory schedules can be set at the Management Zone folder,
and device level. We recommend that you configure inventory schedules on a folder basis to ensure
that the load is spread through a given time period. If you must immediately update the inventory of
a device, a scan-now request can be sent to the device via ZENworks Control Center.
For a weekly scan, select a day that is most likely to capture the largest number of devices connected
to the network. To capture all workers, consider doing a scan on every fifth day so that all days are
eventually targeted.
For restricted scan times, use the random wait time carefully. If a scan window of 9:00–17:00 is
configured with the Randomize scan time option, devices that disconnect during this period might
not be scanned. This can cause many to consistently miss their scans. The Process immediately if
device unable to execute on schedule option instructs any device that missed the schedule to scan
when it next connects to ZENworks. This is useful for ensuring that devices perform an inventory
when they are offline during their assigned inventory schedule.
Use a schedule that best fits the environment and avoiding restricting the scan times severely. A very
small “scan potential” window can lead to many devices not performing regular inventory scans.
If some devices are always on, consider starting the scan schedule before or after normal office
hours, so these devices can be processed when there is low utilization.
Performing Design Activities 59
We recommend using a combination of inventory reporting and the advanced device search function
to compare last scan dates with last contact dates, so you can ensure that devices are being scanned
according to their schedules.
Figure 4-15 Scan Schedule in ZENworks Control Center
novdocx (en) 16 April 2010
For more information, see “Inventory Settings” in the ZENworks 10 Configuration Management
System Administration Reference.
4.2.5 Device Discovery
When it comes to device discovery, you need to perform your discoveries and deployments in
stages. Use the recommendations in this section for discovery and deployment in order to avoid
massive amounts of discovery traffic on the LAN/WAN.
Some ideas to consider when performing device discovery include:
Discover assets subnet by subnet.
Discover assets building by building.
Discover assets site by site.
Import devices from Active Directory or eDirectory by using LDAP discovery tasks
Import devices from a spreadsheet (CSV) if they are well documented and the list is available
for you to use.
60 System Planning, Deployment, and Best Practices Guide
Use the ZENworks Migration Wizard to migrate your devices from eDirectory and target them
for deployment to avoid discovery of the initial assets that are already part of an existing
ZENworks system.
Use pilot groups.
These tips help you discover assets and roll out the ZENworks Adaptive Agent in a very manageable
way, which avoids failures for deployment and installation.
Table 4- 1 lists the duration and CPU usage for a discovery task performed by using the MAC
Address technology. This information helps you configure the discovery settings in an efficient way.
Table 4-1 Duration and CPU Usage for a Discovery Task
novdocx (en) 16 April 2010
IP Address Range
Single IP address Less than 1 minute Less than 5% The discovery task starts
164.99.94.0–164.99.94.255
(254 devices)
164.99.0.0–164.99.255.255
(65,534 devices)
164.0.0.0–164.255.255.255
(16,277,214 devices)
Duration of the
Discovery Task
10 minutes 5% The discovery task starts
30 hours 36% The discovery task starts
Always in a Pending
state
CPU Usage Additional Details
immediately when it is launched.
immediately when it is launched.
immediately when it is launched.
100% The discovery task is not
started. The status of the task
remains as Pending.
CPU usage is normal 10
minutes after the time the
discovery task is launched.
If any other discovery or loader
task is running simultaneously,
it might take a considerable
time to complete.
There are several things you can do to increase the speed of IP Discovery tasks.
Increase the Maximum Concurrent Discoveries from 5 to 20. This allows more addresses to be
scanned simultaneously.
Select only the discovery technologies that are required. We recommend enabling only the
discovery technologies that are configured within the environment. If SSH, NMAP, or SNMP is
not available or is not configured in the environment do not enable it. Every discovery
technology that is scanned for an IP address adds time to the discovery task. As a rule of thumb,
start with only WinAPI and the ZENworks discovery technologies enabled for the Management
Zone. You can override discovery technologies in the Discovery task, which means that
specific discovery technologies can be directed at certain subnets.
Performing Design Activities 61
Configure only the necessary authentication credentials. The more authentication credentials
that are configured, the longer each scan takes.
Disable the MAC Address discovery technology. Any device with a MAC Address is
discovered via this technology. The devices show up in the discovered list with an Unknown
operating system, which causes the deployable device list to be inaccurate.
All discoveries are performed from the Deployment tab in ZENworks Control Center.
Agent State
A Discovery task returns Management Zone information on devices with a ZENworks
Configuration Management Agent installed. The discovered devices can be viewed from the
ZENworks Control Center > Devices > Discovered tab. It is possible to see which devices are
registered with another Management Zone and which agents are currently unregistered.
The name of a managed device residing within the same Management Zone as the Primary server is
displayed in green and the name of the managed device residing in a different management zone is
displayed in the yellow.
novdocx (en) 16 April 2010
Schedule
A discovery only returns device information if the device is turned on and contactable. A discovery
task should be run regularly on different days and times to ensure the entire environment is captured.
For more information, see “Device Discovery” in the ZENworks 10 Configuration Management
Discovery, Deployment, and Retirement Reference.
4.2.6 Adaptive Agent Deployment
Novell ZENworks Configuration Management provides a variety of methods you can use to install
the ZENworks Adaptive Agent to devices:
Use ZENworks Control Center to deploy the agent from the ZENworks Server to the device.
At the device, use a Web browser to download and install the Agent from the ZENworks
Server.
Include the Agent in an image and apply the image to the device.
Use a login script, Windows group policy, or ZENworks 7 Application object to install the
Agent.
Because ZENworks Configuration Management is usually implemented in larger environments, we
recommend deploying the ZENworks Adaptive Agent automatically; you should not manually
install the Agent.
The following sections contain more information:
“Default Deployment Packages” on page 63
“Custom Deployment Packages” on page 63
62 System Planning, Deployment, and Best Practices Guide
Default Deployment Packages
The best option for accessing the default deployment packages is through ZENworks Control
Center:
1 From the Home page in ZENworks Control Center, click Download ZENworks Tools in the left
frame.
2 Download the default package that you require.
We recommend using one of the following deployment methods:
Use the Deployment task from ZENworks Control Center, after discovering or importing
devices.
Use your existing software distribution tool to deploy the agent.
Include the ZENworks Adaptive Agent in a new image.
For all methods you must have registration keys in place as described in Section 4.2.7, “Registration
Rules and Keys,” on page 63.
For more information, see the ZENworks 10 Configuration Management Discovery, Deployment,
and Retirement Reference.
novdocx (en) 16 April 2010
Custom Deployment Packages
During the ZENworks Configuration Management installation, default ZENworks Adaptive Agent
deployment packages are created. These packages are tied to the ZENworks Primary Server and
contain the URI from this server to register devices. There are no registration keys configured and
the registration process use default rules to register devices.
It is best practice to always use custom deployment packages when pushing the ZENworks Adaptive
Agent to your discovered or imported devices. You should avoid the use of the default Agent
deployment packages that are created because these include only default parameters that likely do
not meet the needs of the customer.
You must be familiar with these concepts before testing begins.
4.2.7 Registration Rules and Keys
When you deploy the ZENworks Adaptive Agent to a device, the device is registered in the
Management Zone and becomes a managed device. As part of the registration, you can specify the
device’s ZENworks name and the folder and groups to which you want the device added.
By default, when a device’s host name is used as its ZENworks name, it is added to the
/Workstations
folder, and it is not given membership in any groups. You can manually move
/Servers
devices to other folders and add them to groups, but this can be a burdensome task if you have a
large number of devices or if you are consistently adding new devices. The best way to manage a
large number of devices is to have them automatically added to the correct folders and groups during
registration.
or
To add devices to folders and groups during registration, you can use registration keys, registration
rules, or both. Both registration keys and registration rules let you assign folder and group
memberships to a device. However, there are differences between keys and rules that you should be
aware of before choosing whether you want to use one or both methods for registration.
Performing Design Activities 63
The following sections contain more information:
“Registration Rules” on page 64
“Registration Keys” on page 64
“Recommendations Regarding Registration” on page 64
“Registration” on page 65
Registration Rules
If you don’t want to enter a registration key during deployment, or if you want devices to be
automatically added to different folders and groups based on predefined criteria (for example,
operating system type, CPU, or IP address), you can use registration rules.
ZENworks Configuration Management includes a default registration rule for servers and another
one for workstations. If a device registers without a key, the default registration rules are applied to
determine the folder and group assignments. The two default rules cause all servers to be added to
/Servers
the
folder and all workstations to the
/Workstations
folder.
The two default rules are designed to ensure that no server or workstation registration fails.
Therefore, you cannot delete or modify these two default rules. You can, however, define additional
rules that enable you to filter devices as they register and add them to different folders and groups. If
you’ve established folders for devices with similar configuration settings and groups for devices
with similar assignments, newly registered devices automatically receive the appropriate
configuration settings and assignments.
novdocx (en) 16 April 2010
For more information, see “Registration Rules” in the ZENworks 10 Configuration Management
Administration Quick Start.
Registration Keys
A registration key is an alphanumeric string that you manually define or randomly generate. During
deployment of the ZENworks Adaptive Agent on a device, the registration key must be provided.
When the device connects to a ZENworks Server for the first time, the device is added to the folder
and groups defined within the key.
You can create one or more registration keys to ensure that devices are placed in the desired folders
and groups. For example, you might want to ensure that all of the Sales department’s workstations
are added to the
/Workstations/Sales
folder but are divided into three different groups
(SalesTeam1, SalesTeam2, or SalesTeam3) depending on their team assignments. You could create
three different registration keys and configure each one to add the Sales workstations to the
Workstations/Sales
folder and the appropriate team group. As long as each workstation uses the
/
correct registration key, it is added to the appropriate folder and group.
For more information, see “Registration Keys” in the ZENworks 10 Configuration Management
Administration Quick Start.
Recommendations Regarding Registration
Based on your final folder and groups design, we recommend that you create registration keys for
each folder you have created or defined.
The following graphic illustrates using registration keys to place devices in folders.
64 System Planning, Deployment, and Best Practices Guide
Figure 4-16 Registration Section in ZENworks Control Center
New York City: Registers to folder New York City below USA.
novdocx (en) 16 April 2010
France: Registers to folder Paris below France.
In combination with dynamic groups that are based on departments, it is possible to manage device
registration very easily. You use these keys in your deployment packages to auto-register all devices
in your Management Zone.
Registration
You should enable dynamic device renaming, which is disabled by default.
This feature provides a very flexible way to handle some desktop management processes such as
renaming or re-installation. During the ZENworks Configuration Management framework-based
installation process, the device name changes to a randomly generated name, but if this feature is
place and you have a working imaging partition, all references are automatically maintained by the
ZENworks Adaptive Agent registration process.
This prevents having duplicated device entries and GUIDs in the database.
Performing Design Activities 65
Figure 4-17 Registration in ZENworks Control Center
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
novdocx (en) 16 April 2010
4.2.8 Remote Management
All guidelines for Remote Management are concerned with the configuration settings for
performance and security.
“Security” on page 66
“Performance” on page 67
Security
To prevent unauthorized access to the managed device, the Remote Management service on the
managed device uses the following modes of access:
“Rights-Based Remote Management Authentication” on page 66
“Password-Based Remote Management Authentication” on page 67
Rights-Based Remote Management Authentication
In rights-based authentication, rights are assigned to the remote operator to launch a remote session
on the managed device. By default, ZENworks administrators have rights to perform remote
operations on all the managed devices regardless of whether the local user or the ZENworks user is
logged in to the device.
The remote operator does not need any exclusive rights to perform a remote session on the managed
device if no user has logged in to the managed device or if a user has logged in to the managed
device but not in to ZENworks. However, the remote operator needs exclusive Remote Management
rights to perform the remote operation on the managed device when a ZENworks user has logged in
to the device. We strongly recommend using the rights-based authentication because it is safe and
secure.
66 System Planning, Deployment, and Best Practices Guide
Password-Based Remote Management Authentication
In password-based authentication, the remote operator is prompted to enter a password to launch the
remote session on the managed device. There are two types of password authentication schemes:
ZENworks Password: This scheme is based on the Secure Remote Password (SRP) protocol
(version 6a). The maximum length of a ZENworks password is 255 characters.
VNC Password: This is the traditional VNC password authentication scheme. The maximum
length of a VNC password is 8 characters. This password scheme is inherently weak and is
provided only for interoperability with the open source components.
If you use password-based authentication, we strongly recommend using the ZENworks Password
scheme because it is safer and more secure than the VNC Password scheme. Ensure that any
passwords used are of an adequate length and complexity.
The password schemes operate in the following modes:
Session Mode: A password set in this mode is valid only for the current session. The user on
the managed device must set the password at the start of the remote session and communicate
the password to the remote operator through out-of-band means. If you use password-based
authentication, we strongly recommend that you use this mode of authentication because the
password is valid only for the current session and is not saved on the managed device.
novdocx (en) 16 April 2010
Persistent Mode: In this mode, the password can be set by the administrator through the
Remote Management policy or by the managed device user through the ZENworks icon if the
Allow user to override default passwords on managed device option is selected in the security
settings of the Remote Management policy.
If the password is set by both a remote control policy and the user, the password set by the user takes
precedence over the password configured in the policy.
Performance
The performance features are enabled by default in the Remote Management policy or configuration
page. They can be disabled, but we do not recommend doing this.
You do need to check the Look up viewer DNS name at the start of a remote session setting. If DNS
reverse lookup is not configured correctly, it has an impact on the start time of a remote session.
For more information, see “Device Management Settings” in the ZENworks 10 Configuration
Management System Administration Reference.
4.2.9 Inventory
ZENworks Configuration Management contains a powerful feature for collection and reporting on
software and hardware inventory in the environment. The configuration of the inventory collection
should be managed before deployment to ensure that the devices are collecting only relevant
information.
Inventory collection settings are split into three main sections. Each section is configured
independently of the others.
Scan Now: If a device is manually forced perform and inventory scan.
Performing Design Activities 67
First Scan: The first time the agent is installed and a scan happens. Controlled by the Logins
before first scan configuration setting in ZENworks Control Center. This setting should
complement the build process of the devices.
Recurring Scan: Controlled by the Inventory Scan Schedule. See “Inventory Schedules” on
page 59 for further information.
“Software File Information” on page 68
“Collection Data Form Schedules” on page 68
Software File Information
Select the Collect Software File Information option only if you must identify software products that
aren’t recognized by the ZENworks Knowledgebase. This option forces a very granular collection of
inventory information, which has performance impacts throughout the ZENworks infrastructure. If
you must create local software products based on software file information, we recommend that you
override inventory settings only on the individual target devices.
Figure 4-18 Inventory Scan Settings
novdocx (en) 16 April 2010
For more information, see “Creating Local Software Products” in the “ZENworks 10 Configuration
Management Asset Inventory Reference”
Collection Data Form Schedules
The collection data form is used to collect demographic information for a device or user. The
information can be collected on several schedules or events, or it can be collected manually. You can
also use the Scan Now, First Scan, or Recurring Scan options. This information can be very useful
when attempting to identify where devices are located and who is using them.
Select a schedule that best fits your requirements. Collecting this information on a monthly basis
should be a good choice. Ensure that you run a new collection after a change, such as a move or user
change.
68 System Planning, Deployment, and Best Practices Guide
Use the auto-fill function to avoid user input. System variables and registry settings can be used to
silently collect the demographic data. These variables or settings can be delivered through the install
process or through bundles. Administrator-defined fields should be created to collect additional
information.
For more information, see “Scanning Demographic Data” in the ZENworks 10 Configuration
Management Asset Inventory Reference
4.2.10 Application Management
You are not required to organize bundles into different folders, but we recommend that you use a
minimal folder structure to divide applications and images. If bundles are organized logically and
granularly, it becomes very easy to create special administrative accounts that only have limited
rights to a given folder or set of folders.
“Recommendations for Organizing Bundles” on page 69
“Bundle Groups” on page 70
“Assigning Bundles” on page 71
“Importing and Exporting Bundles” on page 71
“Application Delivery Mechanism” on page 72
novdocx (en) 16 April 2010
Recommendations for Organizing Bundles
Every organization is different and has different requirements for organizing content. The important
thing to keep in mind is that you should always organize your content according to how your
organization views it. If you do not organize the content and simply put everything into the default
folder, it becomes unmanageable within a very short time.
Keeping this in mind, some best practices for organizing your bundle objects include:
Creating a folder for application bundles.
Creating a folder for imaging bundles.
The
ZPM
folder is an auto-generated folder that contains all patch-service related bundles. Although
the bundles in this folder can be changed and additional ones created, we recommend that you do
not change the folder and the bundles within it.
We recommend that you create folders under the base Bundles folder to group imaging and
application bundles together. The following list provides examples of the types of folders that can be
created:
Create a folder for software vendors:
Microsoft (Office, Internet Explorer, MediaPlayer)
Adobe (Reader, Photoshop)
SAP (Basis, HR)
Novell
Create a folder for special applications:
CAD
Performing Design Activities 69
Database applications
Software development
Create a folder for tools:
Windows tools (WinZip, WinRAR, UltraEdit, and so forth)
Create a folder for base images.
Create a folder for add-on images.
Categorizing application and imaging bundles into separate folders also allows for administrator
roles to be created so you can limit the bundles that an administrator can edit or assign to devices.
Figure 4-19 Bundle Folders in ZENworks Control Center
novdocx (en) 16 April 2010
The important thing is to arrange your content with your company organization in mind. This might
be different with each company or site. This information should be gathered during the design phase
of the project and detailed in the design document.
For more information, see “Managing Folders” in the ZENworks 10 Configuration Management
Software Distribution Reference.
Bundle Groups
In addition to using folders, it is a good idea to create bundle groups for some applications to make
assignments easier. Each group contains a set of bundles that belong together. These groups can be
organized for special functions or tasks.
The following are some examples of how you might want to leverage bundle groups to keep things
simple:
APPS-Base: Contains all applications needed by all users.
Finance-Applications: Contains bundles needed to work with finance applications.
Help Desk-Tools: Contains bundles that are related to the Help Desk.
The following is a graphical representation of how you might want to leverage bundle groups:
For more information, see “Managing Bundle Groups” in the ZENworks 10 Configuration
Management Software Distribution Reference.
70 System Planning, Deployment, and Best Practices Guide
Assigning Bundles
A major feature in ZENworks Configuration Management is the ability to inherit assignments from
multiple places within the system. With this feature, it is very easy to assign a bundle or bundle
group to many devices in seconds. You do not need to assign bundles to each device, which saves
time and money.
Based on your folder and group design, we recommend that you use folder or group assignments
instead of direct assignments. Use these indirect assignments wherever possible to increase speed
and reduce administration effort. If you utilize folders and groups for as many of your assignments
as possible, you can deliver updates to hundreds of devices when you need to get them there, even
immediately.
Best practices on how to leverage folders and groups include:
If you have a set of bundles that are required for all devices in a site, use the site folder to assign
these bundles or bundle groups.
If you have special bundles that are used in one or more departments, assign these bundles only
to the department folders.
If you have bundles that are used by several devices in different folders, set up groups for
assignments.
Only use direct assignments if a single device or a small number of devices need special
assignments.
novdocx (en) 16 April 2010
For more information, see “Managing Bundles” in the ZENworks 10 Configuration Management
Software Distribution Reference.
Importing and Exporting Bundles
Novell best practice dictates that a new application or change to an existing application in the
environment should use a testing phase that does not affect the production network. We recommend
that a development zone (DEV-ZONE) be created with its own ZENworks Configuration
Management structure that mirrors the production network. After an application has been approved
for production deployment, it should then be moved from the DEV-ZONE to the production zone
(PROD-ZONE). Currently there is no way to export MSI files from the Content Repository, so we
recommend that all source files are retained; otherwise, there will be no source to be imported into
production (see TID 3053696 (http://www.novell.com/support/) on the Novell Support page).
To export bundles:
1 From the DEV-ZONE ZCM server, export the bundle to a specific export directory by using the
following command:
zman bundle-export-to-file /bundle_path/bundle_name bundle_filename.xml
If the application has no dependencies and is not a Windows MSI bundle, a single
bundle_filename.xml
into the Content Repository, two files will be created:
bundle_filename_ActionContentInfo.xml
is created. If there are dependencies or MSI content to be imported
bundle_filename.xml
and
.
For example, you can export the officeXP bundle to
bundle-export-to-file officeXP officeXP.xml
officeXP.xml
officeXP_ActionContentInfo.xml files are created.
by using the
command. The
zman
officeXP.xml
Performing Design Activities 71
and
2 Copy all files related to the application MSI (not all MSI files are self-contained) to the same
application export directory. It is possible to place the application MSI is a separate folder;
however, the following section of the
bundle_filename_ActionContentInfo.xml
file
needs to be modified to specify the content location:
includeAllFilesinSubFolders="false">E:\files\ApplicationX.msi</
ContentFilePath>
3 Copy the entire directory by whatever method of communication is approved from the DEV-
ZONE server to the PROD-ZONE server.
4 Create the bundle on the PROD-ZONE ZCM server by using the following command:
zman bundle-create new_bundle_name bundle_xml_filename.xml bundlefolder --
(using
actioninfo bundle_name_ActionContentInfo.xml
bundlename
results in an error because of invalid characters).
/bundlefolder/
For example, use the following command to create a bundle called ApplicationX:
zman bundle-create OfficeXP officeXP.xml “/Bundles/Microsoft Applications”
--actioninfo officeXP_ActionContentInfo.xml
Application Delivery Mechanism
novdocx (en) 16 April 2010
There are a number of different methods to deliver content to your managed devices with ZENworks
Configuration Management.
“Tomcat via HTTPS” on page 72
“NetWare” on page 73
“Microsoft” on page 73
“Other Network Shares (NetStorage)” on page 74
“Recommendation for the Delivery Mechanism” on page 74
Tomcat via HTTPS
Benefits:
ZENworks Configuration Management controls the distribution of content to the various
Satellite devices and Primary Servers that exist within the Management Zone.
Data is encrypted within Tomcat, so anyone with file access to the server will not be able to
access applications.
HTTP is used to deliver content, rather than SSL, so there is no overhead to re-encrypt the
content for transmission.
Access to data is based upon the relationships defined within ZENworks Configuration
Management. If you are not a target device or user of ZENworks Configuration Management,
you have no access to application, image, or policy data.
This is a firewall-friendly solution. It is very easy to allow DMZ access to content for remote,
Internet-based devices, without cumbersome configuration changes on routers, switches, and
firewalls.
72 System Planning, Deployment, and Best Practices Guide
Drawbacks:
The ZENworks Configuration Management server becomes less scalable because it is serving
more HTTP requests from managed devices.
It can take some time before an application has finished encrypting and injecting its data into
the Web server.
NetWare
You can use the Novell Client (Client32TM) and existing mapped network drives or directly via UNC
to provision application data to your managed devices.
Benefits:
Uses the existing infrastructure.
Less overhead is required on the ZENworks Server.
Drawbacks:
ZENworks Configuration Management has no control over the distribution of the application
content. The distribution must be managed outside of ZENworks Configuration Management
with products such as ZENworks Server Management.
ZENworks Configuration Management has no control over who has access to the data.
novdocx (en) 16 April 2010
Application content is not encrypted and can potentially be installed by anyone with access to
the server.
This is not a firewall-friendly solution. Access from outside the firewall requires VPN access in
order to deliver applications.
Microsoft
You can use Microsoft DFS shares, Active Directory servers, or file and print servers.
Benefits:
Uses existing infrastructure servers.
Less overhead is required on the ZENworks Server.
Uses existing domain credentials of devices and users to control access to the files you are
provisioning to managed devices.
Drawbacks:
ZENworks Configuration Management has no control over the distribution of the application
content. The distribution must be managed outside of ZENworks Configuration Management
with products such as ZENworks Server Management or Microsoft DFS.
ZENworks Configuration Management has no control over who has access to the data.
Application content is not encrypted and can potentially be installed by anyone with access to
the server.
This is not a firewall-friendly solution. Access from outside the firewall requires VPN access in
order to deliver applications.
Performing Design Activities 73
Other Network Shares (NetStorage)
It is also possible to use NetStorage devices for content hosting and delivery of application content
to your managed devices.
Benefits:
Uses existing infrastructure.
Less overhead is required on the ZENworks Server.
Drawbacks:
ZENworks Configuration Management has no control over the distribution of the application
content. The distribution must be managed outside of ZENworks Configuration Management.
ZENworks Configuration Management has no control over who has access to the data.
Application content is not encrypted and can potentially be installed by anyone with access to
the server.
This is not a firewall friendly solution. Access from outside the firewall requires VPN access in
order to deliver applications.
novdocx (en) 16 April 2010
Recommendation for the Delivery Mechanism
Novell recommends using the ZENworks Configuration Management internal delivery mechanism
(HTTP) for bundles and policies. Although it might be easier to use other delivery methods you will
lose most of the benefits within ZENworks Configuration Management. Some of these benefits
include:
Content replication capabilities
Rights to the content store
Data encryption and security wrapped around content
4.2.11 Policy Management
In general, it is not a good idea to have thousands of different policies in place to fulfill all
requirements. In desktop management, there are usually sets of policies for certain groups, such as
normal users, administrative users, and special user groups, such as software developers.
However, you might also want to organize policies in more than one folder to restrict access and
administration to specific groups or users.
Some policies definitely need to be restricted to a set number of people within the organization (such
as remote management policies), so you need to consider this best practice recommendation
carefully.
However, it is a good idea to organize different sets of policies in different folders. In addition, we
recommend that you use policy groups to put different policies together in a single package and then
assign these policy groups to devices or users, (policy groups are loosely synonymous to policy
packages in previous versions of ZENworks Desktop Management).
74 System Planning, Deployment, and Best Practices Guide
To make sure that every device receives the required and effective settings, we recommend that you
define the order in which policies are applied. There are four options you can use here, and you need
to understand your policy requirements before you make these decisions:
Apply device policies first, user policies last (user-assigned policy wins)
Apply user policies first, device policies last (device-assigned policy wins)
Use only device policies
Use only user policies
All policies are applied in the following order: folder, group, then device or user.
The following graphic shows the effective policies on a given device:
Figure 4-20 Assigned Policies Page in ZENworks Control Center
novdocx (en) 16 April 2010
In the above example, there is a policy group assigned to a folder BRA. This group contains all
policy settings (Policy-STD) that are required for all users in BRA. Additionally there is policy
group assigned to the NCS folder (below BRA). Finally, there is a direct policy assignment to the
NCS folder that modifies the DLU settings only.
The following sections contain more information:
“Recommendations for Managing Policies” on page 75
“Advantages to Assigning Group Policies through ZENworks Configuration Management” on
page 76
Recommendations for Managing Policies
Organizing policies into folders and policy groups makes it easier to manage the assignment process
to devices and users. When managing policies, you should consider the following items:
When managing policies, you should:
Define user and device categories during the assessment phase, such as Standard-user,
Administrative-user, Management-user, Help Desk-device, and so forth.
Define required policies and sets that can be used for policy groups.
Define the order in which policies are applied.
Assign policy groups to folders as needed.
Use folder or group assignments wherever possible.
Performing Design Activities 75
Advantages to Assigning Group Policies through ZENworks Configuration
Management
With ZENworks Configuration Management, you can use plural group policies, meaning you can
layer multiple group policies on top of each other, applying what is referred to as effective policies
at the endpoint level. Using ZENworks Configuration Management to do this allows you to handle
roaming users effectively, making policies available to end users no matter where they are logging in
from. Most organizations use group policies to manage the look and feel of the user's desktop
experience. There are two choices when it comes to using Group Policies in your environment:
Import your policy files into ZENworks Configuration Management and replicate them across
your infrastructure.
Deliver your policies though Microsoft Active Directory.
4.2.12 Imaging
We highly recommend that you adopt a methodology for creating and delivering Universal Images
to your endpoints. By this we mean a base image for Windows XP and Windows Vista. After you
have established the Universal Images, you can deliver core applications and line-of-business
applications as add-on images during the imaging process. This method can be further extended to
also provide hardware-specific drivers during the imaging process. Tools such as ENGL's Imaging
Toolkit for ZENworks Configuration Management can be used to make the process of creating a
Universal Image very easy to manage.
novdocx (en) 16 April 2010
For more information, see the ZENworks 10 Configuration Management Preboot Services and
Imaging Reference.
4.2.13 Configuring a Layer 4 Switch
ZENworks Configuration Management supports achieving load balancing and fault tolerance for
your infrastructure services though using a Layer 4 (L4) switch. An L4 Switch can front either
Primary Servers, Satellite devices, or both. This allows the organization to achieve guaranteed
results when directing traffic to the devices behind the switch. Most importantly, this allows
organizations to ensure that services are always available to their end user community.
L4 switches are expensive and not affordable for many smaller organizations. Smaller organizations
often turn to other forms of load balancing and fault tolerance solutions that are readily available to
them. These include solutions such as DNS Round Robin, Microsoft Load Balancing Services, and
other open source solutions on the market.
When you do use an L4 switch, you need to ensure that it is properly configured. If the switch is not
configured properly, the traffic is not directed properly and there might be issues with connections,
responses, and so forth.
The following sections explain the general requirements for properly configuring an L4 switch to be
used in front of ZENworks Primary Servers and Satellite devices:
“Foundry Networks ServerIronXL Configuration” on page 77
“Summary of Configuration Settings” on page 78
“Configuring the Closest Server Default Rule” on page 78
76 System Planning, Deployment, and Best Practices Guide
“Configuring an L4 Switch Definition from Selected Servers” on page 78
“Additional Details” on page 78
Foundry Networks ServerIronXL Configuration
The following example shows the configuration requirements for a Foundry Networks
ServerIronXL switch that was used for testing purposes in the Novell SuperLab. Other vendor
products are similar when it comes to configuration and the parameters used. Refer to vendor
documentation for further details.
ServerIron#sh run
Current configuration:
!
ver 07.3.03T12
no global-stp
global-protocol-vlan
!
server predictor round-robin
server sticky-age 2
server source-nat
server source-ip 151.155.184.107 255.255.252.0 151.155.187.254
!
server real r-ps-1 151.155.184.109
source-nat
port http
port http keepalive
port http url "HEAD /"
port http status_code 100 499
port ssl
port ssl keepalive
!
server real r-ps-2 151.155.184.110
source-nat
port ssl
port ssl keepalive
port http
port http keepalive
port http url "HEAD /"
port http status_code 100 499
!
server virtual ps-v1 151.155.184.108
port ssl sticky
port http sticky
track-group http 443
bind ssl r-ps-1 ssl r-ps-2 ssl
bind http r-ps-1 http r-ps-2 http
!
vlan 1 name DEFAULT-VLAN by port
no spanning-tree
!
boot sys fl sec
ip address 151.155.184.107 255.255.252.0
ip default-gateway 151.155.187.254
snmp-server community ..... rw
!
end
novdocx (en) 16 April 2010
Performing Design Activities 77
Summary of Configuration Settings
server source-ip: The IP address given to the L4 device.
server real r-ps-1: The IP address of server1. This server will be selected in Step 1 on page 78.
server real r-ps-2: The IP address of server2. This server will be selected in Step 1 on page 78.
server virtual ps-v1: The virtual IP address used to configure the L4 device in ZENworks Control
Center. See Step 3 on page 78.
Configuring the Closest Server Default Rule
In addition to setting up and configuring the L4 switch, you need to also configure the Closest
Server Default Rule. For more information, see “Setting Up Closest Server Rules” in the ZENworks
10 Configuration Management System Administration Reference.
Configuring an L4 Switch Definition from Selected Servers
1 In one of the role section listings, select the check boxes for one or more servers.
2 Click L4 Switch > Create L4 Switch Definition from Selection.
3 Specify an L4 switch definition name, then click OK.
novdocx (en) 16 April 2010
The L4 switch definition name must be either the DNS name or IP address of the L4 virtual
server.
4 Click Apply to make the change effective.
Additional Details
The created L4 switch definition is displayed in each of the listings, no matter where it is
created, with the selected servers listed under each instance of the L4 switch definition.
Servers can be members of multiple groups and L4 switch definitions.
Servers that are members of an L4 switch definition or group are no longer listed at the top
level of the server listing.
4.2.14 ZENworks Systems Update
The System Updates feature allows you to obtain updates to the Novell ZENworks 10 Configuration
Management software on a timely basis, and also allows you to schedule automatic downloads of
the updates.
Software updates are provided periodically and you can choose whether to deploy each update after
viewing its content.
For more information, see “Introduction to ZENworks System Updates” in the ZENworks 10
Configuration Management System Administration Reference.
78 System Planning, Deployment, and Best Practices Guide
4.3 Lab Testing and Validation
One of the key parts of the design phase is the testing and validation that is done in the
organization’s lab environment prior to any deployment being completed. This is your opportunity
to do the following:
Prove that the design and design decisions you made are accurate and correct, and meet the
very specific requirements of the organization.
Verify that software components are functioning properly, and that users are receiving the
results that they should expect.
Prove that the deployment will be successful.
The organization should use the lab to develop acceptance tests that are run by the project team and
tracked for completion and success. The best way to do this is to document individual acceptance
tests (a simple spreadsheet can be used if you want), and complete the tests according to the steps
you need to take. After the individual tests have been run successfully and validated (proven
successful), you can document this and move on until all tests have been completed.
If individual tests are unsuccessful, you need to make changes (this could also include your design),
and run the test until it is successfully completed.
novdocx (en) 16 April 2010
The idea is not to create more work for you, but to prove the overall design quality and increase the
probability of a successful ZENworks Configuration Management deployment.
Your lab environment must reflect your existing infrastructure as closely as possible, and the
ZENworks Configuration Management infrastructure in the lab must accurately reflect the design
you are creating.
The lab should contain real-world layout (design) to ensure that the ZENworks Configuration
Management design fits well within the existing environment. Things to include are:
The design of directory services infrastructures, including Novell eDirectory and Microsoft
Active Directory. If you can, replicate the directory services in the lab to ensure that the lab
environment is isolated from the actual production systems. You want to avoid causing issues
with the endpoints on the production network because of testing in the lab.
Major network infrastructure components that need to be tested. This includes a replica of the
main data center layouts, and the major classifications of remote sites that need to be tested for
Satellite distributions and collections.
An exact replica of the ZENworks Configuration Management infrastructure design that you
are creating. This needs to be kept up-to-date. If any changes are made to the design, you need
to immediately reflect these changes in the lab environment.
You should test actual packages, content, collection, and so forth, and this needs to reflect the
decisions made in the design phase. For example, you should test inventory collection based on
the decisions you have made for inventory collection schedules. This is also true for all major
components of ZENworks Configuration Management that are being deployed.
You should perform all endpoint testing with actual base images that are being used in
production. This includes a sample set of actual line-of-business applications and custom OS
configurations.
It is beneficial to have a sample set of departmental devices to use here. For example, use a
typical workstation you would find in Accounting, Human Resources, Engineering, IT, and so
forth.
Performing Design Activities 79
When building your lab, you do not need to build the entire lab with physical hardware. You are not
testing the breaking point here. You are testing functionality and whether or not there are any major
issues found with the overall design. You should use actual production hardware to test functionality
at the device level, but the server infrastructure could be virtualized to save hardware costs. The idea
is to reflect the design so you can prove that it is solid.
4.4 Documentation
Documentation is the most important aspect of the design phase. It is critical that you document all
decisions that are made during the design phase and keep these items up-to-date. After the document
has been finalized, it is important to keep it up-to-date to reflect all changes to both the ZENworks
Configuration Management infrastructure that is in place, as well as the infrastructure and services
that ZENworks Configuration Management relies on.
In addition to reflecting the infrastructure, the design document can prove to be a useful and
powerful knowledge transfer document. As individuals within the organization move in and out of
the IT Services division, they can use this document to better understand what was put in place, and
how the system is connected and interconnected. It is a tool to provide insight into what was decided
during the project and beyond.
novdocx (en) 16 April 2010
We recommend that you store the design document in a documentation repository if you have one,
and you should provide access to the document as required. However, you should limit who has
write access to the document so that it is not updated by unauthorized personnel.
80 System Planning, Deployment, and Best Practices Guide
5
Deploying ZENworks
novdocx (en) 16 April 2010
Configuration Management
Deployment is the final stage of the implementation of Novell® ZENworks® Configuration
Management across your enterprise. If you have planned properly, and documented everything well
during your assessment and design phases, this stage of the project should be greatly simplified.
The following sections explain the steps you should take when deploying ZENworks Configuration
Management across the entire infrastructure, and the steps should be followed closely regardless of
the size of the organization.
Section 5.1, “Pre-Deployment Planning,” on page 81
Section 5.2, “Pre-Deployment Documentation,” on page 82
Section 5.3, “Pre-Deployment Testing,” on page 82
Section 5.4, “Pilots,” on page 82
Section 5.5, “Migration,” on page 82
Section 5.6, “Wider Deployment,” on page 84
Section 5.7, “Post-Deployment Documentation and Validation,” on page 84
5.1 Pre-Deployment Planning
5
The first step in the process of deployment is planning the actual deployment. The following are
recommendations on how to plan this process:
Contact departmental leaders and inform them about the deployment.
Make suggestions on how you want to roll out the ZENworks Adaptive Agent to the endpoints,
including which departments are going to be targeted by date and time. Make sure you line this
up with your planned deployment schedule in your project plan. Ensuring that everyone knows
that this is a deliverable of the organization makes it much easier to line up the departments,
sites, or groups for deployment.
Identity and notify individuals that are part of the pilot phase of the deployment.
Emphasize that feedback is key to the success of this project. Individuals who are part of
the pilot and more wider-scale deployment should provide feedback directly to the IT
organization or to the Service Desk.
Make sure your teams are well informed of the deployment. This includes:
Departmental leaders.
Employees of the organization.
The organization’s Service Desk (staff members should have the full documented
schedule posted everywhere so everyone onsite knows what is going on, and when). This
also includes everyone involved in Incident and Problem Management processes.
The entire IT department, including desktop support, network services, and other
operational groups.
Deploying ZENworks Configuration Management
81
Change Management.
Security services groups, they need to be well informed that this is a planned
organizational initiative.
5.2 Pre-Deployment Documentation
Documentation is key to the success of every aspect of the project, including how you plan to deploy
the services and agents. Everyone directly involved in the actual deployment, should have
documentation that they can reference at all times, eliminating the chance of error.
Documentation regarding the deployment processes needs to be completed during the design phase,
and while you are testing the deployment in your test lab facilities. After you have proven the
concept and included deployment activities in the design document, you should create a Deployment
Assistance Guide that can be used by the individuals who are involved. You might not need to share
the entire design document with everyone involved in the deployment of the product. Use your best
judgment here.
5.3 Pre-Deployment Testing
novdocx (en) 16 April 2010
We recommend that you set aside some time before you perform your pilots to further prove your
deployment by running some last-minute tests. Allow enough time so that any adjustments can be
made and documented prior to deployment.
Perform the test in your lab facilities, using three or four sample workstations with a sample of lineof-business applications installed. This can be a replica of tests done during your full testing phase.
5.4 Pilots
The first phase of the actual deployment is the pilots. This is where you deploy the ZENworks
Adaptive Agent to those members that you identified and notified as part of the pilot phase. You are
looking for feedback from these individuals, and this can be done through a feedback form, e-mail,
or face-to-face meetings.
Do not perform the pilots all at once. Use a rolling approach to this phase. If something goes wrong
with the deployment, you want to limit the number of people that are impacted. After you are
confident that the deployment is going as planned, you can increase the number of devices you
deploy to.
5.5 Migration
If your deployment involves a migration from an existing ZENworks infrastructure, you should have
gone through a pre-staging process (see Section Appendix 6, “Deployment and Migration
Scenarios,” on page 85 for further details), but your actual process for deploying to the end-user
communities should not be different. You still need to pilot and deploy in the same way as if this is a
new deployment of ZENworks Configuration Management.
You should use the ZENworks Migration Wizard to perform the pre-staging activities. This includes
a migration of the following resources:
Application objects and source content. This includes all AOT/AXT-based objects and content,
MSI-based objects and content, and Simple objects.
82 System Planning, Deployment, and Best Practices Guide
Image objects and image files.
Policy objects and applicable policy files (for example, Group Policy files).
Imported workstation objects.
All associations for application objects and policy packages.
The Migration Wizard can be found at the following locations:
%zenworks_home%\install\downloads\tools
https://servername-zenworks-setup/zenworks-setup/?pageId=tools
It is important to note that if you are migrating from an eDirectoryTM infrastructure (for user sources)
to an Active Directory environment, you should take advantage of the migration capabilities built
into the Migration Wizard for migrating associations. This allows you to migrate your existing
eDirectory associations to Active Directory users, groups, and folders.
In addition, if you are migrating workstation objects, the wizard allows you to avoid the need for
discovery of devices. After you have migrated your workstation objects into the ZENworks
Configuration Management Zone, you can target them directly from there. In fact, we recommend
that all existing ZENworks customers migrate their workstation objects even if they are associating
applications and policies only to users in the user source. If workstations are not migrated, and you
deploy the ZENworks Adaptive Agent to the existing ZENworks workstations, all applications and
policies within ZENworks Configuration Management redeploy.
novdocx (en) 16 April 2010
For more information about the Migration Wizard, see the ZENworks 10 Configuration
Management ZENworks Migration Guide.
Some additional best practice recommendations for using the Migration Wizard include:
If you migrate traditional ZENworks application objects as MSI files through the Migration
Utility running on a Windows Vista device, the performance might degrade. For improved
performance, run the Migration Utility on a Windows XP SP2 device.
While migrating applications that require the content to be uploaded to the content server, the
migration might fail. Ensure that the port specified in the File Upload Http Port option while
logging in to the migration destination zone matches the port configured while installing the
ZENworks Configuration Management Server.
While migrating large applications that should be uploaded to the content server, the
connection to the server might be lost, resulting in failure of the migration. Ensure that the Get
response timeout option in the Web Client Configuration is set to None in order to establish a
persistent connection with the server.
While migrating applications, deselect the Upload to content server option if you do not want
to upload the applications to the content server. Deselecting the option migrates the MSI
applications as Install Network MSI, which installs the MSI from a network path. By default,
the Upload to content server option is enabled.
If you use the Snapshot Manager in traditional ZENworks to create complex application
objects with multiple changes such as Registry, INI, and File Copy, you should migrate the
applications as MSI by disabling the Migrate distribution options as individual actions option.
If you use the Snapshot Manager in traditional ZENworks to create application objects with
single changes such as Registry, INI, or File Copy, or if the application object must be edited
later, you should migrate the application as actions by enabling the Migrate distribution options
as individual actions option.
Deploying ZENworks Configuration Management 83
If an application is dependent on other applications, review the applications on which the
dependency exists and migrate them as MSI or as actions dependent on the requirements, then
migrate the dependent applications.
If the traditional ZENworks application objects use files that are hosted on the network share,
you should map the network share on the device hosting the migration tool.
By default, the applications are uploaded to the content server during the migration. If the
application files are located on a shared network and you want to continue using the network
files, deselect the Upload to content server option.
If there are too many associations to be listed in the Migration Utility, select the Either eligible
or ineligible for migration (No warning) option to reduce the time taken by the utility in listing
the associations.
Application objects that have the AppFsRights attribute set in eDirectory are not listed in the
Migration Utility. To list such applications for the migration, remove the AppFsRights
attribute. For more information on removing attributes, search for the LDAP Attribute
Remover article at the ZENworks Cool Solutions Community (http://www.novell.com/
communities/coolsolutions/zenworks).
novdocx (en) 16 April 2010
5.6 Wider Deployment
After you have completed the pilot deployments, you can move on to a wider deployment.
Continuing to use the deployment plan that you have documented. You should execute against your
project plan until you have completed the rollout to all remaining workstations on your network. See
Appendix 6, “Deployment and Migration Scenarios,” on page 85 for further details on how to do
this, depending on the type of deployment you are performing.
5.7 Post-Deployment Documentation and Validation
After you have completed the deployment, you should document all steps you took to deploy across
your entire infrastructure. We recommend that you do this outside of the project plan, and include
this in your documentation repository as either a separate document or as a part of your existing
design document.
In addition, you should validate your success as much as possible. This can be done by doing the
following:
Perform physical spot checks wherever you can. Interview individuals briefly to see if they are
experiencing any issues with the deployment, and more specifically with the addition of the
ZENworks Adaptive Agent.
Review error logs in ZENworks Control Center and investigate further from there. Visit
workstations to find out more details if necessary.
Monitor Service Desk activity throughout the duration of the deployment phase. Service Desk
incidents reveal a lot of information. You are looking for spikes in activity and the details of the
individual Service Desk requests.
84 System Planning, Deployment, and Best Practices Guide
6
Deployment and Migration
novdocx (en) 16 April 2010
Scenarios
The following section describes various deployment and migration scenarios and the suggested
steps for implementing Novell
Section 6.1, “New ZENworks Customer,” on page 85
Section 6.2, “Migrating From a Previous Version of ZENworks,” on page 91
6.1 New ZENworks Customer
This scenario is this simplest deployment to plan. Because an existing ZENworks implementation is
not in place, the pace of the deployment can be controlled vary carefully without coordinating the
decommissioning of previous ZENworks services. In this scenario, the administrators have only one
administration tool to utilize: the ZENworks Control Center. This simplifies the administrative
effort.
When deploying ZENworks Configuration Management to a new customer, Novell recommends
that you consider the following steps:
Section 6.1.1, “Build a Model Office Environment,” on page 85
Section 6.1.2, “Planning,” on page 87
Section 6.1.3, “Deployment,” on page 89
®
ZENworks® Configuration Management:
6
6.1.1 Build a Model Office Environment
It is important that the desired solution is tested in an environment that accurately represents the
customer’s environment. If a test or model office environment can be built, the ZENworks Adaptive
Agent should be deployed to test devices that accurately reflect the various builds that are in the
field. Customers often have multiple operating system builds with different service packs,
authentication mechanisms, and standard applications. Ensuring that the desired configuration
works on all of these builds helps to ensure a successful deployment to the live environment.
Another benefit of providing a model office environment is that groups of end users can be invited
to use the systems and provide feedback on how information and data is presented. A good example
of this is the various methods for presenting application icons to the end-users. In some cases, users
might prefer to use the Start Menu, Quick Launch Toolbar, or the ZENworks Application Window.
Gathering feedback on these items early allows careful planning for how to best provide ZENworks
Configuration Management functionality to the end users.
“Discovery and Deployment Methods” on page 86
“Deploy and Test Policies” on page 86
“Deploy and Test Applications” on page 86
“User Acceptance Testing” on page 87
Deployment and Migration Scenarios
85
Discovery and Deployment Methods
A new ZENworks customer might not have a desktop management solution already in place. In this
scenario, the customer needs to try various methods for deploying the ZENworks Adaptive Agent to
new machines. ZENworks Configuration Management provides the ability to discover devices via
IP or LDAP discovery routines and then to target remote deployments of the agent to these
discovery devices. For remote agent deployment to function a number of criteria must be in place,
such as:
Simple File Sharing is disabled
An administrative credential must be provided
If it is not possible to deploy devices via the built-in deployment tool, a number of other methods
can be investigated. For each of the following methods, the process should be tested to ensure that
the process is acceptable to the end user and that the ZENworks Adaptive Agent can be successfully
deployed.
“Login Scripts” on page 86
“Manual Agent Download” on page 86
novdocx (en) 16 April 2010
Login Scripts
If the customer utilizes a directory, the Adaptive Agent can be deployed through login scripts.
NOTE: The end user must have the necessary privileges to install the Adaptive Agent.
Manual Agent Download
The last resort for agent deployment is to manually download the agent from the ZENworks Control
Center. Alternatively, customers can place the agent installation on their own intranet pages to allow
users to install the product.
Deploy and Test Policies
After the ZENworks Adaptive Agents are deployed in the model office environment, the ZENworks
policies can be tested to ensure that the desired result is achieved. Particular attention might be
directed to the deployment of Group Policies. Group Policies in ZENworks Configuration
Management are plural, allowing multiple policies to be stacked. It is important that the different
policy stacks are tested.
Deploy and Test Applications
Test all applications that are to be made available on the first day of the production rollout. This
testing should include:
“Standard Applications” on page 87
“Line of Business Applications ” on page 87
“Specialized Applications” on page 87
86 System Planning, Deployment, and Best Practices Guide
Standard Applications
These applications are made available to all managed devices. Typical examples of these are the
following:
Adobe* Reader
OpenOffice
GroupWise
GroupWise Instant Messenger
®
e-mail client
Line of Business Applications
Different departments within the organization, such as Finance and Human Resources, might require
different application sets. Ensure that these applications deploy successfully on each build type and
that they interact with other applications.
Specialized Applications
Applications that are used by a very small numbers of users should also be tested; for example,
applications designed for people with disabilities.
novdocx (en) 16 April 2010
User Acceptance Testing
After the ZENworks Adaptive Agent has been deployed and all policies and applications have been
tested for functionality, the next phase involves inviting representatives of the user base to test the
end-user experience. At this stage, it is valuable to receive feedback on a number of items such as:
The look and feel of the desktop
The method by which users can launch ZENworks Configuration Management delivered
applications (Start Menu, Quick Launch bar, notification area, and so forth)
Feedback received from users helps to ensure that the ZENworks-delivered desktop experience is
acceptable. Another useful result of this activity is that requirements for additional training or
marketing collateral is identified.
6.1.2 Planning
Planning deployments are an important part of a successful project. After a robust design has been
tested and evaluated in a model office environment, a number of steps should be followed before
implementing ZENworks Configuration Management in a production environment.
“Identify Groups of Users and Devices” on page 87
“Create Internal Documentation” on page 88
“Schedule Deployments” on page 89
Identify Groups of Users and Devices
An important part of any deployment is to identify which devices will be targeted and in which
order. Novell recommends that logical groupings be made in the target environment before
deploying the product. After ZENworks Adaptive Agents are deployed and represented in the
Deployment and Migration Scenarios 87
ZENworks Control Center as managed objects, ZENworks groups can be created to reflect these
groups. Groups can become important in the future when staging the rollout of system updates,
applications, and patches.
The following list provides examples of how environments can be grouped:
Departments: The IT organization is a good group of people to start with because the
members tend to be technology-savvy and understand the needs for reboots and testing.
Laptop Users: Laptop users are a good group to identify to test the roaming capabilities of
ZENworks Configuration Management. As devices roam inside the firewall, it is important that
Closest Server Rules are configured in the Management Zone to ensure that devices connect to
the most appropriate servers based on their physical location.
Home workers and VPN users: These devices connect to the corporate firewall in a non-
standard way. Testing these devices early ensures that the logon and connection process works
to connect to the ZENworks Management Zone and refresh content.
Geographical locations: You should establish a footprint at each major location early. This is
to ensure that the Management Zone is configured correctly to spread the load of devices via
Closest Server Rules.
VIP users: You might want to manage the devices of CxOs and IT directors early, so you are
able to ensure that they are working well. It is often beneficial to create a workstation group to
group important devices together. This allows for remedial actions to be quickly taken.
novdocx (en) 16 April 2010
Create Internal Documentation
Internal documents that can be shared with the end user are an important part of any project that
introduces technology that affects the desktop experience.
The following sections describe internal documentation that you could use:
“Internal Marketing Collateral” on page 88
“Support and Issue Escalation Process Documents” on page 88
Internal Marketing Collateral
Internal marketing is an important tool to inform end users of IT projects that affect them. This
normally comes in the form of intranet postings, internal promotions, posters, and so forth. Novell
recommends that customers are encouraged to use these actions to ensure that the deployment
process is managed effectively.
Support and Issue Escalation Process Documents
When introducing a new product into a customer environment, it is important that the customer's
support escalation process is well defined. In addition to this, it is vital that the support organization
is well trained on ZENworks Configuration Management. Key members of the support team should
attend workshops and training early in the project to ensure that they are familiar with the product,
the configuration, and troubleshooting methods. After key members are trained, this knowledge can
be cascaded to the other members of the team as it is needed.
88 System Planning, Deployment, and Best Practices Guide
Schedule Deployments
After the deployment groups have been defined, the next stage is to schedule when the deployments
occur for each group within the organization. This process is typically associated with the process of
raising change control requests. Novell recommends that deployments be scheduled in small groups
to begin with and then ramped up over time to ensure that the ZENworks Configuration
Management architecture can be monitored effectively during peak periods of change.
6.1.3 Deployment
Deploying ZENworks Configuration Management to managed devices is the most important part of
any ZENworks project, this is the stage at which end-users’ productivity can become affected.
Novell recommends using the following basic steps when deploying the product to a new
environment:
“Deploy the First ZENworks Primary Server and Database” on page 89
“Deploy Initial Managed Devices” on page 90
“Extend the Architecture” on page 90
“Extend the Managed Device Footprint” on page 90
“Analyze, Review, and Plan” on page 90
novdocx (en) 16 April 2010
Deploy the First ZENworks Primary Server and Database
Deploy the first ZENworks Primary Server and database and ensure that the Management Zone is
stable.
The first server in the Management Zone is often the Certificate Authority for the rest of the Zone. It
should be carefully managed and backed up regularly.
After the Management Zone is functional, the initial configuration should be defined as follows:
1. Create workstation folders, depending on how the customer wants to organize devices, such as
departments, geographical locations, and project teams. For more information, see “Creating a
Folder” in the ZENworks 10 Configuration Management Administration Quick Start.
2. Create registration rules and keys to control the placement of devices in the Management Zone.
For more information, see “Registering Devices” in the ZENworks 10 Configuration
Management Administration Quick Start.
3. Create roles and assign administration rights. If a user source is being used, configure existing
users with the management rights necessary for their role. For more information, see
“Administrators” in the ZENworks 10 Configuration Management System Administration
Reference.
4. Configure Closest Server Rules. Ensure that the various network locations are reflected. For
more information, see “Setting Up Closest Server Rules” in the ZENworks 10 Configuration
Management System Administration Reference.
5. Configure System Update. Ensure that the server can access the various Internet resources
required to download system updates and product recognition updates. For more information,
see “Introduction to ZENworks System Updates” in the ZENworks 10 Configuration
Management System Administration Reference
Deployment and Migration Scenarios 89
6. Configure user sources. Configure the link to the chosen user source and ensure that the user
objects can be found by browsing the source. For more information, see “User Sources” in the
ZENworks 10 Configuration Management System Administration Reference.
7. Configure Inventory scheduling. The default setting for all devices is to inventory monthly on
the first day of each month. Create different schedules for each of the workstation folders that
exist within the Management Zone. For more information, see the ZENworks 10 Configuration
Management Asset Inventory Reference.
8. Create standard policies, such as Remote Control policies. For more information, see “Creating
Policies” in the ZENworks 10 Configuration Management Policy Management Reference.
9. Create the required application bundles. When using a staged approach, it is necessary to create
only the standard bundles and the applications that are required by the first device stages. For
more information, see “Creating Bundles” in the ZENworks 10 Configuration Management
Software Distribution Reference.
Deploy Initial Managed Devices
Using the chosen deployment methods, deploy the first stages of devices to the Management Zone.
After the devices have been deployed, ensure the following:
novdocx (en) 16 April 2010
Devices are in the correct location (
Devices have successfully created and uploaded inventory data.
Devices can be remotely controlled.
ZENworks Primary Servers and the ZENworks Database are stable.
Devices can be refreshed successfully and do not report errors.
Workstation
folder).
After the customer is satisfied that the initial Management Zone configuration is stable with the first
stages of devices, the project can continue.
Extend the Architecture
According to the recommendations in this document, add additional Primary Servers and Satellite
devices. If possible, make sure all servers are in place before introducing additional devices. This
provides the opportunity for the servers to be patched appropriately and for the Content Repository
to synchronize completely. If all of the servers cannot be deployed before the live devices are added,
ensure that the deployment is staged in such as way that the servers are added before the relevant
groups of devices are added.
Extend the Managed Device Footprint
Using the stages identified earlier, continue the managed device rollout in a staged fashion to the rest
of the organization.
Analyze, Review, and Plan
During the device rollout, it is vital that the performance of the back-end servers, databases, and
managed devices are closely monitored using tools such as Perfmon. The following items should be
closely monitored:
Disk utilization
90 System Planning, Deployment, and Best Practices Guide
Memory
Peak processor utilization
If servers are highly utilized and struggling to cope with the load placed on them by the managed
devices, it is necessary to review the Management Zone configuration and the number of Primary
Servers and Satellite devices.
6.2 Migrating From a Previous Version of ZENworks
In addition to the topics described in the previous section, a number of key factors should be taken
into consideration when migrating from a previous version of ZENworks to ZENworks
Configuration Management.:
Section 6.2.1, “Application Deployment Strategy,” on page 91
Section 6.2.2, “Application and Policy Migration,” on page 92
Section 6.2.3, “Novell eDirectory ,” on page 92
Section 6.2.4, “Repurpose Hardware Used by Previous Zenworks Products,” on page 92
novdocx (en) 16 April 2010
6.2.1 Application Deployment Strategy
If a customer already has a mature deployment of ZENworks Desktop Management, it is likely that
the customer manages an extensive application repository. In many cases, the customer is using the
Tiered Electronic Distribution component of ZENworks Server Management to tightly manage the
distribution of application software code to the file servers needed to support deployment to endusers. In addition to these components, the customer might have already invested in processes and
work flows to facilitate application delivery, and therefore might be reluctant to start again with a
new system.
ZENworks Configuration Management provides an encrypted data store, known as the Content
Repository, that stores delivery content for applications, patch remediations, and ZENworks system
updates. When creating an application bundle, the delivery content is uploaded to the Management
Zone, encrypted, and subsequently synchronized to all ZENworks Primary Servers. This process
allows for applications to be delivered securely to devices using HTTP, regardless of the device's
physical location.
However, it is possible to create application bundles that refer to application repositories that are
external to ZENworks. For example, a customer might want to deliver applications with ZENworks
Configuration Management but refer to the same application content (MSIs) that ZENworks
Desktop Management is pointing to. The advantages of this approach are as follows:
Existing repositories can be used.
Existing processes for application management can be used. If a customer has invested in this
heavily, this is a compelling case to use the existing methods.
Some disadvantages of the approach are as follows:
The management of content is controlled outside of ZENworks Configuration Management.
Where the files reside and the rights users have to these locations must be managed outside of
the ZENworks Configuration Management management tools.
Deployment and Migration Scenarios 91
Using standard file and print delivery mechanisms restricts content deliver to devices inside the
firewall.
With the ZENworks Content Repository, devices download content though HTTP. This allows
content to be made available to external users via a Primary Server location in the DMZ.
6.2.2 Application and Policy Migration
ZENworks Configuration Management ships with a migration utility designed to migrate
applications, policies, and associations from a ZENworks Desktop Management system to
ZENworks Configuration Management. When applications are migrated to ZENworks
Configuration Management by using this tool, the data for the applications is automatically placed
in the Content Repository. If a customer wants to use existing application repositories, the migration
tool should not be used for their applications.
For more information on the migration tool, see the ZENworks 10 Configuration Management
ZENworks Migration Guide.
6.2.3 Novell eDirectory
novdocx (en) 16 April 2010
If your organization's preferred server and directory platforms are Windows Server and Active
Directory, and you're currently using ZENworks middle tier architecture and Identity Manager
directory sync, ZENworks Configuration Management makes it possible to eliminate both of these
stepping-stone technologies and interact directly with Active Directory for user authentication and
content association. This can be performed as simply as configuring the ZENworks Configuration
Management Zone to point directly at Active Directory as a user source.
6.2.4 Repurpose Hardware Used by Previous Zenworks Products
Customers commonly want to reuse hardware when possible. If a customer is migrating from
previous ZENworks technologies such as ZENworks Patch Management, ZENworks Asset
Management, eDirectory, and ZENworks Desktop Management, the hardware utilized for this
functionality can be re-purposed.
In some instances, it might be beneficial to reuse the hardware to provide the additional ZENworks
Primary Servers and ZENworks Satellite devices that are required by the migration project. Planning
the reprovisioning of hardware is an important step in a migration project and can help reduce the
architecture costs for the ZENworks Configuration Management deployment.
92 System Planning, Deployment, and Best Practices Guide
A
ZENworks Services
This section explains some of the Novell® ZENworks® Configuration Management services in
greater detail, and also provides some useful information regarding logging, backing up, and
restoring the Certificate Authority.
Section A.1, “ZENworks Services,” on page 93
Section A.2, “Useful URLs,” on page 95
Section A.3, “Critical File Locations,” on page 95
Section A.4, “Logging Information,” on page 98
Section A.5, “Backing Up and Restoring the ZENworks Certificate Authority,” on page 100
A.1 ZENworks Services
novdocx (en) 16 April 2010
A
On a Windows ZENworks Primary Server, the services reside in the
directory. On a Linux ZENworks Primary Server, they reside in the
Section A.1.1, “Checking the Status of a ZENworks Service,” on page 93
Section A.1.2, “Starting a ZENworks Service,” on page 93
Section A.1.3, “Stopping a ZENworks Service,” on page 94
Section A.1.4, “Restarting a ZENworks Service,” on page 94
Section A.1.5, “ZENworks Services,” on page 94
\novell\zenworks\bin
/etc/init.d
directory.
A.1.1 Checking the Status of a ZENworks Service
1 At the server command prompt, enter the following command:
/etc/init.d/servicename status
Replace servicename with the name of the service as listed in Section A.1.5, “ZENworks
Services,” on page 94.
A.1.2 Starting a ZENworks Service
To start a ZENworks service on a Windows ZENworks Primary Server:
1 Click Start > Administrative Tools > Services.
2 Select the service you want to start, then click Start.
To start a ZENworks service on a Linux ZENworks Primary Server:
1 Enter the following command at the server console prompt:
/etc/init.d/servicename start
Replace servicename with the name of the service as listed in Section A.1.5, “ZENworks
Services,” on page 94.
ZENworks Services
93
To start all services:
1 Enter the following command at the server console prompt:
/opt/novell/zenworks/bin/novell-zenworks-configure -c Start
A.1.3 Stopping a ZENworks Service
To stop a ZENworks service on a Windows Primary Server:
1 Click Start > Administrative Tools > Services.
2 Select the service you want to stop, then click Stop.
To stop a ZENworks service on a Linux ZENworks Primary Server:
1 Enter the following command at the server console prompt:
/etc/init.d/servicename stop
Replace servicename with the name of the service as listed in Section A.1.5, “ZENworks
Services,” on page 94.
novdocx (en) 16 April 2010
A.1.4 Restarting a ZENworks Service
To restart a service that is already running on a Windows Primary Server:
1 Click Start > Administrative Tools > Services.
2 Select the service you want to start, then click Restart.
To restart a service that is already running on a Linux Primary Server:
1 Enter the following command at the server console prompt:
/etc/init.d/servicename restart
Replace servicename with the name of the service as listed in Section A.1.5, “ZENworks
Services,” on page 94.
A.1.5 ZENworks Services
Table A-1 ZENworks Services, Service Names, and Descriptions
Service Service Name Description
Proxy DHCP Service novell-proxydhcp Used with a standard DHCP server to inform
PXE-enabled devices of the IP address of the
Novell TFTP server.
TFTP Service novell-tftp Used by PXE-enabled devices to request files
ZENworks Agent Service zenworkswindowsservice
novell-zmd
ZENworks Datastore dbsrv10 Embedded database used for storing
94 System Planning, Deployment, and Best Practices Guide
that are needed to perform imaging tasks.
Used to enable the server as a managed
device.
ZENworks objects and resources.
Service Service Name Description
ZENworks Loader zenloader Used for loading and controlling the Java
services that perform ZENworks Server tasks.
novdocx (en) 16 April 2010
ZENworks Preboot Policy
Service
ZENworks Preboot Service novell-pbserv Used to provide imaging services to a device.
ZENworks Remote
Management
ZENworks Server zenserver Used for communicating with the ZENworks
ZENworks Services Monitor zenwatch Used to monitor the status of the ZENworks
ZENworks Imaging Agent ziswin Used to save and restore image-safe data on
novell-zmgprebootpolicy Used by PXE-enabled devices to check for
assigned preboot policies and work.
This includes sending and receiving image
files, discovering assigned Preboot bundles,
acting as session master for multicast imaging,
and so forth.
nzrwinvnc Used to enable remote management of the
server.
Agent.
services.
the server (as a managed device). Only runs
when launched by the ZENworks Agent.
A.2 Useful URLs
Section A.2.1, “Discovery,” on page 95
Section A.2.2, “Deployment,” on page 95
A.2.1 Discovery
https://Primary_Server/zenworks-discovery
https://Primary_Server/zenworks-discoveryadmin
https://Primary_Server/zenworks-fileupload
A.2.2 Deployment
https://Primary_Server/zenworks-deployment
https://Primary_Server/zenworks-deploymentadmin
https://Primary_Server/zenworks-downloads
A.3 Critical File Locations
ZENworks Configuration Management uses the following directories:
Section A.3.1, “Installation Directories,” on page 96
Section A.3.2, “The ZENworks Content Repository,” on page 96
ZENworks Services 95
A.3.1 Installation Directories
ZENworks Configuration Management uses the installation directories listed here. It is important to
keep this in mind and be aware of where ZENworks Configuration Management is storing files.
This is useful when you are troubleshooting specific functionality in ZENworks Configuration
Management:
Windows installation directories:
Installation_directory
Linux Installation directories:
/opt/novell/zenworks/
/etc/opt/novell/zenworks
/var/opt/novell/zenworks
/var/opt/novell/log/zenworks/
For best performance, you should use separated disks and logical drives for the OS and the
installation directory. In addition, the database (if it is embedded) and log file size can increase very
quickly, so it is better to have them on separate partitions.
/ZENWORKS
novdocx (en) 16 April 2010
A.3.2 The ZENworks Content Repository
The content repository is found in the following location on a Windows server:
installation_path\zenworks\work\content-repo
You should specify a different disk drive to be your content repository. This is based on best
practices that Novell outlines for ZENworks Configuration Management. In Windows, this is done
by mounting the drive. Mounting is simply pointing an existing path to a hard drive partition without
the use of mapped drive letters.
In the following steps, you mount the default content repository location to a disk drive partition,
which becomes the new content repository:
1 Make sure that the disk drive you want to use is attached to the server and is properly formatted
as NTFS. This disk drive can be an existing drive or new drive for the machine. The hardware
must be recognized by the server. However, do not specify a drive letter if you are adding a new
disk drive to the machine. Windows does not allow mounting to a drive letter.
2 Because an empty
installation_path\zenworks\work\content-repo
(
content-repo
Repository location, do one of the following to make sure that there is no content in the default
location:
If you need to save the content that is now in this directory, rename the existing directory
and create a new directory named
You can then copy the content from this renamed directory to the new Content Repository
location.
directory must exist in the default location
) to be the pointer to the new Content
content-repo
.
96 System Planning, Deployment, and Best Practices Guide
novdocx (en) 16 April 2010
If you do not need any of the content in the existing
content-repo
directory, delete the
directory and re-create it.
If the
content-repo
directory is not present in the path given above, create the path and
directory.
3 Click Start, right-click the My Computer icon, then click Manage.
You can also click Start, then enter
compmgmt.msc
at the Run command line.
4 Select Disk Management under the Storage section in the left pane.
The disk drive you selected during the beginning of these steps should be displayed in the right
pane.
5 (Conditional) If a driver letter is associated with the partition that you want to use as the new
content repository location, do the following:
5a In the Computer Management dialog box, right-click the drive’s partition.
5b Select Change Drive Letter and Paths.
5c Select the drive letter.
5d Click Remove, then click Ye s to confirm.
6 Right-click the partition of the disk drive that you want to use as your content repository, then
click Change Driver Letter and Paths.
This is the disk drive that you will mount to the
content-repo
directory later in this
procedure.
7 Click Add.
This displays the Add Drive Letter or Path dialog box.
8 Select Mount in the Following Empty NTFS Folder, browse for and select the default
content-repo
The default directory is
directory, then click Next.
installation_path\zenworks\work\content-repo
.
This mounts the default path to the hard drive partition that you selected previously.
If necessary, format the drive as NTFS using the Computer Management feature in Windows.
9 Click the buttons as necessary to exit and save the configuration change.
10 Copy the files from the old renamed
content-repo
directory to the new
content-repo
directory.
From this point on, all ZENworks Configuration Management data is written directly to the new
Content Repository location on the selected hard drive partition.
/opt
For Linux servers, you might want the
directory to be located on a large partition. This is
where the database (if embedded) and content repository are stored.
The minimum disk configuration is required as follows:
Table A-2 Disk Setup for Windows
Partitions Size Contains
Boot (C:) 20 GB Windows System
Install (D:) 40 GB and larger Installation directory/ZENWORKS
ZENworks Services 97
Partitions Size Contains
Content 40 GB and larger Mounted to
Installation directory/ZENWORKS/work/content-repo
Table A-3 Disk Setup for Linux
Partitions Size Contains
/boot 300 Mb Linux boot / ext2
/swap 4 GB Linux swap
/root 20 GB Linux system / ext3
novdocx (en) 16 April 2010
Content 40 GB and larger Mounted to
repo
/var/opt/novell/zenworks/content-
A.4 Logging Information
The Message Logger component of Novell ZENworks 10 Configuration Management lets the other
ZENworks components such as zenloader and web services, ZENworks Management Daemon
(ZMD), Remote Management, and Policy Enforcers log messages to different output targets. The
output targets include the system log, local log, database, SMTP, SNMP trap, and UDP. For more
information, see the ZENworks 10 Configuration Management Message Logging Reference.
Message Logger performs the following functions:
Writes messages to local log files.
Writes messages to a system log or event log.
Writes messages to the Management console.
Sends messages to the Management server.
Sends messages as SMTP mail to SMTP servers from the Primary Server.
Sends messages as SNMP traps to remote or local machines from the Primary Server.
Sends messages as UDP packets to UDP destinations.
Writes messages to the ZENworks database.
Automatically purges database entries from the ZENworks database.
Automatically acknowledges the messages in the ZENworks database.
The following sections contain more information:
Section A.4.1, “Local Log File,” on page 98
Section A.4.2, “Installation Log File,” on page 99
Section A.4.3, “Registration Log File,” on page 99
A.4.1 Local Log File
On a managed device, the location of the local log file is:
98 System Planning, Deployment, and Best Practices Guide
novell\zenworks\logs\localstore\zmd-messages.log
On a ZENworks Server, the location of the local log file is:
ZENworks Services:
novdocx (en) 16 April 2010
Linux:
Windows:
ZENloader and its modules:
Linux:
Windows:
/var/opt/novell/log/zenworks/services-messages.log
novell\zenworks\logs\services-messages.log
/var/opt/novell/log/zenworks/loader-messages.log
novell\zenworks\logs\loader-messages.log
A message is an event that is generated by different components and modules. These events can be
exceptions such as errors, warnings, information to a user, or a debug statement for a module.
Messages are classified based on the following severity levels:
Error: Indicates that an action cannot be completed because of a user or system error. These
messages are critical and require immediate attention from an administrator.
War ning: Indicates an exception condition. These messages might not be an error but can
cause problems if not resolved. These messages do not require immediate attention from an
administrator.
Information: Provides feedback about something that happened in the product or system that
is important and informative for an administrator.
Debug: Provides debug information to troubleshoot and solve problems that might occur. The
debug messages are stored only in the local file.
For additional information related to message logging, see “Centralized Message Logging” in the
ZENworks 10 Configuration Management Message Logging Reference.
A.4.2 Installation Log File
The log file related to the installation of ZENworks can be found at the following location, for both
the Linux and Windows platforms:
Install_Path\logs\ZENworks_Install_date.log.xml
A.4.3 Registration Log File
The log files related to registration can be found in the following locations:
Server Log File
Linux:
Windows:
Agent Log File
Novell/ZENworks/logs/LocalStore/zmd-messages.log
/var/opt/Novell/logs/zenworks/service-messages.log
/Novell/ZENWorks/logs/service-messages.log
ZENworks Services 99
A.5 Backing Up and Restoring the ZENworks Certificate Authority
When you install ZENworks Configuration Management for the first time you are prompted to
either create an internal Certificate Authority (CA) or provide the appropriate certificate information
for an external CA. If you are using the built-in CA, it is important to keep in mind that the CA can
be backed up and restored if you require this as part of a set of troubleshooting procedures.
To back up the CA files on the Primary Server that is configured to be the ZENworks internal CA:
1 At the command prompt of the ZENworks Server, enter the following command:
zman certificate-authority-export (certificate-authority-export/cae)
[options] (file path)
This command exports the key-pair credentials of the zone certificate authority to a file.
2 Enter the username and password of the administrator of the Management Zone.
3 Enter a passphrase for the file encryption.
The passphrase is used in the encryption of the backed-up file.
novdocx (en) 16 April 2010
To restore the CA files on the Primary Server that is configured to be the ZENworks internal CA:
1 At the command prompt of the ZENworks Server, enter the following zman command:
zman certificate-authority-import (certificate-authority-import/cai) (file
path)
This command imports the key-pair credentials of the zone certificate authority from a file.
2 Enter the username and password of the administrator of the Management Zone.
3 Enter the file encryption passphrase you specified when you backed up the Certificate
Authority files
100 System Planning, Deployment, and Best Practices Guide
Loading...
