VIII

Databases

 Chapter 25, “Understanding GroupWise Databases,” on page 373

 Chapter 26, “Maintaining Domain and Post Office Databases,” on page 377

 Chapter 27, “Maintaining User/Resource and Message Databases,” on page 385

 Chapter 28, “Maintaining Library Databases and Documents,” on page 391

 Chapter 29, “Synchronizing Database Information,” on page 395

 Chapter 30, “Managing Database Disk Space,” on page 399

 Chapter 31, “Backing Up GroupWise Databases,” on page 407

 Chapter 32, “Restoring GroupWise Databases from Backup,” on page 411

 Chapter 33, “Retaining User Messages,” on page 419

 Chapter 34, “Standalone Database Maintenance Programs,” on page 423

novdocx (en) 11 December 2007

VIII

Databases

371

novdocx (en) 11 December 2007

372 GroupWise 7 Administration Guide

Understanding GroupWise

novdocx (en) 11 December 2007

Databases

Your GroupWise® system includes numerous databases where vital information is stored.

 Section 25.1, “Domain Databases,” on page 373

 Section 25.2, “Post Office Databases,” on page 373

 Section 25.3, “User Databases,” on page 374

 Section 25.4, “Message Databases,” on page 374

 Section 25.5, “Library Databases,” on page 374

 Section 25.6, “Guardian Databases,” on page 375

25.1 Domain Databases

The domain database (wpdomain.db) in each domain contains all administrative information for the domain, including:

 Address information about all GroupWise objects (such as users and resources), post offices,

and gateways in the domain

 System configuration and linking information for the domain’s MTA

 Address and message routing information to other domains

The first domain you create is the primary domain. In the primary domain, the wpdomain.db file contains all administrative information for your entire GroupWise system (all domains, post offices, users, and so on). Because the wpdomain.db file in the primary domain is so crucial, you should back it up regularly and keep it secure. See Section 31.1, “Backing Up a Domain,” on page 407.

You can re-create your entire GroupWise system from the primary domain wpdomain.db file; however, if the primary domain wpdomain.db file becomes unusable, you can no longer make administrative updates to your GroupWise system.

Every domain you create after the primary domain is a secondary domain. The contents of secondary domains are automatically synchronized with the primary domain.

For the location of the domain database, see “Domain Directory” in GroupWise 7 Troubleshooting

3: Message Flow and Directory Structure. For additional domain information, see Section 40.3,

“Information Stored in the Domain,” on page 606.

25.2 Post Office Databases

The post office database (wphost.db) in each post office contains all administrative information for the post office, including a copy of the GroupWise Address Book. This information is necessary for users to send messages to others in the GroupWise system.

For the location of the post office database, see “Post Office Directory” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure. For more post office information, see

Section 35.3, “Information Stored in the Post Office,” on page 464.

Understanding GroupWise Databases

373

25.3 User Databases

Each member of the post office has a personal database (userxxx.db) that represents the user’s mailbox. The user database contains the following:

 Message header information

 Pointers to messages

 Personal groups

 Personal address books

 Rules

When a member of another post office shares a folder with one or more members of the local post office, a “prime user” database (puxxxxx.db) is created to store the shared information. The “prime user” is the owner of the shared information.

Local user databases and prime user databases are stored in the ofuser directory in the post office.

Because resources are addressable just like users, resources also have user databases.

novdocx (en) 11 December 2007

For the location of user databases in the post office, see “Post Office Directory” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure. For more post office information, see

Section 35.3, “Information Stored in the Post Office,” on page 464.

25.4 Message Databases

Each member of the post office is assigned to a message database (msgnnn.db) where the body portions of messages are stored. Many users in a post office share a single message database. There can be as many as 255 message databases in the post office (numbered from 0 to 254). Message databases are stored in the ofmsg directory in the post office.

Outgoing messages from local senders are stored in the message database assigned to each sender. Incoming messages from users in other post offices are stored in the message database with the same name as the message database assigned to the sender in his or her own post office. In each case, only one copy of the message is stored in the post office, no matter how many members of the post office it is addressed to.

For the location of message databases in the post office, see “Post Office Directory” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure. For more post office information, see

Section 35.3, “Information Stored in the Post Office,” on page 464.

25.5 Library Databases

A library is a collection of documents and document properties stored in a database system that can be managed and searched. You do not need to set up libraries unless you are using GroupWise Document Management Services (DMS). See Part VII, “Libraries and Documents,” on page 291.

The databases for managing libraries are stored in the gwdms directory and its subdirectories in the post office.

The dmsh.db file is a database shared by all libraries in the post office. It contains information about where each library in the post office is located.

374 GroupWise 7 Administration Guide

Each library has its own subdirectory in the gwdms directory. In each library directory, the dmxxnn01-FF.db files contain information specific to that library, such as document properties and what users have rights to access the library.

For the location of library databases in the post office, see “Post Office Directory” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure. For more post office information, see

Section 35.3, “Information Stored in the Post Office,” on page 464.

The actual documents in a library are not kept in the library databases. They are kept in a document storage area, which consists of a series of directories for storing documents. Documents are encrypted and stored in BLOBs (binary large objects) to make document management easier. A document, its versions, and related objects are stored together in the same BLOB.

A document storage area might be located in the post office itself, or in some other location where more storage space is available. If it is located in the post office, the document storage area can never be moved. Therefore, storing documents in the post office directory structure is not usually recommended. If it is stored outside the post office, a document storage area can be moved when additional disk space is required.

See Chapter 22, “Creating and Managing Libraries,” on page 299 and Chapter 23, “Creating and

Managing Documents,” on page 335 for more information about Document Management Services.

novdocx (en) 11 December 2007

25.6 Guardian Databases

The guardian database (ngwguard.db) serves as the master copy of the data dictionary information for the following subordinate databases in the post office:

 User databases (userxxx.db)

 Message databases (msgnnn.db)

 Prime user databases (puxxxxx.db)

 Library databases (dmsh.db and dmxxnn01-FF.db)

The guardian database is vital to GroupWise functioning. Therefore, the POA has an automated back-up and roll-forward process to protect it. The POA keeps a known good copy of the guardian database called ngwguard.fbk. Whenever it modifies the ngwguard.db file, the POA also records the transaction in the roll-forward transaction log called ngwguard.rfl. If the POA detects damage to the ngwguard.db file on startup or during a write transaction, it goes back to the ngwguard.fbk file (the “fall back” copy) and applies the transactions recorded in the ngwguard.rfl file to create a new, valid and up-to-date ngwguard.db.

In addition to the POA back-up and roll-forward process, you should still back up the ngwguard.db, ngwguard.fbk, and ngwguard.rfl files regularly to protect against media failure. Without a valid ngwguard.db file, you cannot access your e-mail. With current ngwguard.fbk and ngwguard.rfl files, a valid ngwguard.db file can be rebuilt should the need arise.

The ngwguard.dc file is the structural template for building the guardian database and its subordinate databases. Also called a dictionary file, the ngwguard.dc file contains schema information, such as data types and record indexes. If this dictionary file is missing, no additional databases can be created in the post office.

Understanding GroupWise Databases 375

novdocx (en) 11 December 2007

376 GroupWise 7 Administration Guide

Maintaining Domain and Post

novdocx (en) 11 December 2007

Office Databases

Occasionally, it is necessary to perform maintenance tasks on domain databases (wpdomain.db) or post office databases (wphost.db). The frequency depends on the reliability of your network and your own experience of how often problems are likely to occur. The following tasks help you maintain the integrity of your domain and post office databases:

 Section 26.1, “Validating Domain or Post Office Databases,” on page 377

 Section 26.2, “Recovering Domain or Post Office Databases,” on page 378

 Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381

 Section 26.4, “Rebuilding Database Indexes,” on page 383

NOTE: Unfortunately, damage to databases cannot be prevented. A power outage can occur in the middle of a write to a database. A hard drive can fail. However, the GroupWise damaged databases are very effective and should be able to resolve most damage to GroupWise databases.

To further protect your GroupWise system against loss of domain and post office information, see

Chapter 31, “Backing Up GroupWise Databases,” on page 407 and Chapter 32, “Restoring GroupWise Databases from Backup,” on page 411.

tools for repairing

To ensure that the same information exists in all domain and post office databases throughout your GroupWise system, see Section 29.5, “Synchronizing the Primary Domain from a Secondary

Domain,” on page 398, Section 29.4, “Synchronizing a Secondary Domain,” on page 397, and Section 29.2, “Synchronizing a Post Office,” on page 396.

26.1 Validating Domain or Post Office Databases

You can validate the data in the domain and post office databases at any time without interrupting normal GroupWise operation. The frequency can vary depending on the size of your system and the number of changes you make to users, resources, and distribution lists.

1 Make sure you have full administrative rights to the domain and post office database directories

you are validating.

2 In ConsoleOne

to validate the database.

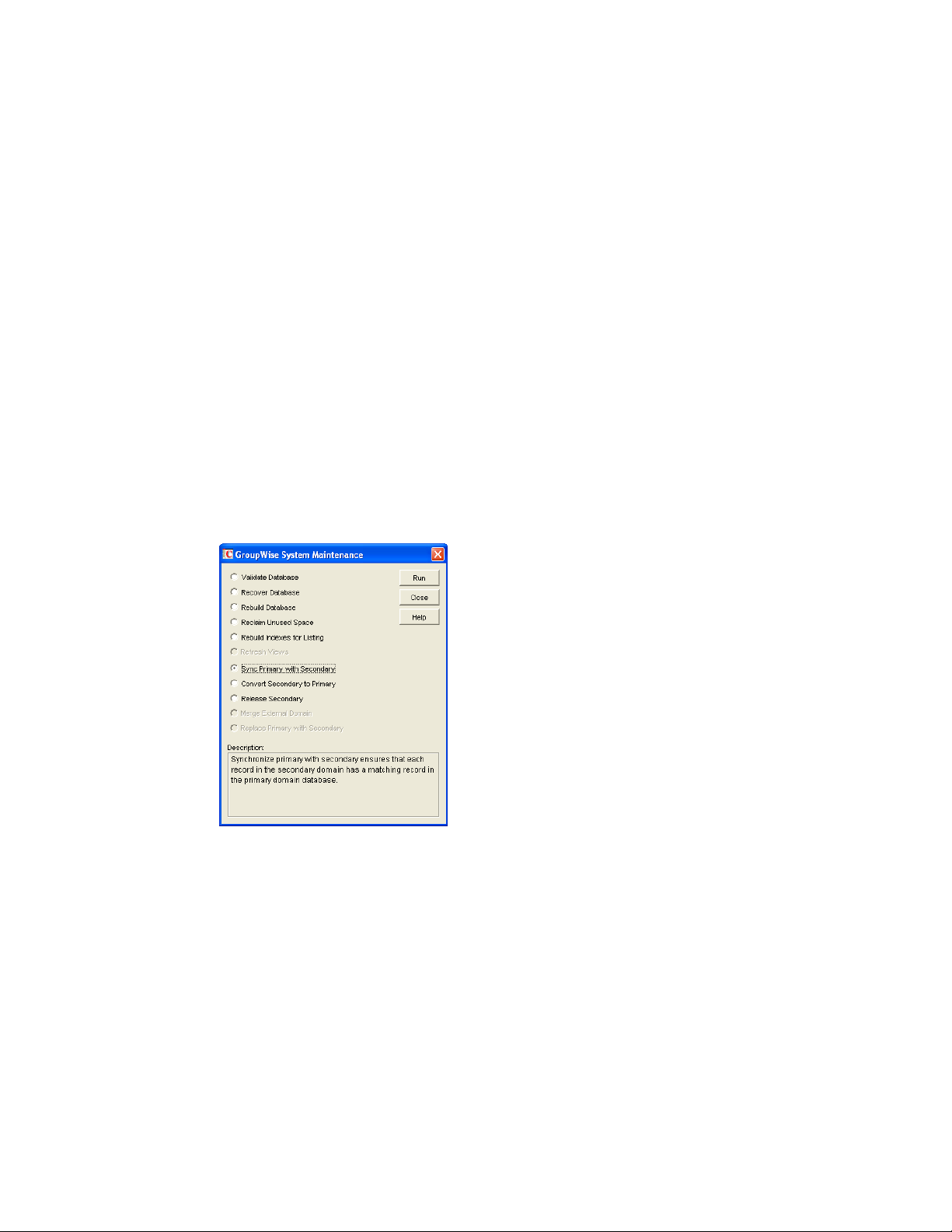

3 Click Tools > GroupWise Utilities > System Maintenance.

, browse to and select the Domain object or Post Office object where you want

Maintaining Domain and Post Office Databases

377

4 Click Validate Database > Run.

5 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database being validated. Click OK.

You are notified if there are any physical problems, so you can then recover or rebuild the database.

See Section 26.2, “Recovering Domain or Post Office Databases,” on page 378 and

Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381.

novdocx (en) 11 December 2007

26.2 Recovering Domain or Post Office Databases

The database recover process corrects physical problems in the database structure, but does not update incorrect information contained in the database.

If you receive an administrative message informing you that an internal database error has occurred, or if you detect database damage and don’t want to take users out of GroupWise, you can recover the database. If no errors are reported after the recover process, you do not need to take further action.

The recover process is run against a copy of the domain database (wpdomain.db) or post office database (wphost.db). Therefore, while the recover process is running, you can continue to access the database through ConsoleOne and you do not need to stop the MTA or the POA.

As the copy of the database is created, the recover process skips invalid records. If the number of records in the original wpdomain.db file or wphost.db file is different from the number in the new, valid copy, GroupWise sends an administrative message informing you that data has been lost. When the recover process is completed, the backup database is deleted.

378 GroupWise 7 Administration Guide

Figure 26-1 The Database Recovery Process

novdocx (en) 11 December 2007

wpdomain.db

Check the number of records (X) in wpdomain.db.

wpdomain.db

recover.ddb

Rename wpdomain.db to recover.ddb.

creating.ddb

Read and copy records from recover.ddb into creating.ddb. Skip invalid records. Check the number of

records (Y) in creating.ddb.

Delete creating.ddb.

Rename recover.ddb to wpdomain.db.

Notify the administrator that wpdomain.db could not be recovered.

Try rebuilding wpdomain.db.

NO YES

creating.ddb

recover.ddb

wpdomain.db

Successful?

NO YES

wpdomain.db

Notify the administrator that information has been lost in the recovery process.

recover.ddb

Delete recover.ddb.

creating.ddb

wpdomain.db

Rename creating.ddb to wpdomain.db.

X=Y?

wpdomain.db

wpdomain.db is useable.

wpdomain.db has been successfully recovered.

For convenience, the agents are configured by default to automatically recover domain and post office databases whenever a physical problem is encountered. See “Recovering the Domain

Maintaining Domain and Post Office Databases 379

Database Automatically or Immediately” on page 654 and “Recovering the Post Office Database Automatically or Immediately” on page 526.

To recover a specific database in ConsoleOne:

1 Make sure you have network access to the domain or post office directory for the database you

are recovering.

If you have administration rights in the primary domain, you can recover the primary domain database, the post office databases in the primary domain, and any secondary domain databases.

From a secondary domain, you can recover the secondary domain database and the post office databases in the secondary domain.

2 Make sure you have sufficient disk space for the copy of the database that is created during

recovery.

3 In ConsoleOne, browse to and select the Domain object or Post Office object where you want

to recover the database.

4 Click Tools > GroupWise Utilities > System Maintenance.

novdocx (en) 11 December 2007

5 Click Recover Database > Run.

6 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database being validated. Click OK.

If recovery is successful, the backup database is deleted, and the new domain database is renamed to wpdomain.db, or the new post office database is renamed to wphost.db.

If recovery fails for any reason, the backup database is copied back to wpdomain.db or wphost.db. If any data was lost, you are notified by an administrative message.

You have several options for retrieving lost data from other sources:

 If data has been lost from the primary domain, you can synchronize it with a secondary domain

that is known to contain current information. See Section 29.5, “Synchronizing the Primary

Domain from a Secondary Domain,” on page 398.

 If data has been lost from a secondary domain, you can synchronize it with the primary domain.

See Section 29.4, “Synchronizing a Secondary Domain,” on page 397.

380 GroupWise 7 Administration Guide

 You can also rebuild the database at a later time when you have exclusive access to the database

where the data has been lost. See Section 26.3, “Rebuilding Domain or Post Office Databases,”

on page 381.

26.3 Rebuilding Domain or Post Office Databases

In addition to correcting the physical problems resolved by the database recover process, the rebuild process updates user and object information in a domain database (wpdomain.db) or post office database (wphost.db). However, the process requires that no users or GroupWise agents (MTA or POA) have access to the database during the rebuild process.

You should rebuild a domain or post office database if you encounter any of the following conditions:

 Objects are not being replicated between domains.

 The agent that writes to the database went down unexpectedly.

 The server where the database resides went down unexpectedly.

novdocx (en) 11 December 2007

 You receive an administrative message informing you that an internal database error has

occurred or there is database damage and you think there might be data loss.

 You ran the recover database process and received a notification of data loss.

When you rebuild a secondary domain database, information is retrieved from the primary domain. When you rebuild a post office database, information is retrieved from the domain it belongs to.

During the rebuild process, a backup of the domain or post office database is created as well as a new wpdomain.db or wphost.db. The records from the primary domain database are copied into the new wpdomain.db. There should not be any data loss. When the rebuild process is complete, the temporary database and the backup database are deleted.

Maintaining Domain and Post Office Databases 381

Figure 26-2 The Database Rebuilding Process

novdocx (en) 11 December 2007

wpdomain.db

Delete creating.ddb.

wpdomain.db remains unchanged.

Primary Domain

wpdomain.db

NO YES

creating.ddb

wpdomain.db

creating.ddb

Successful?

Copy records from the primary domain wpdomain.db into creating.ddb.

Delete wpdomain.db.

creating.ddb

wpdomain.db

Rename creating.ddb to wpdomain.db.

Notify the administrator that wpdomain.db could not be rebuilt.

wpdomain.db

Restore wpdomain.db from backup.

wpdomain.db

wpdomain.db has been successfully rebuilt.

To rebuild a database:

1 All GroupWise agents that might access the database must be stopped during the rebuild, as

described in “Stopping the MTA” on page 649 and “Stopping the POA” on page 520.

2 If you are rebuilding a post office database, all users should exit and you should disable the post

office before the rebuild, as described in Section 12.7, “Disabling a Post Office,” on page 195.

3 Make sure you have sufficient disk space for the copy of the database that is created during the

rebuild process.

4 In ConsoleOne, browse to and select the Domain object or Post Office object where you want

to rebuild the database.

5 Click Tools > GroupWise Utilities > System Maintenance.

382 GroupWise 7 Administration Guide

6 Click Rebuild Database > Run.

7 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database being rebuilt. Click OK.

novdocx (en) 11 December 2007

26.4 Rebuilding Database Indexes

Each domain database (wpdomain.db) and post office database (wphost.db) contains three indexes that are used to determine the order of the Address Book: the system index, the domain index, and the post office index. When you display the system Address Book, the system index is used. When you display a domain-level Address Book, the domain index is used, and when you display the Address Book for a post office, the post office index is used.

The GroupWise client uses the post office database to list users. If you are in the GroupWise client and the indexes for listing system, domain, and post office users are different than the domain database indexes, you should rebuild the post office database indexes. The most common cause of incorrect indexes in a post office is that the post office database was closed when you set up the list information.

To rebuild a database index:

1 Make sure you have administrative rights to the database whose indexes you are rebuilding.

2 In ConsoleOne, browse to and select the Domain object or Post Office object where you want

to rebuild the database index.

3 Click Tools > GroupWise Utilities > System Maintenance.

Maintaining Domain and Post Office Databases 383

4 Select Rebuild Indexes for Listing, then click Run.

5 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database being whose indexes are being rebuilt. Click OK.

novdocx (en) 11 December 2007

384 GroupWise 7 Administration Guide

Maintaining User/Resource and

novdocx (en) 11 December 2007

Message Databases

It is sometimes necessary to perform maintenance tasks on user and resource databases (userxxx.db) and message databases (msgnnn.db). The frequency depends on the reliability of your network and your own experience of how often problems are likely to occur. The following tasks help you maintain the integrity of your user and message databases.

 Section 27.1, “Analyzing and Fixing User and Message Databases,” on page 385

 Section 27.2, “Performing a Structural Rebuild of a User Database,” on page 387

 Section 27.3, “Re-creating a User Database,” on page 388

To further protect your GroupWise users against loss of mailbox contents, see Chapter 31, “Backing

Up GroupWise Databases,” on page 407 and Chapter 32, “Restoring GroupWise Databases from Backup,” on page 411.

To ensure that the same information exists for users and messages throughout your GroupWise system, see Section 29.1, “Synchronizing Individual Users or Resources,” on page 395.

tools for repairing

27.1 Analyzing and Fixing User and Message Databases

The Analyze/Fix option of Mailbox/Library Maintenance looks for problems and errors in user and resource databases (userxxx.db) and/or message databases (msgnnn.db) and then fixes them if you select the Fix Problems option. You can analyze databases individually or you can analyze all user, resource, and/or message databases in one or more post offices.

To analyze and repair user, resource, and/or message databases:

1 In ConsoleOne

individual users or resources.

Browse to and select one or more Post Office objects to select all user and/or message databases in the post office.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

, browse to and select one or more User or Resource objects to check

Maintaining User/Resource and Message Databases

385

3 From the Action drop-down menu, select Analyze/Fix Databases.

novdocx (en) 11 December 2007

4 Select from the following options:

Structure: When a user experiences a problem that is related to the user, message, or library databases, you should perform a structure check. The structure check verifies the integrity of the databases and reports the amount of space that could be recovered. If there is a structural problem, the databases are rebuilt with free space reclaimed.

Index Check: If you select Structure, you can also select Index Check. You should run an index check if a user tries to open a message and gets a read error, or when sent items that show a delivered status in the Properties window do not appear in the recipient’s mailbox. An index check can be time-consuming.

Contents: The user databases (located in the ofuser directory) do not contain user messages. Messages are contained in the message databases under the ofmsg directory. However, the message databases do not contain the message attachments; these are located in the offiles directory. A contents check analyzes references to other items. For example, in the user database, Mailbox/Library Maintenance verifies that any referenced messages actually exist in the message database. In the message database, it verifies that any attachments that are referenced actually exist in the attachment directories.

Collect Statistics: If you selected Contents, the Collect Statistics option is available to collect and display statistics about the post office, such as the number of messages and appointments in the post office and the average number per user. In addition, you can display any user mailboxes that have more than a specified number of items. This can help determine if some users are using an excessive amount of disk space. If this is a problem, you might want to encourage users to delete unneeded items or to use the Archive feature in the GroupWise client to store messages on their local drives. You can also limit the amount of disk space each user can have. See Section 12.3, “Managing Disk Space Usage in the Post Office,” on page 182.

Fix Problems: This option tells Mailbox/Library Maintenance to fix any problems it finds. Otherwise, Mailbox/Library Maintenance just reports the problems.

Reset User Disk Space Totals: Recalculates the total disk space a GroupWise user is using by reading the selected user mailboxes and updating the poll record used for disk space management. Because disk space is user-specific, the program calculates the amount of disk

386 GroupWise 7 Administration Guide

space in use by the user in the user databases, in any of the message databases, and in the attachment directory. Disk space limitations do not take into account the disk space used in document libraries. This option is usually run if the user totals are not being reflected correctly.

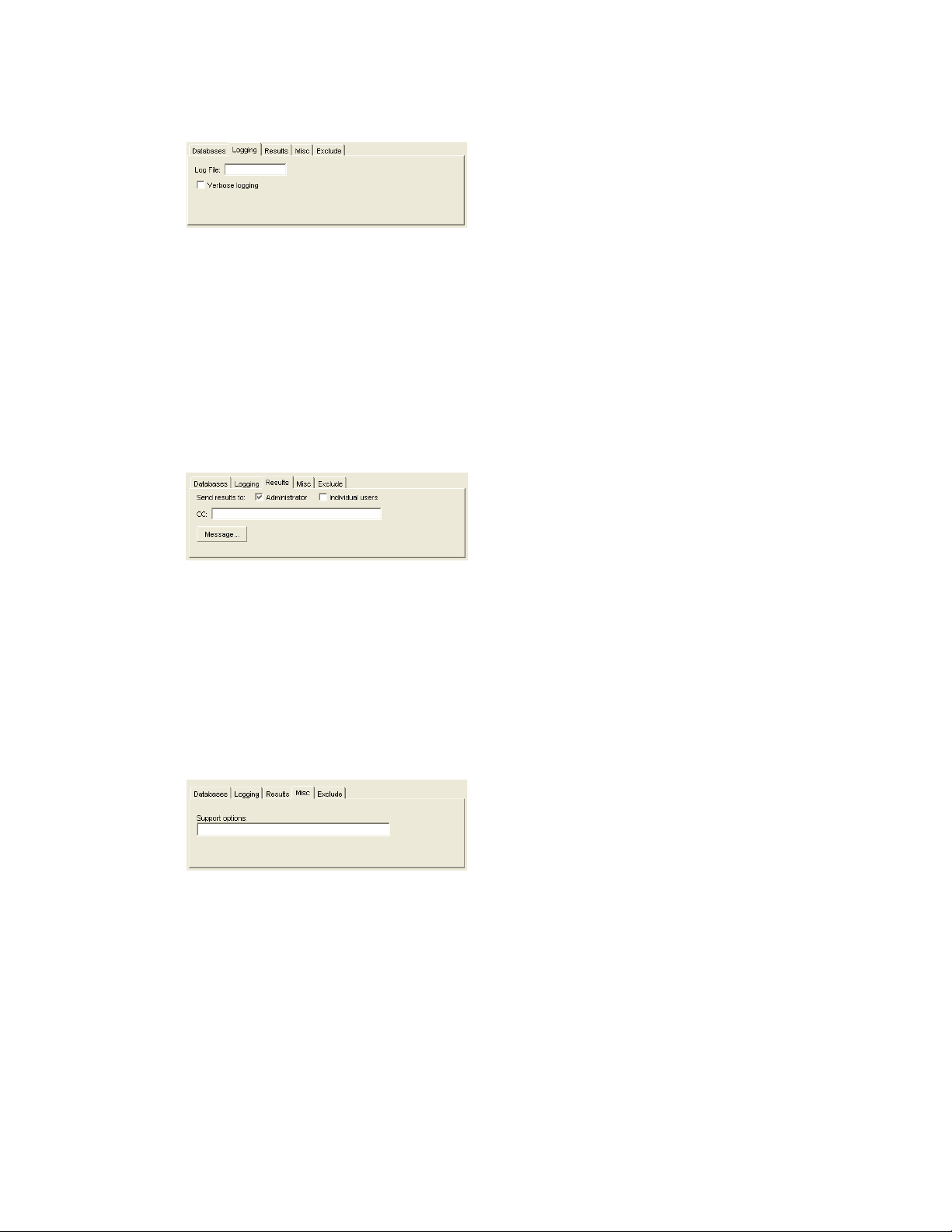

5 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430 “Exclude” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

6 Click Run to perform the Analyze/Fix operation.

Analyze/Fix can also be run using the standalone GroupWise Check program. See Section 34.1,

“GroupWise Check,” on page 423. It can also be scheduled to run on a regular basis by properly

configuring the POA. See Section 36.4.1, “Scheduling Database Maintenance,” on page 507.

novdocx (en) 11 December 2007

27.2 Performing a Structural Rebuild of a User Database

The Structural Rebuild option of Mailbox/Library Maintenance rebuilds the structure of a user or resource database (userxxx.db) and reclaims any free space. It does not re-create the contents of the database. If you need to recover database contents as well as structure, see Section 27.3, “Re-

creating a User Database,” on page 388.

To rebuild a user database:

1 In ConsoleOne, browse to and select one or more User or Resource objects whose database

needs to be rebuilt.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

Maintaining User/Resource and Message Databases 387

3 From the Action drop-down list, select Structural Rebuild.

4 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

5 Click Run to perform a structural rebuild of the user database.

27.3 Re-creating a User Database

The Re-create User Database option of Mailbox/Library Maintenance rebuilds a user or resource database (userxxx.db) and recovers any information it can. Some information is lost, such as the folder assignments.

novdocx (en) 11 December 2007

You should never need to select this option for regular database maintenance. It is designed for severe problems, such as replacing a user database that has been accidentally deleted and for which you have no backup copy. A substantial amount of information is lost in the re-creation process, as listed in “User Databases” on page 465. Because folder assignments are lost, all items are placed into the Cabinet folder. The user must then reorganize all the items in his or her mailbox. Using filters and searching can facilitate this process, but it is not a desirable experience. It is, however, preferable to losing everything.

To re-create a user database:

1 In ConsoleOne, browse to and select one or more User or Resource objects that need the user

database re-created.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

388 GroupWise 7 Administration Guide

3 From the Action drop-down list, select Re-create User Database.

4 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

5 Click Run to re-create the user database.

novdocx (en) 11 December 2007

Maintaining User/Resource and Message Databases 389

novdocx (en) 11 December 2007

390 GroupWise 7 Administration Guide

Maintaining Library Databases and

novdocx (en) 11 December 2007

Documents

GroupWise® Document Management Services (DMS) uses libraries as repositories for documents. For a review of library database structure, see Section 25.5, “Library Databases,” on page 374.

 Section 28.1, “Analyzing and Fixing Databases for Libraries and Documents,” on page 391

 Section 28.2, “Analyzing and Fixing Library and Document Information,” on page 392

NOTE: Unfortunately, damage to databases cannot be prevented. A power outage can occur in the middle of a write to a database. A hard drive can fail. However, the GroupWise tools for repairing damaged databases are very effective and should be able to resolve most damage to GroupWise databases.

28.1 Analyzing and Fixing Databases for Libraries and Documents

For libraries, the Analyze/Fix Databases option of Mailbox/Library Maintenance looks for problems and errors in library and document databases and then fixes them if you select the Fix Problems option.

1 In ConsoleOne

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

, browse to and select one or more Library objects.

3 From the Action drop-down menu, select Analyze/Fix Databases.

4 Select from the following options:

Maintaining Library Databases and Documents

391

Structure: When a user experiences a problem that is related to the library databases, you should perform a structure check. The structure check verifies the integrity of the databases and reports the amount of space that could be recovered. If there is a structural problem, the databases are rebuilt with free space reclaimed.

Index Check: If you select Structure, you can also select Index Check. An index check can be time-consuming.

Contents: The library database (located in the gwdms directory of the post office) does not contain documents. Documents are stored in the lib0000-FF directories. A contents check analyzes references from libraries to documents.

Collect Statistics: If you selected Contents, the Collect Statistics option is available to collect and display statistics about the library, such as the number and size of documents.

Fix Problems: This option tells Mailbox/Library Maintenance to fix any problems it finds. Otherwise, Mailbox/Library Maintenance just reports the problems.

5 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

novdocx (en) 11 December 2007

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

6 Click Run to perform the Analyze/Fix Databases operation on the library.

Analyze/Fix Databases can also be run using the standalone GroupWise Check program. See

Section 34.1, “GroupWise Check,” on page 423. It can also be scheduled to run on a regular basis by

properly configuring the POA. See Section 36.4.1, “Scheduling Database Maintenance,” on

page 507.

28.2 Analyzing and Fixing Library and Document Information

The Analyze/Fix Library option of Mailbox/Library Maintenance performs more library-specific functions than Analyze/Fix Databases. For all options except Verify Library, all documents in each of the selected library databases are checked. This can be a time-consuming process. Therefore, if you intend to select more than one of the Analyze/Fix Library options, you can save time by selecting each of them before clicking Run. This causes all selected options to be run against each document, which is faster than running each option individually against all documents.

To validate library databases:

1 In ConsoleOne, browse to and select one or more Post Office objects where you want to

validate libraries.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

392 GroupWise 7 Administration Guide

novdocx (en) 11 December 2007

3 From the Action drop-down menu, select Analyze/Fix Library.

4 Select from the following options:

Ver i fy Li bra r y: This is a post office-level check. It verifies that all libraries are on the libraries list. It also checks the schema and guarantees its integrity. If there is a problem with the schema, it resets to a default schema to reclaim any missing items. For example, if you deleted the Document Type property, you could recover it using this option.

Fix Document/Version/Element: This performs an integrity check to verify the following:

 Each document has one or more versions linked to it.

 Each version has one or more elements linked to it.

 All versions are linked to a document.

 All elements are linked to a version.

If there are any missing links, the missing documents or versions are created from the information contained in the existing version or element for which the link is missing. For example, if a version is found that shows no link to a document, a document is created from the information contained in the version and the link is reestablished. Of course, any information in the lost document that might have been newer than the information contained in the old version is lost.

Ver i fy Doc u me nt Fil e s: This determines if the BLOB exists for a document and the document is accessible. If not, an error is logged for that document. The log message does not indicate why a file is missing or inaccessible. You can recover a file by restoring it from backup.

Possible errors that would be logged include:

 If the file system on the network becomes corrupted, this tells you which documents

cannot be opened or which BLOB files are missing.

 If a file was marked by someone as Read Only or Hidden, this option logs an error

indicating that the file is inaccessible.

Validate All Document Security: This option validates document security for the Author, Creator and Security (document sharing) fields. The validation replaces the results of selecting

Maintaining Library Databases and Documents 393

the Validate Author/Creator Security option, and is more thorough. Therefore, you only need to select one option or the other.

Synchronize User Name: The Author and Creator fields display users’ full names, not unique IDs. If a user’s name is changed, such as for marriage, this option verifies that the user’s name on document and version records is the same as the user’s current display name. In other words, the Author and Creator fields in documents and versions are updated to the user’s newer name.

Remove Deleted Storage Areas: When you delete a document storage area in the Storage Areas page of a library’s details dialog box, the document storage area and the documents stored there remain on the system. Deleting the storage area from the library only means that new documents are not stored there. The documents there continue to be available to users.

If you want to also remove the document storage area from the system, you have two options: delete the storage area and its documents, or first move the documents and then delete the storage area. The first option is not advisable, but exists so that if you have moved all of the documents that can be moved, but some corrupted documents are left behind, you can force the document storage area to be deleted.

You should normally select Move Documents First so that users continue to have access to those documents from a different document storage area. With this option, all BLOBs in the library are checked to see which documents are in the area being deleted.

novdocx (en) 11 December 2007

Reassign Orphaned Documents: Documents can occasionally become orphaned (unattached to a user). For example, this can happen when a user leaves your organization and the user object is removed. All documents belonging to that user are no longer available in GroupWise searches and cannot be accessed by anyone (document security is controlled by the user listed in the Author and Creator fields). This option lets you reassign these documents to another user. You must select a new author from the browser menu after checking this option. The new author you designate has access to all orphaned documents in this library.

Reset Word Lists: Documents stored in a library are indexed and inserted into a generated word list. This allows users to search for a document by keywords as well as any word contained within a document. The document library word list might become outdated and if this occurs, the word list must be regenerated. This option allows the program to regenerate the document library word list the next time an index operation is performed.

5 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

6 Click Run to perform the Analyze/Fix Library operation.

Analyze/Fix Library can also be run using the standalone GroupWise Check program. See

Section 34.1, “GroupWise Check,” on page 423. It can also be scheduled to run on a regular basis by

properly configuring the POA. See Section 36.4.1, “Scheduling Database Maintenance,” on

page 507.

394 GroupWise 7 Administration Guide

Synchronizing Database

novdocx (en) 11 December 2007

Information

In general, synchronization of object information throughout your GroupWise® system occurs automatically. Whenever you add, delete, or modify a GroupWise object, the information is automatically replicated to all appropriate databases. Ideally, each domain database (wpdomain.db) in your system contains original records for all objects it owns and accurately replicated records for all objects owned by other domains. However, because unavoidable events such as power outages and hardware problems can disrupt network connectivity, information in various databases might get out of sync.

If you think you have a synchronization problem, especially soon after adding, deleting, or modifying objects, it is wise to check Pending Operations to make sure your changes have been processed. See Section 4.5, “Pending Operations,” on page 60. When waiting for replication to take place, patience is a virtue.

When information differs between the original record and a replicated record, the original record is considered correct. If you perform synchronization from the owning domain, the owning domain notifies the primary domain of the correct information, then the primary domain broadcasts the correct information to all secondary domains. Therefore, the best place to perform synchronization is from the domain that owns the object that is out of sync. The next best place to perform synchronization is from the primary domain, because the primary domain sends a request to the owning domain for the correct information, then broadcasts the correct information to all secondary domains.

Any GroupWise object can be synchronized:

 Section 29.1, “Synchronizing Individual Users or Resources,” on page 395

 Section 29.2, “Synchronizing a Post Office,” on page 396

 Section 29.3, “Synchronizing a Library,” on page 397

 Section 29.4, “Synchronizing a Secondary Domain,” on page 397

 Section 29.5, “Synchronizing the Primary Domain from a Secondary Domain,” on page 398

29.1 Synchronizing Individual Users or Resources

Most often, you will notice a synchronization problem when a user has trouble sending a message. Symptoms include:

 The sender receives a “user is undeliverable” message.

 A new user or resource created in ConsoleOne

or all post offices.

 User or resource information is incorrect in the Address Book but correct in ConsoleOne.

does not appear in the Address Book in some

Synchronizing Database Information

395

 A user or resource is listed in the Address Book as belonging to one post office but actually

belongs to another.

To synchronize individual User and/or Resource objects:

1 In ConsoleOne, connect to the domain that owns the users and/or resources, as described in

Section 9.1, “Connecting to a Domain,” on page 127.

Connect to the primary domain.

2 Browse to and right-click one or more User or Resource objects to synchronize, then click

Properties.

3 Make sure the correct information appears on the object’s Identification page, then click

Cancel.

4 Repeat Step 2 and Step 3 for each user or resource you need to synchronize.

5 Select each User or Resource object, then click Tools > GroupWise Utilities > Synchronize.

6 When you are asked whether to proceed, click Yes.

Current, correct information is then replicated throughout your GroupWise system.

If many User or Resource objects are being synchronized, you can check progress by viewing pending operations. See Section 4.5, “Pending Operations,” on page 60.

After synchronization is complete, you can verify that it was successful by checking the synchronized objects in Address Books and several post offices in your GroupWise system.

novdocx (en) 11 December 2007

If there are indications that a large number of User or Resource objects need to be synchronized, rebuilding the post office database (wphost.db) can be preferable to synchronizing individual objects. However, this process requires exclusive access to the post office database. See

Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381.

Occasionally, GroupWise user information can get out of sync with Novell information. This requires a different type of synchronization process. See Section 41.4.1, “Using

eDirectory User Synchronization,” on page 638.

eDirectoryTM user

29.2 Synchronizing a Post Office

If information for a particular post office does not display the same throughout your GroupWise system, you can synchronize the post office.

1 In ConsoleOne, connect to the domain that owns the post office, as described in Section 9.1,

“Connecting to a Domain,” on page 127.

Connect to the primary domain.

2 Browse to and right-click the Post Office object to synchronize, then click Properties.

3 Make sure the correct information appears on the post office Identification page, then click

Cancel.

4 Select the Post Office object, then click Tools > GroupWise Utilities > Synchronize.

5 When you are asked whether to proceed, click Yes .

396 GroupWise 7 Administration Guide

Current, correct post office information is then replicated throughout your GroupWise system.

After synchronization is complete, you can verify that it was successful by checking the post office information when connected to different domains in your GroupWise system.

See also Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381.

29.3 Synchronizing a Library

If information for a library does not display the same throughout your GroupWise system, you can synchronize the library.

1 In ConsoleOne, connect to the domain that owns the library, as described in Section 9.1,

“Connecting to a Domain,” on page 127.

Connect to the primary domain.

2 Browse to and right-click the Library object to synchronize, then click Properties.

3 Make sure the correct information appears on the library Identification page, then click Cancel.

4 Select the Library object, then click Tools > GroupWise Utilities > Synchronize.

5 When you are asked whether to proceed, click Yes .

novdocx (en) 11 December 2007

Current, correct library information is then replicated throughout your GroupWise system.

After synchronization is complete, you can verify that it was successful by checking the library information when connected to different domains in your GroupWise system.

See also Section 28.2, “Analyzing and Fixing Library and Document Information,” on page 392.

29.4 Synchronizing a Secondary Domain

If information for a particular secondary domain does not display the same throughout your GroupWise system, you can synchronize the secondary domain.

1 In ConsoleOne, connect to the primary domain, as described in Section 9.1, “Connecting to a

Domain,” on page 127.

2 If there is any doubt about the correctness of that secondary domain’s information as stored in

the primary domain database, synchronize the primary domain with the secondary domain before proceeding, as described in Section 29.5, “Synchronizing the Primary Domain from a

Secondary Domain,” on page 398.

3 Browse to and right-click the Domain object to synchronize, then click Properties.

4 Make sure the correct information appears on the domain Identification page, then click

Cancel.

5 Select the Domain object, then click Tools > GroupWise Utilities > Synchronize.

6 When you are asked whether to proceed, click Yes .

Current, correct domain information for the secondary domain is then replicated throughout your GroupWise system.

After synchronization is complete, you can verify that it was successful by checking the domain information when connected to different domains in your GroupWise system.

Synchronizing Database Information 397

See also Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381.

29.5 Synchronizing the Primary Domain from a Secondary Domain

Information about a secondary domain stored in the secondary domain database is considered more current and correct than information about that secondary domain stored in the primary domain database. If the primary domain database contains out-of-date information, you can synchronize the primary domain from the secondary domain.

When you synchronize the primary domain database from a secondary domain database, any records the secondary domain owns, such as post offices or users added to the secondary domain, are replicated from the secondary domain database to the primary domain database.

To synchronize the primary domain from a secondary domain:

1 You must have administrative rights to the primary domain directory and the secondary domain

directory from which the primary domain is being synchronized.

2 In ConsoleOne, browse to and select the Domain object of the secondary domain whose

database you want to use to synchronize the primary domain database.

novdocx (en) 11 December 2007

3 Click Tools > GroupWise Utilities > System Maintenance.

4 Select Sync Primary with Secondary, then click Run.

5 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database being validated. Click OK.

To make sure the primary domain database is totally up-to-date, repeat the procedure for each secondary domain in your system.

398 GroupWise 7 Administration Guide

Managing Database Disk Space

novdocx (en) 11 December 2007

One of the most common maintenance issues in a growing system is running out of disk space. In addition to sending messages, users tend to use GroupWise transferring large files. Library documents created with Document Management Services (DMS) can use huge amounts of disk space. Archived library documents can also quickly use up disk space assigned to the post office, where space is usually limited.

You should let your users know about the archive and auto-delete features of GroupWise mail, or set client options in ConsoleOne

for the GroupWise Client Options,” on page 1045.

 Section 30.1, “Gathering Mailbox Statistics,” on page 399

 Section 30.2, “Reducing the Size of User and Message Databases,” on page 401

 Section 30.3, “Reclaiming Disk Space in Domain and Post Office Databases,” on page 403

 Section 30.4, “Reducing the Size of Libraries and Document Storage Areas,” on page 404

See also Section 12.3, “Managing Disk Space Usage in the Post Office,” on page 182.

to automatically archive or delete. See Chapter 65, “Setting Defaults

for all sorts of communication, such as

30.1 Gathering Mailbox Statistics

If you have some users who don’t like to throw anything away, you might want to monitor the size of their mailboxes and, where appropriate, suggest voluntary cleanup. You can assess e-mail retention by the number of messages, age of messages, or size of user databases.

The Mailbox Statistics option in Mailbox/Library Maintenance collects and displays statistics about the post office, such as the number of messages and appointments in the post office and the average number per user. It is valid only for user databases. In addition, you can display any user mailboxes that have more than a specified number of items. This can help determine which users might be using an excessive amount of file server disk space.

To gather mailbox statistics:

1 In ConsoleOne, browse to and select one or more User or Resource objects or one or more Post

Office objects.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

Managing Database Disk Space

399

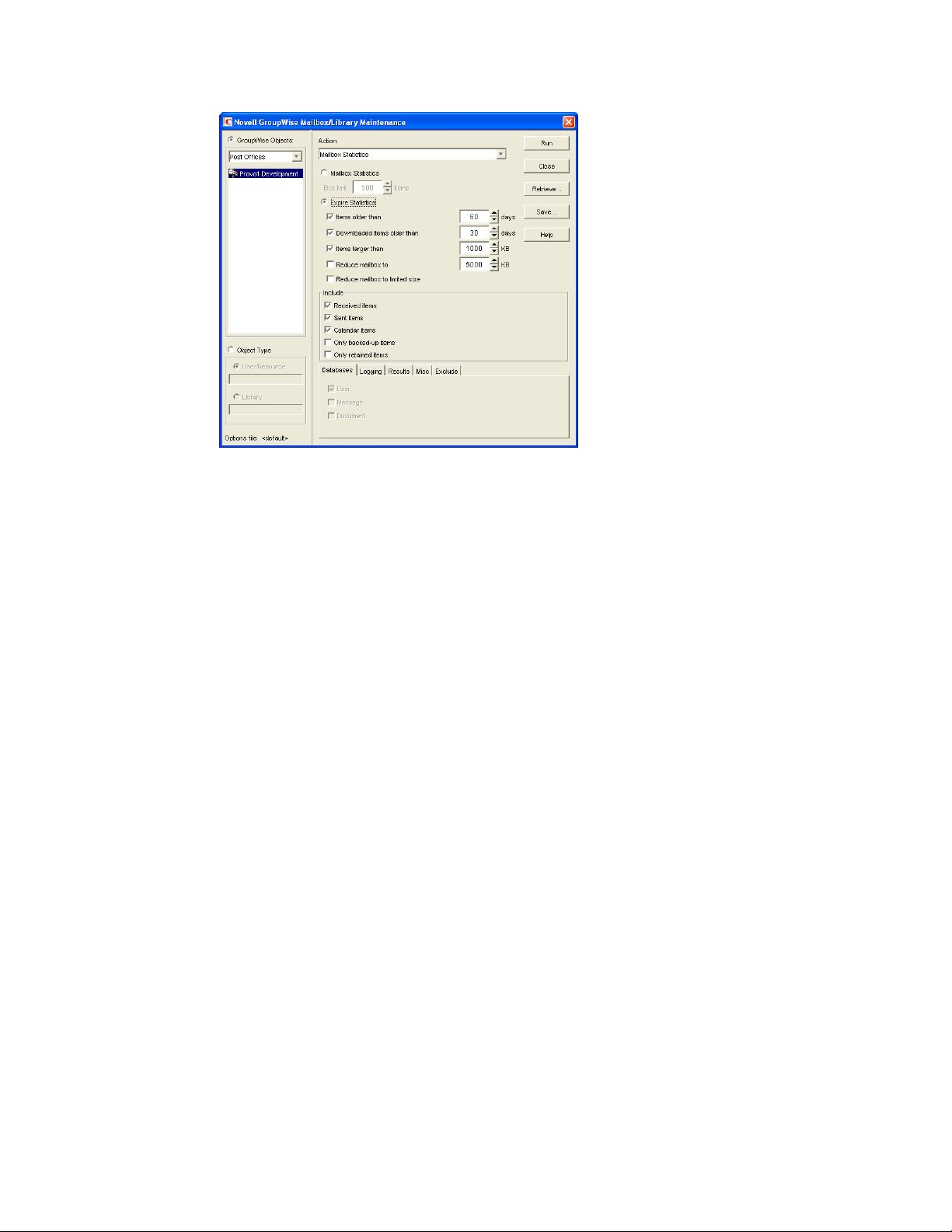

3 From the Action drop-down menu, select Mailbox Statistics.

novdocx (en) 11 December 2007

4 Select Mailbox Statistics.

Mailbox Statistics: Specify a maximum number of items to see a report showing each user whose mailbox has more items in it than the number you specify.

Select Expire Statistics.

Expire Statistics: Select one of the following:

 Items Older Than: Shows how many items are older than the number of days you

specify.

 Downloaded Items Older Than: Shows how many items have been downloaded to

users’ GroupWise Caching or Remote mailboxes that are older than the number of days you specify. This does not include items that have been downloaded to non-GroupWise mailboxes (for example, POP and IMAP accounts).

 Items Larger Than: Shows how many items are larger than the size you specify.

 Reduce Mailbox To: Shows how many items need to be expired before the mailbox

would be reduced to the size you specify. Older, larger items are expired before newer, smaller items.

 Reduce Mailbox to Limited Size: Shows how many items need to be expired before the

mailbox is the size specified using the Disk Space Management feature under Client Options, as described in Section 12.3.2, “Setting Mailbox Size Limits,” on page 183.

When items meet your selected expire criteria, they are subject to being removed from the mailbox when you use the Expire/Reduce Messages action as described in Section 30.2,

“Reducing the Size of User and Message Databases,” on page 401.

5 In the Include box, select Received Items, Sent Items, Calendar Items, Only Backed-Up Items,

and/or Only Retained Items to specify the types of items to gather statistics for.

The Only Backed-Up Items option interacts with the Do Not Purge Items Until They Are

Backed Up setting under Tools > GroupWise Utilities > Client Options > Environment Options > Cleanup. If items are not allowed to be deleted before they are backed up, then they cannot

400 GroupWise 7 Administration Guide

be deleted during an Expire/Reduce operation. For more information, see “Environment

Options: Cleanup” on page 1057.

The Only Retained Items option interacts with third-party message retention applications, as described in Chapter 33, “Retaining User Messages,” on page 419.

6 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430 “Exclude” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

By default, the mailbox statistics are sent to the domain administrator, as designated in

Section 42.7, “Notifying the Domain Administrator,” on page 671.

7 If you want to send the statistics to one or more other users, click Results, select Individual

Users, specify the e-mail addresses in the users in the CC line, then click Message if you want to include explanatory text.

novdocx (en) 11 December 2007

8 Click Run to gather the mailbox statistics and e-mail the results to the specified users.

30.2 Reducing the Size of User and Message Databases

When users archive and delete messages in their mailboxes, the messages are marked for removal from the database (“expired”), but the disk space the messages occupy in the database is retained and used again for new messages. As a result, archiving and deleting messages does not affect the overall size of the databases.

The Expire/Reduce Messages option of Mailbox/Library Maintenance eliminates expired messages and reclaims the resulting free space in the database. You can expire/reduce messages for one or more users or resources, or for all users and resources in one or more post offices. You should inform users before you run this process so they have a chance to archive or delete messages. Unread messages are not expired.

1 In ConsoleOne, browse to and select one or more User or Resource objects to expire/reduce

messages for the selected users and resources.

Browse to and select one or more Post Office objects to expire/reduce messages for all users and resources in each selected post office.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

Managing Database Disk Space 401

novdocx (en) 11 December 2007

3 From the Action drop-down menu, select Expire/Reduce Messages.

4 Click Reduce Only to eliminate items that have already expired (that is, items that have been

archived or deleted by users).

Click Expire and Reduce to expire items in addition those that users have already archived or delete, based on the criteria you select.

Expire and Reduce: Select one or more of the following:

 Items Older Than: Expires items that are older than the number of days you specify.

 Downloaded Items Older Than: Expires items that have been downloaded to users’

GroupWise Caching or Remote mailboxes that are older than the number of days you specify. It does not expire items that have been downloaded to non-GroupWise mailboxes (for example, POP and IMAP accounts).

 Items Larger Than: Expires items that are larger than the size you specify.

 Trash Older Than: Expires items in the Trash that are older than the number of days you

specify.

 Reduce Mailbox To: Expires items until the mailbox is reduced to the size you specify.

Older, larger items are expired before newer, smaller items.

 Reduce Mailbox to Limited Size: Expires items until the mailbox is the size specified

using the Disk Space Management feature under Client Options, as described in

Section 12.3.2, “Setting Mailbox Size Limits,” on page 183.

5 In the Include box, select Received Items, Sent Items, Calendar Items, Only Backed-Up Items,

and/or Only Retained Items.

The Only Backed-Up Items option interacts with the Do Not Purge Items Until They Are

Backed Up setting under Tools > GroupWise Utilities > Client Options > Environment Options > Cleanup. If items are not allowed to be deleted before they are backed up, then they cannot

be deleted during an Expire/Reduce operation. For more information, see “Environment

Options: Cleanup” on page 1057.

402 GroupWise 7 Administration Guide

The Only Retained Items option interacts with third-party message retention applications, as described in Chapter 33, “Retaining User Messages,” on page 419.

You might want to notify users of the types of items that will be deleted.

6 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430 “Exclude” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

7 Click Run to perform the Expire/Reduce Messages operation.

For additional disk space management assistance, see Section 12.3, “Managing Disk Space Usage in

the Post Office,” on page 182.

novdocx (en) 11 December 2007

30.3 Reclaiming Disk Space in Domain and Post Office Databases

As you add information to your system, the domain databases (wpdomain.db) and post office databases (wphost.db) increase in size. If you delete information, the space created in the databases for the information is not immediately recovered. GroupWise will use the free space before requiring more disk space; however, if you have deleted a large amount of information, you might want to reclaim unused database space. If you have frequent changes to your users, especially deletions, you should occasionally reclaim disk space.

1 In ConsoleOne, browse to and select the Domain object or Post Office object where you want

to reclaim disk space.

2 Click Tools > GroupWise Utilities > System Maintenance.

3 Select Reclaim Unused Space, then click Run.

Managing Database Disk Space 403

4 When prompted, make sure the Path to Database is correct. If an incorrect path is displayed,

browse to and select the path to the database where you want to reclaim disk space. Click OK.

30.4 Reducing the Size of Libraries and Document Storage Areas

The amount of disk space you allow at each post office for your library databases varies according to the GroupWise features they use.

If you are using GroupWise Document Management Services, you must determine storage requirements for your documents. If you feel your current disk space usage by documents is not representative of your long-term requirements, you can estimate the disk space users need for documents by multiplying an average document size by the average number of documents per user by the total number of users in the post office.

For example, the typical document size is 50 KB. Each user owns about 50 documents and there are 100 users on your post office.

Sample Calculation:

50 KB (document size) x 50 documents (per user) x 100 users

-----

2.5 GB of disk space

novdocx (en) 11 December 2007

Be sure to allow your libraries room to grow.

When room to grow is no longer available, the following tasks help you make the best use of available disk space:

 Section 30.4.1, “Archiving and Deleting Documents,” on page 404

 Section 30.4.2, “Deleting Activity Logs,” on page 405

See also Section 23.4.2, “Backing Up and Restoring Archived Documents,” on page 360.

30.4.1 Archiving and Deleting Documents

Documents can be archived, retained indefinitely, or simply deleted. The document type property determines a document’s disposition (archive, delete, or retain). The document life property determines when it can be archived or deleted. When you run the Archive/Delete Documents option of Mailbox/Library Maintenance, documents in the selected libraries that have reached their document life dates are either deleted or archived.

Documents that have reached their document life and been marked for deletion in the document type are simply deleted from the library, after which the document and its property information can no longer be found by any search. You can recover deleted documents from database backups.

When documents are archived, their BLOBs are moved to archive directories. These directories are named arnnnnnn (where nnnnnn is an incremented integer with leading zeros), and are automatically created as needed. They are sometimes referred to as archive sets. The archive directories are located at post_office_directory\gwdms\lib01-FF\archive. When a document is archived, GroupWise determines if the document BLOB fits in the current archive

404 GroupWise 7 Administration Guide

directory. If the BLOB does not fit, another archive directory is created and the BLOB is archived there.

To archive/delete documents from one library or all libraries in the selected post offices:

1 In ConsoleOne, select one or more Library objects or Post Office objects for the documents you

want to archive/delete.

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

novdocx (en) 11 December 2007

3 From the Action drop-down menu, select Archive/Delete Documents.

4 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

5 Click Run to perform the Archive/Delete Documents operation.

30.4.2 Deleting Activity Logs

To free up disk space by deleting the activity logs for one or more libraries:

1 In ConsoleOne, select one or more Library objects or Post Office object where you want to

delete activity logs.

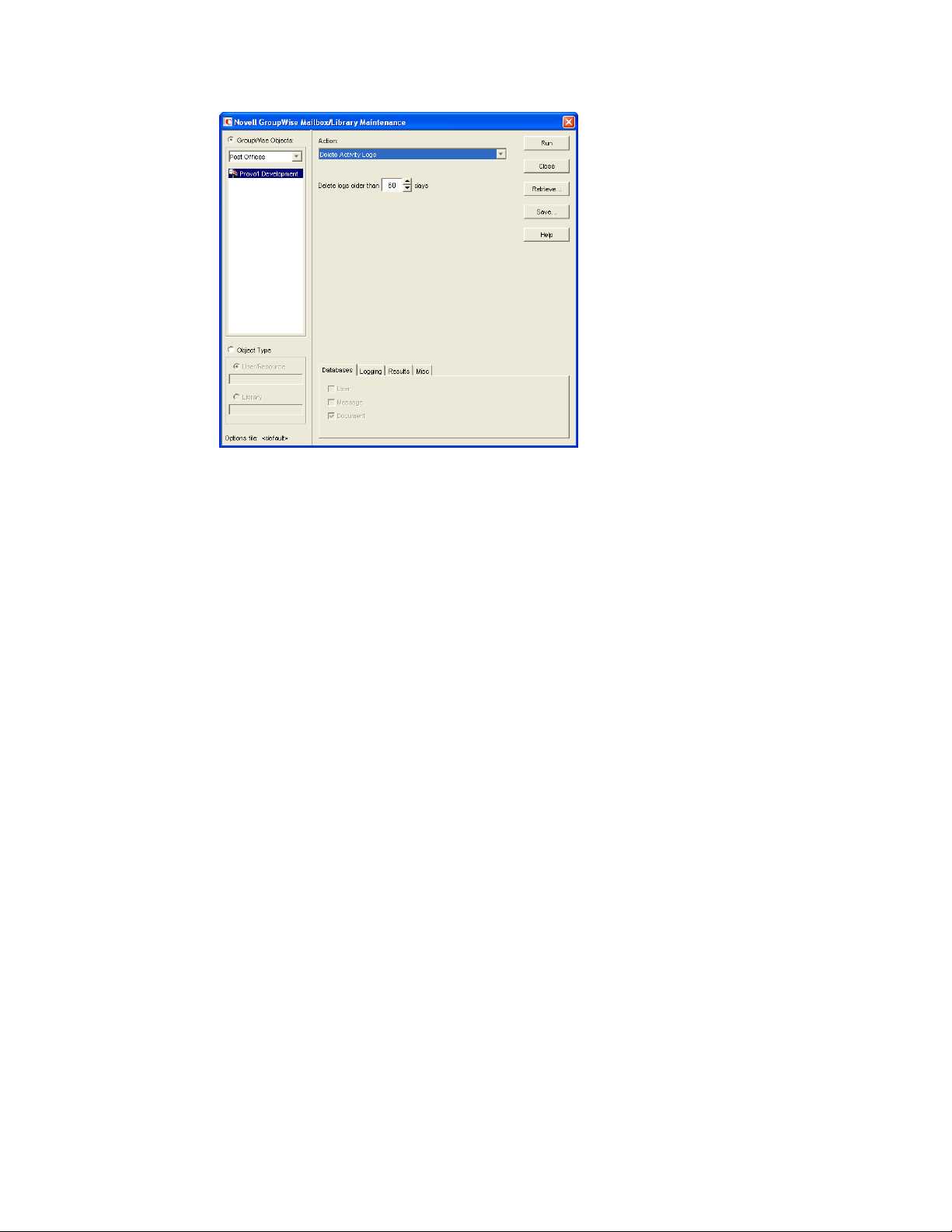

2 Click Tools > GroupWise Utilities > Mailbox/Library Maintenance.

Managing Database Disk Space 405

3 From the Action drop-down menu, select Delete Activity Logs.

novdocx (en) 11 December 2007

4 Specify the number of days in the Delete Activity Logs Older Than field. The default is 60 days.

5 Using the tabs at the bottom of the Mailbox/Library Maintenance dialog box, set the following

options:

“Databases” on page 429 “Logging” on page 429 “Results” on page 430 “Misc” on page 430

Selected options can be saved for repeated use. See “Saving Mailbox/Library Maintenance

Options” on page 431.

6 Click Run to delete unneeded activity logs.

406 GroupWise 7 Administration Guide

Backing Up GroupWise Databases

You should back up GroupWise® databases regularly so that if a database sustains damage that cannot be repaired using the GroupWise database maintenance tools, you can still recover with minimum data loss. Backup procedures vary by platform:

Table 31-1 Backup Procedures by Platform

NetWare: Use a Target Service Agent (GWTSA on NetWare® 5.1 or TSAFSGW on NetWare 6.x/

OES) with a supported backup program or other backup software of choice to back up GroupWise databases to a secure location. For details about how to use a Target Service Agent, see Section 34.2, “Target Service Agents,” on page 434.

Linux: Use a Target Service Agent (TSAFSGW) with a supported backup program or other

backup software of choice to back up GroupWise databases to a secure location. For a list of compatible products, see the Novell Open Enterprise Server Partner Support site (http:/

/www.novell.com/products/openenterpriseserver/partners). For details about how to use a

Target Service Agent, see Section 34.2, “Target Service Agents,” on page 434.

novdocx (en) 11 December 2007

Windows: Use your backup software of choice to back up GroupWise databases to a secure

location. For a list of compatible products, see the Partner Product Guide (http://

www.novell.com/partnerguide). You can also use the GroupWise Database Copy utility

(DBCopy) and the GroupWise Time Stamp utility (GWTMSTMP) to assist with backups. For details about how to use these utilities, see Section 34, “Standalone Database

Maintenance Programs,” on page 423.

 Section 31.1, “Backing Up a Domain,” on page 407

 Section 31.2, “Backing Up a Post Office,” on page 407

 Section 31.3, “Backing Up a Library and Its Documents,” on page 408

 Section 31.4, “Backing Up Individual Databases,” on page 409

31.1 Backing Up a Domain

All critical domain-level information is stored in the domain database (wpdomain.db). Use your backup software of choice to back up each domain database to a secure location. If your backup software cannot handle open files, stop the MTA for the domain while the backup of the domain database takes place or copy the domain directory to a temporary location and back up the static copy.

See also Section 32.1, “Restoring a Domain,” on page 411.

31.2 Backing Up a Post Office

Critical post office-level information is stored in many different databases. The table below summarizes the databases and their locations:

Backing Up GroupWise Databases

407

Table 31-2 Database Locations

Database Location

wphost.db \post_office_directory

ngwguard.db \post_office_directory

msgnnn.db \post_office_directory\ofmsg

userxxx.db \post_office_directory\ofuser

puxxxxx.db \post_office_directory\ofuser

*.idx and *.inc \post_office_directory\ofuser\index

fd0-F6 \post_office_directory\offiles

dmsh.db \post_office_directory\gwdms

dmxxnn01-FF.db \post_office_directory\gwdms\lib0000-FF

fd0-FF \post_office_directory\gwdms\lib0000-FF\docs

novdocx (en) 11 December 2007

*.idx and *.inc \post_office_directory\gwdms\lib0000-FF\index

To view a post office directory structure diagram, see “Post Office Directory” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure.

Use your backup software of choice to back up all databases in each post office to a secure location. If your backup software cannot handle open files, stop the POA for the post office while the backup of the domain database takes place or copy the post office directory to a temporary location and back up the static copy.

See also Section 32.2, “Restoring a Post Office,” on page 411.

31.3 Backing Up a Library and Its Documents

If the document storage area for a library is physically located in a post office, the library and documents are backed up along with the rest of the data in the post office. However, document storage areas are frequently located outside of the post office directory structure because of disk space considerations. Therefore, remote document storage areas must be backed up separately. A post office can have multiple libraries and each library can have multiple document storage areas, so make sure you have identified all document storage areas in your library/document backup procedure.

After you have initially performed a full backup of your document storage areas, you can perform incremental backups by backing up to the same location to shorten the backup process.

To ensure consistency between the backups of post office databases and document storage areas:

1 Back up your document storage areas using your backup software of choice.

2 Back up the post office, as described in Section 31.2, “Backing Up a Post Office,” on page 407.

3 Perform an incremental backup of your document storage areas to pick up all new documents

and document modifications that occurred while backing up the post office.

408 GroupWise 7 Administration Guide

You should need to restore data in a document storage area only if files have been damaged or become inaccessible due to a hard disk failure.

See also Section 32.3, “Restoring a Library,” on page 412.

31.4 Backing Up Individual Databases

If you need to back up individual databases separately from backing up a post office, you can use your backup software of choice.

See also Section 32.4, “Restoring an Individual Database,” on page 412.

novdocx (en) 11 December 2007

Backing Up GroupWise Databases 409

novdocx (en) 11 December 2007

410 GroupWise 7 Administration Guide

Restoring GroupWise Databases

novdocx (en) 11 December 2007

from Backup

Database damage can usually be repaired using the database maintenance tools provided with GroupWise

 Section 32.1, “Restoring a Domain,” on page 411

 Section 32.2, “Restoring a Post Office,” on page 411

 Section 32.3, “Restoring a Library,” on page 412

 Section 32.4, “Restoring an Individual Database,” on page 412

 Section 32.5, “Restoring Deleted Mailbox Items,” on page 413

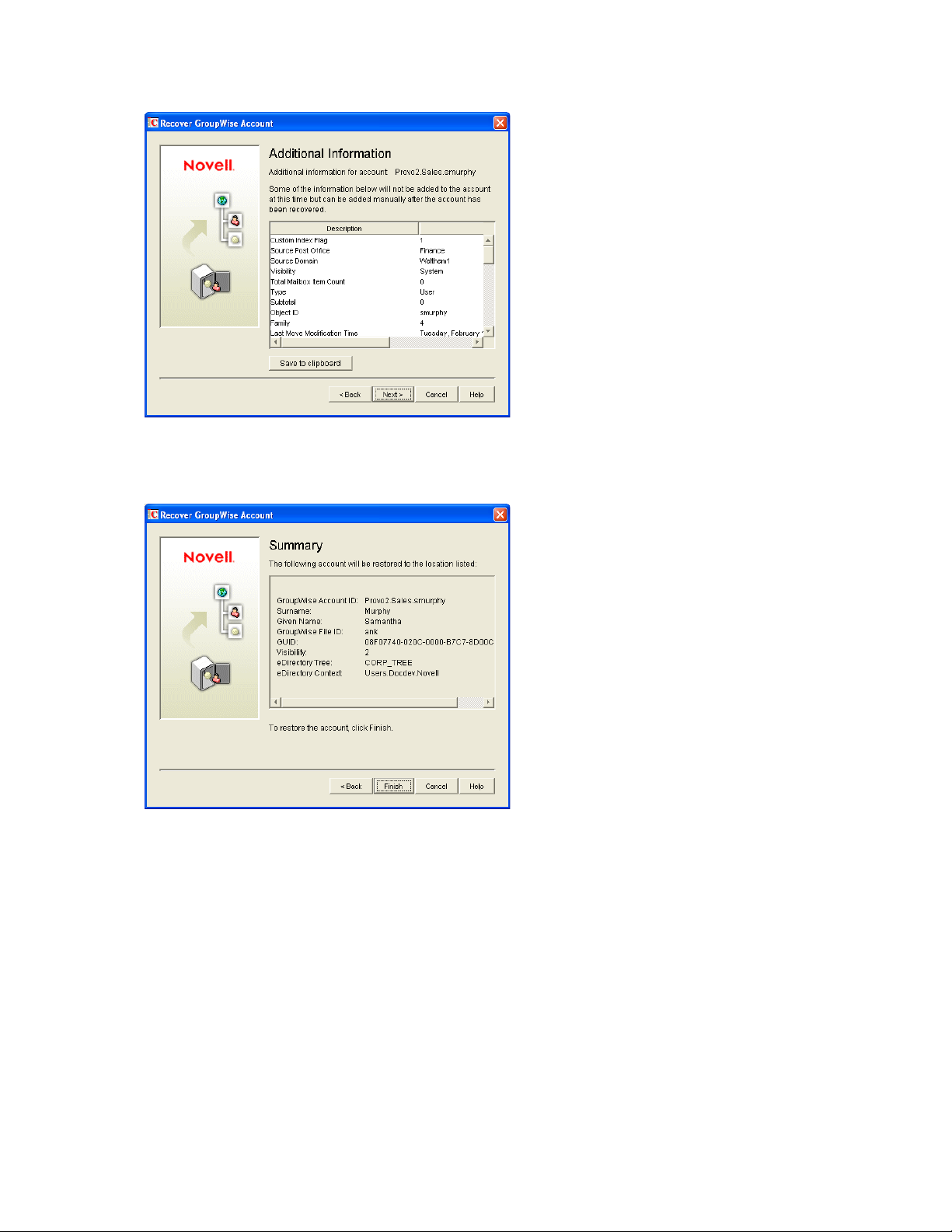

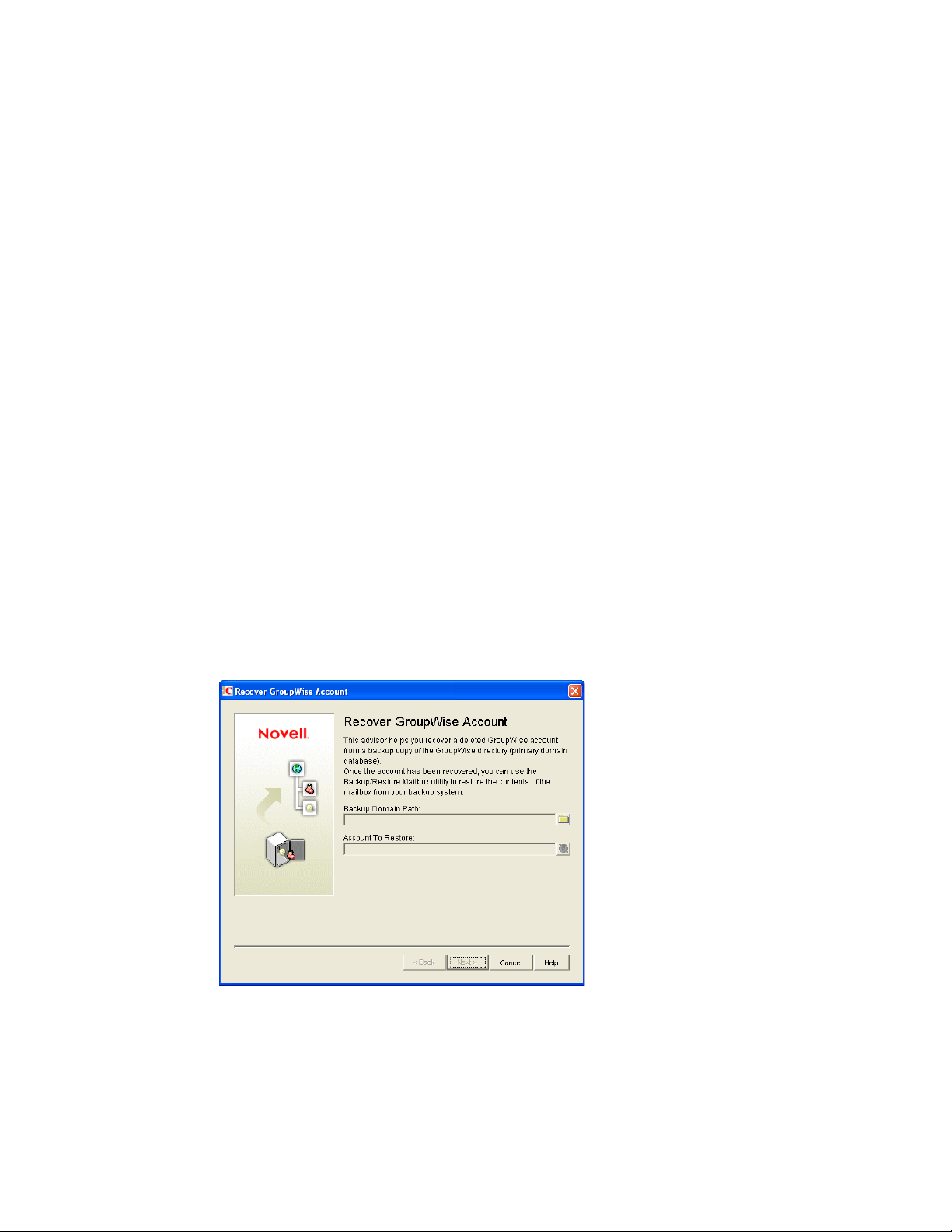

 Section 32.6, “Recovering Deleted GroupWise Accounts,” on page 416

32.1 Restoring a Domain

Typically, damage to the domain database (wpdomain.db) can be repaired using the database maintenance tools provided in ConsoleOne

Post Office Databases,” on page 377.

If damage to the domain database is so severe that rebuilding the database is not possible:

. Only very occasionally should you need to restore databases from backup.

, as described in Chapter 26, “Maintaining Domain and

1 Stop the MTA for the domain.

2 Use the backup software for your platform, as listed in Section 31.1, “Backing Up a Domain,”

on page 407, to restore the domain database into the domain directory.

3 Restart the MTA for the domain.

4 To update the restored domain database with administrative changes made since it was backed

up, synchronize the restored domain database with the primary domain database, as described in Section 29.4, “Synchronizing a Secondary Domain,” on page 397.

If the restored domain database is for the primary domain, see Section 29.5, “Synchronizing the

Primary Domain from a Secondary Domain,” on page 398.

32.2 Restoring a Post Office

Typically, damage to databases in a post office can be repaired using the database maintenance tools provided in ConsoleOne or using GroupWise Check (GWCheck). See Chapter 26, “Maintaining

Domain and Post Office Databases,” on page 377, Chapter 27, “Maintaining User/Resource and Message Databases,” on page 385, and Section 34.1, “GroupWise Check,” on page 423.

If damage to the post office was so severe that rebuilding databases is not possible:

1 Stop the POA for the post office.

2 Use the backup software for your platform, as listed in Section 31.2, “Backing Up a Post

Office,” on page 407, to restore the various databases into their proper locations in the post

office directory.

Restoring GroupWise Databases from Backup

411

3 If you do not use GWTSA or TSAFSGW to restore the post office, time-stamp the restored user

databases so that old items are not automatically purged during nightly maintenance.

3a In ConsoleOne, browse to and select the Post Office object, then click Tools > GroupWise

Utilities > Backup/Restore Mailbox.

3b On the Backup tab, select Restore, then click Yes .

4 Restart the POA for the post office.

5 To update the restored post office database (wphost.db) with the most current information

stored in the domain database, rebuild the post office database, as described in Section 26.3,

“Rebuilding Domain or Post Office Databases,” on page 381.

6 To update other restored databases such as user databases (userxxx.db) and message

databases (msgnnn.db) with the most current information stored in other post offices, run Analyze/Fix Databases with Contents selected, as described in Section 27.1, “Analyzing and

Fixing User and Message Databases,” on page 385.

32.3 Restoring a Library

Typically, damage to library databases (dmsh.db and others) can be repaired using the database maintenance tools provided in ConsoleOne or using GroupWise Check (GWCheck). See

Chapter 28, “Maintaining Library Databases and Documents,” on page 391 and Section 34.1, “GroupWise Check,” on page 423.

novdocx (en) 11 December 2007

If damage to the library is so severe that rebuilding databases is not possible:

1 Stop the POA that services the library.

2 Use the backup software for your platform, as listed in Section 31.3, “Backing Up a Library

and Its Documents,” on page 408, to restore the library.

3 Restart the POA.

4 To update the restored library databases with the most current information stored in other post

offices:

4a In ConsoleOne, run Analyze/Fix Databases with Contents selected.

4b Run Analyze/Fix Library.

For more information, see Section 28.2, “Analyzing and Fixing Library and Document

Information,” on page 392.

32.4 Restoring an Individual Database

Typically, damage to user and resource databases (userxxx.db) and message databases (msgnnn.db) can be repaired using the database maintenance tools provided in ConsoleOne or using GroupWise Check (GWCheck). See Chapter 27, “Maintaining User/Resource and Message

Databases,” on page 385 and Section 34.1, “GroupWise Check,” on page 423.

If damage to an individual database is so severe that repair is not possible:

1 Make sure the user to whom the affected database belongs is not running the GroupWise client.

2 Use your backup software of choice to restore the database into the proper location in the post

office directory.

412 GroupWise 7 Administration Guide

User databases are stored in the ofuser subdirectory in the post office. Message databases are stored in the ofmsg subdirectory.

3 To update the restored database with the most current information available, run Analyze/Fix

Databases with Contents selected, as described in Section 27.1, “Analyzing and Fixing User

and Message Databases,” on page 385.

32.5 Restoring Deleted Mailbox Items

With proper planning, you can assist users in retrieving accidentally deleted items and items that became unavailable because of database damage.

 Section 32.5.1, “Setting Up a Restore Area,” on page 413

 Section 32.5.2, “Restoring a User’s Mailbox Items,” on page 415

 Section 32.5.3, “Letting Client Users Restore Their Own Mailbox Items,” on page 416

32.5.1 Setting Up a Restore Area

A restore area is only as useful as the post office data that is backed up regularly. Make sure you are backing up every GroupWise post office regularly, as described in Section 31.2, “Backing Up a Post

Office,” on page 407.

novdocx (en) 11 December 2007

A restore area is a location you designate to hold a backup copy of a post office so that you or GroupWise Windows client users can access it to retrieve mailbox items that are unavailable in your live GroupWise system.

To set up a restore area:

1 In ConsoleOne, click Tools > GroupWise System Operations > Restore Area Management.

The Restore Area Directory Management dialog box lists any restore areas that currently exist in your GroupWise system.

2 Click Create to set up a new restore area.

Restoring GroupWise Databases from Backup 413

3 On the Identification tab, specify a unique name for the new restore area. If desired, provide a

lengthier description to further identify the restore area.

4 In the UNC Path field, browse to and select an existing directory that you want to use as a

restore area.

Specify the full path to a new directory, which will be created by the Target Service Agent that performs the restore. For more information, see Section 34.2, “Target Service Agents,” on

page 434.

novdocx (en) 11 December 2007

For a post office on Linux, specify the full path to an existing or new directory in the Linux Path field, so that the Linux POA can locate the restore area. The Linux POA cannot interpret a

UNC path in this field.

5 Click Membership.

6 Click Add, select one or more post offices or users that need access to the new restore area, then

click OK to add them to the membership list.

7 When the membership list is complete, click OK to create the new restore area.

If you display the Post Office Settings page for a post office that has a restore area assigned to it, you see that the Restore Area field has been filled in.

414 GroupWise 7 Administration Guide

8 Use the backup software for your platform, as listed in Section 31.2, “Backing Up a Post

Office,” on page 407, to restore a backup copy of the post office into the restore area.

9 Grant the POA Read, Write, and File Scan rights to the restore area.

10 If the restore area is located on a different server from where the post office directory is located,

provide the POA with a username and password for logging in to the remote server.

You can provide that information using the Remote User Name and Password fields on the Post Office object’s Post Office Settings page, using the /user and /password startup switches, or using the /dn startup switch.

If you want users to be able to retrieve individual items themselves, you can grant users Read, Write, and File Scan rights to the restore area. However, if the GroupWise client is unable to connect directly to the restore area, it requests the information from the POA, so user access rights are not required.

11 Continue with Section 32.5.2, “Restoring a User’s Mailbox Items,” on page 415 or

Section 32.5.3, “Letting Client Users Restore Their Own Mailbox Items,” on page 416 as

needed.

32.5.2 Restoring a User’s Mailbox Items

novdocx (en) 11 December 2007

After you have set up a restore area and placed a backup copy of a post office into it, you can restore a user’s mailbox items for the user.

1 In ConsoleOne, browse to and select a User object for which you need to restore mailbox items.

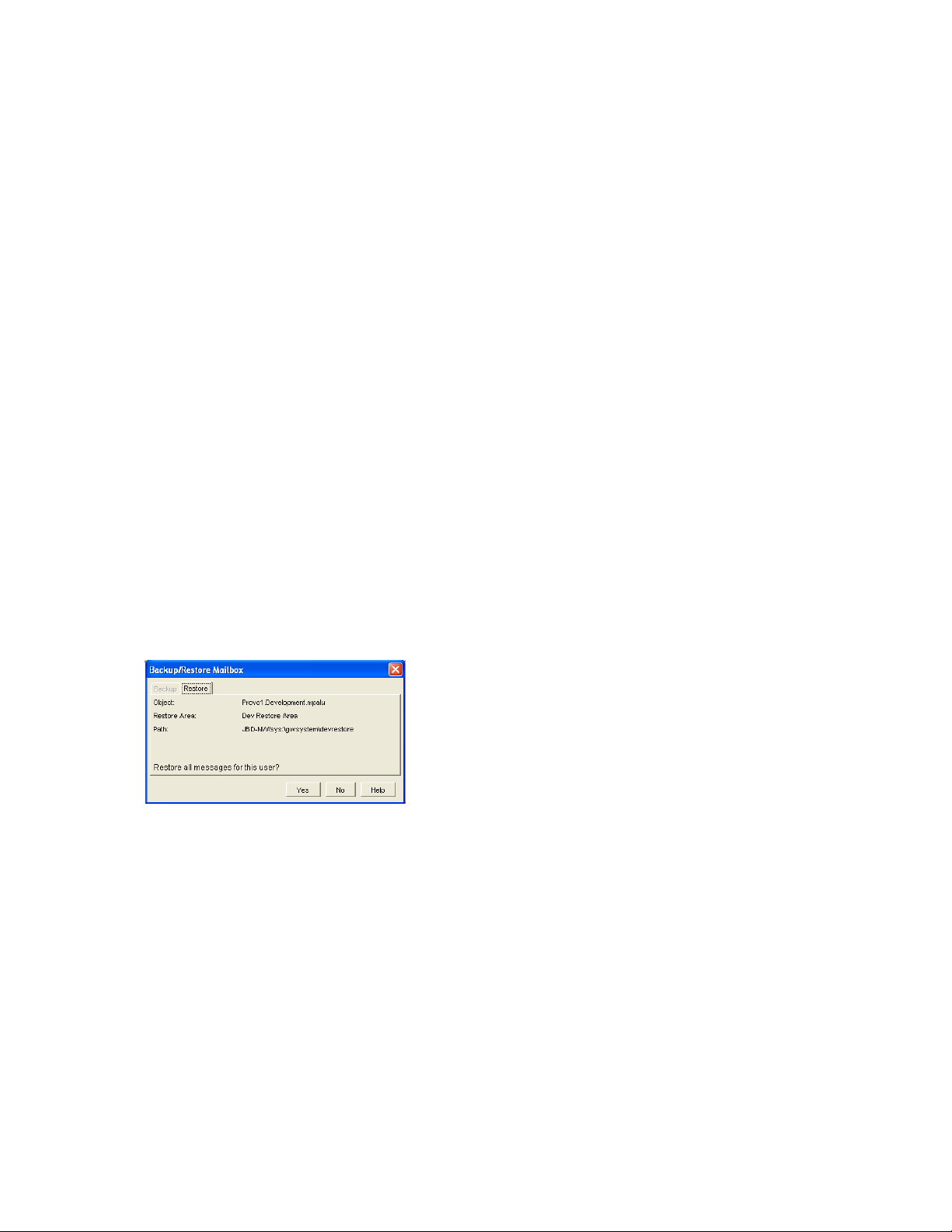

2 Click Tools > GroupWise Utilities > Backup/Restore Mailbox.

The Restore tab is automatically selected for you, with the restore area and directory location displayed for verification.

3 Click Yes to restore the selected user’s mailbox items into his or her mailbox.

4 Notify the user and explain the following about the restored items:

 The user might want to manually delete unwanted restored items.

 The user should file or archive the items that he or she wants within seven days. After

seven days, unaccessed items are deleted after the amount of time allowed by existing auto-delete settings, as described in “Environment Options: Cleanup” on page 1057. If auto-deletion is not enabled, the restored items remain in the mailbox indefinitely.

Restoring GroupWise Databases from Backup 415

32.5.3 Letting Client Users Restore Their Own Mailbox Items

After you have set up a restore area and given client users access to it, users can selectively restore individual items into their mailboxes. This saves you the work of restoring mailbox items for users and it also saves users the work of deleting unwanted restored items.

After a restore area has been set up:

1 In the GroupWise client, click File > Open Backup.

2 Browse to and select the restore area directory, then click OK.

3 In the Password field, type your GroupWise password, then click OK to access the backup

copy of your mailbox.

4 Retrieve individual items as needed.

The backup copy of your mailbox offers basic features such as Read, Search, and Undelete so that you can locate and retrieve the items you need.

5 When you are finished restoring items to your live mailbox, click File > Open Backup again to

remove the check mark from the Open Backup option and return to your live mailbox.

novdocx (en) 11 December 2007

32.6 Recovering Deleted GroupWise Accounts

If you have a reliable backup procedure in place, as described in Chapter 31, “Backing Up

GroupWise Databases,” on page 407, you can restore recently deleted GroupWise user and resource

accounts.

1 Make available a backup copy of a domain database (wpdomain.db) where the deleted

GroupWise account still exists.

2 In ConsoleOne, click Tools > GroupWise Utilities > Recover GroupWise Account.

3 Browse to and select the backup copy of the domain database.

4 Select the user or resource that you need to recover the account for.

5 Click Next.

416 GroupWise 7 Administration Guide

6 If desired, click Save to Clipboard, paste it into a file, then save or print it.

7 Click Next.

novdocx (en) 11 December 2007

8 Click Finish.

At this point, you have restored the user’s or resource’s GroupWise account into the GroupWise system. However, this does not restore ownership of resources, nor does the account’s mailbox contain any item at this point.

9 If the restored user owned resources, manually restore the ownership, as described in

Section 16.1, “Changing a Resource’s Owner,” on page 253

10 To restore the contents of the account’s mailbox, follow the instructions in Section 32.5,

“Restoring Deleted Mailbox Items,” on page 413.

Restoring GroupWise Databases from Backup 417

novdocx (en) 11 December 2007

418 GroupWise 7 Administration Guide

Retaining User Messages

GroupWise® enables you to retain user messages until they have been copied from message databases to another storage location. This means that a user cannot perform any action, such as emptying the mailbox Trash, that results in a message being removed from the message database before it has been copied.

Message retention primarily consists of three activities: 1) not allowing users to remove messages until they have been retained, 2) retaining the messages by copying them from message databases to another location, and 3) time-stamping the retained messages so that they can be subsequently deleted.

GroupWise supplies the ability to not allow users to remove messages until they’ve been retained. It also provides methods for message retention applications to securely access user mailboxes and copy messages. However, it does not provide the message retention application. You must develop or purchase a third-party (non-GroupWise) application that performs this service.

novdocx (en) 11 December 2007

 Section 33.1, “How Message Retention Works,” on page 419

 Section 33.2, “Acquiring a Message Retention Application,” on page 421

 Section 33.3, “Enabling Message Retention,” on page 421

33.1 How Message Retention Works

To understand how message retention works, you need to understand what GroupWise does and what the message retention application does, as explained in the following sections:

 Section 33.1.1, “What GroupWise Does,” on page 419

 Section 33.1.2, “What the Message Retention Application Does,” on page 420

33.1.1 What GroupWise Does

During installation of the message retention application, the application uses the GroupWise Trusted Application API to create a trusted application record in the GroupWise system. The trusted application record includes a flag that designates it as a message retention application. This flag is surfaced through the trusted application’s Provides Message Retention Service setting in ConsoleOne (Tools > GroupWise System Operations > Trusted Applications > Edit).

Figure 33-1 Edit Trusted Application Dialog Box with the Provides Message Retention Service Setting Turned On

Retaining User Messages

419

When ConsoleOne reads a trusted application record that has the Provides Message Retention Service setting turned on, it adds a Retention tab to the GroupWise Client Environment Options (Tools > GroupWise Utilities > Client Options > Environment).

Figure 33-2 Environment Options Dialog Box with the Retention Tab Open

novdocx (en) 11 December 2007

You use this Retention tab to enable message retention at the domain, post office, or user level, meaning that you can enable it for all users in a domain, all users in a post office, or individual users.

Turning on message retention alters the GroupWise client purge behavior by preventing a user from purging any messages from his or her mailbox that have not yet been retained.

33.1.2 What the Message Retention Application Does

Different message retention applications might vary slightly in their approach to retaining messages. This section provides a general approach to message retention.

To determine whether or not mailbox messages have been retained, the message retention application adds a time stamp to the mailbox. The message retention application can use the GroupWise Object API or GroupWise IMAP support to write (and read) the time stamp. In addition, you can use the GroupWise Time Stamp Utility (page 448) to manually set the time stamp.

The time stamp represents the most recent date and time that message retention was completed for the mailbox. Messages delivered after the time stamp cannot be purged until they have been retained. This requires that the message retention application retain items chronologically, oldest to newest. For example, assume a mailbox has a message retention time stamp of May 7, 2007 12:00:00. The mailbox has three folders with a total of seven messages:

420 GroupWise 7 Administration Guide

Figure 33-3 Three Folders with Seven Messages

The message retention application reads the existing time stamp (May 7, 2007 12:00:00) and selects a time between that time and the current time. For example, suppose the current time is May 9, 2007 14:00:00. The message retention application could choose May 8, 2007 12:00:00 as the new time stamp. It would then retain any messages delivered between the existing time stamp (May 7, 2007 12:00:00) and the new time stamp (May 8, 2007, 12:00:00).

novdocx (en) 11 December 2007

In the above example, messages 1, 4, and 6 are older than the existing time stamp (May 7, 2007 12:00:00). The message retention application would not retain these messages again, assuming that they had already been safely retained. Messages 2 and 5 have dates that fall between the existing time stamp (May 7, 2007 12:00:00) and the new time stamp (May 8, 2007, 12:00:00) so they would be retained. Messages 3 and 7 have dates that fall after the new time stamp (May 8, 2007, 12:00:00) so they would not be retained until the next time the message retention application ran against the mailbox.

33.2 Acquiring a Message Retention Application

If you do not already have a message retention application to use with GroupWise, you have two options: 1) you can purchase an application from a GroupWise partner or 2) you can develop your own application.

For information about GroupWise partners that provide message (e-mail) retention applications, see the Partner Product Guide (http://www.novell.com/partnerguide).

For information about developing a message retention application, see the GroupWise Object API and GroupWise Trusted Application API documentation at the Novell Developer Kit Web site (http:/

/developer.novell.com/wiki/index.php/Category:Novell_Developer_Kit).

33.3 Enabling Message Retention

This section assumes that you’ve installed a message retention application as a GroupWise trusted application and that it is configured to provide a message retention service. If not, see Section 4.12,

“Trusted Applications,” on page 69.

Retaining User Messages 421

Message retention is not enabled until you designate the users whose messages you want retained by the application. You can designate users at the domain level, post office level, or individual user level.

1 In ConsoleOne, right-click the domain, post office, or user for which you want to enable

message retention, click GroupWise Utilities > Client Options to display the GroupWise Client Options dialog box.

2 Click Environment to display the Environment Options dialog box, then click the Retention tab.

novdocx (en) 11 December 2007

3 Turn on the Enable Message Retention Service setting.

4 If you want to lock the setting at this level, click the Lock button.

For example, if you lock the setting at the domain level, the setting cannot be changed for any post offices or users within the domain. If you lock the setting at the post office level, it cannot be changed individually for the post office’s users.

This setting does not display in the GroupWise client. Therefore, there is no lock available when editing this setting for individual users.

5 Click OK to save the changes.

422 GroupWise 7 Administration Guide

Standalone Database Maintenance

novdocx (en) 11 December 2007

Programs

Some aspects of GroupWise® database maintenance are performed by standalone maintenance programs that can be incorporated into batch files along with other system maintenance programs.

 Section 34.1, “GroupWise Check,” on page 423

 Section 34.2, “Target Service Agents,” on page 434

 Section 34.3, “GroupWise Time Stamp Utility,” on page 448

 Section 34.4, “GroupWise Database Copy Utility,” on page 455

34.1 GroupWise Check

GroupWise Check (GWCheck) is a tool provided for GroupWise to check and repair GroupWise user, message, library, and resource databases without using ConsoleOne post office, user, and library databases, it also checks users’ remote, caching, and archive databases.

The GWCheck utility runs on Windows, Linux, and Macintosh. You should match the platform of GWCheck to the platform where the databases are located. Windows GWCheck processes databases on NetWare processes databases on Macintosh. GWCheck should not be used to process databases that are located across a connection between different platforms (for example, between NetWare or Windows and Linux).

and Windows. Linux GWCheck processes databases on Linux. Macintosh GWCheck

. In addition to checking

 Section 34.1.1, “GWCheck Functionality,” on page 423

 Section 34.1.2, “Using GWCheck on Windows,” on page 425

 Section 34.1.3, “Using GWCheck on Linux,” on page 426

 Section 34.1.4, “Using GWCheck on Macintosh,” on page 428

 Section 34.1.5, “Performing Mailbox/Library Maintenance Using GWCheck,” on page 429

 Section 34.1.6, “Executing GWCheck from a Windows Batch File,” on page 431

 Section 34.1.7, “Executing GWCheck from a Linux Script,” on page 432

 Section 34.1.8, “GWCheck Startup Switches,” on page 432

34.1.1 GWCheck Functionality

The GWCheck utility begins by comparing three databases.

Standalone Database Maintenance Programs

423

Table 34-1 Three Databases That GWCheck Compares

WPHOST.DB NGWGUARD.DB FILE SYSTEM

novdocx (en) 11 December 2007

The post office database (wphost.db) is checked for the file ID (FID) of the selected user.

The guardian database (ngwguard.db) is checked to find out if this user database has been created.

The file system for this post office is checked to see if the user database (userxxx.db) for this user exists.

After GWCheck makes the database comparisons, it begins processing according to the databases selected and any inconsistencies found.

Case 1 - Missing Entry in the Post Office Database (wphost.db)

In this example, a contents check is run either against all users on the post office or against one user, “ABC.” GWCheck does not find the FID of one or more users.

Table 34-2 Missing Entry in Wphost.db

WPHOST.DB NGWGUARD.DB FILE SYSTEM

? userabc.db userabc.db

No entry for this user is found in the post office database (wphost.db).

An entry is found in the guardian database (ngwguard.db), indicating that the user has been deleted.

Also, a user database (userxxx.db) for this user is found in the ofuser directory.

GWCheck removes the entry from ngwguard.db, deletes userabc.db and systematically deletes all of the user’s messages from the message databases that are not still being referenced by other users. If the user has been deleted, GWCheck cleans up after that user.

WARNING: If a post office database becomes damaged so some users are unable to log in, GWCheck should not be run until the post office has been rebuilt. For more information, see

Section 26.3, “Rebuilding Domain or Post Office Databases,” on page 381.

Case 2 - Missing Entry in the Guardian Database (ngwguard.db)

In this example, a GWCheck is run either against all users on the post office or against one user, “ABC.” A user’s FID is found and the user’s database is found in the post office, but the user is missing in ngwguard.db.

Table 34-3 Missing Entry in Ngwguard.db

WPHOST.DB NGWGUARD.DB FILE SYSTEM

FID abc ? userabc.db

The user appears in the post office database (wphost.db).

The guardian database (ngwguard.db) shows no user database for this user.

A user database (userxxx.db) for the user does exist in the ofuser directory.

424 GroupWise 7 Administration Guide

GWCheck creates the user in ngwguard.db, using database userabc.db. Even if ngwguard.db is damaged, it is unlikely that data is lost.

Case 3 - Missing User Database (userxxx.db)

In this example, a GWCheck is run either against all users on the post office or against one user, “ABC.” The user’s FID is found, as well as the user’s record in ngwguard.db. However, the user’s database is not found.

Table 34-4 Missing Entry in Userxxx.db

WPHOST.DB NGWGUARD.DB FILE SYSTEM

FID abc userabc.db ?

novdocx (en) 11 December 2007

The user is found in the post office database (wphost.db).

The user is found in the guardian database (ngwguard.db).

No user database (userxxx.db) is found in the ofuser directory.

GWCheck takes action depending on what options are selected.

Contents Check: GWCheck deletes all of this user’s messages from the message databases if they are not referenced by other users.

Structural Rebuild: GWCheck creates a blank user database for this user. Existing messages for this user are ignored.

Re-create User Database: GWCheck creates a blank user database for this user and populates it with messages in the message databases that have been sent to or from this user.

WARNING: If a user database has been deleted, do not run a Contents Check until after a Structural Rebuild or Re-create User Database has been run for that user. For more information, see

Section 27.2, “Performing a Structural Rebuild of a User Database,” on page 387 and Section 27.3, “Re-creating a User Database,” on page 388.

34.1.2 Using GWCheck on Windows

You can use GWCheck on any Windows NT/2000/XP workstation.

As an administrator, you can run GWCheck for databases in any post office accessible from the workstation where GWCheck is installed. The GWCheck program performs all database

maintenance itself, rather than handing off a task to the POA as ConsoleOne

would do to perform

database maintenance.

Depending on how GWCheck is installed, users can have a Repair Mailbox item on the GroupWise Windows client Tools menu that enables them to run GWCheck from the client. If the GWCheck program is available to users, users can perform database maintenance on their Remote, Caching, and archive mailboxes, which are not accessible from ConsoleOne.

For the Repair Mailbox item to display on the GroupWise Windows client Tools menu, the following files must be installed in the GroupWise directory; by default, this is c:\novell\groupwise.

 gwcheck.exe

Standalone Database Maintenance Programs 425

 gwchkxx.dll (Replace xx with your language code)

 gwchkxx.chm (Replace xx with your language code)

The GroupWise administrator can install these files by using SetupIP to install the GroupWise Windows client, and selecting to install and enable GWCheck. The default for SetupIP is to install GWCheck, but not enable GWCheck. The files are then copied to the \novell\groupwise\gwcheck directory. For additional information about SetupIP and GWCheck, see “[GWCHECK]” on page 1087.

If the client was installed from the installation program on the CD or the defaults are chosen for SetupIP, the client user needs to copy the files from the GWCheck directory (\novell\groupwise\gwcheck) to the main GroupWise directory (\novell\groupwise\).

To run GWCheck:

1 From the Start menu, click Run, then browse to and double-click gwcheck.exe.

novdocx (en) 11 December 2007

2 To view online help in GWCheck, click Help.

3 Continue with Section 34.1.5, “Performing Mailbox/Library Maintenance Using GWCheck,”

on page 429.

34.1.3 Using GWCheck on Linux

Two versions of GWCheck are available on Linux, one for a graphical user interface (GUI) environment and one for a text-only environment.

 “Using GUI GWCheck (gwcheck)” on page 426

 “Using Text-Based GWCheck (gwcheckt)” on page 427

Using GUI GWCheck (gwcheck)

You can use GUI GWCheck on any Linux workstation where you can run the Cross-Platform client. By default, GWCheck is installed with the client when using the GroupWise installation program. If

426 GroupWise 7 Administration Guide

you installed the GroupWise Cross-Platform client manually from the RPM, you must install GWCheck manually.

1 Change to the directory where the GWCheck RPM is located or copy it to a convenient location

on your workstation.

The GWCheck RPM (groupwise-gwcheck-version-mmdd.i386.rpm) is located in the /

client and /admin directories in your GroupWise software distribution directory if it is has

been updated or on the GroupWise 7 Administrator for Linux CD if an updated software distribution directory is not available.

2 Install GWCheck.

rpm -i groupwise-gwcheck-version-mmdd.i386.rpm

3 Change to the /opt/novell/groupwise/gwcheck/bin directory.

4 Enter ./gwcheck to start GWCheck.

novdocx (en) 11 December 2007

5 To view online help in GWCheck, click Help.

6 Continue with Performing Mailbox/Library Maintenance Using GWCheck.

Using Text-Based GWCheck (gwcheckt)

You can use text-based GWCheck in any environment where the X Window System is not available, such as on a text-only server where a post office and its POA are located. However, you must use GUI GWCheck to create an options file before you can run text-based GWCheck.

1 Install and run GUI GWCheck in a convenient location, as described in “Using GUI GWCheck

(gwcheck)” on page 426.

2 Select the maintenance activities that you want GWCheck to perform, as described in

Section 34.1.5, “Performing Mailbox/Library Maintenance Using GWCheck,” on page 429.

3 Save the settings you selected in an options file, as described in “Saving Mailbox/Library

Maintenance Options” on page 431.

Standalone Database Maintenance Programs 427

The default options filename is gwcheck.opt. By default, it is saved in your home directory, but you can select a different filename and directory as needed when you save the file.

4 Copy the GWCheck RPM to a convenient location on the text-only server.

5 Install GWCheck on the text-only server.

rpm -i groupwise-gwcheck-version-mmdd.i386.rpm

6 Copy the GWCheck options file you created in Step 3 to a convenient location on the text-only

server.

7 Change to the /opt/novell/groupwise/gwcheck/bin directory.

8 Enter ./gwcheckt options_file to run text-based GWCheck.

If you did not copy the options file to your home directory on the text-only server, specify the full path to the options file.

Over time, a collection of options files might accumulate. To see what maintenance activities a specific options file performs, use ./gwcheckt options_file --dump.

34.1.4 Using GWCheck on Macintosh

novdocx (en) 11 December 2007

You can use GWCheck on any Macintosh workstation where you can run the Cross-Platform client. By default, GWCheck is installed along with the client.

1 In a terminal window, change to the ~/Desktop/GroupWise.app/Contents/

Resources/gwcheck directory.

2 Enter ./gwcheck to start GWCheck.

3 To view online help in GWCheck, click Help.

4 Continue with Performing Mailbox/Library Maintenance Using GWCheck.

428 GroupWise 7 Administration Guide

34.1.5 Performing Mailbox/Library Maintenance Using GWCheck

With only a few differences in interface functionality, as described in the online help, you can perform the same maintenance activities in GWCheck as you can in Mailbox/Library Maintenance in ConsoleOne:

 “Using Mailbox/Library Maintenance Tab Options” on page 429

 “Reusing Library/Mailbox Maintenance Settings” on page 431

Using Mailbox/Library Maintenance Tab Options

Both GWCheck and Mailbox/Library Maintenance in ConsoleOne use tab options to control the checking process.

 “Databases” on page 429

 “Logging” on page 429

 “Results” on page 430

 “Misc” on page 430

novdocx (en) 11 December 2007

 “Exclude” on page 430

Databases

To select the types of database to perform the Mailbox/Library Maintenance check on, click Databases.

Figure 34-1 Databases Tab in the Mailbox/Library Maintenance Dialog Box

Depending on the object type and action already selected in the main window, some database types might be unavailable. If all the database types are unavailable, then one or more database types have been preselected for you.

You can perform an action on the following databases when the type is not unavailable:

 User: Checks the user databases.

 Message Databases: Checks the message databases.

 Document: Checks the library and document properties databases.

Logging

To specify the name of the file where you want the results of the MailBox/Library Maintenance check to be stored, click Logging.

Standalone Database Maintenance Programs 429

Figure 34-2 Logging Tab in the Mailbox/Library Maintenance Dialog Box

Specify a filename. By default, the file is created in the post_office_directory\wpcsout\ofs directory.

Click Verbose Logging to log detailed information. Verbose logging might produce large log files and slow execution.

This file is sent to the users selected on the Results tab.

Results

To select users to receive the results of the Mailbox/Library Maintenance check, click Results.

Figure 34-3 Results Tab in the Mailbox/Library Maintenance Dialog Box

novdocx (en) 11 December 2007

Select Administrator to send the results to the user defined as the GroupWise domain administrator. Select Individual Users to send each user the results that pertain to him or her. Click Message to include a message with the results file.

Misc

If you need to run a Mailbox/Library Maintenance check with special options provided by Novell

Support, click Misc.

Figure 34-4 Misc. Tab in the Mailbox/Library Maintenance Dialog Box

Use the Support Options field to specify command line parameters. Support options are typically obtained from Novell Support representatives when you need assistance resolving specific database problems. Search the Novell Support Knowledgebase (http://www.novell.com/support/

supportcentral) for TIDs and Support Pack Readmes that list support options. Make sure that you

clearly understand what the Support options do before you use them.

Exclude

If you want to exclude certain users in the selected post office from having the Mailbox/Library Maintenance check performed on their databases, click Exclude.

430 GroupWise 7 Administration Guide

Figure 34-5 Exclude Tab in the Mailbox/Library Maintenance Dialog Box

Click Add, select one or more users to exclude, then click OK.

Reusing Library/Mailbox Maintenance Settings

For convenience, you can store the options you select in Mailbox/Library Maintenance and GWCheck so that you can retrieve them for later use.

 “Saving Mailbox/Library Maintenance Options” on page 431

 “Retrieving Mailbox/Library Maintenance Options” on page 431

Saving Mailbox/Library Maintenance Options

novdocx (en) 11 December 2007

1 After you have selected all of the options in the Mailbox/Library Maintenance dialog box, click

Save.

2 Browse to the directory where you want to save the options file.

3 Specify a filename if you do not want to use the default of gwcheck.opt.

4 Click Save.

Retrieving Mailbox/Library Maintenance Options

1 In the Mailbox/Library Maintenance dialog box, click Retrieve.

2 Browse to and select your saved options file.

3 Click Open.

34.1.6 Executing GWCheck from a Windows Batch File

The GWCheck program is located in the \admin\utilities\gwcheck directory in your GroupWise software distribution directory if it has been updated or on the GroupWise 7 Administrator for NetWare/Windows CD if an updated software distribution directory is not available. It might also be installed along with the GroupWise client software in the gwcheck subdirectory of the client installation directory.

1 Use the following syntax in a batch file for running GWCheck:

gwcheck /opt-options_file /batch

If you want to include the path to an archive database, use the /pa switch.

2 To create an options file, see “Saving Mailbox/Library Maintenance Options” on page 431.

Standalone Database Maintenance Programs 431

34.1.7 Executing GWCheck from a Linux Script

The GWCheck program is located in the /admin directory in your GroupWise software distribution directory if it has been updated or on the GroupWise 7 Administrator for Linux CD if an updated software distribution directory is not available.

1 Make sure that GWCheck has been installed, as described in Section 34.1.3, “Using GWCheck

on Linux,” on page 426

2 Create a script to execute GWCheck using the following syntax:

/opt/novell/groupwise/gwcheck/bin/gwcheck --opt options_file

--batch

If you did not create the options file in your home directory, specify the full path to the options file.

If you want to include the path to an archive database, use the --pa switch.

3 To create an options file, see “Saving Mailbox/Library Maintenance Options” on page 431.

34.1.8 GWCheck Startup Switches

novdocx (en) 11 December 2007

The following startup switches can be used with GWCheck:

Linux GWCheck Windows GWCheck

--batch /batch

--lang /lang

--opt /opt

--pa /pa

--pr /pr

/batch

Indicates that you want to run GWCheck without a user interface. Because you do not provide the desired options from the interface, you must provide an options file.

Linux GWCheck Windows GWCheck

Syntax: --batch /batch

For example, to specify that you want GWCheck to run in batch mode, you would use:

Linux:

Windows:

./gwcheck --opt gwcheck.opt --batch

gwcheck /opt-gwcheck.opt /batch

/lang

Specifies the language to run GWCheck in, using a two-letter language code as listed below. You must install GWCheck in the selected language in order for it to display in the selected language.

432 GroupWise 7 Administration Guide

Linux GWCheck Windows GWCheck

Syntax: --lang code /lang code

The table below lists the valid language codes. Contact your local Novell sales office for information about language availability.

novdocx (en) 11 December 2007

Language

Arabic AR Hungarian MA

Chinese-Simplified CS Italian IT

Chinese-Traditional CT Japanese NI

Czechoslovakian CZ Korean KR

Danish DK Norwegian NO

Dutch NL Polish PL

English-United States US Portuguese-Brazil BR

Finnish SU Russian RU

French-France FR Spanish ES

German-Germany DE Swedish SV

Hebrew HE

Language Code

Language

Language Code

For example, to specify that you want GWCheck to run in Spanish, you would use:

Linux:

./gwcheck --opt gwcheck.opt --lang es

Windows:

gwcheck /opt-gwcheck.opt /lang es

/opt

Specifies a database maintenance options file created in a GWCheck session. This starts GWCheck with the same options settings as the session in which the options file was created. If the options file is located in the same directory as the GWCheck program, you can specify just the filename. If it is in a different directory, you must specify the full pathname.

Linux GWCheck Windows GWCheck

Syntax: --opt file /opt-file

For example, to start GWCheck with saved settings, you would use:

Linux:

./gwcheck --opt gwcheck.opt ./gwcheck --opt=/gwsystem/post1/gwcheck.opt

Standalone Database Maintenance Programs 433

novdocx (en) 11 December 2007

Windows:

gwcheck /opt-gwcheck.opt gwcheck /opt-\gwsystem\post1\gwcheck.opt

/pa

Specifies the path to an archive mailbox.

Linux GWCheck Windows GWCheck

Syntax: --pa path /pa-path

For example, to specify the archive mailbox that a user keeps is his or her home directory, you would use:

Linux:

Windows:

./gwcheck --opt gwcheck.opt --pa /home/gsmith\of7bharc

gwcheck /opt=gwcheck.opt /pa-\home\gsmith\of7bharc

/pr

Specifies the path to a Remote mailbox.

Linux GWCheck Windows GWCheck

Syntax: --pr path /pr-path

For example, to specify the Remote mailbox that a user keeps on a computer at home, you would use:

Linux:

Windows:

./gwcheck --opt gwcheck.opt --pr /novell/groupwise\of7bharc

gwcheck /opt=gwcheck.opt /pa-\novell\groupwise\of7bharc

34.2 Target Service Agents

A Target Service Agent (TSA) helps generic backup software back up specialized data located on any “target.” A target is a specific location where data is stored, such as a NetWare

Linux file system, an eDirectory

database, or a collection of GroupWise databases. A target could also be an application that provides data to be backed up. A TSA is specialized to scan, read, and write the specific types of data available at the target. A TSA serves as an intermediary between specific data types and a general backup engine.

 GroupWise Target Service Agent (GWTSA) has long been included with GroupWise and

must be used to back up GroupWise data stored on NetWare 5.1 servers. It is specialized to back up specific GroupWise data types, such as domains and post offices.

 GroupWise Target Service Agent for File Systems (TSAFSGW) is available on NetWare

6.x (but not on earlier versions of NetWare) and on Linux. It builds on the capabilities of the standard Target Service Agent for File Systems (TSAFS) to provide more robust GroupWise backup capabilities.

file system, a

434 GroupWise 7 Administration Guide

Select the Target Service Agent appropriate for your operating system:

 Section 34.2.1, “GroupWise Target Service Agent (GWTSA) for NetWare 5.1,” on page 435

 Section 34.2.2, “GroupWise Target Service Agent for File Systems (TSAFSGW) for NetWare

6.x/OES and Linux,” on page 439

34.2.1 GroupWise Target Service Agent (GWTSA) for NetWare

5.1

The GroupWise Target Service Agent (GWTSA) provides reliable backups of a running GroupWise system on NetWare 5.1 by successfully backing up open files and locked files, rather than skipping them.

 “GWTSA Functionality” on page 435

 “Running GWTSA” on page 436

 “GWTSA Startup Switches” on page 438

IMPORTANT: Unless you are running GroupWise on NetWare 5.1, do not use GWTSA. Use TSAFS and TSAFSGW for superior performance.

novdocx (en) 11 December 2007

GWTSA Functionality

The GroupWise Target Service Agent (GWTSA) works with other backup software on NetWare. For a complete and current list of compatible backup software, use the Partner Product Guide (http:/

/www.novell.com/partnerguide).

GWTSA has no user interface of its own, but its presence running along with other backup software provides GroupWise options in the backup software that would not otherwise be available. As a Target Service Agent, GWTSA supports any feature that your backup software supports. So if your backup software supports full, incremental, and differential backups or working set and copy jobs, so does GWTSA.

GWTSA backs up standard GroupWise directories and files; extra directories and files that appear within a standard GroupWise directory structure are not backed up by GWTSA. The table below lists the directories and files that are backed up by GWTSA.

Table 34-5 Files and Directories Backed Up by GWTSA

GroupWise Location

Domain domain_directory wpdomain.db

Directories

Subdirectories/Files Backed Up

wpdomain.dc wphost.dc gwdom.dc gwpo.dc mtaname

domain_directory\wpgate async

gwia webac70a etc.

Standalone Database Maintenance Programs 435

novdocx (en) 11 December 2007

GroupWise Location

Post Office post_office_directory wphost.db

Directories

post_office_directory\gwdms dmsh.db

post_office_directory\gwdms\library_direc tory

post_office_directory\offiles *.*

post_office_directory\ofmsg *.*

post_office_directory\ofmsg\guardbak ngwguard.fbk

post_office_directory\ofuser userxxx.db

post_office_directory\ofuser\index *.idx

Subdirectories/Files Backed Up

ngwguard.db ngwguard.dc ngwguard.rfl ngwguard.fbk ngwcheck.db ngwcheck.log gwpo.dc

*.db archive\*.* docs\*.*

*.inc

post_office_directory\ofviews\win *.vew

*.ini

Library (Document Storage Area)

library_directory *.db

archive\*.* docs\*.*

To see directory structure diagrams showing where the files are located, see “Domain Directory” and “Post Office Directory” in GroupWise 7 Troubleshooting 3: Message Flow and Directory

Structure.

GWTSA automatically time-stamps all backed-up user databases (userxxx.db), so that the Allow Purge of Items Not Backed Up option described in “Environment Options: Cleanup” on page 1057

can function to safeguard users’ deleted items against being purged from your GroupWise system before they have been backed up.

IMPORTANT: If you decide not to use GWTSA, user databases must be time-stamped as a separate process in order for the purge control environment option to work properly. For instructions, see Section 34.3, “GroupWise Time Stamp Utility,” on page 448.

Running GWTSA

GWTSA should be used on NetWare 5.1 only. The gwtsa.nlm program file is automatically installed along with the GroupWise agents (POA and MTA).

During agent installation, a gwtsa.ncf file is created in the directory where you installed the agents. By default, it loads gwtsa.nlm and provides a /home switch for each domain and post office you selected to be serviced by the MTA and POA. For example:

436 GroupWise 7 Administration Guide

Syntax:

load sys:\system\gwtsa /home-domain_directory

/home-post_office_directory

Example:

load sys:\system\gwtsa /home-sys:\gwsystem\provo1

/home-sys:\gwsystem\dev

NOTE: The example is formatted for readability. In the gwtsa.ncf file, the command is a single line of text.

You can add additional instances of the /home switch to back up more domains and post offices.

Syntax:

load sys:\system\gwtsa /home-domain_directory

/home-domain_directory /home-post_office_directory /home-post_office_directory /home-post_office_directory

novdocx (en) 11 December 2007

Example:

load sys:\system\gwtsa /home-sys:\gwsystem\provo1

/home-sys:\gwsystem\provo2

/home-sys:\gwsystem\dev

/home-sys:\gwsystem\sales /home-sys:\gwsystem\research

NOTE: The example is formatted for readability. In the gwtsa.ncf file, the command is a single line of text.

You can also add instances of the /home switch to point to restore areas for post offices or to other temporary locations where you want to restore data.

By default, GWTSA places temporary files in the sys:\system\temp directory during the backup process. This minimizes the time that the backup process locks the live GroupWise databases so that the GroupWise agents continue to run smoothly during the backup. If necessary, use the /tempdir switch to specify an alternate location where more disk space is available for temporary files. Additional configuration of GWTSA can be done using other startup switches. See

“GWTSA Startup Switches” on page 438 for a complete list.

To start GWTSA immediately:

1 Run the gwtsa.ncf file at the NetWare server console.

To start GWTSA automatically each time you restart the server:

1 Add a gwtsa.ncf line to the autoexec.ncf file.

With GWTSA running, you are ready to back up GroupWise data with Novell Storage Management

Services

(SMS), as described in Backup and Restore Services (Storage Management Services) on the NetWare 5.1 Documentation Web site (http://www.novell.com/documentation/nw51), and compatible backup software, as listed in the Partner Product Guide (http://www.novell.com/

partnerguide).

Standalone Database Maintenance Programs 437

Backing Up Remote Domains and Post Offices If the domains and post offices to back up are located on a different server from where the

GroupWise agents run, you must copy GWTSA (gwtsa.nlm), along with the GroupWise agent engine (gwenn5.nlm), to the server where the data resides and run it there.

GWTSA Startup Switches

The following startup switches can be used with GWTSA:

/home /ll /log /tempdir /vserver

/home

Specifies the GroupWise location to back up or restore to. Multiple instances of the /home switch are typical. Use a /home switch for each domain and post office to back up. Also use a /home switch for each post office restore area and any other temporary location to which you want to restore GroupWise data outside the standard GroupWise directory structure.

novdocx (en) 11 December 2007

Example: /home-sys:\gwsystem\dev

/ll

Sets the log level to determine how much information is written to GWTSA log file. Use n for Normal and v for Verbose.

Example: /ll-v

/log

Turns on logging and displays a logging screen. By default, logging is turned off. When you turn logging on, a gwtsa.log file is created in the sys:\system\tsa directory.

Example: /log

/tempdir

Specifies where GWTSA places its temporary files during the backup process. The default is the sys:\system\tsa\temp directory.

Example: /tempdir-vol1:\temp

/vserver

Specifies the name of a virtual server in a NetWare cluster. See “Backing Up a GroupWise System in

a NetWare Cluster” in “Novell Cluster Services on NetWare” in the GroupWise 7 Interoperability

Guide.

438 GroupWise 7 Administration Guide

34.2.2 GroupWise Target Service Agent for File Systems (TSAFSGW) for NetWare 6.x/OES and Linux

The GroupWise Target Service Agent for File Systems (TSAFSGW) builds on the standard capabilities of the Target Service Agent for File Systems (TSAFS) to provide robust GroupWise backup capabilities. It functions like a GroupWise-specific translator between the standard capabilities of TSAFS and the standard capabilities of your backup software of choice.

 “System Requirements” on page 439

 “TSAFS Functionality” on page 439

 “TSAFSGW Functionality” on page 440

 “NetWare: Running TSAFS and TSAFSGW” on page 441

 “Linux: Running TSAFS and TSAFSGW” on page 444

 “TSAFSGW Startup Switches” on page 447

System Requirements

novdocx (en) 11 December 2007

TSAFS and TSAFSGW are available on NetWare 6.x and Novell Open Enterprise Server (OES) NetWare. They are also available with the Storage Management Services (SMS) package on SUSE® Linux Enterprise Server (SLES) 9 and OES Linux.

TSAFS Functionality

The latest version of Target Service Agent for File Systems (TSAFS) includes enhancements that earlier versions of TSAFS did not include:

 Supports GroupWise database lock/backup/unlock functionality so that you can back up a

running GroupWise system

 Provides time stamping of GroupWise 6.5.3 and later user databases (userxxx.db), so that

the Allow Purge of Items Not Backed Up option described in “Environment Options: Cleanup”

on page 1057 can function to safeguard users’ deleted items against being purged from your

GroupWise system before they have been backed up

IMPORTANT: If you decide not to use TSAFS, user databases must be time-stamped as a separate process after you run your backups in order for the Allow Purge of Items Not Backed Up option described in Section , “Environment Options: Cleanup,” on page 1057 to work properly. For instructions, see Section 34.3, “GroupWise Time Stamp Utility,” on page 448.

 Supports backups of clustered servers so that the backup job continues on failover

 Uses a read-ahead, data caching mechanism to improve backup performance

Make sure you have the latest version of TSAFS for your operating system.

NetWare: The latest version of TSAFS ships with NetWare and its Support Packs. Updates to SMS

and TSAFS that occur between NetWare Support Packs can be downloaded from the

Novell Support Web site (http://www.novell.com/support/supportcentral). Search for

tsa5up??.exe to find the latest version.

Linux: The latest version of TSAFS ships with OES Linux and GroupWise 7.x.

Standalone Database Maintenance Programs 439

For complete details about TSAFS on NetWare and Linux, see the Storage Management Services Administration Guide on the Novell Open Enterprise Server Documentation Web site (http://

www.novell.com/documentation/oes). You can use TSAFS as it ships with your operating system to

back up GroupWise data, or you can enhance its functionality by using TSAFSGW along with it.

TSAFSGW Functionality

TSAFS for GroupWise (TSAFSGW) works with TSAFS and other backup software on NetWare and Linux. For a complete and current list of compatible backup software, use the Partner Product

Guide (http://www.novell.com/partnerguide).

Like TSAFS, TSAFSGW has no user interface of its own, but its presence running along with other backup software provides GroupWise options in the backup software that would not otherwise be available. As a Target Service Agent, TSAFSGW supports any feature that your backup software supports. So if your backup software supports full, incremental, and differential backups or working set and copy jobs, so does TSAFSGW. If TSAFS is not already running when you start TSAFSGW, TSAFSGW starts it for you.

TSAFSGW backs up all directories and files at the locations you specify using the /home switch when you start TSAFSGW. The table below lists the standard GroupWise directories and files that you want to have backed up by TSAFSGW.

novdocx (en) 11 December 2007

Table 34-6 Files and Directories Backed Up by TSAFSGW

GroupWise Location

Domain domain_directory wpdomain.db

Directories

domain_directory\wpgate async

Subdirectories/Files Backed Up

wpdomain.dc wphost.dc gwdom.dc gwpo.dc mtaname

gwia webac70a etc.

440 GroupWise 7 Administration Guide

novdocx (en) 11 December 2007

GroupWise Location

Post Office post_office_directory wphost.db

Directories

post_office_directory\gwdms dmsh.db

post_office_directory\gwdms\ library_directory

post_office_directory\offiles *.*

post_office_directory\ofmsg *.*

post_office_directory\ofmsg\guardbak ngwguard.fbk

post_office_directory\ofuser userxxx.db

post_office_directory\ofuser\index *.idx

Subdirectories/Files Backed Up

ngwguard.db ngwguard.dc ngwguard.rfl ngwguard.fbk ngwcheck.db ngwcheck.log gwpo.dc

*.db archive\*.* docs\*.*

*.inc

post_office_directory\ofviews\win *.vew

*.ini

Library (Document Storage Area)

library_directory *.db

archive\*.* docs\*.*

To see directory structure diagrams showing where the files are located, see “Domain Directory” and “Post Office Directory” in GroupWise 7 Troubleshooting 3: Message Flow and Directory

Structure.

To to keep unnecessary files from being backed up, you should configure your backup software to exclude the following file types from the backup:

 Agent log files (for example, ????mta.??? to exclude files such as 0518mta.001 and

????poa.??? to exclude files such as 0518poa.001)

 QuickFinder

indexes and incremental files (*.idx and *.inc)

 Timing files used by the Internet Agent (proc and pulse.tmp)

 Attachments that are being written during the backup (locked files under the offiles

directory in the post office cannot be excluded but error messages generated by them can be ignored)

NetWare: Running TSAFS and TSAFSGW

 “Running TSAFS on NetWare” on page 442

 “Running TSAFSGW on NetWare” on page 442

Standalone Database Maintenance Programs 441

Running TSAFS on NetWare

To run TSAFS with GroupWise functionality:

1 At your NetWare server console, unload TSAFS.

2 Use the following command to start TSAFS with GroupWise functionality:

load tsafs /EnableGW=True

The switch setting is saved in a configuration file (sys:\etc\sms\tsa.cfg), so that you do not need to include the switch when you load tsafs.nlm in the future.

If you need to run TSAFS without GroupWise functionality in the future, unload TSAFS, then reload using:

load tsafs /EnableGW=False

3 To verify that TSAFS is running with GroupWise functionality, use the following command:

tsafs

4 Scroll down to the /EnableGW entry and look for a value of True.

5 If you want to start TSAFS automatically each time you restart the server, load tsafs.nlm in

the autoexec.ncf file.

novdocx (en) 11 December 2007

NOTE: Starting with NetWare 6.5 Support Pack 4, GroupWise functionality is always enabled and you do not need to use the /EnableGW switch.

6 Continue with “Running TSAFSGW on NetWare” on page 442.

Running TSAFSGW on NetWare

The tsafsgw.nlm program file is automatically installed along with the GroupWise agents (POA and MTA). During agent installation, a tsafsgw.ncf file is created in the directory where you installed the agents. By default, it loads tsafsgw.nlm and provides a /home switch for each domain and post office you selected to be serviced by the MTA and POA. For example:

Syntax:

load sys:\system\tsafsgw /home-domain_directory

/home-post_office_directory

Example:

load sys:\system\tsafsgw /home-sys:\gwsystem\provo1

/home-sys:\gwsystem\dev

NOTE: The example is formatted for readability. In the tsafsgw.ncf file, the command is a single line of text.

You can add additional instances of the /home switch to back up more domains and post offices.

Syntax:

load sys:\system\tsafsgw /home-domain_directory

442 GroupWise 7 Administration Guide

/home-domain_directory /home-post_office_directory /home-post_office_directory /home-post_office_directory

Example:

load sys:\system\tsafsgw /home-sys:\gwsystem\provo1

/home-sys:\gwsystem\provo2 /home-sys:\gwsystem\dev /home-sys:\gwsystem\sales /home-sys:\gwsystem\research

NOTE: The example is formatted for readability. In the tsafsgw.ncf file, the command is a single line of text.

For each /home switch that specifies a GroupWise domain or post office directory, TSAFSGW can determine what types of GroupWise objects are available at that location. TSAFSGW recognizes four GroupWise object types:

 Domain [DOM]

 Post office [PO]

 Library [DMS] (for “document management services”)

 Remote document storage area [BLB] (for “blob,” meaning a compressed document file)

novdocx (en) 11 December 2007

For example, if you provide a /home switch pointing to a directory that contains a post office named Development, and if this post office has two libraries named Design (located in the lib0001 subdirectory of the post office) and Training (located in the lib0002 subdirectory of the post office), and if the libraries store documents in storage areas at \gwdms\design_store and \gwdms\training_store, TSAFSGW can provide the following list of directory names to your backup program for display:

[PO] development [DMS] lib0001 [BLB] design_store [DMS] lib0002 [BLB] training_store

You can then easily select what you want to back up.

You can also add instances of the /home switch to point to restore areas for post offices or to other temporary locations where you want to restore data.

By default, TSAFSGW copies each database to back up into the sys:\system\tsa\temp directory during the backup process. Because it takes less time to copy each database than it does to transfer it to the backup medium, this procedure minimizes the time that the backup process locks each live GroupWise database. Therefore, the GroupWise agents can continue to run smoothly during the backup. If necessary, use the /tempdir switch to specify an alternate location where more disk space is available. You need sufficient disk space to accommodate the largest database, but not the entire domain or post office.

To start TSAFSGW immediately:

1 Run the tsafsgw.ncf file at the NetWare server console.

To start TSAFSGW automatically each time you restart the server:

1 Add a tsafsgw.ncf line to the autoexec.ncf file.

With TSAFSGW running, you are ready to back up GroupWise data with Novell Storage Management Services (SMS), as described in Storage Management Services Administration Guide

Standalone Database Maintenance Programs 443

on the Novell Open Enterprise Server Documentation Web site (http://www.novell.com/

documentation/oes), and compatible backup software, as listed in Partner Product Guide (http:// www.novell.com/partnerguide).

Backing up Remote Domains and Post Offices

If the domains and post offices to back up are located on a different server from where the GroupWise agents run, you must copy TSAFSGW (tsafsgw.nlm), along with the GroupWise agent engine (gwenn5.nlm), to the server where the data resides and run it there.

Linux: Running TSAFS and TSAFSGW

 “Running TSAFS on Linux” on page 444

 “Running TSAFSGW on Linux” on page 445

Running TSAFS on Linux

TSAFS might already be available on your Linux server.

 If you are running OES Linux, TSAFS was installed along with the novell-sms package

when you installed OES Linux.

 If you are running SLES 9, you can copy the novell-sms RPM from the agents/linux

directory of the GroupWise 7 Administrator for Linux CD or from the GroupWise software distribution directory to the server where you want to set up backups, then use the following command to install it on SLES 9:

rpm -ivh novell-sms-1.0.0-nn.i586.rpm

After the novell-sms package is installed, use the following command to start the smdr daemon:

/etc/init.d/novell-smdrd start

To verify that the daemon is running, use the following command:

/opt/novell/sms/bin/smsconfig -t

When you install the novell-sms package, your system is configured to start the smdr daemon automatically each time your system restarts.

novdocx (en) 11 December 2007

To run TSAFS with GroupWise functionality:

1 Make sure you are logged in as root.

2 Change to the directory where the SMS executables are located.

cd /opt/novell/sms/bin

3 Stop TSAFS.

./smsconfig -u tsafs

4 Start TSAFS with GroupWise functionality.

./smsconfig -l tsafs --EnableGW

5 To verify that TSAFS is running with GroupWise functionality, use:

./smsconfig -t

Results should include:

The loaded TSAs are: tsafs --EnableGW

444 GroupWise 7 Administration Guide

NOTE: On the latest version of Novell Open Enterprise Server, GroupWise functionality is always enabled and you do not need to use the --EnableGW switch.

6 To make GroupWise functionality the default, modify the SMS configuration file:

6a Change to the directory where the SMS configuration file is located.

cd /etc/opt/novell/sms

6b In a text editor, open the smdrd.conf file.

6c Change the following line:

autoload: tsafs

to:

autoload: tsafs --EnableGW

6d Save the file and exit.

7 Continue with Running TSAFSGW on Linux.

Running TSAFSGW on Linux

Because TSAFSGW depends on SMS, you use the smsconfig command in the /opt/novell/ sms/bin directory, along with one or more --home switches, to specify the domains and post

offices to back up.

novdocx (en) 11 December 2007

1 Make sure you are logged in as root.

2 Change to the directory where the SMS executables are located:

cd /opt/novell/sms/bin

3 Use the following command to specify GroupWise locations to back up:

Syntax:

./smsconfig -l tsafsgw --home /domain_directory

--home /post_office_directory

Example:

./smsconfig -l tsafsgw --home /gwsystem/provo1

--home /gwsystem/dev

NOTE: The example is formatted for readability. The command is a single line of text.

You can add additional instances of the --home switch to back up more domains and post offices.

Syntax:

./smsconfig -l tsafsgw --home /domain_directory

--home /domain_directory

--home /post_office_directory

Example:

./smsconfig -l tsafsgw --home /gwsystem/provo1

--home /gwsystem/provo2

--home /gwsystem/dev

--home /gwsystem/sales

--home /gwsystem/research

Standalone Database Maintenance Programs 445

NOTE: The example is formatted for readability. The command is a single line of text.

For each --home switch that specifies a GroupWise domain or post office directory, TSAFSGW can determine what types of GroupWise objects are available at that location. TSAFSGW recognizes four GroupWise object types:

 Domain [DOM]

 Post office [PO]

 Library [DMS] (for “document management services”)

 Remote document storage area [BLB] (for “blob,” meaning a compressed document file)

For example, if you provide a --home switch pointing to a directory that contains a post office named Development, and if this post office has two libraries named Design (located in the lib0001 subdirectory of the post office) and Training (located in the lib0002 subdirectory of the post office), and if the libraries store documents in storage areas at /gwdms/ design_store and /gwdms/training_store, TSAFSGW can provide the following list to your backup program for display:

[PO] Development [DMS] LIB0001 [BLB] DESIGN_STORE [DMS] LIB0002 [BLB] TRAINING_STORE

novdocx (en) 11 December 2007

NOTE: For libraries and document storage areas, TSAFSGW provides the directory name rather than the object name.

You can then easily select what you want to back up.

You can also add instances of the --home switch to point to restore areas for post offices or to other temporary locations where you want to restore data.

By default, TSAFSGW places each database to back up in the /tmp directory during the backup process. Because it takes less time to copy each database than it does to transfer it to the backup medium, this procedure minimizes the time that the backup process locks each live GroupWise database. Therefore, the GroupWise agents continue to run smoothly during the backup. If necessary, use the --tempdir switch to specify an alternate location where more disk space is available. You need sufficient disk space to accommodate the largest database, but not the entire domain or post office.

4 To verify what TSAs are currently running, use the following command:

./smsconfig -t

Results should include:

The loaded TSAs are: tsafs --EnableGW tsafsgw --home /domain_directory --home /post_office_directory

5 To establish the specified GroupWise locations as defaults for automatic backups in the future,

modify the SMS configuration file:

5a Change to the directory where the SMS configuration file is located.

cd /etc/opt/novell/sms

5b In a text editor, open the smdrd.conf file.

5c Locate the following line:

autoload: tsafs --EnableGW

446 GroupWise 7 Administration Guide

5d Add another line beneath it for TSAFSGW:

autoload: tsafsgw --home /domain_directory

--home /post_office_directory

NOTE: The example is formatted for readability. The entry is a single line of text.

5e Save the file and exit.

With TSAFSGW running, you are ready to back up GroupWise data with Novell Storage Management Services (SMS), as described in Storage Management Services Administration Guide on the Novell Open Enterprise Server Documentation Web site (http://www.novell.com/

documentation/oes), and compatible backup software, as listed in Partner Product Guide (http:// www.novell.com/partnerguide).

Backing Up Remote Domains and Post Offices If the domains and post offices to back up are located on a different server from where the agents

are installed, that target server must meet the following requirements in order for successful backups to take place:

 The novell-sms package must be installed and running on the target server, as described in

Section , “Running TSAFS on Linux,” on page 444.

novdocx (en) 11 December 2007

 The libtsafsgw.so.version_number file that is installed with the agents to /opt/

novell/groupwise/agents/lib must be copied to /opt/novell/lib on the target

server.

 A symbolic link must be created from libtsafsgw.so to

libtsafsgw.so.version_number on the target server. You can use the following command in the /opt/novell/lib directory to create the symbolic link:

ln -s libtsafsgw.so.version_number libtsafsgw.so

After these requirements are met on the target server where a domain or post office is located but no agents are installed, you can follow the instructions in “Running TSAFSGW on Linux” on page 445 to back up the domain or post office.

TSAFSGW Startup Switches

The following startup switches can be used with TSAFSGW on NetWare and Linux:

NetWare TSAFSGW Linux TSAFSGW

/home --home

/tempdir --tempdir

To tune backup performance, use the startup switches provided for TSAFS as described in Storage Management Services Administration Guide on the Novell Open Enterprise Server Documentation

Web site (http://www.novell.com/documentation/oes).

/home

Standalone Database Maintenance Programs 447

NetWare TSAFSGW Linux TSAFSGW

Syntax: /home- path --home path

For example, to back up a domain and a post office, you would use:

novdocx (en) 11 December 2007

NetWare

Linux

/home-sys:\gwsystem\provo1 /home-sys:\gwsystem\dev

--home /gwsystem/provo1 --home /gwsystem/dev

/tempdir

Specifies where TSAFSGW places files during the backup process. You need sufficient disk space to accommodate the largest database, but not the entire domain or post office. The default locations are platform specific:

NetWare: sys:\system\tsa\temp

Linux: /tmp

NetWare TSAFSGW Linux TSAFSGW

Syntax: /tempdir- path --tempdir path

For example, to change the temporary directory, you would use:

NetWare:

Linux:

/tempdir-vol1:\temp

--tempdir /gw/temp

34.3 GroupWise Time Stamp Utility

You can use the GroupWise Time Stamp (GWTMSTMP) utility to ensure that GroupWise user databases include the dates when they were last backed up, restored, and retained.

The following sections provide information about the utility:

 Section 34.3.1, “GWTMSTMP Functionality,” on page 449

 Section 34.3.2, “Running GWTMSTMP on NetWare,” on page 449

 Section 34.3.3, “Running GWTMSTMP on Linux,” on page 450

 Section 34.3.4, “Running GWTMSTMP on Windows,” on page 450

 Section 34.3.5, “GWTMSTMP Startup Switches,” on page 451

448 GroupWise 7 Administration Guide

34.3.1 GWTMSTMP Functionality

GWTMSTMP places date and time information on user databases (userxxx.db) in order to support message backup, restore, and retention. No other databases are affected. You can run GWTMSTMP on all user databases in a post office or on a single user database.

Backup

To ensure thorough user database backups, you can make sure that deleted items are not purged from users’ databases until they have been backed up. Two conditions must be met in order to provide this level of protection against loss of deleted items:

 The Allow Purge of Items Not Backed Up option must be deselected in ConsoleOne, as

described in “Environment Options: Cleanup” on page 1057.

 User databases (userxxx.db) must be time-stamped every time a backup is performed so

that items can be purged only after being backed up.

If you use GWTSA on NetWare 5.1 or TSAFS on NetWare 6.x/OES or Linux to back up user databases, the backup time stamp is automatically added as part of the backup process. However, if you do not use GWTSA or TSAFS, you must use GWTMSTMP to make sure that user databases are time-stamped so that items will not be prematurely purged.

novdocx (en) 11 December 2007

Restore

If you use the GWTSA on NetWare 5.1 or TSAFS on NetWare 6.x/OES or Linux to restore a mailbox, the restore time stamp is automatically added as part of the restore process. However, if you do not use GWTSA or TSAFS, you can use GWTMSTMP to add the restore time stamp to the database. The restore time stamp is not required for any GroupWise feature to work properly. Its primary purpose is informational.

Retention

If you use a message retention application (see Chapter 33, “Retaining User Messages,” on

page 419), the application should automatically add the retention time stamp after retaining the

database’s messages. Any messages with dates that are newer than the retention time stamp cannot be purged from the database.

You can also use GWTMSTMP to manually add a retention time stamp.

34.3.2 Running GWTMSTMP on NetWare

The GWTMSTMP program (gwtmstmp.nlm) is installed into the same directory where you installed the GroupWise agents (POA and MTA). You can copy it to additional locations if needed.

To check the existing time stamp on all GroupWise user databases in a post office, use the following command:

Syntax:

gwtmstmp.nlm /p-volume:\post_office_directory

Example:

gwtmstmp.nlm /p-sys:\gwsystem\dev

Standalone Database Maintenance Programs 449

The results are written to the console.log file.

To set a current time stamp on all user databases in a post office, use the following command:

Syntax:

gwtmstmp.nlm /p-volume:\post_office_directory /set

Example:

gwtmstmp.nlm /p-sys:\gwsystem\dev /set

A basic backup time stamp can also be set in ConsoleOne. Select a Post Office object, then click Tools > GroupWise Utilities > Backup/Restore Mailbox. On the Backup tab, select Backup, then click Yes .

More specialized functionality is provided through additional GWTMSTMP startup switches. See

Section 34.3.5, “GWTMSTMP Startup Switches,” on page 451.

34.3.3 Running GWTMSTMP on Linux

The GWTMSTMP executable (gwtmstmp) is installed into the bin and lib subdirectories of / opt/novell/groupwise/agents along with the GroupWise agents (POA and MTA). You

can copy it to additional locations if needed.

novdocx (en) 11 December 2007

To check the existing time stamp on all GroupWise user databases in a post office, use the following command:

Syntax:

./gwtmstmp -p /post_office_directory

Example:

./gwtmstmp -p /gwsystem/acct

The results are displayed on the screen.

To set a current time stamp on all user databases in a post office, use the following command:

Syntax:

./gwtmstmp -p /post_office_directory --set

Example:

./gwtmstmp -p /gwsystem/acct --set

More specialized functionality is provided through additional GWTMSTMP startup switches. See

Section 34.3.5, “GWTMSTMP Startup Switches,” on page 451.

34.3.4 Running GWTMSTMP on Windows

The GWTMSTMP program file (gwtmstmp.exe) is installed into the same directory where you installed the GroupWise agents (POA and MTA). You can copy it to additional locations if needed.

450 GroupWise 7 Administration Guide

To check the existing time stamp on all GroupWise user databases in a post office, use the following command:

Syntax:

gwtmstmp.exe /p-drive:\post_office_directory

Example:

gwtmstmp.exe /p-m:\gwsystem\acct

The results are displayed on the screen

To set a current time stamp on all user databases in a post office, use the following command:

Syntax:

gwtmstmp.exe /p-drive:\post_office_directory /set

Example:

gwtmstmp.exe /p-m:\gwsystem\acct /set

novdocx (en) 11 December 2007

More specialized functionality is provided through additional GWTMSTMP startup switches.

34.3.5 GWTMSTMP Startup Switches

The following startup switches can be used with GWTMSTMP:

Table 34-7 GWTMSTMP Startup Switches

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

/p -p /p

/backup -b or --backup /backup

/restore -r or --restore /restore

/retention -n or --retention /retention

/get -g or --get /get

/set -s or --set /set

/clear -c or --clear /clear

/date -d or --date /date

/time -t or --time /time

/u -u or -userid /u

/userdb -e or --userdb /userdb

Standalone Database Maintenance Programs 451

Specifies the post office directory where the user databases to time-stamp are located. This switch is required.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

Syntax: /p-volume:\post_office_dir -p /post_office_dir /p-drive:\post_office_dir

Example: /p-mail:\dev -p /gwsystem/dev /p-j:\dev

/backup, /restore, and /retention

Specifies the time stamp on which to perform the operation. If no time stamp is specified, the operation is performed on the backup time stamp.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

novdocx (en) 11 December 2007

Syntax: /backup

/restore

/retention

-b

--backup

-r

--restore

-n

--retention

/backup

/restore

/retention

For example, to set the restore time stamp, you would use:

NetWare: gwtmstmp /p-j:\dev /restore /set

Linux: ./gwtmstmp -p /gwsystem/dev -r -s

Windows: gwtmstmp /p-j:\dev /restore /set

/get

Lists existing backup, restore, and retention time stamp information for user databases. If no time stamps are set, no times are displayed.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

Syntax: /get -g

--get

/get

For example:

NetWare: gwtmstmp /p-j:\dev /get

Linux: ./gwtmstmp -p /gwsystem/dev -g

Windows: gwtmstmp /p-j:\dev /get

If no other operational switch is used, /get is assumed. The following example returns the same results as the above example:

452 GroupWise 7 Administration Guide

NetWare: gwtmstmp /p-j:\dev

Linux: ./gwtmstmp -p /gwsystem/dev

Windows: gwtmstmp /p-j:\dev

/set

Sets the current date and time on user databases.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

novdocx (en) 11 December 2007

Syntax: /set -s

--set

For example, to set the backup time stamp, you would use:

NetWare: gwtmstmp /p-j:\dev /backup /set

Linux: ./gwtmstmp -p /gwsystem/dev -b -s

Windows: gwtmstmp /p-j:\dev /backup /set

NetWare: gwtmstmp /p-j:\dev /set

Linux: ./gwtmstmp -p /gwsystem/dev -s

Windows: gwtmstmp /p-j:\dev /set

-c, --clear

Clears existing time stamps.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

/set

Syntax: /clear -c

--clear

/clear

For example, to clear all time stamps on databases in a post office, you would use:

NetWare: gwtmstmp /p-j:\dev /clear

Linux: ./gwtmstmp -p /gwsystem/dev -c

Windows: gwtmstmp /p-j:\dev /clear

/date

Specifies the date that you want placed on user databases.

Standalone Database Maintenance Programs 453

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

novdocx (en) 11 December 2007

Syntax: /date-mm/dd/yyyy -d mm/dd/yyyy

--date mm/dd/yyyy

Example: /date-01/03/2007 -d 05/18/2007

--date 05/18/2007

For example, to set the restore date to June 15, 2007, you would use:

NetWare: gwtmstmp /p-j:\dev /restore /date-06/14/2007

Linux: ./gwtmstmp -p /gwsystem/dev --restore --date 06/15/2007

Windows: gwtmstmp /p-j:\dev /restore /date-06/14/2007

/time

Specifies the time that you want placed on user databases.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

Syntax: /time-hh:mm am|pm -t hh:mm am|pm

--time hh:mm am|pm

Example: /time-11:30pm -t 2:00am

--time 2:00am

/date-mm/dd/yyyy

/date-04/12/2007

/time-hh:mm am|pm

/time-6:15pm

For example, to set the restore time to 4:45 p.m., you would use:

NetWare: gwtmstmp /p-j:\dev /restore /time-4:45pm

Linux: ./gwtmstmp -p /gwsystem/dev -r -t 4:45pm

Windows: gwtmstmp /p-j:\dev /restore /time-4:45pm

Provides a specific GroupWise user ID so that an individual user database can be time-stamped.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

Syntax: /u-userID -u userID

--userid userID

Example: /u-khuang -u sjones

--userid gsmith

/u-userID

/u-mbarnard

For example, to set the retention time stamp for a user whose GroupWise user ID is mpalu, you would use:

NetWare: gwtmstmp /p-j:\dev /u-mpalu /retention /set

454 GroupWise 7 Administration Guide

Linux: ./gwtmstmp -p /gwsystem/dev -u mpalu -n -s

Windows: gwtmstmp /p-j:\dev /u-mpalu /retention /set

-e, --userdb

Provides a specific GroupWise user database (userxxx.db) so that an individual user database can be time-stamped.

NetWare GWTMSTMP Linux GWTMSTMP Windows GWTMSTMP

novdocx (en) 11 December 2007

Syntax: /userdb user_database -e user_database

--userdb user_database

Example: /userdb user3gh.db -e user3gh.db

--userdb user3gh.db

/userdb user_database

/userdb user3gh.db

For example, to set the retention time stamp for a user whose user database is named user3gh, you would use:

NetWare: gwtmstmp /p-j:\dev /userdb user3gh.db /retention /set

Linux: ./gwtmstmp -p /gwsystem/dev -e user3gh.db -n -s

Windows: gwtmstmp /p-j:\dev /userdb user3gh.db /retention /set

34.4 GroupWise Database Copy Utility

The GroupWise Database Copy utility (DBCopy) copies files from a live GroupWise post office or domain to a static location for backup. During the copy process, DBCopy prevents the files from being modified, using the same locking mechanism used by other GroupWise programs that access databases. This ensures that the backed-up versions are consistent with the originals even when large databases take a substantial amount of time to copy. Starting with Support Pack 2, DBCopy is a multi-threaded application for greater efficiency.

DBCopy copies only GroupWise-recognized directories and files, as illustrated in “Post Office

Directory” and “Domain Directory” in “Directory Structure Diagrams” in GroupWise 7

Troubleshooting 3: Message Flow and Directory Structure.

DBCopy does not copy some directories:

 Post office queue directories (wpcsin and wpcsout): Only post office data files and

directories are copied. Queue directories are not copied.

 All domain subdirectories: Only domain files are copied. Queue directories are not copied.

 All subdirectories under each gateway directory in wpgate: Only gateway files are copied

from each gateway directory. Queue directories of gateway directories are not copied. For example, under gwia and webac70a, gateway files are copied, but no gateway subdirectories are copied.

IMPORTANT: Starting with GroupWise 7, TSAFSGW is provided as a robust backup solution on NetWare and Linux, as described in Section 34.2, “Target Service Agents,” on page 434. However,

Standalone Database Maintenance Programs 455

if you do not want to use TSAFSGW, you can use DBCopy in conjunction with your backup software of choice to back up your GroupWise system.

 Section 34.4.1, “Using DBCopy on NetWare,” on page 456

 Section 34.4.2, “Using DBCopy on Linux,” on page 456

 Section 34.4.3, “Using DBCopy on Windows,” on page 457

 Section 34.4.4, “DBCopy Startup Switches,” on page 458

DBCopy can also be useful for moving domains and post office from NetWare or Windows to Linux. For more information, see “Migration” in the GroupWise 7 Installation Guide.

34.4.1 Using DBCopy on NetWare

1 At a command prompt, change to the directory where you installed the GroupWise agents

(typically sys:\system).

2 Use the following command to back up a post office:

dbcopy.nlm \post_office_directory \destination_directory

Use the following command to back up a domain:

dbcopy.nlm \domain_directory \destination_directory

Use the following command to back up a remote document storage area:

dbcopy.nlm /b \storage_area_directory

You can include the /i switch in any of these commands to provide the date (mm-dd-yyyy) of the previous copy. This causes DBCopy to copy only files that have been modified since the previous copy, like an incremental backup.

DBCopy creates a log file named mmddgwbk.nnn. The first 4 characters represent the date. A three-digit extension allows for multiple log files created on the same day. The log file is created at the root of the destination directory. Include the /v switch in the dbcopy command to enable verbose logging for the backup.

3 After DBCopy has finished copying the post office, domain, or remote document storage area,

use your backup software of choice to back up the static copy of the data.

4 After the backup has finished, delete the static copy of the data to conserve disk space.

novdocx (en) 11 December 2007

34.4.2 Using DBCopy on Linux

1 Change to the directory where the DBCopy RPM is located or copy it to a convenient location

on your workstation.

The DBCopy RPM (groupwise-dbcopy-version-mmdd.i386.rpm) is located in the

/admin directory in your GroupWise software distribution directory if you have created one

or on the GroupWise 7 Administrator for Linux CD.

2 Install DBCopy.

rpm -i groupwise-dbcopy-version-mmdd.i386.rpm

3 Change to the /opt/novell/groupwise/agents/bin directory.

4 Use the following command to back up a post office:

456 GroupWise 7 Administration Guide

./dbcopy /post_office_directory /destination_directory

Use the following command to back up a domain:

./dbcopy /domain_directory /destination_directory

Use the following command to back up a remote document storage area:

./dbcopy -b /storage_area_directory

You can include the -i switch in any of these commands to provide the date (mm-dd-yyyy) of the previous copy. This causes DBCopy to copy only files that have been modified since the previous copy, like an incremental backup.

DBCopy creates a log file named mmddgwbk.nnn. The first 4 characters represent the date. A three-digit extension allows for multiple log files created on the same day. The log file is created at the root of the destination directory. Include the -v switch in the dbcopy command to enable verbose logging for the backup.

5 After DBCopy has finished copying the post office, domain, or remote document storage area,

use your backup software of choice to back up the static copy of the data.

novdocx (en) 11 December 2007

6 After the backup has finished, delete the static copy of the data to conserve disk space.

You might find it helpful to set up a cron job to run DBCopy regularly at a time of day when your system is not busy.

34.4.3 Using DBCopy on Windows

1 At a command prompt, change to the directory where you installed the GroupWise agents

(typically c:\grpwise).

2 Use the following command to back up a post office:

dbcopy.exe \post_office_directory \destination_directory

Use the following command to back up a domain:

dbcopy.exe \domain_directory \destination_directory

Use the following command to back up a remote document storage area:

dbcopy.exe /b \storage_area_directory

3 After DBCopy has finished copying the post office, domain, or remote document storage area,

use your backup software of choice to back up the static copy of the data.

4 After the backup has finished, delete the static copy of the data to conserve disk space.

Standalone Database Maintenance Programs 457

34.4.4 DBCopy Startup Switches

The following startup switches can be used with DBCopy:

NetWare DBCopy Linux DBCopy Windows DBCopy

/b --b /b

/i --i /i

/t --t /t

/v --v /v

Indicates that DBCopy is copying a document storage area that includes BLOB (binary large object) files.

NetWare DBCopy Linux DBCopy Windows DBCopy

novdocx (en) 11 December 2007

Syntax: /b-\storage_area_directory -b /storage_area_directory /b-\storage_area_directory

Example: /b-\gwsystem\devlib -b /gwsystem/devlib /b-\gwsystem\devlib

Specifies the date of the previous copy of the data. This causes DBCopy to copy only files that have been modified since the previous copy, like an incremental backup. There is no default date; you must specify a date.

NetWare DBCopy Linux DBCopy Windows DBCopy

Syntax: /i mm-dd-yyyy -i mm-dd-yyyy /i mm-dd-yyyy

Example: /i 12-15-2007 -i 5-18-2007 /i 10-30-2007

Specifies the number of threads that you want DBCopy to start for copying data. The default number of threads is 5.

NetWare DBCopy Linux DBCopy Windows DBCopy

Syntax: /t number -t number /t number

Example: /t 3 -t 10 /t 15

Specifies verbose logging. DBCopy creates a log file named mmddgwbk.nnn. The first 4 characters represent the date. A three-digit extension allows for multiple log files created on the same day. The log file is created at the root of the destination directory. By default, DBCopy provides a normal level of logging.

458 GroupWise 7 Administration Guide

NetWare DBCopy Linux DBCopy Windows DBCopy

Syntax: /v -v /v

novdocx (en) 11 December 2007

Standalone Database Maintenance Programs 459

Novell GROUPWISE 7 Databases

Specifications and Main Features

Frequently Asked Questions

User Manual

25.1 Domain Databases

25.2 Post Office Databases

Understanding GroupWise Databases

25.3 User Databases

25.4 Message Databases

25.5 Library Databases

25.6 Guardian Databases

26.1 Validating Domain or Post Office Databases

Maintaining Domain and Post Office Databases

26.2 Recovering Domain or Post Office Databases

26.3 Rebuilding Domain or Post Office Databases

26.4 Rebuilding Database Indexes

27.1 Analyzing and Fixing User and Message Databases

Maintaining User/Resource and Message Databases

27.2 Performing a Structural Rebuild of a User Database

27.3 Re-creating a User Database

28.1 Analyzing and Fixing Databases for Libraries and Documents

Maintaining Library Databases and Documents

28.2 Analyzing and Fixing Library and Document Information

29.1 Synchronizing Individual Users or Resources

Synchronizing Database Information

29.2 Synchronizing a Post Office

29.3 Synchronizing a Library

29.4 Synchronizing a Secondary Domain

29.5 Synchronizing the Primary Domain from a Secondary Domain

Managing Database Disk Space

30.1 Gathering Mailbox Statistics

30.2 Reducing the Size of User and Message Databases

30.3 Reclaiming Disk Space in Domain and Post Office Databases

30.4 Reducing the Size of Libraries and Document Storage Areas

30.4.1 Archiving and Deleting Documents

30.4.2 Deleting Activity Logs

Backing Up GroupWise Databases

31.1 Backing Up a Domain

31.2 Backing Up a Post Office

31.3 Backing Up a Library and Its Documents

31.4 Backing Up Individual Databases

32.1 Restoring a Domain

32.2 Restoring a Post Office

Restoring GroupWise Databases from Backup

32.3 Restoring a Library

32.4 Restoring an Individual Database

32.5 Restoring Deleted Mailbox Items

32.5.1 Setting Up a Restore Area

32.5.2 Restoring a User’s Mailbox Items

32.5.3 Letting Client Users Restore Their Own Mailbox Items

32.6 Recovering Deleted GroupWise Accounts

Retaining User Messages

33.1 How Message Retention Works

33.1.1 What GroupWise Does

33.1.2 What the Message Retention Application Does

33.2 Acquiring a Message Retention Application

33.3 Enabling Message Retention

34.1 GroupWise Check

34.1.1 GWCheck Functionality

Standalone Database Maintenance Programs

34.1.2 Using GWCheck on Windows

34.1.3 Using GWCheck on Linux

34.1.4 Using GWCheck on Macintosh

34.1.5 Performing Mailbox/Library Maintenance Using GWCheck

34.1.6 Executing GWCheck from a Windows Batch File

34.1.7 Executing GWCheck from a Linux Script

34.1.8 GWCheck Startup Switches

34.2 Target Service Agents

34.2.2 GroupWise Target Service Agent for File Systems (TSAFSGW) for NetWare 6.x/OES and Linux

34.3 GroupWise Time Stamp Utility

34.3.1 GWTMSTMP Functionality

34.3.2 Running GWTMSTMP on NetWare

34.3.3 Running GWTMSTMP on Linux

34.3.4 Running GWTMSTMP on Windows

34.3.5 GWTMSTMP Startup Switches

34.4 GroupWise Database Copy Utility

34.4.1 Using DBCopy on NetWare

34.4.2 Using DBCopy on Linux

34.4.3 Using DBCopy on Windows

34.4.4 DBCopy Startup Switches
