Novatron NTD38 Users Manual

ETC(Other) settings

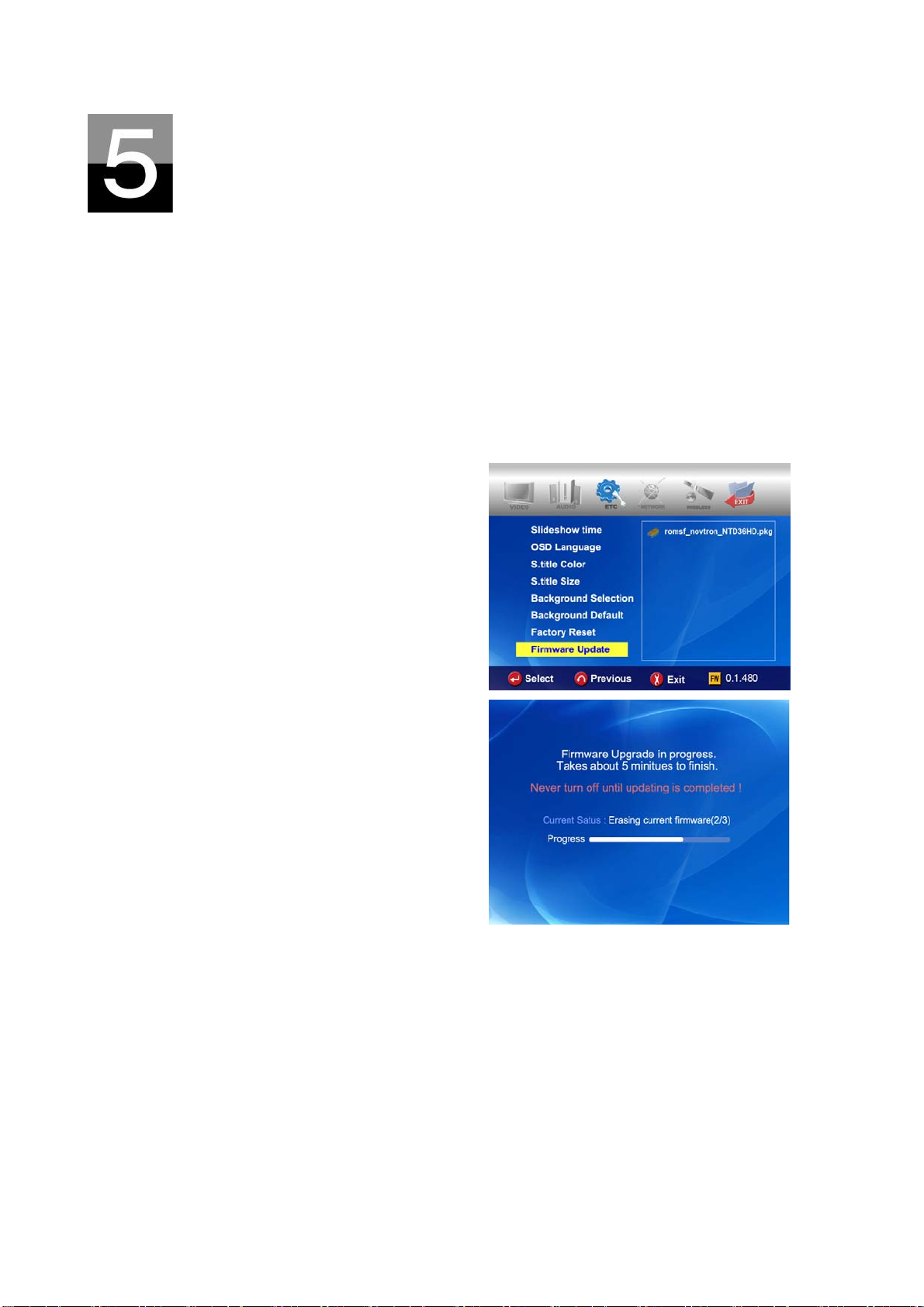

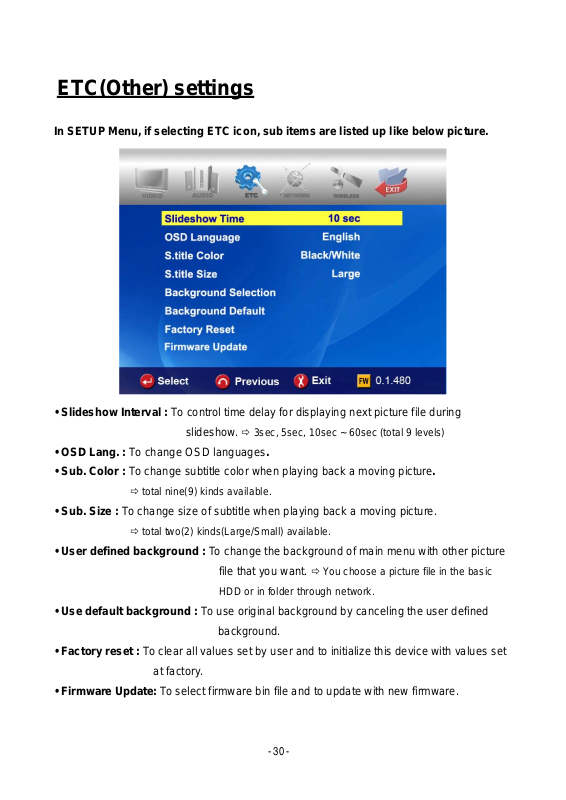

In SETUP Menu, if selecting ETC icon, sub items are listed up like below picture.

• Slideshow Interval : To control time delay for displaying next picture file during

slideshow. Ö 3sec, 5sec, 10sec ~ 60sec (total 9 levels)

• OSD Lang. : To change OSD languages.

• Sub. Color : To change subtitle color when playing back a moving picture.

Ö total nine(9) kinds available.

• Sub. Size : To change size of subtitle when playing back a moving picture.

Ö total two(2) kinds(Large/Small) available.

• User defined background : To change the background of main menu with other picture

file that you want. Ö You choose a picture file in the basic

HDD or in folder through network.

• Use default background : To use original background by canceling the user defined
background.

• Factory reset : To clear all values set by user and to initialize this device with values set

at factory.

• Firmware Update: To select firmware bin file and to update with new firmware.

- 30 -

NETWORK setting

The sub option related to network will be displayed by selection of NETWORK icon.

• Network Connection : Select either “Wired Net.” (for the Ethernet connection) or

“Wireless Net.” depending on the type of network connection
you want to set up.

• Connection Status : It shows current network connection status.

• Address Setup:

Ö DHCP(Auto IP) : IP address will be assigned automatically with using a router.
Ö Static IP : IP address should be assigned manually by user with Ethernet networking using a

direct connection to the computer. Input the IP address, Netmask and Default gateway.

• MAC (wired) : It shows MAC address of wired LAN.

- 31 -

WIRELESS(Auto setting)

This section shows how to make wireless network setup automatically to
communicate with devices under network environment. You don’t need to change
any setting value manually.

AP SEARCH

Click “AP SEARCH” to look for AP
available.

List of AP available

You can select the AP that you want
to use and press “OK” button.

In case that you set ESSID as ‘hidden’ or you set

In case that you set ESSID as ‘hidden’ or you set ‘password’ with your AP, you
need to enter ESSID name or Password by yourself. For entering ESSID name or

‘Password’ for your AP.

Password, this device will show you the specific window.

- 32 -

Check “ESSSID”

You can make sure whether the setting
value(ESSID, Channel, etc) is right or
not. The setting values should be match
with your wireless router(or AP) or PC.

Then, you may press “RETURN” button
to store this setting and exit.

Getting IP address

This device will try to get new IP
address from your router. It takes about
30 ~ 60 seconds.

With Ad-hoc
mode

If you are using Ad-hoc mode, you
have to enter IP address manually on
“NETWOKR” section.

Check NETWORK icon activation

NETWORK icon will be activated if the
network is connected successfully.

Network icon
activation

According to network security setting,
network status, etc, sometimes it will
take 5 ~ 10 seconds for the network
icon to be activated. So, you need to
wait for some time until the network
icon is activated.

- 33 -

WIRELESS (Manual setting)

This section shows how to make wireless network setup manually to communicate
with devices under network environment.

z Before setting this section, check that Connection should be set Wireless

net. on NETWORK section.

z If you are running wireless network, all device on your network need to

share the same ESSID, CHANNEL, Wireless security and Encryption key in
order for them to communicate each other. If you do not know what method
of authentication is enabled in your wireless router/AP, please refer to its
manual on how to see or set it up.

ESSID

The ESSID of this device should be
exactly same as that of the wireless
router or the AP(access point) that
you use under network environment.

WORDING.

The “SSID” is also referred to as the
“ESSID” or “Extended Service Set ID”

CHANNEL

The 802.11g and b specifications
supports up to 14 overlapping
channels for radio communication.
You can select from AUTO to CH13.
The selected channel of this device
should be as that of the wireless
router or the AP(access point) that
you use under network environment.

- 34 -

Wireless Security
(Authentication Method)

You can set different authentication
methods which determine different
encryption schemes. There are 6
authentication methods (WEP Auto,
WEP SHARED, WEP OPEN,
WPAPSK, WPANONE, WPA2PSK).

Encryption algorithm
(WEP or WPA)

The encryption algorithm determines
the authentication method you
select.

Relation.

Authentication
Method

WEP Auto
WEP SHARED
WEP OPEN
WPAPSK
WPA NONE
WPA2PSK

Encryption (WEP)

Encryption (WEP) option should be
applied in case that “WEP”
encryption algorithm is used.

Encryption
Algorithm

NONE
WEP

TKIP
AES

The encryption setting of this device
should be exactly same as that of
the wireless router or the AP(access
point) you use under network
environment.

- 35 -

Encryption(WPA ,Pre-Shared Key)

Encryption (WPA) option should be
applied in case that “TKIP” or “AES”
encryption algorithm is used.
The encryption key of this device
should be exactly same as that of
the wireless router or AP(access
point) that you use under network
environment.

MAC (wireless)

It shows MAC address of wireless
LAN

Review of wording related to Wireless, Security.

Each manufacturer may use different wording when naming each function. Make
your reference for below wordings.

z ESSID : referred to as SSID or Extended Service Set ID
z ASCII when WEP key or WPA key input : referred to as Characters
z HEX when WEP key or WPA key input : referred to as Hexadecimal
z Wireless security : referred to as Authentication method or Type.
z Encryption : referred to as Encryption Algorithm or Encryption Type
z NONE : referred to as NULL
z WPAPSK : referred to as WPA P-Key, WPA Pre-Shared Key or Network Key
z Key : referred to as Key Value

- 36 -

WIRELESS (AD-HOC Setup)

There are several ways to set AD-HOC mode, but the following way is the easiest
way to set AD-HOC setup. Please see the following procedure.

NETWORK setting of this device

Go to NETWORK in SETUP menu
and enter the following lists.

A Î Wireless Net.
B ÎStatic IP
C Î200.200.0.2 (IP Address)
D Î255.255.255.0(Subnet Mask)
E Î200.200.0.1

WIRELESS setting of this device

Go to WIRELESS in SETUP menu
and enter the following lists.

A Î AD HOC.
B Î Enter ESSID(ex. abc)
C Î Select Channel (ex. Ch11)
D Î Select “WEP AUTO”
E Î Select “NONE"

Save setting and Return to main

To save setting and return to main,
press “SETUP” button on remote
controller.

- 37 -

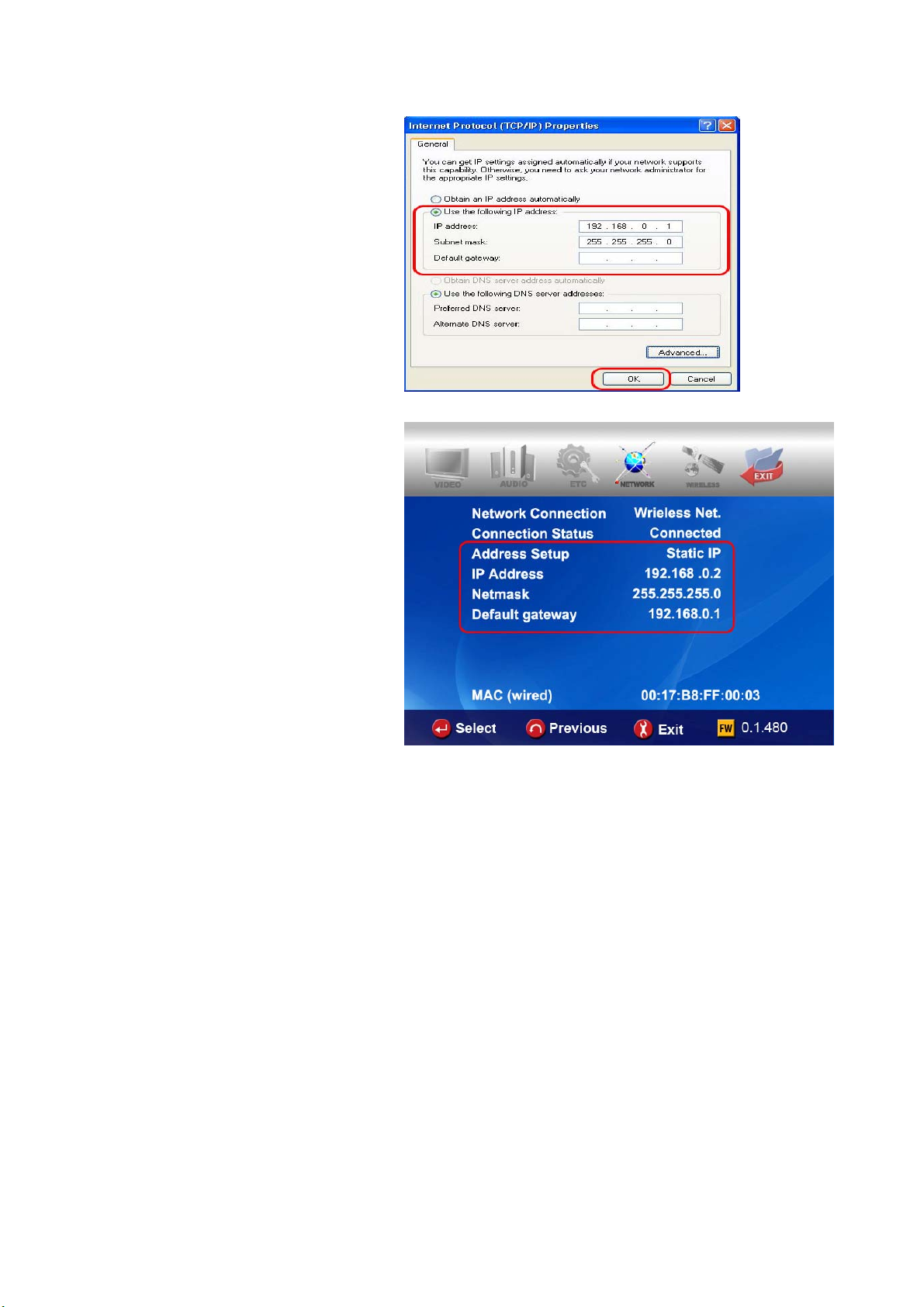

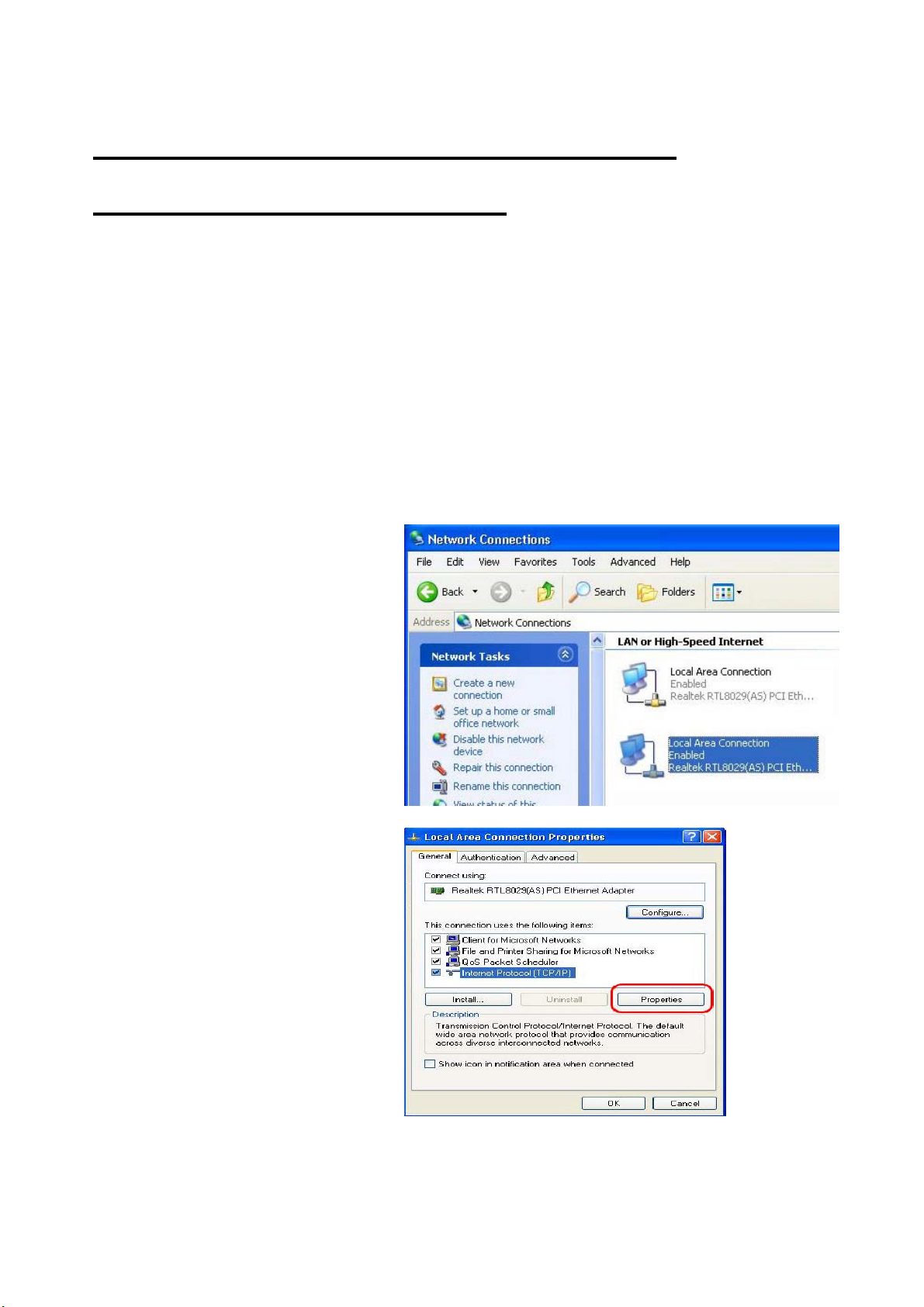

Set IP and Subnet mask with a PC

On the PC, select Network
connection in the control panel.
Open Properties for the network
connection that is connected to this
device. Select Properties for the
Internet protocol (TCP/IP). Select
“Use the following address”
Enter the IP address below.

IP address : 200.200.0.1
Subnet mask : 255.255.255.0
Click “OK”

Zero Configuration utility-a

Open wireless zero configuration
utility and choose a wireless network
with same ESSID (ex.abc) that you
entered with this device.
Click “Connect”.

Zero Configuration utility-b

After connecting successfully, you
can browse shared folder with this
device.

Refresh
network list.

If you can not find the ESSID that you
entered with this device, please try to
click “Refresh network list” on
wireless Network Connection.

- 38 -

LAN Sharing setting(PC)

With shared folder, you can easily get multimedia file like movie, music and photo
as if these files are in HDD of this device. To use shared folder, you must proceed
the following steps.(based on window XP)

NOTE.

If firewalls are set in your PC, it may cause problem for this device to communicate
with your PC. So, you need to disable the firewall program in your PC.

1. Click right button of
mouse on the folder that you
want to share and select
“Sharing and Security...”.

2. Check on “ Share this

folder on the network”.

Fill in the box of “Share
name”. And then, click
“OK” and “Apply” button for
confirmation.

- 39 -

3. Then, each shared name will
be listed up on screen if this
device is connected.

Network configuration under window 2000

STEP 1

Click the right button on “My
Computer” icon and choose
“manage”

STEP 2

Go to “ Local Users and
Groups”

- 40 -

STEP 3
Click the “ Users” folder

STEP 4

Click the right button on
“Guest” and click “Properties”

STEP 5

Release the check box on
“Account is disabled” and
Apply this setting

- 41 -

STEP 6

Check that “Guest” will be
activated.

STEP 7

Click right button of mouse on
the folder that you want to
share and select “Sharing…”

STEP 8
Click radio box on “ Shared
this folder” and click the
“Permissions”

- 42 -

STEP 9
Click the “Add…”

STEP 10

Click the “Add” after selecting
“Guest” and Click “OK”

STEP 11

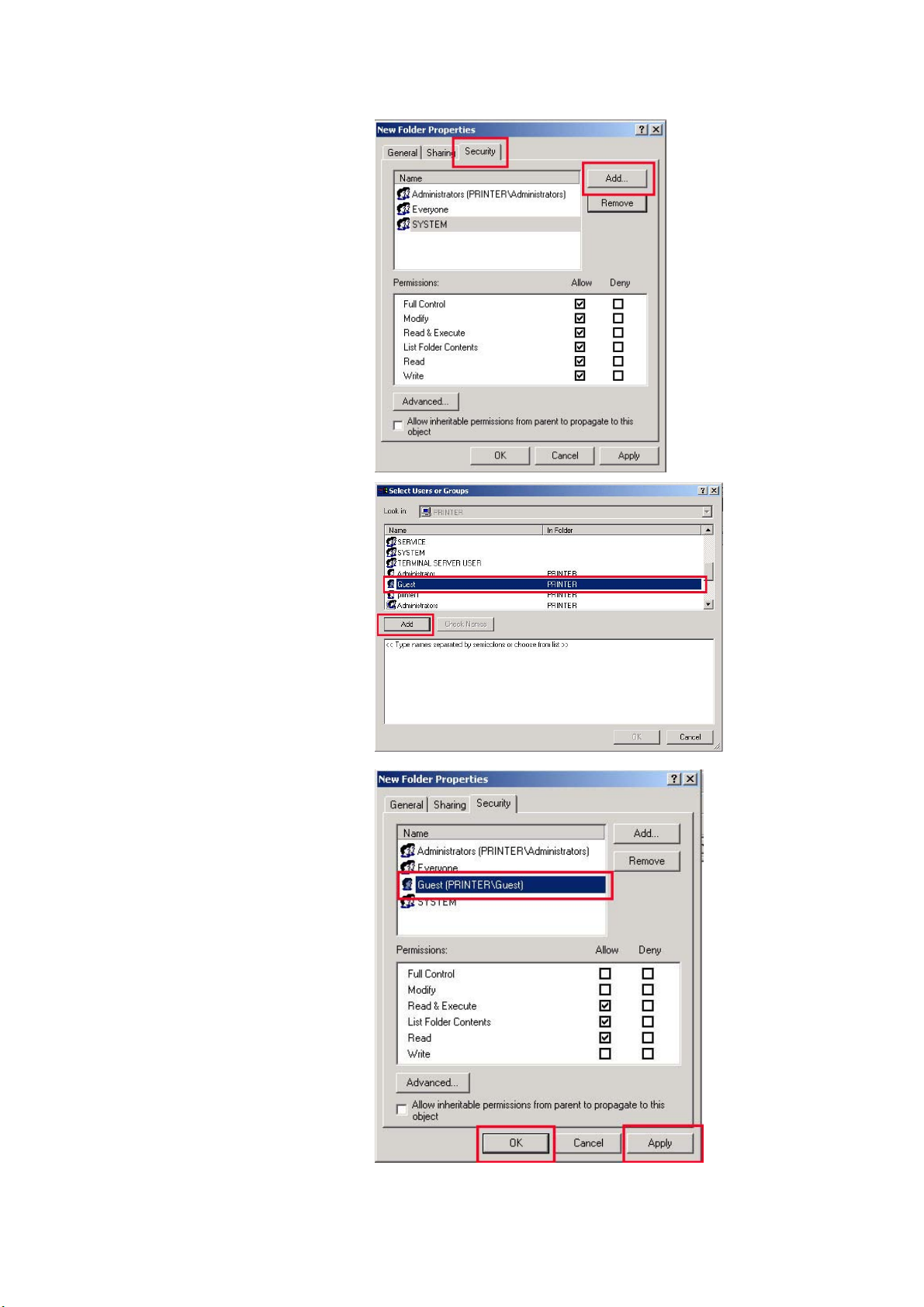

Check the added “Guest” and
apply this setting.

- 43 -
