Novatron HD37WNTD Users Manual

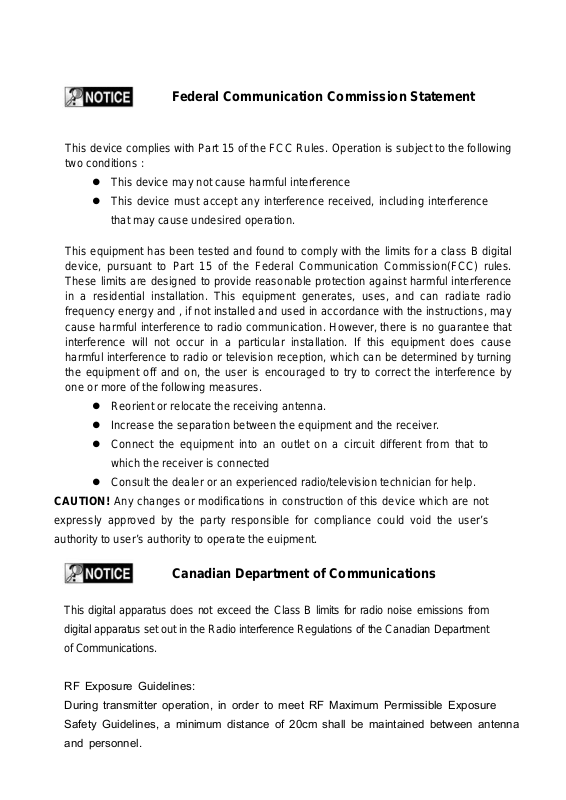

Federal Communication Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions :
z This device may not cause harmful interference
z This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the Federal Communication Commission(FCC) rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and , if not installed and used in accordance with the instructions, may
cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures.
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and the receiver.
z Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
z Consult the dealer or an experienced radio/television technician for help.
CAUTION! Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user’s
authority to user’s authority to operate the euipment.
Canadian Department of Communications
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio interference Regulations of the Canadian Department
of Communications.
RF Exposure Guidelines:
During transmitter operation, in order to meet RF Maximum Permissible Exposure
Safety Guidelines, a minimum distance of 20cm shall be maintained between antenna
and personnel.
CONTENTS
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Introduction
1
Multimedia Functions½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Input/Output Functions½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Kinds of format to be supported½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
TV Out set-up and change½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Precautions½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
How to handle and other precautions½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Name of each point – Top & Front½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Name of each point – Rear side½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Contents in package½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Accessories available at shops½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Preparation to use NTD37HD
2
Procedure½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
4
4
5
6
7
8
9
10
11
12
13
14
14
Kinds of HDD to be installed½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
HDD Installation½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting with PC½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
To create folder and to copy files½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Disconnecting from PC½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting to TV with Composite(AV) cable½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting with Component cable or DVI connector½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting with 5.1CH audio system½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting with Optical or Coaxial connector½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Connecting to Network½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Remote Controller & SET-UP Menu
3
Structure of Remote Controller½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Booting Message & Main Menu½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
14
15
16
17
18
19
20
21
22
23
24
24
25
Review of each Icon on Main Menu½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
SETUP Menu and How to set up½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
26
27
VIDEO setting change½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
28
AUDIO setting change½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
ETC(Other) settings½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
NETWORK setting½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
WIRELESS (Auto setting)½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
WIRELESS (Manual setting) ½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
WIRELESS (AD-HOC setting)½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

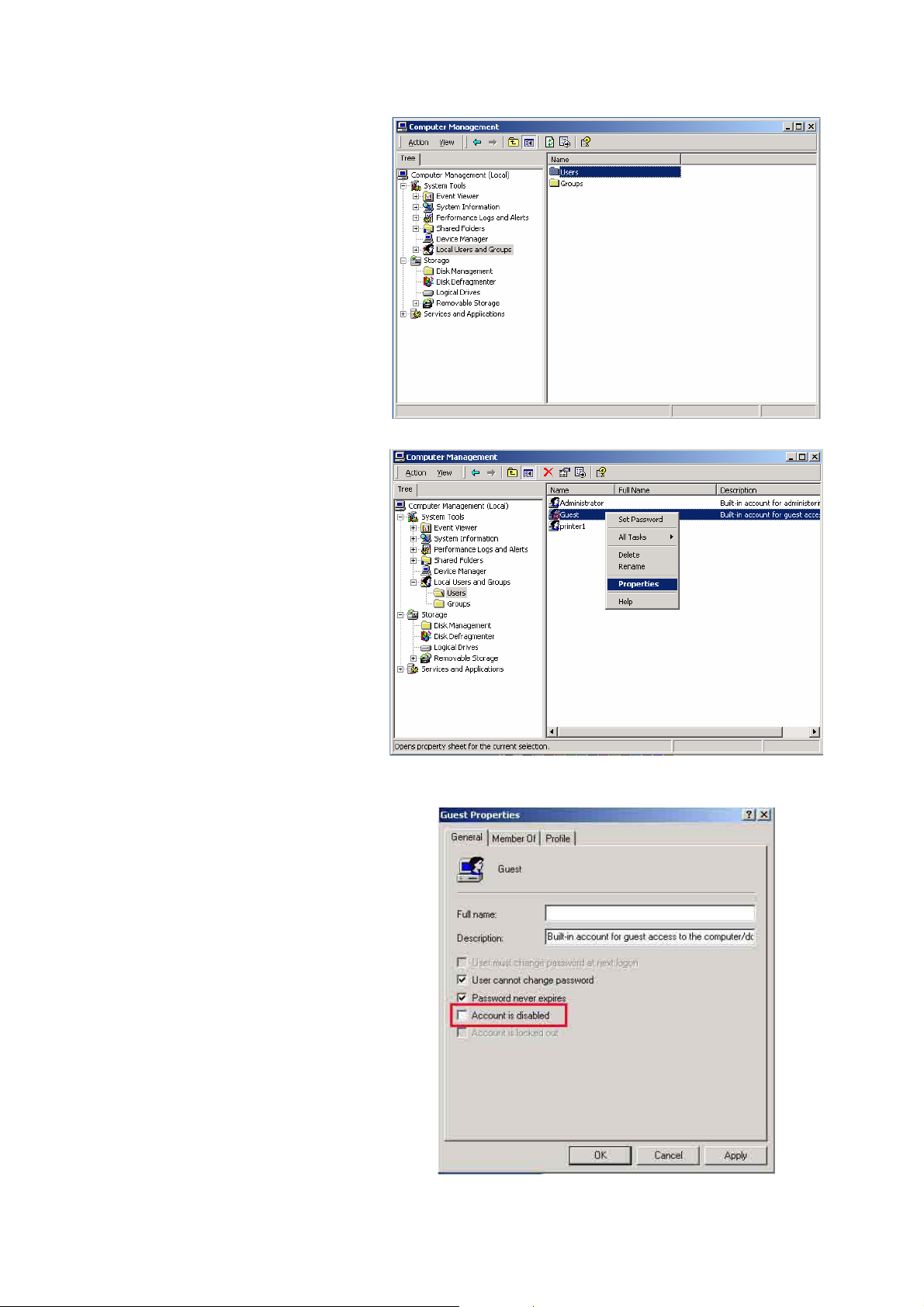

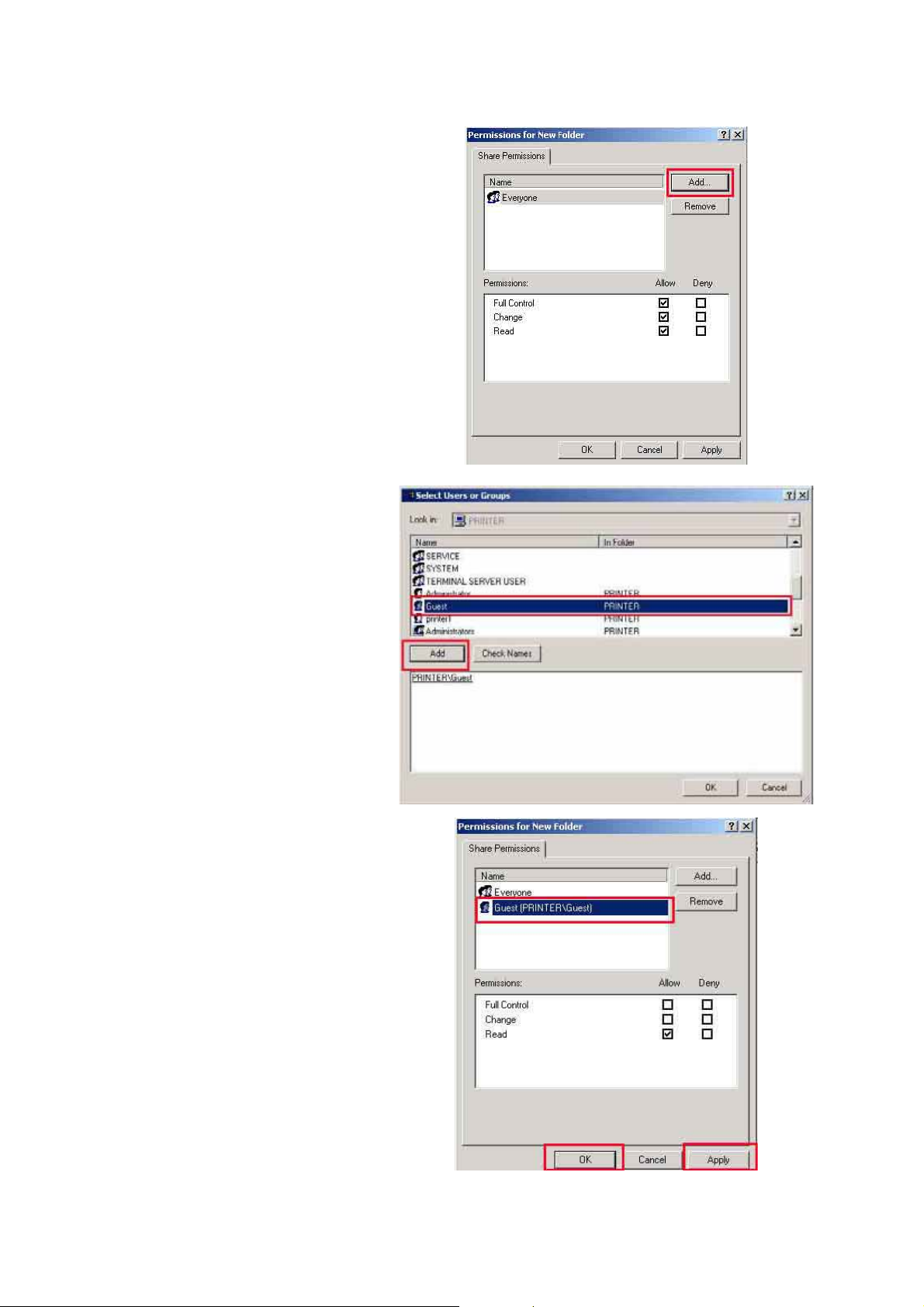

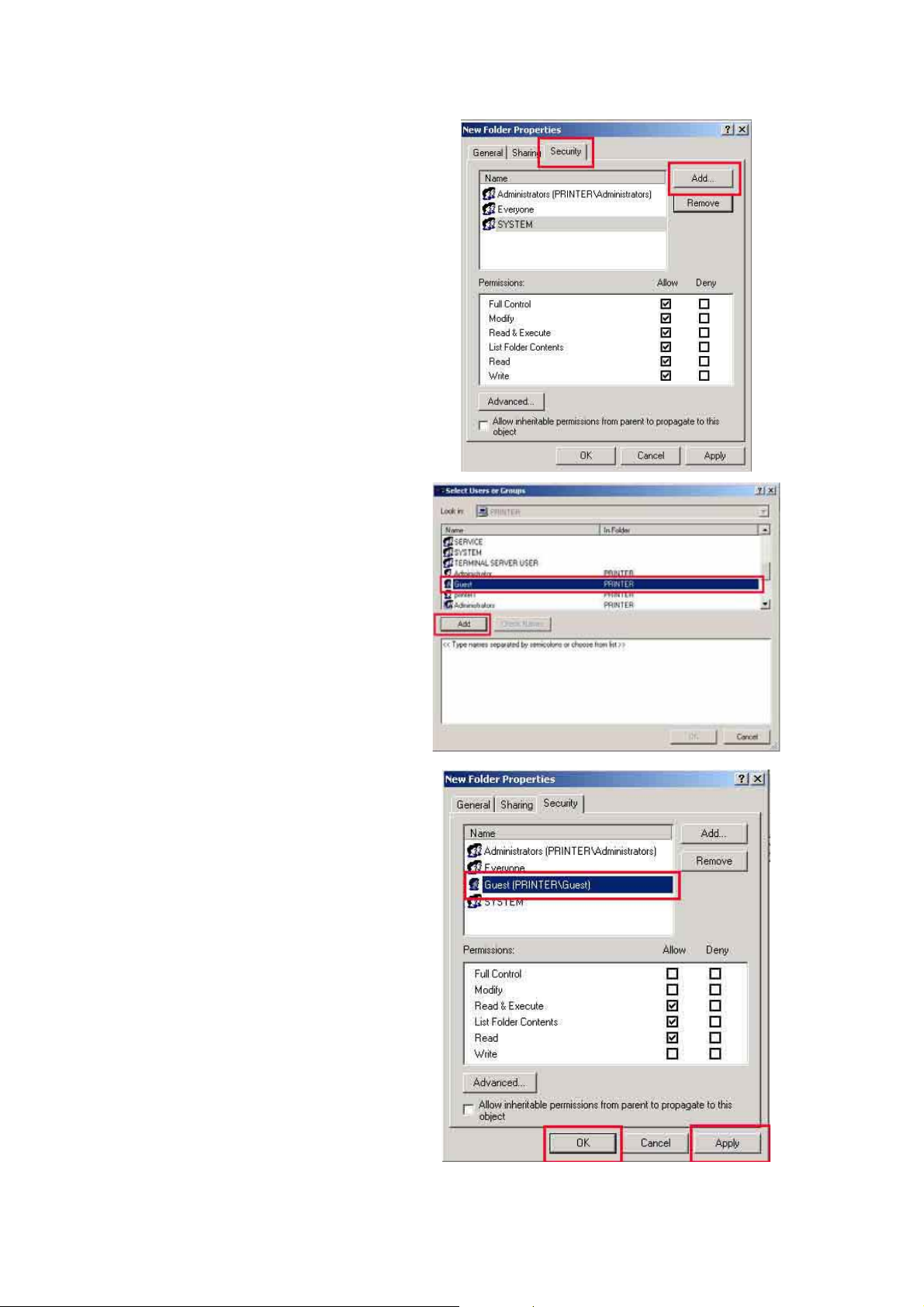

LAN Sharing setting(PC) ½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Network configuration under window 2000½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
IP Address Setup: Ethernet Network using a direct connection½½½½½½½½½½½½½½
MULTIMEDIA FILE PLAYBACK
4
How to use JUKEBOX CREATOR(BGM ON) ½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Enjoying movie file½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Creating DVD Library and Enjoying it½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
29
30
31
32
34
37
39
40
45
47
47
48
55
Enjoying Music Library½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Enjoying Photo Library½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
External USB devices connection½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Firmware update
5
HDD Partition and Formatting
6
Under Window 98SE/ME environment½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Under Window 2000/XP environment½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Troubleshooting
A
SPECIFICATION
B
57
58
59
60
61
61
65
69
73
Introduction
To introduce features and functions of NTD37HD.
Multimedia Functions
To playback a recorded digital HD file
As NTD37HD supports up to 1920 x 1080 progressive scan, you can enjoy playing back
a pre-recorded HDTV program by a digital TV set-top box or person digital video
contents taken by a HD camcorder with fantastic displaying quality.
To support various video formats
NTD37HD supports various latest video formats such as a pre-recorded HD file(tp, ts),
WMV9, WMV9 HD, MPEG1/2, MPG, MPEG4(DivX, Xvid), etc.
DVD JUKE BOX Function
As NTD37HD supports ISO file and IFO file, you can store DVD titles into NTD37HD and
playback those files just like DVD Player. You can store various DVD titles into
NTD37HD and manage them forever and easily.
Auto Playback, Bookmark and Section Repeat Functions
After one file playback is ended, the next file(different in file name only) is play-backed
automatically. If you mark a specific position of a movie during playback with
“BOOKMARK” button of remote controller, you can start from the marked position again.
The function of ‘Section Repeat’ lets you repeat a specific section. Section Repeat
function is useful for language study or enjoying sports moving pictures.
Music JUKE BOX Function
As NTD37HD supports various music files like MP3, Ogg Vorbis, WMA, M3U and PLS,
you can store these files into NTD37HD and enjoy them with easy. And, in case that you
make NTD37HD’s own playlist by using ‘JUKE BOX CREATOR’ function, you can enjoy
music files(playlisted) as background music(BGM function) with easy and convenient.
Digital Photo Album
You can enjoy photo with NTD37HD together with your family through big screen of TV
in your living room, as NTD37HD has ‘Photo Slide Show’ and ‘BGM(Background Music)’
functions.
- 4 -
Input/Output Functions
Analog 5.1CH Audio Output and 2CH Down Mix
NTD37HD can output analog audio signal(decoded signal), as it can decode digital
signal(high quality audio sound signal like AC3, DTS) into analog signal internally by
itself. So, you can enjoy 5.1CH high quality sound without an expansive additional
device like DTS decoder or Receiver. And, as NTD37HD supports 2CH down mix, users
who have 2CH speaker only also can enjoy multi channel audio track..
High Quality DVI Connector
As NTD37HD has DVI connector which output high quality digital signal, you can enjoy
high quality display without any display distortion.
Streaming through Wired/Wireless Network
Without the procedure to copy files from PC to NTD37HD through USB cable, you can
stream various media files in your PC to NTD37HD and playback them back with TV
directly through NTD37HD’s Network solution.
Installed Wireless LAN Module and Antenna
As NTD37HD has Wired LAN as well as Wireless LAN module which supports turbo
function, WEP security function and high sensitive 5dBi antenna, you can connect
NTD37HD easily with any wireless network environment.
HOST USB2.0 lets you connect with various external USB devices
As NTD37HD has two(2) USB2.0 HOST, you can attaché various external USB devices
such as external HDD, USB memory, digital camera, etc.
External Mass Storage
As NTD37HD works perfectly as an external USB mass-storage for your PC through
high speed USB2.0, you can store huge data into NTD37HD and manage it with easy.
- 5 -
Kinds of format to be supported
Video
Subtitle
Audio
Needed minimum transferring rate
Format Wired, Wireless LAN USB2.O(HOST)
MPEG1/2 12Mbps 10Mbps
DivX, Xvid 1.5Mbps 1.5Mbps
WMV9 8Mbps 8Mbps
HD file format(tp,ts), Windows Media 9, Windows Media 9 HD, DivX3.11, DivX4,
DivX5, DivX HD, Xvid, MPEG1, MPEG2(IFO, VOB, ISO), ΄ΦΡΡΠΣΥ
SMI, SUB, SRT, SAA, TXT
MP3, Ogg Vorbis, WMA, AC3, DTS(Pass Through)
JPEG, BMP, PNG
ˍ Even though a video file format is corresponding to the above table, the video file may
not be played-back properly in case that the resolution and transferring rate of the
video file is over specific value.
ˍ Although a video file format is corresponding to the above table, the video file may not
be played-back properly according to the speed(performance) of external USB devices
or the speed(performance) of the devices to compose a network environment.
ˍ Even though video file format is one of the above classification, the file is not played if
the file is encoded with GMC or QPEL option.
ˍ AVI(Audio Video Interleaved) is a container format. This means that it may contain
many different combinations of codec. So, even if NTD37HD supports most of AVI files,
but, there could be AVI files not played back properly by NTD37HD.
ˍ Subtitle is supported properly in case only that the file name of subtitle is exactly same
as that of the moving picture.
ˍ The audio file encoded with copy protection technology is not played back properly.
ˍ Even if NTD37HD can playback 2048 x 1352(JPEG), it may not work properly if the
JPEG size is over 1920 x 1080.
- 6 -
TV OUT set-up and change
TV Standard for each country
Korea, North America Europe and else
NTSC PAL
TV out mode is originally set as PAL/Composite
If you want to change TV out mode, you can use TV OUT button of remote controller or TV OUT button
of the front side of NTD37HD set.
LED light of the front side of NTD37HD moves to correspondin g position when you press TV OUT button
with 2~3sec time interval.
LED of NTD37HD Front
TV OUT button for changing TV Out mode
Reference
Each pressing TV OUT button : PAL(Composite)Î480p(Component)Î576p(Component)Î
480p DVI-D Î
576p DVI-D ( DVI-A VGA 800x600 60Hz (NTSC(Composite)
You can change and select more subdivided TV out mode in SET UP menu
In case of no display on TV screen, try pressing TV OUT button several times to fit TV OUT mode
AUDIO OUT button does not work while movie is playing.
GG
- 7 -
GG
Precautions
G
Do not drop or give a shock. It may cause
serious damage to internal Hard Disk DriveU
Do not touch the plug of the AC power cord
with wet hands
Do not block a ventilation opening
Keep it away from high temperature, high
humidity, nearby magnetic filed and direct
sunlight.
Do not try disassembling. It may cause an
electric shock, defect or unexpected problem.
For installing or changing HDD, you may open
the door on bottom side.
- 8 -
Keep it unplugged during lightning storms or
when unused for long period time.
x
x
x
x
x
x
x
x
How to handle and other precautions
Make sure that you have to use the AC adapter supplied together with NTD37HD. If not,
it may cause unexpected problem like breakdown, fire, etc.
In case that NTD37HD is used or left in a completely covered and high temperature
space(like in a car) for long time, it may cause unexpected problem.
Do not see the light of OPTICAL connector directly. It may have a bad effect on your
eyes.
In case of no use for long time, get rid of battery from remote controller.
To clean the exterior of NTD37HD, soak a soft cloth in a mild detergent solution diluted
with water, tightly squeeze the cloth to remove the excess liquid, wipe the affected area
of the exterior, and finish by wiping with a dry cloth.
Make sure that NTD37HD is not powered off suddenly during its working(playing-back,
file transferring, firmware upgrading, etc). In case of sudden power-off during working,
you need to check HDD with Windows utility(Scan Disk) after connecting with your PC
system.
When you try disconnecting the USB cable between NTD37HD and your PC system
after finishing jobs, make sure to follow ‘USB device safety removal’ procedure.
When try connecting HDD to SATA cable, S-Video cable, DVI cable, be careful not to
give some damage to pins of each connector.
- 9 -
Name of each point – Top & Front
Button of top side
OK BUTTON
PLAY/PAUSE BUTTON
Direction,
REW/FWD and
+15/-15sec move
Button
(, , ඔ, ඖ)
Button & LED of front side
IR receiver
Video / S-Video or
Component(DVD) LED
DVI-D LED
SETUP Button
STOP Button
TV OUT Button
DTV Component LED
DVI-A LED
Power(On/Off) Button
10
External IR receiver
Connector
USB connector
for PC
Name of each point – Rear Side
For Wireless Antenna
S-Video
Digital Sound
Optical Connector
Composite
Video Connector
2CH Stereo
or
5.1CH Analog
Audio Connector
USB Host port
DC FAN
DVI Out connector
Digital Sound
Coaxial Connector
Component Video
Connector
Wired LAN
Port(RJ-45)
Power12V DC
11
Contents in package
Below items are in the package of NTD37HD
NTD37HD Remote Controller AAA size Batteries
User’s Manual
A to B USB Cable Composite A/V Cable Component Video Cable
12V DC Power Adaptor Power cord
5dBi Wireless Antenna
(Wireless model only)
12
Accessories available at shops
If below accessories needed, you can buy them at shops by yourself.
DVI to RGB Gender DVI to HDMI Gender DVI-I Cable
Coaxial Cable Optical Cable S-VIDEO Cable
LAN Cable
13
Preparation to use NTD37HD
To introduce preparation before you enjoy NTD37HD.
Procedure
1. Check whether all accessories are supplied properly.
2. Install HDD(Hard Disk Drive) into NTD37HD according to the procedure of HDD
installation( note : HDD jumper should be set as Master)
3. Connect AC adapter into NTD37HD, and connect NTD37HD with PC through USB
cable
4. Power on NTD37HD(with power button of top side, or with power button of remote
controller)
5. In case that the installed HDD is not formatted, please format it first according to
normal HDD format procedure
6. Copy media files in your PC to the HDD of NTD37HD
7. After finishing copying files, disconnect NTD37HD from your PC system
8. Connect NTD37HD to TV set and(or) to audio system
9. Power on NTD37HD and change set-up value in SET-UP menu if needed. It is
recommended that NTD37HD should be rebooted if you set up Network newly
10. Now, you are ready to enjoy NTD37HD freely
Kinds of HDD to be installed
HDD Size HDD Type HDD Capacity HDD RPM
HDD buffer
Memory
3.5” SATA HDD
SATA I or II
Any capacity
available in market
14
Over 7200 RPM Over 8M
HDD Installation
ٻ
1. Push the locker to the direction(“OPENÎ).
Open up the HDD door slowly.
3. . Insert HDD carefully inside with NTD37HD
laid down slightly to minimize impact to HDD.
2. There is HDD fixture inside. Push it
forward(#1) slightly and pull it up(#2).
4. Fix HDD with HDD fixture like below picture.
5. Connect SATA cable and power cable
like picture.
IDE
POWER
- 15 -
6 Close HDD door and push the locker to the
direction(
“ÍCLOSE”).
Connecting with PC
To copy files in your PC to NTD37HD, follow below procedure.
ٻ
For Windows ME/ 2000/XP Users
1. Power on your PC system.
2. Connect NTD37HD to your PC with USB Cable. Connect AC adapter to NTD37HD. And power it
on.
3. Wait until your PC recognizes NTD37HD as USB mass storage.
4. Check whether NTD37HD is properly recognized as USB mass storage by clicking and opening
“My Computer” on Windows.
For Windows 98SE Users
XU Before connecting NTD37HD to your PC, you need to install Driver for Windows 98SE to your
PC. You may download the Driver for Windows 98SE from our website(
YU After downloading it, unzip it and run the file(NTD37HD_98setup)
ZU Connect NTD37HD to your PC with USB cable. And connect AC adapter to NTD37HD and
power it on. Wait until your PC recognizes NTD37HD as USB mass storage.
www.iamm.co.kr)
[U Check whether NTD37HD is properly recognized as USB mass storage by clicking and
opening “My Computer” on Windows.
- 16 -
ˍ
ˍ
ˍ
ˍ
ˍ
To create folder and to copy files
Follow below procedure to copy folder and file from PC to NTD37HD.
If the HDD has no partition or the HDD is not formatted, you need to do it first.
T We recommend NTFS instead of FAT32. NTD37HD supports multi partitions.
T Note : Primary partition should be over one(1)
For HDD partition, refer to Chapter 6.
When you make folder in the HDD of NTD37HD, it is recommended that you make
folders like ‘MOVIE’, ‘MUSIC’, ‘PHOTO’. And, you copy files to each folder
corresponding to kind of file.
- ‘MOVIE’ folder responds to ‘MOVIE’ button of remote controller and ‘MOVIE’ icon of main
menu.
ٻ
- ‘MUSIC’ folder responds to ‘MUSIC’ button of remote controller and ‘MUSIC’ icon of main
menu. And, ‘PHOTO’ folder is also same.
- You may make any name of folders freely.
Do not store too many files into one folder.
- It is recommended that you make several sub folders and store files divisionally.
- In case that you did HDD partition with FAT32, it is recommended that you do not store
over 3GB files into one folder.
In case that file name(folder name) is too long or has so many specific characters,
blanks or period marks, the file(folder) may cause some problem.
- In this case, change or reduce file(folder) name.
Moving picture file and subtitle file should be in same folder.
T Moving picture file and subtitle file should be in same folder. And, both files name should
be same except for ‘extension name’.
Disconnecting NTD37HD from PC
after finishing file copy
After finishing file copy, make sure that you need to next page procedure for
disconnecting NTD37HD from PC. Otherwise, copied files may have some damage.
- 17 -
Disconnecting from PC
When try disconnecting USB cable between NTD37HD and PC,
Make sure to follow below procedure.
1. Do double-click the icon of “Safely
remove USB……”.
ٻ
2. Click “Stop” button after selecting
“USB Mass Storage Device”..
3. When the message like picture is
shown, disconnect USB cable
between NTD37HD and PC.
- 18 -
x
x
x
x
x
x
x
x
x
Connecting to TV with Composite(AV) cable
After power off NTD37HD and TV, connect them like below procedure..
ٻ
The Composite AV cable is needed to connect with normal TV or Video and is for connecting
Composite video signal and 2CH audio signal simultaneously.
Connect yellow cable to the Composite connector of NTD37HD and to the VIDEO connector of
TV set.
Connect red cable to the FRONT-R connector of NTD37HD and to the Sound Input(Right) of
TV or Audio system.
Connect white cable to the FRONT-L connector of NTD37HD and to the Sound Input(Left) of
TV or Audio system.
You may refer to cable colors and connector colors.
Please do not misunderstand Composite connectors and Component(Y, Pb, Pr) connector
which is located on the bottom line of NTD37HD rear side.
If you want to use digital audio output(Optical, Coaxial), you don’t need to connect with red
cable and white cable.
In case that your TV set has S-Video input connector, you may enjoy higher display quality by
connecting with S-Video cable.(note : As we do not supply S-Video cable, you need to
purchase it by yourself from shop)
For more information, refer to user’s manual supplied by TV maker
- 19 -
x
x
Connecting with Component cable
or DVI connector
When connecting HDTV or other high quality displaying devices,
connect like below picture..
ٻ
Connecting with Component cable
Connecting with DVI cable
For safety, connect cables after power off NTD37HD, TV and audio system.
You have to purchase DVI cable and other genders by yourselves from shop
- 20 -
x
x
x
Connecting with 5.1CH audio system
If you want to connect analog 5.1Ch sound output to your speaker, please
connect audio cables like below picture.
ٻ
You need to prepare below cables or gender by yourself as those are not supplied together
with NTD37HD. (audio cable for analog 5.1Ch, 3.5 pie gender cable, etc)
Connect with analog 5.1Ch cables like upper picture.
If the input connector of speaker or audio system is the stereo jack(3.5 pie) type, you need 3.5
pie gender cable. According to below picture, connect it to each speaker properly..
CENTER
ylhyTyG
OyTyPG
FRONT-R
REAR-L
(Front-Right)
(Rear-Left)
FRONT-R
(Front-Left)
WOOFER
- 21 -
x
x
x
x
x
Connecting with Optical, Coaxial connector
If you want to enjoy high quality digital audio, connect with Optical or Coaxial
connector.
ٻ
As the audio output through Optical or Coaxial is digital signal, separate devices like
DTS Decoder(or Receiver) is needed additionally.
For safety, connect cables after power off NTD37HD and audio system.
You have to purchase Optical cable or Coaxial cable by yourselves from shop.
Make sure that Optical cable is not bent severely.
Do not see optical light which comes from Optical connector. It may have a bad effect
on your eyes.
- 22 -
Loading...
