Novatron HD36WNTD Users Manual

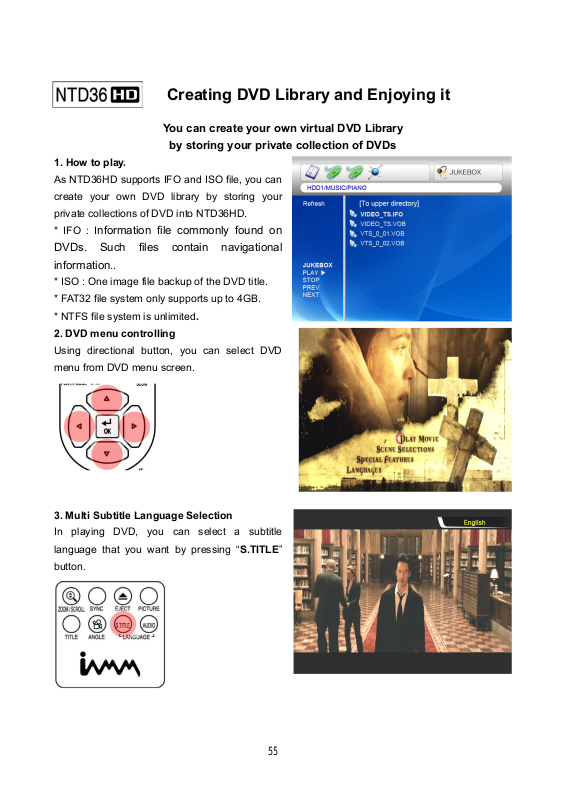

Creating DVD Library and Enjoying it

You can create your own virtual DVD Library

by storing your private collection of DVDs

1. How to play.

As NTD36HD supports IFO and ISO file, you can

create your own DVD library by storing your

private collections of DVD into NTD36HD.

* IFO : I

nformation file commonly found on

DVDs. Such files contain navigational

information..

* ISO : One image file backup of the DVD title.

* FAT32 file system only supports up to 4GB.

* NTFS file system is unlimited.

2. DVD menu controlling

Using directional button, you can select DVD

menu from DVD menu screen.

3. Multi Subtitle Language Selection

In playing DVD, you can select a subtitle

language that you want by pressing “S.TITLE”

button.

55

4. Multi Dubbing Audio Selection

In playing DVD, you can select a dubbing audio

that you want by pressing “AUDIO” button.

5. Return to DVD menu Screen

In playing a DVD, you can go to DVD menu

screen by pressing “TITLE” button. When you

play DVD again after setting, it starts from

stopped position of DVD.

6. GOTO function

In playing a movie, you can go to the specific

position that you want by pressing “GOTO”

button.

● Volume control, color setting and media information are same as “Enjoying movie file”

functions.

● To go next or previous chapter of DVD, use “-PAGE+” button.

56

Enjoying Music Library

NTD36HD supports mp3, WMA, OGG, M3U and PLS files.

1. How to play

Select a files in a folder that contains music

files and push “PLAY ▶∥” button .

2. How to change Music Play Mode

In playing a music file, you can change play

mode by pressing “REPEAT/SHUFFLE” button.

1st press : Single
2nd press : Folder
3rd press : Shuffle

3. M3U and PLS file support

NTD36HD supports M3U playlist and PLS playlist

by created WINAMP. To play these files, music

files linked with M3U and PLS should be in same

HDD partition.

57

Y

Enjoying Photo Library

NTD36HD supports JPG, BMP and PNG files.

1. How to play.

Select a files in a folder that contains photo files

and push “PLAY ▶∥” button. Basically, all

photo files in same folder are played slideshow

with 10 seconds interval. You can change

slideshow time delay setting on “ETC” section of

SETUP Menu. If you want to see one photo file

only, please push “OK” button instead of “PLA

▶∥”.

2. Rotation of photo

If you want to rotate the photo, push “ANGLE”

button of remote controller to be rotated it

clockwise by 90 degree.

* This service is not yet available, but will be in a

future firmware release.

Color setting function is same as “Enjoy Movie”.

58

Various external USB devices can be attached to USB HOST ports of NTD36HD

1. Connecting various external USB devices

With USB host function, NTD36HD supports

external USB devices like hard drives, memory sticks

and USB card readers up to two devices one time.

2. USB connection usage.

Once you have connected your device properly,

External USB devices connection

you can access the files in the USB device by

pressing the highlighted USB icon.

NOTE

NTD36HD supports mass storage

device in “read only” mode only.

3. ODD tray controlling

NTD36HD controls ODD tray on and off by pressing

“EJECT” button when ODD USD device is connected.

59

Firmware update

This section explains how to update firmware.

Getting the latest firmware to enjoy the added features and improved function.

1. Firstly, visit NTD36HD website(www.iamm.co.kr

where you bought NTD36HD). You can download the newest firmware and save it on your PC.

2. Please extract the compressed firmware file and move or copy the file into NTD36HD through

USB cable. If NTD36HD is connected an internal network, installing the newest firmware via

internal network is also possible without copying the firmware file into a NTD36HD. In this

case, the firmware file should be stored in the shared folder of PC.

3. Connect the NTD36HD to a TV and power it on. Click the “SETUP” button on remote controller

and go to ETC setting section of SETUP.

4. Select “Firmware update” and search the

folder where the new firmware file is saved.

) or designated website(Please ask the shop

5. Select update file and push “OK” button on

remote controller.

6. Firmware update will start automatically

when you select “Yes” on confirmation

message box.

7. NTD36HD will power off in 10 sec

automatically after update process is

completed successfully.

8. Power on NTD36HD again, then go to “ETC” section of SETUP. Select “Factory Reset” and

press “OK” button for factory reset. And, power off NTD36HD again. After this, you can enjoy with

new firmware.

* Caution !!!

While updating, please make sure that NTD36HD is not powered off. If powered off

while updating, the NTD36HD has t be repaired from customer service center.

60
