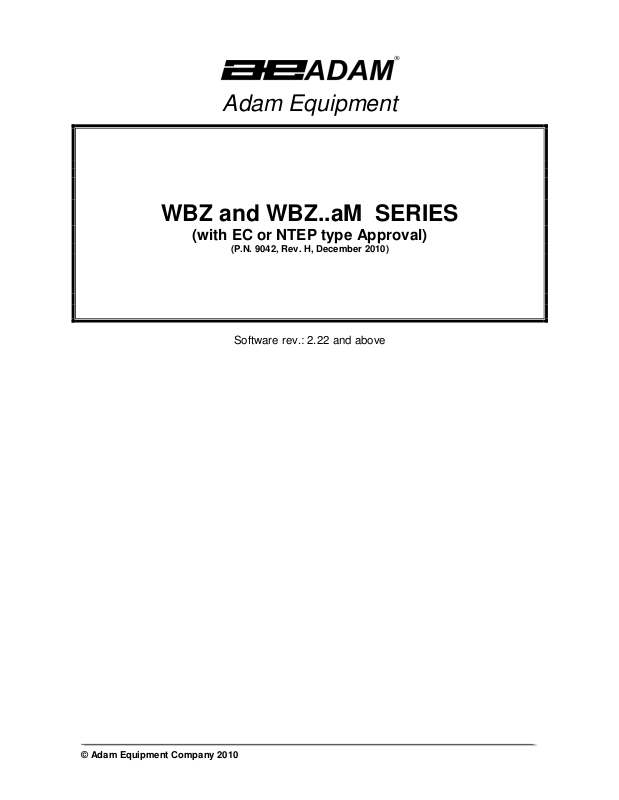

Nova-Tech WBZ User Manual

Adam Equipment
(with EC or NTEP type Approval)
(P.N. 9042, Rev. H, December 2010)
Software rev.: 2.22 and above
© Adam Equipment Company 2010
© Adam Equipment Company 2010
1
CONTENTS
1.0 INTRODUCTION ...................................................................................................... 3
2.0 SPECIFICATIONS.................................................................................................... 3
3.0 INSTALLATION ........................................................................................................ 4
3.1 LOCATING............................................................................................................ 4
3.2 UNPACKING......................................................................................................... 4
3.3 SETTING UP......................................................................................................... 5
4.0 KEYPAD................................................................................................................... 6
5.0 DISPLAYS................................................................................................................ 6
6.0 SYMBOLS AND INDICATORS................................................................................. 7
7.0 BATTERY OPERATION........................................................................................... 7
8.0 BACKLIGHT ............................................................................................................. 8
9.0 AUTO POWER OFF................................................................................................. 8
10.0 OPERATION ............................................................................................................ 8
10.1 ZEROING.............................................................................................................. 8
10.2 TARING ................................................................................................................ 9
10.3 WEIGHING ......................................................................................................... 10
10.4 DETERMINING VALUE OF A PRODUCT BY WEIGHT ...................................... 10
11.0 RS-232 ................................................................................................................... 11
12.0 CALIBRATION........................................................................................................ 11
12.1 CALIBRATION PROCEDURE ............................................................................ 11
12.2 SECURITY SEALS ............................................................................................. 11
12.3 CALIBRATION COUNTER.................................................................................. 12
13.0 USER PARAMETERS............................................................................................ 12
13.1 PRICE /
13.2 BACKLIGHT........................................................................................................ 13
13.3 AUTO POWER OFF............................................................................................ 14
13.4 AUTO CLEAR ..................................................................................................... 14
13.5 CURRENCY SYMBOL........................................................................................ 15
14.0 ERROR CODES..................................................................................................... 16
15.0 REPLACEMENT PARTS AND ACCESSORIES .................................................... 16
16.0 SERVICE INFORMATION...................................................................................... 17
17.0 WARRANTY INFORMATION................................................................................. 18
KG
AND /100G......................................................................................... 13
18.0 APPENDIX ............................................................................................................... 19
© Adam Equipment Company 2010
© Adam Equipment Company 2010
2
3
1.0 INTRODUCTION
The WBZ series of digital price-computing scales are EC Type approved, (type approval number T7476/TC7477) and the WBZ..aM series are NTEP approved scales, (type approval number 10-082).
These scales provide an accurate, fast and versatile method of computing price by weight.
Stainless steel weighing platform on an ABS plastic base assembly which is sealed to IP 65, making it water-proof
Level indicator with adjustable levelling feet
Colour coded, sealed keypad
Large backlit liquid crystal displays (LCD) on both front and back
panels
Displays for Weight, Unit Price and Total Price (or Price to Pay)
Price per 100g and per kilogram (Not applicable in some counties)
Price displayed in multiple currency
Auto-sleep function
Battery operated for portability
50 hours battery life when fully charged
2.0 SPECIFICATIONS
WBZ 3 WBZ 6 WBZ 15 Capacity, Max.= 3 kg 6 kg 15 kg Resolution, d=e= 0.001 kg 0.002 kg 0.005 kg Tare, T= -3 kg -6 kg -9.995 kg
WBZ 6aM WBZ 15aM WBZ 30aM Capacity, Max.= 6 lb / 3 kg 15 lb / 6 kg 30 lb /15 kg Resolution, d=e= 0.002 lb / 0.001 kg 0.005 lb / 0.002 kg 0.01 lb / 0.005 kg Tare, T= -6 lb / -3 kg -9.995 lb / -6 kg -30 lb / -9.995 kg
Operating Temperature -10ºC to 40ºC Platform 210 x 173 mm Overall 231 x 265 x 153 mm Battery Life 50 hours typical* Power 12 VDC, 800 mA Power Supply Module-
supplied as standard
Net Weight 3.3 kg / 7.26 lb
*Battery Life is less when the backlight is used.
© Adam Equipment Company 2010
4
3.0 INSTALLATION
3.1 LOCATING
The scales should not be placed in a location that will reduce the accuracy.
Avoid extremes of temperature. Do not place in direct sunlight or near air conditioning vents.
Avoid unsuitable tables. The table or floor must be rigid and not vibrate.
Avoid unstable power sources. Do not use near large users of electricity such as welding equipment or large motors.
Do not place near vibrating machinery.
Avoid air movement such as from fans or
opening doors. Do not place near open windows or air-conditioning vents.
Keep the scales clean. Do not stack material on the scales when they are not in use.
3.2 UNPACKING
Inside the box you will find-
The Scale  Stainless Steel Pan  Power supply Module
An Instruction manual
© Adam Equipment Company 2010
5
3.3 SETTING UP
The scale comes with a stainless steel platform, packed separately.
Place the platform on the top. Do not press with excessive force as that could damage the load cell inside.
Level the scale by adjusting the four feet. A spirit level is located at the rear panel.
The scale should be adjusted such that the bubble in the spirit level is in the centre of the level and the scale is supported by all four feet.
Attach the power supply module to the bottom of the scale and plug into the mains.
Press the [O/I] key to start. The scale will first display the software revision, followed by a self-test.
At the end of the self-test it will display zero weight, if the zero condition has been achieved and the weighing unit that was in
© Adam Equipment Company 2010
use last. A stable and zero symbol indicators are also displayed.
Attach here
6
4.0 KEYPAD
[0[ to [9]
Numeric entry keys to set the unit price.
Some keys will have secondary functions if set at the factory which are as follows:
[0] / kg/100g [1] / bL [2] / SLEEp [4] / €,£,$,R,¥,None
NOTE: All secondary functions may not be enabled for all scales. This will depend on the location where the scale is used and the settings performed at the factory.
Sets a new zero point Tares the scale to display zero. Turns the power on and off.
[>Z<] [Tare] [0/I]
5.0 DISPLAYS
Select price per kg or per 100g Black-light Control Control of Auto Off function
Selection of monetary Symbol
The display area is divided into 3 windows-
1. The Weight window shows the weight value along with the selected weighing unit. It also shows a zero, Net and stable symbol.
2. The Unit Price window has symbols to show the unit price per 100g or per kg. NOTE: Not allowed in some locations, this feature is disabled at the factory.
3. The Total Price window displays the price of the items on the scale. A symbol for the active currency is also shown.
The displays will show a decimal point for the WBZ..aM scales and a comma as shown above for the WBW scales. A low battery symbol will indicate when the battery needs to be recharged.
© Adam Equipment Company 2010
