Nova-Tech RX-i User Manual

Digital Refractometers

The world's highest standard of technology

The world's highest standard of technology

now available with touch screen.

now available with touch screen.

ATAGO taking refractometers to the next level.

ATAGO taking refractometers to the next level.

Application examples

Refractive Index

Refractive Index is a common quality standard
measure for pharmaceutical or chemical products.
Measurements need to be taken at a constant
temperature, commonly 20˚C, 25˚C, and 40˚C. The
RX-i series are equipped with the internal Peltier
Thermo-Module, and measurement starts once
the target temperature is reached. Thermo­Module, and measurement starts once the target
temperature is reached.

Brix

Brix is measured for quality control purposes in
the food and beverage industries.

Fragrance and
F

ood Additives

Petroleum
Organic Solutions

and

Pharmaceutical Products

Oils and Fats Detergents

Cosmetics

Concentrations

The concentrations of industrial solutions are
often monitored. Examples include water-based
cutting oils and cleaning solutions, hydrogen
peroxide, coolants, and alcohol solutions.
Although the Brix scale is commonly used, user
scales can also be programmed to display
converted sample values.

4 measurement mode options

For maximum accuracy

Displays the measurement value once
the sample reaches the target
temperature.

Beverages and
Fruit Juice

Chemical Solutions

Jams, Honey,
Liquid Sugar, Syrups

Cutting Oil and
Quenching Oil

Condiments,
Sauces, Soups

Antifreeze and Coolants

For emulsion samples

Displays the measurement value once a
certain level of sample stability is
achieved.

For fast results

Measures refractive index and
temperature at fixed intervals and
displays the estimated measurement
value at the target temperature.

For no temperature control

Provides an option to turn the thermo­module off. Without temperature control,
the measurement value is displayed in 4
seconds after the START key is pressed.

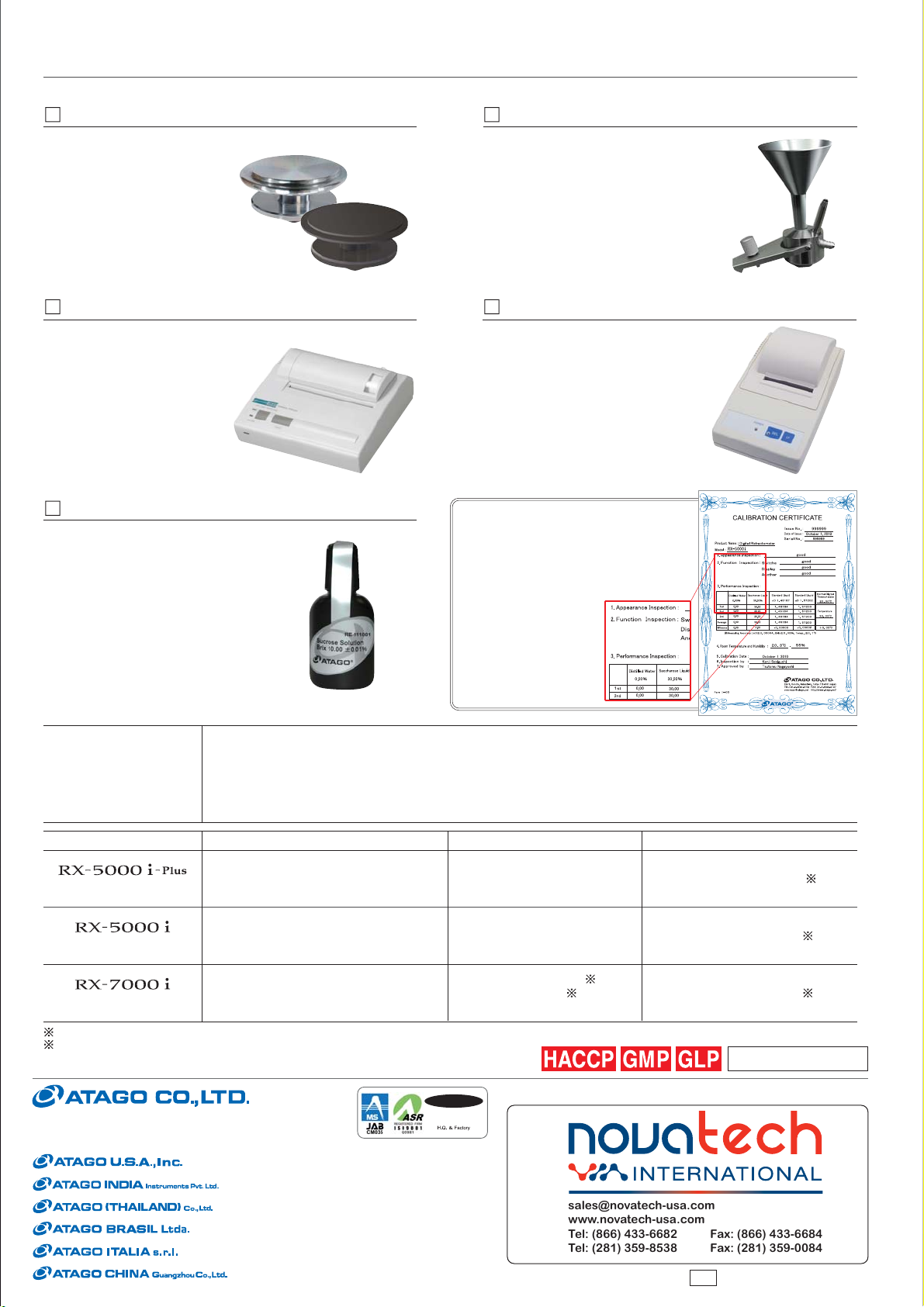

Accessories

Model

Measurement items and ranges

Minimum indication

Measurement accuracy

Common features

[e-mail]
www.novatech-usa.com
Tel: [phone] Fax: [phone]
Tel: [phone] Fax: [phone]

MAGIC

™

Used for measuring volatile
substances.
Choose either metal or resin.

[RE-56180] MAGIC™ (metal)
[RE-56185] MAGIC™ (resin)

Digital Printer DP-63

For printing on thermal paper.

Cat.No. 3118

Printing method : Thermal dot
Power supply : AC adaptor
(AC 100V to 240V)
Power consumption
Dimensions & weight
(Main unit only)

DP-63

: 13VA
: 17× 16×7cm, 580g

Sucrose Solution (calibration certificate optional)

Regular inspection of the RX-i unit is
highly recommended. Use one of the
following solutions to confirm the
calibration.

[RE-111001] 10% sucrose solution (±0.01%)
[RE-112001] 20% sucrose solution (±0.01%)
[RE-113001] 30% sucrose solution (±0.01%)
[RE-114002] 40% sucrose solution (±0.02%)
[RE-115002] 50% sucrose solution (±0.02%)
Shelf life is 10 days.

Funnel-type Flow Cell

Save time with the flow cell! No
need to clean the prism between
measurements.

[RE-56172] RX-5000i, RX-5000i-Plus
[RE-56173] RX-7000i

Digital Printer DP-AD

For printing on regular paper.

Cat.No. 3123

Printing method : Dot impact
Power supply : AC adaptor
(AC 100V to 240V)
Power consumption
Dimensions & weight
(Main unit only)

For the utmost in customer satisfaction...

ATAGO offers calibration service in conformance
with ISO quality management systems as well as
HACCP, GMP and other standards. The following
three documents will be issued. (Calibration
service is performed at an additional cost.)

Calibration Certificate
Traceability Certificate
Traceability Diagram

DP-AD

: 7VA

: 11× 18×9cm, 470g

Measurement system : Optical-refraction critical-angle detection system
Light source : LED

Common features

Model

[

Cat. No. 3275

[

Cat. No. 3276

[

Cat. No. 3279

1 : When measuring a standard sucrose solution of up to 50% Brix or standard refractive index solution in MODE-1 at 20˚C.
2 : Factory default setting.

]

]

]

Materials : Sample stage - SUS 316 Prism - Artificial sapphire
Display : 7.5 inch color LCD (touch screen)
Power supply : AC100V to 240V
Power consumption : 50/60Hz, 90VA

Measurement items and ranges

Refractive Index (nD) : 1.32422 to 1.58000
Brix : 0.000 to 100.000%
(Automatic Temperature Compensation)
User scale : 100

Refractive Index (nD) : 1.32422 to 1.58000
Brix : 0.00 to 100.00%
(Automatic Temperature Compensation)
User scale : 100

Refractive Index (nD) : 1.32422 to 1.70000
Brix : 0.00 to 100.00%
(Automatic Temperature Compensation)
User scale : 100

Minimum indication

nD : 0.00001
Brix : 0.005%
(The third decimal place is 0 or 5.)
Temp : 0.01˚C

nD : 0.00001
Brix : 0.01%
Temp : 0.01˚C

nD : 0.00001 (0.0001) 2
Brix : 0.01% (0.1%) 2
Temp : 0.01˚C

All ATAGO refractometers are designed and manufactured in Japan.

* Specifications and appearance are subject to change without notice.

Headquarters: The Front Tower Shiba Koen, 23rd Floor
2-6-3 Shiba-koen, Minato-ku, Tokyo 105-0011, Japan
TEL : [phone] FAX : [phone]
[e-mail] http : //www.atago.net/

TEL : [phone] [e-mail]

TEL : [phone] / 8076 [e-mail]

TEL : [phone] [e-mail]

TEL : [phone] [e-mail]

TEL : [phone] [e-mail]

TEL : [phone] [e-mail]

ISO9001

REGISTERED

Ambient Temperature : 5 to 40˚C
Output terminals : Printer - RS-232C, Computer - USB
Temperature control range

Dimensions : 37× 26×14cm
Weight (Main unit only) : 6.6kg

(No lower than 10˚C below the ambient temperature and

no higher than 55˚C above the ambient temperature)

:

5.00 to 75.00

[

RX-5000i, RX-5000i-Plus

Measurement accuracy

nD : ±0.00002 *±0.00001
Brix : ±0.010% *±0.010% 1
Temp : ±0.05˚C

nD : ±0.00004 *±0.00002
Brix : ±0.03% *±0.01% 1
Temp : ±0.05˚C

nD : ±0.0001 *±0.00005
Brix ±0.1% *±0.02% 1
Temp : ±0.05˚C

V.04

˚C

], 7.0kg [

ATAGO products comply with HACCP,
GMP, and GLP system standards.

12070000PP Printed in Japan

RX-7000i

*repeatability

]
