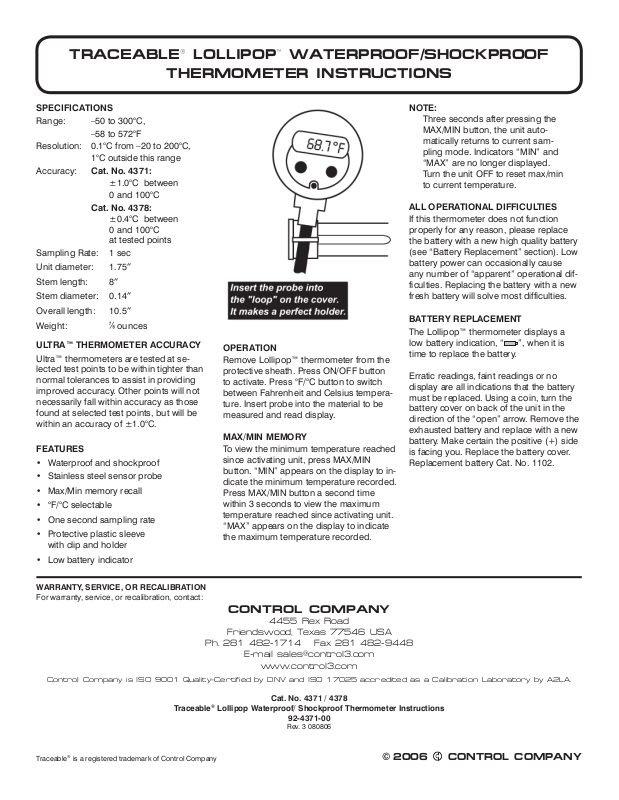

TRACEABLE® LOLLIPOP™ WATERPROOF/SHOCKPROOF

THERMOMETER INSTRUCTIONS

SPECIFICATIONS

Range: –50 to 300°C,
–58 to 572°F
Resolution: 0.1°C from –20 to 200°C,
1°C outside this range
Accuracy: Cat. No. 4371:
±1.0°C between
0 and 100°C
Cat. No. 4378:

±0.4°C between
0 and 100°C
at tested points

Sampling Rate: 1 sec

Unit diameter: 1.75²

Stem length: 8²

Stem diameter: 0.14²

Overall length: 10.5²

Weight:

ULTRA™ THERMOMETER ACCURACY

Ultra™ thermometers are tested at se­lected test points to be within tighter than
normal tolerances to assist in providing
improved accuracy. Other points will not
necessarily fall within accuracy as those
found at selected test points, but will be
within an accuracy of ±1.0°C.

FEATURES

• Waterproof and shockproof

• Stainless steel sensor probe

• Max/Min memory recall

• °F/°C selectable

• One second sampling rate

• Protective plastic sleeve
with clip and holder

• Low battery indicator

ounces

OPERATION

Remove Lollipop™ thermometer from the
protective sheath. Press ON/OFF button
to activate. Press °F/°C button to switch
between Fahrenheit and Celsius tempera­ture. Insert probe into the material to be
measured and read display.

MAX/MIN MEMORY

To view the minimum temperature reached
since activating unit, press MAX/MIN
button. “MIN” appears on the display to in­dicate the minimum temperature recorded.
Press MAX/MIN button a second time
within 3 seconds to view the maximum
temperature reached since activating unit.
“MAX” appears on the display to indicate
the maximum temperature recorded.

NOTE:

Three seconds after pressing the
MAX/MIN button, the unit auto­matically returns to current sam­pling mode. Indicators “MIN” and
“MAX” are no longer displayed.
Turn the unit OFF to reset max/min
to current temperature.

ALL OPERATIONAL DIFFICULTIES

If this thermometer does not function
properly for any reason, please replace
the battery with a new high quality battery
(see “Battery Replacement” section). Low
battery power can occasionally cause
any number of “apparent” operational dif­ficulties. Replacing the battery with a new
fresh battery will solve most difficulties.

BATTERY REPLACEMENT

The Lollipop™ thermometer displays a
low battery indication, “ ”, when it is
time to replace the battery.

Erratic readings, faint readings or no
display are all indications that the battery
must be replaced. Using a coin, turn the
battery cover on back of the unit in the
direction of the “open” arrow. Remove the
exhausted battery and replace with a new
battery. Make certain the positive (+) side
is facing you. Replace the battery cover.
Replacement battery Cat. No. 1102.

WARRANTY, SERVICE, OR RECALIBRATION

For warranty, service, or recalibration, contact:

CONTROL COMPANY

4455 Rex Road

Friendswood, Texas 77546 USA

Ph. 281 482-1714 Fax [phone]

E-mail [e-mail]

www.control3.com

Control Company is ISO 9001 Quality-Certified by DNV and ISO 17025 accredited as a Calibration Laboratory by A2LA.

Traceable® Lollipop Waterproof/ Shockproof Thermometer Instructions

Tra ceable® is a registered trademark of Control Company

Cat. No. 4371 / 4378

92-4371-00

Rev. 3 080806

© 2006
