Nova-Tech 4252 User Manual

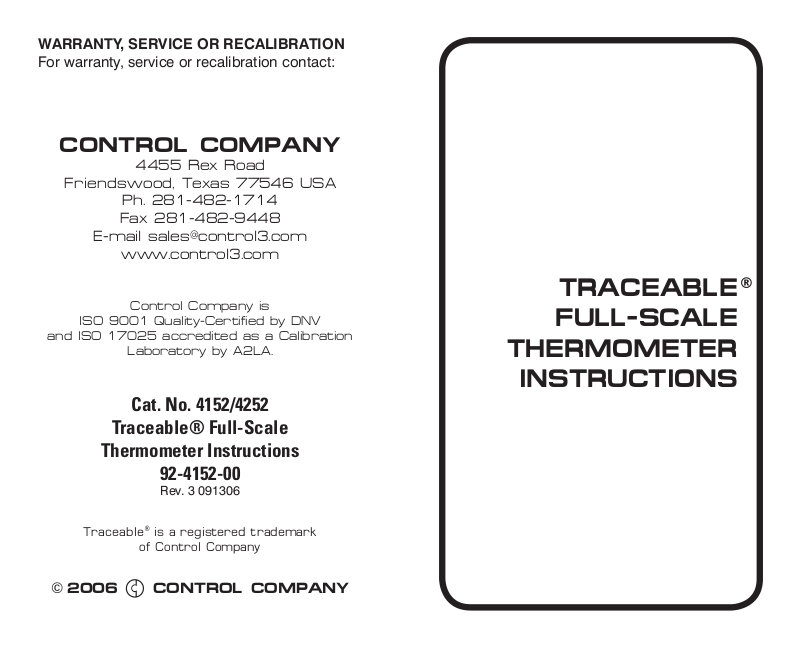

WARRANTY, SERVICE OR RECALIBRATION

For warranty, service or recalibration contact:

CONTROL COMpANy

Friendswood, Texas 77546 USA

and ISO 17025 accredited as a Calibration

© 2006

4455 Rex Road

Ph. 281-482-1714

Fax [phone]

E-mail [e-mail]

www.control3.com

Control Company is

ISO 9001 Quality-Certified by DNV

Laboratory by A2LA.

Cat. No. 4152/4252

Traceable® Full-Scale

Thermometer Instructions

92-4152-00

Rev. 3 091306

Traceable® is a registered trademark

of Control Company

CONTROL COMpANy

TRACEABLE

®

FULL-SCALE

THERMOMETER

INSTRUCTIONS

SPECIFICATIONS

Range: –58 to 500°F / –50 to 250°C

Resolution: 0.1° above –20° and

below 200° otherwise 1.0°

Accuracy: Cat. No. 4152

±1°C from –20.0 to 100.0°C
±2.5% of full scale otherwise

Cat. No. 4252

±0.5° C from –20.0 to 100.0°C
at tested points ±2.5% of full
scale otherwise

Sampling
Rate: 1 second

Attachments: Clip, magnet, and stand
Size: Diameter: 5.4 cm (2.1”)

Depth: 1.4 cm (

9

”)

16

/

Probe: 14L x 0.4 dia. cm

(5.5 x 0.15”)

ULTRA™ THERMOMETER ACCURACY

Ultra™ thermometers are tested at selected test
points to be within tighter than normal tolerances
to assist in providing improved accuracy. Other
points will not necessarily fall within the same ac­curacy as those found at the selected test points,
but will be within an accuracy of ±1°C between
–20.0 and 100.0°C.

OPERATION

Slide the ON/OFF switch to ON to turn the unit on.
Slide the °C/°F switch to °F to display the tempera­ture in Fahrenheit or °C to display the temperature
in Celsius. Insert the probe into the material to be
measured. Slide the ON/OFF switch to OFF to
turn the unit off. Always turn the unit off when not
in use to conserve battery life.

NOTE: Both the probe and cable may be totally
immersed in liquid.

ALL OPERATIONAL DIFFICULTIES

If this unit does not function properly for any
reason, replace the battery with a new high-quality
battery (see “Battery Replacement” section). Low
battery power can occasionally cause any number
of “apparent” operational difficulties. Replacing
the battery with a new fresh battery will solve most
difficulties.

BATTERY REPLACEMENT

Erratic readings, a faint display, or no display are
all indications that the battery must be replaced
Remove the battery cap by turning it 1/4 turn
counter clockwise. Remove the exhausted bat­tery and replace with a new 1.5 volt silver oxide
battery. Make certain that the positive (+) side is
facing you. Replace the battery cap. Replacement
battery Cat. No. 1039.
