NovaStar nova3D HD User Manual
User's Manual
3D Video Controller Nova3D HD
Rev 1.0.0 NO: NS160100010
User Manual of 3D Video Controller
www.novastar-led.cn 2
Statement
Dear users:
Welcome to use nova's products. We are pleased to offer this manual to help you understand and use the product. In the
preparation of the manual, we try to make it accurate and reliable. Nova may revise and alter the contents of the manual at
any time without notice. If you have any problems in the use, or you have any suggestions, please inform us in accordance
with the contact provided in this manual. For the problems you encounter in the use, we will do our best to provide support.
For your suggestions, we would like to express our thanks and make assessment as soon as possible for adoption.
Copyright
Copyright of this manual is reserved to Xi'an NovaStar Tech Co., Ltd. Any individual or organization is not allowed to copy or
extract all or any part of the contents in any form without written approval.
Trademark
is the registered trademark of Nova.
User Manual of 3D Video Controller
www.novastar-led.cn 3
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
User Manual of 3D Video Controller
www.novastar-led.cn 4
Content
FCC CAUTION: ........................................................................................................................................................................................... 3
1. SAFETY STATEMENT ......................................................................................................................................................................... 6
2. ACCESSORIES ................................................................................................................................................................................... 6
3. OVERVIEW ....................................................................................................................................................................................... 6
4. APPEARANCE ................................................................................................................................................................................... 7
4.1 FRONT PANEL ........................................................................................................................................................................................ 7
4.2 REAR PANEL .......................................................................................................................................................................................... 8

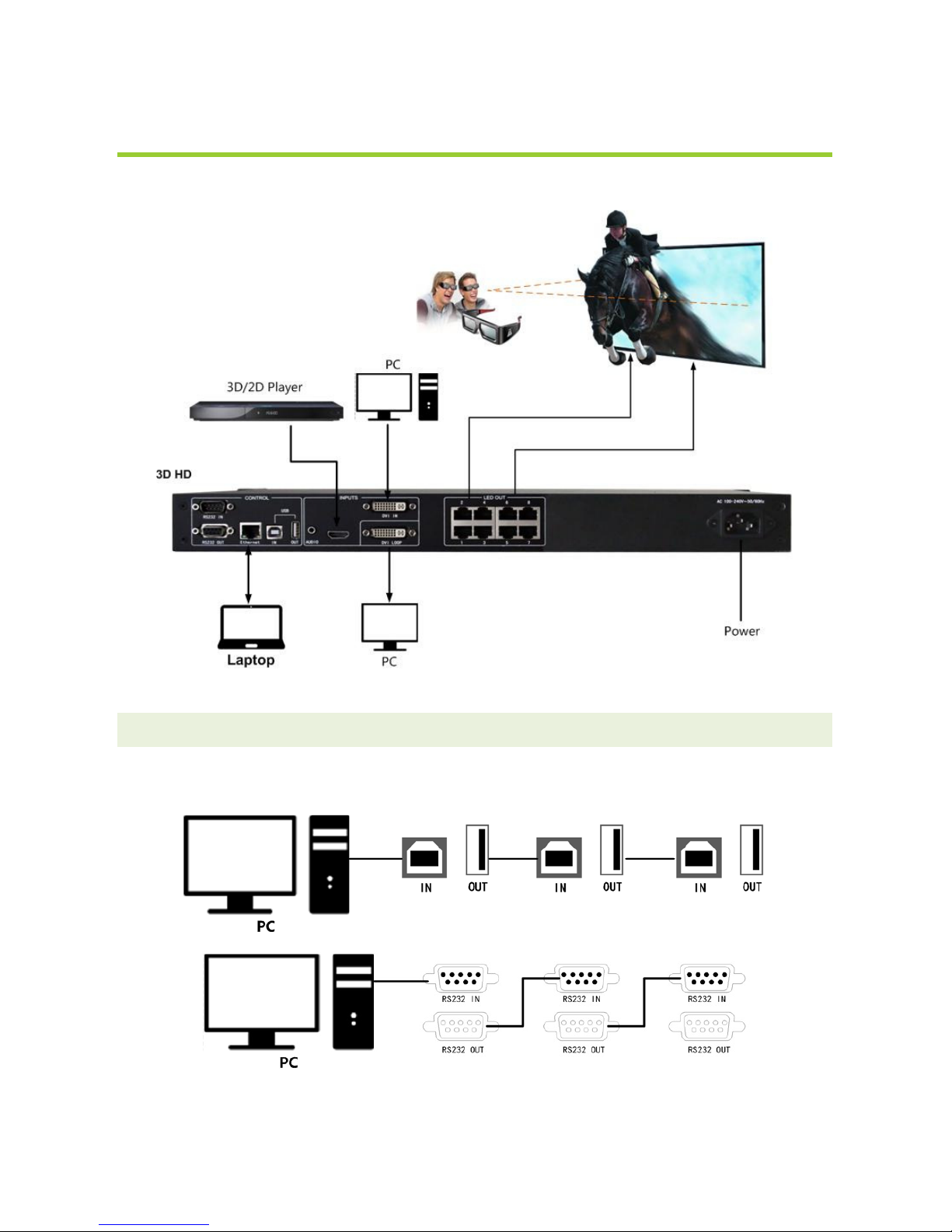

5. SIGNAL CONNECTION...................................................................................................................................................................... 9
6. OPERATIONAL MOTION INSTRUCTION ........................................................................................................................................ 10

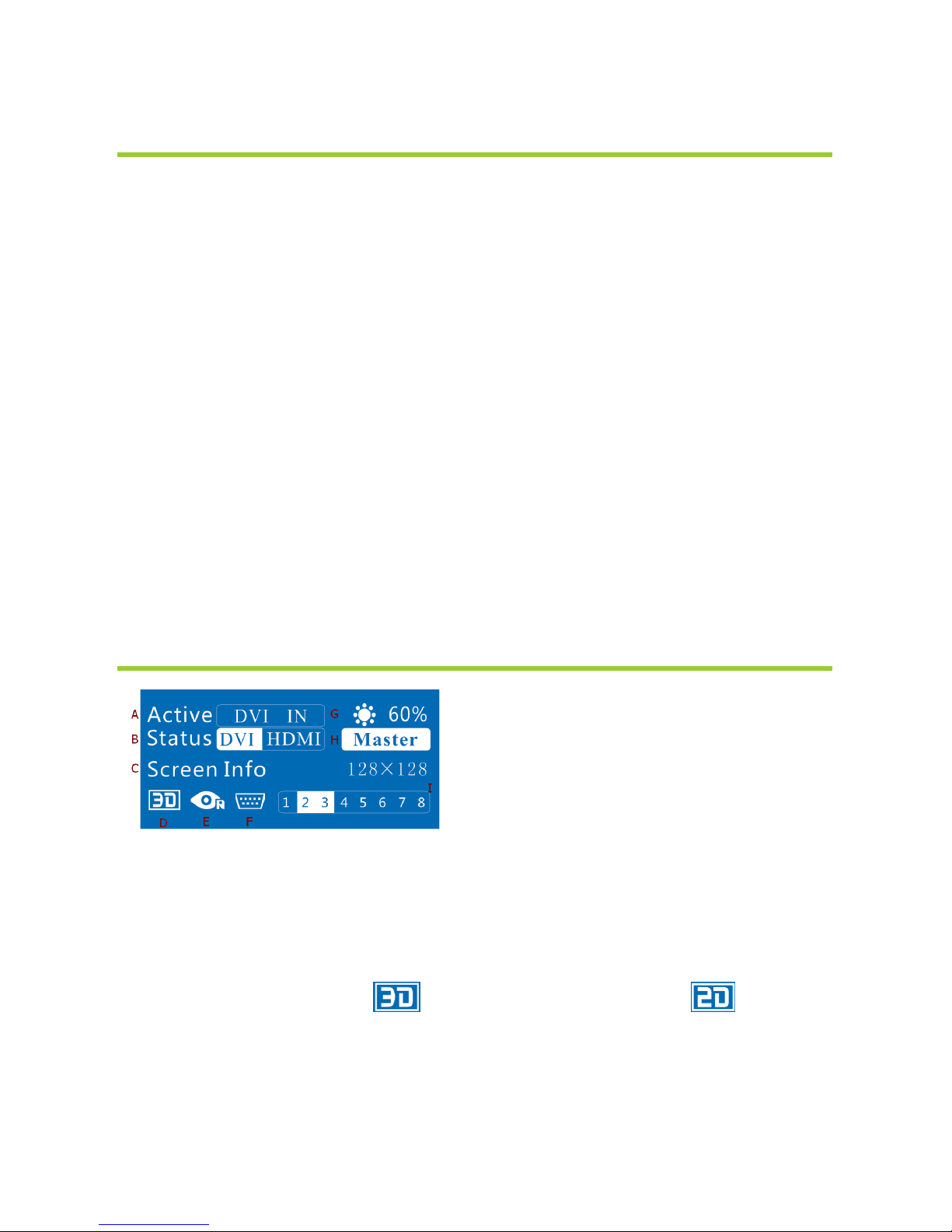

7. MAIN INTERFACE ........................................................................................................................................................................... 10
8. OPERATION .................................................................................................................................................................................... 11

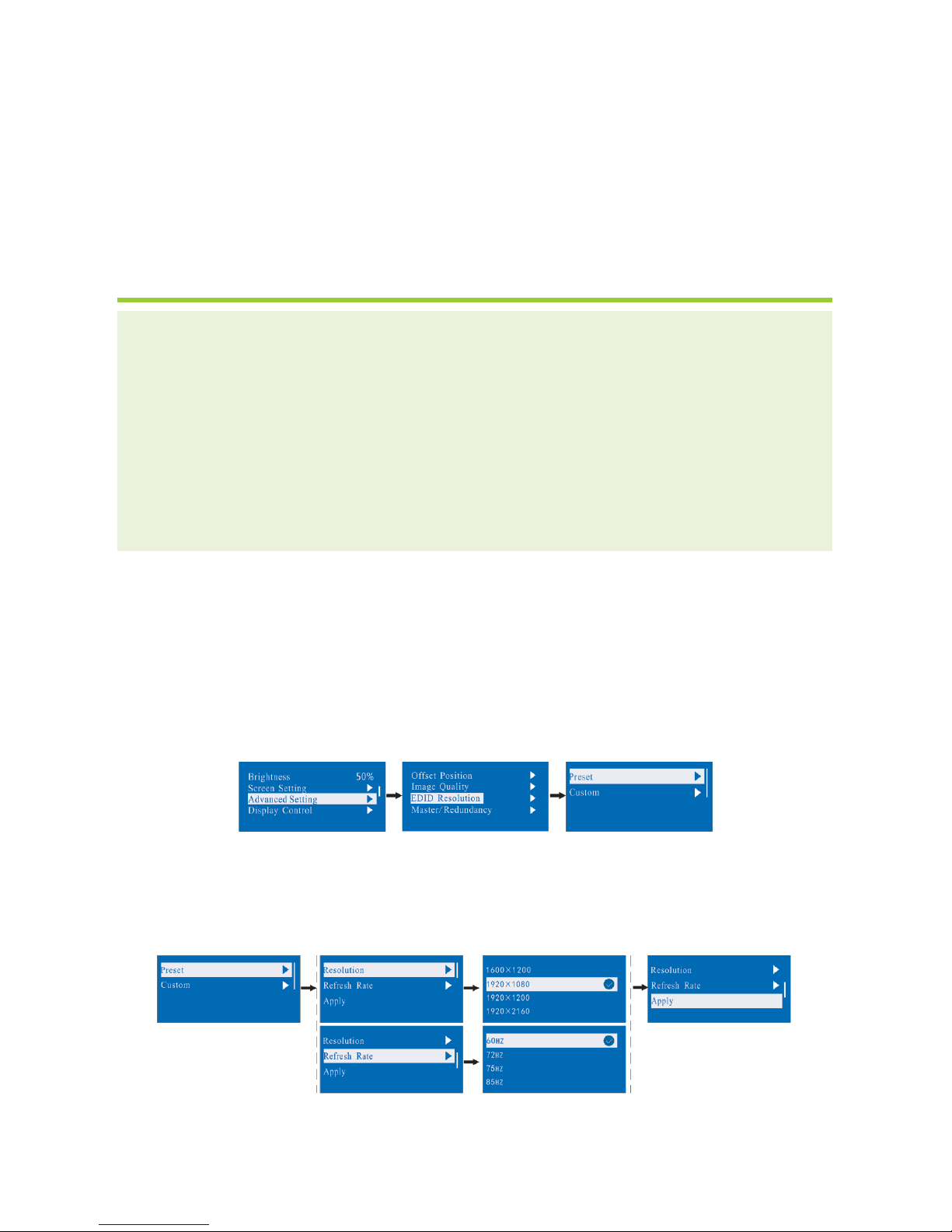

8.1 STEP 1: EDID SETTING ......................................................................................................................................................................... 11

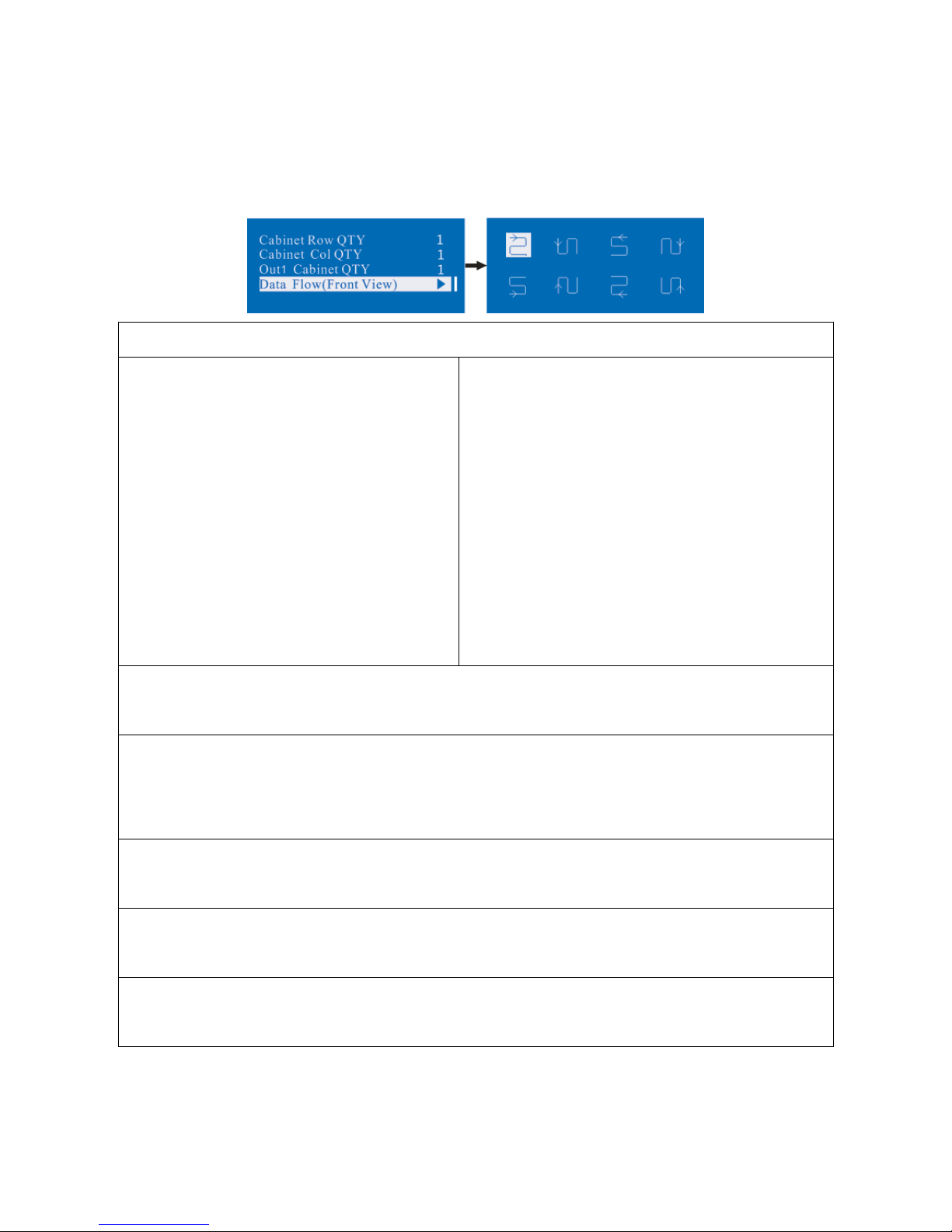

8.2 STEP 2: SCREEN SETTING ...................................................................................................................................................................... 12

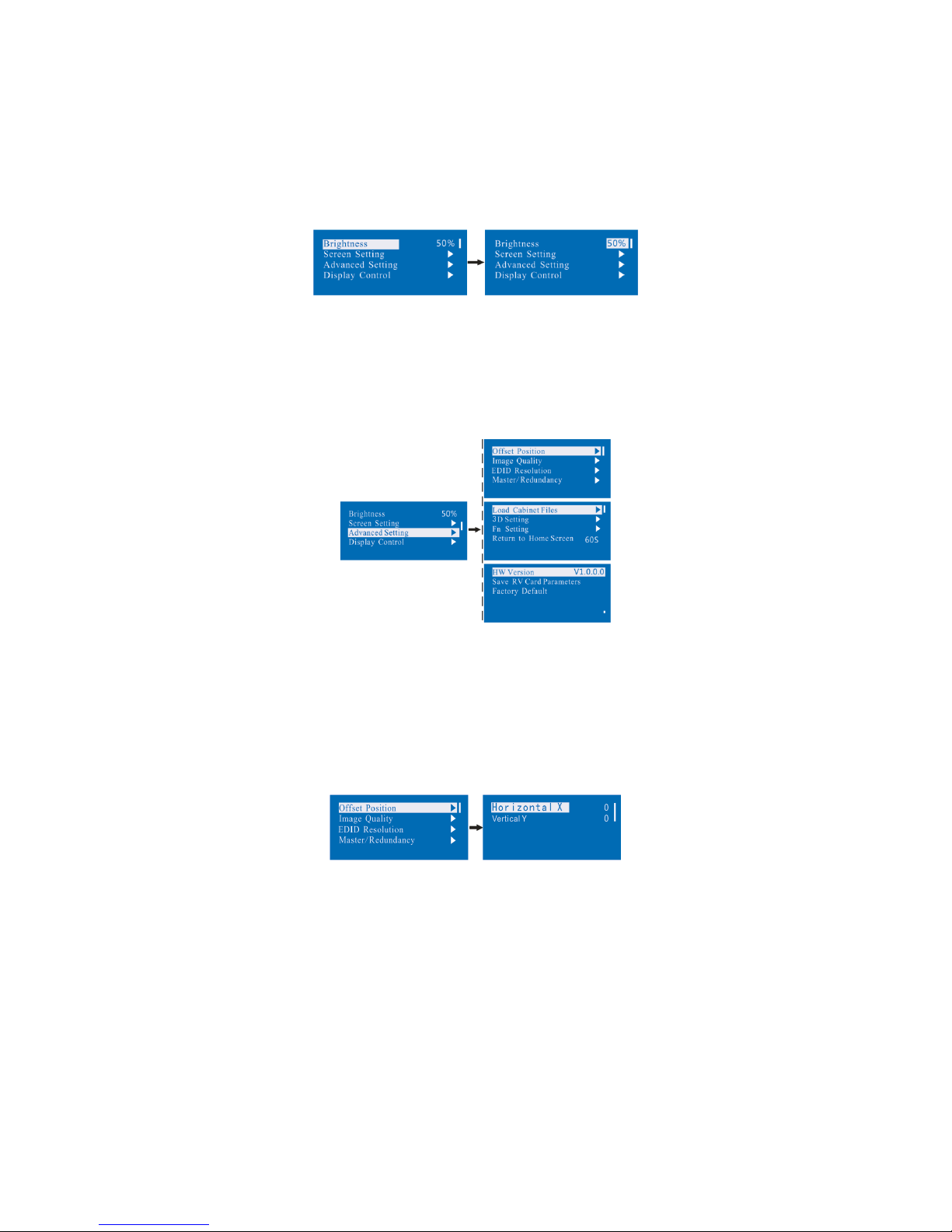

8.3 STEP 3: BRIGHTNESS ............................................................................................................................................................................ 14
8.4 ADVANCED SETTING ............................................................................................................................................................................. 14
8.4.1 Offset Position ............................................................................................................................................................................ 14

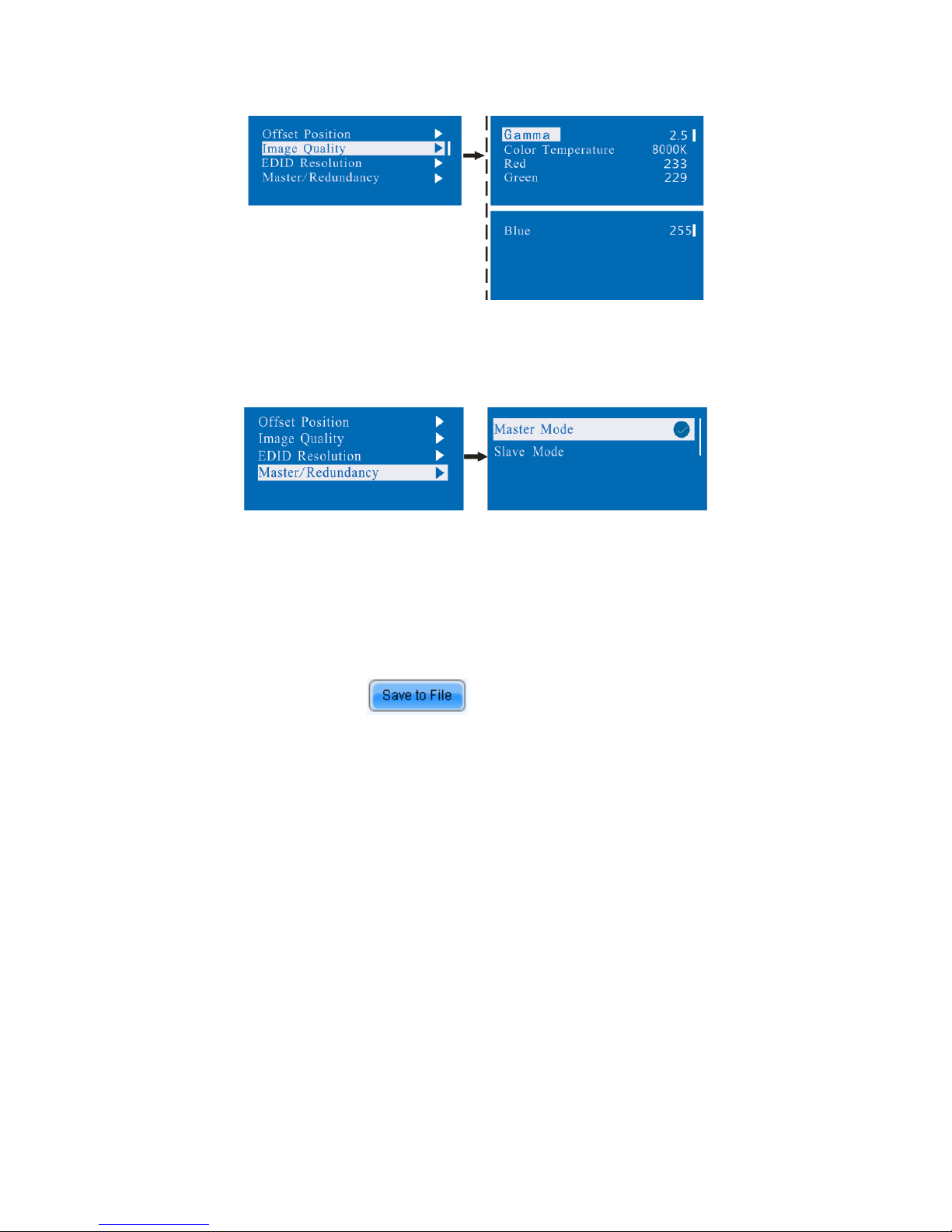

8.4.2 Image Quality ............................................................................................................................................................................ 14
8.4.3 Master/Redundancy ................................................................................................................................................................. 15

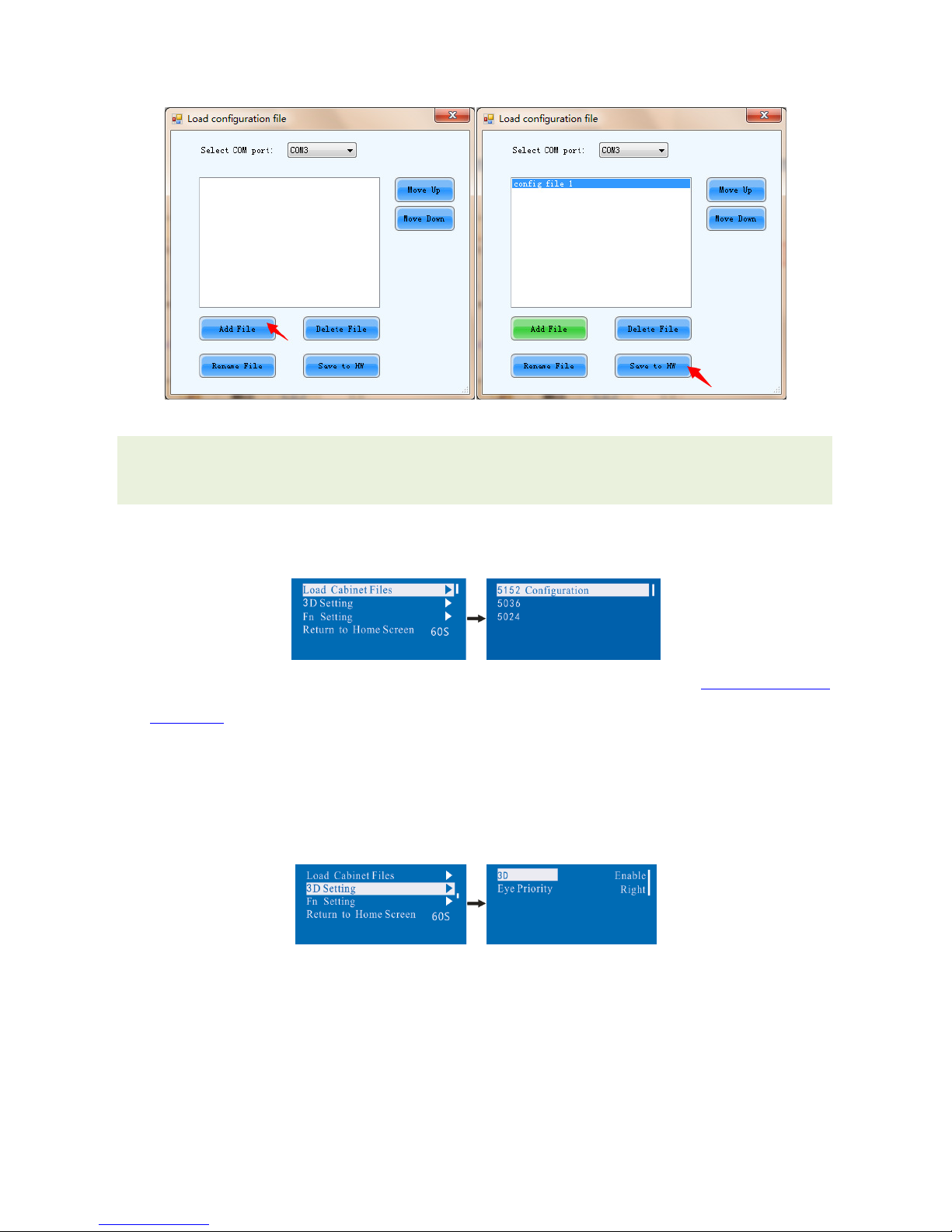

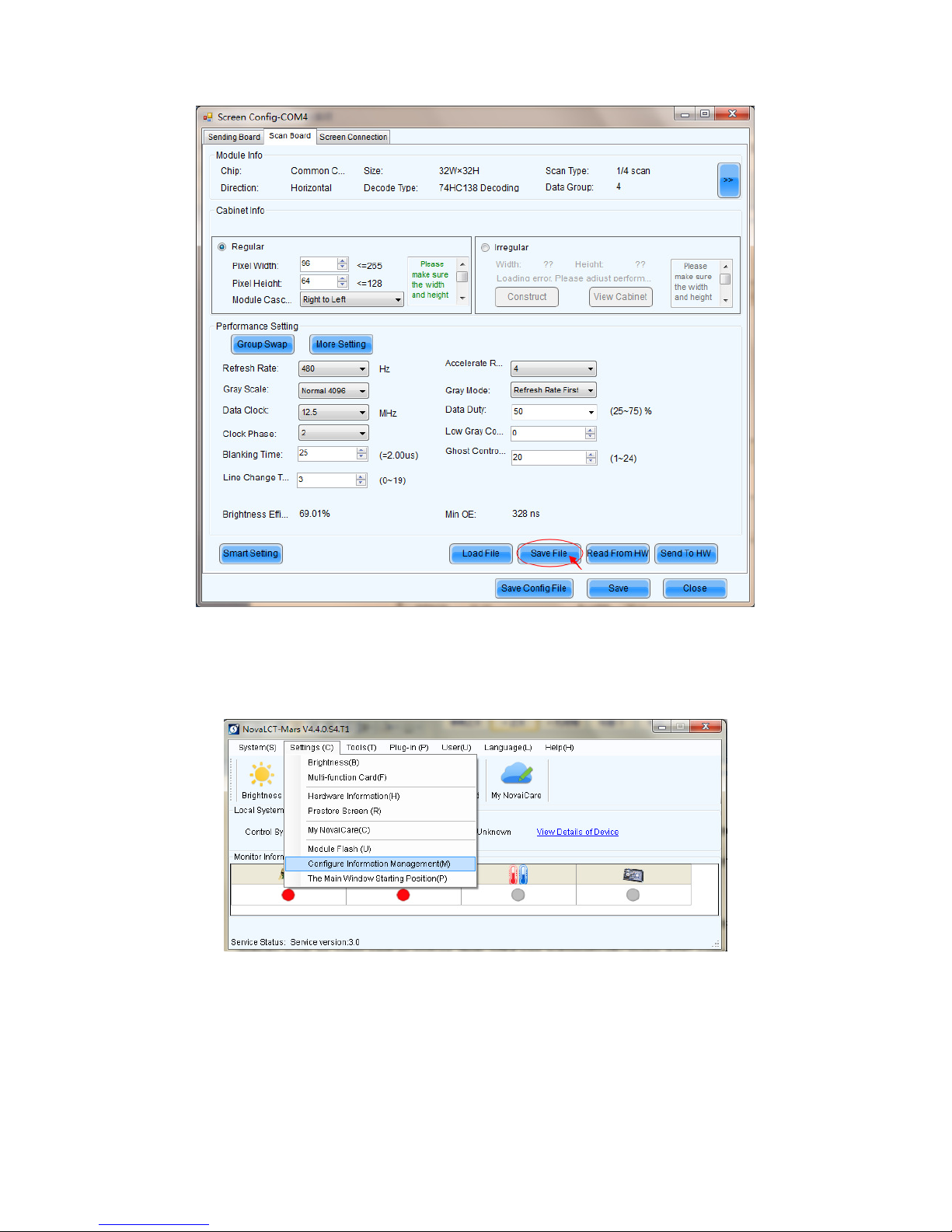

8.4.4 Loading the configuration file of cabinet ................................................................................................................................. 15
8.4.5 3D Setting ................................................................................................................................................................................... 17

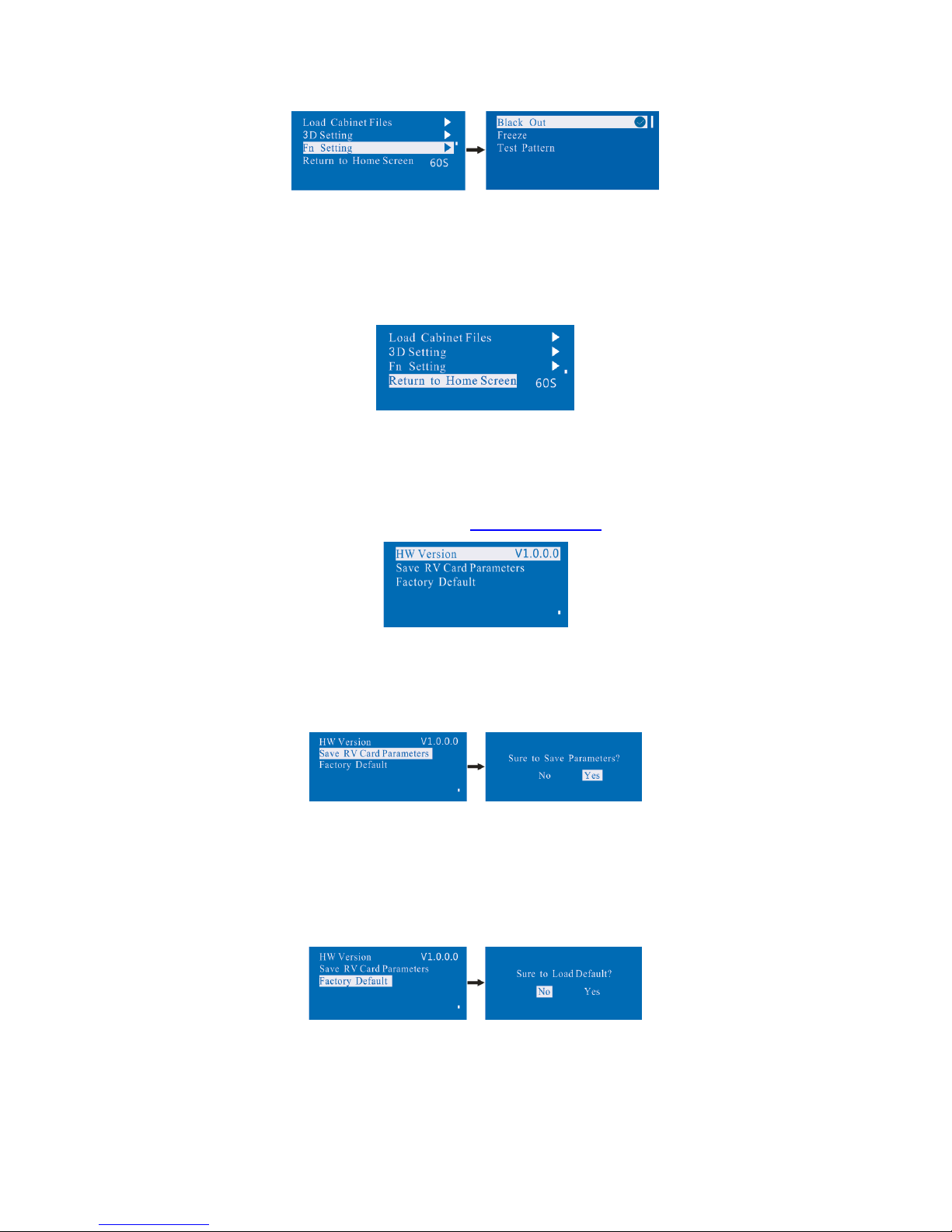

8.4.6 Fn Setting ................................................................................................................................................................................... 17
8.4.7 Return to home screen .............................................................................................................................................................. 18
8.4.8 Hardware version ...................................................................................................................................................................... 18
8.4.9 Save RV Card Parameters ......................................................................................................................................................... 18
8.4.10 Factory default ...................................................................................................................................................................... 18
User Manual of 3D Video Controller
www.novastar-led.cn 5

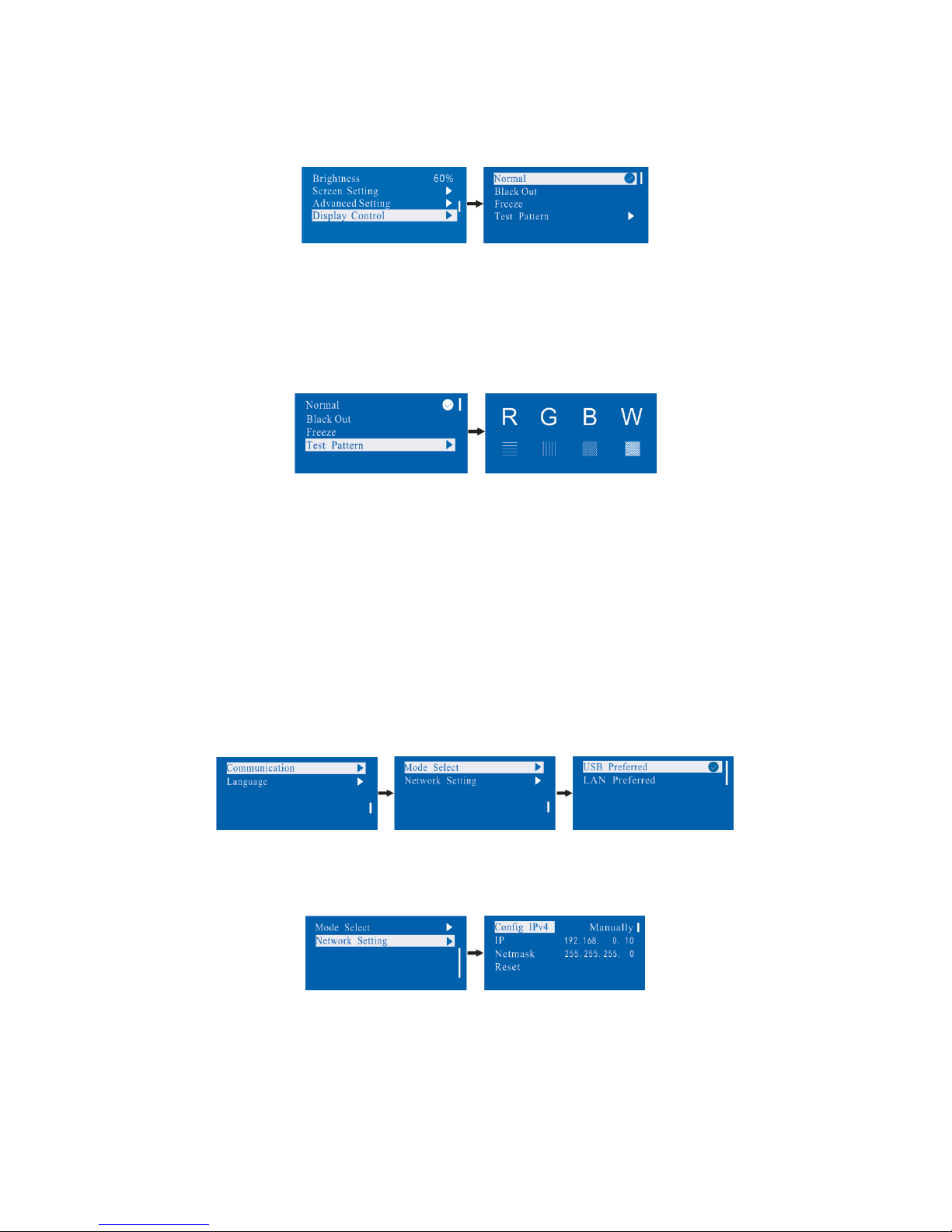

8.5 DISPLAY CONTROL ............................................................................................................................................................................... 19
8.6 COMMUNICATION SETTING ................................................................................................................................................................... 19

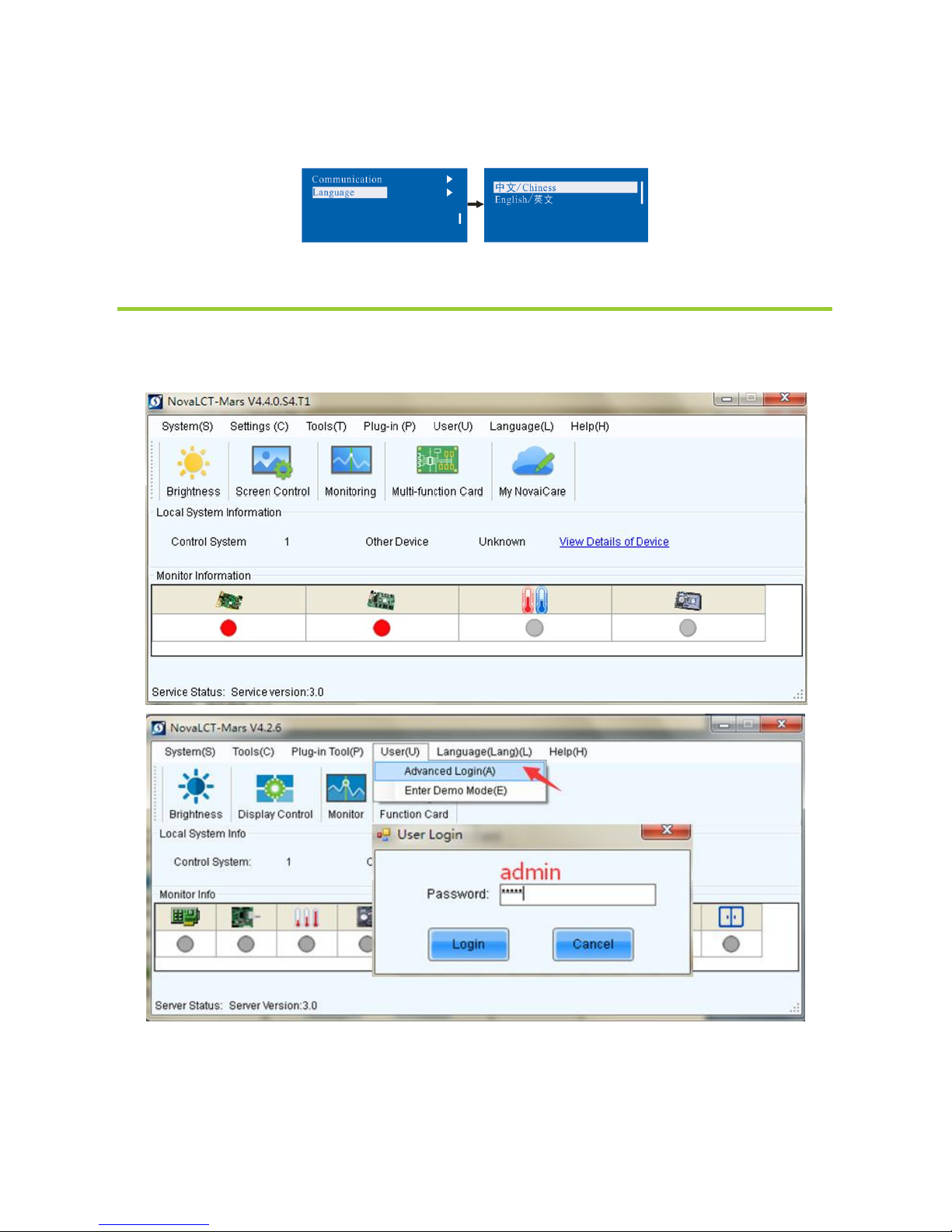

8.7 LANGUAGE SETTING ............................................................................................................................................................................. 20

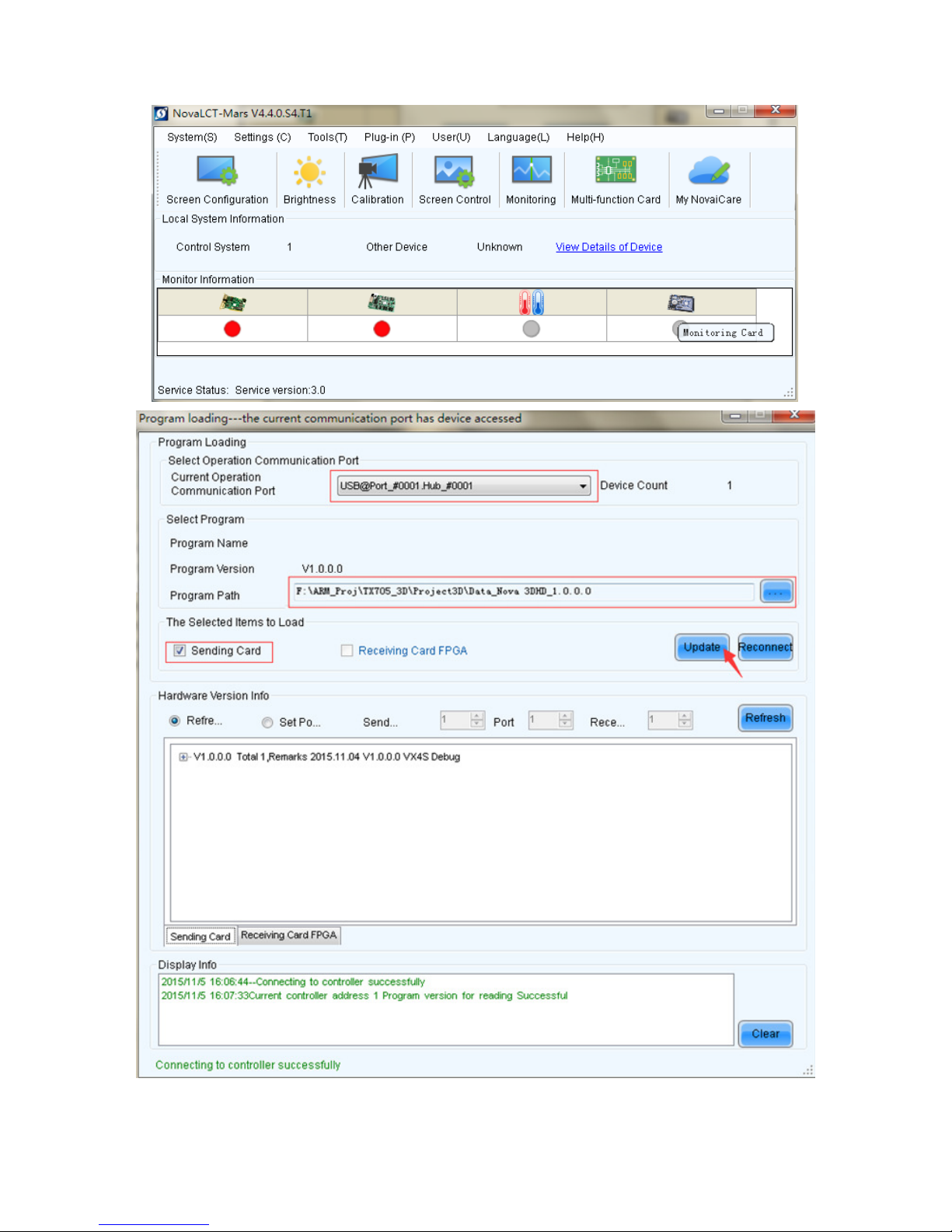

9. FIRMWARE UPDATE ...................................................................................................................................................................... 20
10. FREQUENTLY ASKED QUESTIONS AND CONSIDERATIONS .......................................................................................................... 22
11. TECHNOLOGY SPECIFICATION ....................................................................................................................................................... 23

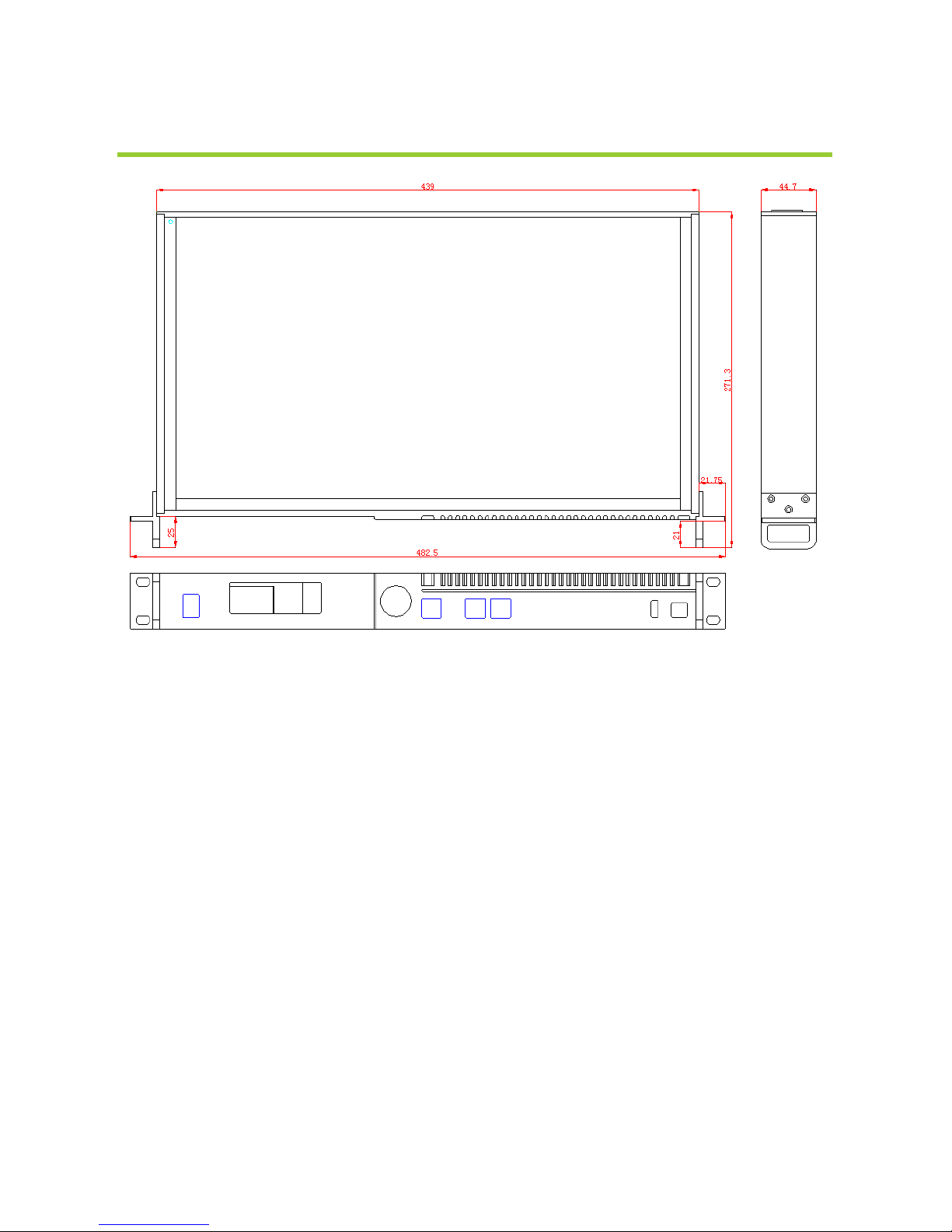

12. INSTALLATION DIMENSION ........................................................................................................................................................... 24
User Manual of 3D Video Controller
www.novastar-led.cn 6
1. Safety statement
To avoid potential hazards, please use this equipment according to the regulations. In case of damages,
non-professionals should not open for maintenance without permission; please contact the after-sales department
of the company.
High risk: The operating voltage of this product is 100-240V AC.
Grounding: This production is connected to ground via the ground wire of power supply; please
ensure the good grounding of grounding conductor.
Electromagnetic interference: The device should be far away from magnets, motors and
transformers.
Moisture proof: Keep the equipment in a dry and clean environment. In case of liquid immersion,
please pull the plug immediately.
Away from flammable and dangerous goods.
Prevent liquids or metal fragments from being immersed in the machine to avoid safety
accidents.
2. Accessories
1
One power wire
3
One User's Manual
2
One DVI wire
4
One certificate
3. Overview
Nova 3D HD, developed by Nova, is an independent master supporting 3D video source. It can be used without
computer and is equipped with screen at any time; the display brightness can be manually adjusted for
convenience; 3D video can be output when 3D HD is connected to ordinary receiving card, which can generate an
amazing visual effect. A single 3D HD controller supports the output of 1080P FHD 3D signal and cascade multiple
3D HD controllers can load 4K * 2K giant screen, which can bring a very stunning visual experience.
User Manual of 3D Video Controller
www.novastar-led.cn 7
Product feature:
1) It adopts the output of standard 3D video;
2) It adopts an innovative architecture to implement smart configuration; the screen debugging can be
completed within 30 seconds
3) It adopts the Nova G4 engine; the screen is stable and flicker free without scanning lines; the images are
exquisite and have a good sense of depth
4) Support Single/Dual-link DVI , HDMI 1.4 specification;
5) HDMI audio input/external audio input;
6) The looping out of Dual-link DVI LOOP can realize synchronized monitoring;
7) Loading capacity: 2560x1600@60Hz, 3840x1080p@60Hz, 1080p@120Hz，4Kx2K@30Hz
8) The switch between 3D and 2D can be realized with one button;
9) It can be used without computer and is equipped with screen at any time;
10) The display brightness can be manually adjusted for convenience;
11) It supports new point by point correction technology of Nova; therefore, the correct ion is quick and efficient;
12) Deep color; multi-resolution; 16bit image processing; 1 billion kinds of color performance; all resolution within
4K*2K@30HZ is supported;
13) Formats all single-link DVI digital formats up to 165Mhz, Dual-link DVI formats up to 330Mhz;
14) It supports serial interface, USB and standard Ethernet communication; uniform control can be conducted for
multi-computer cascade.
4. Appearance
4.1 Front panel
⁑Power switch.
⁒Operation screen;
User Manual of 3D Video Controller
www.novastar-led.cn 8
⁓Knob: press knob for entry; rotate knob for selection or adjustment;
⁔Return key: exit current operation or option;
⁕Video Source switch; the key is bright after press when the video source has signal; the key flashes when
the input of video source has no signal.
⁖3D/2D switch: if the key is bright, it indicates that 3D model has been enabled; otherwise, 2 D model has
been enabled;
⁗Custom shortcut key.
⁘~⁙USB control interface: the square mouth (B-type USB main interface) is used for cascade input; the flat
mouth (A-type USB main interface) is used for cascade output.
4.2 Rear panel
Tips: In order to improve the user’s experience, the layout of interface may be adjusted a little, The picture is only
for reference.
Input source
AUDIO
Audio input interface
HDMI
HDMI input interface
DVI IN
DVI input interface
Output interface
DVI LOOP
DVI loop output
LED OUT1~8
8-channel LED outputs
Control interface
RS232 IN、OUT
Serial Control (Cascade IN, OUT)
Ethernet
Network Control (Communication with PC, or Access Network)
USB IN、OUT
USB Control (Cascade IN, OUT)
Power
AC-100-240V-50/60HZ
AC power interface
