2 Overview
www.novastar.tech
2
2 Overview
The MCTRL660 PRO is a professional controller developed by NovaStar. A single
MCTRL660 PRO has a loading capacity of up to 1920×1200@60Hz. It allows users
to customize resolutions to configure ultra-large screens with ultra-width or ultraheight.
The MCTRL660 PRO has various video connectors:
Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI
Output connectors: 6 × Gigabit Ethernet ports, 2 × 10G optical ports
Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI
LOOP
The MCTRL660 PRO has many industry-leading advanced technologies:
Input of ultra-high color depths, such as 10-bit/12-bit 4:4:4, with input resolutions
up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times
compared to 8-bit inputs, and presenting images with rich and delicate colors,
smoother transitions, as well as clearer details
Individual Gamma adjustment for RGB, effectively controlling image nonuniformity under low grayscale and white balance offset to improve image quality
A low latency of less than 1 frame (≤ 10 lines)
Dual working modes: working as sending card and fiber converter
One-click backup and recovery, quickly recovering previous screen
configurations to deal with sudden on-site failure.

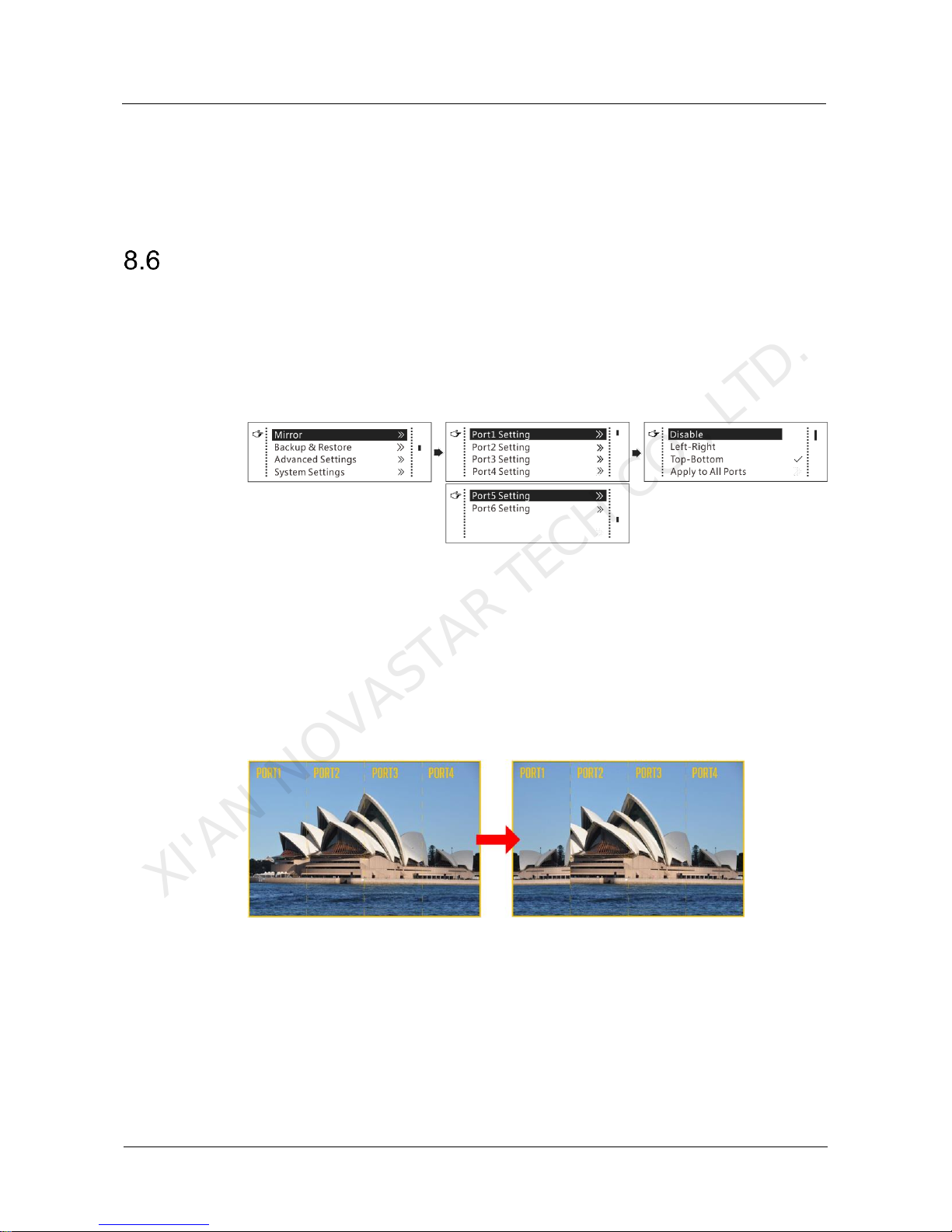

Image mirroring, allowing for more cool and dazzling stage effects
The MCTRL660 PRO is mainly used for the rental and fixed fields, such as concerts,
live events, security monitoring centers, Olympic Games and various sports centers.
XI'AN NOVASTAR TECH CO., LTD.
MCTRL660 PRO Independent Controller
User Manual
3 Features
www.novastar.tech
3
3 Features
Features
Supports inputs of 10-bit/12-bit 4:4:4 ultra-high color depths and resolutions up
to 1920×1080@60Hz.
A low latency of less than 1 frame (≤ 10 lines)
Auto LED screen configuration
Web control
Image mirror
Dual working modes: working as sending card and fiber converter
Pixel level brightness and chroma calibration
Independent Gamma adjustment of RGB (Only the A8s receiving card supports
this function)
Monitoring of inputs
One-click backup and recovery
Multiple MCTRL660 PRO units can be cascaded.
Video Source Features
Input Connector
Features
Color Depth
Sampling Format
Resolution
HDMI 1.4a
8-bit
RGB 4:4:4
YCbCr 4:4:4
YCbCr 4:2:2
YCbCr 4:2:0
Maximum input resolution supported by standard
program: 1920×1200@60Hz.
10-bit/12-bit
Maximum input resolution supported by standard
program: 1920×960@60Hz.
Maximum input resolution supported by
customized sending card and receiving card
programs: 1920×1080@60Hz.
Note: Customized program supports only A8s
receiving card.
Single-link DVI
8-bit
Maximum input resolution supported by standard
XI'AN NOVASTAR TECH CO., LTD.
MCTRL660 PRO Independent Controller
User Manual
3 Features
www.novastar.tech
4
program:1920×1200@60Hz.
10-bit/12-bit
Maximum input resolution supported by standard
program: 1920×960@60Hz.
Maximum input resolution supported by
customized sending card and receiving card
programs: 1920×1080@60Hz.
Note: Customized program supports only A8s
receiving card.
3G-SDI
Maximum supported input resolution:1920×1080@60Hz
Note: Do not support setting the resolutions for 3G-SDI input sources.
XI'AN NOVASTAR TECH CO., LTD.
MCTRL660 PRO Independent Controller
User Manual
4 Applications
www.novastar.tech
5
4 Applications
The MCTRL660 PRO can work as a sending card or fiber converter, meeting multiple
application needs.
Scenario 1: Application of Sending Card Mode
On the OLED menu screen, choose Working Mode > Sending Card. This mode
uses the optical ports or Gigabit Ethernet ports to output video signals.
Figure 4-1 Application of sending card mode
Scenario 2: Application of Fiber Converter Mode
Set the working mode for the two devices respectively, as shown in Figure 4-2.
Device 2 uses the optical ports (for input/output) and Gigabit Ethernet ports (for
output/input) to realize optical and electric signal conversion, which allows for longdistance signal transmission.
XI'AN NOVASTAR TECH CO., LTD.
MCTRL660 PRO Independent Controller
User Manual
4 Applications
www.novastar.tech
6
Figure 4-2 Application of fiber converter mode
Scenario 3: Application of Dual-Output Working Mode
Set the working mode for the two devices respectively, as shown in Figure 4-3.
Device 1 uses the optical ports and Gigabit Ethernet ports to output video signals at
the same time.
Figure 4-3 Application of dual-output working mode
XI'AN NOVASTAR TECH CO., LTD.
MCTRL660 PRO Independent Controller
User Manual
5 Cascading Devices
www.novastar.tech
7
5 Cascading Devices
The control computer needs to control multiple MCTRL660 PRO devices.
Cascade devices via USB IN and USB OUT ports of the MCTRL660 PRO
devices. Up to 8 devices can be cascaded.
Multiple MCTRL660 PRO devices need to be genlocked.
Cascade devices via GENLOCK IN and GENLOCK LOOP connectors of the
MCTRL660 PRO devices. Up to 8 devices can be cascaded.
XI'AN NOVASTAR TECH CO., LTD.
Loading...
