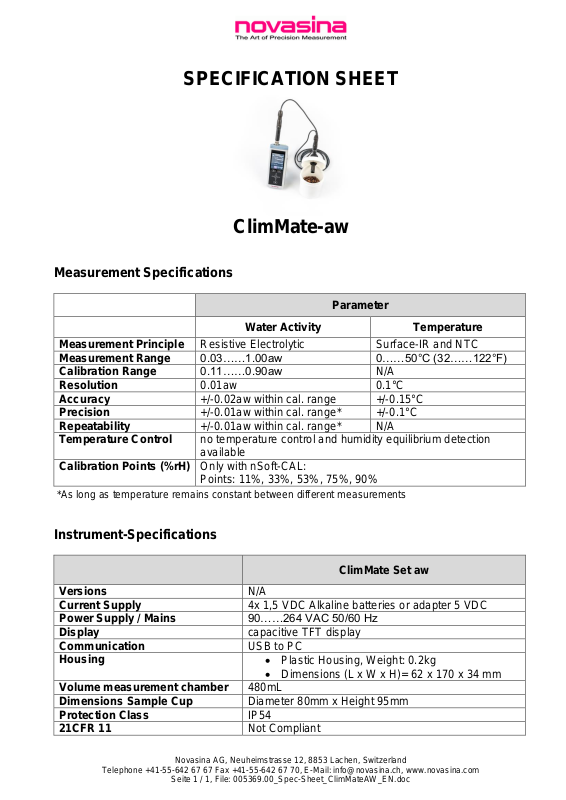

Novasina ClimMate-aw Data Sheet

SPECIFICATION SHEET

Parameter

Water Activity

Temperature

Measurement Principle

Resistive Electrolytic

Surface-IR and NTC

Measurement Range

0.03……1.00aw

0……50°C (32……122°F)

Calibration Range

0.11……0.90aw

N/A

Resolution

0.01aw

0.1°C

Accuracy

+/-0.02aw within cal. range

+/-0.15°C

Precision

+/-0.01aw within cal. range*

+/-0.1°C

Repeatability

+/-0.01aw within cal. range*

N/A

Temperature Control

no temperature control and humidity equilibrium detection
available

Calibration Points (%rH)

Only with nSoft-CAL:
Points: 11%, 33%, 53%, 75%, 90%

ClimMate Set aw

Versions

N/A

Current Supply

4x 1,5 VDC Alkaline batteries or adapter 5 VDC

Power Supply / Mains

90……264 VAC 50/60 Hz

Display

capacitive TFT display

Communication

USB to PC

Housing

 Plastic Housing, Weight: 0.2kg
 Dimensions (L x W x H)= 62 x 170 x 34 mm

Volume measurement chamber

480mL

Dimensions Sample Cup

Diameter 80mm x Height 95mm

Protection Class

IP54

21CFR 11

Not Compliant

Measurement Specifications

ClimMate-aw

*As long as temperature remains constant between different measurements

Instrument-Specifications

Novasina AG, Neuheimstrasse 12, 8853 Lachen, Switzerland

Telephone [phone] Fax [phone], E-Mail: [e-mail], www.novasina.com

Seite 1 / 1, File: 005369.00_Spec-Sheet_ClimMateAW_EN.doc
