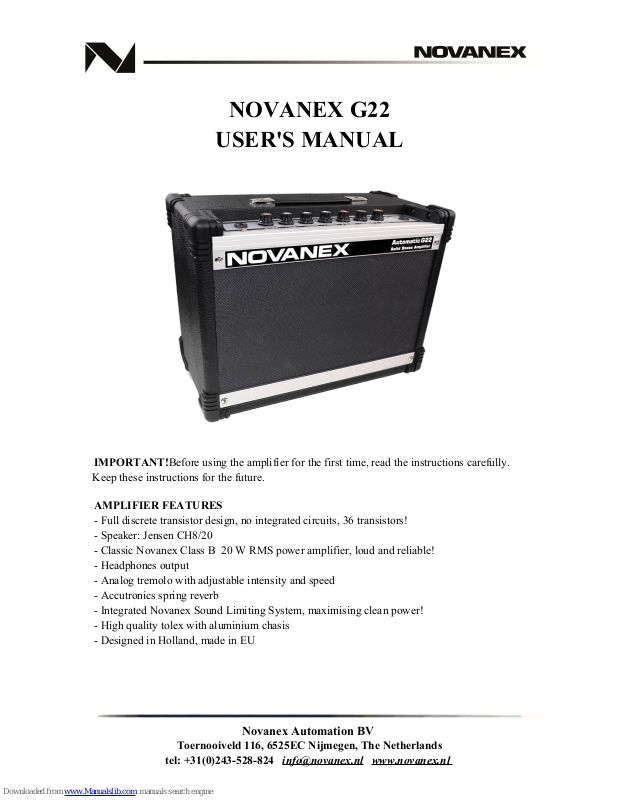

NOVANEX G22
USER'S MANUAL
IMPORTANT!Before using the amplifier for the first time, read the instructions carefully.
Keep these instructions for the future.
AMPLIFIER FEATURES
- Full discrete transistor design, no integrated circuits, 36 transistors!
- Speaker: Jensen CH8/20
- Classic Novanex Class B 20 W RMS power amplifier, loud and reliable!
- Headphones output
- Analog tremolo with adjustable intensity and speed
- Accutronics spring reverb
- Integrated Novanex Sound Limiting System, maximising clean power!
- High quality tolex with aluminium chasis
- Designed in Holland, made in EU
Novanex Automation BV
Toernooiveld 116, 6525EC Nijmegen, The Netherlands
tel: +31(0)243-528-824 info@novanex.nl www.novanex.nl
SAFETY PRECAUTIONS
ATTENTION:
To reduce the risk of electrical shock, do not remove the back cover of the amplifier. Inside
parts can be repaired only by qualified service personnel.
WARNING:
To prevent the risk of electrical shock do not expose this appliance to moisture, rain or any
liquid.
This symbol is intended to alert the user to the presence of dangerous voltage and constitutes
a risk of electrical shock.
This symbol alerts the user to the presence of important operating and maintenance
instructions.
Be cautious while transporting the cabinet and do not put it in an unstable place.
ATTENTION
To avoid electrical shock never open the amplifier’s cover. In case of failure, refer servicing
to qualified personnel.
Do not use the amplifier in humid and dusty places.
Amplifier produces high volume levels. Staying in places of high volume levels could cause
permanent hearing loss.
Do not install the apparatus near any heat sources and do not cover the amplifier during usage.
Do not operate the amplifier through the unearthed mains socket.
Metal chassis can get heated intensively, do not touch it or it could cause burning.
Do not leave the apparatus in the vicinity of children.
Before changing the fuse, switch the amplifier off and unplug the cord. Also, make sure you
use the fuse of the proper rate.
Extremely loud sound level at headphones may damage hearing. It may cause damage of
headphones too. Keep Volume control down during using headphones.
Novanex Automation BV
Toernooiveld 116, 6525EC Nijmegen, The Netherlands
tel: +31(0)243-528-824 info@novanex.nl www.novanex.nl

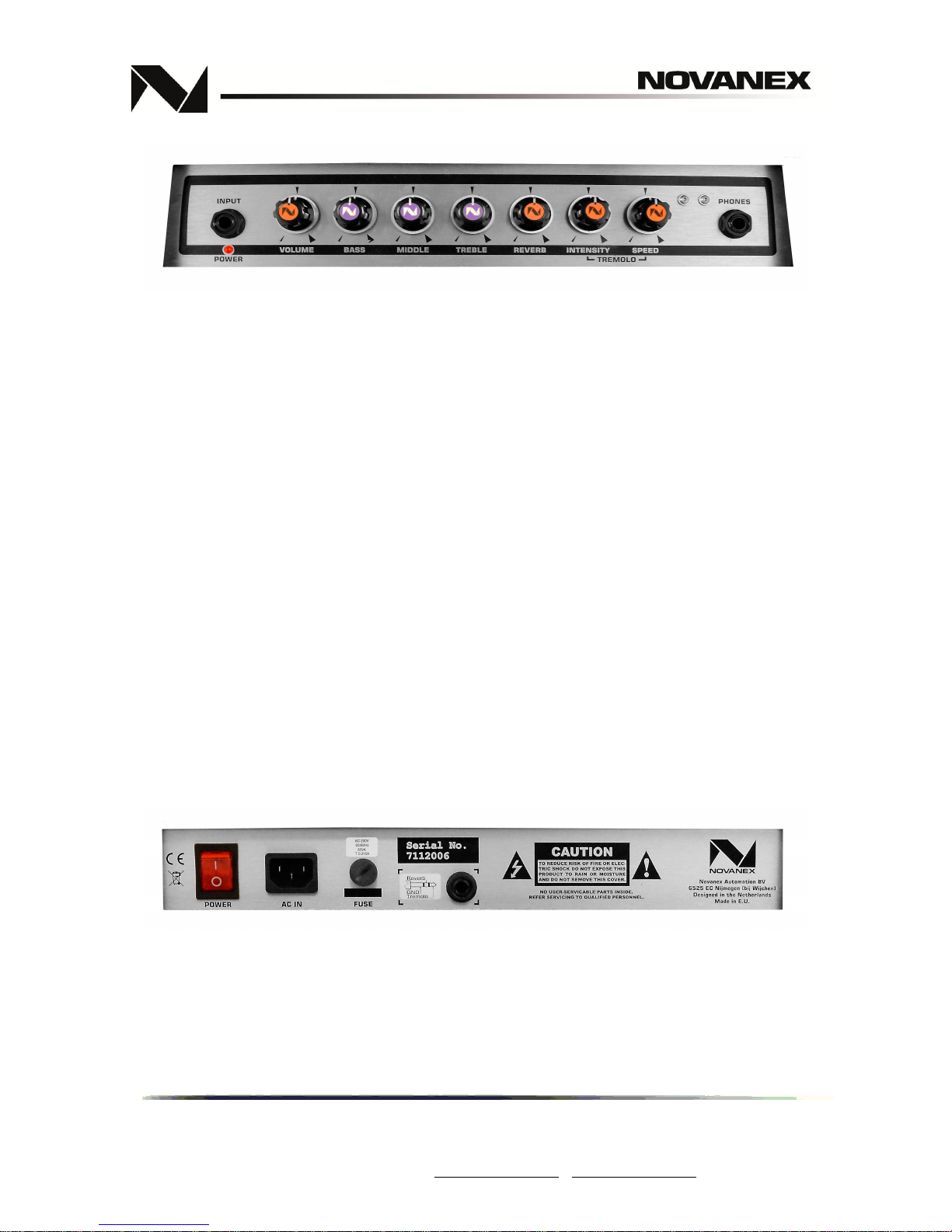

Input
Input jack socket (TRS 6,3” jack) to connect the guitar to the amplifier
Volume
Adjusts the overall volume, up to level limited by Novanex Sound Limiting System
Bass
Adjusts the low-frequency part of the signal, responsible for warmth and low-end depth
Middle
Adjusts the mid-frequency part of the signal, varying the amount of body in sound
Treble
Adjusts the high-frequency part of the signal, making it bright or soft
Reverb
Adjusts the volume of reverb
Intensity
Adjust the intensity of tremolo
Speed
Adjust the frequency of tremolo
Phones
Output jack socket (TRS 6,3” jack) to connect headphones to the amplifier, muting the
speaker. Attention! Always turn the Volume knob down before connecting headphones. Then
adjust it to required volume.
Back panel (from left to right)
Power switch
Switch the amplifier off before any cable change, except guitar and footswitch cables.
AC IN
Plug power cable here.
Novanex Automation BV
Toernooiveld 116, 6525EC Nijmegen, The Netherlands
tel: +31(0)243-528-824 info@novanex.nl www.novanex.nl
Fuse
315mA Anti-surge
Before you change the fuse, always unplug the amplifier from the power outlet!
Always change the fuse for one of the same value!
Footswitch jack
TRS 6,3” jack - tip for tremolo control, ring for reverb
Inserting a plug into this socket allows the user to switch the reverb and tremolo on/off.
TECHNICAL HINTS, PROPER USAGE
Switch the amplifier off before any cable change, except guitar and footswitch cables.
In order to ensure proper air circulation, do not block back side of the amplifier or any of the
ventilation openings.
In case of any objects or liquid access inside the amplifier, urgently switch the apparatus off
and unplug the power supply cord.
Protect the amplifier from any strikes.
Always use a dry or slightly wet cloth to wipe all dust. Never use solvents to clean.
During storms, or when left unused for a long period of time, power supply cord should be
unplugged from the outlet.
Turn the Volume down before using headphones. Then connect headphones and adjust to
proper volume.
Crossed-out wheeled bin symbol implies that in EU countries, after use, product must be discarded separately
in a special, adjusted place. It concerns both the apparatus itself as well as other accessories bearing this
symbol. Do not discard such products together with unsorted communal wastes. In EU countries there are
special systems of collecting used electrical products. Transporting used, electrical products in certain,
adjusted places, prevents their being harmful to the environment and people’s health.
Main specifications: Novanex G22
Rated Output Power: 20 W RMS
Nominal Input Level: -10 dBu/1 MΩ
Connectors: INPUT Jack, PHONES Jack, FOOTSWITCH Jack
Power consumption: 30 W
Speaker: Jensen CH8/20
Power Supply: AC 230 V
Dimensions: 415x340x210 mm
Weight: 7,5 kg
Accessories: User's Manual, Power Cable
Novanex Automation BV
Toernooiveld 116, 6525EC Nijmegen, The Netherlands
tel: +31(0)243-528-824 info@novanex.nl www.novanex.nl
