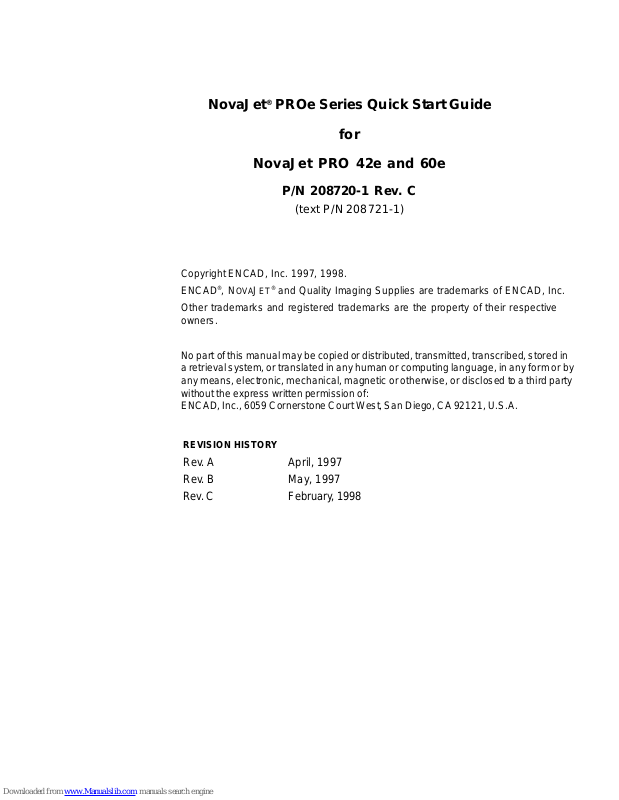

Page 1
NovaJet® PROe Series Quick Start Guide
for
NovaJet PRO 42e and 60e
P/N 208720-1 Rev. C
(text P/N 208721-1)
INTRODUCTION
Copyright ENCAD, Inc. 1997, 1998.
ENCAD
®
, NOVAJET® and Quality Imaging Supplies are trademarks of ENCAD, Inc.
Other trademarks and registered trademarks are the property of their respective
owners.
No part of this manual may be copied or distributed, transmitted, transcribed, stored in
a retrieval system, or translated in any human or computing language, in any form or by
any means, electronic, mechanical, magnetic or otherwise, or disclosed to a third party
without the express written permission of:
ENCAD, Inc., 6059 Cornerstone Court West, San Diego, CA 92121, U.S.A.
REVISION HISTORY
Rev. A April, 1997
Rev. B May, 1997
Re v. C February , 1998
Page 2
NovaJet PROe Series
2 Quick Start
Contents
Unpacking your NovaJet PROe Series.....................................................3
Loading drivers..........................................................................................7
Using the control panel .............................................................................9
Choosing menu functions .......................................................................10
Setting the language............................................................................... 10
Loading media ....................................................................................... 10
Moving the carriage ............................................................................... 12
Installing the cutter .................................................................................12
Priming the ink delivery lines..................................................................15
Priming the ink cartridges ...................................................................... 18

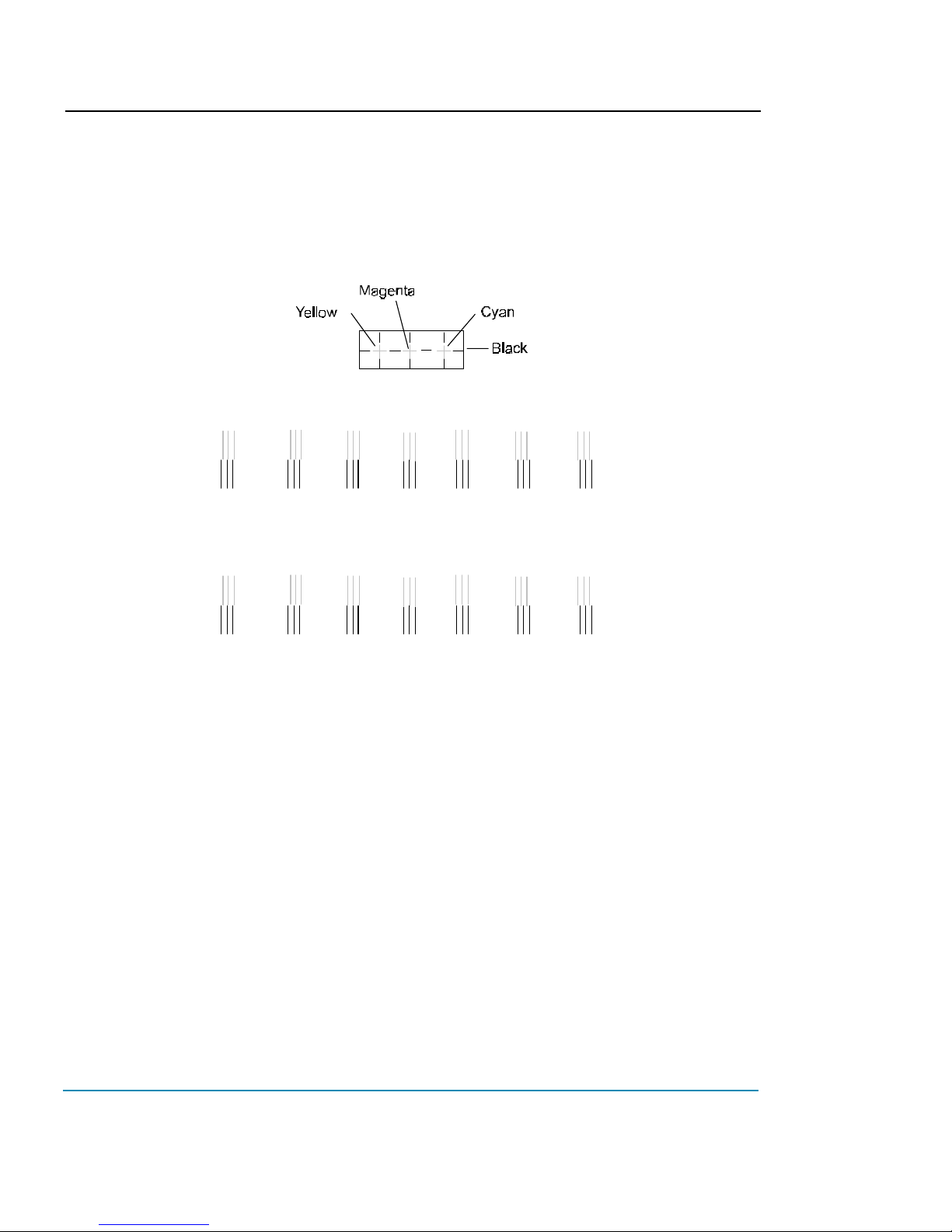

Aligning the ink cartridges...................................................................... 19
Cartridge recognition ............................................................................. 20
Quality Imaging Supplies .................................................................... 22
Page 3
ENGLISH
NovaJet PROe Series
Quick Start 3
NovaJet PROe Series Quick Start
Congratulations on your purchase of a NovaJet PROe Series wide format color printer.
This guide gives you details on the following:
• unpacking and assembling the printer
• loading media
• filling ink reservoirs and PROe series ink cartridges
• installing PROe series ink cartridges
• installing the media cutter
• installing the driver software
• testing PROe series ink cartridges.
Unpacking your NovaJet PROe Series
NovaJet PROe Series printers are shipped in three boxes. The contents are listed in the
table below.
Box 1 Box 2 Box 3
Printer with four ink reservoirs.
Accessories box which includes
the following: Quick Start Guide,
Users Guide on CD-ROM, 4 ink
reservoirs, 8 cartridge tube
needles, screwdriver, stand
screws, loopback cable, 2 spare
PROe series ink cartridges and
warranty card.
Printer stand, with
integrated media
feeding/takeup
mechanism, dryer,
2” diameter media
cores and
NovaPrime.
4 PROe series ink
cartridges, power
cords, sample
media, 500 ml
bottles of each of
four ink colors
and installation
video.
Before starting assembly, you should verify that all the items on the lists are present. If
not, contact your sales representative or ENCAD.
The NovaJet PRO 60e is quite large. Two people (or a forklift) are recommended to
move the box. Before assembly, you may want to measure halls and elevators to
determine whether the unit should be assembled in the area where it will be used.
Page 4
NovaJet PROe Series
4 Quick Start
Assembling the stand and printer
1 Locate the box containing the printer head and turn it upside down. Open the
box and remove the Setup box which contains the screws and screwdriver to
use for the next steps.
2 Open the box containing the stand and remove the stand and feet from the
box.
3 Note that each foot has two casters, only one of which locks. Attach the feet
to the stand legs, locating the casters so that they are diagonally opposite
each other. Lock the casters to prevent the stand from rolling during subsequent assembly.

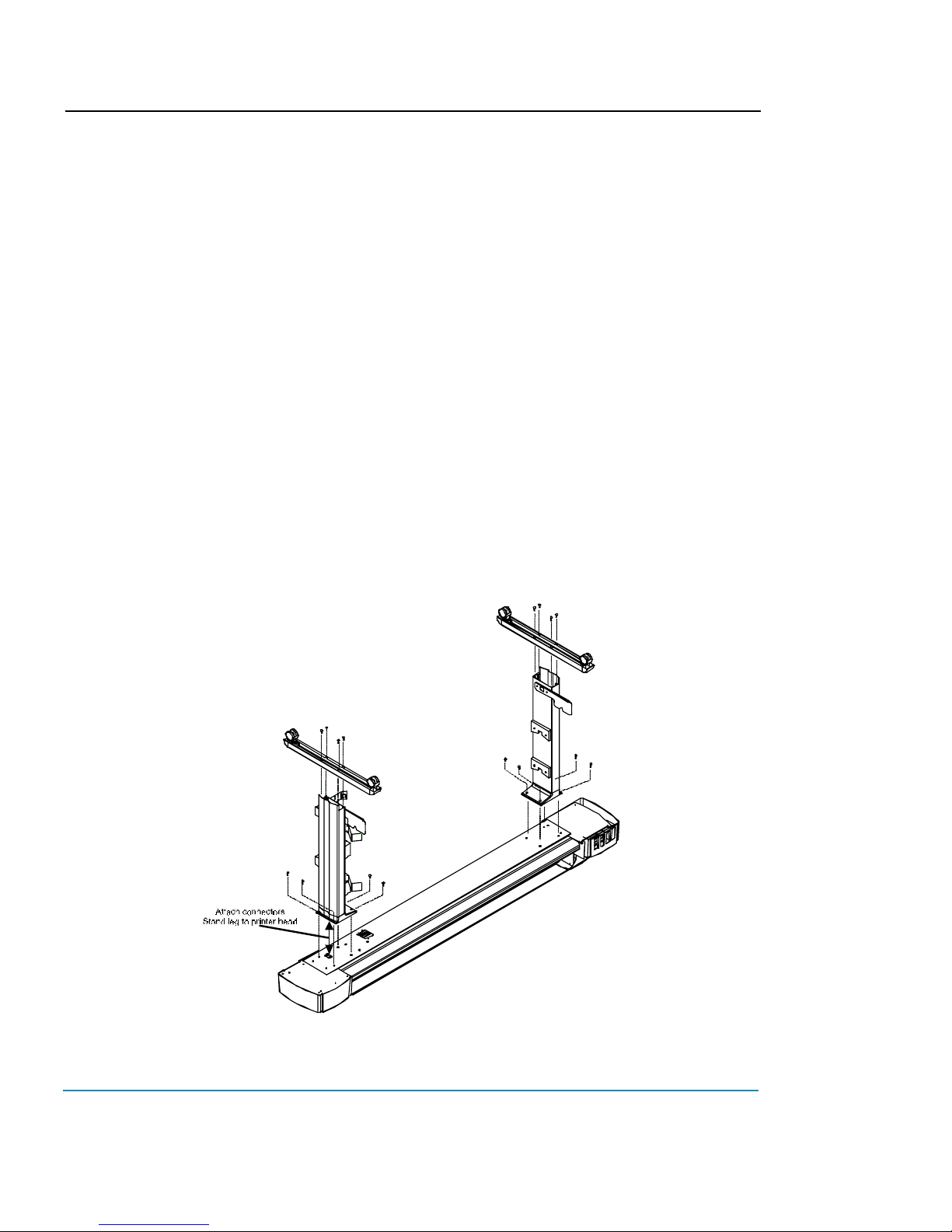

4 One of the stand legs has a connector on it. Pull the connector from the
access hole in the leg and remove the tiewrap holding the connector in
place. Attach the connector to the connector on the bottom of the print
head. Orient the stand legs so that the roller brackets are facing the center
of the printer head and align with the holes in the bottom of the printer head.
Attach both stand legs to the printer head using the screwdriver and eight
screws contained in the Setup box.
CAUTION: Be careful not to pinch the cable when attaching the leg.
5 Two persons are required to lift the printer. Remove the assembled printer
and stand from the box. Save the boxes and packing materials in case you
ever need to ship the printer.

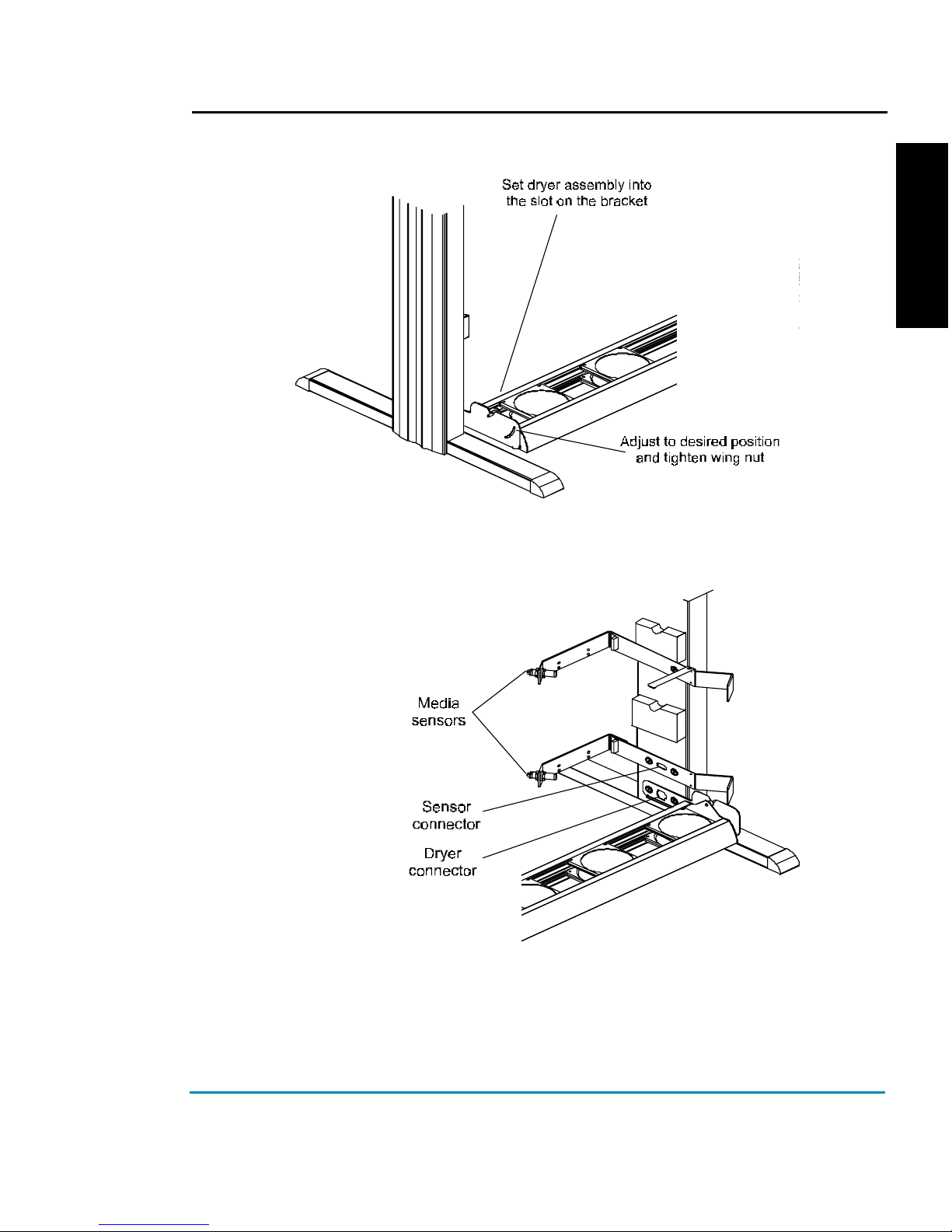

6 Mount the dryer assembly in the slots provided at the base of the stand. Be
sure fans will blow upward and toward the printer. Position the dryer assembly to the desired angle and tighten the wing nut on the left side.
Page 5
ENGLISH
NovaJet PROe Series
Quick Start 5
7 Plug the dryer connector into the receptacle on the right stand leg.
8 Check to be sure that the media sensor is plugged in to the connector on
the right stand leg. You can swing the sensor mounting bracket away from
the printer if necessary when loading media.
Page 6
NovaJet PROe Series
6 Quick Start

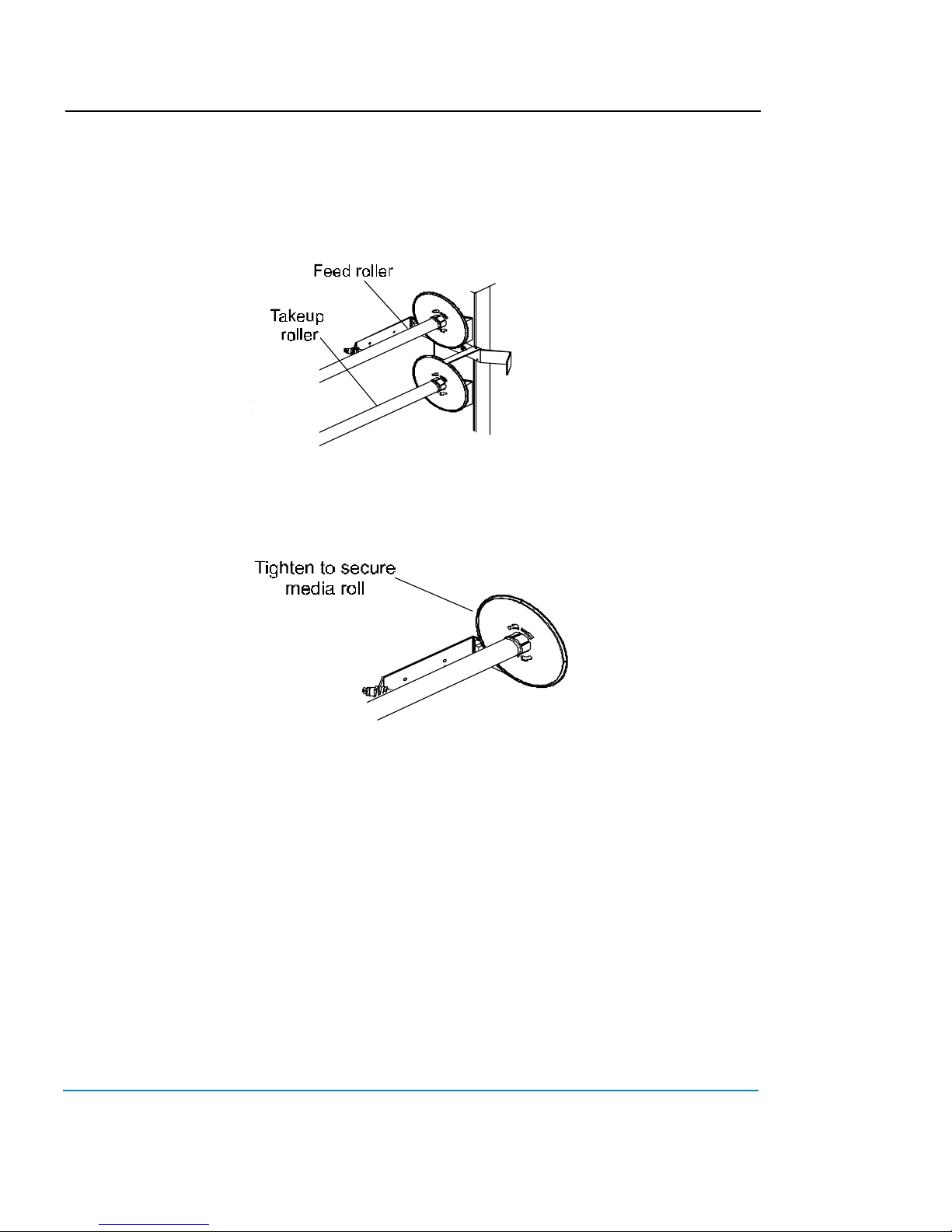

9 Slide the media roll over the media roller. If you will be using the takeup
roller, mount a media core on the takeup roller before inserting the roller in
the stand. Mount the two rollers as shown below. Insert the end of a roller
into the notch provided in the left roller support, then fit the other end of the
roller into the right support.
10 Slide the media guide into the media core, and secure it by tightening the
locking mechanism. If you moved the sensor mounting bracket before loading
the roll media, be sure to return it to its normal position.
Removing protective shipping material
Before turning on the printer, make sure to remove the protective material that secures
the PROe series ink cartridge carriage. Remove the protective film from the control
panel and remove the tape from the ink reservoir cover. Do not remove the foam on the
carriage.
Page 7
ENGLISH
NovaJet PROe Series
Quick Start 7

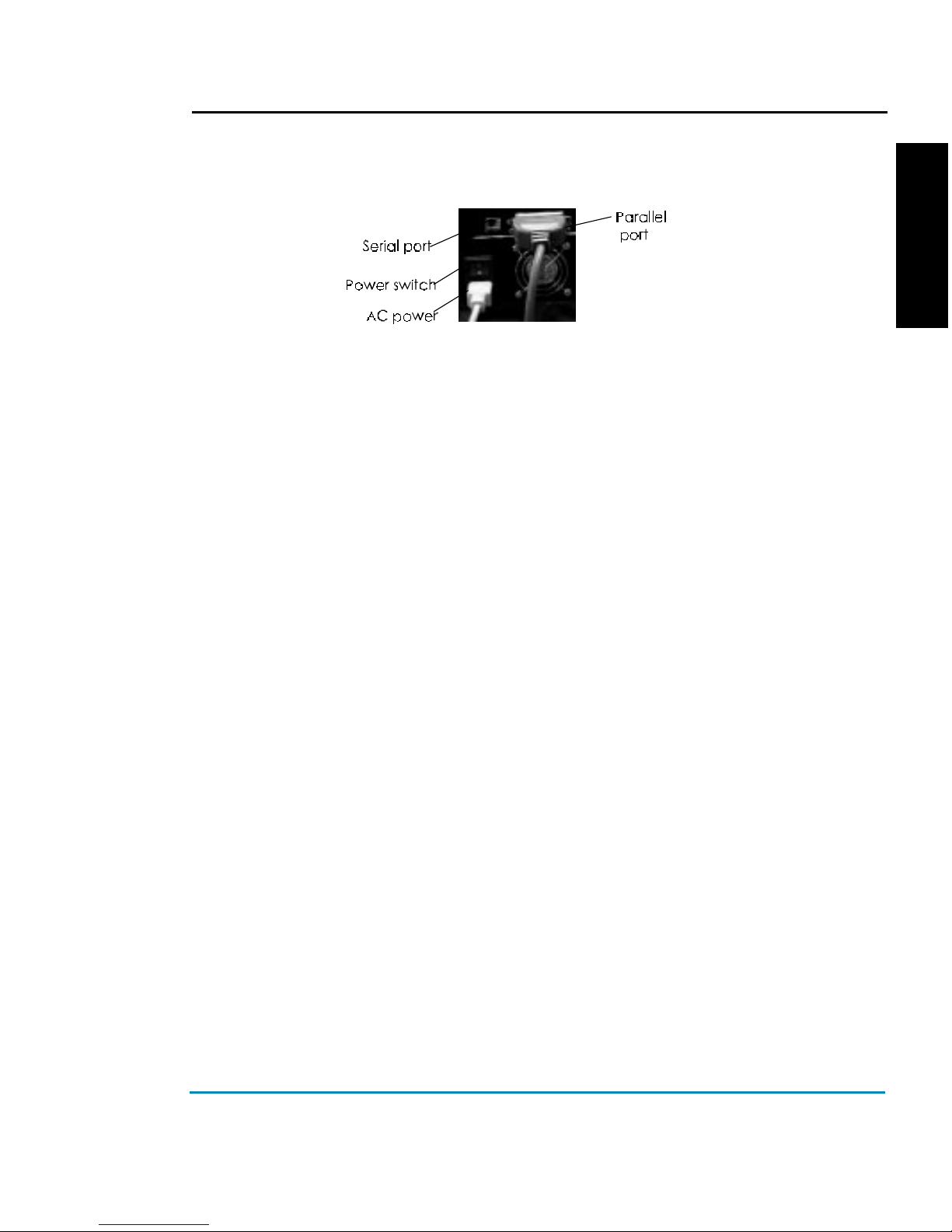

Connecting power and your computer
1 Plug the power cord into the power inlet at the rear of printer.
2 Plug the printer cable into the connector at the back of the printer.
3 To turn on the printer, press the power switch on the rear side of the printer.
The control panel will display the printer's model name, the firmware version,
status and progress of the power on self-test, and status and progress of the
RAM test.
Loading drivers
Before continuing, install the printer driver on your computer. The drivers are on the CDROM shipped with your printer. Be sure to view the Install.txt file. Details on using the
driver are included in the Docs folder on the CD-ROM.
System Requirements:
• Microsoft Windows 3.x, Windows 95, or W indows NT v4.0 or higher .
• Intel 80386 compatible computer or better
• 8 MB memory or better
• Minimum 8-10 MB free hard disk space for the application and 13-15 MB for each of
the color tables.
1 Insert the CD-ROM in your disk drive.
2 Open the Drivers folder.
3 Choose the appropriate folder for your computer.
For Windows installation:
1 Choose the folder for the version of Windows you are using: 3x, Windows
95, or Windows NT 4.0.
2 For Windows 3.x (3.1 / 3.11)
a From the 'Main' group select 'Control Panel' then 'Printers' then 'Add'.
b Select 'Have Disk' then type <cd drive>:\drivers\Windows\(language)\3x
then select 'Install'
OR
select 'Browse' then select the '3x' folder of <cd
drive>:\drivers\Windows\(language) and select OK.
Page 8
NovaJet PROe Series
8 Quick Start
c The installation program will prompt you with further instructions.
For Windows 95 installation:
1 Select Start/Settings/Printers then double-click the Add Printer icon.
2 When prompted, select 'Have Disk' then type <cd
drive>:\drivers\Windows\(language)\95 and select OK
OR
select 'Browse' then navigate to <cd drive>:\drivers\Windows\(language)\95
select 'OK'.
For Windows NT 4.0
1 Select Start/Settings/Printers then double-click the Add Printer icon.
2 When prompted select 'Have Disk' then type <cd
drive>:\drivers\(language)\NT40 and select OK
OR
select 'Browse' then navigate to <cd drive>:\drivers\Windows\(language)\
NT40 select 'OK'.
For Macintosh
System Requirements:
• PowerPC class Macintosh computer
• 4MB RAM min.
• 2MB hard disk space.
1 With the CD-ROM in the disk drive, navigate to Drivers\Macepu\(language)
and double-click the Install Print Utility icon.
2 Click Continue. Driver installation information displays. You may want to
print it at this time.
3 Click Continue and the program will prompt you with further instructions.
4 Select the port to which your printer is connected. If you are using a
FastPort print server, select AppleTalk for the port, then select FastPort in
the Chooser using one of the Laserwriter drivers.
If you are not using AppleTalk, you will need a standard ImageWriter cable
attached to either the printer or modem port. Attach the other end of the
cable to the RS-422 port on the printer. Refer to the instructions on the CD-
ROM for further details.
Page 9
ENGLISH
NovaJet PROe Series
Quick Start 9
Installing the Color Profiles
Note: color profiles are installed automatically for the Macintosh printer driver.
ENCAD Windows drivers use color management profiles to provide the best possible
color match between your original source file and your final printed output. These files,
while not required, are essential to providing the maximum efficiency and quality from
your ENCAD Windows drivers. These color profiles are located in the Color folder on the
CD-ROM shipped with your printer. It is highly recommended that you install these files
prior to printing with your new NOVAJET.
1 Insert the CD-ROM into the disk drive.
2 Navigate to Color\Windows\Disk1.
3 Double click setup.exe.
4 The color management files are installed in C:\Windows\System\Color and
have a file extension of .lnk.
Using the control panel
The control panel at the right side of the printer includes eight buttons and a display
which indicates modes and settings. An overview is provided here so that you can load
media and PROe series ink cartridges. Details on menu options are included in Chapters 2, 3, and 4 in the NovaJet PROe Series User's Guide. The menu tree in Appendix C
of the User's Guide gives you a summary of all the printer modes and their functions.
Two types of menus are displayed: action menus provide a list of additional menus or
immediate tasks to perform, such as Cut, Load Media, etc. Selection menus let you
view and modify values.
Page 10
NovaJet PROe Series
10 Quick Start
Choosing menu functions
To select a function, press the button adjacent the function displayed.
The display will list options available for the selected function. Press the button for the
option you want and press OK to accept the selection.
Depending on the type of menu, you can return to the previous menu level by pressing
the OK or Exit button. There is no way to immediately return to the top level menu.
Press the Cancel button to restore the previous setting and exit the menu.
Setting the language
Your printer can display menu items and messages in English, German, French, Italian,
Portuguese, Spanish, Japanese, Chinese, or Korean.
➪➪
➪➪
➪ To change the language
1 Press Setup, User Setup, Language, and select the language you want.
2 Press OK.
Loading media
You can use either roll media or cut sheets; the default is roll media. To ensure straight
paper loading and avoid skewing, be sure to hold the media parallel to the platen. Use
the load lines on the platen as a guide to correctly load media. Be sure to load from the
back only.
! IMPORTANT! The NovaJet PRO 60e can use media up to 60" wide. The rolls can be
heavy, so you may want to have someone help you to load them.
! If your roll media has wrinkled or damaged edges, cut off the damaged part of the roll
prior to loading to prevent the media from jamming in the printer.
Page 11
ENGLISH
NovaJet PROe Series
Quick Start 11
➪➪
➪➪
➪ To load roll media
1 Slide the roll media onto the top roller, orienting it as shown below. Slide
the media guide into the roll core, and tighten the guide to secure the roll.
Insert the media's leading edge into the back of the printer, aligning the
paper edge with the alignment mark on the platen. The printer will sense
the presence of the media and automatically feed it.
Loading roll media
2 If you are going to use the takeup roll, be sure that a media core is installed on
it. Attach the leading edge of the media to the takeup roll at the left, right, and
center of the core. Use at least three pieces of tape; one at each side , and
one in the middle. Orient the media as shown above.
As printing progresses, media is looped down in front of the takeup core until it
is detected by the sensor on the printer stand leg. The takeup rolls then
activated to roll the media.
Be sure not to block the sensor!
3 Press the Load/Load Media button to move the media into printing position.
4 Adjust the media edge guides.
Page 12
NovaJet PROe Series
12 Quick Start
Moving the carriage
When not in use, the PROe series ink cartridges rest in the service station at the right
side of the printer. This device seals the inkjets to prevent them from drying out. If
power is turned on, always select Utility/Access Cartridges on the control panel
to move the carriage away from the service station so that you can install,
change, adjust or clean the PROe series ink cartridges, change the cutter, or
clean the service station.
Installing the cutter
A cutter located in the ink cartridge carriage cuts roll media. The printer is shipped
with the cutter installed.
! Be careful when handling the cutter to avoid injury.
! Cutting media with a worn cutter can cause the media to jam and create a
ragged cut line.
➪➪
➪➪

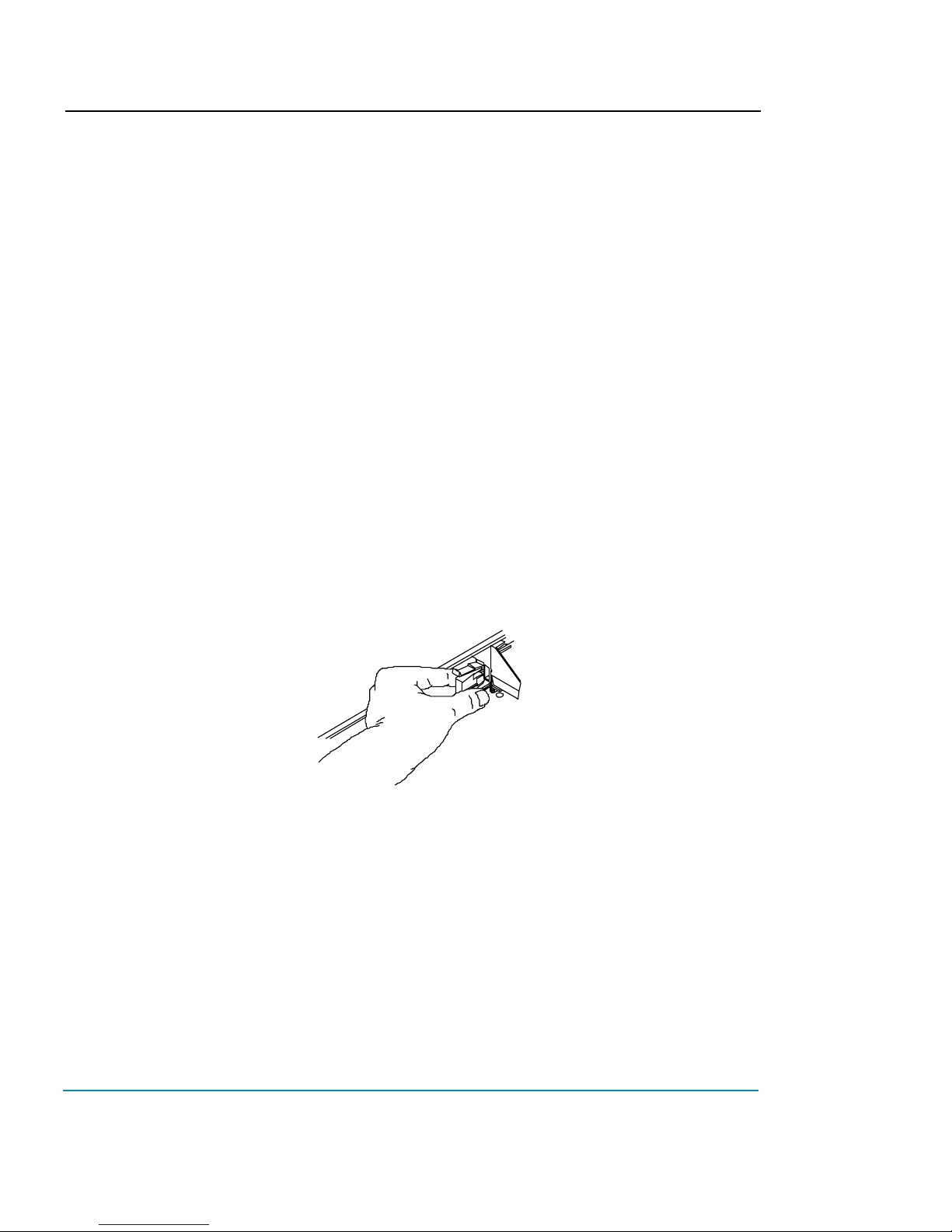

➪ To install the cutter
1 Press Utility/Access Cartridge button to move the cartridge carriage to the
center of the platen.
2 The cutter fits in the printer on the left side of the carriage. Install the cutter by
pushing it into the slot until it clicks into place.
3 Press Utility/Access Cartridge to move the carriage back into the service
station. This ensures that the cutter blade is in the home position.
Filling the ink reservoirs
NovaJet PROe Series printer can support long, uninterrupted printing runs because
each of its four reservoirs holds 500 ml of ink. The ink reservoirs are located in the
printer's left side cover.
Note: When running at carriage speeds faster than the default, it is recommended that ink levels in
the reservoirs be no more than 300ml maximum.
Page 13
ENGLISH
NovaJet PROe Series
Quick Start 13
➪➪
➪➪
➪ To fill the ink reservoirs
1 Open the cover on the left side of the printer to access the ink reservoirs.
Unscrew the cap of one reservoir. Open only one reservoir at a time to prevent
contamination with other ink colors.
2 Remove cap from the bottle.
3 Make sure the ink color and type matches the reservoir and pour in the ink. Be
sure to use the same type of ink (i.e., GA, GS, or GO) in all the reservoirs and
PROe series ink cartridges. Replace the cap on the reservoir.
4 A complete second set of plumbing is provided, so there are two color-coded
quick connect fittings for changing to another type of ink.
Be sure that each
reservoir is connected to the same color fitting.
5 Repeat for the remaining reservoirs, then close the cover.
Filling and connecting the PROe series ink cartridges
The printer is designed to use only ENCAD PROe series 104 jet cartridges. It
is not compatible with NovaJet or NovaJet Pro cartridges. Use of other
cartridges may damage the printer and/or prevent it from printing.
Installation of new PROe series ink cartridges involves filling the ink cartridges,
connecting each cartridge to the quick connect fitting and priming the jet plate (with
the NovaPrime). Each refill kit contains a 20 ml container of ink (squeeze bottle)
which is enough to fill the ink cartridge approximately half full and is the proper
amount for correct function of the ink system.
Note: you should fill, connect, and prime one color at a time.
Fill all cartridges and reservoirs with the same ink type; i.e., PROe series GA,
GS, or GO.
Page 14
NovaJet PROe Series
14 Quick Start

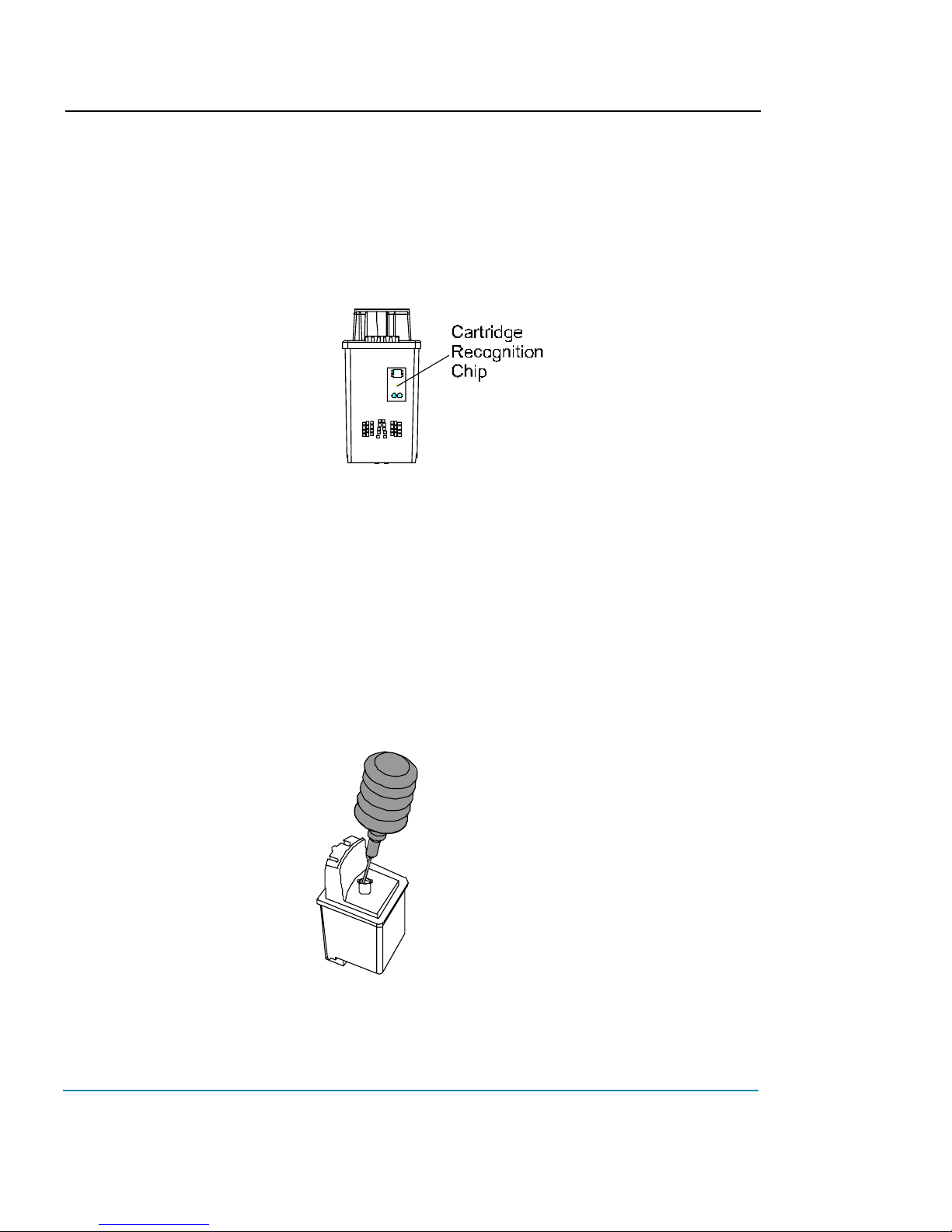

Note: Visually inspect each cartridge before filling it. Make sure the blue tape is
intact on the jet area of the cartridge. Do not remove tape at this time! Inspect
the IC chip on the cartridge. Make sure it is secure and in approximately the
location shown on the following figure. If any cartridge is damaged, use one of
your spare cartridges in its place and contact your authorized ENCAD distributor/dealer for return/replacement of the defective cartridge.
➪➪
➪➪
➪ T o fill the ink cartridges
Note: Before starting, you may want to have paper towels handy and wear
disposable gloves (included in the accessory box).
! Leave the blue tape over the jet area until you are ready to prime the jet
plate.
! Do not touch the jet area or the flex contact area of the ink cartridge.
1 Remove the cap on the squeeze bottle.
2 Insert the needle of the squeeze bottle into the hole on the top of the empty ink
cartridge. Slowly push it down until it bottoms out, then retract it by approximately
1/8".
3 Slowly press the bellows, dispensing all of the ink into the ink cartridge.
4 Recap the squeeze bottle.
5 Hold the PROe series ink cartridge upright so no ink comes out of the top
and install the cartridge into the carriage.
Page 15
ENGLISH
NovaJet PROe Series
Quick Start 15
! Caution: do not remove the blue tape yet.

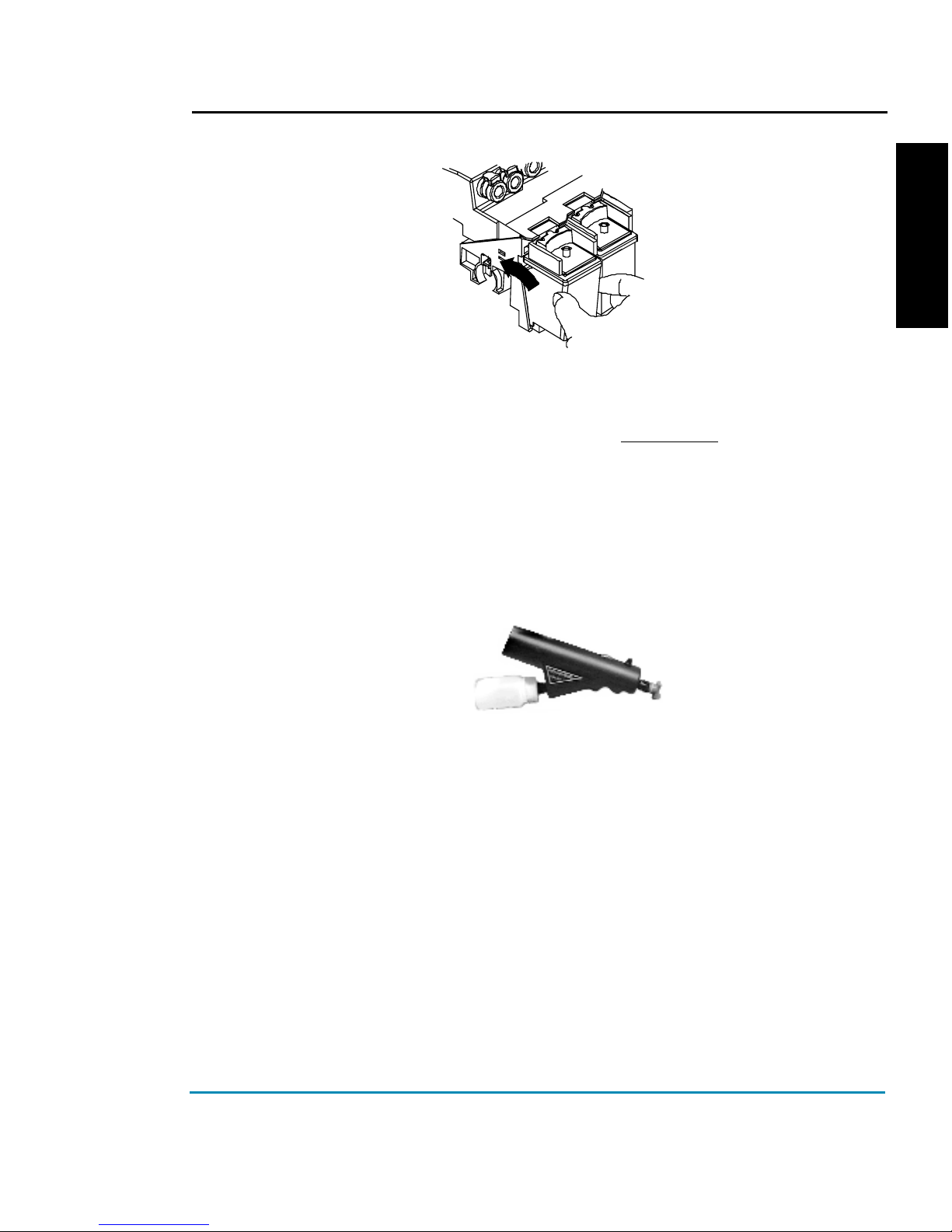

6 Attach the cartridge tube assembly to the
carriage only.
7 Repeat for each cartridge.
Priming the ink delivery lines
After filling the ink reservoirs and ink cartridges, you will need to prime each of the four
ink delivery lines to establish ink flow through the lines and ink cartridges. The
NovaPrime is provided for this purpose.
This procedure only needs to be done the first time you set up the printer. It is not
necessary when refilling the reservoirs or replacing ink cartridges.
When filling more than one color of ink, be sure to thoroughly wipe any excess ink
from the NovaPrime before working with the next color to avoid the possibility of
color cross contamination.
Page 16
NovaJet PROe Series
16 Quick Start
➪➪
➪➪
➪ T o prime the delivery lines
! Work with one ink color at a time to prevent contaminating another color.
1 Press Utility/Access Cartridges to move the carriage to the position which
allows replacement of the ink cartridges.
Note: It is very important that the ink delivery line is not twisted.

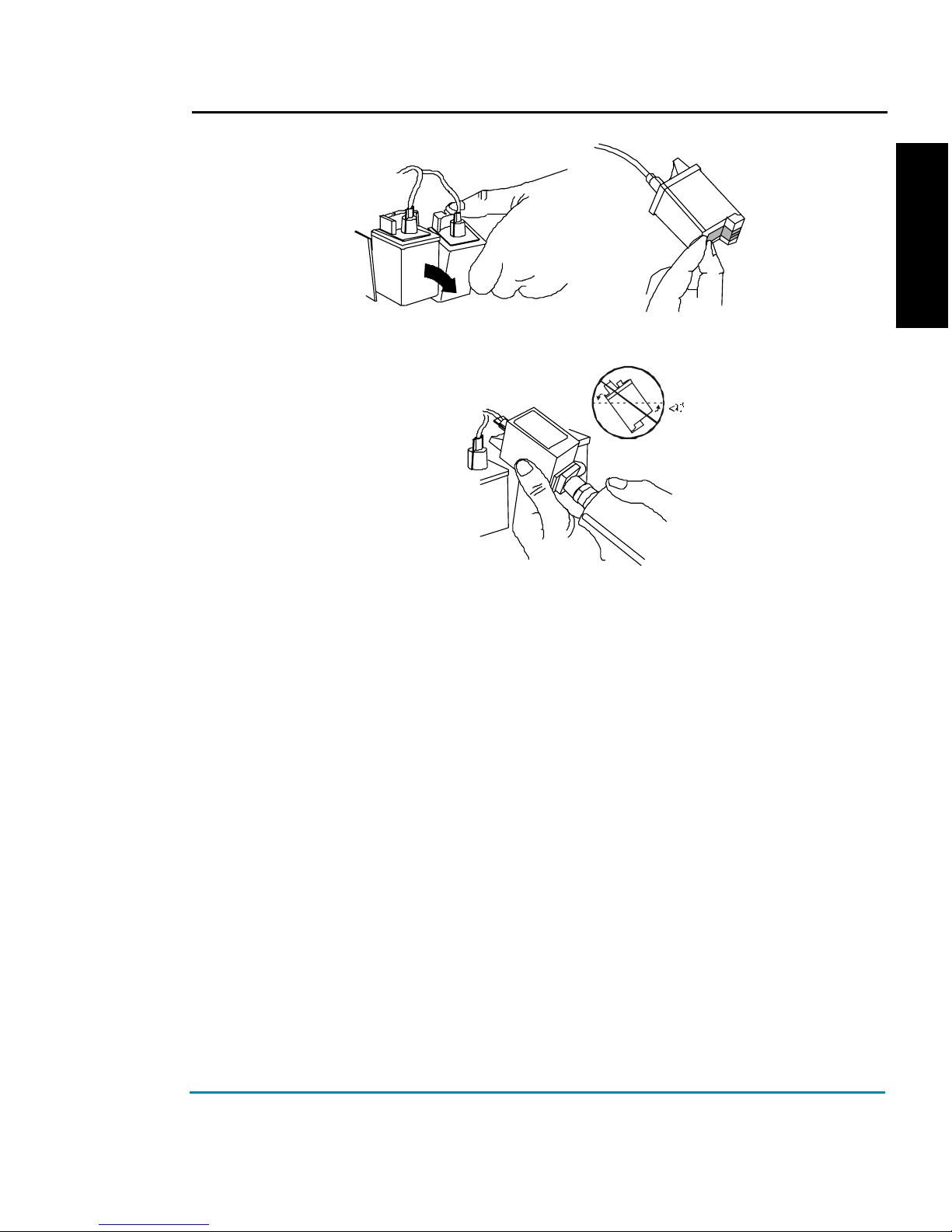

2 Insert the needle into the small hole on the NovaPrime.
3 Press the button on the NovaPrime to activate the vacuum and draw ink through
the line.

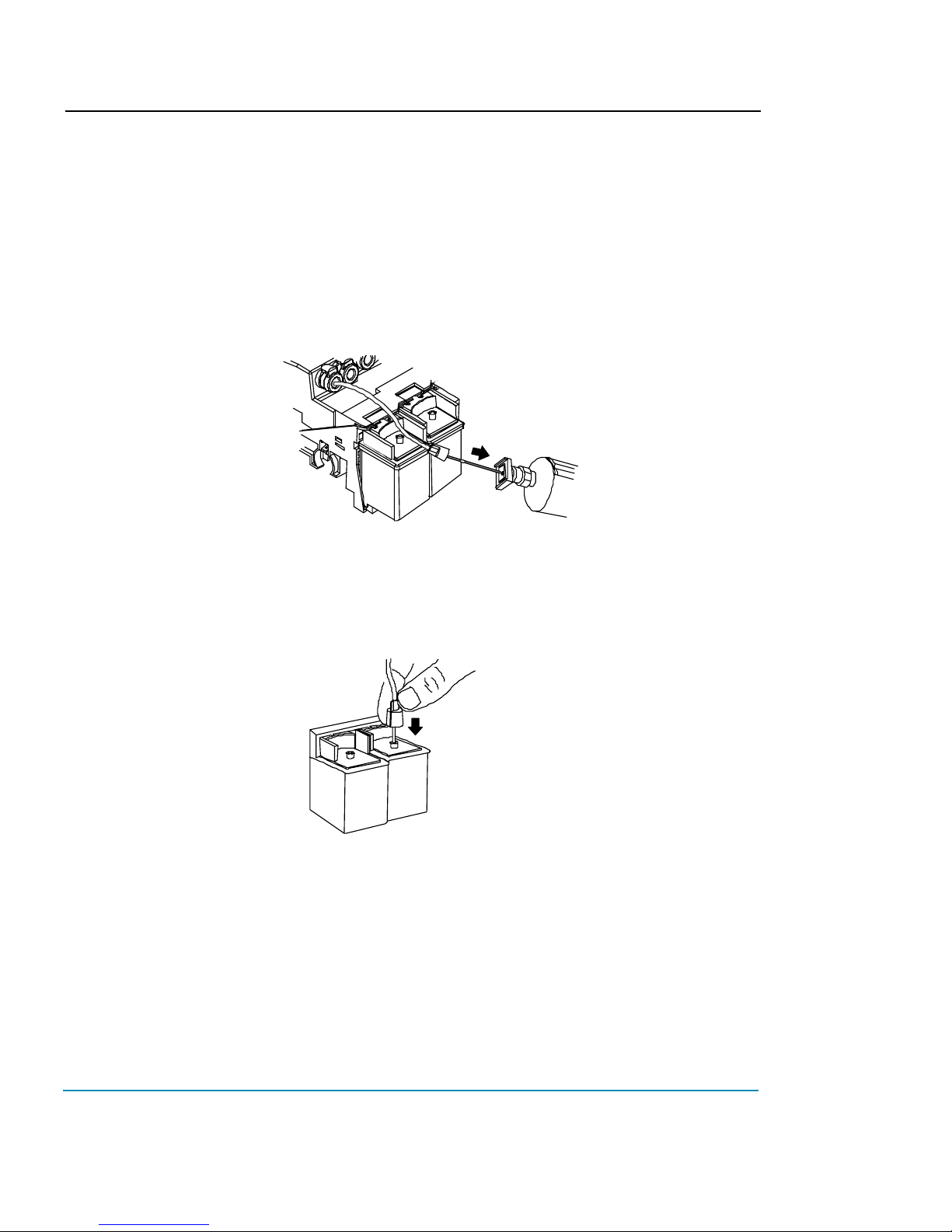

4 When ink is visible in the NovaPrime sight tube, remove the cartridge needle
from the NovaPrime and insert it into the hold in the top of the ink cartridge. Be
sure the needle is tightly connected.
5 Gently tighten the fitting (~1/4 turn) to prevent air leaks. Do not overtighten.
6 Remove the cartridge from the carriage and remove the blue tape from the jet
area of the cartridge.
Page 17
ENGLISH
NovaJet PROe Series
Quick Start 17
7 Place the suction end of the NovaPrime over the jet area of the cartridge.
8 Make sure the NovaPrime is making good contact with the jet area. Pulse
the pump 3 - 5 times, until the ink is visible in the NovaPrime sight tube,
maintain good contact between the inkjet plate and the pump for an addi-
tional 5 seconds.
When removing the NovaPrime, use the silicone tip to wipe and clean the jet
plate. Remember to clean the silicone tip of ink before moving to the next
cartridge.
9 Check that there are no twists in the ink delivery line.
Check for ink on the jet plate. Continuous bleeding of the jet plate indicates a
loss of vacuum in the cartridge or an air leak in the lines. Correct this before
proceeding.

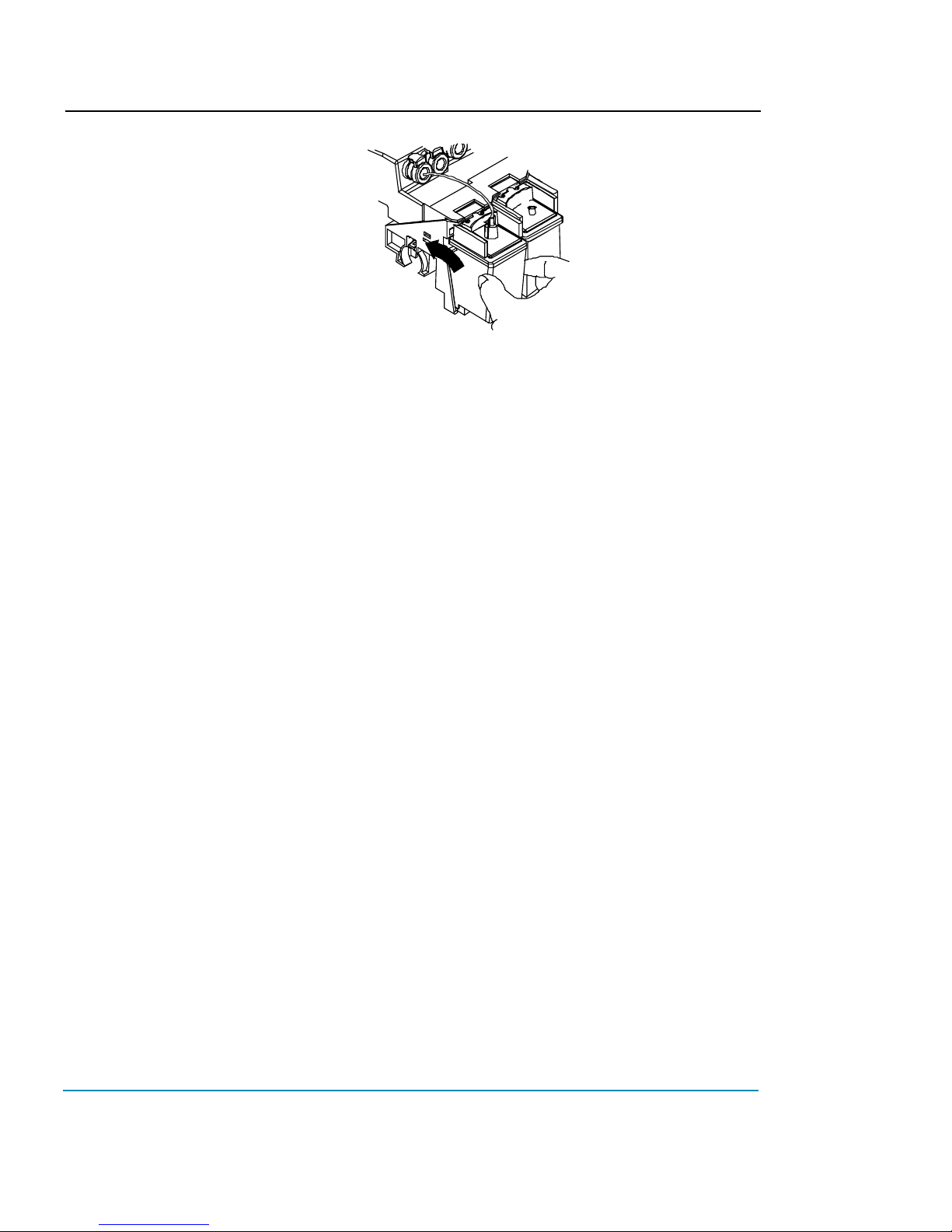

10 Insert the cartridge into the carriage.
Page 18
NovaJet PROe Series
18 Quick Start
11 Print the Prime pattern as described in the next section, then align the
cartridges as described later in this guide.
Priming the ink cartridges
Before printing and at regular intervals during printing, the printer wipes the ink cartridge
jets at the service station. This function is user selectable during printing or between
prints. Still, ink cartridge jets can become clogged, especially with prolonged exposure to
the air or with disuse. Printing the Prime pattern helps to clear the jets and to check that
the ink cartridges fire properly. ENCAD recommends that you prime the cartridges daily
to ensure the best possible print quality.
The printer includes a feature called Open Jet Detection and Compensation. This feature
helps maintain optimal print quality and gives you the confidence to print long, unattended jobs. During multi-pass printing, the printer will automatically compensate for jets
found to be electrically damaged. The only intervention needed is to verify that there are
no clogged jets and then choose which print mode is most appropriate for your needs.
This is by printing the Prime test pattern and then setting the print mode accordingly.
➪➪
➪➪
➪ T o prime the ink cartridges
1 With media loaded, press Utility/Prime.
A test pattern prints.
2 If the printed results are unsatisfactory, run the test several more times to
unclog the inkjet nozzles.
➪➪
➪➪

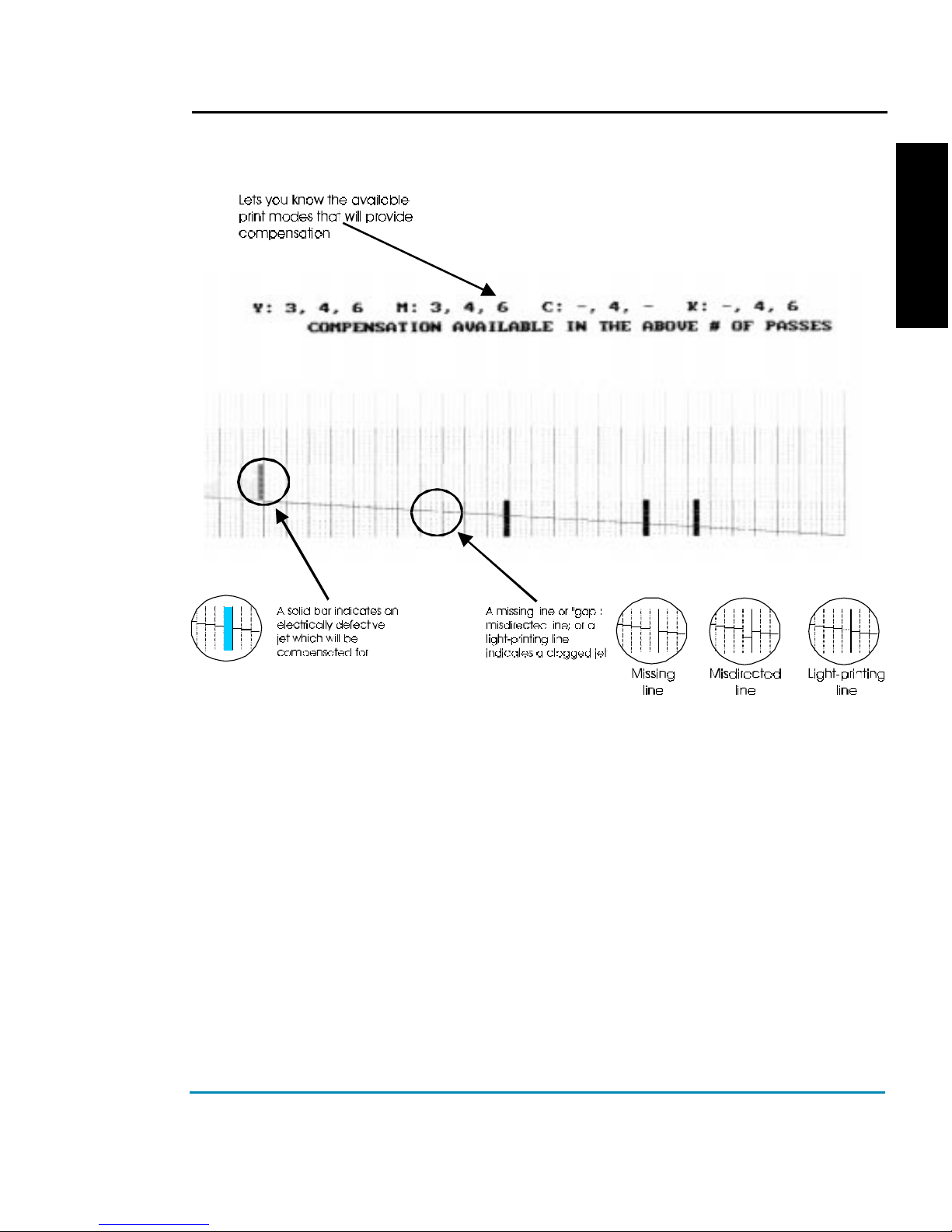

➪ T o interpret the Prime test pattern
The test pattern consists of bands of color for each cartridge and a sloping
line. Within the Prime test pattern, each jet is represented with a short
horizontal line. Together, these short horizontal lines form a “stair step”
pattern. Electrically defective jets appear as solid bars. Clogged jets appear
as gaps or misdirected lines in the “stair step” pattern. The print modes for
which compensation is available are shown clearly above the Prime.
Page 19
ENGLISH
NovaJet PROe Series
Quick Start 19
Clogged jets
Clogged jets cannot be automatically detected and therefore must be cleared manually.
T o clear a clogged jet, clean and prime the affected cartridge according to the instructions on page 4-8 of the Users Guide. Your goal is to eliminate all gaps in the “stair step”
pattern before starting your job.
Aligning the ink cartridges
Color calibration aligns the inkjets of the cartridges to each other. Misalignment can
result from small tolerance variations in cartridges during manufacturing and from
cartridge alignment in the printer. Color test patterns let you check the horizontal and
vertical alignment values and adjust them for the best printing results. Check the
alignment each time you replace one of the ink cartridges. Detailed calibration
procedures are included in Appendix A of the User Guide.
Page 20
NovaJet PROe Series
20 Quick Start
➪➪
➪➪
➪ To perform color calibration:
1 With paper loaded, press Utility/Color Calibration Menu/Calib Print Test.
The test patterns print as shown below.
Current heads test pattern
... -3 -2 -1 0 1 2 3 ...
Horizontal head-to-head test pattern
... -3 -2 -1 0 1 2 3 ...
Vertical head-to-head test pattern
2 Press Cyan Adjust - Vertical.
3 Examine the printout and enter the number that represents the best color
alignment for cyan-vertical.
4 Repeat for each color and for horizontal alignment as well.
Cartridge recognition
The PROe is designed to use only ENCAD PROe Series cartridges. To eliminate
potential damage to the printer, a Cartridge Recognition feature checks to ensure that
ENCAD PROe Series cartridges are installed, and that they are installed properly.
Cartridge recognition is performed when a print request is received (i.e., image data,
prime, etc.).
If the system detects a problem, the following error message is displayed on the
control panel: “Unrecognized Cartridge(s)” and the printer will beep three (3) times.
Page 21
ENGLISH
NovaJet PROe Series
Quick Start 21
➪➪
➪➪
➪ To clear cartridge recognition error:
1 Press Access Cartridges to move the carriage to the position which allows
replacement of the ink cartridges.
2 Verify that four ENCAD PROe Series cartridges are installed. Replace any
invalid cartridges.
3 Press OK. If the problem has been corrected, the printer will proceed with the
print request.
Page 22
NovaJet PROe Series
22 Quick Start
Quality Imaging Supplies™
ENCAD QIS offers a growing full line of inks and media for the NovaJet PROe. The
following indicates the most popular choices. Call your ENCAD Reseller for our
complete product line or to order.
QIS MEDIA FOR NOVAJET PROe Series
POPULAR MEDIA AND INK REORDER INFORMATION
REORDER # MEDIA
208041 PHOTO GLOSS 7 MIL 60” X 100’
208040 PHOTO GLOSS 7 MIL 42” X 100’
208141 PHOTO GLOSS 4 MIL 60" X 100'
208142 PHOTO GLOSS 4 MIL 42" X 100'
208045 PHOTO SEMI-GLOSS 7 MIL 60" X 100'
208044 PHOTO SEMI-GLOSS 7 MIL 42" X 100'
208143 PHOTO SEMI-GLOSS 4 MIL 60" X 100'
208144 PHOTO SEMI-GLOSS 4 MIL 42" X 100'
208146 PREMIUM MA TTE 60" X 100'
208147 PREMIUM MA TTE 42" X 100'
208148 CLEAR FILM 60" X 100'
208149 CLEAR FILM 42" X100'
208038 WHITE FILM 42” X 100’
208152 BACKLIT FILM 60" X 100'
208153 BACKLIT FILM 42" X 100'
GRAPHIC ST ANDARD INK ACCESSORY KITS
208163-1 GRAPHIC ST ANDARD (GS) CY AN
208163-2 GRAPHIC STANDARD (GS) MAGENT A
208163-3 GRAPHIC STANDARD (GS) YELLOW
208163-4 GRAPHIC ST ANDARD (GS) BLACK
GRAPHIC ARTS (GA) INK ACCESSORY KITS
208164-1 GRAPHIC ART (GA) CY AN
208164-2 GRAPHIC ART (GA) MAGENTA
208164-3 GRAPHIC ART (GA) YELLOW
208164-4 GRAPHIC ART (GA) BLACK
Note: Each kit contains 500 ml of ink, ink cartridge and 20 ml. squeeze bottle.
Loading...
