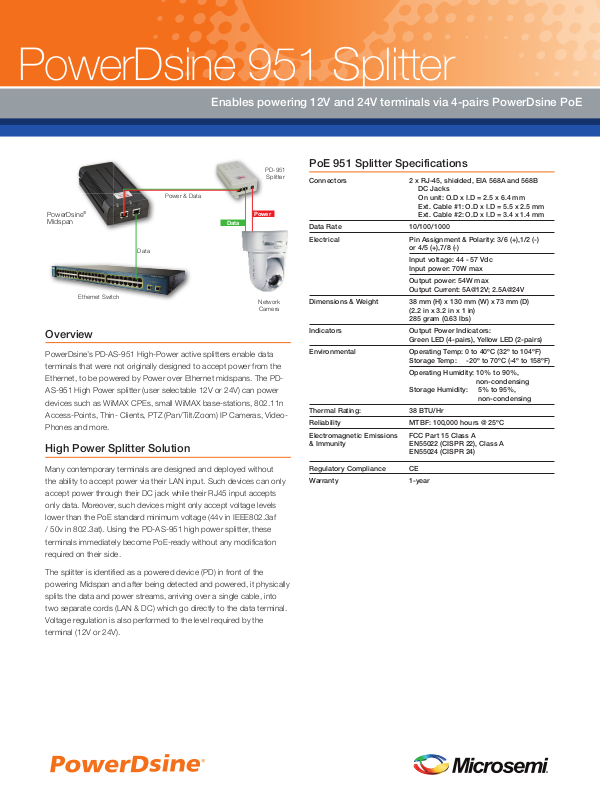

Not Set PD-AS-951/12-24 Product Data Sheet

PowerDsine 951 Splitter

using PowerDsine HiPoE solutions

™

QUICK REFERENCE

Enables powering 12V and 24V terminals via 4-pairs PowerDsine PoE

Power & Data

PD-951

Splitter

PowerDsine®
Midspan

Data

Powe r

Data

Ethernet Switch

Network
Camera

Overview

PowerDsine’s PD-AS-951 High-Power active splitters enable data

terminals that were not originally designed to accept power from the

Ethernet, to be powered by Power over Ethernet midspans. The PD-

AS-951 High Power splitter (user selectable 12V or 24V) can power

devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n

Access-Points, Thin- Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-

Phones and more.

High Power Splitter Solution

Many contemporary terminals are designed and deployed without

the ability to accept power via their LAN input. Such devices can only

accept power through their DC jack while their RJ45 input accepts

only data. Moreover, such devices might only accept voltage levels

lower than the PoE standard minimum voltage (44v in IEEE802.3af

/ 50v in 802.3at). Using the PD-AS-951 high power splitter, these

terminals immediately become PoE-ready without any modification

required on their side.

PoE 951 Splitter Specifications

Connectors 2 x RJ-45, shielded, EIA 568A and 568B

DC Jacks
On unit: O.D x I.D = 2.5 x 6.4 mm
Ext. Cable #1: O.D x I.D = 5.5 x 2.5 mm
Ext. Cable #2: O.D x I.D = 3.4 x 1.4 mm

Data Rate 10/100/1000

Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-)

or 4/5 (+),7/8 (-)

Input voltage: 44 - 57 Vdc
Input power: 70W max

Output power: 54W max
Output Current: 5A@12V; 2.5A@24V

Dimensions & Weight 38 mm (H) x 130 mm (W) x 73 mm (D)

(2.2 in x 3.2 in x 1 in)
285 gram (0.63 lbs)

Indicators Output Power Indicators:

Green LED (4-pairs), Yellow LED (2-pairs)

Environmental Operating Temp: 0 to 40ºC (32º to 104ºF)

Storage Temp: -20º to 70ºC (-4º to 158ºF)

Operating Humidity: 10% to 90%,
non-condensing
Storage Humidity: 5% to 95%,
non-condensing

Thermal Rating: 38 BTU/Hr

Reliability MTBF: 100,000 hours @ 25ºC

Electromagnetic Emissions FCC Part 15 Class A
& Immunity EN55022 (CISPR 22), Class A

EN55024 (CISPR 24)

Regulatory Compliance CE

Warranty 1-year

The splitter is identified as a powered device (PD) in front of the

powering Midspan and after being detected and powered, it physically

splits the data and power streams, arriving over a single cable, into

two separate cords (LAN & DC) which go directly to the data terminal.

Voltage regulation is also performed to the level required by the

terminal (12V or 24V).

PowerDsine® 951 Splitter

Ordering Information

Part Number Name

PD-AS-951/12 - 24 12V - 24V 60W High Power Splitter

PD-AS-951/12 - 24/C 12V - 24V 60W High Power Splitter

with DC connector

with DC cable
