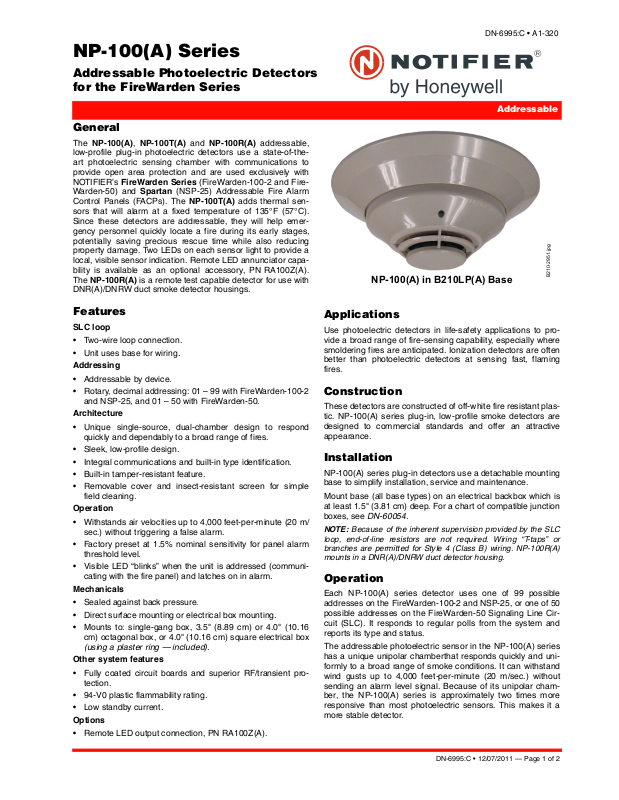

Notifier NP-100TA User Manual

NP-100(A) Series

NP-100(A) in B210LP(A) Base


Addressable Photoelectric Detectors
for the FireWarden Series

General

The NP-100(A), NP-100T(A) and NP-100R(A) addressable,
low-profile plug-in photoelectric detectors use a state-of-the­art photoelectric sensing chamber with communications to
provide open area protection and are used exclusively with
NOTIFIER’s FireWarden Series (FireWarden-100-2 and Fire-
Warden-50) and Spartan (NSP-25) Addressable Fire Alarm
Control Panels (FACPs). The NP-100T(A) adds thermal sen­sors that will alarm at a fixed temperature of 135°F (57°C).
Since these detectors are addressable, they will help emer­gency personnel quickly locate a fire during its early stages,
potentially saving precious rescue time while also reducing
property damage. Two LEDs on each sensor light to provide a
local, visible sensor indication. Remote LED annunciator capa­bility is available as an optional accessory, PN RA100Z(A).
The NP-100R(A) is a remote test capable detector for use with
DNR(A)/DNRW duct smoke detector housings.

DN-6995:C • A1-320

Addressable

Features

SLC loop

• Two-wire loop connection.

• Unit uses base for wiring.

Addressing

• Addressable by device.

• Rotary, decimal addressing: 01 – 99 with FireWarden-100-2
and NSP-25, and 01 – 50 with FireWarden-50.

Architecture

• Unique single-source, dual-chamber design to respond
quickly and dependably to a broad range of fires.

• Sleek, low-profile design.

• Integral communications and built-in type identification.

• Built-in tamper-resistant feature.

• Removable cover and insect-resistant screen for simple
field cleaning.

Operation

• Withstands air velocities up to 4,000 feet-per-minute (20 m/
sec.) without triggering a false alarm.

• Factory preset at 1.5% nominal sensitivity for panel alarm
threshold level.

• Visible LED “blinks” when the unit is addressed (communi­cating with the fire panel) and latches on in alarm.

Mechanicals

• Sealed against back pressure.

• Direct surface mounting or electrical box mounting.

• Mounts to: single-gang box, 3.5" (8.89 cm) or 4.0" (10.16
cm) octagonal box, or 4.0" (10.16 cm) square electrical box

(using a plaster ring — included).

Other system features

• Fully coated circuit boards and superior RF/transient pro­tection.

• 94-V0 plastic flammability rating.

• Low standby current.

Options

• Remote LED output connection, PN RA100Z(A).

Applications

Use photoelectric detectors in life-safety applications to pro­vide a broad range of fire-sensing capability, especially where
smoldering fires are anticipated. Ionization detectors are often
better than photoelectric detectors at sensing fast, flaming
fires.

Construction

These detectors are constructed of off-white fire resistant plas­tic. NP-100(A) series plug-in, low-profile smoke detectors are
designed to commercial standards and offer an attractive
appearance.

Installation

NP-100(A) series plug-in detectors use a detachable mounting
base to simplify installation, service and maintenance.

Mount base (all base types) on an electrical backbox which is
at least 1.5" (3.81 cm) deep. For a chart of compatible junction
boxes, see DN-60054.

NOTE: Because of the inherent supervision provided by the SLC
loop, end-of-line resistors are not required. Wiring “T-taps” or
branches are permitted for Style 4 (Class B) wiring. NP-100R(A)
mounts in a DNR(A)/DNRW duct detector housing.

Operation

Each NP-100(A) series detector uses one of 99 possible
addresses on the FireWarden-100-2 and NSP-25, or one of 50
possible addresses on the FireWarden-50 Signaling Line Cir­cuit (SLC). It responds to regular polls from the system and
reports its type and status.

The addressable photoelectric sensor in the NP-100(A) series
has a unique unipolar chamberthat responds quickly and uni­formly to a broad range of smoke conditions. It can withstand
wind gusts up to 4,000 feet-per-minute (20 m/sec.) without
sending an alarm level signal. Because of its unipolar cham­ber, the NP-100(A) series is approximately two times more
responsive than most photoelectric sensors. This makes it a
more stable detector.

DN-6995:C • 12/07/2011 — Page 1 of 2

Made in the U.S. A.

Detector Sensitivity Test

Each detector can have its sensitivity tested (required per
NFPA 72, Chapter 14 on Inspection, Testing and Maintenance)
when installed/connected to a FireWarden-100-2 or FireWar­den-50 addressable fire alarm control panel. The results of the
sensitivity test can be printed off the FireWarden-100-2 or Fire­Warden-50 for record keeping.

Specification

Voltage range: 15 – 32 VDC (peak).

Standby current: 300 μA @ 24 VDC.

LED current: 6.5 mA @ 24 VDC (latched “ON”).

Air velocity: 4,000 ft./min. (20 m/sec.) maximum.

Size: 2.1" (5.33 cm) high; base determines diameter.

– B210LP(A): 6.1" (15.5 cm) diameter.
– B501(A): 4.1" (10.4 cm) diameter.
– B200SR(A): 6.875" (17.46 cm) diameter.
– B224RB(A): 6.2" (15.748 cm) diameter.

Weight: 3.6 oz. (102 g).

Operating temperature range: for NP-100(A): 0°C to 49°C

(32°F to 120°F); for NP-100T(A): 0°C to 38°C (32°F to 100°F).
NP-100R(A): installed in a DNR(A)/DNRW -20°C to 70°C (-4°F

to 158°F).

Temperature: 0°C – 49°C (32°F – 120°F).

Relative humidity: 10% – 93%, non-condensing.

Listings

Listings and approvals below apply to the NP-100(A), NP­100T(A), and NP-100R(A) detectors. In some cases, certain
modules may not be listed by certain approval agencies, or
listing may be in process. Consult factory for latest listing sta­tus.

• UL Listed: S1115.

• ULC Listed: S911.

• CSFM: 7272-0028:0231.

• MEA: 243-02-E Vol. 2.

• Maryland State Fire Marshal: permit 2173.

• FM approved.

Product Line Information

NOTE: “A” suffix indicates ULC Listed model.

NP-100: Adressable photoelectric detector; B210LP base
included.

NP-100A: Sames as NP-100 with ULC Listing; B210LPA base
included.

NP-100T: Same as NP-100 but with thermal element;
B210LP base included.

NP-100TA: Same as NP-100T with ULC Listing; B210LPA
base included.

NP-100R: Remote test capable addressable photoelectric
detector for use with a DNRA/DNRW duct detector housing;
B210LP base included.

NP-100RA: Same as NP-100R with ULC Listing for use with a
DNRA duct detector housing; B210LPA base included.

INTELLIGENT BASES

NOTE: “A” suffix indicates ULC Listed model.

NOTE: For details about intelligent bases and their mounting, see

DN-60054.

B210LP(A): Plug-in detector base (included); standard U.S.
flanged low-profile mounting base.

B210LPBP: Bulk pack of B210LP; package contains 10.

B501

(A): Standard European flangeless mounting base.

B501BP: Bulk pack of B501; package contains 10.

B200SR

(A): Intelligent sounder base capable of producing

sound output with ANSI Temporal 3 or continuous tone.
Replaces B501BH series bases in retrofit applications.

B224RB

(A): Plug-in System Sensor relay base. Screw termi-

nals: up to 14 AWG (2.0 mm²). Relay type: Form-C. Rating: 2.0
A @ 30 VDC resistive; 0.3 A @ 110 VDC inductive; 1.0 A @
30 VDC inductive.

B224BI(A): Plug-in System Sensor isolator detector base.
Maximum 25 devices between isolator bases (see DN-6994).

ACCESSORIES

F110: Retrofit flange to convert B210LP(A) to match the
B710LP(A) profile, or to convert older high-profile bases to
low-profile.

F110BP: Bulk pack of F110; package contains 15.

F210: Replacement flange for B210LP(A) base.

RA100Z(A): Remote LED annunciator. 3 – 32 VDC. Mounts to

a U.S. single-gang electrical box. For use with B501(A) and
B210LP(A) bases only.

SMB600: Surface mounting kit

M02-04-00:Test magnet.

M02-09-00: Test magnet with telescoping handle.

XR2B: Detector removal tool. Allows installation and/or

removal of detector heads from bases in high ceiling applica­tions.

XP-4: Extension pole for XR2B. Comes in three 5-foot (1.524
m) sections.

T55-127-010: Detector removal tool without pole.

BCK-200B: Black detector covers for use with NP-100(A) only;

box of 10.

WCK-200B: White detector covers for use with NP-100(A)
only; box of 10.
