Fire Alarm Control Panel

NFS2-3030/E

Installation Manual

Document 52544 07/18/2014 Rev:

P/N 52544:N1 ECN 13-0838

Fire Alarm & Emergency Communication System Limitations

While a life safety system may lower insurance rates, it is not a substitute for life and property insurance!

An automatic fire alarm system—typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control panel (FACP) with remote notification capability—can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire.

An emergency communication system—typically made up of an automatic fire alarm system (as described above) and a life safety communication system that may include an autonomous control unit (ACU), local operating console (LOC), voice communication, and other various interoperable communication methods—can broadcast a mass notification message. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire or life safety event.

The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premises following the recommendations of the current edition of the National Fire Protection Association Standard 72-2002 (NFPA 72-2002), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guide for Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers. This document can be found at http:// www.systemsensor.com/appguides/. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons:

Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire.

Particles of combustion or “smoke” from a developing fire may not reach the sensing chambers of smoke detectors because:

• Barriers such as closed or partially closed doors, walls, chimneys, even wet or humid areas may inhibit particle or smoke flow.

• Smoke particles may become “cold,” stratify, and not reach the ceiling or upper walls where detectors are located.

• Smoke particles may be blown away from detectors by air outlets, such as air conditioning vents.

• Smoke particles may be drawn into air returns before reaching the detector.

The amount of “smoke” present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at various levels of smoke density. If such density levels are not created by a developing fire at the location of detectors, the detectors will not go into alarm.

Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing chambers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.

Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions

(caused by escaping gas, improper storage of flammable materials, etc.).

Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detectors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist. Heat detectors are designed to protect property, not life.

IMPORTANT! Smoke detectors must be installed in the same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If detectors are not so located, a developing fire may damage the alarm system, compromising its ability to report a fire.

Audible warning devices such as bells, horns, strobes, speakers and displays may not alert people if these devices

are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol, or medication. Please note that:

• An emergency communication system may take priority over a fire alarm system in the event of a life safety emergency.

• Voice messaging systems must be designed to meet intelligibility requirements as defined by NFPA, local codes, and Authorities Having Jurisdiction (AHJ).

• Language and instructional requirements must be clearly disseminated on any local displays.

• Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy.

• Studies have shown that certain people, even when they hear a fire alarm signal, do not respond to or comprehend the meaning of the signal. Audible devices, such as horns and bells, can have different tonal patterns and frequencies. It is the property owner's responsibility to conduct fire drills and other training exercises to make people aware of fire alarm signals and instruct them on the proper reaction to alarm signals.

• In rare instances, the sounding of a warning device can cause temporary or permanent hearing loss.

A life safety system will not operate without any electrical power. If AC power fails, the system will operate from standby batteries only for a specified time and only if the batteries have been properly maintained and replaced regularly.

Equipment used in the system may not be technically compatible with the control panel. It is essential to use only equipment listed for service with your control panel.

Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or temporarily disabled. For added protection against telephone line failure, backup radio transmission systems are recommended.

The most common cause of life safety system malfunction is inadequate maintenance. To keep the entire life safety system in excellent working order, ongoing maintenance is required per the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the requirements of NFPA 72-2002 shall be followed. Environments with large amounts of dust, dirt, or high air velocity require more frequent maintenance. A maintenance agreement should be arranged through the local manufacturer's representative. Maintenance should be scheduled monthly or as required by National and/or local fire codes and should be performed by authorized professional life saftety system installers only. Adequate written records of all inspections should be kept.

Limit-D-1-2013

2 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Installation Precautions

Adherence to the following will aid in problem-free installation with long-term reliability:

WARNING - Several different sources of power can be connected to the fire alarm control panel. Disconnect all

sources of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized. Do not attempt to install, service, or operate this unit until manuals are read and understood.

CAUTION - System Re-acceptance Test after Software Changes: To ensure proper system operation, this product

must be tested in accordance with NFPA 72 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring. All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.

This system meets NFPA requirements for operation at 0-49º C/32-120º F and at a relative humidity 93% ± 2% RH (noncondensing) at 32°C ± 2°C (90°F ± 3°F). However, the useful life of the system's standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and its peripherals be installed in an environment with a normal room temperature of 15-27º C/60-80º F.

Verify that wire sizes are adequate for all initiating and indicating device loops. Most devices cannot tolerate more than a 10% I.R. drop from the specified device voltage.

Like all solid state electronic devices, this system may operate erratically or can be damaged when subjected to lightning induced transients. Although no system is completely immune from lightning transients and interference, proper grounding will reduce susceptibility. Overhead or outside aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes. Consult with the Technical Services Department if any problems are anticipated or encountered.

Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.

Remove all electronic assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible, make all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, or printed circuit board location.

Do not tighten screw terminals more than 9 in-lbs. Overtightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal.

This system contains static-sensitive components. Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body. Use static suppressive packaging to protect electronic assemblies removed from the unit.

Follow the instructions in the installation, operating, and programming manuals. These instructions must be followed to avoid damage to the control panel and associated equipment. FACP operation and reliability depend upon proper installation.

Precau-D1-9-2005

FCC Warning

WARNING: This equipment generates, uses, and can

radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for class A computing devices pursuant to Subpart B of Part 15 of FCC Rules, which is designed to provide reasonable protection against such interference when devices are operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his or her own expense.

Canadian Requirements

This digital apparatus does not exceed the Class A limits for radiation noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.

HARSH™, NIS™, and NOTI•FIRE•NET™ are all trademarks; and Acclimate® Plus, FlashScan®, NION®, NOTIFIER®, ONYX®, ONYXWorks®, UniNet®, VeriFire®, and VIEW® are all registered trademarks of Honeywell International Inc. Echelon® is a registered trademark and LonWorks™ is a trademark of

Echelon Corporation. ARCNET® is a registered trademark of Datapoint Corporation. Microsoft® and Windows® are registered trademarks of the Microsoft Corporation.

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/20 14 3

Software Downloads

In order to supply the latest features and functionality in fire alarm and life safety technology to our customers, we make frequent upgrades to the embedded software in our products. To ensure that you are installing and programming the latest features, we strongly recommend that you download the most current version of software for each product prior to commissioning any system. Contact Technical Support with any questions about software and the appropriate version for a specific application.

Documentation Feedback

Your feedback helps us keep our docum entatio n up- to-d ate and accurate. If you have any comment s or suggestion s about our online Help or printed manuals, you can email us.

Please include the following information:

•Product name and version number (if applicable)

•Printed manual or online Help

•Topic Title (for online Help)

•Page number (for printed manual)

•Brief description of content you think should be improved or corrected

•Your suggestion for how to correct/improve documentation

Send email messages to:

FireSystems.TechPubs@honeywell.com

Please note this email address is for documentation feedback only. If you have any technical issu es, please contact Technical Services.

4 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Section 1: About This Manual.................................................................................................. 7

1.1: Standards and Other Documents....................................................................................................................7

1.2: UL 864 Compliance.......................................................................................................................................8

1.2.1: Products Subject to AHJ Approval................................................... ...... ..... ........................................8

1.3: Related Documents........................................................................................................................................8

1.4: Cautions and Warnings................................................................................................................................10

Section 2: System Overview .................................................................................................. 11

2.1: System Description......................................................................................................................................11

2.1.1: Standard Features ................................ ..............................................................................................11

2.1.2: Options .......................................... ....................................................................................................12

2.1.3: System Limitations......................................... ...................................................................................12

2.2: System Components ....................................................................................................................................12

2.3: Product Diagram..........................................................................................................................................14

2.3.1: Main Power Supply .............................................. ..... ........................................................................15

2.4: System Cabinets...........................................................................................................................................16

2.5: Compatible Equipment................................................................................................................................17

Section 3: Installation ............................................................................................................. 19

3.1: Preparing for Installation.............................................................................................................................19

3.2: Installation Checklist...................................................................................................................................19

3.3: Mounting a Cabinet .....................................................................................................................................20

3.4: Laying Out Equipment in Cabinet and Chassis..................................................... ...... ................................22

3.5: Attaching the CPU & Chassis......................................................................................................................23

3.5.1: Mounting in CHS-M3........................................... ..... ...... .................................. ..... ...... .....................23

3.5.2: Mounting in the CA-2 Audio System Chassis ..................................................................................24

3.5.3: Mounting Chassis in Backbox...........................................................................................................25

3.5.4: Memory-Backup Battery................................................. ...... ..... .................................. .....................25

3.6: Attaching Option Boards.............................................................................................................................26

3.7: Connecting the Network Communications Module....................................................................................28

3.8: Connecting the Loop Control and Expan der Modules ...............................................................................28

3.8.1: Mounting Instructions ...................................................................... ...... ..... ......................................28

3.8.2: Audio Applications with Chassis CA-2 ...........................................................................................29

3.8.3: Setting SLC Loop Number............................. ...... .............................................................................29

3.8.4: Enabling External Power Supervision...............................................................................................29

3.8.5: Installing a Multi-layer Module into the Chassis..............................................................................30

3.9: Form-C Relays on the CPU.........................................................................................................................33

3.10: Connecting Power Sources and Outputs....................................................................................................33

3.10.1: Overview .........................................................................................................................................33

3.10.2: Connecting the Power Supply.........................................................................................................34

3.10.3: Checking AC Power........................................................................................................................34

3.10.4: Auxiliary Power Supply Connections.............................................................................................35

3.11: UL Power-limited Wiring Requirements...................................................................................................35

3.12: Central Station Fire Alarm System Canadian Requirements.....................................................................37

3.13: ULC Remote Connection Feature .............................................................................................................38

3.14: Installing Printers.......................................................................................................................................38

3.14.1: Printer Installation Sequence...........................................................................................................39

3.14.2: Configuring the Printer....................................................................................................................40

3.15: Wiring a Signaling Line Circuit (SLC)......................................................................................................41

3.15.1: SLC Overview.................................................................................................................................41

3.15.2: SLC Capacity...................................................................................................................................41

3.15.3: SLC Installation...............................................................................................................................42

3.16: Connecting a PC for Programming............................................................................................................42

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 5

Table of Contents

Section 4: Applications .......................................................................................................... 43

4.1: Overview......................................................................................................................................................43

4.2: Devices Requiring External Power Supervision..........................................................................................43

4.3: NFPA 72 Central or Remote Station Fire Alarm System (Protected Premises Unit)..................................44

4.4: NFPA 72 Proprietary Fire Alarm Systems...................................................................................................45

4.5: Fire/Security Applications ..........................................................................................................................46

4.5.1: General Operation........................................................ .................................. ..... ...... .........................46

4.5.2: General Security Requirements.........................................................................................................46

4.5.3: Installing a Security Tamper Switch..................................................................................................47

4.5.4: Receiving Unit...................................................................................................................................48

4.5.5: Programming ................................................... ...... ............................................................................48

4.5.6: Wiring for Proprietary Security Alarm Applications ........................................................................48

4.5.7: Connecting an RKS-S Remote Key Switch.......................................................................................49

4.5.8: Single Tenant Security Sy stem with Entry/Exit Delay......................................................................50

4.5.9: Security Annunciation................................................. ..... .................................. ...... ..... ....................52

4.6: Releasing Applications ................................................................................................................................52

4.6.1: Overview.................................... ..... .................................. ...... ...... .....................................................52

4.6.2: Programming ................................................... ...... ............................................................................52

4.6.3: Wiring......................................................... ..... ..................................................................................53

4.7: Connecting a Releasing Device to FCM-1 Control Modules (Retrofit applications only)..........................53

4.8: Connecting Releasing Devices to FCM-1-REL Control Modules ..............................................................55

4.9: Connecting an NBG-12LRA Agent Release-Abort Station ........................................................................56

4.10: Connecting an FAAST Intelligent Aspiration Detector.............................................................................56

Section 5: Testing the System............................................................................................... 58

5.1: Acceptance Test/..........................................................................................................................................58

5.2: Periodic Testing and Service........................................................................................................................58

5.3: Operational Checks......................................................................................................................................58

5.4: Battery Checks and Maintenance.................................................................................................................59

A.1: Operating Power .........................................................................................................................................62

A.2: SLC Loops ..................................................................................................................................................62

A.3: Notification Appliance Circuits..................................................................................................................62

A.4: Wire Requirements......................................................................................................................................62

B.1: Standalone Application...............................................................................................................................64

B.2: Local Network Application.........................................................................................................................64

B.3: Automatic Alarm Signal Silence.................................................................................................................64

B.4: Annunciator Applications ...........................................................................................................................64

B.5: Releasing Devices.......................................................................................................................................64

B.6: Canadian SLC Devices................................................................................................................................64

6 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Section 1: About This Manual

1.1 Standards and Other Documents



This Fire Alarm Control Panel complies with the following NFPA standards:

• NFPA 12A Halon 1301 Extinguishing Systems

• NFPA 13 Sprinkler Systems

• NFPA 15 Water Spray Systems

• NFPA 16 Foam/Water Deluge and Foam/Water Spray Systems

• NFPA 17 Dry Chemical Extinguishing Systems

• NFPA 17A Wet Chemical Extinguishing Systems

• NFPA 72 Central Station Fire Alarm Systems (Automatic, Manual and Waterflow) Protected Premises Unit (requires Notifier UDACT/UDACT-2).

• NFPA 72 Local (Automatic, Manual, Waterflow and Sprinkler Supervisory) Fire Alarm Systems.

• NFPA 72 Auxiliary (Automatic, Manual and Waterflow) Fire Alarm Systems (requires TM-4).

• NFPA 72 Remote Station (Automatic, Manual and Waterflow) Fire Alarm Systems

• NFPA 72 Proprietary (Automatic, Manual and Waterflow) Fire Alarm Systems (Protected Premises Unit).

• NFPA 2001 Clean Agent Fire Extinguishing Systems



The installer should be familiar with the following documents and standards:

• NFPA 72 Initiating Devices for Fire Alarm Systems

• NFPA 72 Inspection, Testing and Maintenance for Fire Alarm Systems

• NFPA 72 Notification Appliances for Fire Alarm Systems

Underwriters Laboratories (UL)

• UL 38 Manually Actuated Signaling Boxes

• UL 217 Smoke Detectors, Single and Multiple Station

• UL 228 Door Closers - Holders for Fire Protective Signaling Systems

• UL 268 Smoke Detectors for Fire Protective Signaling Systems

• UL 268A Smoke Detectors for Duct Applications

• UL 346 Waterflow Indicators for Fire Protective Signaling Systems

• UL 464 Audible Signaling Appliances

• UL 521 Heat Detectors for Fire Protective Signaling Systems

• UL 864 Standard for Control Units for Fire Pr ot ect iv e Signal i ng Systems

• UL 1481 Power Supplies for Fire Protective Signaling Systems

• UL 1971 Visual Signaling Appliances

• UL 1076 Proprietary Burglar Alarm Systems

• UL 2017 Standard for General-Purpose Signaling Devices and Systems

• UL 2572 Standard for Mass Notification Sy st ems

Underwriters Laboratories of Canada (ULC)

• ULC-S527-99 Standard for Control Units for Fire Alarm Systems

• ULC S524 Standard for the Installation of Fire Alarm Systems

Other

• EIA-485 and EIA-232 Serial Interface Standards

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 7

About This Manual UL 864 Compliance

• NEC Article 300 Wiring Methods

• NEC Article 760 Fire Protective Signaling Systems

• Applicable Local and State Building Codes

• Requirements of the Local Authority Having Jurisdiction

• Canadian Electrical Code, Part 1

1.2 UL 864 Compliance

1.2.1 Products Subject to AHJ Approval

This product has been certified to co mply with the requirements in the Standard for Contro l Units and Accessories for Fire Alarm Systems, UL 864 9th Edition.

The following products have n ot received UL 864 9 th Edition certification a nd may only be used in retrofit applications. Operation of the NFS2-3030/E with products not tested for UL 864 9th Edition has not been evaluated and may not comply with NFPA 72 and/or the latest edition of UL

864. These applications will require the approval of the local Authority Having Jurisdiction (AHJ).

• For a complete list of all peripherals that can be used with this fire alarm control panel (FACP), and which of those peripherals have not received UL 864, 9th Edition certification and may only be used in retrofit applications, see Section 2.5, “Compatible Equipment”, on page 17.

1.3 Related Documents

The table below provides a list of documents referenced in this manual, as well as documents for selected other compatible devices. The document series chart (DOC-NOT) provides the current document revision. A copy of this document is included in every shipment.

Compatible Conventional Devices (Non-addressable) Document Number

Device Compatibility Document 15378

Fire Alarm Control Panel (FACP) and Main Power Supply Installation Document Number

NFS2-3030 Installation, Programming and Operations Manuals 52544, 52545, 52546

AMPS-24/E Addressable Power Supply Manual 51907

DVC Digital Voice Command Manual 52411

DVC-RPU Manual 50107425-001

DVC-RPU UL Listing Document 50107424-001

DAA2 and DAX Amplifiers Manual 53265

DS-DB Digital Series Distribution Board and Amplifier 53622

DAL Devices Reference Document 52410

AA-Series Audio Amplifier Manual 52526

Mass Notification Systems Configuration, Programming and Operations Manual LS10063-000NF-E

SLC Wiring Manual 51253

Note: For individual SLC Devices, refer to the SLC Wiring Manual *Note: Also documents some retrofit equipment manufactured under UL 8th edition

Off-line Programming Utility Document Number

VeriFire® Tools CD help file Available for download

Power Supply Programming Utility PK-PPS

Cabinets & Chassis Document Number

CAB-3/CAB-4 Series Cabinet Installation Document 15330

Table 1.1 Related Documents (1 of 3)

8 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

1.4 Cautions and Warnings

This manual contains cautions and warnings to alert the reader as follows:

CAUTION: SUMMARY IN BOLD

INFORMATION ABOUT PROCEDURES THAT COULD CAUSE PROGRAMMING ERRORS, RUNTIME ERRORS, OR EQUIPMENT DAMAGE.

WARNING: SUMMARY IN BOLD

INDICATES INFORMATION ABOUT PROCEDURES THAT COULD CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL PANEL, IRREVERSIBLE LOSS OF PROGRAMMING DATA OR PERSONAL INJURY.

10 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Section 2: System Overview

2.1 System Description

This manual describes the NFS2-3030, based on the CPU2-3030D (with display) and CPU2-3030ND (without display). It differs from the NFS-3030 as follows:

• It has been modified to include more memory.

• The display contains more information – a “Controls Active” LED and an “Acknowledge” button.

• There are no panel module circuits – panel circuit module func ti o ns are performed by Digital Voice Command equipment and SLC devices.

2.1.1 Standard Features

• Connections to easily mount from one to ten Signaling Line Circuit (SLC) loops

• Network operation

• Uses Notifier’s VIEW® early warning fire detection and the FlashScan® or CLIP families of detectors and modules

• Alarm, Trouble, Supervisory and Security relays

• Support for 32 annunciator addresses with either 64 or 96 points each (depending on the capability of the annunciator)

• Supports Style 4, Style 6, Style 7 SLC loops

• Logic Equations

• Multi-line display

• Ability to activate local sounder or relay bases in alarm or pre-alarm

• Alarm verification pre-alarm indication (NYC)

• Supervisory duct and smoke detectors

• Supports Intelligent Sensing algorithms

• EIA-485 connections for wiring ACS annunciators (including LDM custom graphic annunciators), TM-4 transmitter

• EIA-232 connection for printer

• Autoprogram feature for faster programming of new devices

• Easy connection to VeriFire® Tools programming utility

• The basic system power supply is addressable, charges sealed lead-acid batteries ranging in capacity from 7 to 200 amp hours, and provides up to 5 amps of power for use by the CPU.

• Easy connection to auxiliary power supp lies and battery chargers for custom design of very large systems.

• Diagnostic LEDs and switches

• Ground fault detection

• Support for Remote Text Display (LCD-160)

• Support for Display and Control Center (DCC) functionality

• Mass Notification System compatible

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 11

System Overview System Com ponents

2.1.2 Options

Refer to Section 2.2 “System Components” for descriptions of the various optional modules.

• Rubberized keypad with a standard “QWERTY” keyboard layout, a 640-character LCD display, indicator LEDs, and switches.

• Separately ordered Loop Control Modules and Loop Expander Modules provide up to ten SLC loops.

• Optional equipment incl udes: ACS devices, UDACT/UDACT-2 Universal Digital Alarm Communicator/Transmitter, ACM-8R remote relay module to provide additional relay points, and audio/voice components.

2.1.3 System Limitations

System expansion must take into consid er at ion the following:

1. The physical limitations of the cabinet conf iguration.

2. The electrical limitations of the system power supply.

3. The capacity of the secondary power source (standby batteries).

2.2 System Components

WARNING: UL 9TH EDITION COMPLIANCE

THIS PRODUCT HAS BEEN CERTIFIED TO COMPLY WITH THE REQUIREMENTS IN THE STANDARD FOR CONTROL UNITS AND ACCESSORIES FOR FIRE ALARM SYSTEMS, UL 864 9TH EDITION. OPERATION OF THE NFS2-3030/E WITH PRODUCTS NOT TESTED FOR UL 864 9TH EDITION HAS NOT BEEN EVALUATED AND MAY NOT COMPLY WITH NFPA 72 AND/OR THE LATEST EDITION OF UL 864. THESE APPLICATIONS WILL REQUIRE THE APPROVAL OF THE LOCAL AUTHORITY HAVING JURISDICTION (AHJ).

THIS MANUAL MENTIONS PRODUCTS THAT HAVE RECEIVED UL 864, 9TH EDITION CERTIFICATION, AND ALSO MENTIONS PRODUCTS THAT HAVE NOT. FOR A COMPLETE

LIST OF ALL PERIPHERALS THAT CAN BE USED WITH THIS FIRE ALARM CONTROL PANEL (FACP), AND WHICH OF THOSE PERIPHERALS HAVE NOT RECEIVED UL 864, 9TH EDITION CERTIFICATION AND MAY ONLY BE USED IN RETROFIT APPLICATIONS, SEE SECTION 2.5, “COMPATIBLE EQUIPMENT”, ON PAGE 17.

Central Processing Unit (CPU) and Keypad/Display The central processing unit for the NFS2-3030 system can be ordered with a keypad/display (P/N CPU2-3030D) or without a keypad/display (P/N CPU2-3030ND). CPU2-3030D serves as “primary display” version for ULC applications. CPU2-3030ND is intended for use in network applications; LEDs and momentary switches on the printed circuit board mimic those on the keypad to enable operation and troubleshooting at the panel when it is used with out a local primary display.

Power supply The main power supply is AMPS-24/AMPS-24E, which provides +24 VDC power and a battery charger for a basic system. Auxiliary power supplies and/or battery chargers are available to customize large systems.

Enclosures Four cabinet sizes are available; doors and backboxes are ordered separately. “A” size backboxes hold one row of modules, “B” size backboxes hold two rows, “C” size backboxes hold three rows, and “D” size backboxes hold four rows. See Section 2.4 “System Cabinets” for basic description. A variety of dress panels, tr im rings, and blank modules are ava ilable to accompany specific combinations of system equipment; contact Notifier for a complete parts list.

SLC Loops: LCM-320, LEM-320 To provide one SLC loop, connect one LCM-320 to the panel. Connect an LEM-320 to the LCM-320 t o provide a seco nd loo p. Up to five pairs of module s can be installed on the panel to provide a maximum of ten SLC loops.

Network Connection Connect a wire or fiber version of t h e NCM o r t he HS-NCM t o p rovi d e a connection to the Noti•Fire•Net (network ver sion 5.0 or higher) or High-Speed Noti•Fire•Net.

12 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

System Com ponents System Overview

Annunciators The NFS2-3030 supports ACM-24AT/ACM-48A (and their expanders) with either 64 or 96 points at an address, as well as ACM-16AT/ACM-32A/LDM-32 (and their expanders) with 64 points at an address and Notifier’s other ACS devices. (See Section 2.5 “Compatible Equipment” if looking for specific ACS devices.)

Audio System Voice evacuation applications are documented in the Audio System manuals:

DVC Digital Voi ce Command Manual, DAA2 and DAX A m plifiers Manual, DS-DB Digital Series Board Manual, DVC-RPU Manual and the AA-series Audio Amplifiers Manual.

Mass Notification System The NFS2-3030 supports Mass Notification applications. Installation, programming and operation information for Mass Notification systems are documented in the Mass Notification Manual. Refer to the NFS2-3030 programming and operati on manuals for additional information.

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 13

System Overview Product Diagram

TB4 Alarm Relay

TB3 Trouble Relay

TB2 SUPV/ALARM Relay

TB1 SECUR/ALARM Relay

Note: Relay circuits are power-limited only if connected to a power-limited signal source. Relays are rated for 2A@30VDC resistive. See Figure 3.17, “Form-C Relay Connections” on page 33.

SW2 Supervisory

SW1 Security

Future Use

TB7 ACS (power-limited, supervised)

TB9, RDP pins: LCD-160 or LCD-80 (supervised return)

*TB5, left side. Printer (isolated)

*TB5 CTX/CRX CRT-2 or Keltron printer supervision (TB5 CTX, REF No connection)

*J1, Network Connection (NUP), Cable P/N 75556

J4 Backlight connection

SW3 Acknowledge SW4 Signal Silence SW5 System Reset

SW6 Lamp Test

Lithium battery for backup of on-board memory (See Section 3.5.4 “Memory-Backup Battery”)

J9 Keypad Connection

Test Fixture: No connection

TB6 Accessory Power (See Section 3.10 “Connecting Power Sources and Outputs”)

J13 Power connections (non-power-limited). See Section 3.10 “Connecting Power Sources and Outputs”.

J6 Security switch connection

J5 Trouble bus connection

CPU23030.wmf

Status Indicator LEDs (See Figure 2.3)

*J7 SLC Loop Control and Expander Modules (LCM-320, LEM-320) Cable P/N 75565

Service-level switches for local operation without keypad/display

Note: Dotted line indicates location of optional keypad & LCD display

*Circuits marked with an asterisk are supervised by communication loss. See Appendix A, “Electrical Specifications” for details.

J2 LCD Connection

TB9, TOut pins: LCD-80

J15 USB VeriFire Tools Connection

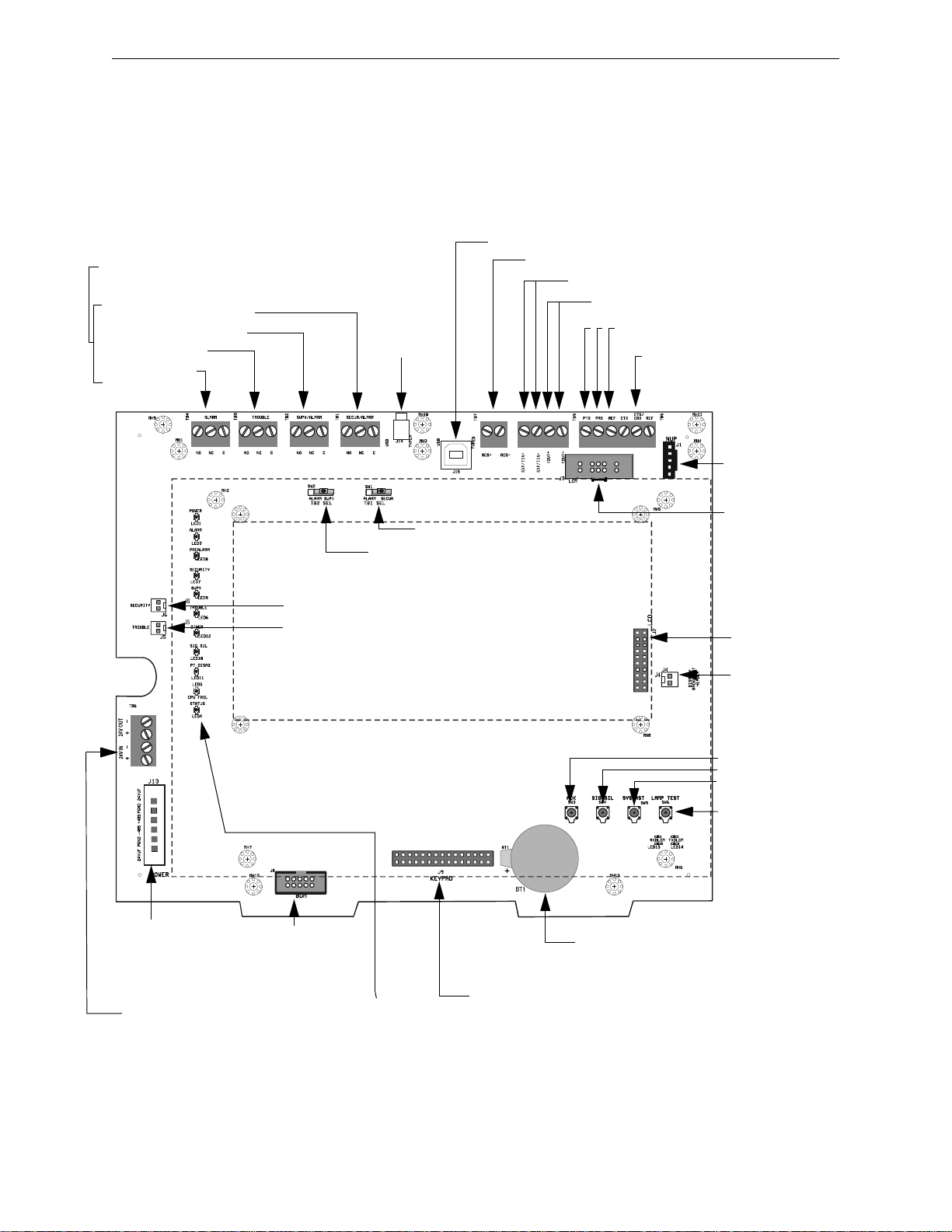

2.3 Product Diagram

The control panel electronics are contained on one printed circuit board (P CB) that holds the central processing unit (CPU ). The CPU can be purchased with or witho ut keypad and dis play; (see Section 2.2 “System Components” for P/N details). Connections are identical on both versions. The following figure illustrates the location of the various connections, switches, jumpers and LEDs on the circuit board. See Section 3 “Inst allatio n” f or more details.

14 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Figure 2.1 CPU Connections

Product Diagram System Overview

CPU-3030D-ACS.cdr

Figure 2.3 Status Indicator LEDs

LED1 Power (Green)

LED3 Fire Alarm (Red)

LED8 Pre-Alarm (Red)

LED7 Security (Blue)

LED9 Supervisory (Yellow)

LED6 System Trouble (Yellow)

LED12 Other Event (Yellow)

LED10 Signals Silenced (Yellow)

LED11 Point Disabled (Yellow)

LED5 CPU Failure (Yellow)

LED4 Factory Use Only

LEDs on Printed

Circuit Board

LEDs on Keypad

3030-LEDSUL9th.wmf, 3030NCA2keypad.wmf

Controls Active

(Keypad only)

The keyboard/display assembly is shown in Figure 2.2. As shown in Figure 2.3, LEDs on the keyboard/display are repeated on the printed circuit board. This enables operation and troubleshooting when the panel is used without the display assembly.

Figure 2.2 CPU2-3030D (Shown with Two Annunciators in DP-DISP)

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 15

2.3.1 Main Power Supply

The AMPS-24/E addressable main po wer supply provides a total of up to 5 A to the CPU. During normal operation, the AMPS-24 can recharge batteries ranging in capacity from 7 to 200 amphours. Previous versions of the AMPS-24/E can recharge batteries ranging in capacity from 26 to 200 amp-hours. Previous v ersions may be i dentified by t he locatio n of the AC power connection on the top edge of the assembly. The AC power connection for the current version is inset from the left edge. The AMPS-24/E also provides:

• Up to 5 A/24 V Auxiliary power

• Up to 0.5 A/24 V Accessory power

See Section 3.10, “Connect ing Power Sources and Outputs”, on page 33 for basic wiring connections; see the AMPS-24/E Manual for complete details.

Refer to the AMPS-24/E Manual to determine whether your system requires an auxiliary power supply.

• Up to 0.15 A/5 V Accessory power

System Overview System Cabinets

2.4 System Cabinets

The CPU and modules are installed in a CAB-4 series backbox. There are four different sizes available, holding from one to four rows of equipment plus batteries (up to two 26AH batteries). Backboxes are ordered separately from doors. The doors can be mounted on the left or the right side of the cabinet; reversible hinges are provided so that this choice can be made Section 2.5, “Compatible Equipment”, on page 17 in the field. Doors open a full 180 degrees and have locks. Mounting methods include surface-mounting or semi-flush mounting on a wall between 16 inch (406.4 mm) on-center studs. A trim ring option is available for semi-flush m ou nting.

External measurements for each cabinet backbox are provided below. Refer to CAB-3/CAB-4 Series Cabinet Installation Document (shipped with your cabinet) for specific mounting drawings and dimensions.

A-size backbox

(one row)

B-size backbox

(two rows)

C-size backbox

(three rows)

D-size backbox

(four rows)

The CPU and adjacent first-row modules mount in chassis CHS-M3. Additional rows of modules mount in the cabinet using CHS-4, CHS-4N, CHS-4L, or other chassis compatible with CAB-4 series enclosures.

Some additional components available in the CAB-4 series include:

• DP-DISP. An Inner Dress Panel for covering the backbox area surrounding various modules; for use in the top row.

• BMP-1. Blank Module Plate for covering an unused module position. Provides another location for mounting option boards such as TM-4 or NCM/HS-NCM.

For information on audio chassis and dress panels, refer to the DVC Digital Voice Command Manual.

24.125 in (612.78 mm) wide

20.125 in (511.18 mm) tall

5.218 in (132.54 mm) deep

Optional trim ring TR-A4

24.125 in (612.78 mm) wide

28.625 in (727.08 mm) tall

5.218 in (132.54 mm) deep

Optional trim ring TR-B4

24.125 in (612.78 mm) wide

37.250 in (946.15 mm) tall

5.218 in (132.54 mm) deep

Optional trim ring TR-C4

24.125 in (612.78 mm) wide

45.875 in (1165.23 mm) tall

5.218 in (132.54 mm) deep

Optional trim ring TR-D4

• BP2-4. Battery dress panel.

• DP-1B. Blank panel for covering recessed equipment in second, third or fourth rows of backbox.

• ADP-4B. Annunciator dress panel; for use in all but the top row.

DR-A4

DR-B4, ADDR-B4

DR-C4, ADDR-C4

DR-D4, ADDR-D4

16 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Compatible Equipment System Overview

2.5 Compatible Equipment

Compatible Notifier and System Sensor equipment that connects directly to the CPU is lis ted below. These are the most common devices at time of publishing; the most complete list of compatible intelligent SLC loop devices is provided in the SLC Wiring Manu al ; for conventional non-addressable equipment see the Device Compatibility Document. These devices are UL and ULC listed unless marked otherwise (in parentheses next to the product). Other control panels and their equipment can also be connected in a network, via Noti•Fire•Net version 5.0 or High-Speed Noti•Fire•Net; refer to the Noti•Fi re•Net Version 5.0 Installation Manual or the High-Speed Noti•Fire•Net Installation Manual for details. Some products are documented in a separate manual; see Section 1.3 “Related Documents”.

WARNING: UL 9TH EDITION COMPLIANCE

UL 9th Edition Notifier Compatible Equipment

AA-100 100-Watt Audio Amplifier AA-120 120-Watt Audio Amplifier AA-30 30-Watt Audio Amplifier ACM-24AT Annunciator Control Module ACM-48A Annunciator Control Module ACM-8R Annunciator Control Module ACPS-610 Addressable Charger/Power Supply ACT-1 Audio Coupling Transformer ACT-2 Audio Coupling Transformer AEM-24AT Annunciator Expander Module AEM-48A Annunciator Expander Module AKS-1B Annunciator Key Switch AMPS-24/E Addressable Main Power Supply APJ-1B Annunciator Phone Jack-G A77-716B End-of-Line Resistor Assembly B200S Intelligent Programmable Sounder Base B200SCOA Intelligent Programmable Sounder Base B200SR Intelligent Sounder Base B210LP Intelligent Detector Base, with flange BX-501 Intelligent Detectors/Sensors Base B501 USA Intelligent Detector Base B501BH-2 Sounder Base B501BHT-2 Temporal Sounder Base B710HD HARSH Detector Base B710LP European Intelligent Detector Base B224BI Isolator Bases for Low-profile Detectors B224RB Low-profile Relay Base CMX-1 Addressable Control Module CMX-2 Addressable Control Module CPX-551 Intelligent Ionization Smoke Detector CPX-751 Intelligent Ionization Smoke Detector DAA Series Digital Audio Amplifiers DAA2 Series Digital Audio Amplifier DAX Digital Audio Amplifier DPI-232 Direct Panel Interface DS-AMP Audio Amplifier DS-BDA Backup Audio Amplifier DS-DB Digital Distribution Board DS-XF70V Transformer DVC-EM Digital Voice Command DVC-RPU DVC Remote Paging Unit EOL-CR/CB Assortment ELR Pack with Mounting Plate FAPT-851 (Acclimate Plus™) Combination photo/heat

Detector

FCM-1 NAC Module FCM-1-REL Control Module FCO-851 Photo/CO Detector FCPS-24S6/S8 Field Charger/Power Supply FDM-1 Dual Monitor Module

FDRM-1 Dual Monitor/Dual Relay FDX-551 Intelligent Thermal Sensor FDX-551R Intelligent Thermal Rate-of-Rise Sensor FHS Fireman's Handset FMM-1 Monitor Module FMM-101 Mini Monitor Module FMM-4-20 Monitor Module FPJ Fireman's Phone Jack FRM-1 Relay Module FSA-8000/A FAAST Intelligent Aspiration detector FSC-851 IntelliQuad Multi-Criteria Smoke Detector FSD-751P/RP/PL Duct Detectors FSH-751 HARSH™ Photo Detector FSI-751 Ion Detector FSI-851 Ion Detector FSL-751 FlashScan VIEW® Laser Detector FSM-101 Pull Station Monitor Module FSP-751 Photo Detector FSP-751T Photo/Thermal Detector FSP-851 Photo Detector, listed for use in ducts FSP-851T Photo/heat Detector, listed for use in ducts FST-751 Thermal Detector FST-751R Thermal Rate-of-rise Detector FST-851 Thermal Detector FST-851H High-temperature Thermal Detector FST-851R Thermal Rate-of-rise Detector FTM-1 Telephone Module FW-MM Wireless monitor module FWD-200ACCLIMATE Wireless Acclimate detector FWD-200P Wireless photo detector FWH-200FIX135 Wireless, fixed-temperature heat detector FWH-200ROR135 Wireless, rate-of-rise heat detector FWSG Wireless Gateway FZM-1 Zone Module HPX-751 HARSH™ Hostile Environment Smoke Detector HS-NCM-MF High-Speed Network Communications Module

(Multi-Mode Fiber) HS-NCM-MFSF High-Speed Network Communications Module (Multi-Mode Fiber to Single-Mode Fiber) HS-NCM-SF High-Speed Network Communications Module (Single-Mode Fiber) HS-NCM-W High-Speed Network Communications Module (Wire) HS-NCM-WMF High-Speed Network Communications Module (Wire to Multi-Mode Fiber) HS-NCM-WSF High-Speed Network Communications Module (Wire to Single-Mode Fiber)

ISO-X Loop Fault Isolator Module LCD-160 Liquid Crystal Display LCD-80 Liquid Crystal Display Module

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 17

System Overview Compatible Equipment

LCD2-80 Liquid Crystal Display Module LCM-320 Loop Control Module LDM-E32 Lamp Driver Module LDM-R32 Lamp Driver Module LDM-32 Lamp Driver Module LEM-320 Loop Expander Module LPX-751 VIEW® Low Profile Laser Detector MMX-101 Addressable Mini Monitor Module MMX-2 Addressable Monitor Module N-ELR Assortment ELR Pack with Mounting Plate NBG-12LX Series Addressable Manual Pull Station NCA-2 Network Communications Annunciator NCM-F Network Communications Module (Fiber) NCM-W Network Communications Module (Wire) NCS Network Control Station ONYXWorks® Workstation Network Monitoring Workstation PRN-6 80-Column Printer R-120 120 Ohm End-of-Line Resistor R-2.2K 2.2K End-of-Line Resistor R-27K 27K End-of-Line Resistor R-470 470 End-of-Line Resistor R-47K 47K End-of-Line Resistor RA100Z Remote Annunciator with diode RA400 Remote Annunciator RKS-S Remote Security Keyswitch (Not ULC-listed)

RPJ-1 Remote Phone Jack RPT-485SF EIA-485 Repeater (Fiber) RPT-485W EIA-485 Repeater (Wire) RPT-485WF EIA-485 Repeater (Wire/Fiber) RM-1 Remote Microphone RM-1SA Remote Microphone SCS-8, SCE-8 Smoke Control System SDX-551 Intelligent Photoelectric Detector SDX-551TH Intelligent Photoelectric and Thermal Detector SDX-751 Intelligent Photoelectric Detector SLC-IM Singaling Line Circuit Integration Module

(FlashScan)

STS-1 Security Tamper Switch (Not ULC-listed) TM-4 Transmitter Module UDACT/UDACT-2 Universal Digital Alarm Communicator

Transmitter

UZC-256 Universal Zone Coder VeriFire® Tools Upload/Download Software XPIQ Quad Intelligent Audio Transponder (Audio

Applications)

XP10-M Ten Input Monitor Module XP6-C Supervised Control Module XP6-MA Six Zone Interface Module XP6-R Six Relay Control Module

System Sensor Compatible Equipment

A2143-00 End of Line Resistor Assembly EOLR-1 End of Line Resistor Assembly FSB-200 Single-ended beam smoke detector.

FSB-200S Single-ended beam smoke detector with

sensitivity testing.

Retrofit Equipment: Compatible Notifier Equipment Listed Under Previous Editions of UL 864

NOTE: The products in this list have not received UL 864 9th Edition certification and may only be used in retrofit applications (see Section 1.2, “UL 864 Compliance”, on page 8).

ACM-16AT Annunciator Control Module ACM-32A Annunciator Control Module ACPS-2406 Auxiliary Charger/Power Supply AEM-16AT Annunciator Expander Module AEM-32A Annunciator Expander Module AFM-16A Annunciator Fixed Module AFM-32A Annunciator Fixed Module AMG-1/E Audio Message Generator APS-6R Auxiliary Power Supply B501BH/B501BHT Sounder Base BGX-101L Addressable Manual Pull Station CHG-120 Battery Charger FCPS-24 Field Charger/Power Supply IPX-751 Advanced Multi-Sensor Intelligent Detector MMX-1 Addressable Monitor Module NCA Network Communications Annunciator

PRN-4, PRN-5 80-Column Printers RFX Wireless Transmitter (version 2.0 and higher) SDRF-751 Wireless Photo/Thermal Smoke Detector (Not

ULC-listed)

VS4095 Keltron Printer (Dress plate P-40) (Not ULC-listed) XPIQ Quad Intelligent Audio Transponder (NAC

Applications)

Transponder Control Module

XP5-C XP5-M Transponder Monitor Module

XPC-8 Transponder Control Module XPM-8 Transponder Monitor Module XPM-8L Transponder Monitor Module XPP-1 Transponder Processor XPR-8 Transponder Relay Module 5817CB Wireless Monitor Module

18 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Section 3: Installation

3.1 Preparing for Installation

Choose a location for the fire alarm system that is clean, dry, and vibration-free with moderate temperature. The area should be readily accessible with sufficient room to easily install and maintain it. There should be sufficient space for cabinet doo r(s) to open completely.

Carefully unpack the system and inspect for shipping damage. Count the number of conductors needed for all devices and find the appropriate knockouts. (Refer to Section 3.11 “UL Powerlimited Wiring Requirements” for selection guidelines.)

Before installing the fire alarm system, read the follo wing:

• Review the installation precautions at the front of this manual.

• Installers should be familiar with the standard s and codes specified in Section 1.1 “Standards and Other Documents”.

• All wiring must comply with the Nation a l and Local codes for fire alarm systems.

• Do not draw wiring into the bottom 9 inches (22.86 cm) of the cabinet except when using a separate battery cabinet; this space is for internal battery installation.

• Review installation instructions in Section 3.2 “Ins tallation Checklist”.

WARNING: RISK OF IRREPARABLE EQUIPMENT DAMAGE

MAKE SURE TO INSTALL SYSTEM COMPONENTS IN THE SEQUENCE LISTED BELOW. FAILURE TO DO SO CAN DAMAGE THE CONTROL PANEL AND OTHER SYSTEM COMPONENTS.

WARNING: RISK OF IRREPARABLE EQUIPMENT DAMAGE

WEAR A STATIC DISCHARGE STRAP ON WRIST TO PREVENT EQUIPMENT DAMAGE.

3.2 Installation Checklist

The checklist that follows contains references to information included in other manuals; see Section 1.3 “Related Documents” for document part numbers.

Task Refer to:

1. Mount the cabinet backbox to the wall. Section 3.3 “Mounting a Cabinet”

2. Attach CPU to chassis Section 3.5 “Attaching the CPU & Chassis”

3. Attach option boards (e.g. SLC loop modules, network communications modules, and other devices of the same size) to chassis.

4. Attach chassis to backbox as appropriate for system design

5. Wire relays Section 3.9 “Form-C Relays on the CPU”

6. Attach & wire other system components

 Audio/Voice equipment DVC Digital Voice Command Manual, DAA Digital Audio

 Annunciators and other ACS devices Installation document for the specific device (such as ACS

• Section 3.6 “Attaching Option Boards”

• Section 3.7 “Connecting the Network Communications Module”

• Installation document for the specific device Section 3.4 “Laying Out Equipment in Cabinet and Chassis”

Amplifiers Manual, DVC-RPU Manual, AA-series Audio Amplifiers Manual, DS-DB Manual

Manual, ACM-8R Manual, etc.)

Table 3.1 Installation Checklist (1 of 2)

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 19

Installation Mounting a Cabinet

Task Refer to:

 Remote Data Port devices LCD-160 Manual  Printer or other output device(s) Section 3.14 “Installing Printers”  Network devices Noti•Fire•Net Version 4.0 & Higher Manual/High-Speed

Noti•Fire•Net Manual, and/or Installation document for specific device(s)

7. Wire the Signaling Line Circuits (Notification Appliance Circuits and Initiating Device Circuits)

8. Calculate the proper battery rating. Main Power Supply Manual

9. Install main power supply & batteries in separate enclosure. Run cable to main & optional power supplies, DC power outputs, relays, etc.

WARNING:

DO NOT ACTIVATE POWER AT THIS TIME. DO NOT CONNECT BATTERIES.

 Main power supply. • Main Power Supply Manual

 Auxiliary power supply and/or

external battery charger

10. Check that all mounting holes are secured to insure a proper Earth Ground connection.

11. Connect wire shielding to Earth Ground.

12. Remove insulator from lithium battery on CPU

13. Apply AC power to the control panel by placing the external circuit breaker to the ON position. Do NOT connect batteries until AC power is checked (see next step).

14. Check AC power. Section 3.10.3 “Checking AC Power”

15. Connect the batteries using interconnect cable as described in power supply manual.

16. Install the dress panels, doors and covers.

17. Program the control panel. Programming Manual.

18. Field test the system. Section 5 “Testing the System”

Section 3.15 “Wiring a Signaling Line Circuit (SLC)” and the SLC Wiring Manual

• Section 3.10 “Connecting Power Sources and Outputs”

• Section 3.11 “UL Power-limited Wiring Requirements”

• BB-100/200 Cabinet Installation Instructions

Auxiliary power supply manuals and/or battery charger manuals. Note: If using multiple power supplies with one set of batteries, refer to main power supply manual for connection requirements.

Section 3.5.4 “Memory-Backup Battery”

CAB-3/CAB-4 Series Cabinet Installation Document

Table 3.1 Installation Checklist (2 of 2)

3.3 Mounting a Cabinet

This section provides instructions for mounting the CAB-4 Series backbox to a wall. Fo llow these guidelines when mounting the backbox:

• Locate the backbox so that the top edge is 66 inches (1.6764 m) above the surface of the finished floor.

• Allow sufficient clearance around cabinet for door to swing freely. (See Section 2.4 “System Cabinets”.)

• Use the four holes in the back surface of the backbox to provide secure mounting (See Figure 3.1).

• Mount the backbox on a surface that is in a clean, dry, vibration-free area.

20 NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014

Mounting a Cabinet Installation

Keyholes

2 places

Mounting holes

2 places

CAB-4 Series backbox,

A-size (one-row)

CAB4cabinetmountingholes.cdr

CAB-4 Series backbox,

D-size (four-row)

Chassis-

mounting

studs

(2 per row of

backbox)

Chassismounting

studs

(2 per row of

backbox)

Figure 3.1 Backbox-Mounting Holes and Chassis-Mounting Studs

CAUTION:

UNLESS YOU ARE FAMILIAR WITH THE PLACEMENT OF COMPONENTS WITHIN THIS BACKBOX, ONLY USE THE KNOCKOUT LOCATIONS PROVIDED FOR CONDUIT ENTRY.

Follow the instructions below.

1. Mark and pre-drill holes for the top two keyhole mounting bo lts.

2. Select and punch open the appropriate knock-outs. (For selection guidelines, see Section 3.11 “UL Power-limited Wiring Requirements”.)

3. Using the keyholes, mount the backbox over the two screws.

4. Mark the location for the two lower holes, re move the backbox and drill the mounting holes.

5. Mount the backbox over the top two screws, th en install the remaining fasteners. Tighten all fasteners securely.

6. Feed wires through appropriate knockouts.

7. Install CPU and other components according to this section, before installing hinges and door (see CAB-3/CAB-4 Se rie s Cabinet Installa tion Document).

NFS2-3030/E I nst a l la t ion Manual — P/N 52544:N1 07/18/2014 21

+ 47 hidden pages

Notifier NFS2-3030/E, NFS2-3030 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Section 1: About This Manual

1.1 Standards and Other Documents

1.2 UL 864 Compliance

1.3 Related Documents

1.4 Cautions and Warnings

Section 2: System Overview

2.1 System Description

2.2 System Components

2.3 Product Diagram

2.4 System Cabinets

2.5 Compatible Equipment

Section 3: Installation

3.1 Preparing for Installation

3.2 Installation Checklist

3.3 Mounting a Cabinet
