1 Product Overview
The LDM Lamp Driver Modules (LDM-32, LDM-E32, and LDM-R32) are used to drive lamps or LEDs in a
custom mimic connected to an addressable fire panel.
2 Installation
WARNING: Remove all power sources to the panel before installation. Leave the
external and main power OFF until installation is complete.
2.1 Mounting a LDM Module to a CHS Chassis
1. Screw two 3/4” stand-offs onto the mounting studs of a CHS chassis.
2. Place the module on the CHS chassis. Ensure the tab on the module slides into the slot on the
CHS chassis.
3. Secure the module with two 4-40 screws.

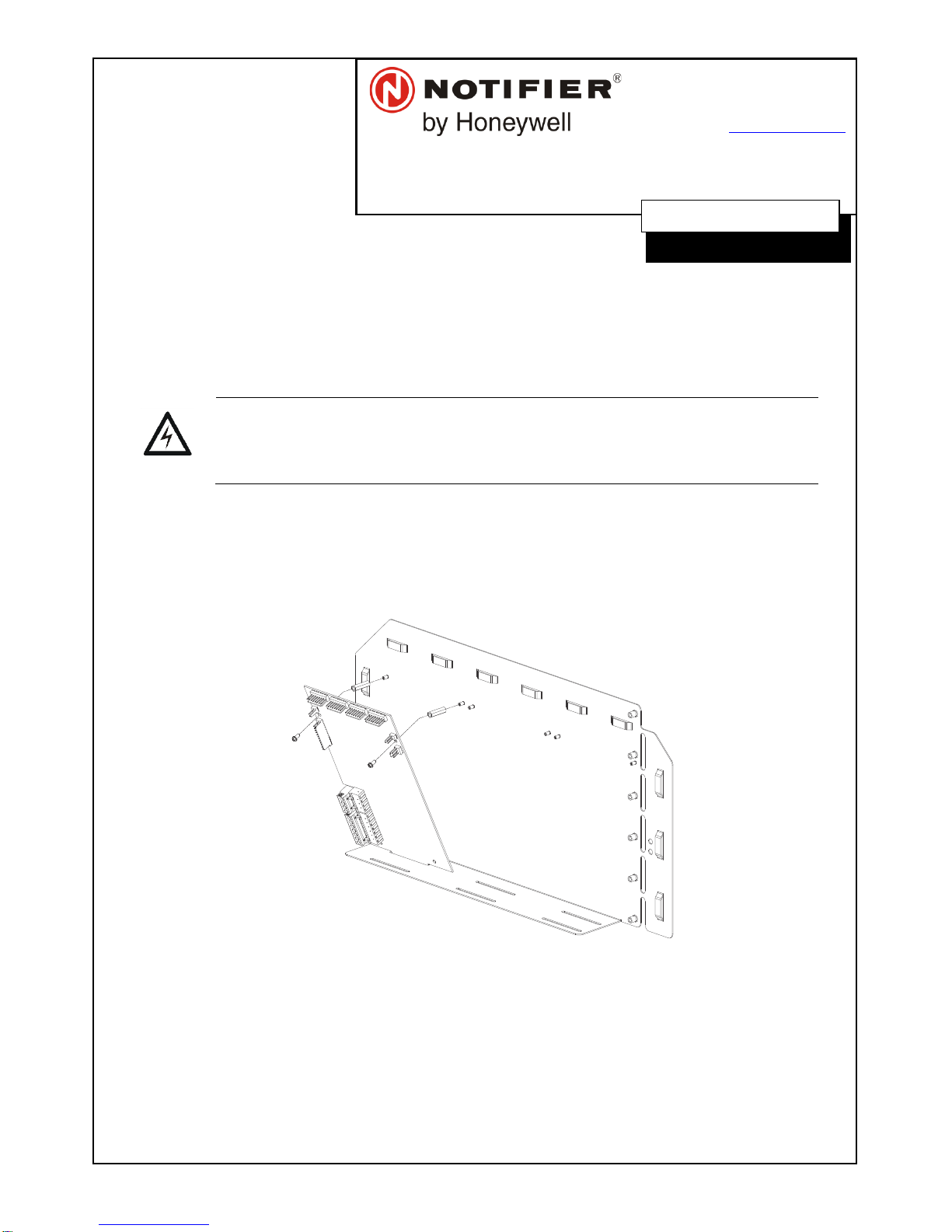

Figure 2-1 - Mounting the LDM to a CHS Chassis
2.2 Mounting a LDM Relay Expander
The LDM-R32 can either be mounted alongside a LDM module or expander in the CHS chassis (see
section 2.1 for CHS mounting), or stacked on top of a LDM module using the standoffs provided (see Figure
2-2.)
Make sure to connect the Relay Power Ribbon Cable between the LDM-R32 and the LDM Module, as
shown in Figure 2-3.
DOC-03-091
9 Columbia Way
Baulkham Hills, NSW 2153
PH 02-9894-1444 • FAX 02-9894-4193
www.notifier.com.au
LDM Lamp Driver
Installation Sheet - Released
26/03/2015 Rev A
Page 2 of 4
Figure 2-2 – Mounting a LDM-R32 on top of
a LDM Module
Figure 2-3 - Connecting the Relay Power
Ribbon Cable
2.3 Connections
NOTE: When cables are not run in a conduit, shielding on cables for EIA-485
connections must be grounded outside the enclosure and fire panel. See the LDM
Series Instruction Manual for more information.
Figure 2-4 – Power (TB1) and ACS Comms (TB2) connections to the CPU
Figure 2-5 - Connecting LDM-E32 expander modules with the ribbon cable
LDM-32
(or LDM-E32)
LDM-R32
Chassis
Standoff
Standoff
J10
J9
9.;>
>=D2?
J11
J5
J6
J7
J8
J2
TB4
J5
J6
J7
J8
J10
K1
K2
K3
K4
K5
K6
K27
K28
K29
K30
K31
TB1
K32
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
LDM-32
(or LDM-E32)
LDM-R32
Relay Power Ribbon Cable connection
IN
OUT
OUT
IN
IN
OUT
OUT
IN
IN
OUT
OUT
IN
CPU Board
120
EOL
First
LDM-32
Last
LDM-32
IN
IN
NC Supervision
Inputs
OUT
OUT
EGnd
7
6
5
4
3
2
1
IN
IN
NC Supervision
Inputs
OUT
OUT
EGnd
7
6
5
4
3
2
1
IN
IN
NC Supervision
Inputs
OUT
OUT
EGnd
7
6
5
4
3
2
1
