GENERAL
Four different monitor modules are available for NOTIFIER intelligent controls to suit a variety of applications. Monitor modules are used to supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations,
or monitor and power a circuit of two-wire smoke detectors
(FZM-1).
FMM-1 — is a standard-sized module (typically mounts to
a 4" [10.16 cm] square box) that supervises either a Class A
(Style D) or Class B (Style B) circuit of dry-contact input devices.
FMM-101 — is a miniature monitor module (a mere 1.3"
(3.302 cm) H x 2.75" (6.985 cm) W x 0.5" (1.270 cm) D) used
to supervise a Class B (Style B) circuit. Its compact design
allows the FMM-101 to often be mounted in a single-gang
box behind the device it’s monitoring.
FZM-1 — is a standard-sized module used to monitor and
supervise compatible two-wire, 24 volt, smoke detectors on
a Class A (Style D) or Class B (Style B) circuit.
FDM-1 — is a standard-sized dual monitor module used to
monitor and supervise two independent two-wire initiating
device circuits (IDCs) at two separate, consecutive addresses
in intelligent, two-wire systems.
FlashScan® (U.S. Patent 5,539,389) is a new communi-
cation protocol developed by NOTIFIER Engineering that
greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a
grouped fashion. If one of the devices within the group has
new information, the panel CPU stops the group poll and
concentrates on single points. The net effect is response
speed greater than five times that of other designs.
FlashScan® is a registered trademark of NOTIFIER.
FMM-1 MONITOR MODULE
• Built-in type identification automatically identifies this device as a monitor module to the control panel.
• Powered directly by two-wire SLC loop. No additional power
required.
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct-dial entry of address: 01 – 159 on FlashScan® systems, 01 – 99 on CLIP systems.
• LED flashes green during normal operation (this is a programmable option) and latches on steady red to indicate
alarm.
The FMM-1 Monitor Module is intended for use in intelligent, two-wire systems, where the individual address of each
module is selected using the built-in rotary switches. It provides either a two-wire or four-wire fault-tolerant Initiating
Device Circuit (IDC) for normally-open-contact fire alarm and
supervisory devices. The module has a panel-controlled LED
indicator. The FMM-1 can be used to replace MMX-1 modules in existing systems.
August 23, 2004
DN-6720 • H-220
FMM-1, FMM-101, FZM-1, FDM-1
Monitor ModulesMonitor Modules
Monitor Modules
Monitor ModulesMonitor Modules
with FlashScan®with FlashScan®
with FlashScan®
with FlashScan®with FlashScan®
Section: Intelligent/Addressable Devices
CS669
S635
U.S. Coast Guard
161.002/23/3 (AFP-200:
FMM-1/-101, FZM-1)
California
State Fire
Marshal
7300-0028:202
161.002/42/1
(NFS-640: FMM-1/-101)
6724mod2.tif
detail of FDM-1
— note “ones”
addresses are
0, 2, 4, 6, 8 only
FMM-1 Applications — Use to monitor a zone of four-
wire smoke detectors, manual fire alarm pull stations,
waterflow devices, or other normally-open dry-contact alarm
activation devices. May also be used to monitor normallyopen supervisory devices with special supervisory indica-
tion at the control panel. Monitored circuit may be wired as
an NFPA Style B (Class B) or Style D (Class A) Initiating
Device Circuit. A 47K ohm End-of-Line Resistor (provided)
terminates the Style B circuit. No resistor is required for supervision of the Style D circuit. Maximum IDC loop length is
2,500 ft./762 m (20 ohms maximum).
93/60141 (E3)
(FMM-1/-101, FZM-1)
94/60004/E2
(AFP200:
except FDM-1)
02/60007
(NFS-640: FDM-1)
MEA
143-01-E (FDM-1)
317-01-E
(FMM-1/-101)
345-02-E
(FMM-1/-101)
457-99-E (FZM-1,
FMM-1/-101)
447-99-E
FMM-1
and
FZM-1
6720fdm1.tif
NOTIFIER® is a Honeywell company.
This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applications
or anticipate all requirements. All specifications are subject to change without notice.
For more information, contact NOTIFIER. Phone: (203) 484-7161 FAX: (203) 484-7118
12 Clintonville Road, Northford, Connecticut 06472
DN-6720 • 08/23/04 — Page 1 of 6
FMM-1 Operation — Each FMM-1 uses one of 159 avail-
able module addresses on an SLC loop. It responds to regular polls from the control panel and reports its type and the
status (open/normal/short) of its Initiating Device Circuit (IDC).
A flashing LED indicates that the module is in communication with the control panel. The LED latches steady on alarm
(subject to current limitations on the loop).
FMM-1 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Maximum operating current: 375 µA (LED flashing).
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (11.43 cm) high x 4" (10.16 cm) wide x
1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x
2.125" (5.398 cm) deep box.
FMM-101 MINI MONITOR MODULE
• Built-in type identification automatically identifies this device as a monitor module to the panel.
• Powered directly by two-wire FACP. No additional power
required.
• High noise (EMF/RFI) immunity.
• Tinned, stripped leads for ease of wiring.
• Direct-dial entry of address: 01 – 159 on FlashScan® systems, 01 – 99 on CLIP systems.
6720m101.wmf
The FMM-101 Mini Monitor Module can be installed in a
single-gang junction directly behind the monitored unit. Its
small size and light weight allow it to be installed without rigid
mounting. The FMM-101 is intended for use in intelligent,
two-wire systems where the individual address of each module is selected using rotary switches. It provides a two-wire
initiating device circuit for normally-open-contact fire alarm
and security devices. The FMM-101 can be used to replace
MMX-101 module in existing systems.
FMM-101 Applications — Use to monitor a single de-
vice or a zone of four-wire smoke detectors, manual fire alarm
pull stations, waterflow devices, or other normally-open drycontact devices. May also be used to monitor normally-open
supervisory devices with special supervisory indication at the
control panel. Monitored circuit/device is wired as an NFPA
Style B (Class B) Initiating Device Circuit. A 47K ohm End-ofLine Resistor (provided) terminates the circuit.
FMM-101 Operation — Each FMM-101 uses one of 159
available module addresses on an SLC loop. It responds to
regular polls from the control panel and reports its type and
the status (open/normal/short) of its Initiating Device Circuit
(IDC).
FMM-101 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum operating current: 375 µA.
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 1.3" (3.302 cm) high x 2.75" (6.985 cm) wide x
0.5" (1.270 cm) deep.
Wire length: 6" (15.24 cm) minimum.
FZM-1 INTERFACE MODULE
• Supports compatible two-wire smoke detectors.
• Supervises IDC wiring and connection of external power
source.
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct-dial entry of address: 01 – 159 on FlashScan® systems, 01 – 99 on CLIP systems.
• LED flashes during normal operation (this is a programmable option).
• LED latches steady to indicate alarm on command from
control panel.
The FZM-1 Interface Module is intended for use in intelligent, addressable systems, where the individual address of
each module is selected using built-in rotary switches. This
module allows intelligent panels to interface and monitor twowire conventional smoke detectors. It transmits the status
(normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors being monitored must be UL compatible with the module. The
FZM-1 has a panel-controlled LED indicator and can be used
to replace MMX-2 modules in existing systems.
FZM-1 Applications — Use the FZM-1 to monitor a zone
of two-wire smoke detectors. The monitored circuit may be
wired as an NFPA Style B (Class B) or Style D (Class A) Initiating Device Circuit. A 3.9 K ohm End-of-Line Resistor (provided) terminates the end of the Style B or D (class B or A)
circuit (maximum IDC loop resistance is 25 ohms). Install ELR
across terminals 8 and 9 for Style D application.
FZM-1 Operation — Each FZM-1 uses one of 159 avail-
able module addresses on an SLC loop. It responds to regular polls from the control panel and reports its type and the
status (open/normal/short) of its Initiating Device Circuit (IDC).
A flashing LED indicates that the module is in communication with the control panel. The LED latches steady on alarm
(subject to current limitations on the loop).
FZM-1 Specifications
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Maximum operating current: 255 µA (LED flashing).
EOL resistance: 3.9K ohms.
External supply voltage (between Terminals T3 and T4):
DC voltage: 18 to 28 volts power limited. Ripple voltage:
RMS maximum. Current: 90 mA per module maximum.
0.1 V
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (11.43 cm) high x 4" (10.16 cm) wide x
1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x
2.125" (5.398 cm) deep box.
Page 2 of 6 — DN-6720 • 08/23/04
FDM-1 DUAL MONITOR MODULE
The FDM-1 Dual Monitor Module is intended for use in in-
telligent, two-wire systems. It provides two independent twowire initiating device circuits (IDCs) at two separate, consecutive addresses. It is capable of monitoring normally open
contact fire alarm and supervisory devices; or either normally
open or normally closed security devices. The module has a
single panel-controlled LED. NOTE: The FDM-1 provides two
Class B (Style Y) IDC circuits ONLY. Class A (Style Z) IDC
circuits are NOT supported in any application.
FDM-1 Specifications
Normal operating voltage range: 15 to 32 VDC.
Maximum current draw: 5.7 mA (LED on).
Maximum operating current: 750 µA (LED flashing).
EOL resistance: 47K ohms.
Maximum IDC wiring resistance: 1,500 ohms.
Temperature range: 32° to 120°F (0° to 49°C).
Humidity range: 10% to 93% (non-condensing).
Dimensions: 4.5" (11.43 cm) high x 4" (10.16 cm) wide x
2.125" (5.398 cm) deep.
FDM-1 Automatic Addressing — The FDM-1 auto-
matically assigns itself to two addressable points, starting
with the original address. For example, if the FDM-1 is set to
address “56”, then it will automatically assign itself to addresses “56” and “57”. NOTE: “ones” addresses on the FDM-1
are 0, 2, 4, 6, or 8 only. Terminals 6 and 7 use the first ad-
dress, and terminals 8 and 9 use the second address.
INSTALLATION
FMM-1, FDM-1, and FZM-1 modules mount directly to a standard 4" (10.16 cm) square, 2.125" (5.398 cm) deep, electrical
box. They may also be mounted to the SMB500 surface-mount
box. Mounting hardware and installation instructions are provided with each module. All wiring must conform to applicable
local codes, ordinances, and regulations. These modules are
intended for power-limited wiring only.
The FMM-101 module is intended to be wired and mounted
without rigid connections inside a standard electrical box. All
wiring must conform to applicable local codes, ordinances,
and regulations.
PRODUCT LINE INFORMATION
FMM-1 Monitor module.
FMM-101 Monitor module, miniature.
FZM-1 Monitor module, two-wire detectors
FDM-1 Monitor module, dual, two independent Class
B circuits.
SMB500 Optional surface-mount backbox.
ARCHITECTS’/ENGINEERS’
SPECIFICATIONS
Specifications of these and all NOTIFIER products are available from NOTIFIER.
Avoid duplicating addresses on the system.
Face Plate for FMM-1, FZM-1, and FDM-1
MOUNTING DIAGRAMS
for standard-sized
modules
6724face.wmf
6720mt2.wmf
6720mt1.wmf
DN-6720 • 08/23/04 — Page 3 of 6

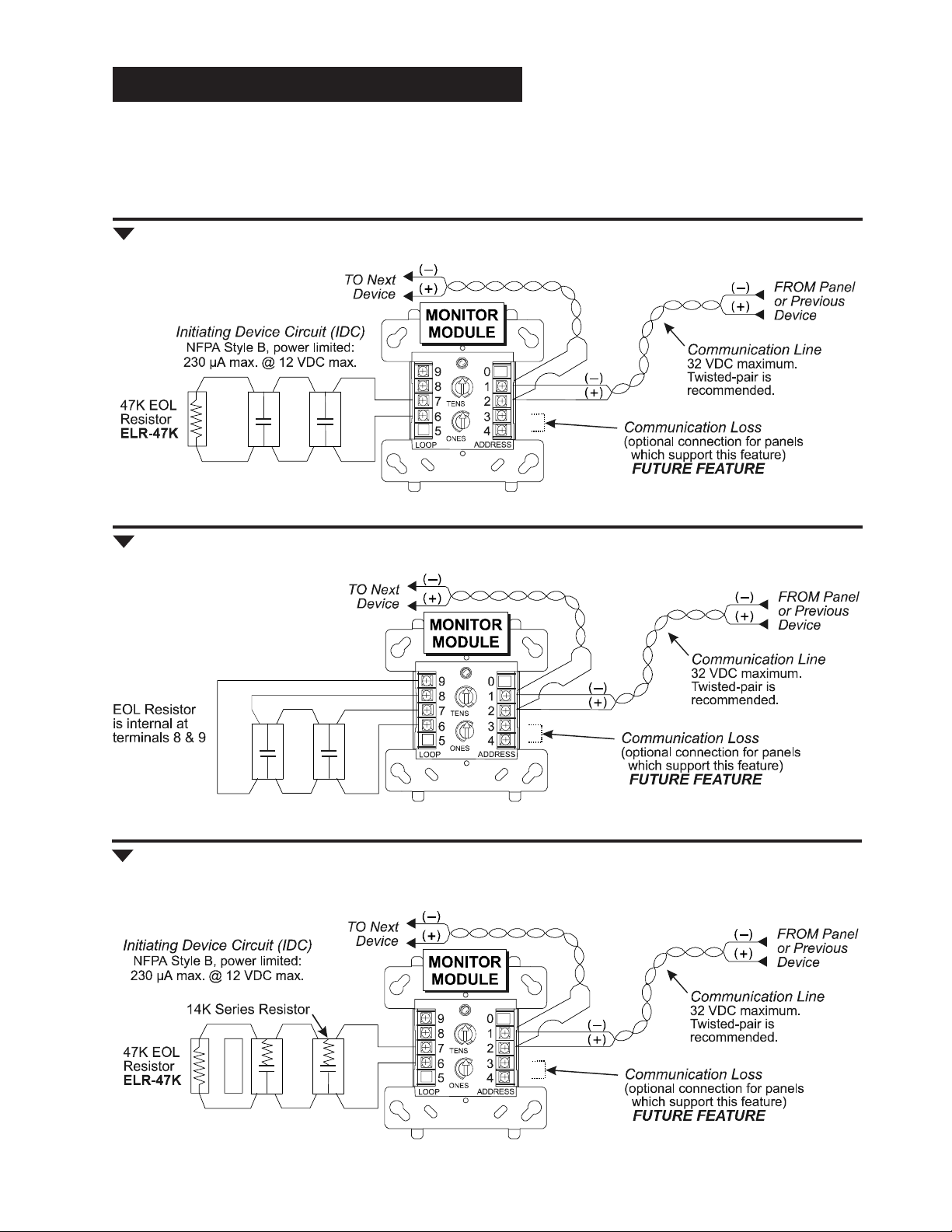

WIRING DIAGRAMS
The following wiring diagrams are included:
1) FDM-1, typical dual two-wire Style B initiating device circuit configuration.
2) FMM-101, typical two-wire Style B initiating device circuit configuration.
3) FMM-1, typical two-wire initiating circuit configuration, NFPA Style B.
4) FMM-1, typical four-wire fault-tolerant initiating circuit configuration, NFPA S tyle D.
5) FMM-1, typical two-wire initiating circuit configuration for security systems
(with alarm versus short capability).
6) FZM-1, interface two-wire conventional detectors, NFPA Style B.
7) FZM-1, interface two-wire conventional detectors, NFPA Style D.
8) FRM-1, relay control module used to disconnect a power supply.
WIRING DIAGRAM: FDM-1
Fig. 1 FDM-1: Typical dual two-wire Style B
initiating device circuit configuration.
WIRING DIAGRAM: FMM-101
Fig. 2 FMM-101: Typical two-wire Style B
initiating device circuit configuration.
6822wir1.wmf
6720wir1.wmf
Page 4 of 6 — DN-6720 • 08/23/04
WIRING DIAGRAMS THIS PAGE: FMM-1
• Connect modules to listed compatible NOTIFIER control panels only.
• All wiring shown is supervised and power limited.
• Install contact closure devices per manufacturers’ installation instructions.
• Any number of UL-listed contact closure devices may be used.
• DO NOT MIX fire alarm initiating, supervisory, or security devices on the same circuit.
Fig. 3 FMM-1: Typical two-wire initiating device circuit configuration, NFPA Style B.
6720wir2.wmf
Fig. 4 FMM-1: Typical four-wire fault-tolerant initiating circuit configuration, NFPA Style D.
6720wir3.wmf
Fig. 5 FMM-1: Typical two-wire initiating circuit configuration for security systems
(with alarm versus short capability).
6720wir4.wmf
DN-6720 • 08/23/04 — Page 5 of 6
• Connect modules to listed compatible control panels only.
• Terminal wiring must be power limited.
• DO NOT MIX fire alarm initiating, supervisory, or security devices on the same circuit.
• DO NOT LOOP wire under terminals. Break wire run to provide supervision of connections.
• Detectors must be UL listed compatible with module.
• Install detectors per manufacturers’ installation instructions.
• Power to the interface module must be externally switched to reset the detectors. An FRM-1 relay control module can be
used to switch power from a standard power supply; see Fig. 7 below.
WIRING
DIAGRAMS
THIS PAGE:
FZM-1, FRM-1
Fig. 6 FZM-1: Interface two-wire conventional detectors, NFPA Style B.
6720wir5.wmf
Fig. 7 FZM-1: Interface two-wire conventional detectors, NFPA Style D.
6720wir6.wmf
Fig. 8 FRM-1: Relay control module used to disconnect a power supply.
Page 6 of 6 — DN-6720 • 08/23/04
6720wir7.wmf
Loading...
