B710LP Plug-in Detector Base
Installation Instructions
Before installing detectors, please thoroughly read the system wiring and installation manuals, and manual System
Smoke Detectors Application Guide, which provides detailed information on detector spacing, placement, zoning, and
special applications. Copies of these manuals are available from Notifier.
GENERAL DESCRIPTION
The B710LP base is a plug in detector base intended for use in a 2-wire intelligent system, with screw terminals provided
for power (+ and –), and remote annunciator connections. Communication takes place over the power (+ and –) lines.
BASE TERMINALS
NO. FUNCTION
1 POWER (–), REMOTE ANNUNCIATOR (–)
2 POWER (+)
3 REMOTE ANNUNCIATOR (+)
C0127-00
SPECIFICATIONS
Diameter: 6.1 inches (15.5 cm)
Mounting: 4-inch square box (102 mm) with or without plaster ring
Min. Depth: 1.5 inches (38 mm)
4-inch (102 mm) Octagon Box, Min. Depth: 1.5 inches (38 mm)
3-1/2 inch (89 mm) Octagon Box, Min. Depth: 1.5 inches (38 mm)
Single Gang Box, Min. Depth: 1.5 inches (38 mm)
Operating Temperature Range: 32° to 150°F (0° to 66°C)
STRIPPED WIRE
WIRE WITH
SPADE LUG
3
2
1
BASE
TERMINALS
TAMPER PROOF
TAB
N550-05-00 1 I56-637-06R
Notifier, 12 Clintonville Rd., Northford , CT 06472-1653, (203) 484-7161
N550-05-00 4 I56-637-06R
©2003 Notifier
Please refer to insert for the Limitations of Fire Alarm Systems
REMOTE ANNUNCIATOR, MODEL RA400Z
The remote annunciator is connected between terminals 1 and 3 using the spade lug terminal packed with the remote
annunciator. The spade lug terminal is connected to the base terminal as shown in Figure 5.
It is not acceptable for three stripped wires to be under the same wiring terminal unless they are separated by a
washer or equivalent means. The spade lug supplied with the model RA400Z is considered an equivalent means. See
Figure 5 for proper installation.
C0116-00
Figure 5: Connection to Remote Annunciator Terminal
Figure 1: Terminal Layout
www.PDF-Zoo.com
ELECTRICAL RATINGS — includes Base and Detector
Voltage Range: 15 – 32 Volts DC Peak
Standby Current (nominal): 150 µA at 24 VDC
Power-up Surge At
Max. Rated Voltage: 1.5 mA-sec.
LED Current (nominal): 6.5 mA at 24 VDC
electrical interference.
If shielded cable is used, the shield connection to and from the detector must be continuous by using wire nuts, crimping,
or soldering, as appropriate for a reliable connection.
Wire connections are made by stripping about 3/8” of insulation from the end of the wire (use strip gauge molded in
base), sliding the bare end of the wire under the clamping plate, and tightening the clamping plate screw. Do not loop
the wire under the clamping plate.
The zone wiring of the detector base should be checked before the detector heads are installed in them. The wiring
should be checked for continuity and polarity in the base, and dielectric tests should be performed.
The base contains a label to write the zone, address, and type of detector to be installed at that location. This information is important to set the address of the detector head that will later be plugged into the base and to verify the type
required for that location.
3
2
1
3
2
1
3
2
1
+
-
-
+
+ -
C0129-00
Figure 3: Typical Wiring Diagram for 2-wire loop
TAMPER-RESISTANCE
Note: Do NOT use the tamper-resistant capability if the XR2 or XR2B Removal Tool will be used.
The Tamper Resistant Tab, in the Detector Mounting Bracket, can make the detector tamper-resistant by making it necessary to use a small screwdriver or similar tool to detach the detector from the base.
To make the detector tamper-resistant, use needle-nose pliers to break the smaller tab at the scribed line on the tamper
resistant tab. Figure 1 shows the location of this tab on the detector mounting bracket.
To remove the detector from the base after it has been made tamper resistant, remove the decorative ring by rotating it in
either direction and pulling it away from the base. Then, insert a small screwdriver into the notch, as indicated in Figure
HB, and press the plastic lever toward the mounting surface before rotating the detector counterclockwise for removal.
MOUNTING
This detector base mounts directly to 3-1/2 inch and 4
inch octagon boxes, 4 inch square boxes (with or without
plaster rings) and single gang boxes. To mount, remove
decorative ring by turning it in either direction to unhook
the snaps, then separate the ring from the base. Install the
base to the box using the screws supplied with the junction
box and the appropriate mounting slots in the base. Place
decorative ring onto base, then turn in either direction until
the ring snaps in place (see Figure 2).
INSTALLATION WIRING GUIDELINES
All wiring must be installed in compliance with the National
Electrical Code and all applicable local codes and any
special requirements of the authority having jurisdiction,
using the proper wire size. The conductors used to connect smoke detectors to control panels and accessory
devices should be color-coded to reduce the likelihood of
wiring errors. Improper connections can prevent a system
from responding properly in the event of a fire.
All wiring must be installed in compliance with the National
Electrical Code and all applicable local codes and any
special requirements of the authority having jurisdiction,
using the proper wire size. The conductors used to connect smoke detectors to control panels and accessory
devices should be color-coded to reduce the likelihood of
wiring errors. Improper connections can prevent a system
from responding properly in the event of a fire.
For signal wiring (the wiring between interconnected
detectors), it is recommended that the wire be no smaller
than AWG 18. However, the screws and clamping plate in
the base can accommodate wire sizes up to AWG 12. The
use of twisted pair wiring or shielded cable for the power
(+ and –) loop is recommended to minimize the effects of
N550-05-00 3 I56-637-06RN550-05-00 2 I56-637-06R
SNAP ON
DECORATIVE
RING
SCREWS (NOT
SUPPLIED)
DETECTOR
BASE
BOX (NOT
SUPPLIED)
C0128-00

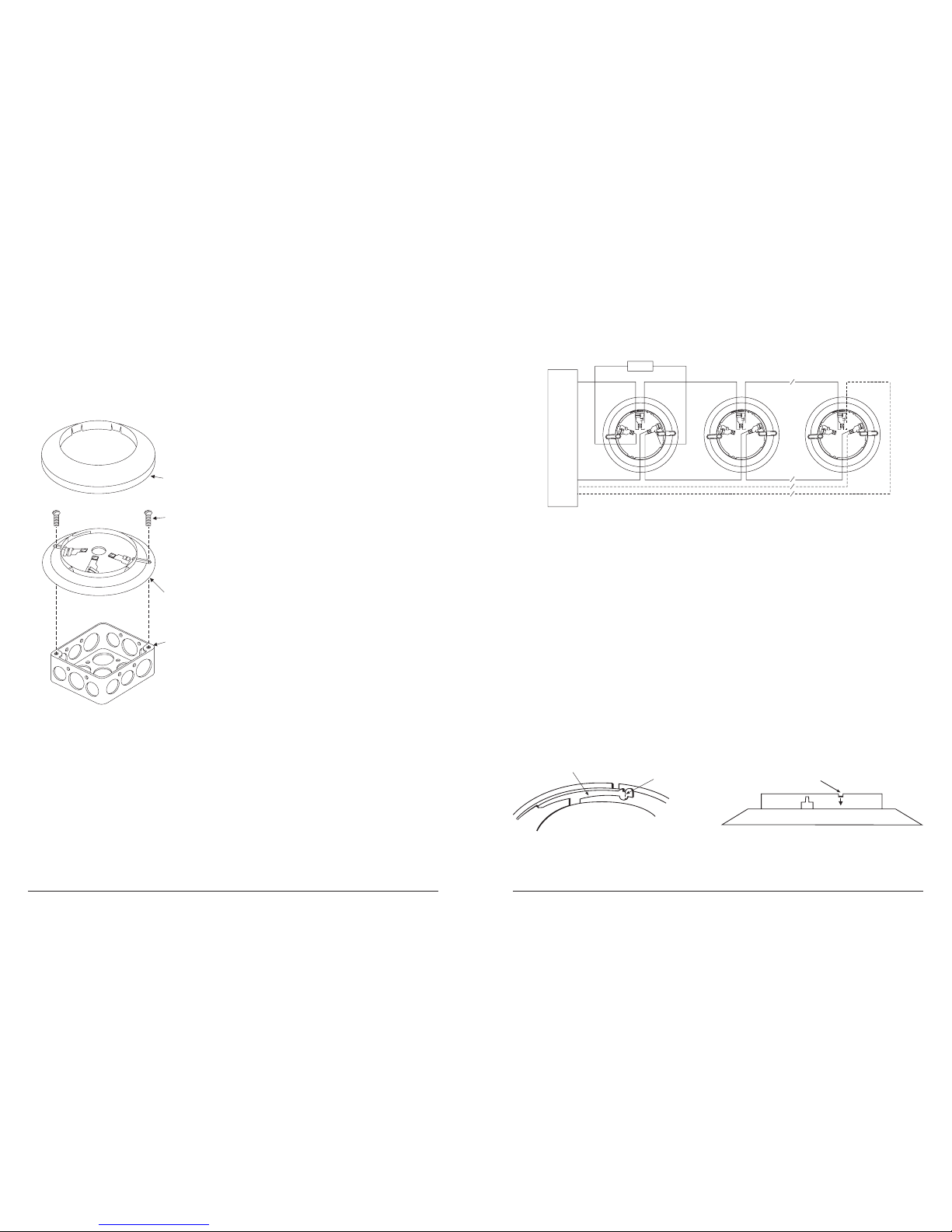

Figure 2: Mounting Detector to Box
PLASTIC LEVER
BREAK TAB AT
DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.
USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.
C0130-00
Figure 4A. Enabling the
Tamper-Resistant Capability
Figure 4B. Removing the Detector
Head from the Base
CAUTION: Do not loop wire under terminal 1 or 2
Break wire run to provide supervision of connections.
CLASS A OPTIONAL WIRING
UL LISTED COMPATIBLE
CONTROL PANEL
REMOTE ANNUNCIATOR
