D/3® USB Keyboard
Process Control Functions
D/3 USB Keyboard
The D/3® USB Keyboard is an environmentally
hardened operator’s keyboard with keys dedicated to process control functions. It communicates
at 12 mbps via an available USB 1.0/2.0 port on
an OCM, DCM or CDCM.
The D/3 Keyboard contains an audible alarm
horn with an adjustable volume control and an
alarm relay consisting of a single set of Form C
contacts.
D/3 control and display functions can be protected by limiting access to them. To access a
protected function, the user must have either
a master key to operate the key lock in the D/3
Keyboard or a password and a Console-Enabling
Index, CEI. The master key bypasses both the
passwords and CEIs to access all protected functions.
The D/3 USB Keyboard functions in parallel with
a standard QWERTY keyboard. When connected
and configured either keyboard may be used.
Drivers and virtual communication port software
for Windows 2000, XP, Vista, and Server 2003 are
included on the D/3 Keyboard installation CD.
The D/3 Keyboard case is made of steel. The keypad is a one piece rubber overlay that is sealed
to the case making the top impervious to dirt or
liquid spills and easy to clean. The standard case
has openings in the rear near the connectors;
however, a wash down version of the keyboard is
available by special order.
Power for the keyboard functions is provided
from the USB connection. The universal 12 VDC
power supply (included) is only required when
the audible horn or Form C contacts are utilized.
Dedicated Keys
The D/3 USB Keyboard simplifies operator tasks
by providing dedicated keys, grouped into a logical arrangement for operators, for selection and
process control.
There are 16 quick-select keys which are used
to select faceplates and parameters from various OCM displays. Six keys dedicated to alarms
are used to acknowledge alarms, silence audible
alarms, and review alarms. Ten display function
keys perform general operations for viewing and
editing of displays. Eight sequence logic keys are
used for interacting with units, recipes, and messages. Five continuous control keys allow direct
access for changing setpoints, outputs, and other
functions. Finally, four keys provide functions for
modifying parameters and four keys are used to
ramp values.
See Operator Console User’s Guide for additional
information about the D/3 Keyboard functions.

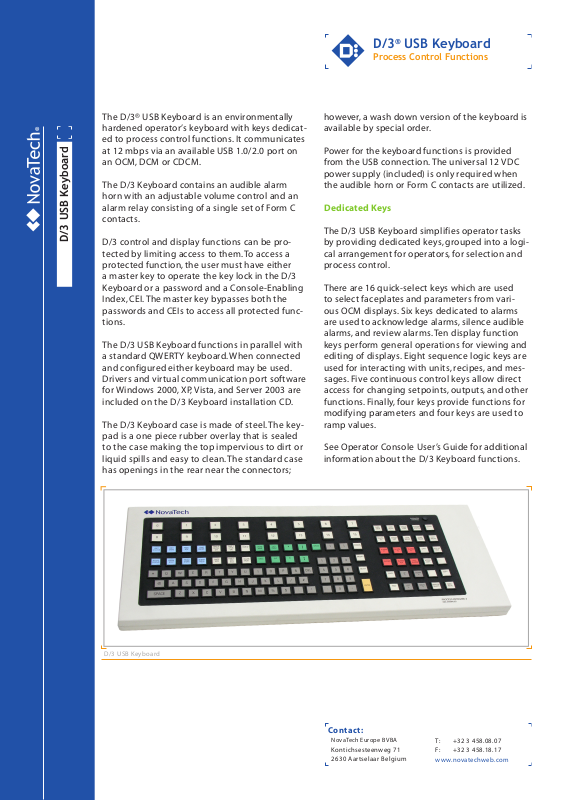

D/3 USB Key board
®
Cont ac t :
Nov aTech Eur ope BVBA
Konti chse steenwe g 71
2630 Aa rtselaar B elgi um
T: +32 3 4 58.0 8.07
F: +32 3 458.18. 17
ww w.novate chweb.c om
Specifications
D/3® USB Keyboard
Process Control Functions
Form C Relay Contacts
Max. switching power 60W, 125VA
Max. switching voltage 220 VDC, 250 VAC
Max. switching current 2A DC or AC
Max. carrying current 2A DC or AC
Sonalert Audible Horn
Loudness 80dbA min.
Variable volume control in rear
12 Volt Alarm Power Supply
(Required for Alarm Functions Only)
Input Voltage Range 100 - 240 VAC, 47-63 Hz.,
0.4A
Output Voltage 12V at 1.25A max.
USB 1.0/2.0 Compatible
Data Exchange Rate 12 Mbps
Current draw 100 ma. max.
Supplied interface cable 3 meters
PC Connector USB A Male
Keyboard Connector USB B Male
CE Certification
Copy of certificate is available upon request.
Installation CD
Includes installation procedure and USB Drivers and Virtual COM Port Software for Windows
2000, XP, Vista, and Server 2003.
Keys
Alphabetic Keys
*, Q, W,E ,R, T, Y, U, I, O, P, &, DEL, @, A S, D, F, G, H, J,
K, L, /, #, SPACE, Z, X, C, V, B, N, M, %, $, :, “, [, ]
Numeric Keys
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, ., -
Display Keys
OVERVIEW, FACEPLATE, SINGLE LOOP, SYSTEM
STATUS, GRAPHICS, GROUP LIST, LOOP MAINT,
CURR TREND, HIST TREND
Display Function Keys
CLEAR, SAVE, DISPLAY EDIT, COPY, GENERAL
FUNCTION, PAGE, PREVIOUS, GRAPHIC ASSOCIATION (4), ASSOCIATED DISPLAY, WINDOW SELECT
Quick Select Keys
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Alarm Keys
ALARM P1, ALARM P2, ALARM P3, SILENCE,
ALARM ACK, LAST ALARM
Sequence Logic Keys
UNIT STATUS, UNIT VARS, RECIPE STATUS, PROGRAM STATUS, PROGRAM STEPS, MESSAGE ACK,
LOAD RECIPE, QUERY HOLD
Digital Function Keys
CLOSE OFF (CMD 0), OPEN ON (CMD 1), CMD #,
OVERRIDE, MID IDLE (CMD 2), CLEAR FAULT
Continuous Control Function Keys
AUTO/MAN, SETPOINT, CASC, OUTPUT, VALUE,
Ramp Keys: , , ,
Parameter Modification Keys
CANCEL, MODIFY, SELECT, ENTER
D/3 USB Keyboard
Compatibility
The D/3 USB Keyboard is compatible with all
Windows OCMs supporting USB 1.0/2.0 connections.
