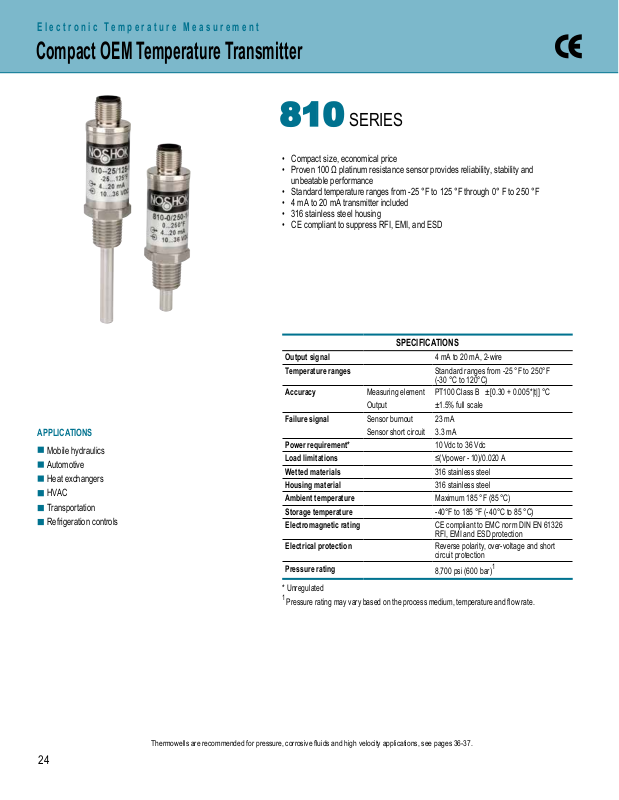

NoShok 810 Specifications

Electronic Temperature Measurement

Compact OEM Temperature Transmitter

810 SERIES

• Compact size, economical price

• Proven 100 Ω platinum resistance sensor provides reliability, stability and
unbeatable performance

• Standard temperature ranges from -25 °F to 125 °F through 0° F to 250 °F

• 4 mA to 20 mA transmitter included

• 316 stainless steel housing

• CE compliant to suppress RFI, EMI, and ESD

APPLICATIONS

Mobile hydraulics
Automotive
Heat exchangers
HVAC
Transportation
Refrigeration controls

SPECIFICATIONS

Output signal 4 mA to 20 mA, 2-wire
Temperature ranges Standard ranges from -25 °F to 250°F

Accuracy Measuring element PT100 Class B ±[0.30 + 0.005*|t|] °C

Output ±1.5% full scale

Failure signal Sensor burnout 23 mA

Sensor short circuit 3.3 mA

Power requirement* 10 Vdc to 36 Vdc
Load limitations ≤(Vpower - 10)/0.020 A
Wetted materials 316 stainless steel
Housing material 316 stainless steel
Ambient temperature Maximum 185 °F (85 °C)
Storage temperature -40°F to 185 °F (-40°C to 85 °C)
Electromagnetic rating CE compliant to EMC norm DIN EN 61326

Electrical protection Reverse polarity, over-voltage and short

Pressure rating

* Unregulated

1

Pressure rating may vary based on the process medium, temperature and ow rate.

(-30 °C to 120°C)

RFI, EMI and ESD protection

circuit protection

8,700 psi (600 bar)

1

24

Thermowells are recommended for pressure, corrosive uids and high velocity applications, see pages 36-37.

810 SERIES

ORDERING INFORMATION

SERIES 810

TEMPERATURE RANGES -25/125 -25 °F to 125 °F 0/140 0 °F to 140 °F 0/250 0 °F to 250 °F

Custom ranges available on request (54 °F minimum span)

ACCURACY 1 Class B + (±1.5% BFSL)
OUTPUT SIGNAL 1 4 mA to 20 mA, 2-wire
PROCESS CONNECTION 2 1/4" NPT Male
ELECTRICAL CONNECTION 25 M12 x 1 (4-pin)
STEM LENGTHS 010 1" 020 2"
STEM DIAMETER 6 6 mm

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

ORDERING
INFORMATION
DIMENSIONS

EXAMPLE

Series ........................................................................... 810

Temperature range .................................-25 °F to 125 °F

Accuracy ....................................... Class B (±1.5% BFSL)

Output signal ................................ 4 mA to 20 mA, 2-wire

Process connection .................................. 1/4" NPT Male

Electrical connection ..................................M12 x 1 (4-pin)

Stem length ....................................................................2"

Stem diameter ..........................................................6 mm

810 Series Compact OEM Temperature Transmitter

.44" (11 mm)

810 – -25/125 – 1 – 1 – 2 – 25 – 020 – 6

.44" (11 mm)

1.69" (43 mm)

1.69" (43 mm)

1/4" NPT

.24"

(6 mm)

.75" HEX

(19 mm)

.98" (25 mm)

1/4" NPT

.24"

(6 mm)

.75" HEX

(19 mm)

1.97" (50 mm)

25
