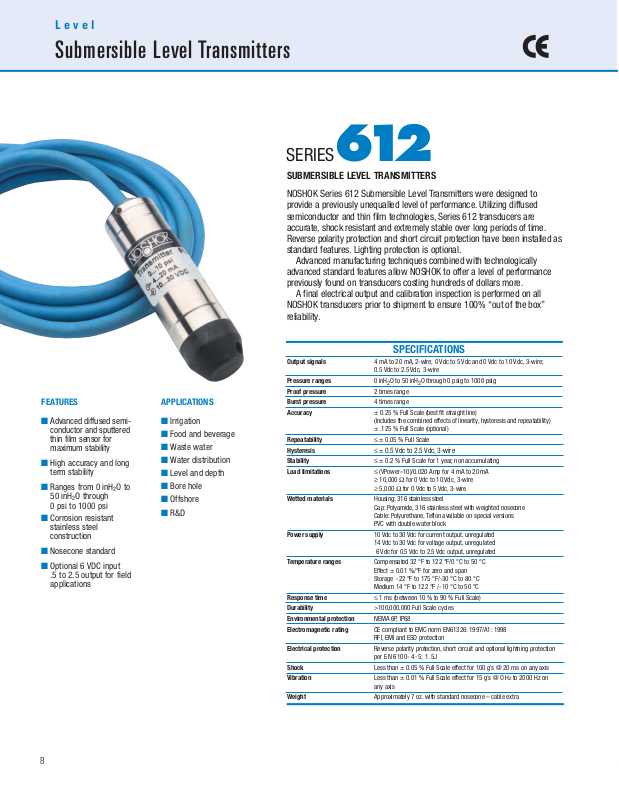

NoShok 612 Data sheet

Level

Submersible Level Transmitters

SERIES612

SUBMERSIBLE LEVEL TRANSMITTERS

NOSHOK Series 612 Submersible Level Transmitters were designed to
provide a previously unequalled level of performance. Utilizing diffused
semiconductor and thin film technologies, Series 612 transducers are
accurate, shock resistant and extremely stable over long periods of time.
Reverse polarity protection and short circuit protection have been installed as
standard features. Lighting protection is optional.

Advanced manufacturing techniques combined with technologically
advanced standard features allow NOSHOK to offer a level of performance
previously found on transducers costing hundreds of dollars more.

A final electrical output and calibration inspection is performed on all
NOSHOK transducers prior to shipment to ensure 100% “out of the box”
reliability.

FEATURES

I Advanced diffused semi-

conductor and sputtered
thin film sensor for
maximum stability

I High accuracy and long

term stability

I Ranges from 0 inH

50 inH

O through

2

Oto

2

0 psi to 1000 psi

I Corrosion resistant

stainless steel
construction

I Nosecone standard

I Optional 6 VDC input

.5 to 2.5 output for field
applications

APPLICATIONS

I Irrigation
I Food and beverage
I Waste water
I Water distribution
I Level and depth
I Bore hole
I Offshore
I R&D

SPECIFICATIONS

Output signals 4 mA to 20 mA, 2-wire; 0 Vdc to 5 Vdc and 0 Vdc to 10 Vdc, 3-wire;

Pressure ranges 0inH

Proof pressure 2 times range

Burst pressure 4 times range

Accuracy ± 0.25 % Full Scale (best fit straight line)

Repeatability ≤ ± 0.05 % Full Scale

Hysteresis ≤ ±

Stability ≤ ± 0.2 % Full Scale for 1 year, non accumulating

Load limitations ≤ (VPower–10)/0.020 Amp for 4 mA to 20 mA

Wetted materials Housing: 316 stainless steel

Power supply 10 Vdc to 30 Vdc for current output, unregulated

Temperature ranges Compensated 32 °F to 122 °F/0 °C to 50 °C

Response time ≤ 1 ms (between 10 % to 90 % Full Scale)

Durability >100,000,000 Full Scale cycles

Environmental protection NEMA 6P, IP68

Electromagnetic rating CE compliant to EMC norm EN61326: 1997/A1: 1998

Electrical protection Reverse polarity protection, short circuit and optional lightning protection

Shock Less than ± 0.05 % Full Scale effect for 100 g’s @ 20 ms on any axis

Vibration Less than ± 0.01 % Full Scale effect for 15 g’s @ O H

Weight Approximately 7 oz. with standard nosecone – cable extra

0.5 Vdc to 2.5 Vdc, 3-wire

Oto50inH2O through 0 psig to 1000 psig

2

(Includes the combined effects of linearity, hysteresis and repeatability)
± .125 % Full Scale (optional)

0.5 Vdc to 2.5 Vdc, 3-wire

≥ 10,000 Ω for 0 Vdc to 10 Vdc, 3-wire
≥ 5,000 Ω for 0 Vdc to 5 Vdc, 3-wire

Cap: Polyamide, 316 stainless steel with weighted nosecone
Cable: Polyurethane, Teflon available on special versions
PVC with double water block

14 Vdc to 30 Vdc for voltage output, unregulated

6 Vdc for 0.5 Vdc to 2.5 Vdc output, unregulated

Effect ± 0.01 %/°F for zero and span
Storage -22 °F to 175 °F/-30 °C to 80 °C
Medium 14 °F to 122 °F /-10 °C to 50 °C

RFI, EMI and ESD protection

per EN 6100 -4- 5; 1.5J

any axis

z to 2000 Hz on

8

ORDERING INFORMATION

SERIES612

DIMENSIONS

WIRING DIAGRAMS
ELECTRICAL CONNECTIONS

ORDERING INFORMATION

SERIES 612

PRESSURE 0 inH2Oto50inH2O 50 IN 0 psig to 2 psig (4.6 ftH2O) 2 0 psig to 20 psig (46.2 ftH2O) 20 0 psig to 200 psig (461.3 ftH2O) 200
RANGES 0 inH2O to 100 inH2O 100 IN 0 psig to 3 psig (6.9 ftH2O) 3 0 psig to 25 psig (57.7 ftH2O) 25 0 psig to 300 psig (692.5 ftH2O) 300

ACCURACY 1 ± 0.25 % Full Scale (Best fit straight line) 2 ± 0.125 % Full Scale (Best fit straight line)

OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire 5 0 Vdc to 10 Vdc, 3-wire

PROCESS CONNECTIONS N nosecone W nosecone w/added weight (1.1 lbs.)

ELECTRICAL CONNECTIONS Submersible cable (specify length in feet)

0 inH2O to 150 inH2O 150 IN 0 psig to 5 psig (11.5 ftH2O) 5 0 psig to 30 psig (69.2 ftH2O) 30 0 psig to 350 psig (807.9 ftH2O) 350
0 inH2O to 200 inH2O 200 IN 0 psig to 10 psig (23.1 ftH2O) 10 0 psig to 60 psig (138.5 ftH2O) 60 0 psig to 500 psig (1154.2 ftH2O) 500
0 inH

O to 400 inH2O 400 IN 0 psig to 15 psig (34.6 ftH2O) 15 0 psig to 100 psig (230.8 ftH2O) 100 0 psig to 750 psig (1733.3 ftH2O) 750

2

psig = Gauge Pressure Other ranges available on special request

2 0 Vdc to 5 Vdc, 3-wire 11 0.5 Vdc to 2.5 Vdc, 3-wire

T NPT adapter, 1/2

process connection with straight thread and O-ring seal

″ NPT male outer thread with 1/4 ″ NPT female inner thread attached to transmitter

0 psig to 150 psig (346.3 ftH2O) 150 0 psig to 1000 psig (2311.0 ftH2O) 1000

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

EXAMPLE

612–5–1– 1–N–50'

Series ............................612

Pressure Range ...........0psig to 5 psig

Accuracy .....................±0.25 %

Output Signal .......4mAto20mA,2-Wire

Process Connection .............nosecone

Electrical Connection .....Submersible Cable

Outline Dimensions

1.06″

(27mm)

3.90″

(99mm)

0.73″

(18.5mm)

0.20″ Dia

(5mm)

Weighted nosecone

G1/2

0.20″ Dia

(5mm)

1.06″

(27mm)

5.12″

(130mm)

NPT adapter

1/2″ NPT

male

O-ring

1.06″ HEX

(27mm)

1.81″

(46mm)

1/4″ NPT

female

2-WIRE WIRING

Wiring Cable

+ Supply Red

+ Output Black

3-WIRE WIRING

Wiring Cable

+ Supply Red

Common Black

+ Output White

Moisture filter 612-Filter-Element

Optional Accessories

Desiccant Cartridge 612-Desiccant Cartridge
Cable Clamp 612-Cable Clamp

9
