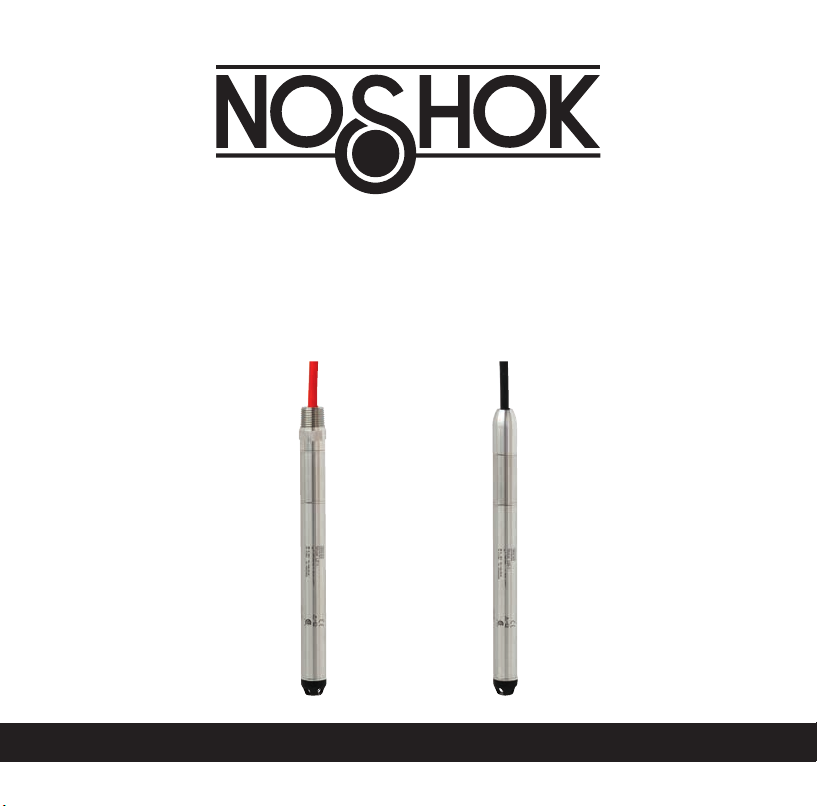

NoShok 611 Operating Manual

611 Series

Small Diameter Submersible

Pressure Transducers

Operating Instructions

Table Of Contents

1. General information 4

2. Design and function 5

3. Safety 7

4. Transport, packaging and storage 9

5. Usage, operation 10

6. Faults 15

7. Maintenance and cleaning 17

8. Dismounting, return and disposal 18

9. Specications 20

EU Declaration of Conformity can be found online at www.noshok.com.

3

1. General information

1. General information

■

The pressure transmitter described in the operating instructions has been designed and
manufactured using state-of-the-art technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems are certied to ISO 9001:2015
and ISO 14001.

■

These operating instructions contain important information on handling the instrument. Working
safely requires that all safety instructions and work instructions are observed.

■

Observe the relevant local accident prevention regulations and general safety regulations for the
instrument's range of use.

■

The operating instructions are part of the product and must be kept in the immediate vicinity of the
instrument and readily accessible to skilled personnel at any time.

■

Skilled personnel must have carefully read and understood the operating instructions prior to

beginning any work.

■

The manufacturer's liability is void in the case of any damage caused by using the product
contrary to its intended use, non-compliance with these operating instructions, assignment of

insu󰀩ciently qualied skilled personnel or unauthorized modications to the instrument.

■

The general terms and conditions contained in the sales documentation shall apply.

■

Subject to technical modications.

■

For more information:

www.noshok.com
T: 440.243.0888
F: 440.243.3472
[e-mail]

4

2. Design and function

2. Design and function

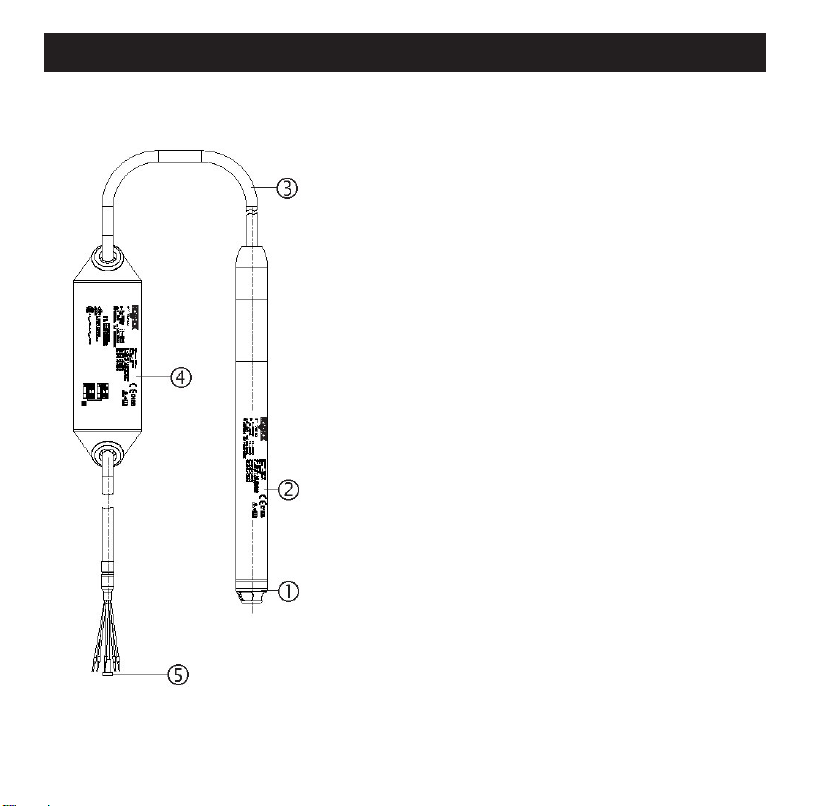

2.1 Overview

Protection cap



Product label



Connection cable



Measuring point tag with product label



Vent tube with filter element



5

2. Design

2. Design and function

2. Design and function

2.2 Functional description

The prevailing hydrostatic pressure is measured at the sensor element through the deformation of
a diaphragm. By supplying power, this deformation of the diaphragm is converted into an electrical

signal. The output signal from the submersible pressure sensor is amplied and standardized. The

output signal is proportional to the measured hydrostatic pressure.

HART® (option)

The instrument version with HART® can communicate with a controller (master).

Measuring range scaling (turndown)

The start and end of the measuring range can be set within the measuring range.

Do not exceed a turndown of 10:1.

2.3 Scope of delivery

■

Submersible pressure sensor

■

Operating instructions

■

Test report

■

Measuring point tag for xing to the cable end

■

Further certicates (optional)

Cross-check scope of delivery with delivery note.

6

2. Design and function

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in serious injury or death, if
not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in light injuries or damage to
property or the environment, if not avoided.

Information

... points out useful tips, recommendations and information for e󰀩cient and trouble-free

operation.

3.2 Intended use

The submersible pressure sensor is used to convert hydrostatic pressure into an electrical signal.

Only use the submersible pressure sensor in applications that lie within its technical performance limits
(e.g. max. ambient temperature, material compatibility, ...).

→ For performance limits see chapter 9 “Specications”.

The instrument has been designed and built solely for the intended use described here, and may only
be used accordingly.

The manufacturer shall not be liable for claims of any type based on operation contrary to the intended
use.

7

2. Design

3. Safety

3. Safety

3.3 Personnel qualication

Skilled personnel

Skilled personnel, authorized by the operator, are understood to be personnel who, based on their

technical training, knowledge of measurement and control technology and on their experience and

knowledge of country-specic regulations, current standards and directives, are capable of carrying
out the work described and independently recognizing potential hazards.

3.4 Labeling, safety marks

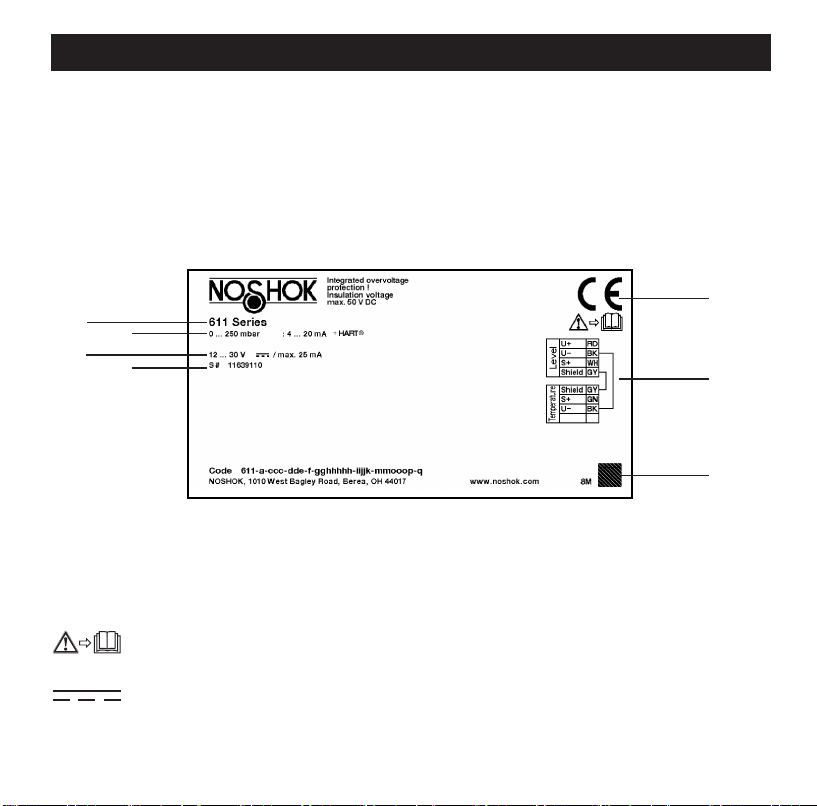

Product label















Part number



Measuring range / Output signal



Power supply / Total current consumptionPin assignment



Before mounting and commissioning the instrument, ensure you read the operating
instructions!

DC voltage

8

Serial number



Approvals



Date of manufacture



4. Transport, packaging and storage

2. Design and function

4. Transport, packaging and storage

4.1 Transport

Check the submersible pressure sensor for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
Make sure that the connection contacts are not damaged.

4.2 Packaging and storage

Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change in installation
site, sending for repair).

Prior to storage, clean the submersible pressure sensor thoroughly (→ see chapter 7.3.2 “Cleaning”)

Permissible conditions at the place of storage:

■

Storage temperature: -40 °F to -112 °F (-40 °C to 80 °C)

■

Humidity: 45 to 75 % relative humidity (no condensation)

Avoid exposure to the following factors:

■

Direct sunlight or proximity to hot objects

■

Mechanical vibration, mechanical shock (putting it down hard)

■

Soot, vapor, dust and corrosive gases

■

Humid or wet environment

■

Hazardous environments, ammable atmospheres

9

5. Commissioning, operation

5. Usage, operation

5.1 Unpacking

When unpacking, do not use any sharp objects (e.g. cutter knives), as this may damage the cable.

Submersible pressure sensors with cable lengths >100 m are wound on cable drums and wrapped

with foil. Unwind the foil manually. The end of the foil is marked with blue tape.

5.2 Suitability for the process conditions

All components of the instrument that are in contact with the process must be suitable for the process

conditions that may exist. Included in this are particularly the process pressure, process temperature

and also the chemical properties of the media. Prior to usage, the suitability of the instrument must be

ensured (For specications, see chapter 9 “Specications” and the product label).

5.3 Requirements for mounting point

The mounting point must meet the following conditions:

■

The diaphragm is protected from contact with abrasive media and against any impacts.

■

The cable contains a capillary for the pressure compensation. Therefore, the cable must be

connected in a dry space or a suitable terminal enclosure.

■

Su󰀩cient space for a safe electrical installation.

■

Permissible ambient and medium temperatures remain within the performance limits.

For performance limits see chapter 9 “Specications”.

5.4 Connecting the instrument

5.5 Requirements for voltage supply

For power supply see product label

10

5. Commissioning, operation

5. Usage, operation

5.4.2 Requirements for electrical connection

Cable diameter matches the cable bushing of the terminal enclosure.
Cable gland and seals are correctly seated.
No humidity can ingress at the cable end.

5.4.3 Requirement for shielding and grounding

The submersible pressure sensor must be shielded and grounded in accordance with the grounding
concept of the plant.

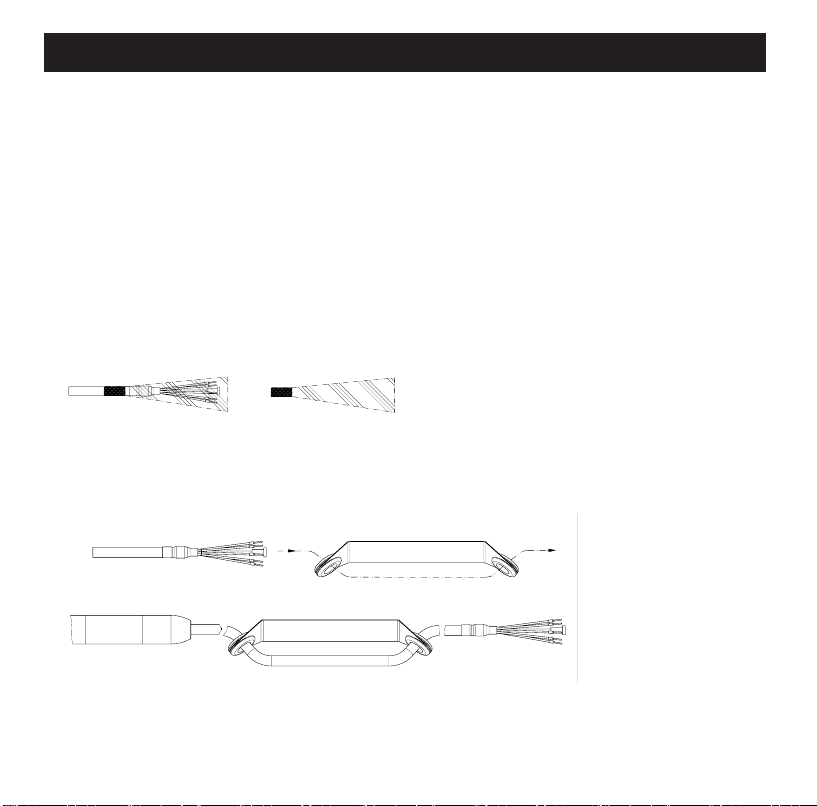

5.4.4 Fitting the measuring point tag

Before the submersible pressure sensor is wired, the measuring point tag must be attached to the
cable. The measuring point tag acts to identify the submersed instrument and contains a copy of the
product label.

1.

Remove the packaging at the cable end

2.

Thread the measuring point tag onto the cable.
The rubber stops at the measuring point tag protect the cable and must be undamaged and correct
mounted. Position the measuring point tag so that, in the mounted state, it is easily reachable and
protected against harsh environmental conditions.

11

5. Commissioning, operation

5. Commissioning, operation

5. Usage, operation

5.4.5 Shortening the cable

The cable can be shortened as required. With submersible pressure sensors with voltage output, a

shortening of the cable results in an o󰀨set error: ≤ 0.014 % / m of shortened cable.

After the shortening, provide the wire ends with end splices and position the lter element on the vent

tube.

5.4.6 Connecting the instrument to the electric system

▶

Connect the cables to the terminals.

▶

For voltage outputs, the load must be specified so that the output current does not exceed 1 mA.

Load

Current output: ≤ (U+ -(U
Voltage output: ≤ 1 mA

- 0.5 V)) / 0.023 A

+min

Additional load of the cable:
≤ cable length in m x 0.084 Ω

Pin assignment

4 ... 20 mA, 4 ... 20 mA + HART® (2-wire)

U+ brown (BN)

U- blue (BU)

Shield grey (GY)

2 x 4 ... 20 mA (2 x 2-wire, galvanically isolated)

U+ (pressure sensor) brown (BN)

U- (pressure sensor) blue (BU)

U+ (temperature sensor) green (GN)

U- (temperature sensor) white (WH)

Shield grey (GY)

12

5. Commissioning, operation5. Commissioning, operation

5. Usage, operation

DC 0.1 ... 2.5 V (3-wire, low power)

U+ brown (BN)

U- blue (BU)

S+ black (BK)

Shield grey (GY)

2 x DC 0.1 ... 2.5 V (3-wire, low power)

U+ brown (BN)

U- blue (BU)

S+ (pressure sensor) black (BK)

S+ (temperature sensor) green (GN)

Shield grey (GY)

Legend

U+ Positive power supply terminal
U- Negative power supply terminal
S+ Analog output

5.4.7 Mounting the instrument

Prior to usage, the submersible pressure sensor must be subjected to a visual inspection.

■

Leaking uid is indicative of damage.

■

Only use the submersible pressure sensor if it is in perfect condition with respect to safety.

The protection cap protects the internal diaphragm from damage during transport and during the
lowering of the probe. With viscous or contaminated media, the protection cap can be removed in order
to ensure trouble-free operation.

When laying the cable, a minimum bending radius of 120 mm must be ensured.

13

5. Commissioning, operation

5. Usage, operation

5.5 Conguring via HART® interface

The HART® modem with RS232, USB or Bluetooth interface (→ see Accessories) enables the

connection of communicating instruments to the respective interface of a PC. To parameterize these

instruments, operating software with COMM DTM HART and Device DTM Generic HART (e.g.
PACTware®) is needed.

The operating software and the required DTMs are available for download at
www.noshok.com.

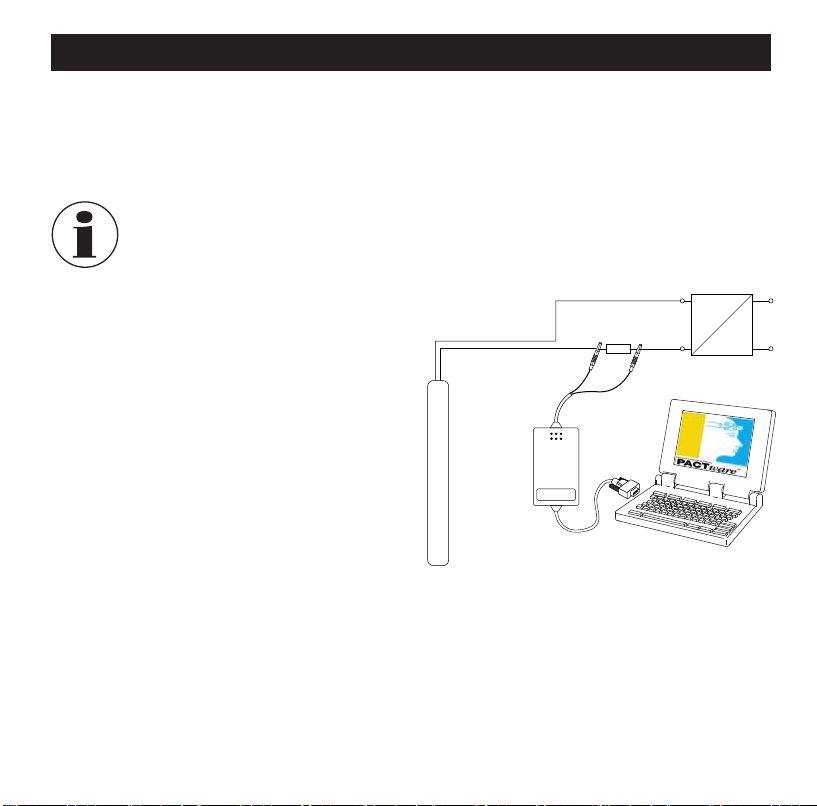

Connecting submersible pressure sensor to PC (HART®)

Any work should only be carried out in a non-hazard­ous area.

1. Connect HART® modem to submersible pressure
sensor.

2. Connect HART

®

modem to PC or notebook.

HART-Widerstand 250 ohm

HART resistance 250 Ω

=

Spannungsquelle

Voltage source

With repeater power supplies with integrated HART

resistances (internal resistance approx. 250 Ω), no

additional external resistance is necessary.

HART modem

HART-Modem

Submersible pressure sensor

RS-232

RS-232

For further information see the operating instructions of the respective display and control unit.

14

~

6. Faults

6. Faults

CAUTION!
Physical injuries and damage to property and the environment

If faults cannot be eliminated by means of the listed measures, the submersible pressure

sensor must be taken out of operation immediately.

▶

Ensure that pressure or signal is no longer present and protect against accidental
commissioning.

▶

Contact the manufacturer.

▶

If a return is needed, please follow the instructions given in chapter 8.2 “Return”.

WARNING!
Physical injuries and damage to property and the environment caused by
hazardous media

Upon contact with hazardous media (e.g. oxygen, acetylene, ammable or toxic

substances), harmful media (e.g. corrosive, toxic, carcinogenic, radioactive), and also
with refrigeration plants and compressors, there is a danger of physical injuries and
damage to property and the environment.

▶

Should a failure occur, aggressive media with extremely high temperature and under

high pressure or vacuum may be present at the instrument.

▶

For these media, in addition to all standard regulations, the appropriate existing codes
or regulations must also be followed.

▶

Wear the required protective equipment.

For contact details see chapter 1 “General information” or the back page of the operating

instructions

.

In the event of any faults, rst check whether the submersible pressure sensor is mounted correctly,

mechanically and electrically.

15

6. Faults

6. Faults

Faults Causes Measures

No output signal Cable break Check the continuity

Incorrect power supply connected Rectify the power supply

Deviating zero point signal Overpressure limit exceeded Observe the permissible overpressure

Too high/low working temperature Observe the permissible temperatures

Diaphragm damage Replace instrument; if it fails repeatedly,

Zero point varies/inaccurate Moisture has entered at the cable end Fit the cable correctly

Cable damaged Replace instrument; if it fails repeatedly,

Signal span varies/inaccurate Too high/low working temperature Observe the permissible temperatures

Signal span drops/too small Mechanical overload caused by overpres-

Signal span drops Moisture has entered at the cable end Fit the cable correctly

sure

Diaphragm damage Replace instrument; if it fails repeatedly,

Cable damaged Replace instrument; if it fails repeatedly,

limit

contact the manufacturer

contact the manufacturer

Replace instrument; if it fails repeatedly,
contact the manufacturer

contact the manufacturer

contact the manufacturer

16

7. Maintenance and cleaning

7. Maintenance and cleaning

7.1 Maintenance

When used in strongly contaminated and adhesive media, the pressure port of the submersible
pressure sensor has to be cleaned regularly. The cleaning interval is dependent upon the respective
application. The checking and cleaning of the pressure port should thus be added to the maintenance

plan. Since the cleaning intervals are dependent on the operating conditions, no universal time periods
can be specied.

Repairs must only be carried out by the manufacturer.

7.2 Cleaning

WARNING!
Physical injuries and damage to property and the environment through residual
media

Residual media at the dismounted instrument can result in a risk to persons, the
environment and equipment.

▶

With hazardous substances, observe the material safety data sheet for the
corresponding medium.

▶

Wear the requisite protective equipment.

CAUTION!
Unsuitable cleaning agents

Cleaning with unsuitable cleaning agents may damage the instrument and the product
label.

▶

Do not use any aggressive cleaning agents.

▶

Do not use any hard or pointed objects.

▶

Do not use any abrasive cloths or sponges.

Recommended cleaning agents

■

Water

■

Conventional dishwashing detergent

Cleaning the instrument

1. Disconnect the submersible pressure sensor from the mains.

2. Wipe the instrument surface using a soft, damp cloth.

17

8. Dismounting, return and disposal

8.1 Dismounting

WARNING!
Physical injuries and damage to property and the environment caused by
hazardous media

Upon contact with hazardous media (e.g. oxygen, acetylene, ammable or toxic

substances), harmful media (e.g. corrosive, toxic, carcinogenic, radioactive), and also
with refrigeration plants and compressors, there is a danger of physical injuries and
damage to property and the environment.

▶

Should a failure occur, aggressive media with extremely high temperature and under

high pressure or vacuum may be present at the instrument.

▶

Wear the required protective equipment.

Dismounting the instrument

1. Disconnect the submersible pressure sensor from the mains.

.

2

Disconnect the electrical connection.

.

Withdraw the submersible pressure sensor from the medium.

3

8.2 Return

Strictly observe the following when shipping the instrument:

All instruments delivered to NOSHOK must be free from any kind of hazardous substances (acids,

bases, solutions, etc.) and must therefore be cleaned before being returned.

WARNING!
Physical injuries and damage to property and the environment through residual
media

Residual media in the dismounted instrument can result in a risk to persons, the
environment and equipment.

▶

With hazardous substances, include the material safety data sheet for the
corresponding medium.

▶

Clean the instrument, see chapter 7.2 “Cleaning”.

18

8. Dismounting, return and disposal

When returning the instrument, use the original packaging or a suitable transport packaging.

Information on returns (RMA Requests) can be found under the heading “Contact Us” on

our website at www.noshok.com.

8.3 Disposal

Incorrect disposal can put the environment at risk. Dispose of instrument components and packaging
materials in an environmentally compatible way and in accordance with the country-specic waste

disposal regulations.

19

9. Specications

9. Specications

Measuring ranges (gauge pressure), 611 Series

bar 0 ... 0.1 0 ... 0.16 0 ... 0.25 0 ... 0.4 0 ... 0.6 0 ... 1 0 ... 1.6

0 ... 2.5 0 ... 4 0 ... 6

inWC 0 ... 50 0 ... 100 0 ... 150 0 ... 250

psi 0 ... 5 0 ... 10 0 ... 15 0 ... 25 0 ... 50 0 ... 100

mH

O 0 ... 1 0 ... 1.6 0 ... 2.5 0 ... 4 0 ... 6 0 ... 10 0 ...16

2

0 ... 25 0 ... 40 0 ... 60

Measuring ranges (absolute pressure), 611 Series

bar 0 ... 1.6 0 ... 2.5 0 ... 4 0 ... 6

psi 0 ... 25 0 ... 50 0 ... 100

Specications 611 Series

Overpressure limit ≥ 3 times

Temperature measurement (option) see product label

Output signal see product label

Load Current output: ≤ (U

Power supply see product label

Current consumption Current output: max. 25 mA per output

Voltage output: ≤ 1mA

Additional load of the cable:
≤ cable length in m x 0.084 Ω

Voltage output: max. 5 mA

-(U

+

+min

- 0.5 V)) / 0.023 A

20

9. Specications

9. Specications

Specications 611 Series

Accuracy (pressure sensor)
(at reference conditions)

Accuracy (temperature sensor) ± 1.8 K (-10 °C to 80 °C)

≤ ±1 % of span
≤ ±0.5 % of span (option)

Accuracy after turndown 5:1 via

®

HART

Non-linearity (per IEC 61298-2) ≤ ±0.5 % of span BFSL

Non-repeatability ≤ 0.1 % of span

Temperature error see table “Temperature error”

Long-term stability

(per DIN 16086:2006-01)

Reference conditions

■

Ambient temperature 59°F - 77 °F (15 °C - 5 °C)

■

Atmospheric pressure 860 … 1,060 mbar (86 … 106 kPa /12.5 … 15.4 psig)

■

Humidity 45 ... 75 % r. h.

■

Power supply DC 24 V with current output

■

Mounting position Calibrated in vertical mounting position with protection cap thread facing downwards.

Ingress protection IP68

Insulation voltage DC 850 V

Resistance to overvoltage DC 40 V

Reverse polarity protection U+ vs. U-

Short-circuit resistance S+ vs. U-

≤ ±1.25 % of scaled span
≤ ±0.75 % of scaled span (option)

≤ ±0.25 % of span BFSL (option)

≤ 0.2 % of span (with voltage output and cable length >100 m)

Measuring range > 0 ... 0.1 bar: ≤ ±0.1 % of span/year
Measuring range ≤ 0 ... 0.1 bar: ≤ ±0.2 % of span/year

DC 5 V with voltage output

Option of increased overvoltage protection for lightning strikes: DC 50 V

21

9. Specications

9. Specications

Specications 611 Series

Immersion depth max. 100 m

Max. tensile force of the cable 1,000 N

Weight Submersible pressure sensor: approx. 300 g

Permissible temperature ranges Medium: -40 °F - 176 °F (-40 °C - +80 °C)

Switch-on time Output signals without HART

Settling time Output signals without HART

Wetted parts

■

Case 316L (high-resistance option: 318LN)

■

Sensor 316L (high-resistance option: Hastelloy C276)

■

Cable PUR (high-resistance option: FEP)

■

Sealing FKM

■

Protection cap PVDF

CE conformity EMC directive, emission (group 1, class B) and interference immunity (industrial application)

Cable: approx. 80 g/m
Additional weight: 300 g

Ambient: -40 °F - 176 °F (-40 °C - +80 °C)
Storage: -22 °F - 176 °F (-30 °C - +80 °C)

®

: ≤ 150 ms

®

Output signals with HART

Output signals with HART

: ≤ 250 ms

®

: ≤ 100 ms

®

: ≤ 250 ms

22

9. Specications

9. Specications

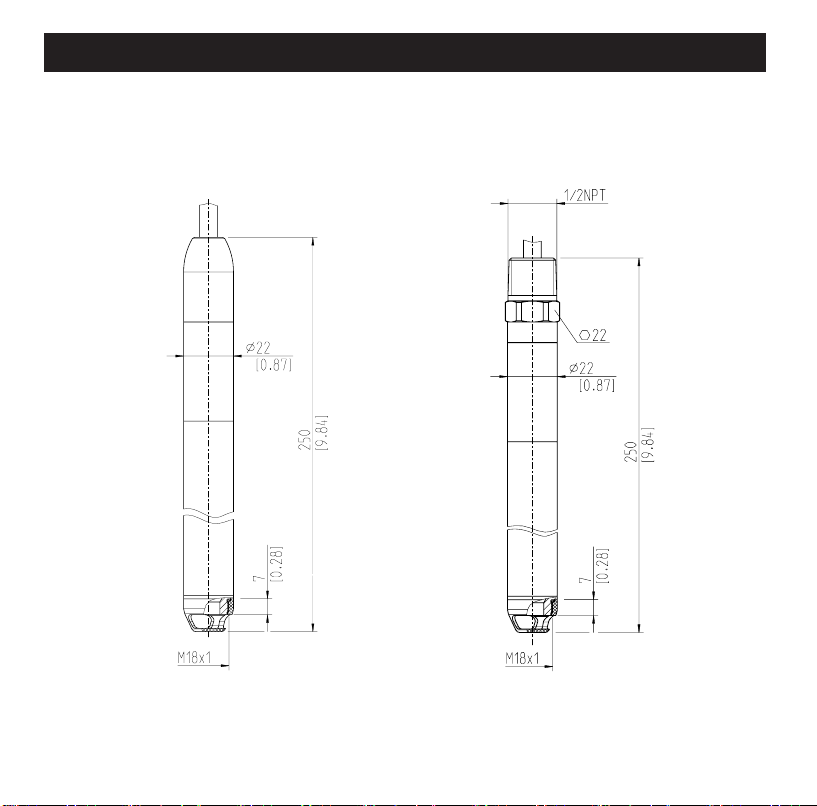

Dimensions in mm [in]

Cable outlet without conduit Cable outlet with conduit

23

Appendix 1: EU declaration of conformity

NOSHOK, Inc. I 1010 West Bagley Road I Berea, Ohio 44017 I P: 440.243.0888 I F: 440.243.3472 I www.noshok.com

24

NK17611OI
