Operating manual

5301 Series Load Pins

Safety note

Use for intended purpose

The force transducers in model series F5301 are intended for the
measurement of static and dynamic tensile or compressive force.
These devices have been constructed and tested in accordance with
the safety regulations for electronic measuring equipment.
Any other usage is deemed to be incorrect . The transducers can only
be guaranteed to operate correctly and safely if the information in the
operating instructions is complied with. The legal and safety
regulations that apply to the respective application must also be
observed during use (e.g. VDE 0100). This also applies to the use of
accessories.
The transducer is not intended to be used a safety element.
The correct and safe operation of this transducer depends on correct
transportation and proper storage, installation and assembly and
careful operation and maintenance.

General dangers if the safety instructions are not followed

Force transducers made by tecsis are manufactured in accordance
with the latest state of technology and are safe during operation.
However, the transducers can be the source of residual danger
are used or operated improperly.
Any person who is entrusted to install, start up, maintain or repair a
force transducer must have read and understood the operating
instructions, particularly the technical safety instructions.

Residual dangers

The performance and scope of delivery of the transducer only cover a
sub-area of force measuring technology. The technical safety aspects
of force measuring technology must also be planned and implemented
by the system planner / equipper / operator in such a way that residual
dangers are minimised. The existing regulations must be complied
with. Residual dangers associated with force measuring technology
must be pointed out.

i

f they

2

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

Operating manual

5301 Series Load Pins

Maintenance

The force transducers in the F5301 model series are maintenance­free.
During welding work the transducer must be bypassed with a copper

2

wire (min. 50 mm

) so that welding current does not flow through the

transducer and weld the force introduction points.

Ambient temperature

The temperature range of -20°C to +80°C that is specified in the data
sheet applies with regard to deployment. The specified error limits are
not guaranteed outside this temperature range.

Moisture and corrosion protection

Tropical climates and condensation are not a problem because the
transducers comply with protection class IP 67 in accordance with
EN 60529:1991+A1:2000 / IEC 529.

Deposits

Dust, dirt and other object must not be allowed to form deposits in
such a way that they create a force short-circuit to the measuring
spring, which would falsify the measuring signal.

Precautions to take during assembly

• Force measuring equipment is extremely sensitive and must be
handled carefully.

• Attention must be paid to the installation position and therefore the
load direction when the force transducers are being installed.

• The transverse loads and side forces also include the relevant
components of the measured variables, which may be introduced at
an incline.

• Care must therefore be taken to keep the transducer free of lateral
loads and torsion during assembly (e.g. when tightening the lock
nuts).

• Overloading must be prevented at all times.

• The output signal (c=1-2mV/V, 4...20mA, 0…20mA, 0...10V) is noted

on the name plate (Fig. 1). The connection assignments are also
noted on the name plate and can also be found in the section entitled
“Electrical connection”. The polarity must be correct at all times.

SEE NEXT PAGE FOR NAME PLATE DIAGRAM.

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

3

Operating manual

5301 Series Load Pins

Fig. 1 Name plate

Type Model
Output
Power Supply
S# Serial Number
UB+ Pin assignment – power supply +
0V/S- Pin assignment – power supply - / output ­ S+ Pin assignment – output +

Tension
Compression

4

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

Operating manual

5301 Series Load Pins

General Installation Guidelines

• The loads acting upon the force transducer must be as exact as
possible in the load direction.

• Torsion and lateral force must be avoided. The transverse loads and
side forces also include the relevant components of the measured
variables, which may be introduced at an incline.

• Torsional moments, off-centre loads and lateral loads or side forces
cause measuring errors and can permanently damage the
transducers.

• The axle bracket grooves also serve as a reference for aligning the
measuring axle.

• The DIN 15 058 axle bracket must be attached in such a way that the
measuring axle is prevented from twisting in the bearing and does
not have any axial play.

The measuring axle may only be subjected to load if the correct type of

•

bearing has been used. Loads occurring in other equipment may change
the zero signal and result in permanent damage.

The introduction of force in the centre must not wander and must be

•

installed in such a way that axial shifts are prevented. However, force by­passing may not occur.

Fig. 2 Installation situation of a load pin

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

5

Operating manual

5301 Series Load Pins

Please note the following:

• Always use shielded, low-capacity measuring cables
(all tecsis cables meet these requirements, see chapter 10.1).

• Do not route the measuring cable parallel to high-voltage current and
control cables.

• Avoid leakage fields from transformers, motors and contactors.

• The transducer, the amplifier and the display unit must not have

multiple grounds. Attach all equipment to the same protective
conductor.

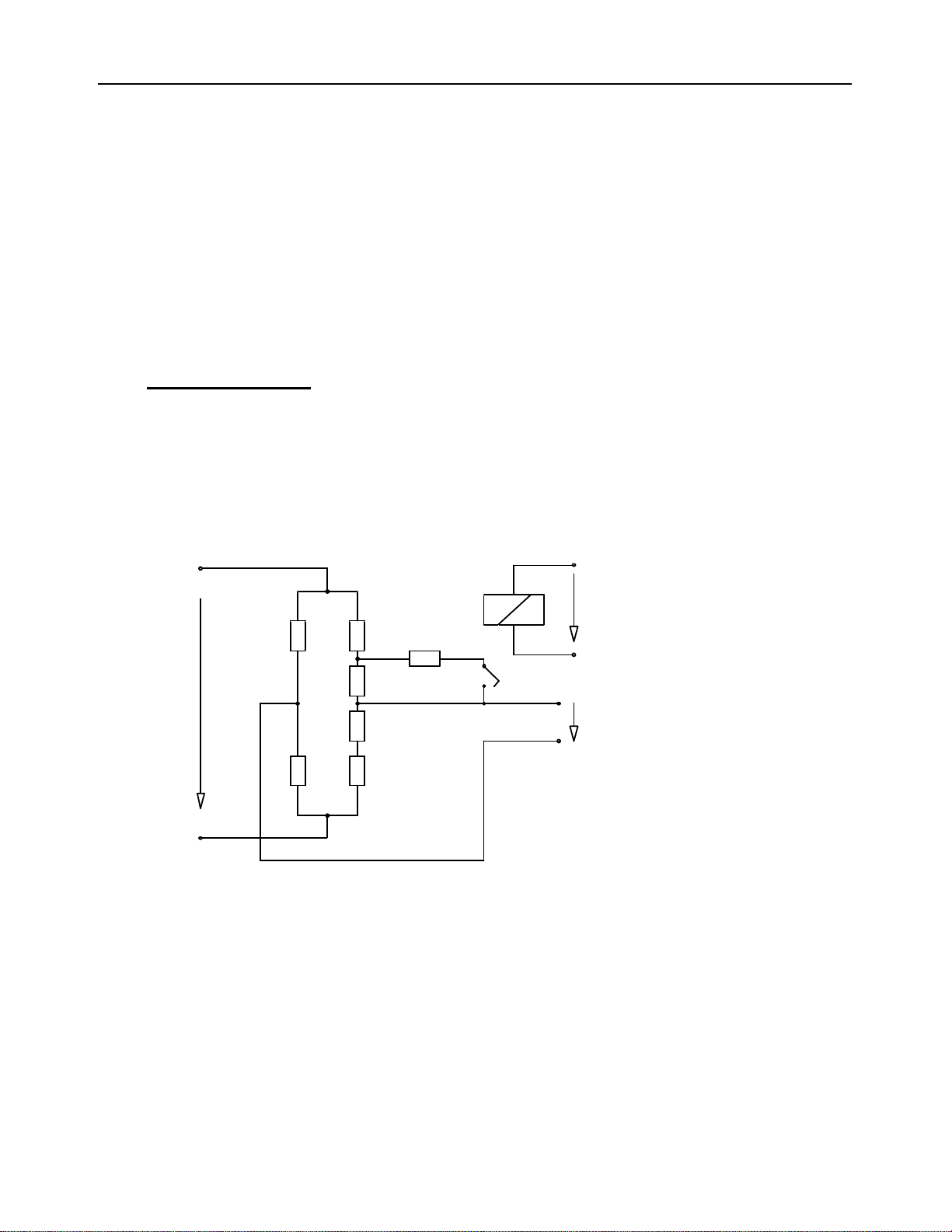

SIL-3 Elektronic

Amplifier-Electronics 4...20mA or 0...10V
for SIL-3 applications with 2-channel PC control

This well proven design has been amended by an additional resistor R7
in order to monitor the condition of the amplifier unit and signal path.
This resistor is connected as a shunt to resistor R5 by a relay contact
(a) as soon as an excitation voltage U

appears at relay A.

r

A

R1

Ub

R2

R3

R5

R6

R4

R7

a

Ur

U0

The connection of resistor R7 will always result in a defined unbalancing
of the zero point (diagonal voltage) of the Wheatstone Bridge.
An external independent control unit activates relay A which changes
the output by a certain value. Because of security reasons the control
unit has to be a 2-channel one. When the expected change of the
output signal is detected it can be assumed that the whole signal path
(Wheatstone Bridge – amplifier – output) works well.
If it does not appear it can be concluded that there is a defect in the
signal path.

The standard adjustment of force transducers with current output for
overload control is e.g.:

6

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

Operating manual

5301 Series Load Pins

overload

4 12 20

3,8

cable break

(125% nominal load)

21

short circuit

With activating the check relay a fixed signal jump of 8 mA will exceed

the overload limit in every working condition. The measurement’s upper

limit of 20 mA however will never be reached. This makes the checking
of the signal jump possible.

[mA]

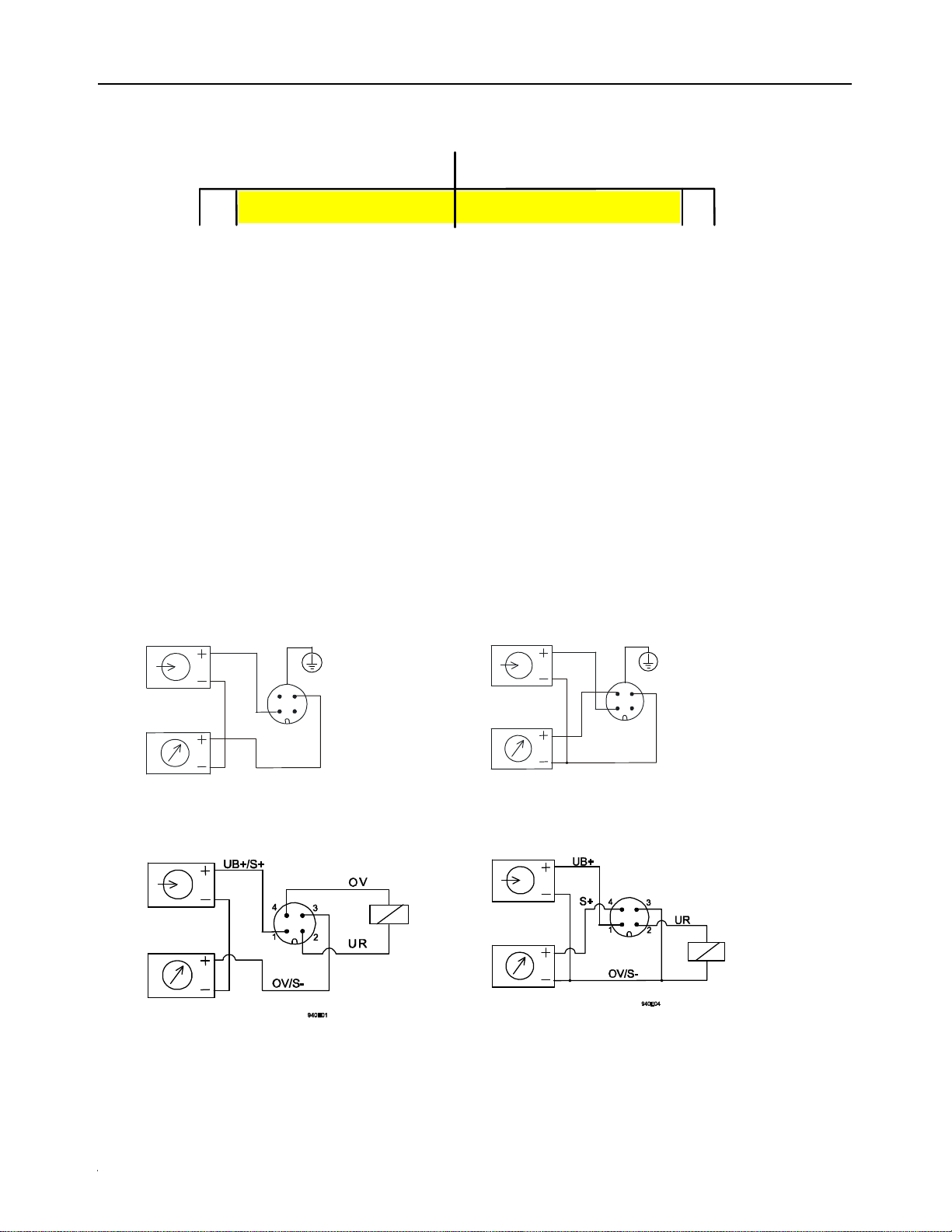

Round connector

M12x1, 4-pin

UB+/S+

4

1

OV/S-

SIL-3

3

2

940E01

Round connector
M12x1, 4-pin

UB+

S+

4

1

OV/S-

3

2

940E04

SIL-3

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

7

Operating manual

5301 Series Load Pins

Mini-Hirschmann connector
G4a1MMT

UB / S+

0V / S-

1

3

2

940E02

Cable output

UB / S+

0V / S-

Shield

brown

blue

940E03

Mini-Hirschmann connector
G4a1MMT

UB

S+

0V / S-

1

3

2

940E05

Cable output

UB

S+

0V / S-

Shield

brown

black

blue

940E06

8

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

Operating manual

5301 Series Load Pins

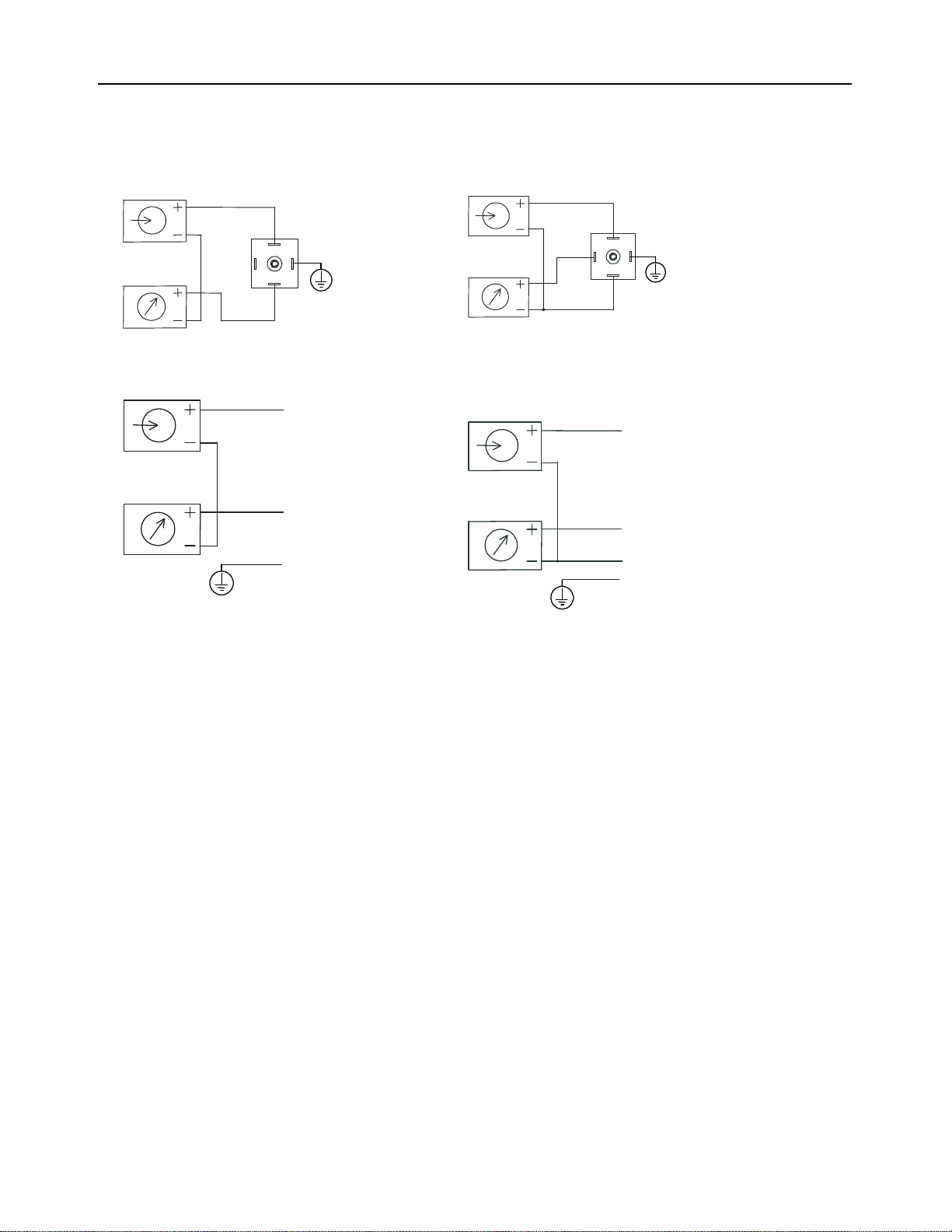

Power
supply: UB+
Power
supply:
0V/UB-/S-

Supply

mV/V Output

(4 – wire)

1 1 1 1 brown

3 3 3 3 blue

2 2
Relay: (UR)
Supply

4 3
Relay: (0V)

Signal: S+ 4 4 - 4 black
Signal: S_ 2 - - - white

0…20mA
(3 – wire)

4…20 mA

(2 – wire)

0…10 VDC

(3 – wire)

Colour coding

black / blue

cable

withe

Schirm

housing

housing housing housing

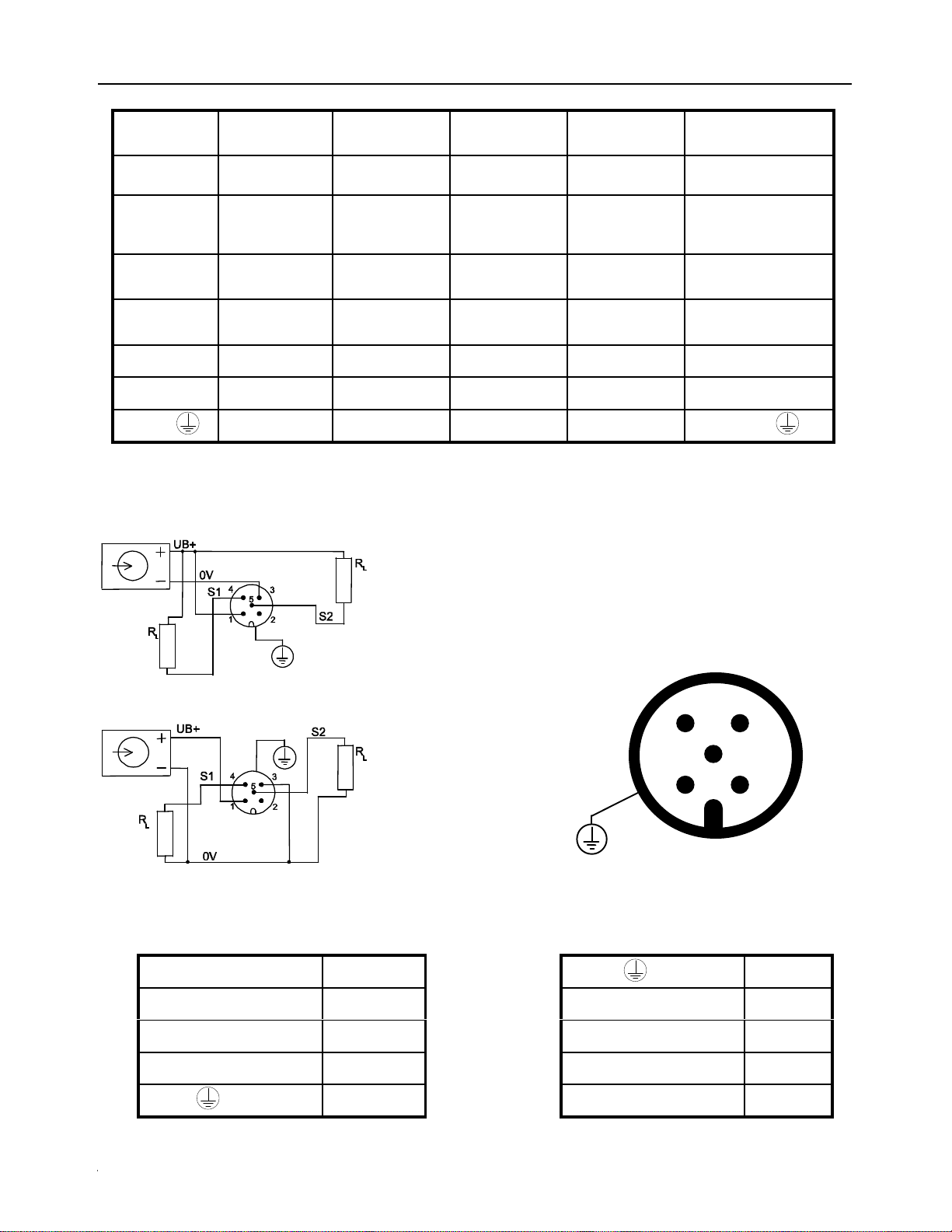

Switch: 2 switching outputs
n- switching

p- switching

CANopen

Round connector
M12x1, 5-polig

4 3

1 2

Schirm

5

Power supply: UB+ 1
Power supply: 0V 3
Switching output: S1 4
Switching output: S2 5

Shield

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

9

Housing

Shield
UB+ (CAN V+) 2

UB- (CAN GND) 3
Bus-Signal CAN-High 4
Bus-Signal CAN-Low 5

1

Operating manual

5301 Series Load Pins

Technical data

Nominal force F
Force limit

Breaking limit
Accuracy
Relative backlash width (Hysteresis)
Creeping, 30 min. at F
Nominal temperature range -4 ... 176 °F (-20 … 80 °C)
Storage temperature -40 ... 212 °F (-40 … 100 °C)
Temperature influence - Meas.range

- Null signal
Transverse force action

(signal at 100% nominal load under 90°)

Vibration resistance 20g, 100h, 50...150Hz acc. to DIN EN 60068-2-6

Interfering emission acc. to EN 61326
Interference immunity acc. to 61326
Electrical protection class Reverse polarity, overvoltage and short circuit protection

Analogue outputs
Output signal

Power consumption
Auxiliary power
Burden

Electrical connection Round connector M12x1, 4-pin 5-pin

CANOpen

Output signal
Reproducibility

Stability per year
Electrical connection Round connector M12 x 1 - 5-pin.
Auxiliary power 10 ... 30 VDC

Measuring element made from stainless steel

nom

nom

5 / 10 / 20 / 30 / 50 / 100 / 200 kN 5 / 10 / 20 /

30 / 50 kN
150 % F
> 300 % F
< 2 % of F.S. and < 0,5 % of F.S. < 0,5 % of F.S.
< 0,5 % of F.S. and <0,2 % of F.S. < 0,5 % of F.S.
0,1 % of F.S.

0,1 % / 10K
0,1 % / 10K

< 5 %

4 … 20 mA – 2-wire or
0 … 10 VDC – 3-wire
Current output: 4 … 20 mA: Signal current
Voltage output:: ca. 8 mA
10 ... 30 VDC for output 4...20 mA
14 ... 30 VDC for output 0 ... 10 V
≤ (UB–10 V)/0,02 A for output 4...20 mA
> 10 kOhm for output 0 ... 10 V

nom

nom

925 CEI / 925 06 NE ot .cca 76 PI ssalc noitcetorP

4 … 16 mA - 2-L

0 … 7 V - 3-L

).S.F fo % 09 ot pu % 01 nihtiw( sm 1 ≤ emit gnitsujdA

CANopen protocol in acc.with CiA DS-301
V.402,
Device profile DS-404 V. 1.2

≤ ± 0.05 % of setting
≤ ± 0.2 % of setting under reference conditions

Communication services

Filters
Adjustment
Adjustment time

Measuring frequency Internal 1000 Hz (adjustable up to approx. 4 Hz)

NOSHOK, Inc. • 1010 West Bagley Road, Berea, OH 44017 • Ph: 440.243.0888 • Fax [phone] • www.noshok.com

10

LSS (CiA DSP 305, Version 1.1.1) Services
Configuration of device address and baud rate
Sync/Async, Node/Lifeguarding, Heartbeat
Individually programmable filters for specific
removal of resonance frequencies, for example
Zero point and measuring range ±10% by
making entries in object directory

1.5 ms (baud rate ≥ 125K) within
10 % up to 90 % of setting.

1035

)W7.0< noitarapes cinavlag htiw( W5.0 < noitpmusnoc rewoP

)3-LIS( 1035 ledoM

Operating manual

5301 Series Load Pin

Load pin, dimensions

Plug M12x1

Version up to 10 kN

Axle bracket in acc.with DIN 15 058

(not included in scope of delivery)

Version from 20 kN

For two-sided measuring axle mounting the following applies:

Bohrung-/Bolzenpaarung: H9/f9

** Other bolt diameters available on request, drill hole tolerance H9

CORPORATE HEADQUARTERS

1010 West Bagley Road · Berea, Ohio 44017
440-243-0888 · Fax [phone]
E-mail: [e-mail]
Web: www.noshok.com

NK095301TM

INCORPORATED
