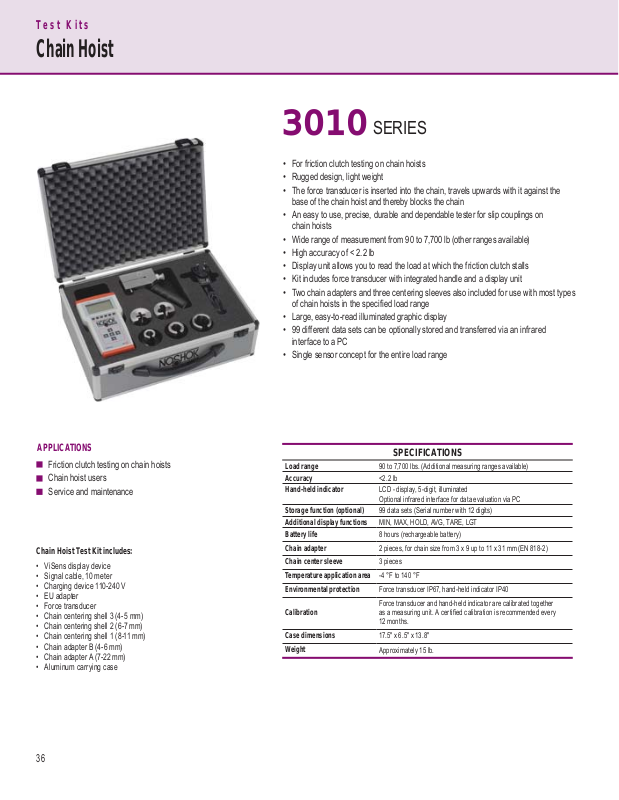

NoShok 3010 Specifications
Test Kits
3010
Chain Hoist
3010 SERIES
•
For friction clutch testing on chain hoists
•
Rugged design, light weight
•
The force transducer is inserted into the chain, travels upwards with it against the
base of the chain hoist and thereby blocks the chain
•
An easy to use, precise, durable and dependable tester for slip couplings on
chain hoists
•
Wide range of measurement from 90 to 7,700 lb (other ranges available)
•
High accuracy of < 2.2 lb
•
Display unit allows you to read the load at which the friction clutch stalls
•
Kit includes force transducer with integrated handle and a display unit
•
Two chain adapters and three centering sleeves also included for use with most types
of chain hoists in the specifi ed load range
•
Large, easy-to-read illuminated graphic display
•
99 different data sets can be optionally stored and transferred via an infrared
interface to a PC
•
Single sensor concept for the entire load range
APPLICATIONS
Friction clutch testing on chain hoists
Chain hoist users
Service and maintenance
Chain Hoist Test Kit includes:
• ViSens display device
• Signal cable, 10 meter
• Charging device 110-240 V
• EU adapter
• Force transducer
• Chain centering shell 3 (4-5 mm)
• Chain centering shell 2 (6-7 mm)
• Chain centering shell 1 (8-11 mm)
• Chain adapter B (4-6 mm)
• Chain adapter A (7-22 mm)
• Aluminum carrying case
SPECIFICATIONS
Load range 90 to 7,700 lbs. (Additional measuring ranges available)
Accuracy <2.2 lb
Hand-held indicator LCD - display, 5-digit, illuminated
Storage function (optional) 99 data sets (Serial number with 12 digits)
Additional display functions MIN, MA X, HOLD, AVG, TARE, LGT
Battery life 8 hours (rechargeable battery)
Chain adapter 2 pieces, for chain size from 3 x 9 up to 11 x 31 mm (EN 818-2)
Chain center sleeve 3 pieces
Temperature application area -4 °F to 140 °F
Environmental protection Force transducer IP67, hand-held indicator IP40
Calibration
Case dimensions 17.5″ x 6.5″ x 13.8″
Weight
Optional infrared interface for data evaluation via PC
Force transducer and hand-held indicator are calibrated together
as a measuring unit. A certifi ed calibration is recommended every
12 months.
Approximately
15 lb.
36
ORDERING INFORMATION
SERIES 3010
OPTIONS 0 No options 1 Infrared interface
Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
3010
SERIES
ORDERING
INFORMATION
DIMENSIONS
EXAMPLE
Series ...............................................................................................3010
Option ...........................................................................Infrared interf ace
Chain Hoist Test Kit
4-19/64″
(109 mm)
2-29/64″
(62 mm)
5-23/32″
(145 mm)
2-7/32″
(56 mm)
3010 – 1
2-29/64″
(62 mm)
3-3/4″
(95 mm)
6-47/64″
(171 mm)
37
