NoShok 100 Specifications

100

Needle Valves

Mini, Hard Seat

100 SERIES

• Compact size valve built for maximum durability and robust performance
in the toughest applications

• 100% helium leak tested to 1 x 10
and reliability

• Hard seat valves have a maximum pressure of 10,000 psi for stainless
steel and steel models; 6,000 psi for brass

• Available in zinc-nickel plated steel, electropolished stainless steel,
and brass

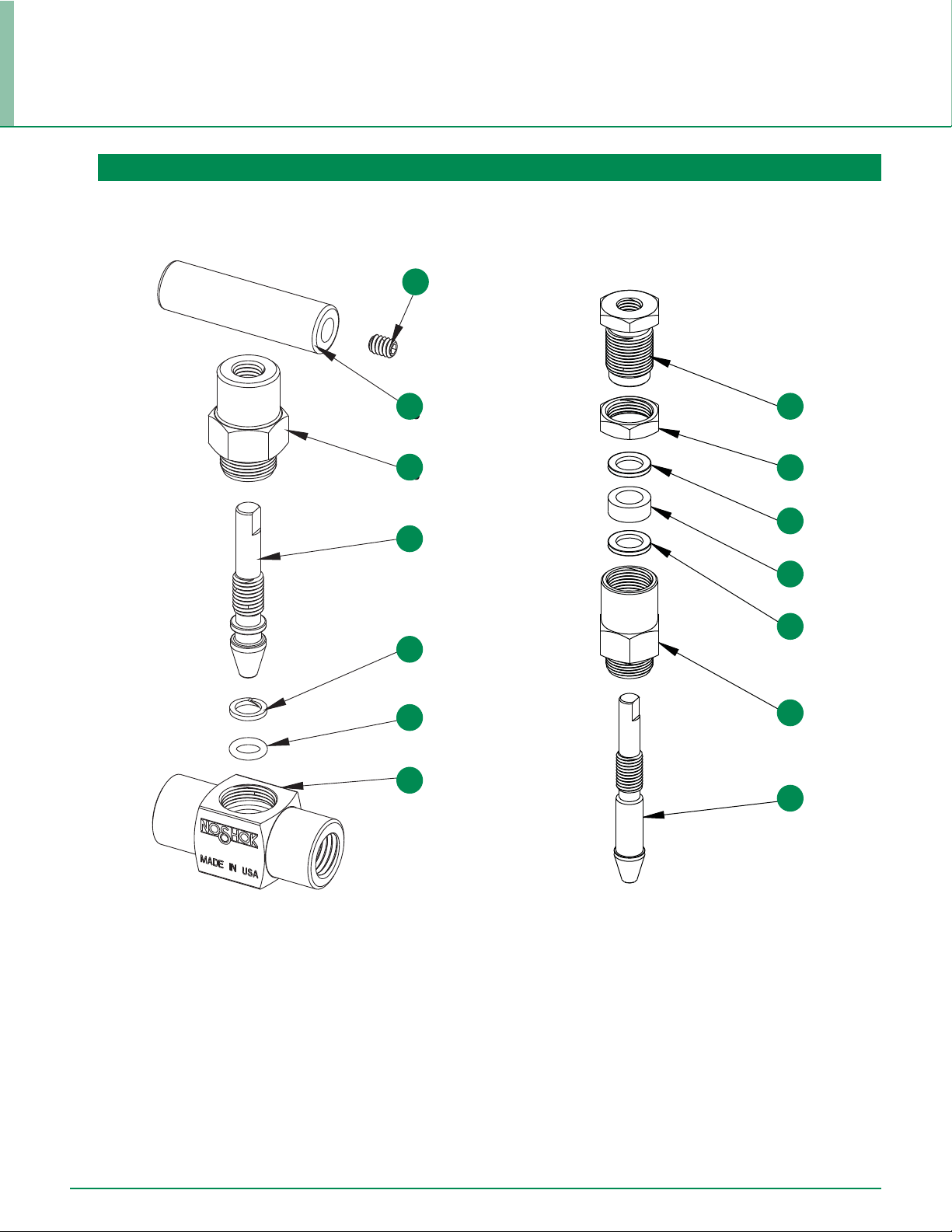

• FKM o-ring seal and PTFE back-up ring below the stem threads to
protect from corrosion and galling; PTFE or Grafoil

• All stems are 316 stainless steel

• All stem threads are rolled for strength and ease of operation

• Patented body-to-bonnet, metal-to-metal seal is designed to signifi cantly
increase the pressure range of the valve (U.S. Patent 7,758,014)

-4

ml/s for guaranteed performance

®

packing optional

SPECIFICATIONS

Materials Zinc-nickel plated steel, electropolished 316

stainless steel, 360 brass
Connections 1/8" NPT , 1/4" NPT, 7/16"-20 UNF-2B, 9/16"-18 UNF-2B

Male-male, Male-female, Female-female, in-line
and angled confi gurations

Pressure ratings* Brass: 6,000 psi @ 200 °F
Steel: 10,000 psi @ 200 °F
Stainless steel: 10,000 psi @ 200 °F

Orifi ce size 0.172"
Flow coeffi cient C
Stem seal & type All 316 stainless steel stems with FKM o-ring

and PTFE back-up ring below the threads, PTFE
or Grafoil

Options Panel mountings, o-ring materials, handles, packings,
regulating stem and stem tips

Weight Approximately 0.5 lb.
* If a packing option is chosen, maximum pressure rating is 6,000 psi.

Refer to the "Pressure vs. Temperature: Packing Style with
Compatible Fluid" chart at the back of this catalog.

V

0.42

®

packing optional

NOTE: All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing

also conform to MSS SP-132 compression packing systems for instrument valves standard.

6

100

100 SERIES

ORDERING INFORMATION

SERIES 1 100 Series, hard seat
CONNECTION SIZES 01 1/8" NPT 42

02 1/4" NPT 43 9/16"- 18 UNF-2B*

VALVE TYPES MMB Male-Male, Brass MFC Male-Female, Steel MFS Male-Female, Stainless Steel

MFB Male-Female, Brass EMFC Extended Male-Female, Steel EMFS Extended Male-Female, Stainless Steel

FFB Female-Female, Brass FFC Female-Female, Steel FFS Female-Female, Stainless Steel

EFFB Extended Female-Female, Brass EFFC Extended Female-Female, Steel EFFS Extended Female-Female, Stainless Steel

MMAB Male-Male Angle, Brass MMAC Male-Male Angle, Steel MMAS Male-Male Angle, Stainless Steel

MFAB Male-Female Angle, Brass MFAC Male-Female Angle, Steel MFAS Male-Female Angle, Stainless Steel

FFAB Female-Female Angle, Brass FFAC Female-Female Angle, Steel FFAS Female-Female Angle, Stainless Steel

MMC Male-Male, Steel MMS Male-Male, Stainless Steel

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

* Available only on EFFB, EFFC and EFFS valve types.

7/16"- 20 UNF-2B*

ORDERING
INFORMATION

EXAMPLE

1 02 – FFC

Series .....................................100 hard seat

Connection size ............................ 1/4" NPT

Valve type ....................Female-female, steel

To meet all of your specifi c application requirements, the following additional options are available for these needle valves. To order all or any of these
options, simply add them to the part number as shown in the diagram below.

NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when

building your part number. (EXAMPLE: 102-MFC-HL3)

NOTE 2: When a packing option is selected, an o-ring option is NOT available.

ORDERING INFORMATION - ADDITIONAL OPTIONS

PACKINGS
STEM TIPS T1 Non-rotating (316 stainless standard) T6 Ball (carbide) T8 Ball (Monel)

O-RINGS* EM1 EPDM KZ1 FFKM (Kalrez
PANEL MOUNTINGS PM1 Panel mount (1 nut) PM2 Panel mount (2 nuts)
HANDLES

† If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs. Temperature: Packing Style with Compatible Fluid" chart at
the back of this catalog.

* Other o-ring materials available on request.

†

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

P1 PTFE P2 Grafoil®

T5 Ball (440C stainless) T7 Ball (ceramic) T9 Regulating hard

HL2 2-1/2" “T” HL4 1-3/8" Phenolic
HL3 1" Round knurled HL5 1-3/4" Phenolic

®

3018 or equivalent) NB1 NBR

Please note that the standard o-ring in all the NOSHOK mini valves is FKM and the standard handles are brass round knurled (HL3) handles,
steel mini “T” handles (HL1), and 316SS mini “T” handles (HL1).

The handle material will always match the material of the valve, unless otherwise specifi ed. For example, the round knurled (HL3) on a 102-FFB
will be brass. When only the standard confi guration is needed, no additional designations are necessary. Please consult the factory for special
application requests.

EXAMPLE with Additional Options

1 02 – FFC – P1 – T1 – PM2 – HL4

Series............................................................100 hard seat

Connection size .................................................. 1/4" NPT

Valve type ..........................................Female-female, steel

Packing......................................................................PTFE

Stem tip ..........................................................Non-rotating

Panel mount ......................................Panel mount (2 nuts)

Handle ........................................................1-3/8

"

Phenolic

7

Needle Valves

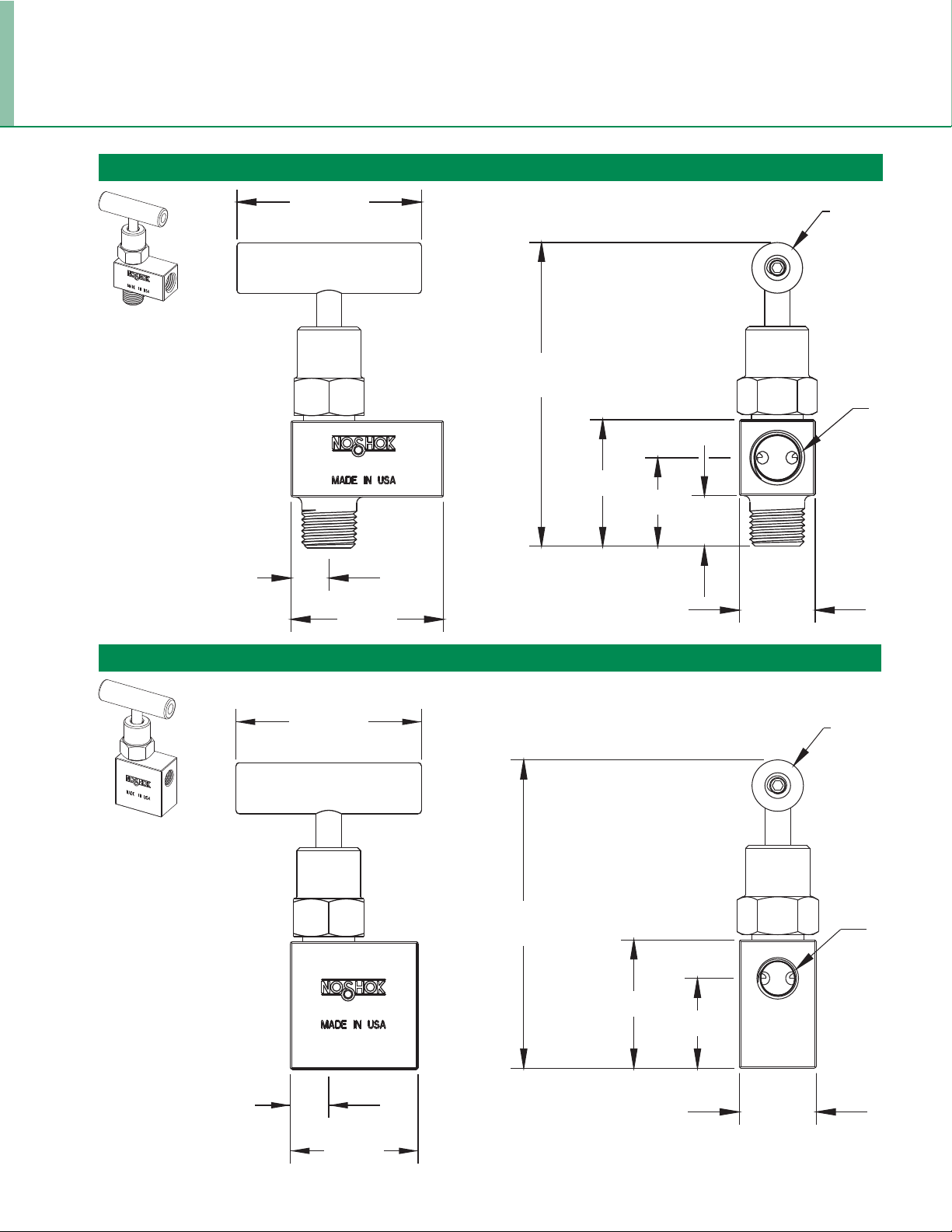

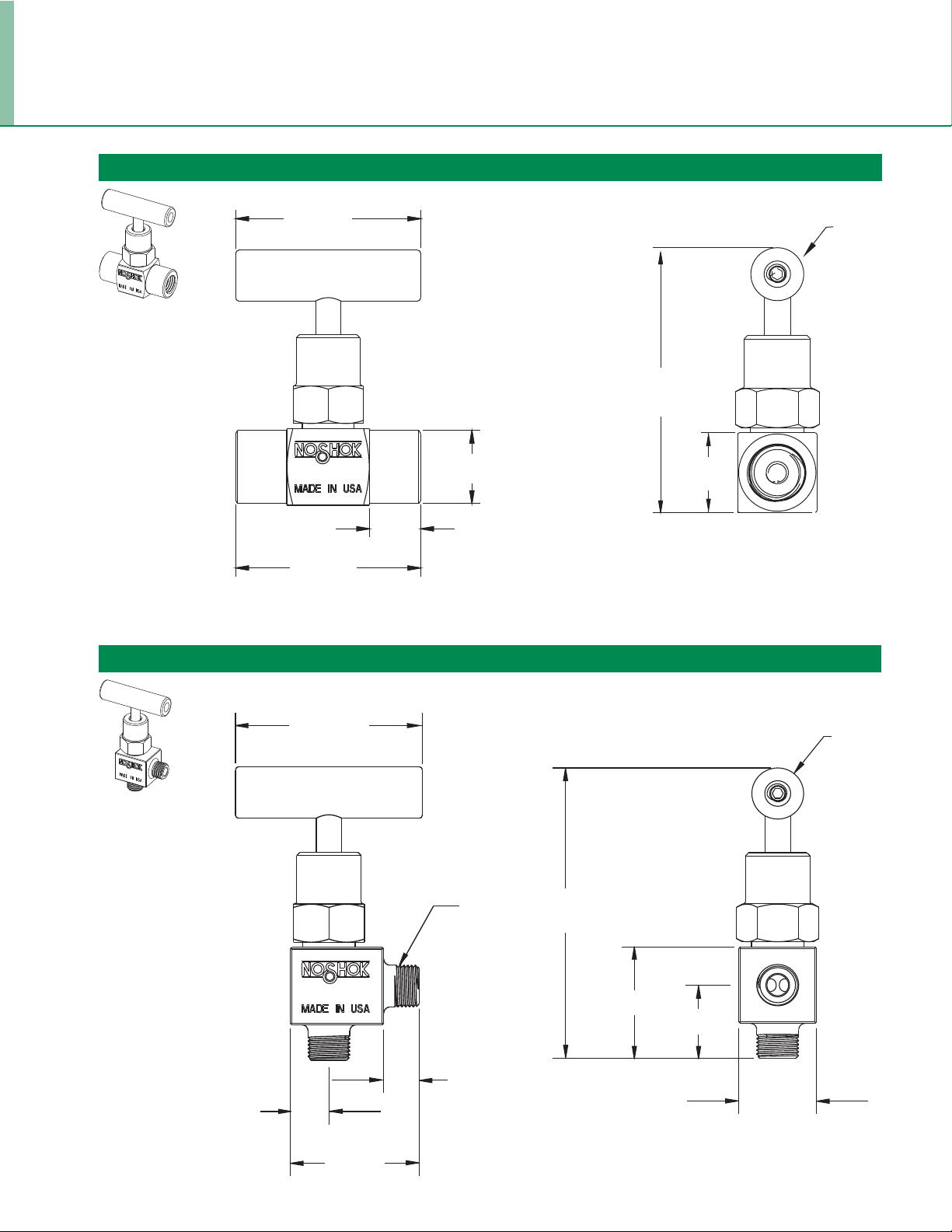

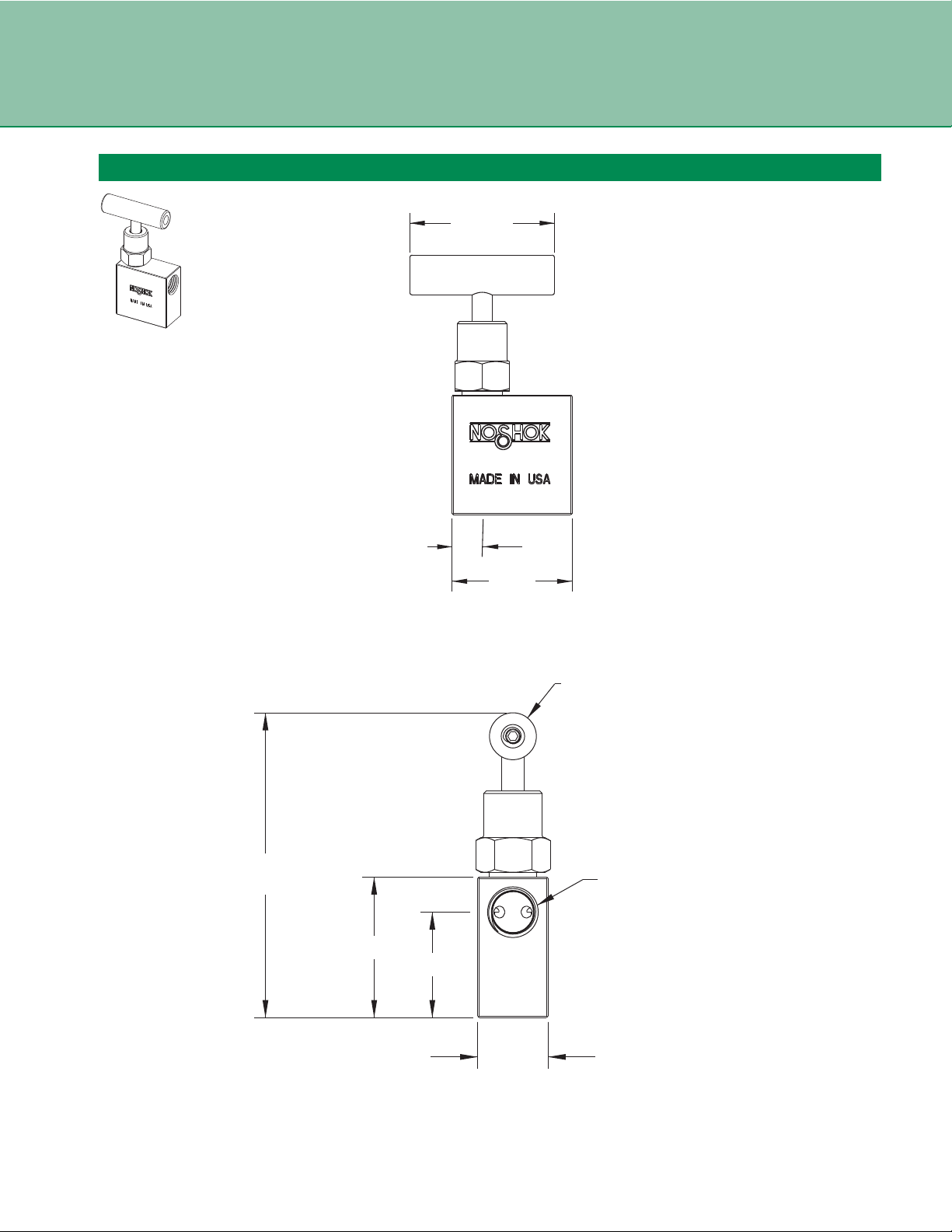

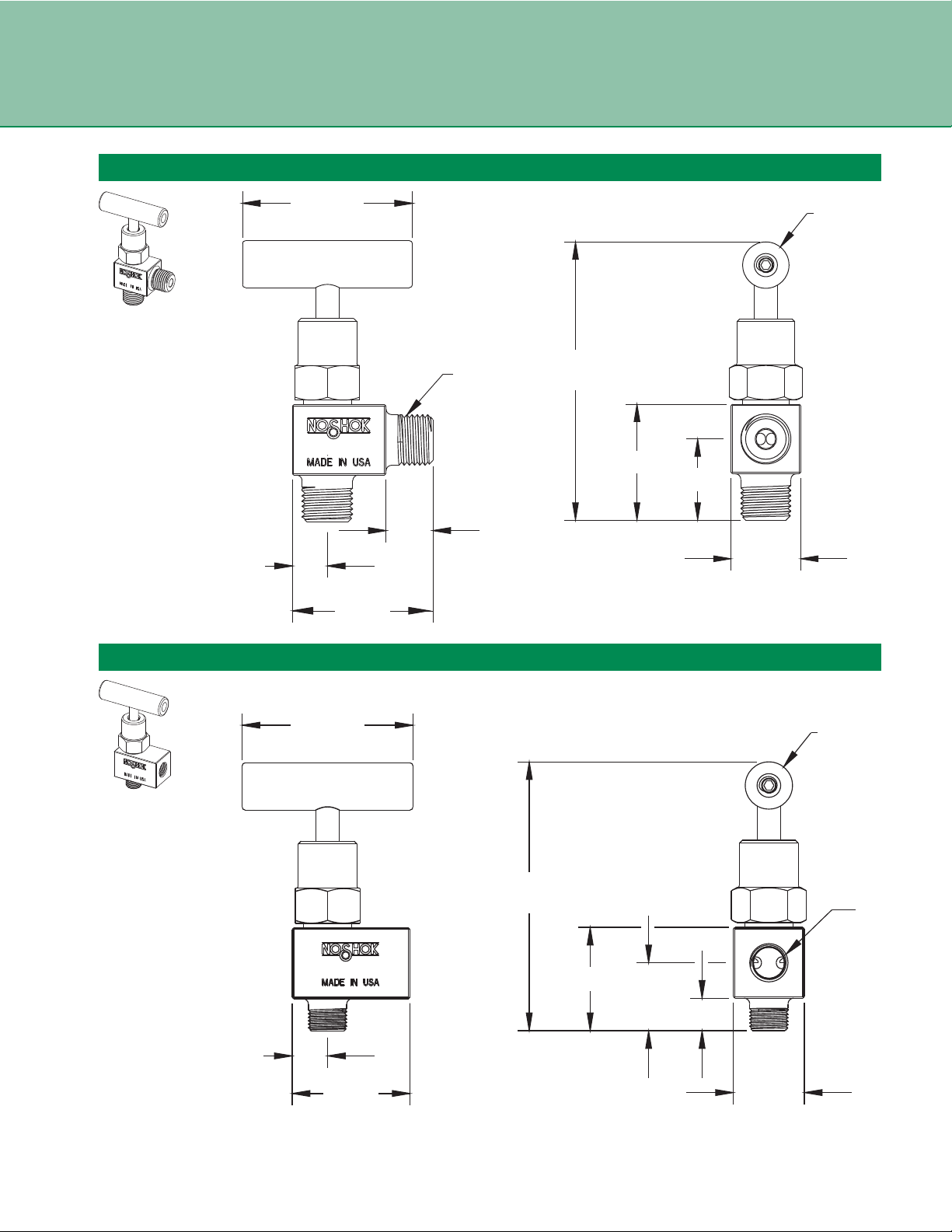

Dimensions

Male-Male

1-13/16″

1-13/16″

1/2″

1/8" OR

1/4″ NPT

Male-Female

Ø 1/2"

2-1/2″ OPEN

2-7/32″ CLOSED

3/4″

SQ

Ø 23/32″

*Dimension on extended version is 2-1/4"

8

1/2″

1-13/16″

1-13/16″*

1/2″

1/8" OR

1/4″ NPT

Ø 1/2"

2-1/2″ OPEN

2-7/32″ CLOSED

3/4"

SQ
