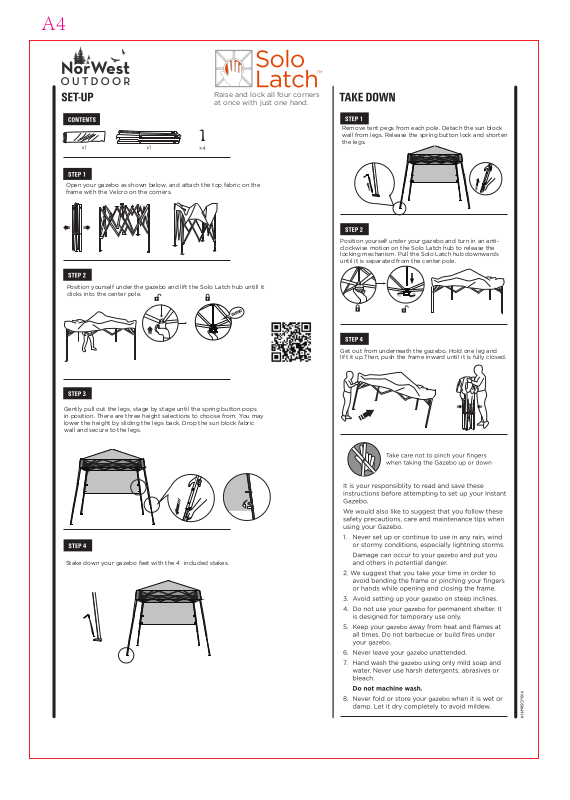

Open your gazebo as shown below, and attach the top fabric on the
frame with the Velcro on the corners.
Raise and lock all four corners
at once with just one hand.
Remove tent pegs from each pole. Detach the sun block
wall from legs. Release the spring button lock and shorten
the legs.
Position yourself under your gazebo and turn in an anticlockwise motion on the Solo Latch hub to release the
locking mechanism. Pull the Solo Latch hub downwards
until it is separated from the center pole.
Position yourself under the gazebo and lift the Solo Latch hub untill it
clicks into the center pole.
Gently pull out the legs, stage by stage until the spring button pops
in position. There are three height selections to choose from. You may
lower the height by sliding the legs back. Drop the sun block fabric
wall and secure to the legs.
Get out from underneath the gazebo. Hold one leg and
lift it up.Then, push the frame inward until it is fully closed.
Stake down your gazebo feet with the 4 included stakes.
