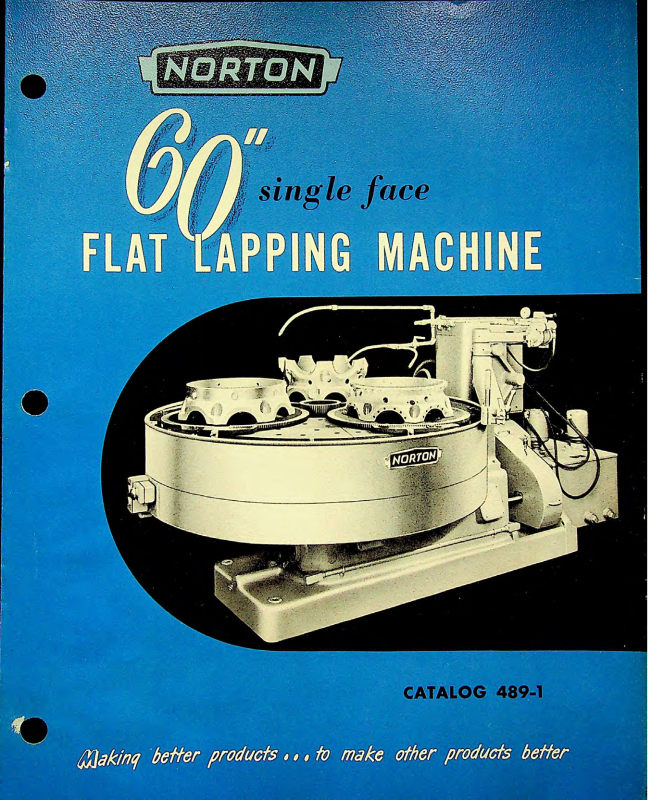

CATALOG 489-1
■
i
1?
3
Page 2
NORTON
single
go-
FLAT LAPPING
WITH BONDED ABRASIVE LAPS AND DIAMOND TRUING ARM
This machine gives you superior results — speedily
— in lapping single face flat surfaces of large parts —
particularly those of softer metals such as cast iron,
aluminum and magnesium.
You get faster lapping with the machine because of
the extremely efficient abrading action of its bonded
abrasive lap. The normally high efficiency of this lap
is enhanced by selection of the best abrading material
for the job, in the lap specification.
Controlled rotation of the work, counter to its
natural tendency, facilitates production by accentu
ating lapping action. In addition, the path of work
rotation is designed to uniformly utilize the entire lap
surface with resulting benefits in preservation of both
lap accuracy and life.
face
MACHINE
You get cleaner lapping with the 60" Single Face
Flat Lapping Machine because there is no loose abra
sive present. Surfaces produced are free from grit or
other foreign matter.
This
result—a surface jree from grit either imbedded
or trapped in pores or crevices of the work — particu
larly on soft metals — means important time savings.
This is because parts may be lapped to provide seal
surfaces, wear surfaces, or surfaces to be subsequently
milled or drilled —
operation — because there is no loose abrasive adhering
or imbedded in the work.
The machine provides an additional advantage in
the action of its lap. This is production of bright sur
faces that require no subsequent polishing.
without
an
immediate cleansing
Work loading and removal is facilitated by clear approach
to lap on
sides
and front
of
machine.
N6737
N 6736
HYDRAULIC PRESSURE DEVICE, shown in raised position,
used
A
to apply additional lapping pressure for light work pieces.
TS3ZS):
is
Page 3
SUPERIOR RESULTS
Cieaner Work. Coated only by a thin, filtered oil,
the surfaces finished by bonded abrasive
free from the sludge left by loose abrasives.
Brighter Surfaces. Bonded abrasive lapping pro
duces brighter surfaces on any metal, with no later
polishing required.
Safer. By keeping the pores and crevices of the
metal free from imbedded grit, the bonded abrasive
enables safe lapping of soft metals to provide seal
surfaces, wear surfaces, or surfaces for drilling or
milling. This also eliminates the need of thorough
cleaning after lapping, to rid surfaces of imbedded
abrasive.
Faster. Cutting speed, on many materials, is 2 fo 5
times faster than loose abrasive lapping for the
amount of stock removal.
More accurate products. The simple, positive lap-
truing device results in maximum product-accuracy
on every job.
Greater Economy. Bonded abrasive laps are long-
lasting and easy to replace. A low priced coolant is
used. Inspection tools are subjected to less wear
than on parts lapped with loose abrasives. Labor
lapping
same
are
N6739
Hydraulically actuated Lap truing arm reestablishes lap
flatness without removing lap — an important time-saver.
expenses
tions are eliminated.
Automatic Operation. Requires only loading of
machine and push-button starting to complete the
electrically timed work cycle.
Large Capacity Range. Includes lap sizes of 48",
and 60". Maximum size enables handling of three
24" pieces or one 60" piece (largest dimension).
for extra cleaning and polishing opera
WORKHOLDING ARRANGEMENTS
Two types of workholding arrangements are
available. One consists of three work adaptors held
in a fixed position relative to the lap, but caused to
rotate by meshing with a geared central drive. Each
adaptor is designed to hold one or more parts,
depending upon part size. Each adaptor takes up to
approximately 24" diameter. The other w'orkhold-
ing arrangement is designed for larger parts where
they might straddle the entire lap. In this case, a
single adaptor or workholder w'ith suitable aper
tures is used.
FINISH and TRUTH
Because the finish and truth of the final product
in lapping is determined by the lap, the 60" Single
Face Flat Lapping Machine gives you several sub
stantial advantages. Beyond selection of a lap speci
fication to produce fine finish, a further measure of
finish control lies in the manner in which the lap
face is trued. This is done by a hydraulically actu
ated truing
selective. A fine rate for finish, or a coarse rate for
accelerated lapping action is instantly established.
The truing mechanism provides the equally impor-
with which the truing feed rate is
arm
tant advantage of
without necessity of lap removal — a decided time
saving feature.
quickly
reestablishing lap flatness
COOLANT
Filtered coolant from an outside type reservoir,
floods the lap face, washing away the
during the lapping process, and reducing any tend
ency of heat generation. The finished product re
quires no subsequent cleaning
can be used without additional attention.
WORK PRESSURE ARRANGEMENTS
It is often desirable or necessary to apply addi
tional w-eight or pressure to the work in order to
obtain the proper lapping action. This may be done
in some instances by manual application of individ
ual weights designed for the purpose. In those cases
where mechanical application of weight is
a hydraulic pressure device is available. With this
device, twin hydraulic cylinders in a swinging over-
arm raise and lower a tripod to which is attached
suitable pressure plates that fit the work. The
hydraulic cylinders also apply regulated pressure to
the plates. This arrangement assists production by
eliminating handling of work piece weights.
, and in many cases
metal removed
desirable,
Page 4
SPECIFIC ATIONS
work capacity:
laps:
floor space (approx)
net weight, pounds
--------
largest individual piece
width of face, up to
OTHER NORTON LAPPING
NO. 16FC VERTICAL
LAPPING MACHINE
-
diameter
up to 60"
22"
78"
x 128"
9000.'
enclosed, ball bearing
Hydraulic Pump —
ball bearing
Filter Unit —
bearing A.C. integral* motors
MACHINES
NO. 12 SIMPLEX
SURFACE FINISHING
MACHINE
S
3/4 h.p, 1800 r.p.m. A.C. totally enclosed,
3/4 h.p. and 1/4 h.p. totally enclosed, ball
N5803A
NO.
2
LAPPING MACHINE
VERTICAL
N5498A
-----------
v •"
N5666A
NO. 26 HYPROLAP
LAPPING MACHINE
N4368A
NORTON
OFFICES: Hartford 7, 998 Farmington Avenue; New York Area, Green and North Sts., Teterboro, N. J.; Cleveland 3,
1306 East 55th Street; Detroit 8, 5805 Lincoln Avenue; Chicago 32, 4737 South Christiana Avenue.
COMPANY
EXPORT: NORTON BEHR-MANNING OVERSEAS INC.
•
Worcester 6 • Massachusetts
WORCESTER 6, MASS., U.S.A.
Cable Address: NORBEMO, Worcester
