User Manual
Model:NT-TPC7
2
1 Introduction
1.1
Package content
Tablet PC
Power Adapter
Micro USB Cable
OTG Cable
Instruction Manual
1.2
Getting started
Before operating your Tablet PC for the first time, please read this manual
1.3
Battery charging
To charge the proceed as follows:
1.
Connect the micro USB cable to the AC power adapter.
2.
Plug the AC power adapter to a power outlet.
3.
Connect the micro USB cable to your tablet.
We strongly recommend to use only the power adapter and micro USB
You can use the tablet while charging.
carefully and follow the instructions as below.
The instructions and screenshots shown in this manual refer to a generic
Android 5.x system and may slightly differ from those of the system installed
on your product.
The tablet is equipped with a built-in rechargeable Lithium battery. It is
suggested to fully charge the battery before use.
Important
cable included in the packaging, using other adapter or cable may damage
the tablet and void the warranty.
3

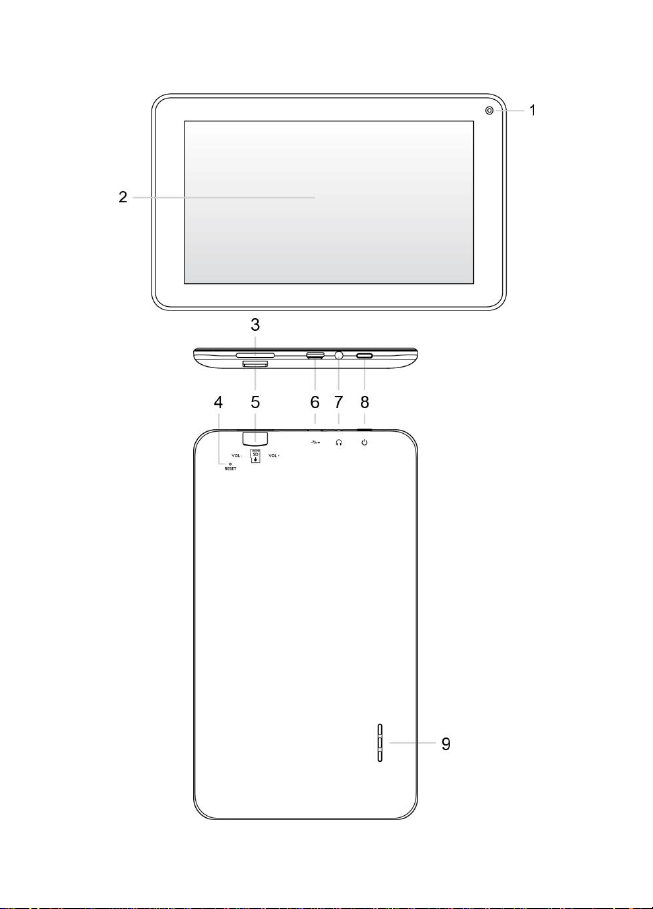

2 Appearance and buttons
4
1.
Front camera
2.
Touch screen
3.
Volume buttons
4.
Reset button
5.
Micro SD slot
6.
Micro USB port
Use this port to recharge the tablet.
Connect to PC for file transfer or connection with external USB devices.
7.
Headphone socket
3.5 mm standard earphone jack.
8.
Power button
Turn on/off tablet.
9.
Speaker
3 Turn ON/OFF Tablet
Turn the tablet Off
Remarks:
When battery is fully discharged, the tablet will shut down itself
If you turn off the device improperly, at restart the system will scan and
The USB cable must be OTG compliant.
Turn the tablet On
After the battery has been fully charged, press and hold the power button for
around 3 seconds to turn on the device. Screen lock will be showed after
starting up.
When the tablet is ON, press and hold the power button for around 3 seconds
and the system will popup out power off option, tap on Power off to turn the
tablet off.
automatically.
restore the disk, and it may take longer time to enter into system.
5
4 Starting for the first time

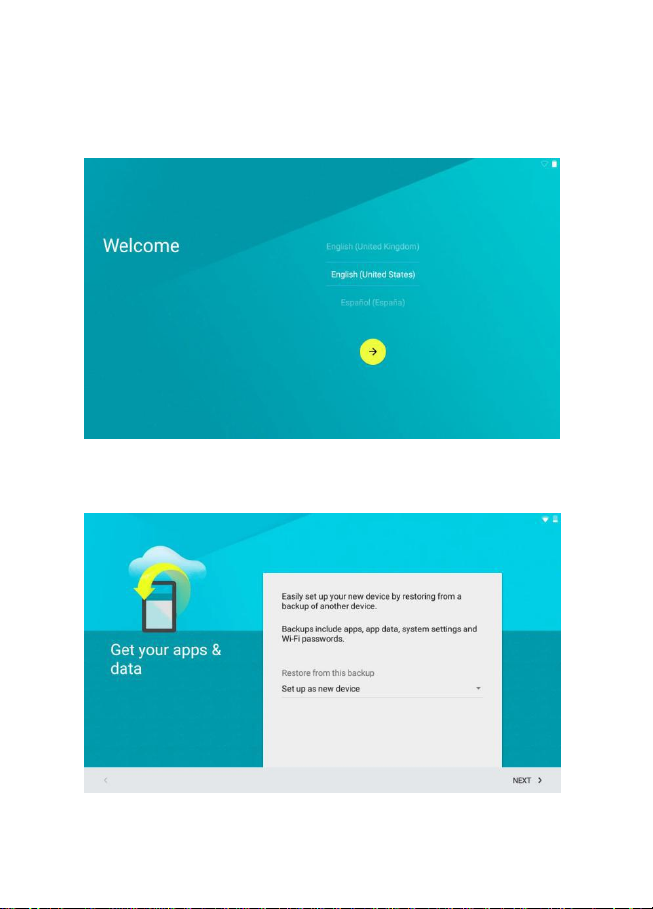

When you turn your Tablet on for the first time, Setup Wizard will guide you
through the setup process.
Select your language and follow the onscreen instructions to configure Wi-Fi
network, account, etc.
If you have backup of another Android device on your Google account, you
can use it to restore data and system settings on the new device.
5 Locking and Unlocking the Tablet
Locking the tablet (Stand-by)
To lock the tablet, quickly press power button and release.

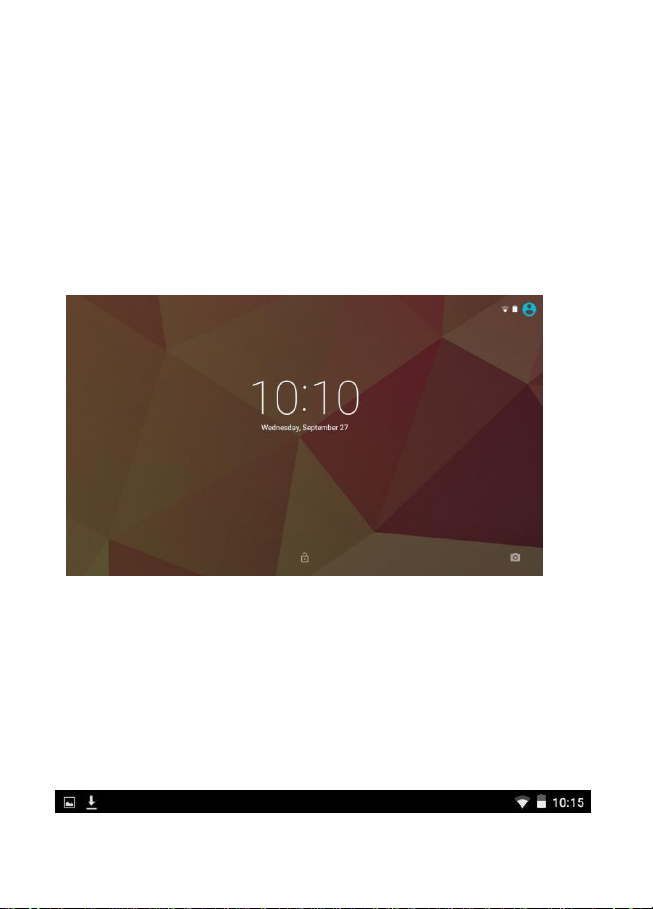

Wake up your tablet and unlock the screen
To wake up the tablet from stand-by and turn on display do as follows.
1.
Press and release the power button.
2.
Slide the lock icon upward to unlock the screen and go to main interface.
6 Interface operation
In this way the tablet is locked and the display is turned off.
After starting up, you will enter into below main screen interface also know as
Home screen.
Through the Home screen, you can view information about the device status,
access the settings and use the App (software applications).
You can customize the main screen by changing the arrangement of app
icons, adding new apps or deleting the unused one.
Status bar
The status bar is located on the top of the screen.
On the left side are shown the notifications for apps, updates and the progress
of downloads.
On the right side are displayed the icons related to Wi-Fi and mobile network
Quick settings
Navigation buttons
Back button
It goes back to the previous screen.
signal, Bluetooth interface, battery power level and time.
To immediately open your “Quick settings” window, swipe down from the top of
your screen using two fingers.
The "Quick settings" screen allows you to quickly access frequently used
settings, such as the Bluetooth activation. To change a setting, simply tap on
its icon.
From this screen you can also access the full screen of the device settings by
tapping the gear icon in the upper right shown in the picture.
In the bottom of the screen it is always visible the navigation bar with the three
navigation buttons and the volume control buttons.
The operation of the three buttons is described in the following table.
Home button
Press the Home button to return to the main screen from any
window.
Recent apps
Opens a list of thumbnail of apps you’ve worked with recently.
To open an app, tap on its thumbnail.
To remove an app from the list, tap on the X on the top right of
the thumbnail or swipe it left or right.
Favorites tray
7 Organize the Home screen
To add an app icon to a Home screen
1.
Touch the All Apps icon.
2.
Touch & hold the app until the Home screen appears, then slide it into
To remove an app icon from the Home screen
At the bottom of the screen you can also find the favorites tray. It is another
quick way to get to your apps.
At the center of the favorites tray you can find the All Apps icon, touch it to
open the screen that shows all the apps installed on the device.
To drag an app in or out of the favorites tray, touch & hold it, then move it with
your finger into position.
Note: In some devices the favorites tray can be arranged vertically on the right
side of the screen when the display is oriented horizontally.
The home screen can be customized by adding icons of favorite apps and
widgets, the small dynamic applications that allow you to quickly view
information such as weather forecast, calendar events or the latest news.
place and lift your finger.
Touch & hold the app you want to remove, then slide it over the X symbol on
the top left of the screen and lift your finger.
Add a widget to the Home screen
1.
Touch the All Apps icon then touch on the Widgets tab on the top left of
2.
Touch & hold the thumbnail of the desired widget then drag it into an
8 Change the background image
1.
Touch & hold the background of the screen for a few seconds until the
2.
Touch Wallpapers item to view the available background images.
3.
Touch the thumbnail of the desired image and then touch Setwallpaper
item on the top left of the screen to apply the new wallpaper.
Connecting to
a Computer
1.
Connect the micro USB cable to your tablet then plug it into a free USB
2.
The tablet is automatically recognized by the computer and connected as
9 Settings
9.1
WIRELESS & NETWORKS
l
Wi-Fi
the screen to view the list of available widgets.
available area of the Home screen.
below screen appears.
You can use the USB cable provided to connect the tablet to a computer and
transfer files. To connect the tablet to your computer, proceed as follows.
port on your computer.
a multimedia device.
By sliding down the status bar to expand the notification area, you can access
the USB connection options to change the connection mode to the computer.
The different options of connecting to computers are available in the “USB
computer connection" window shown below.
Touch the Settings icon to open the window that contains all of the
device settings.
The settings screen is organized into four sections, each containing
settings related to similar topics.
To open the setting that you want to change, simply tap on the corresponding
item in the list.
The Wi-Fi window allows you to enable and disable the wireless interface and
shows a list of all available Wi-Fi networks.
If the Wi-Fi network requires a password, then input the password and tap
Connect to establish the connection.
l
Bluetooth
l
Data usage
Select this setting to view information about data usage.
l
More…
9.2
DEVICE
l
Display
Tap on the name of your Wi-Fi network to connect. If the Wi-Fi network does
not require a password, tap Connect to start the connection.
If the connection to the Wi-Fi network is completed successfully, the
connection information is saved in order to connect automatically whenever
necessary.
When the tablet is connected to the wireless network, the Wi-Fi icon appears
on the status bar at the top right of the screen.
Select this option to turn on/off Bluetooth function. The tablet will automatically
scan all available Bluetooth devices and list them.
This section displays a graph of total data usage and data usage information
for each app.
Enter this screen to turn on/off airplane mode, setup tethering/hotspot function
and VPN connection.
Manage display settings such as brightness, background wallpaper, sleep
time, font size and content auto-rotation.
l
Sound & notification
Use this screen to manage settings of volume, vibrate and apps notifications.
You can also check or uncheck the options for dial pad touch tones, touch
sounds, screen lock sound and vibrate on touch.
l
Storage
This section displays information about internal storage, Micro SD card or
external USB devices connected to the tablet.
NB: The actual storage space available to the user is less than the total
internal storage because the operating system and default applications take a
portion of the internal memory
l
l
Users
You can use this section to manage user’s settings.
9.3
PERSONAL
l
Location
In this section you can enable the location service and its operation mode.
l
Security
l
Accounts
It allows you to configure and manage accounts.
l
Backup & reset
Option of for backup & restore, erase personal data.
9.4
SYSTEM
l
Date & time
Battery
Access this setting to know the battery usage information.
L
Apps
Allow you to manage the applications installed on the device. Tap on the app
icon to view detailed information of the application such as used storage,
permissions and so on. From the “App info” screen you can also remove the
app from the tablet by tapping on the Uninstall button.
Use this section to manage settings for security options such as screen lock,
encryption, SIM card lock, passwords visibility and so on.
Tap the name of the account to view account details or tap Add account to
enter a new account.
l
Language & input
Change settings for language, spell checker, personal dictionary, keyboard,
text-to-speech output, voice control and pointer speed.
Warning: once you perform the “Factory data reset”, it will erase all
personal data in tablet, make sure to back up your personal data before
performing this function.
You can use network-provided time and time zone, or you can manually setup
date, time, select time zone and also select 24 hour time format.
l
l
Printing
l
About tablet
Displays additional information about the tablet.
l
Browser
New tab: to open up new tab of web browser.
Accessibility
This section is useful for users with impaired hearing and low vision.
Accessibility options allow you to increase the size and contrast of the text, the
pronunciation of the password, manage the options of text-to-speech output
and much more.
Android allows you to print the contents of some screens (such as web pages)
with a printer connected to the same Wi-Fi network of the tablet.
In order to use this function, you still need to install a printing service that is
normally provided by the printer manufacturer. To check the services available
touch "Add service" from the option menu on the top right of the window.
10 Apps Installation
You can download the Apps from online markets and install them online, or
you can install the Apps from your Micro SD card or USB devices. Just tap on
the App and run the installation, you can finish the installation and run that App
right away.
11 Introductions of Typical Applications
The following pages describe some applications commonly installed on
devices with Android operating system.
The App installed in your device, the version and features may differ from
those shown here and change without notice.
After connecting your tablet to Wi-Fi network, tap the Browser icon in
the favorites tray on the screen to open the web browser and start
Internet surfing.
The menu icon located at the right top corner of the browser screen allows you
to access different options among which:
Refresh: to refresh the current page.
Stop: stop the loading of the page.
Close: close the current page.
Request desktop site: in the case of web site optimized for mobile devices
asks the server to send the version for desktop computers.
Settings: open the settings page of the browser.
l
Calculator
The tablet includes a built-in calculator, tap on the Calculator icon to
l
Calendar
l
Camera
Tap on the Camera icon to run the application.
To view the saved pictures and videos, use the Gallery.
l
Clock
Tap on the Clock icon to run the application.
carry out your calculations.
Users can use the Calendar app to check date, time and
memorandum or add memorandum etc. But before doing this, you
have to sign in the Google Account.
The camera is located at the top right angle of tablet, aim at it when
you take photo or video.
Tap on the camera icon to take photo or on the camcorder icon to record a
movie.
To switch from camera to video shooting, slide your finger to the inside of the
screen on the left and then select the desired function.
In this screen, the gear icon that appears at the top right allows access to the
settings window.
Photos and videos will be saved automatically into DCIM > Camera folder of
internal storage.
This application also allows you to organize your images and make small
editing operations like clippings and effects.
After running the clock application, you can setup alarm, use it as a
timer or also as stopwatch.
l
Email
Tap on Email icon in the “All Apps” screen to setup your email
account according to the procedures.
You can enter one or more personal email addresses which you would like to
l
File Manager/Explorer
l
Gallery
l
Sound Recorder
Tap on the circle icon to start recording.
Tap on the white square icon to stop recording.
Using the Reset button
access through the tablet.
Tap on ES File Explorer icon to browse the files saved in the internal
storage, on the micro SD card or external USB memory.
Tap & hold a file for few seconds to select it (the item become highlighted),
then use the menu on the bottom for Copy, Paste, Delete etc. actions.
Tap on the Gallery icon to browse for image or videos files. This
application collects all images and video files stored in your device.
To start the sound recorder, open the “All Apps” screen and tap on
the Sound Recorder icon.
Once you stopped the recording, system will prompt: Discard and Done.
Tap on Discard to discard the recording; tap on Done to save the recording.
12 Forced shutdown
In case of your tablet was down and you are unable to turn it off according to
standard procedures, press the power switch and hold it for 7 seconds, the
tablet will be turned off.
In case your tablet interface was freezed, you can reset it using the Reset
button located on the side of the tablet next to the volume control.
Use a small clip or pin to trigger the reset button, the tablet will be turned off
once you trigger the reset button.
13 Factory Reset
To restore the tablet to original factory settings and erase all personal
information, tap on “Settings” → “Backup & reset” → “Factory data reset”.
Warning: After resetting the device, Google account, data, system settings,
and downloaded applications will be removed from your tablet.
14 Battery Management
Use your Tablet at least once a week.
Fully charge the battery regularly.
Never leave the battery fully discharged for a long period of time.
Always keep the device and the battery away from heat and moisture.
When fully charged, the battery icon appears completely full.
Do not expose this product to rain or moisture.
Keep the device out of direct sunlight and heat sources.
Do not place other objects on LCD screen, as it may crush and damage
Do not use any sharp objects to touch the LCD screen, as this will scratch
Only use the AC adapter included with the device. Using any other power
Do not attempt to dismantle the tablet by yourself to do any repair, this will
The battery is not fully charged from factory, so it is recommended that you
charge the battery for at least 6 hours before you start to use the device.
The rechargeable battery is designed and manufactured to be used and
recharged frequently. As same with all of lithium batteries, the capacity of the
battery reduces each time it is charged. However, you can still try to prolong
the battery’s lifetime by following the suggestions below:
Battery charging
Plug the power adapter into an electrical wall outlet and then connect to the
device to fully charge the battery before use.
A fully discharged battery will take you approximately 6 hours, but you can use
the device while it is being charged.
Do not use other adapters than the one provided in your packaging, it may
cause damage to the Lithium battery inside. Do not attempt to open the tablet
to replace the battery inside, this will damage the tablet and void the warranty.
15 Important Safety Precautions
Always follow these basic safety precautions when using your Tablet. This
reduces the risk of fire, electric shock, and injury.
the LCD screen.
the screen.
adapters will damage your tablet and void the warranty.
damage the tablet and void the warranty.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
Loading...
