Northstar Trailers MULTISTAR User Manual

NORTHSTAR TRAILERS

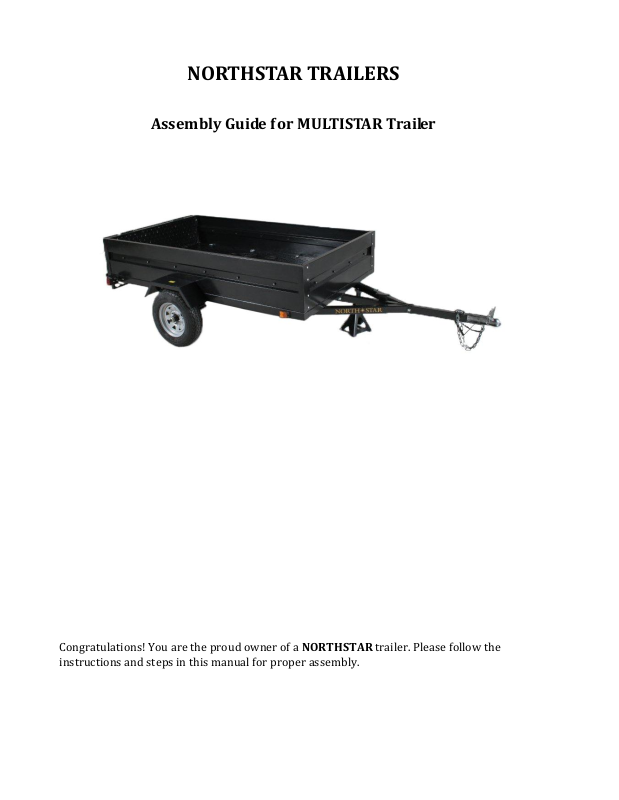

Assembly Guide for MULTISTAR Trailer
Congratulations! You are the proud owner of a NORTHSTAR trailer. Please follow the instructions and steps in this manual for proper assembly.
TRAILER PARTS LIST HARDWARE
No.
Part Description
Qty.
1
Frame (deck)
1
2
Tongue (with wiring harness) and Coupler (hitch)
1
3
Front Panel
1 4 Solid Ramp
1 5 Mesh Ramp
1 6 Side Panels
2
7

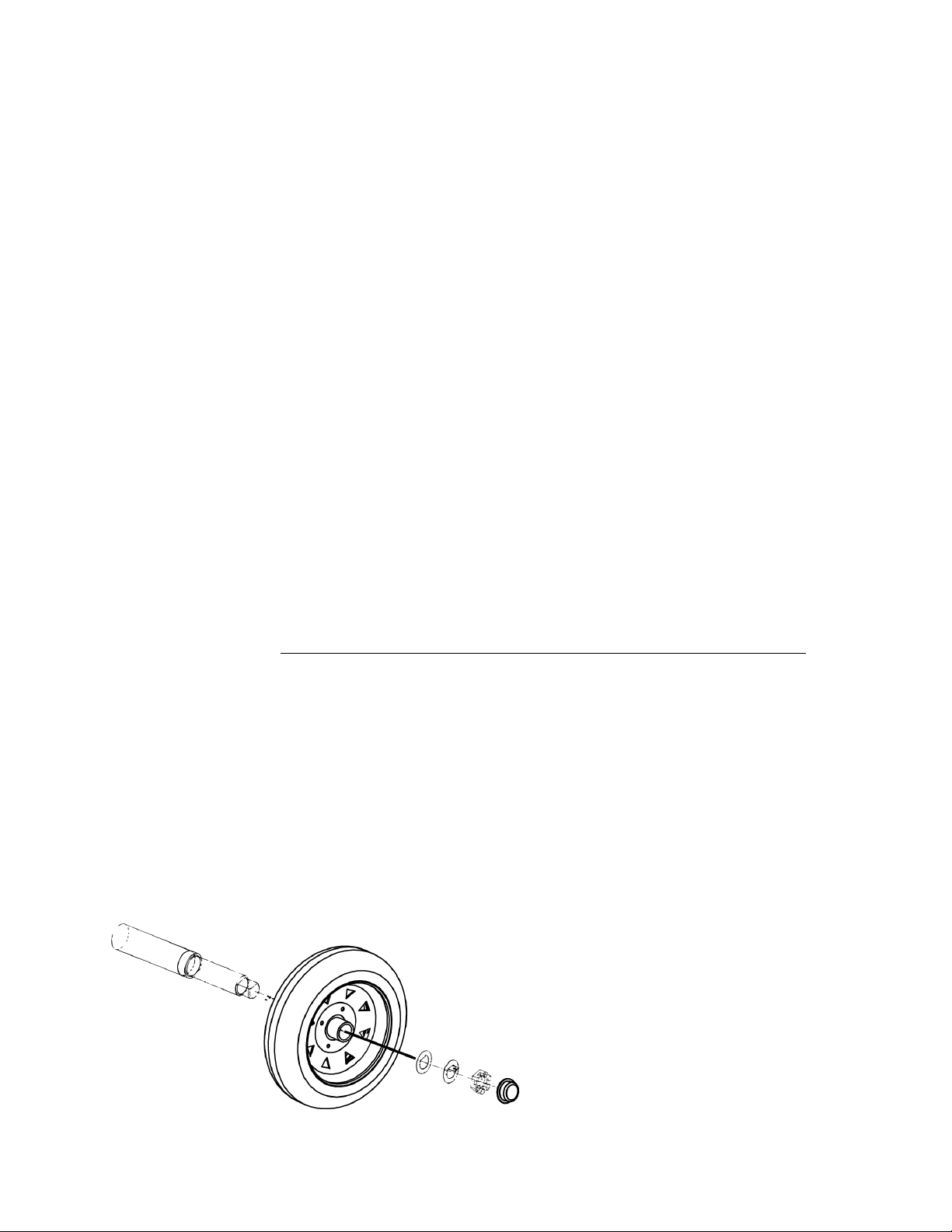

Wheel and Hub Assembly
2
8
Leaf-Spring
2 9 Axle 1 10
Fender
2
11
Tongue Side Brace
2
12

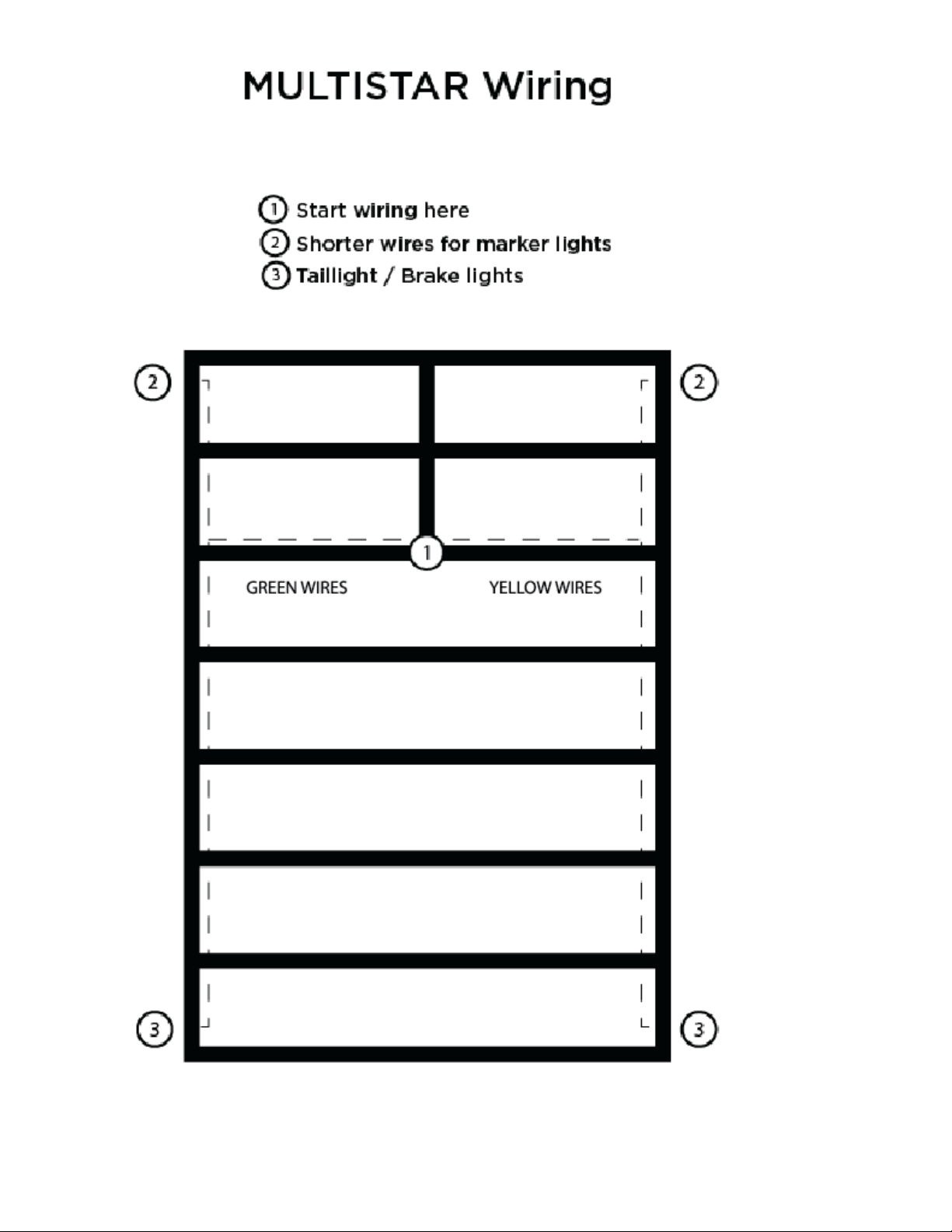

Wiring Harness
1
No.
Description
Qty.
A
U-Bolt
4
B
Spring Plates
2 C Large Locknuts
10
D
3 ½” threaded Pin-Bolt
5 E 3 5/8” threaded Pin-Bolts
2
F
8” Gate-Pin
2
G
3 ¾” Gate-Pin
2 H Large Nut
7 I Small Locknut
12
J
Small Lock-Washer
24
K
Flat-Washer
2
L
Small Bolt 1”
24
M
Cotter-Pin
7 N Spare Tire Lug Nut

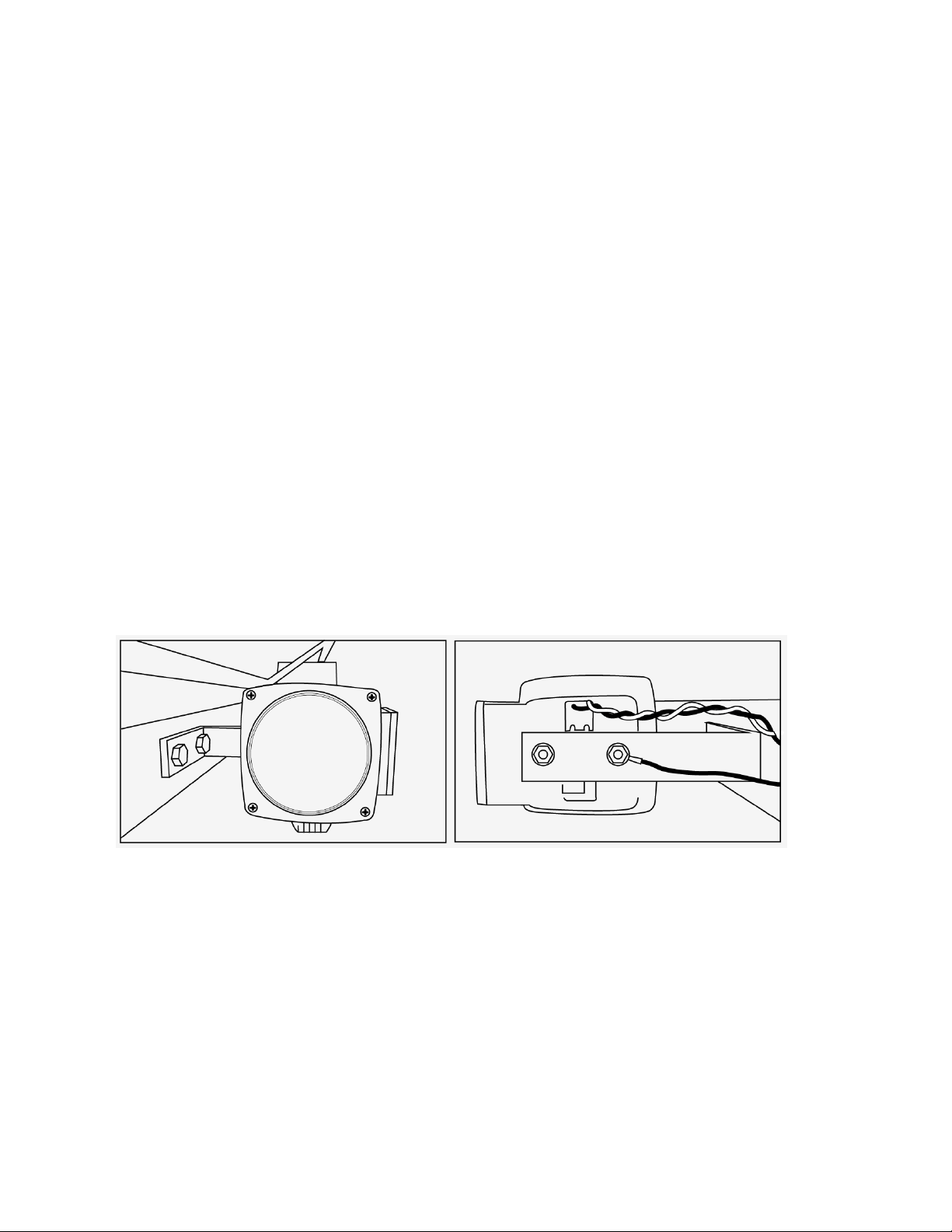

2 O Taillight/Brake Light
2
P
Running Light
2
Q
Taillight/Brake Light L-Bracket

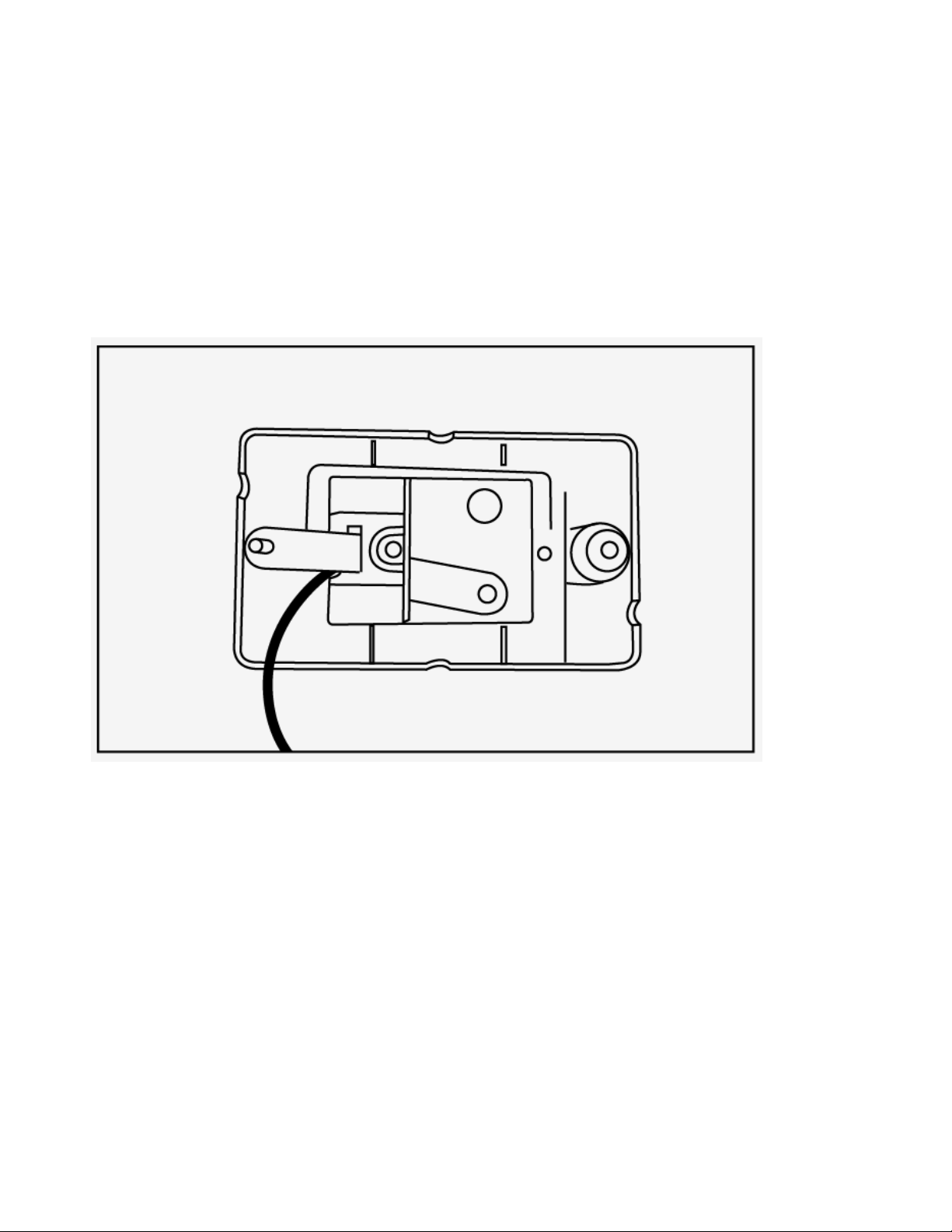

2 R License Plate Bracket
1 S Domed Panel Bolt
10
T
Small Brass Screw (included in bag with blue wire connectors)
4
U
Wire Connector
8 W Slotted Lock bolt
2
Y
Tie Down Ring
8
Z
Gate Lock With Chain
2
AA
Dowel
2
Make sure that all parts, as listed above, are included in your shipment. If any parts are missing please contact NORTHSTAR at 1-855-375-3088.
Other tools needed for assembly: grease gun, flathead screwdriver, socket set, wrench set, small zip-ties, small rubber mallet.
IMAGES OF PARTS AND HARDWARE
[

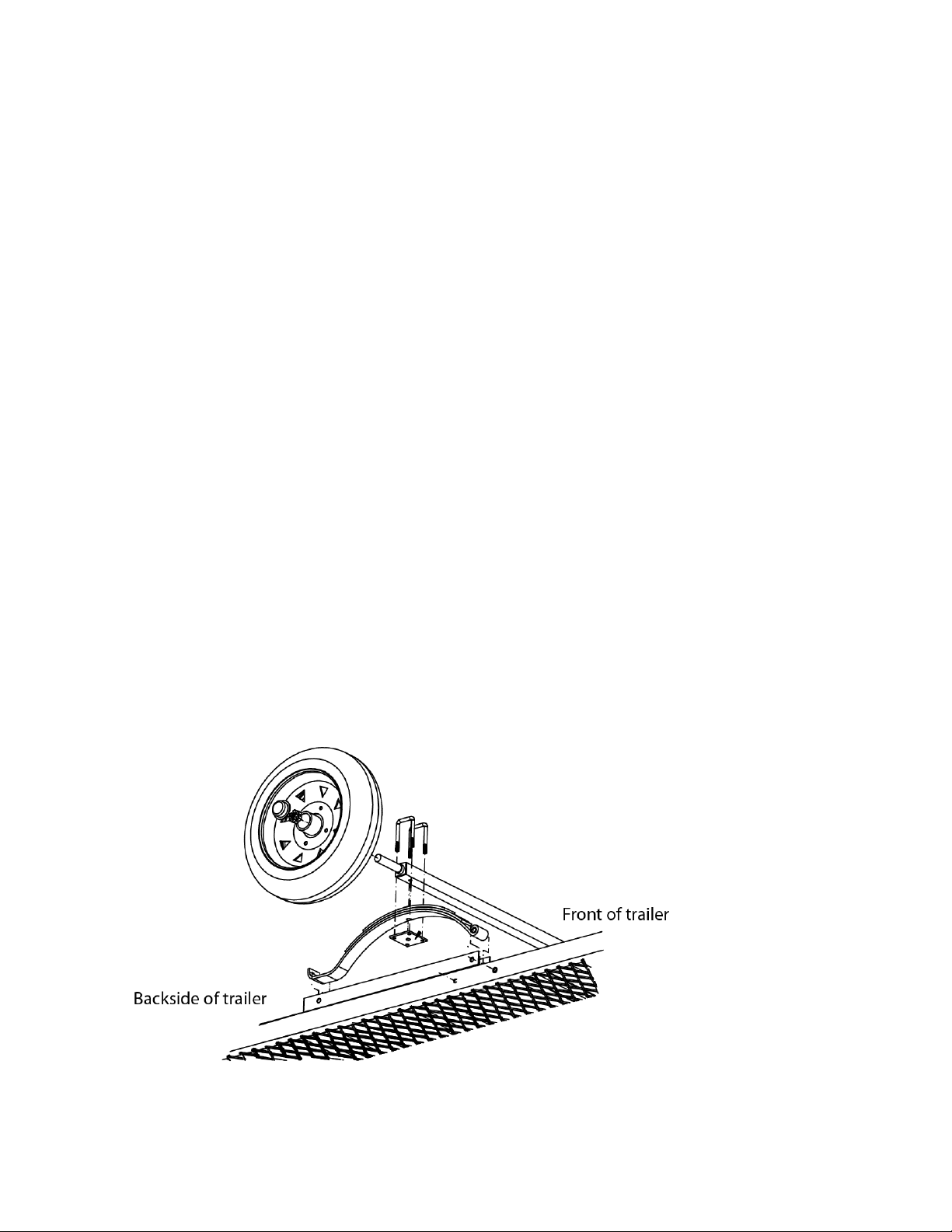

INVERTED ASSEMBLY
This trailer requires inverted assembly. (Assembled upside-down). Start by turning the trailer frame upside-down so the trailer deck is facing the ground. Use a table robust enough to support the weight of the trailer frame and high enough to elevate the frame to waist-height, or place the corners of the frame on buckets, or use sawhorses to elevate each end.
CAUTION: This trailer is heavy. More than one person is required to flip the trailer frame and assembly this trailer. Personal injury may occur if you try to assemble this trailer alone.
