Installation & Quick Setup Guide
1
1
About this Manual
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS
Page 3
Installation & Quick Setup Guide
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
Page 4
Installation & Quick Setup Guide
3
3
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
recycling, return this product to your local supplier
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Page 5
Installation & Quick Setup Guide
4
4
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 12 VDC according
to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
Page 6
Installation & Quick Setup Guide
5
5
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating
temperature shall be -30°C ~+60°C), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
Page 7
Installation & Quick Setup Guide
6
6
● Do not expose internal components to liquid or moisture.
● While in transit, the camera shall be packed in its original
packing, or packing of the same protection.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact tech
support at 855-388-7422. Never attempt to disassemble the
camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Page 8
Installation & Quick Setup Guide
7
7
Table of Contents
1 Appearance Description ................................................................. 8
2 Installation .................................................................................... 10
2.1 Ceiling Mounting ........................................................... 11
2.2 Installation of Network Cable Water-proof Jacket ......... 14
2.3 Ceiling Mounting with a Gang Box ................................ 17
2.4 Pendent Mounting ........................................................ 19
2.5 Wall Mounting .............................................................. 21
2.6 Install the Micro SD Card ............................................... 24
3 Setting the Network Camera over the LAN .................................. 25
3.1 Wiring ........................................................................... 25
3.2 Activating the Camera ................................................... 26
3.2.1 Activation via Web Browser ................................ 26
3.2.2 Activation via SADP Software ............................. 27
3.3 Modifying the IP Address .............................................. 29
4 Accessing via Web Browser .......................................................... 32
5 Operating via Guarding Vision App .............................................. 35
5.1 Enable Guarding Vision Service on Camera ................... 35
5.1.1 Enable Guarding Vision via SADP Software ........ 35
5.1.2 Enable Guarding Vision via Web Browser ........... 36
5.2 Guarding Vision Setup ................................................... 38
5.3 Adding Camera to Guarding Vision ............................... 38
Page 9
Installation & Quick Setup Guide
8
8
8
4
2
1
3
7
6
1 Appearance Description

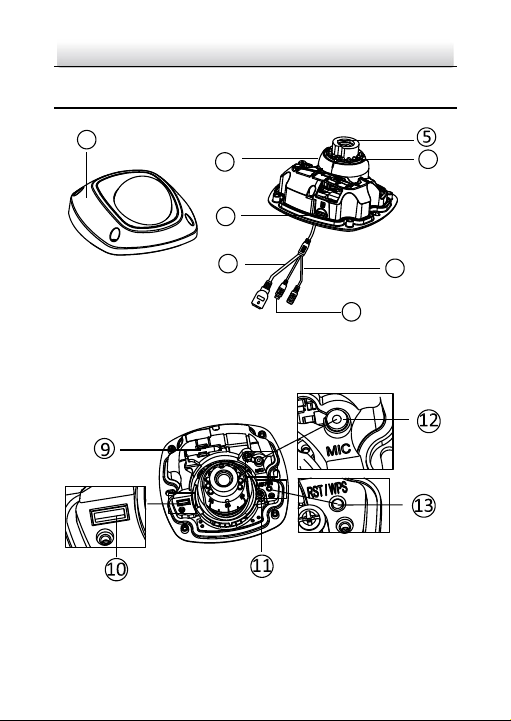

Figure 1-1 Overview (1)
Figure 1-2 Overview (2)
Page 10
Installation & Quick Setup Guide
9
9
No.
Description
1
Front Cover
2
Dome Drive
3
Micro SD Card Slot
4
Network Cable
5
Lens
6
IR LED
7
Power Cable
8
Audio/Alarm Cables
9
Not applicable for this model
10
Serial Interface
11
Hex Screw
12
Built in Microphone
13
RESET Button
Table 1-1 Physical Description
Press RESET button for 10s when the camera is powering on or
rebooting to restore the default settings, including the user
name, password, IP address, port No., etc.
Page 11
Installation & Quick Setup Guide
10
10
No.8 is the audio/alarm cable interface, of which the “I” mark
connects to the alarm input, the “o” mark connects to the
alarm output, the “GND” mark connects the grounding, and the
“A” mark connects the audio output (for two way audio only).
2 Installation
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● The standard power supply is 12V DC, please make sure your
power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
● Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
Page 12
Installation & Quick Setup Guide
11
11

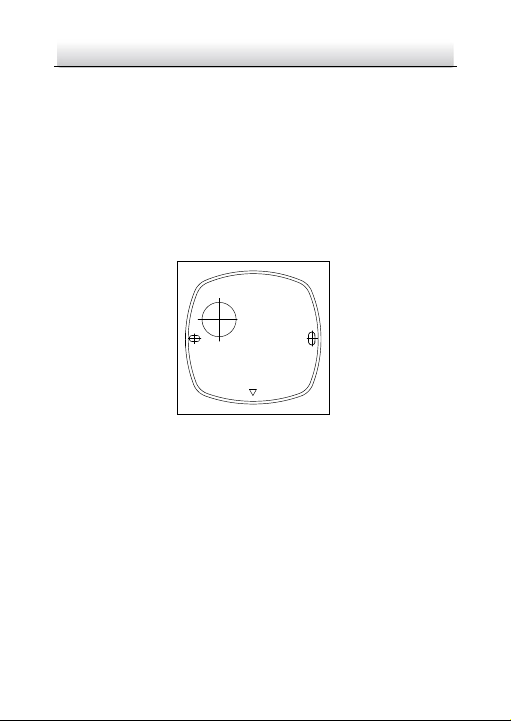

Drill Template
A
1 1
Hole A :for cables routed through the wall
Screw hole1 :for Mounting Base
FRONT
Code:194101278
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
2.1 Ceiling Mounting
Steps:
1. Drill the screw holes and the cable hole in the ceiling according
to the supplied drill template.
Figure 2-1 Drill Template

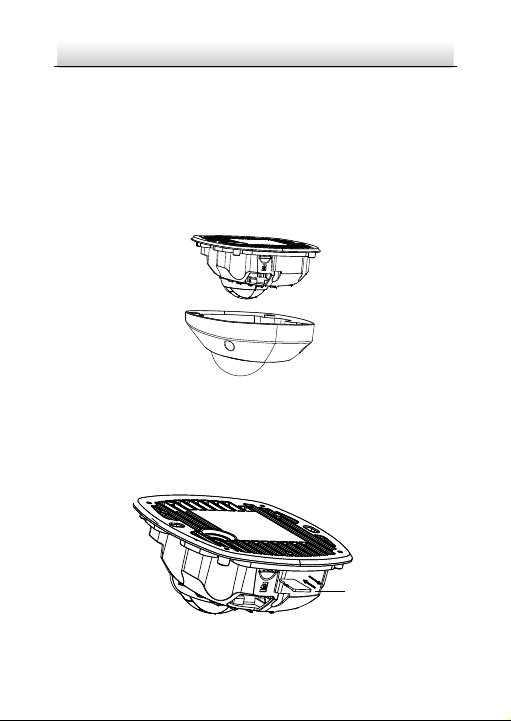

2. Loosen the set screw on the front cover to disassemble the
camera with the supplied Allen key.
Page 13
Installation & Quick Setup Guide
12
12

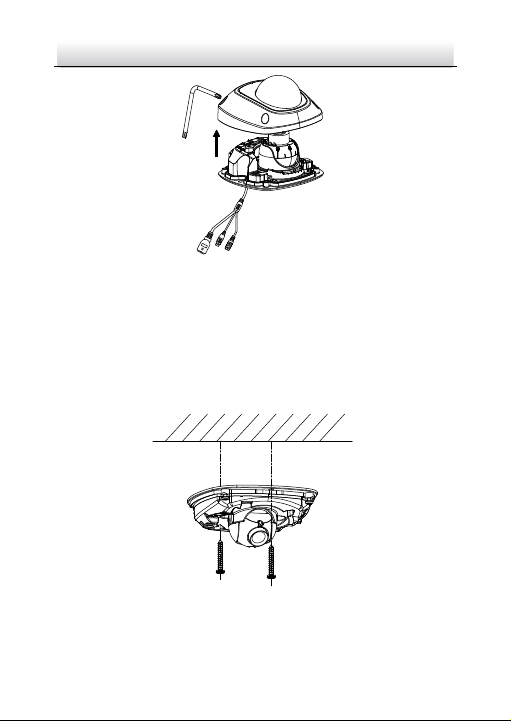

Figure 2-2 Disassemble the Camera
3. Hammer the plugs of the expansion screws to the ceiling.
4. Connect the power cable, network cable, and the audio/alarm
cables.
5. F ix the camera body to the ceiling with the supplied expansion
screws.
Figure 2-3 Fix the Adapter Plate
Page 14
Installation & Quick Setup Guide
13
13
Adjusting Tool
Rotation
Tilt
Pan
6. V iew the image via the web browser.
7. Slightly loosen the hex screw beside the WPS/RESET button to
adjust the surveillance angle.
8. Use the supplied adjusting tool to adjust the pan [± 30°], tilt
[0~80°], and rotation direction [0~360°].

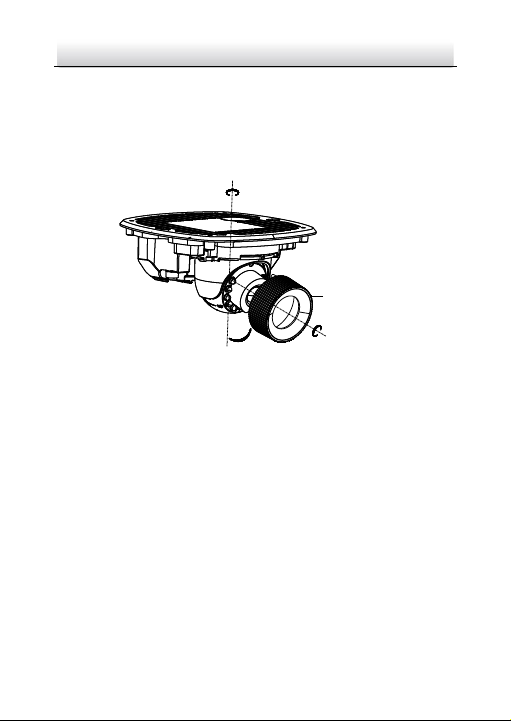

Figure 2-4 3-Axis Adjustment
9. T ighten the hex screw to fix the well-adjusted surveillance angle.
10. Align the front cover to the dome drive and tighten the set
screws on the front cover.
Page 15
Installation & Quick Setup Guide
14
14
Figure 2-5 Install the Front Cover
11. Tear off the protection film softly to complete the installation.
Do not tear off the protection film until the installation is
completed.
Do not touch the inside face of the bubble with your hands.
2.2 Installation of Network Cable Water-proof
Jacket
Purpose:
If the camera is installed outdoor, you can adapt the water-proof
accessory for the network cable after the camera is secured on the
installation surface.
Page 16
Installation & Quick Setup Guide
15
15
①
②
③
④
⑤
⑥ ⑦
No.
Components
1
Camera’s Network Interface Socket
2
O-Type Gasket
3
Network Plug
4
Waterproof Endcap
5
Waterproof Rubber Gasket
6
Lock Nut
7
Network Cable from Router/Switch

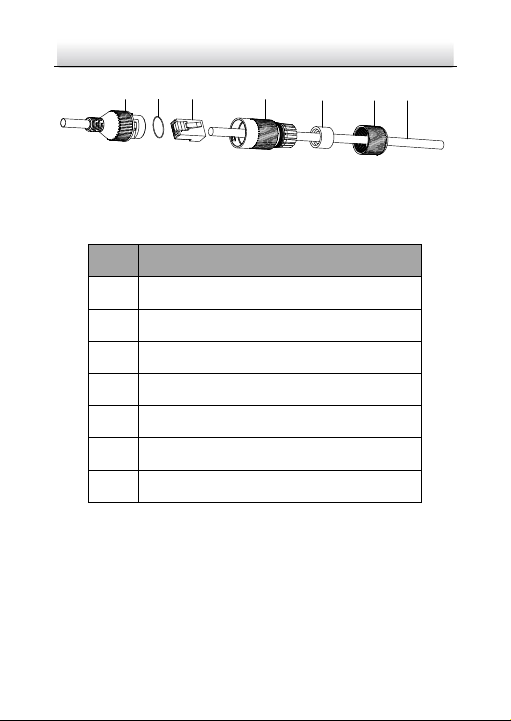

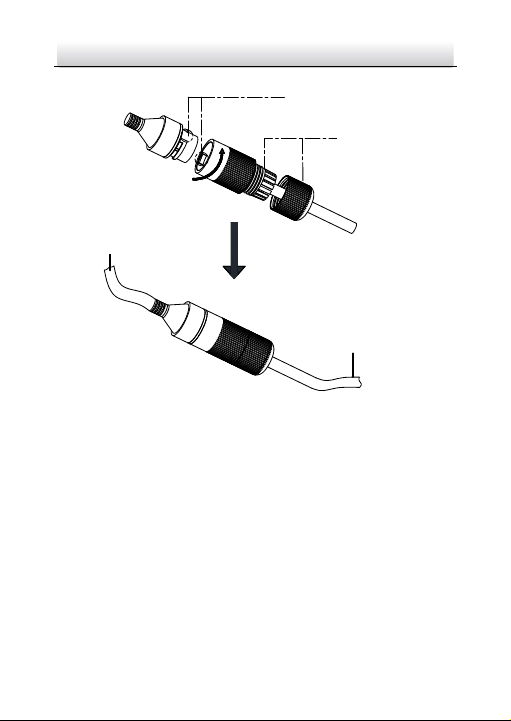

Figure 2-6 Water-proof Accessory Components
Table 2-1 Components
Page 17
Installation & Quick Setup Guide
16
16
Camera
Switch/Router
Align the snap and notch.
i. Insert ⑤ into ④.
ii. Secure ⑥ with ④.
Figure 2-7 Water-proof Accessory Installation
Steps:
1. Feed the plugless network cable ⑦ through the lock nut ⑥,
waterproof rubber gasket ⑤ (rubber gasket inset ridge must
face waterproof endcap), and the water-proof endcap ④ in
order.
2. Crimp an RJ-45 network plug ③onto the end of the cable,
taking care to insert the twisted pairs of wires in correct order.
Page 18
Installation & Quick Setup Guide
17
17
3. Place the O-type gasket ② onto the end of the camera’s
network interface socket ①. Place the O-type gasket ② onto
the end of the camera’s network interface socket ①.
4. Insert the network plug ③ into the camera’s network interface
socket①.
5. Insert the water-proof rubber gasket ⑤ into the waterproof
endcap ④, and secure lock nut ⑥ with the water-proof
endcap ④.
6. Align the snap on the water-proof endcap ④ with the notch on
the camera’s network interface socket ①, and then secure the
water-proof endcap ④ to the camera’s network interface
socket ① to finish installation.
2.3 Ceiling Mounting with a Gang Box
Steps:
1. F ix the adapter plate to the gang box with the supplied PM4X8
screws.
Page 19
Installation & Quick Setup Guide
18
18

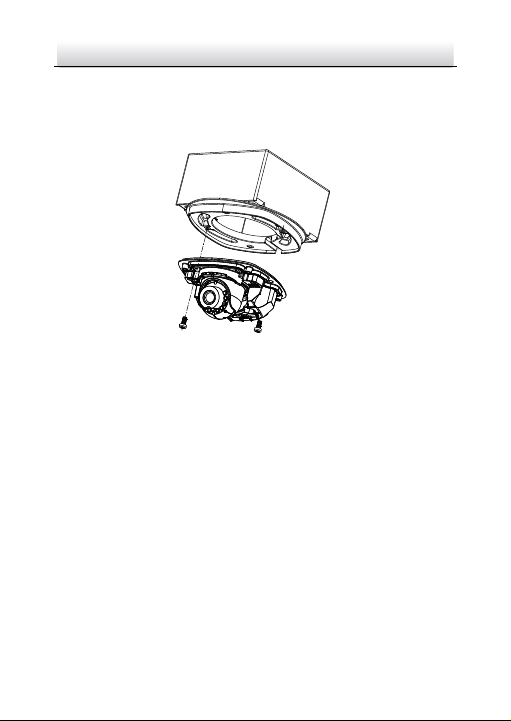

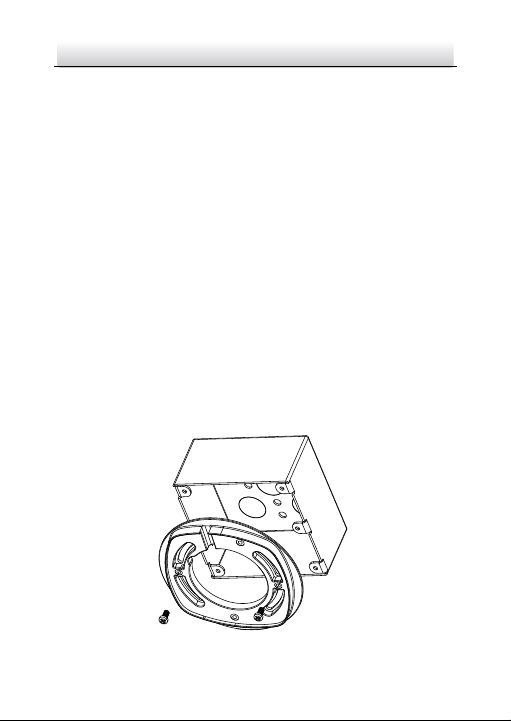

Figure 2-8 Fix the Adapter Plate
2. F ix the dome drive to the adapter plate with the supplied PM4X8
screws.
Figure 2-9 Fix the Dome Drive
3. Connect the power cable, network cable, and the alarm/audio
cables.
4. Align the front cover to the dome drive and tighten the set
screws on the front cover.
Page 20
Installation & Quick Setup Guide
19
19

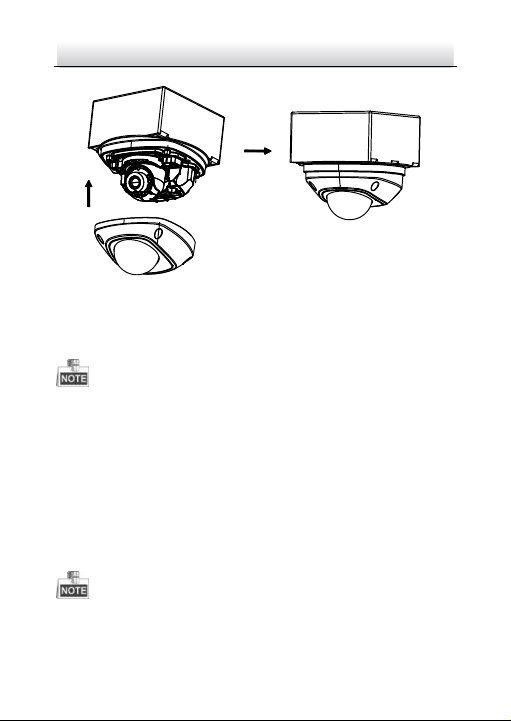

Figure 2-10 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
Do not tear off the protection film until the installation is
completed.
Do not touch the inside face of the bubble with your hands.
2.4 Pendent Mounting
Steps:
1. Install the bracket to the ceiling with the supplied screws in the
bracket package.
You need to purchases a pendant bracket separately if pendent
mounting is adopted.
Page 21
Installation & Quick Setup Guide
20
20
2. F ix the camera body to the pendent bracket with the supplied
PM4X8 screws.

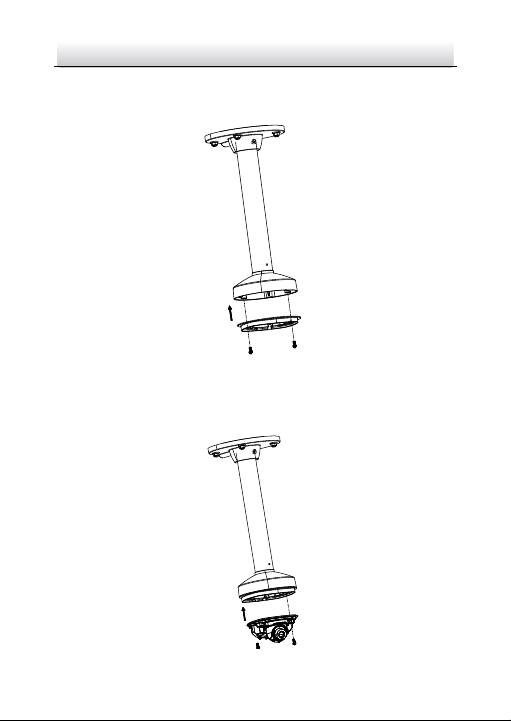

Figure 2-11 Fix the Adapter Plate
3. Install the dome drive to the adapter plate.
Page 22
Installation & Quick Setup Guide
21
21
Figure 2-12 Fix the Dome Drive
4. Align the front cover to the dome drive and tighten the set
screws on the front cover to complete the installation.
Figure 2-13 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
Do not tear off the protection film until the installation is
completed.
Do not touch the inside face of the bubble with your hands.
2.5 Wall Mounting
Steps:
1. Install the wall bracket to the wall with the supplied screws in
the wall bracket package.
Page 23
Installation & Quick Setup Guide
22
22
You need to purchases a wall bracket separately if wall mounting is
adopted.

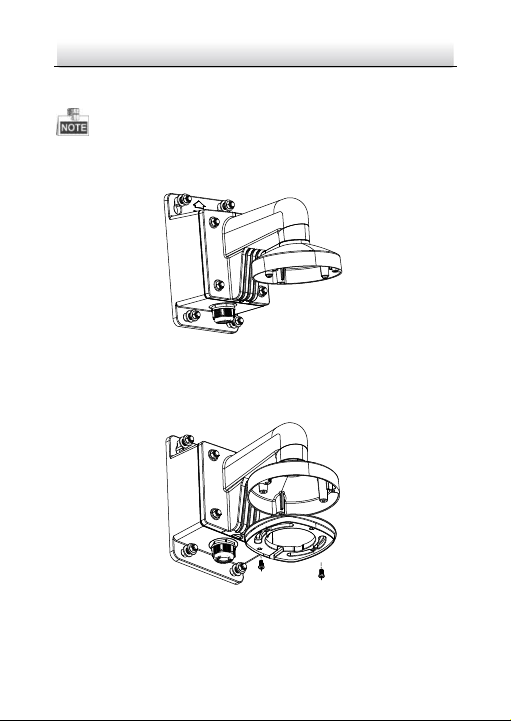

Figure 2-14 Install Wall Bracket
2. F ix the adapter plate to the wall bracket.
Figure 2-15 Fix the Adapter Plate
Page 24
Installation & Quick Setup Guide
23
23
3. F ix the dome drive to the wall bracket with the supplied screws.

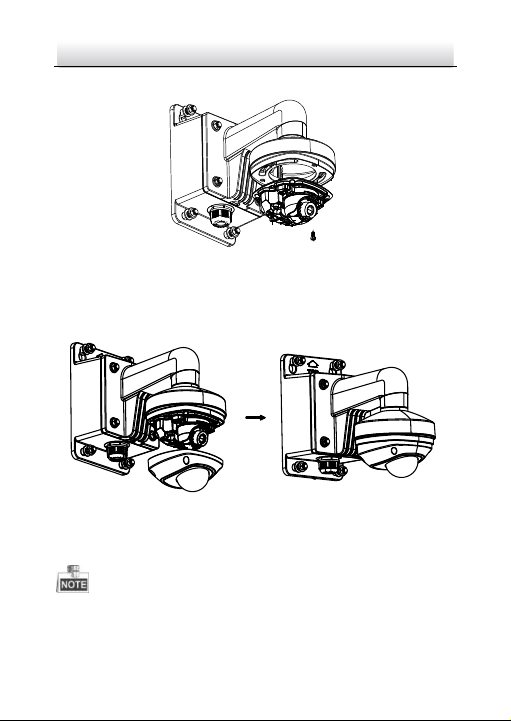

Figure 2-16 Install the Camera
4. Align the front cover to the dome drive and tighten the set
screws on the front cover to complete the installation.
Figure 2-17 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
Do not tear off the protection film until the installation is
completed.
Page 25
Installation & Quick Setup Guide
24
24
Mirco SD Card
Do not touch the inside face of the bubble with your hands.
2.6 Install the Micro SD Card
This series of camera supports local storage, please refer to the
following steps to install the micro SD card.
Steps:
1. Remove the front cover by loosening the set screws on it.
Figure 2-18 Remove the Front Cover
2. Insert the micro SD card to the card slot until you hear a click.
3. Slightly push the inserted micro SD card to uninstall it from the
camera.
Figure 2-19 Install and Uninstall Micro SD Card
Page 26
Installation & Quick Setup Guide
25
25
Network Cable
or
Network Camera
Computer
Network Cable
Network Cable
or
or
Network Camera Computer
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection.
3.1 Wiring
Please connect to the camera to the network according to the
following figures

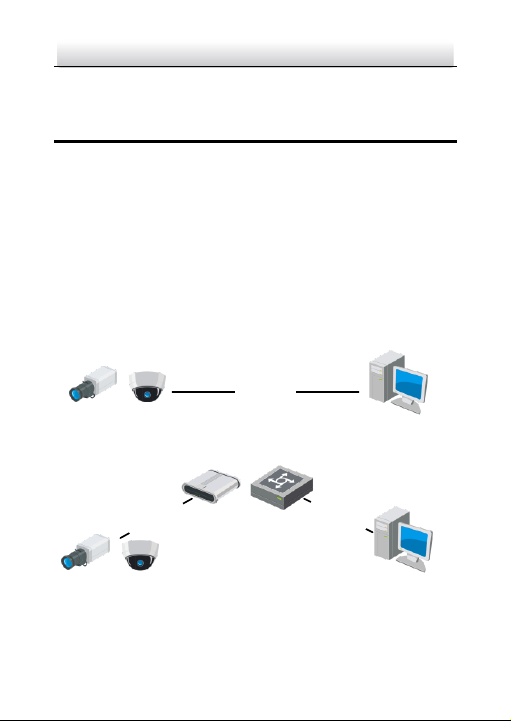

Figure 3-1 Connecting Directly

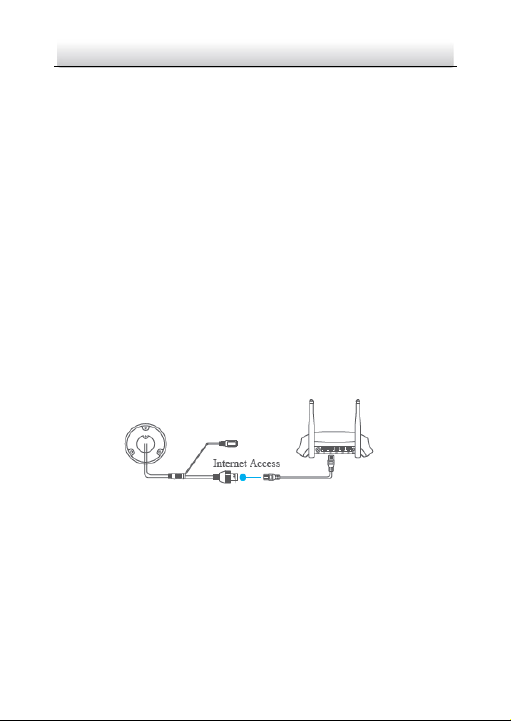

Figure 3-2 Connecting via a Switch or a Router
Page 27
Installation & Quick Setup Guide
26
26
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera. Activation via Web
Browser, Activation via SADP, and Activation via Client Software are
all supported. We take activation via SADP software and Activation
via Web Browser as examples to introduce the camera activation.
Please refer to the User Manual of Network Camera for Activation
via Client Software.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
The default IP address of the camera is 192.168.1.64.
The computer and the camera should belong to the same
subnet.

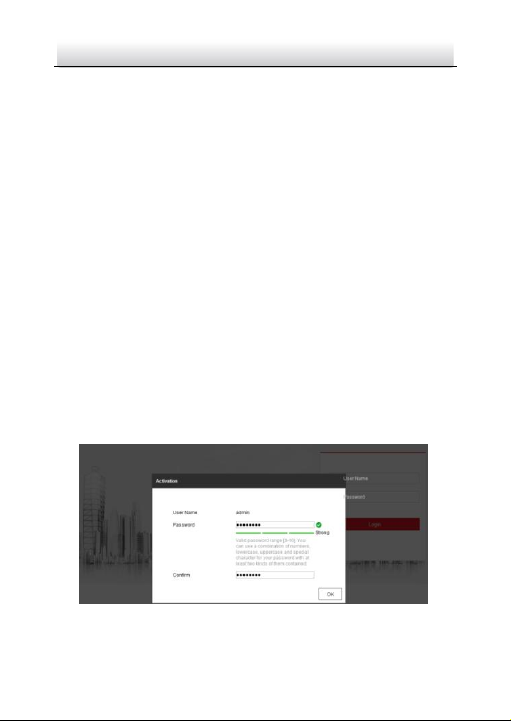

Figure 3-3 Activation Interface(Web)
Page 28
Installation & Quick Setup Guide
27
27
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED– W e highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
3.2.2 Activation via SADP Software
SADP software is used for detecting the online device, activating the
camera, and resetting the password.
Get the SADP software from the supplied disk or the official website,
and install the SADP according to the prompts. Follow the steps to
activate the camera, please refer to the User Manual of Network
Camera for other two activation methods.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
Page 29
Installation & Quick Setup Guide
28
28

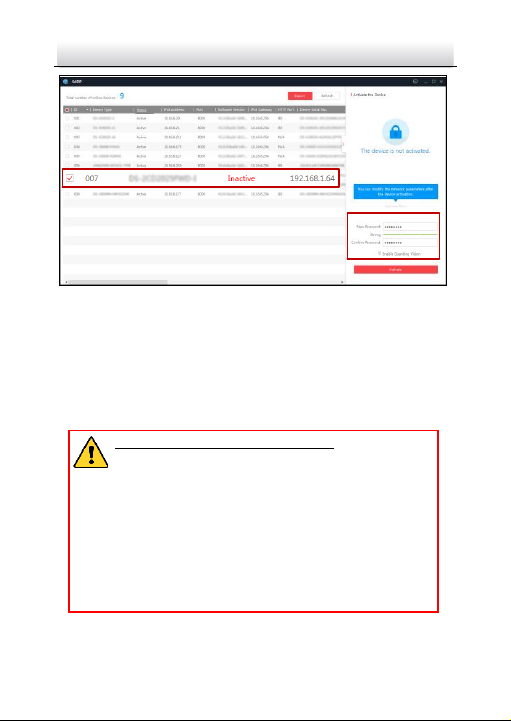

Select inactive device.
Input and confirm
password.
Figure 3-4 SADP Interface
Note:
The SADP software supports activating the camera in batch. Please
refer to the User Manual of SADP software for details.
3. Create and input the new password in the password field and
confirm the password.
STRONG PASSWORD RECOMMENDED– W e highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
Page 30
Installation & Quick Setup Guide
29
29
Note:

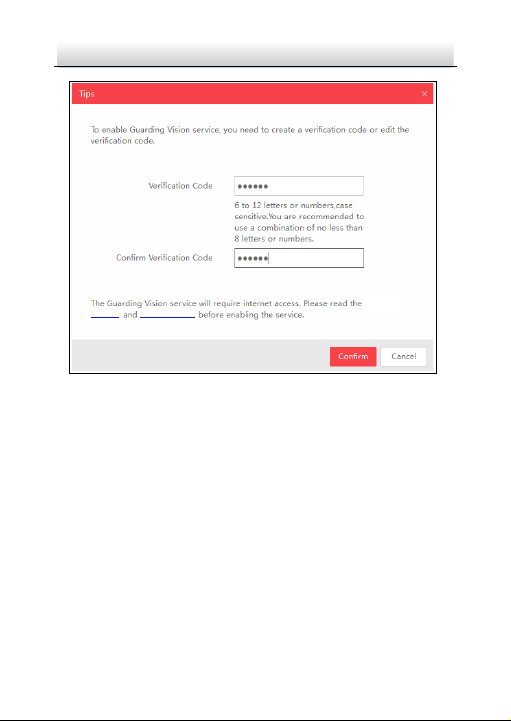

You can enable the Guarding Vision service for the device during
activation. Refer to Chapter 6.1 for detailed information.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup
window. If activation failed, please make sure that the password
meets the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC.
Use the SADP software or client software to search and change the
IP address of the device. We take modifying the IP Address via SADP
software as an example to introduce the IP address modification.
For IP address modification via client software, refer to the user
manual of client software.
Steps:
1. Run the SADP software.
2. Select an active device.
Note:
Please refer to Section 3.2 to activate the camera if the camera is
inactive.
Page 31
Installation & Quick Setup Guide
30
30
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.

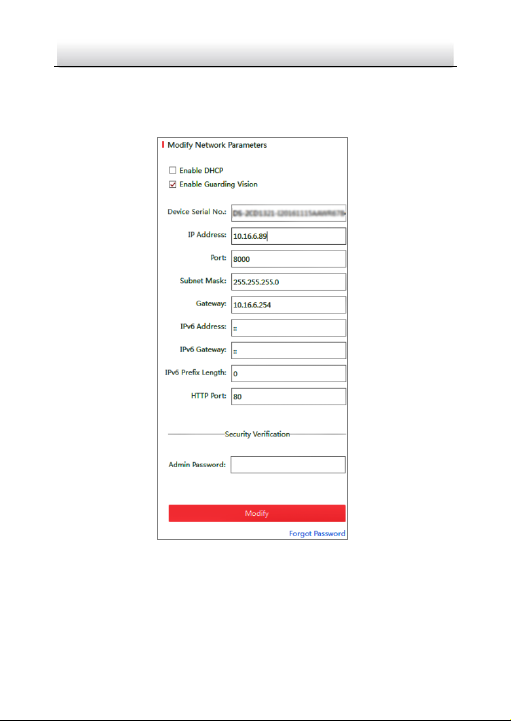

Figure 3-5 Modify the IP Address
Note:
You can enable the Guarding Vision service for the device during
activation. Refer to Chapter 6.1 for detailed information.
Page 32
Installation & Quick Setup Guide
31
31
4. Input the admin password and click Modify to activate your IP
address modification.
The batch IP address modification is supported by the SADP. Please
refer to the User Manual of SADP for details.
Page 33
Installation & Quick Setup Guide
32
32
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64. You are recommended
to change the IP address to the same subnet with your
computer.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
Page 34
Installation & Quick Setup Guide
33
33
4. Click Login.
Figure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the
plug-in.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Figure 4-2 Download Plug-in
Page 35
Installation & Quick Setup Guide
34
34

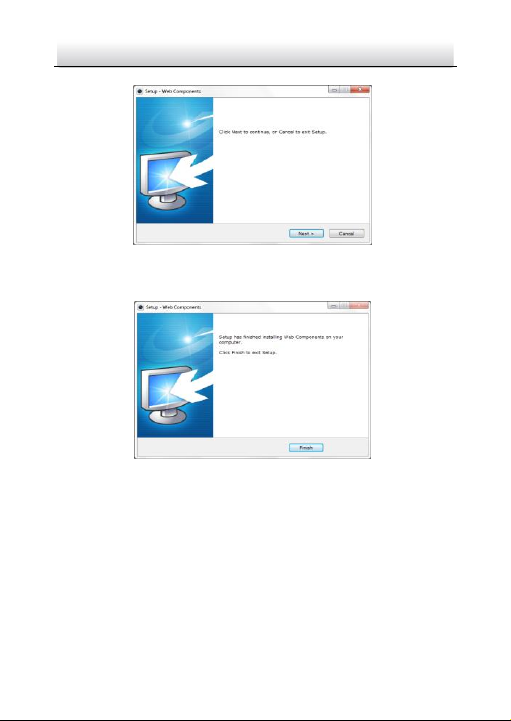

Figure 4-3 Install Plug-in (1)
Figure 4-4 Install Plug-in (2)
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual of network camera.
Page 36
Installation & Quick Setup Guide
35
35
5 Operating via Guarding Vision App
Purpose:
Guarding Vision is an application for mobile devices. With the App,
you can view live image of the camera, receive alarm notification
and so on.
Note:
Guarding Vision service is not supported by certain camera models.
5.1 Enable Guarding Vision Service on Camera
Purpose:
Guarding Vision service should be enabled on your camera before
using the service.
You can enable the service through SADP software or web browser.
5.1.1 Enable Guarding Vision via SADP Software
Steps:
1. Check the checkbox of Enable Guarding V ision on:
1). "Activate the Device" page during camera activation, refer to
Chapter 4.2.2.
2). Or "Modify Network Parameters" page during modifying IP
address, refer to Chapter 4.3.
2. Create a verification code or change the verification code.
Page 37
Installation & Quick Setup Guide
36
36
Service”
“Privacy Policy”
Figure 5-1 Verification Code Setting (SADP)
Note:
The verification code is required when you add the camera to
Guarding Vision app.
3. Click and read "Terms of Service" and "Privacy Policy".
4. Confirm the settings.
5.1.2 Enable Guarding Vision via Web Browser
Before you start:
You need to activate the camera before enabling the service. Refer to
Chapter 4.2.
Page 38
Installation & Quick Setup Guide
37
37
Guarding Vision
dev.guardingvision.com
Steps:
1. Access the camera through web browser. Refer to Chapter 5.
2. Enter platform access configuration interface: Configuration >
Network > Advanced Settings > Platform Access

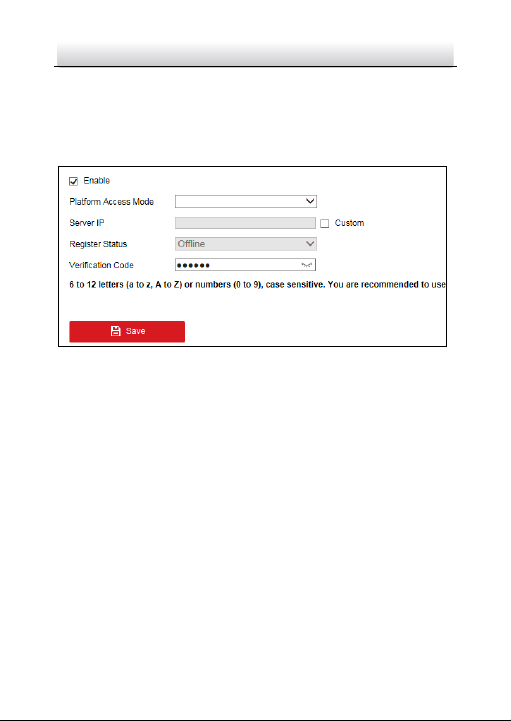

Figure 5-2 Platform Access Configuration (Web)
3. Select Platform Access Mode as Guarding Vision.
4. Check the checkbox of Enable.
5. Click and read "Terms of Service" and "Privacy Policy" in pop-up
window.
6. Create a verification code or change the verification code for the
camera.
Note:
The verification code is required when you add the camera to
Guarding Vision app.
7. Save the settings.
Page 39
Installation & Quick Setup Guide
38
38
5.2 Guarding Vision Setup
Steps:
1. Download and install the Guarding Vision app by searching
“Guarding Vision” in App Store or Google PlayTM.
2. Launch the app and register for a Guarding V ision user account.
3. Log in Guarding Vision app after registration.
5.3 Adding Camera to Guarding Vision
Before you start:
You need to enable the Guarding Vision service on camera before
adding it to your Guarding Vision account. Refer to Chapter 6.1.
Steps:
1. Use a network cable to connect the camera with a router if the
camera does not support Wi-F i.
Figure 5-3 Connect a Router
Note:
After the camera connects to the network, please wait one minute
before any operation on the camera using Guarding Vision app.
2. In the Guarding Vision app, tap “+” on the upper-right corner and
then scan the QR code of the camera to add the camera.
Page 40
Installation & Quick Setup Guide
39
39
You can find the QR code on the camera or on the cover of the
Quick Start Guide of the camera in the package. Camera may differ
from picture shown in Figure 5-4.

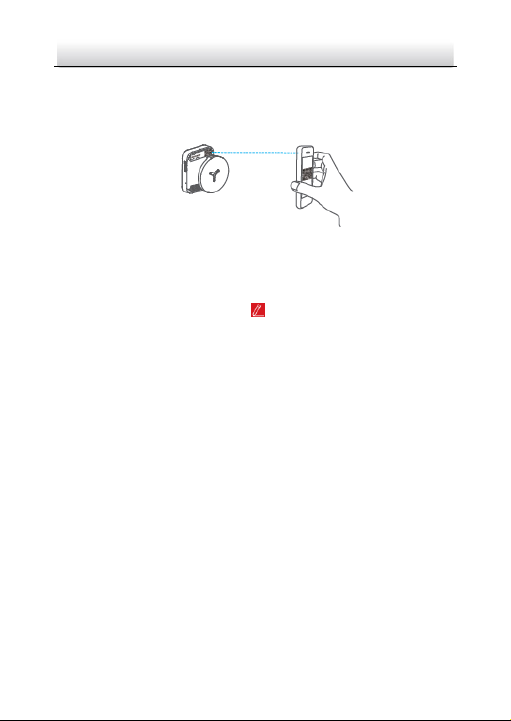

Figure 5-4 Scan QR Code
Note:
If the QR code is missing or too blur to be recognized, you can also
add the camera by tapping the icon and inputting the
camera's serial number.
3. Input the verification code of your camera.
Note:
● The required verification code is the code you create or
change when you enabling Guarding Vision service on
camera.
● If you forget the verification code, you can check the current
verification code on Platform Access configuration page via
web browser.
4. Follow the prompts to set the network connection and add the
camera to your Guarding Vision account.
Note:
For detailed information, refer to the user manual of the Guarding
Vision app.
Page 41
0
Loading...
