Network Bullet Camera·Quick Start Guide
1
1
About this Manual
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information are for
description and explanation only. The information contained in the
Manual is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version in the
company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Page 3
Network Bullet Camera·Quick Start Guide
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
Page 4
Network Bullet Camera·Quick Start Guide
3
3
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Page 5
Installation & Quick Setup Guide
4
Warnings
● In the use of the product, you must be in strict compliance with
the electrical safety regulaons of the naon and region. Please
refer to technical specificaons for detailed informaon.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specificaons for detailed informaon.
● Do not connect severa
l
devices to one power adapter as
adapter overload may cause over-heang or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precauons to prevent
potenal injury or material
damage.
Page 6
Network Bullet Camera·Quick Start Guide
5
5
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating
temperature shall be -30°C ~+60°C), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Do not expose internal components to liquid or moisture.
Page 7
Network Bullet Camera·Quick Start Guide
6
6
● While in transit, the camera shall be packed in its original
packing, or packing of the same protection.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact tech
support at 855-388-7422. Never attempt to disassemble the
camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Page 8
Network Bullet Camera·Quick Start Guide
7
7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Type I Camera ................................................................. 8
2 Installation .................................................................................... 11
2.1 microSD Card Installation .............................................. 12
2.2 Type I Camera Mounting ............................................... 14
2.2.1 Direct Mounting ................................................. 14
2.2.2 Mounting with a Junction Box ............................ 18
2.2.3 Mounting with a Gang Box ................................. 19
2.3 Zoom and Focus Adjustment ......................................... 20
2.4 Installation of Network Cable Water-proof Jacket ......... 22
3 Setting the Network Camera over the LAN .................................. 25
3.1 Wiring ........................................................................... 25
3.2 Activating the Camera ................................................... 26
3.2.1 Activation via Web Browser ................................ 26
3.2.2 Activation via SADP Software ............................. 27
3.3 Modifying the IP Address .............................................. 29
4 Accessing via Web Browser .......................................................... 31
Page 9
Network Bullet Camera·Quick Start Guide
8
1 Appearance Description
1.1 Type I Camera
Page 10
Network Bullet Camera·Quick Start Guide
9
9

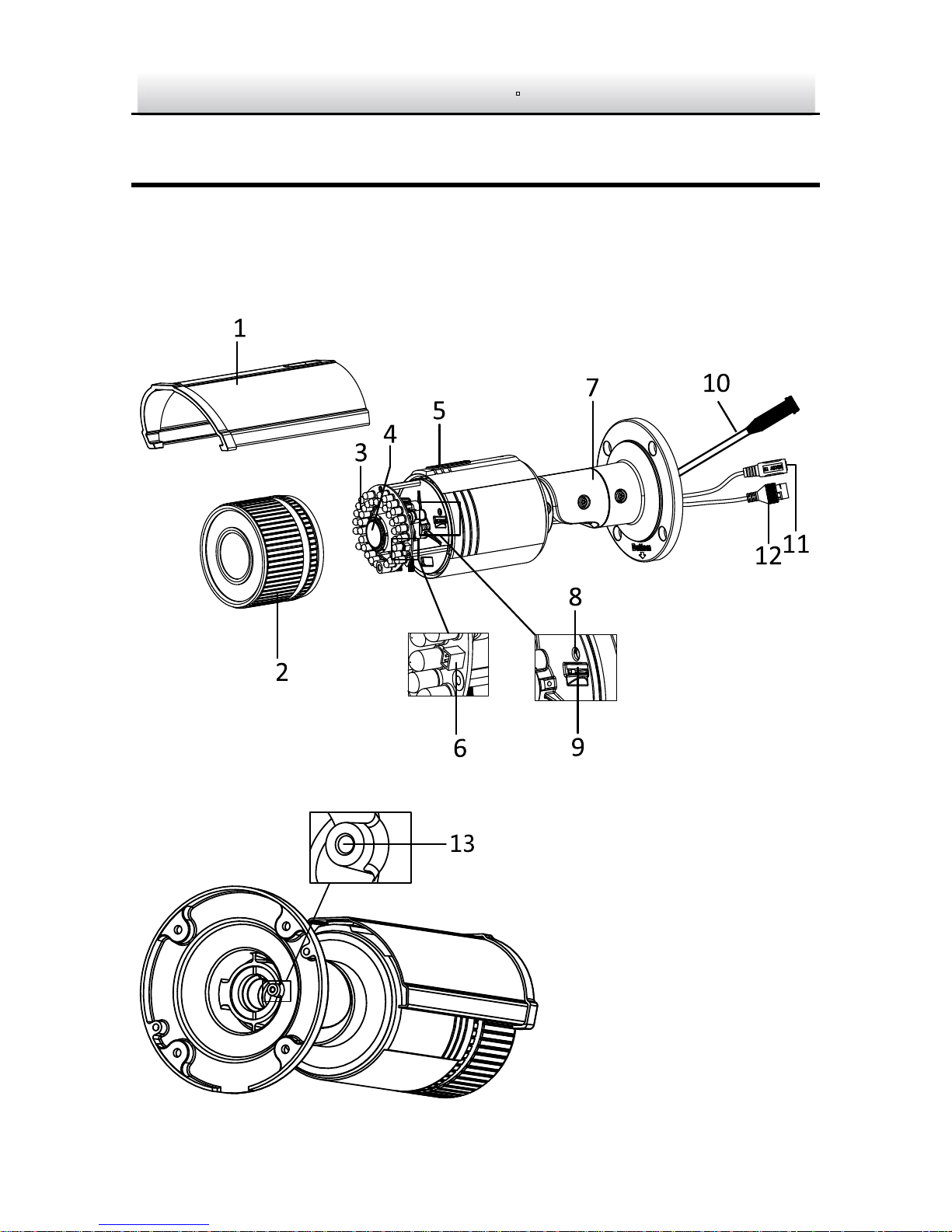

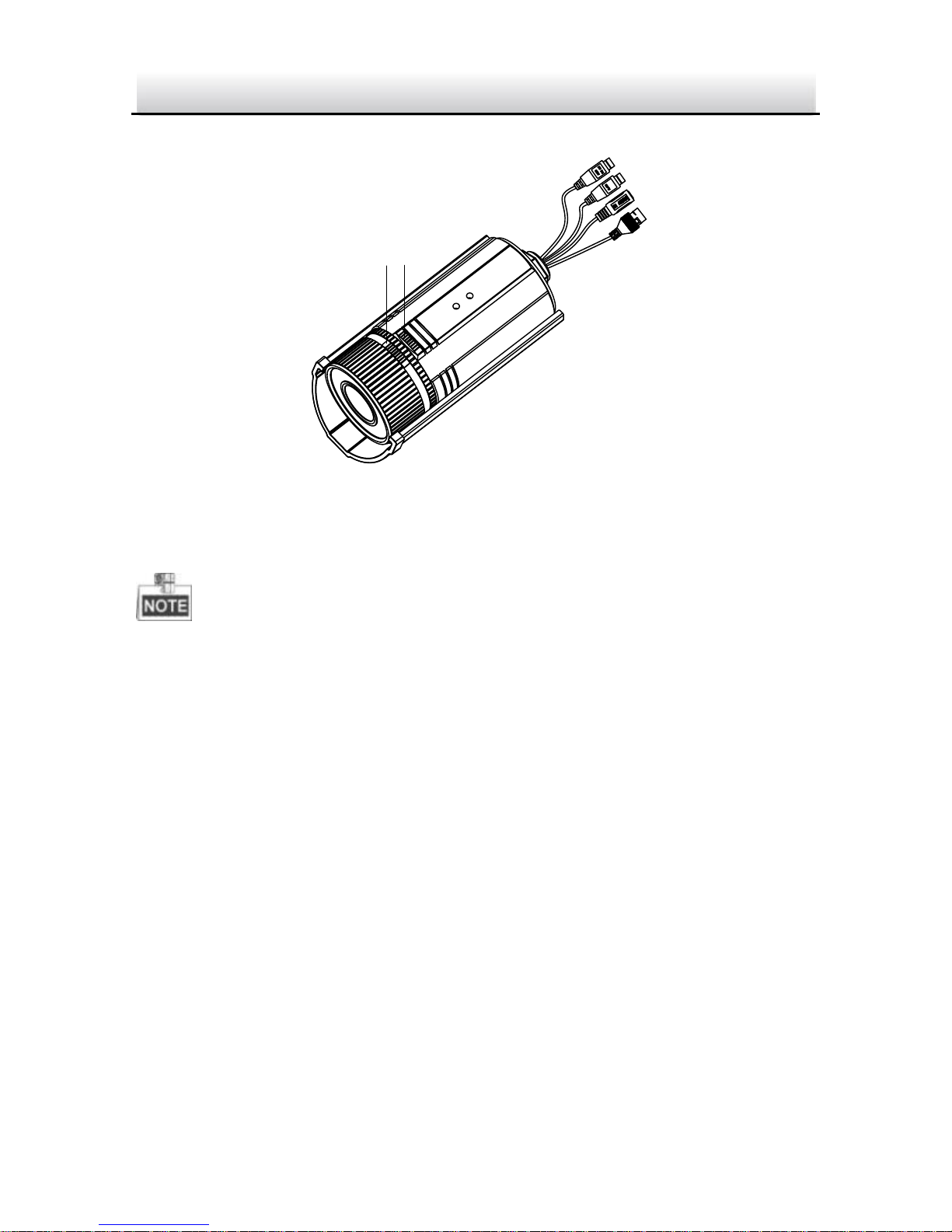

Figure 1-1 Overview of Type I Camera
Table 1-1 Description
No.
Description
1
Sun Shield
2
Front Cover
3
IR LED
4
Lens
5
Air Vent
6
Video Output Interface
7
Integrated Bracket
8
Reset Button
9
microSD Card Slot
10
Audio/Alarm Interface
11
Power Cable
12
Network Cable
13
Grounding
Page 11
Network Bullet Camera·Quick Start Guide
10
10
Press RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password, IP
address, port No., etc.
Page 12
Installation & Quick Setup Guide
11
2 Installation
Before you start:
● Make sure the device in the package is in good condion and all
the assembly parts are included.
● The standard power supply is 12V DC, please make
sure your power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installaon.
● Check the specificaon of the products for the installaon
environment.
● Make sure that the wall is strong enough to withstand fou
r
mes
the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay aenon to
the following precauons to prevent IR reflecon:
● Dust or grease on the dome cover will cause IR reflecon.
Please do not remove the dome cover film unl the installaon
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean so cloth and isopropyl alcohol.
● Make sure that
there is
no reflecve surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflecon.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are aached seamlessly.
Page 13
Network Bullet Camera·Quick Start Guide
12
12
2.1 microSD Card Installation
This series of cameras support microSD card installation. Different
cameras types share the similar installation steps, and we take type I
camera as an example.
Steps:

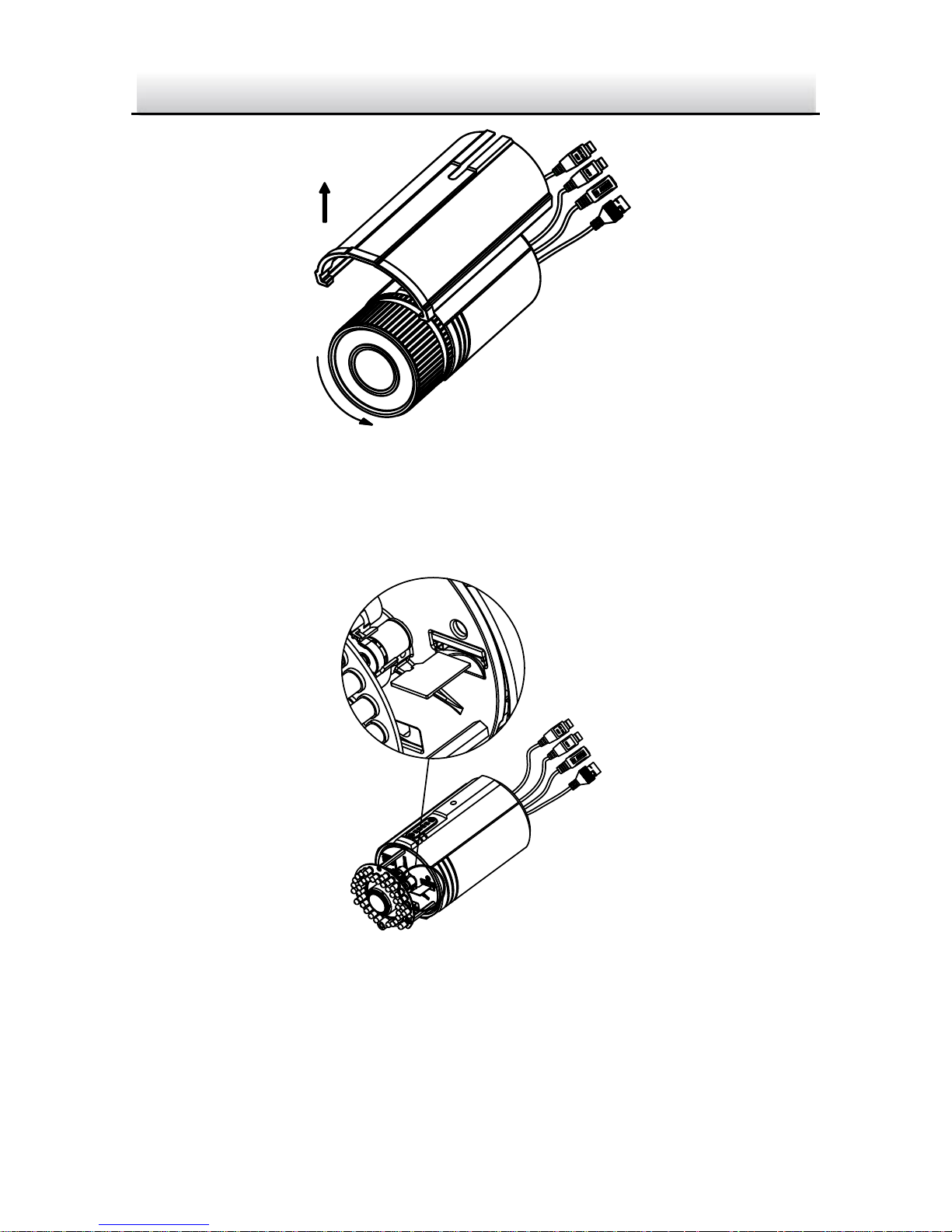

1. Rotate the lock screw counterclockwise to loosen it. Slide the sun
shield according to the arrow direction as shown in below.
Lock Screw

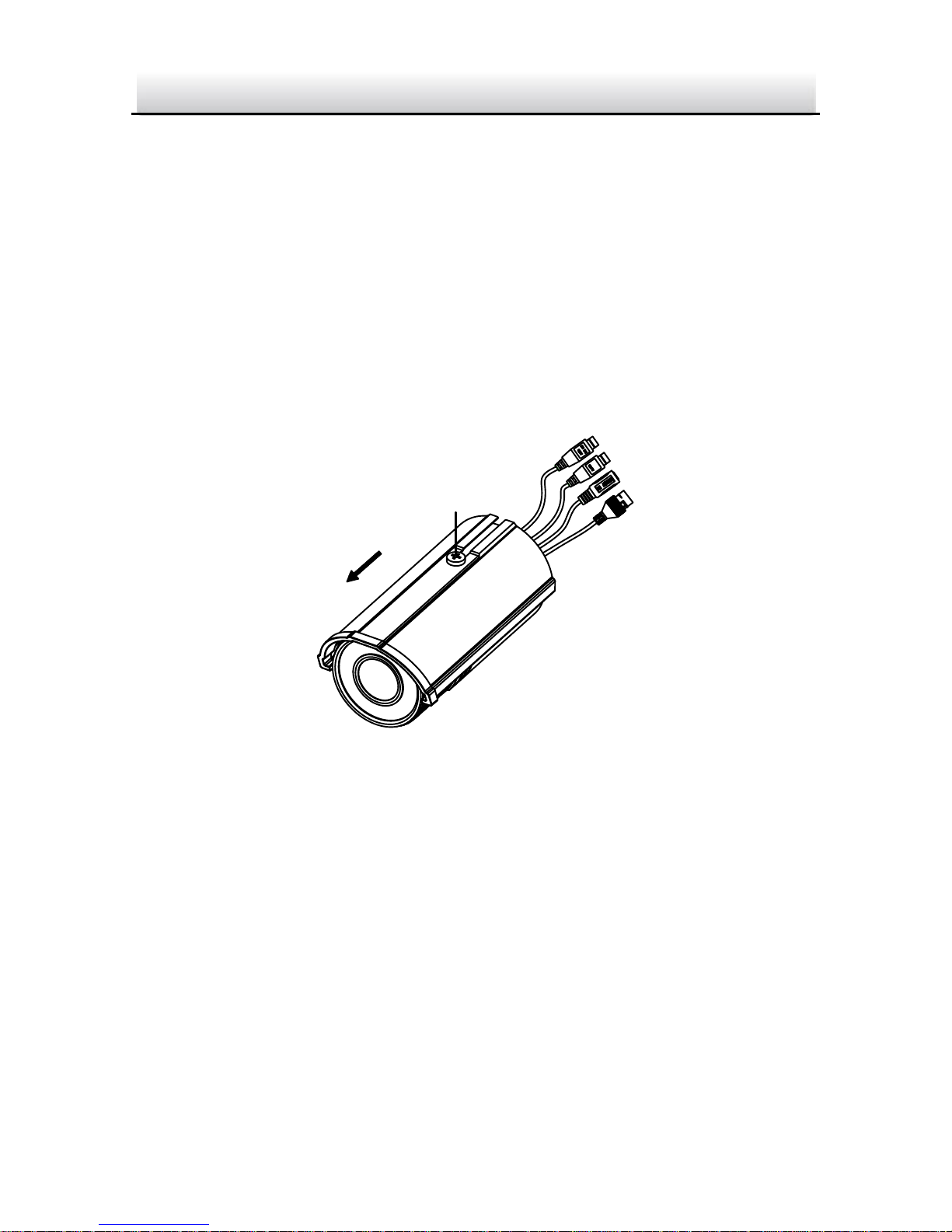

Figure 2-1 Loosen the Lock Screw
2. Remove the sun shield.
Page 14
Network Bullet Camera·Quick Start Guide
13
13
Figure 2-2 Remove the Sun Shield
3. Remove the front cover by rotating it counterclockwise.
4. Insert the microSD card into the microSD card slot.
Figure 2-3 Insert the microSD Card
5. Rotate the front cover clockwise back to the camera and install
the sun shield back.
6. Tighten the lock screw clockwise to tighten the sun shield.
Page 15
Network Bullet Camera·Quick Start Guide
14
14
Rotating
Label
Figure 2-4 Tighten the Front Cover
For water-proof performance, align the rotating label on the front
cover with that on the camera when you rotate the front cover
clockwise.
2.2 Type I Camera Mounting
This camera is equipped with a bracket. It can be mounted to a wall
or a ceiling directly and can also be mounted with a junction box or a
gang box.
2.2.1 Direct Mounting
Steps:
1. Attach the drill template (supplied) to the wall or the ceiling
where the camera is to be mounted.
Page 16
Network Bullet Camera·Quick Start Guide
15
15
2. Drill screw holes in the wall or ceiling according to the number
one holes of the drill template.
Ceiling Mounting
1
1
1
1
2
2
2
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base

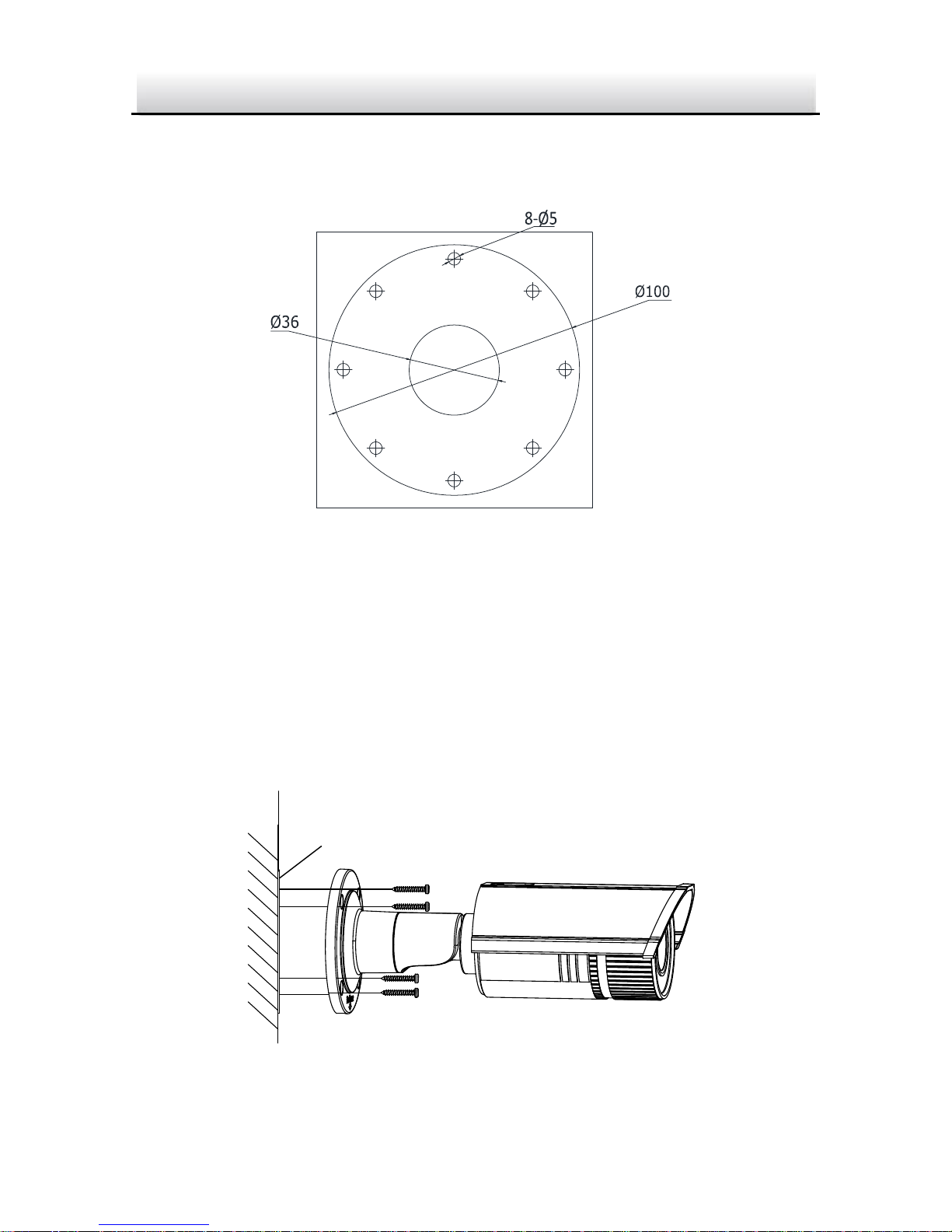

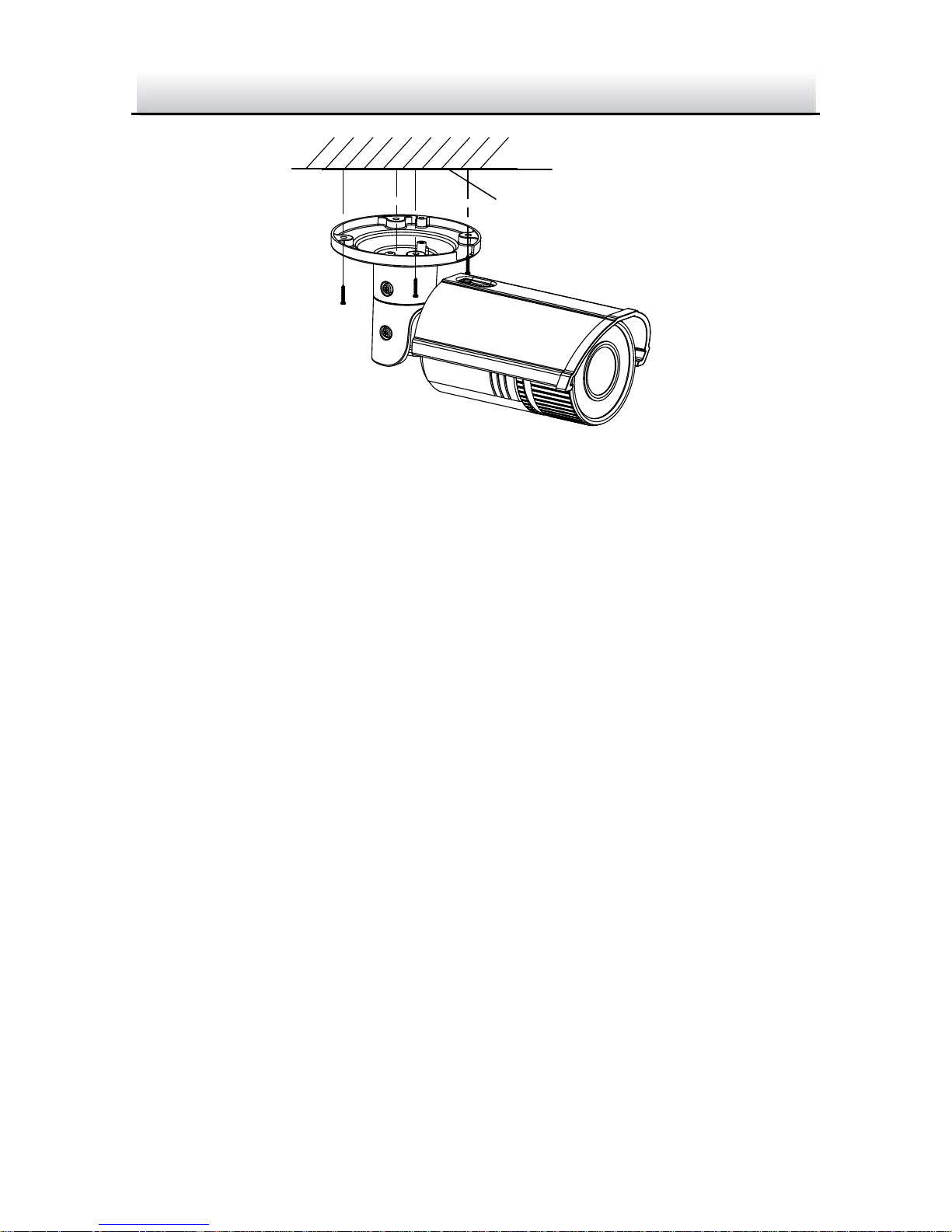

Figure 2-5 Drilling Holes in the Wall
3. If you need to route cables through the wall or ceiling, cut a cable
hole according to the drill template. Skip this step, if you want to
route the cables on the surface of the wall or the ceiling.
4. Route the cables of the camera.
5. Secure the camera to the wall or ceiling with expansion screws.
Drill Template
Page 17
Network Bullet Camera·Quick Start Guide
16
16
Drill Template
Figure 2-6 Secure the Camera
6. Adjust the view angle.
3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum
camera rotation and placement. Follow the steps below to adjust
the view angle.
Pan Adjustment
Steps:
1. Loosen the lock screw 1.
2. Adjust the panning position of the camera. The adjusting range
is from 0 degrees to 360 degrees.
3. Tighten the lock screw 1.
Tilt Adjustment
Steps:
1. Loosen the lock screw 2.
2. Adjust the tilting position of the camera. The adjusting range is
from 0 degrees to 100 degrees.
Page 18
Network Bullet Camera·Quick Start Guide
17
17
3. Tighten the lock screw 2.
Rotation Adjustment
Steps:
1. Loosen the lock screw 3.
2. Rotate the rotation position to adjust the azimuth angle of the
image. The adjusting range is from 0 degrees to 360 degrees.
3. Tighten the lock screw 3.
3
2
1
Lock Screw 1
0° to 360°
0° to 100°
0° to 360°
Lock Screw 2
Lock Screw 3
Panning
Tilting
Rotation
1
2
3

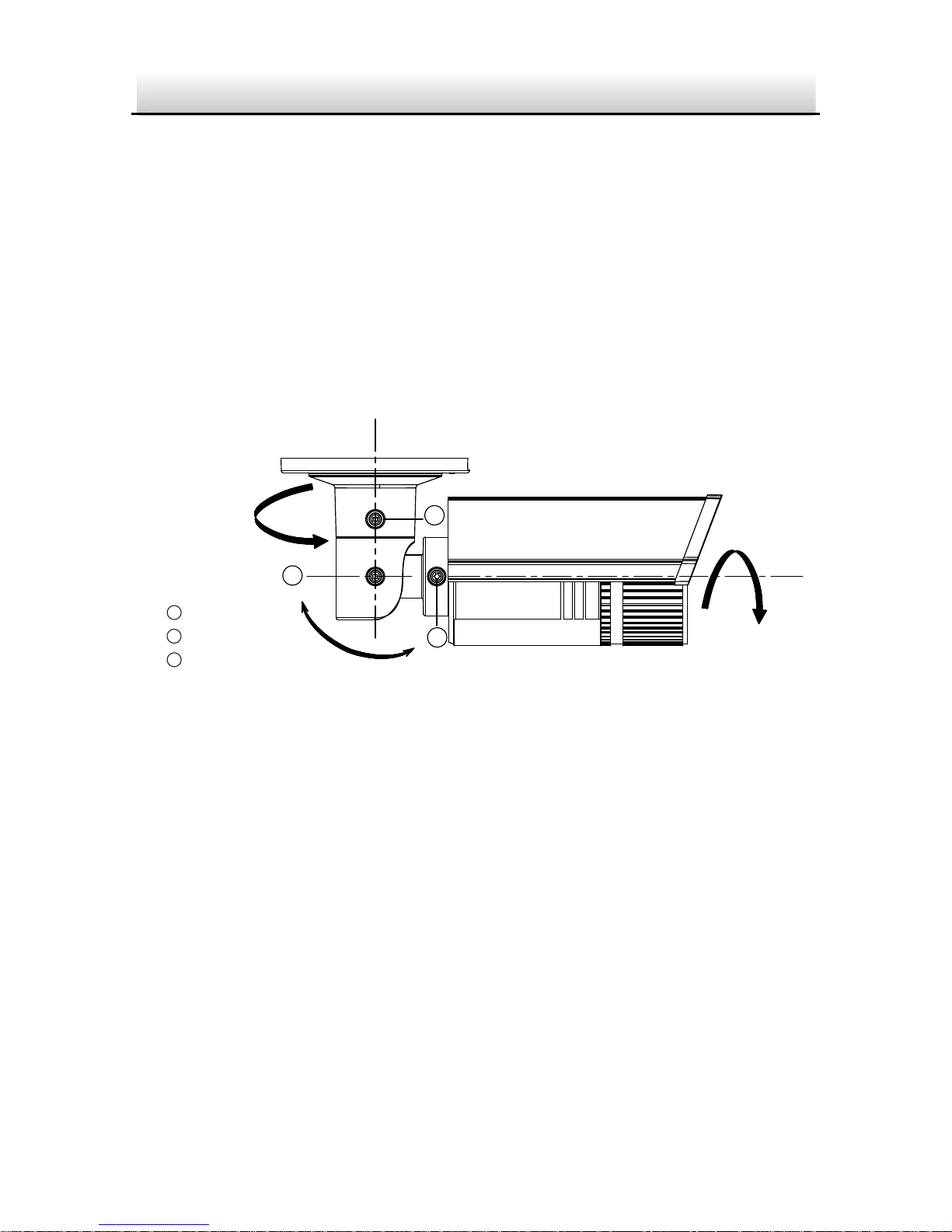

Figure 2-7 View Angle Adjustment
7. Adjust zoom and focus. Refer to Section 2.4 for more detailed
information.
8. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.5 for detailed installation procedures.
Page 19
Network Bullet Camera·Quick Start Guide
18
18
2.2.2 Mounting with a Junction Box
Before you start:
The junction box is not included in package. You need to prepare one
for this mounting type.
Steps:
1. Attach the drill template (supplied) to the wall where the camera
is to be mounted.
2. Drill holes in the wall according to the number two holes of the
drill template. See Figure 2-5.
3. If you need to route cables through the wall (or ceiling), cut a
cable hole according to the drill template. Skip this step, if you
want to route the cables on the surface of the wall (or ceiling).
4. Secure the junction box to the wall (or ceiling) with expansion
screws.
5. Hook the camera to the junction box with the safety rope.
6. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.5.
7. Route the cables of the camera.
8. Connect the interfaces and power on the camera to see if you can
get an image on your monitoring screen.
If you can’t get the image, check the connection of the interfaces
before performing the next step.
Page 20
Network Bullet Camera·Quick Start Guide
19
19
9. Secure the camera to the junction box with screws.
10. Adjust the view angle. Refer to Step 6 in Section 2.3.1.
11. Adjust zoom and focus. Refer to Section 2.4
Junction Box
Safety Rope

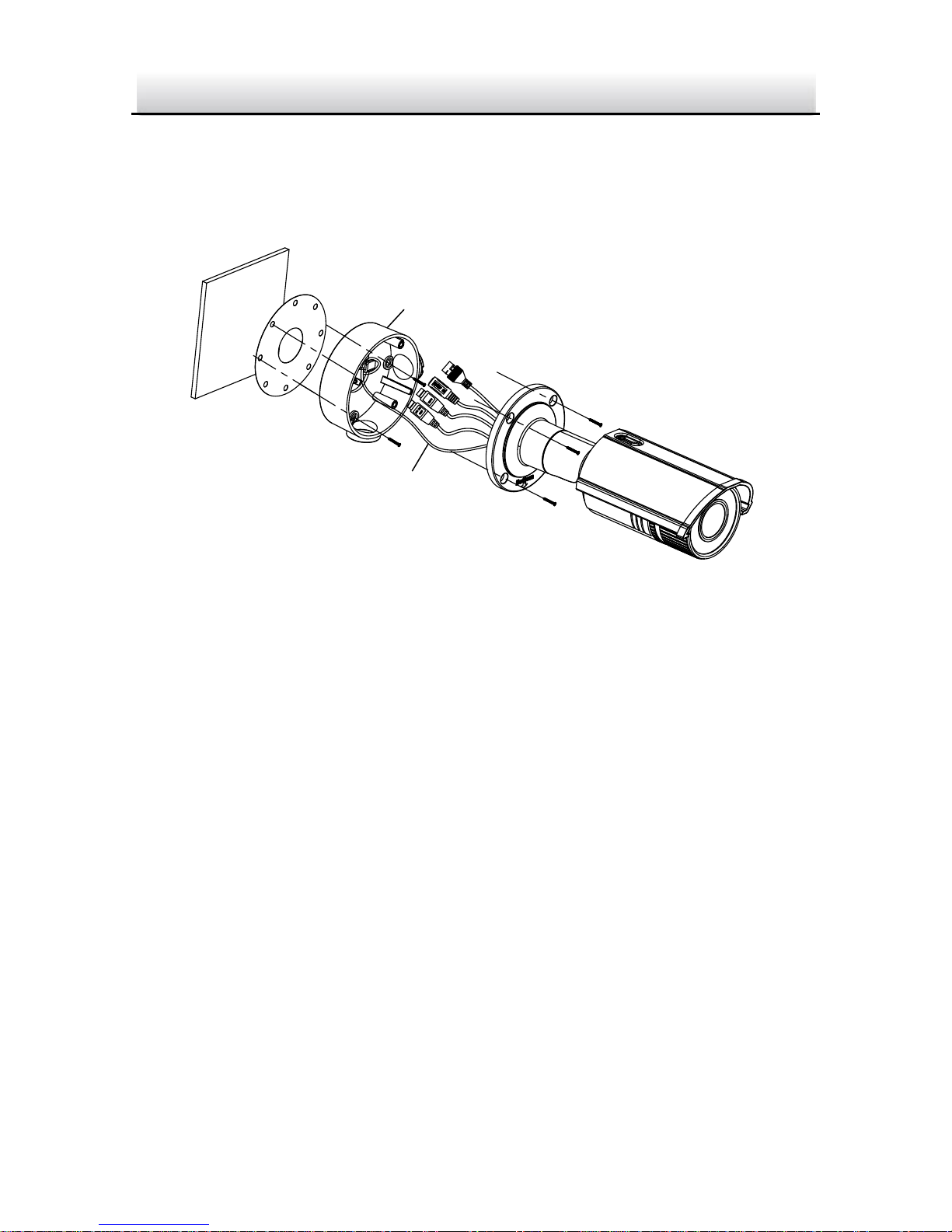

Figure 2-8 Mounting with a Junction Box
2.2.3 Mounting with a Gang Box
Before you start:
The gang box is not included in package. You need to prepare one for
this mounting type.
Steps:
Page 21
Network Bullet Camera·Quick Start Guide
20
20
Gang Box
Camera
Attachment

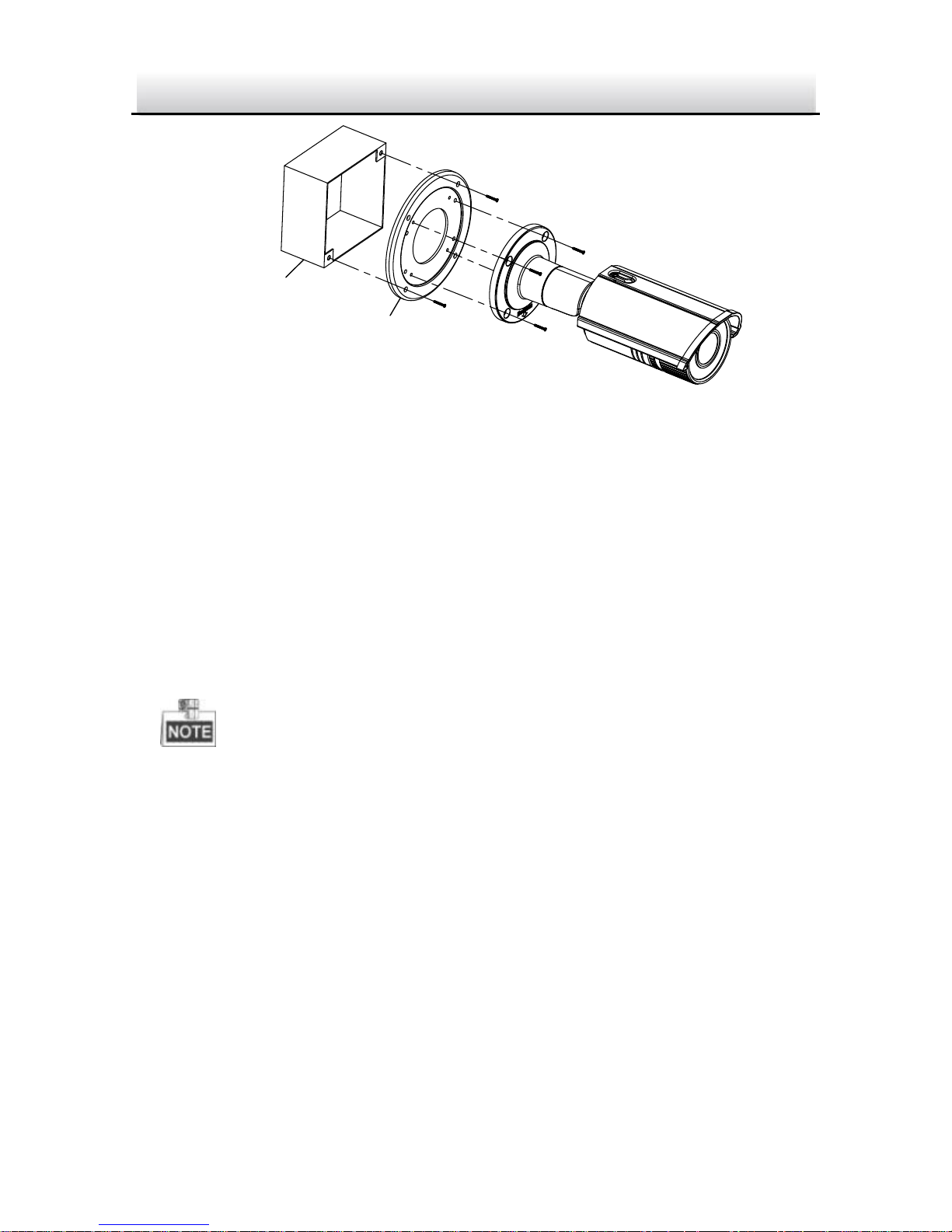

Figure 2-9 Mounting with a Gang Box
1. Secure the camera attachment to a gang box with screws.
2. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.5.
3. Route the cables of the camera.
4. Connect the interfaces and power on the camera to see if you can
get an image on you monitoring screen.
If you can’t get the image, check the connection of the interfaces
before performing the next step.
5. Secure the camera to the camera attachment with screws.
6. Adjust view angle. Refer to Step 6 in Section 2.3.1.
7. Adjust zoom and focus level. Refer to Section 2.4.
2.3 Zoom and Focus Adjustment
This camera is equipped with a motorized focus and zoom lens to
adjust and focus the lens follow the steps below.
Page 22
Network Bullet Camera·Quick Start Guide
21
21
Steps:
1. The camera can be focused by logging directly into the camera,
clicking on the Live View tab, then on the PTZ button in the upper
right hand corner of the screen. Enter the PTZ interface and use
the Zoom +,- and Focus +,- buttons to set the proper view and
focus.
2. If connected to the NVRPOE Series NVR go to live view and open
the camera up in full screen mode.
3. Move cursor to bottom center of the screen to bring up the quick
menu bar.
4. Click the PTZ Icon to enter the PTZ control interface.
5. Use the Zoom +, - buttons to set the zoom level.
6. Use the Focus +, - buttons to fine focus the camera
Other manufacturers NVR’s may have a different method for
operating the motorized zoom and focus. Consult your NVR’s manual
for motorized lens operation.
Page 23
Network Bullet Camera·Quick Start Guide
22
22
2.4 Installation of Network Cable Water-proof
Jacket
Purpose:
If the camera is installed outdoor, you can adapt the water-proof
accessory for the network cable after the camera is secured on the
installation surface.
①
②
③
④
⑤
⑥ ⑦

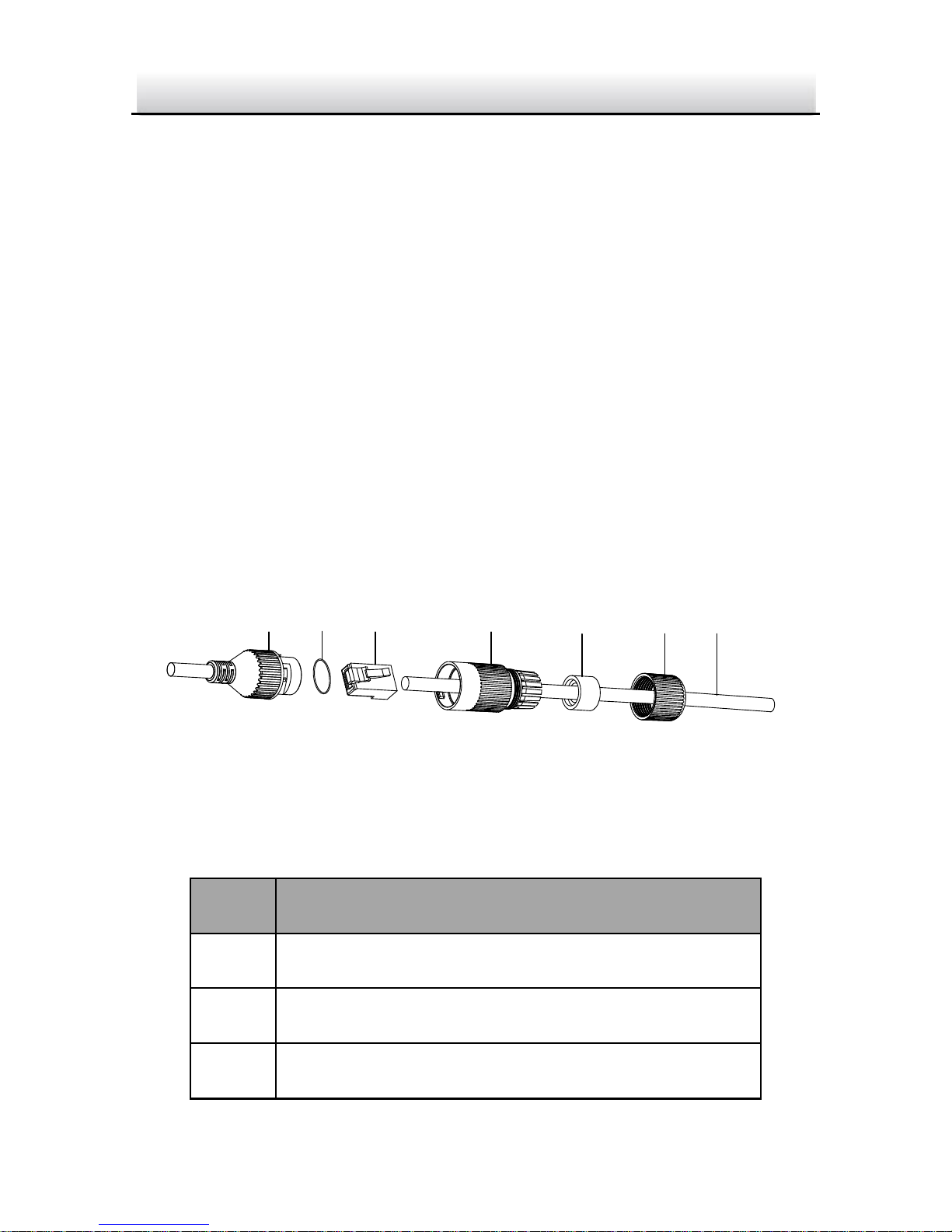

Figure 2-10 Water-proof Accessory Components
Table 2-1 Components
No.
Components
1
Camera’s Network Interface Socket
2
O-Type Gasket
3
Network Plug
Page 24
Network Bullet Camera·Quick Start Guide
23
23
No.
Components
4
Waterproof Endcap
5
Waterproof Rubber Gasket
6
Lock Nut
7
Network Cable from Router/Switch
Camera
Switch/Router
Align the snap and notch.
i. Insert ⑤ into ④.
ii. Secure ⑥ with ④.

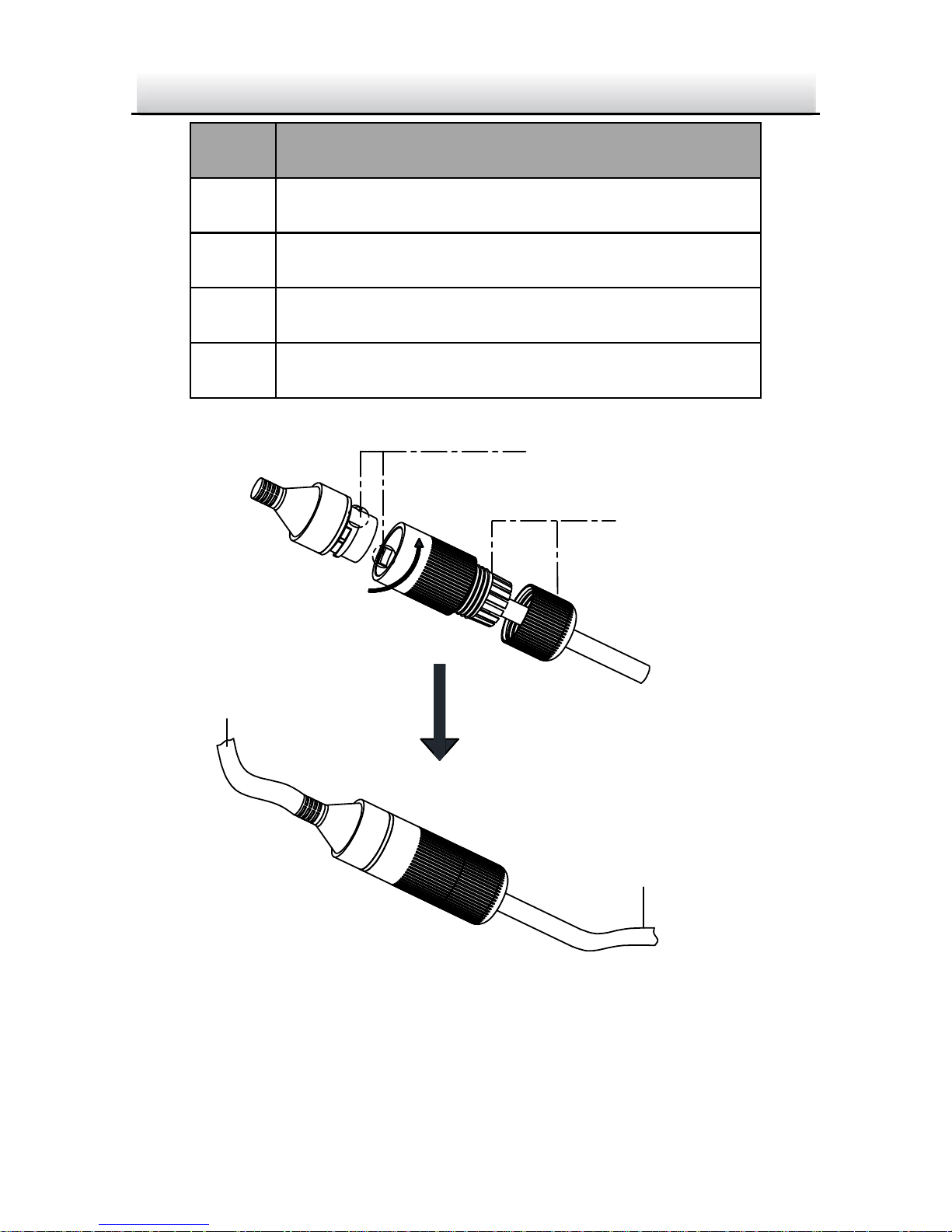

Figure 2-11 Water-proof Accessory Installation
Steps:
Page 25
Network Bullet Camera·Quick Start Guide
24
24
1. Feed the plugless network cable ⑦ through the lock nut ⑥,
waterproof rubber gasket ⑤ (rubber gasket inset ridge must
face waterproof endcap), and the water-proof endcap ④ in
order.
2. Crimp an RJ-45 network plug ③onto the end of the cable,
taking care to insert the twisted pairs of wires in correct order.
3. Place the O-type gasket ② onto the end of the camera’s
network interface socket ①.
4. Insert the network plug ③ into the camera’s network interface
socket①.
5. Insert the water-proof rubber gasket ⑤ into the waterproof
endcap ④, and secure lock nut ⑥ with the water-proof
endcap ④.
6. Align the snap on the water-proof endcap ④ with the notch on
the camera’s network interface socket ①, and then secure the
water-proof endcap ④ to the camera’s network interface
socket ① to finish installation.
Page 26
Network Bullet Camera·Quick Start Guide
25
25
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection. If the product does not work properly, please
contact with your dealer or the nearest service center.
3.1 Wiring
Please connect to the camera to the network according to the
following figures
Network Cable
or
Network Camera
Computer

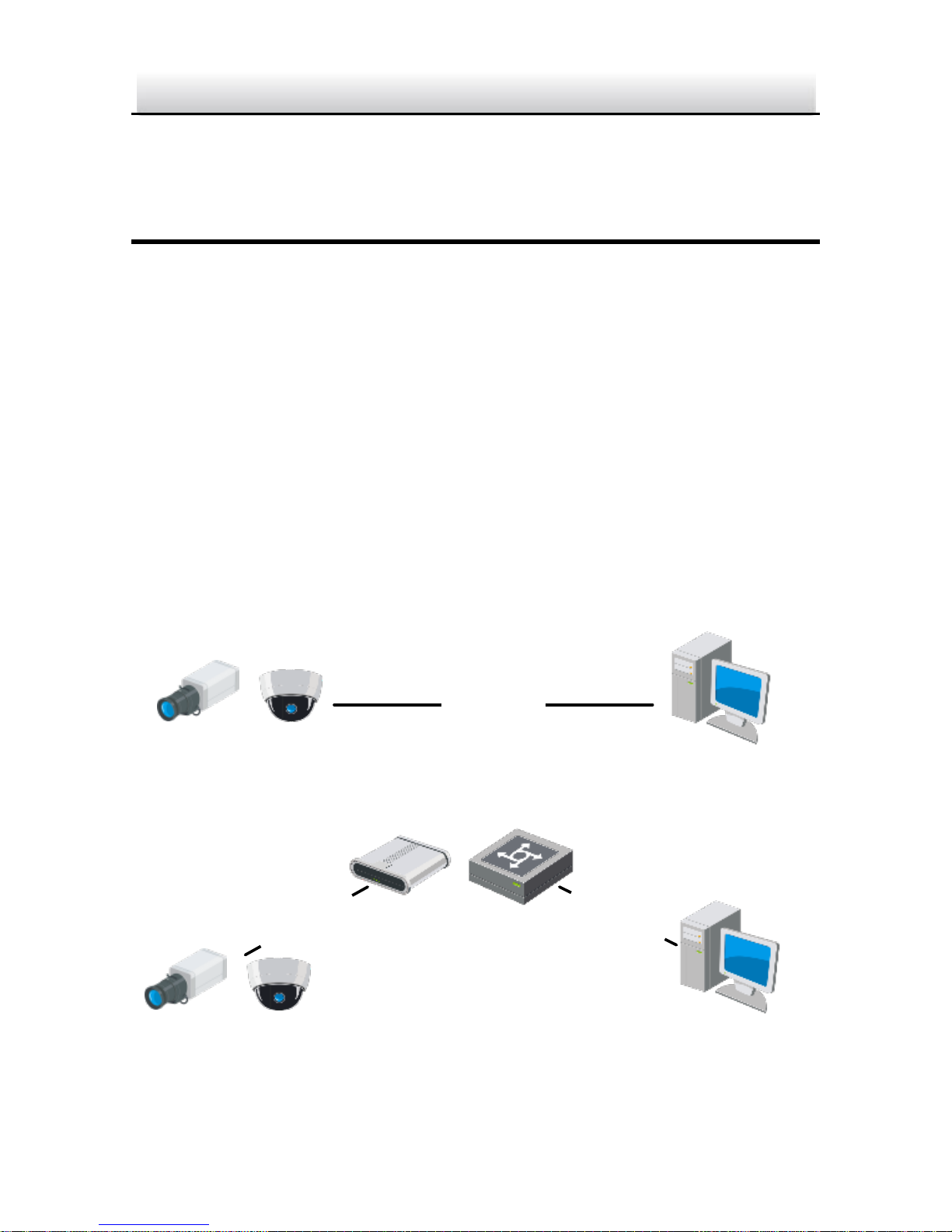

Figure 3-1 Connecting Directly
Network Cable
Network Cable
or
or
Network Camera Computer
Figure 3-2 Connecting via a Switch or a Router
Page 27
Network Bullet Camera·Quick Start Guide
26
26
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via
Client Software are all supported. We take activation via SADP
software and Activation via Web Browser as examples to introduce
the camera activation. Please refer to the User Manual of Network
Camera for Activation via Client Software.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.

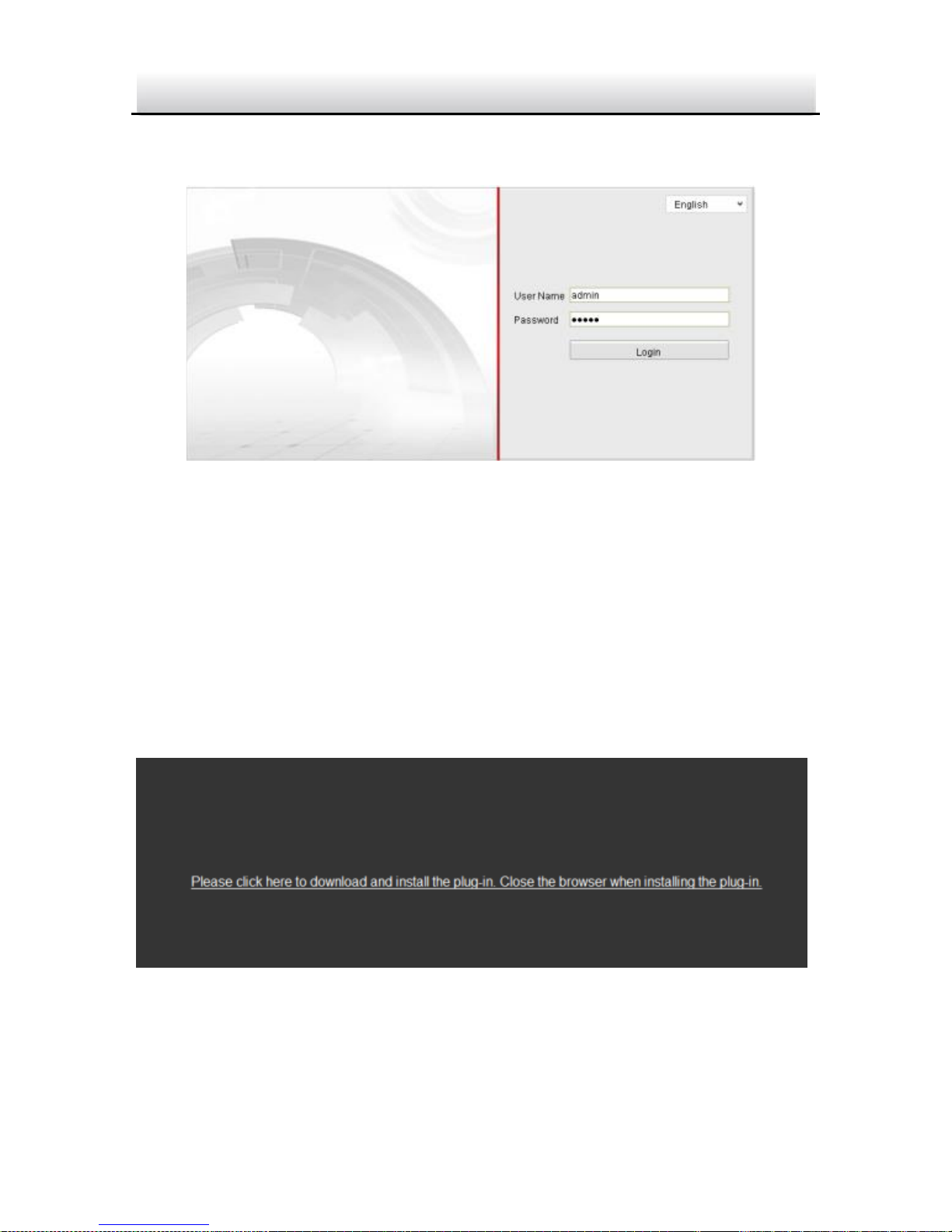

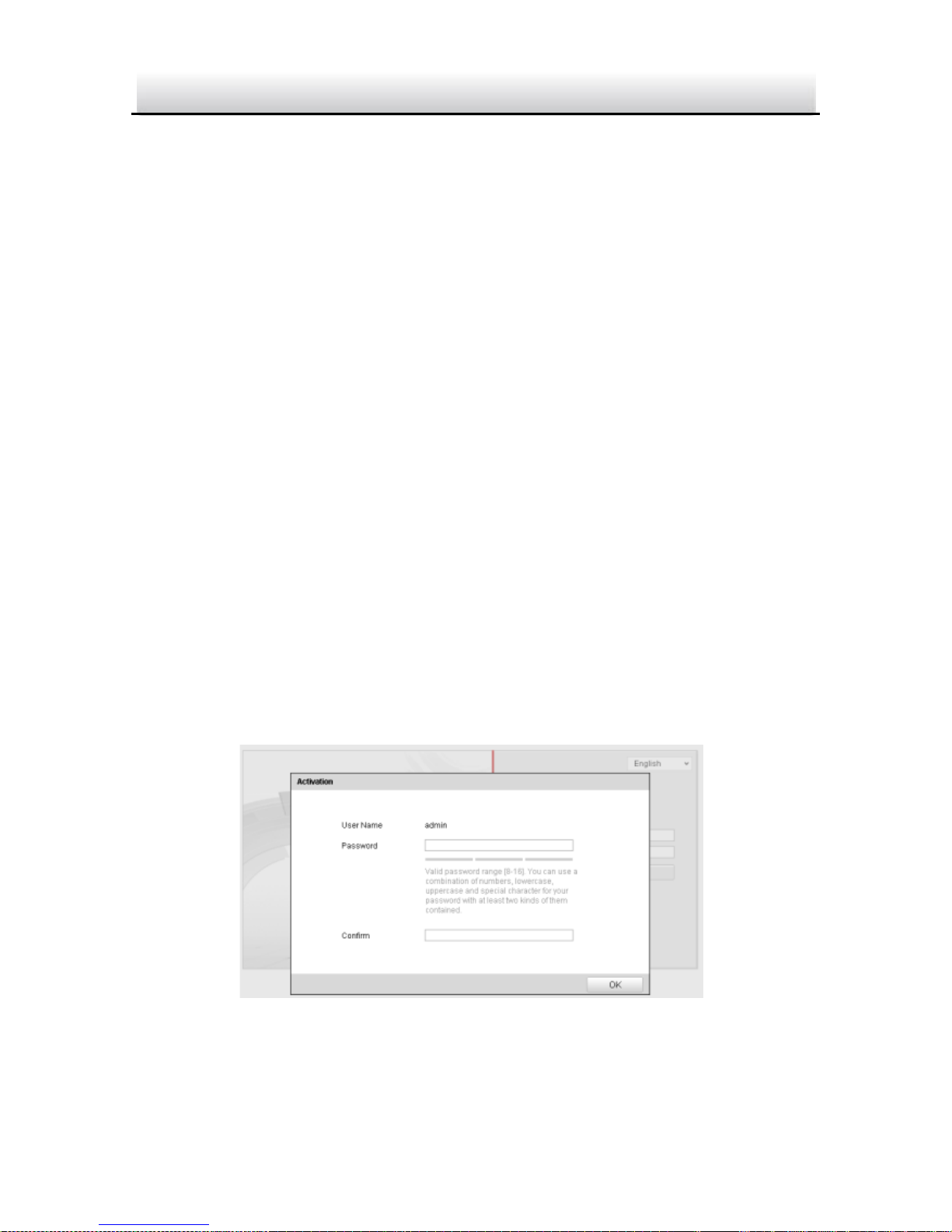

Figure 3-3 Activation Interface(Web)
Page 28
Network Bullet Camera·Quick Start Guide
27
27
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
3.2.2 Activation via SADP Software
SADP software is used for detecting the online device, activating the
camera, and resetting the password.
Get the SADP software from the supplied disk or the official website,
and install the SADP according to the prompts. Follow the steps to
activate the camera, please refer to the User Manual of Network
Camera for other two activation methods.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
Page 29
Network Bullet Camera·Quick Start Guide
28
28

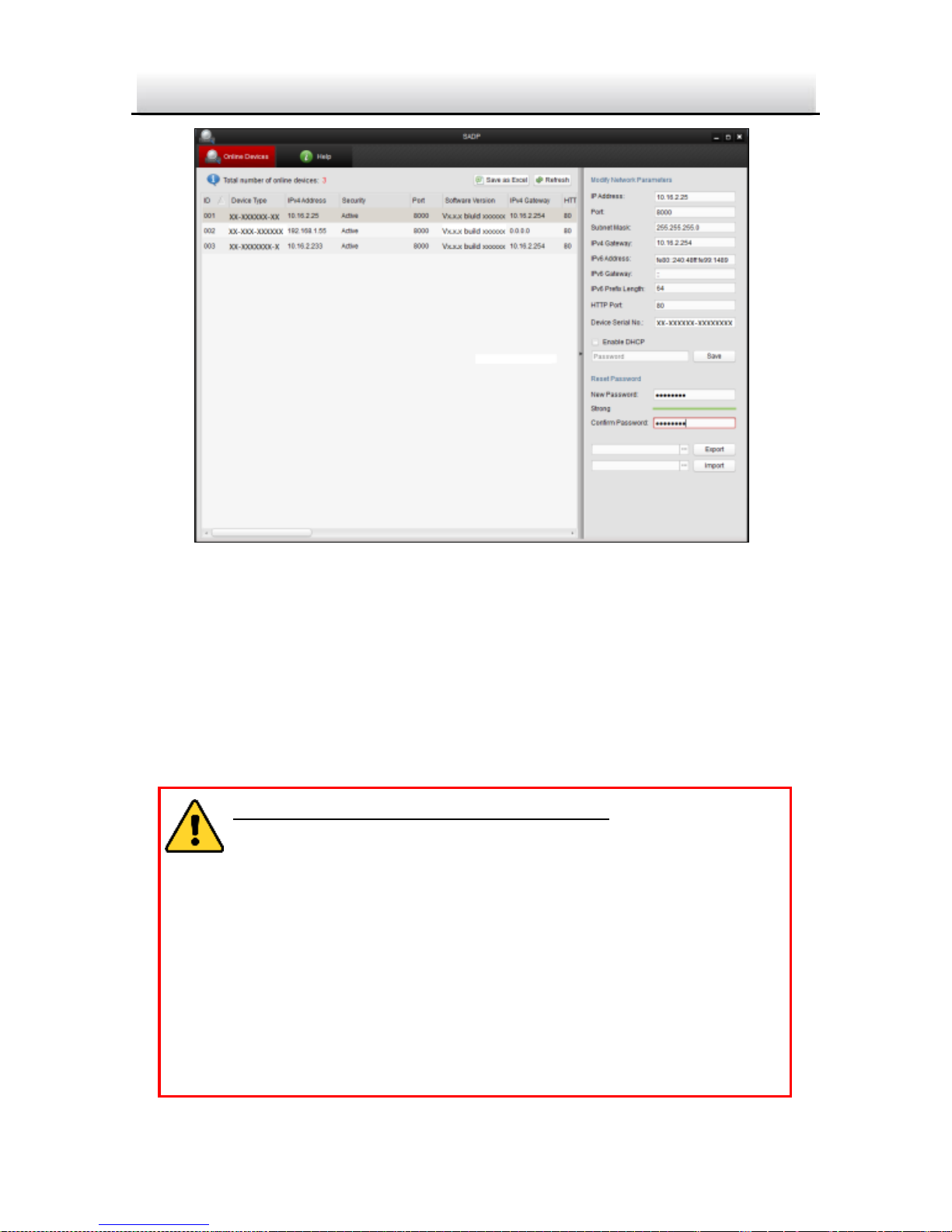

Figure 3-4 SADP Interface
Note:
The SADP software supports activating the camera in batch. Please
refer to the User Manual of SADP software for details.
3. Create a password and input the password in the password field,
and confirm the password.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
Page 30
Network Bullet Camera·Quick Start Guide
29
29
4. Click OK to save the password.
You can check whether the activation is completed on the popup
window. If activation failed, please make sure that the password
meets the requirement and try again.

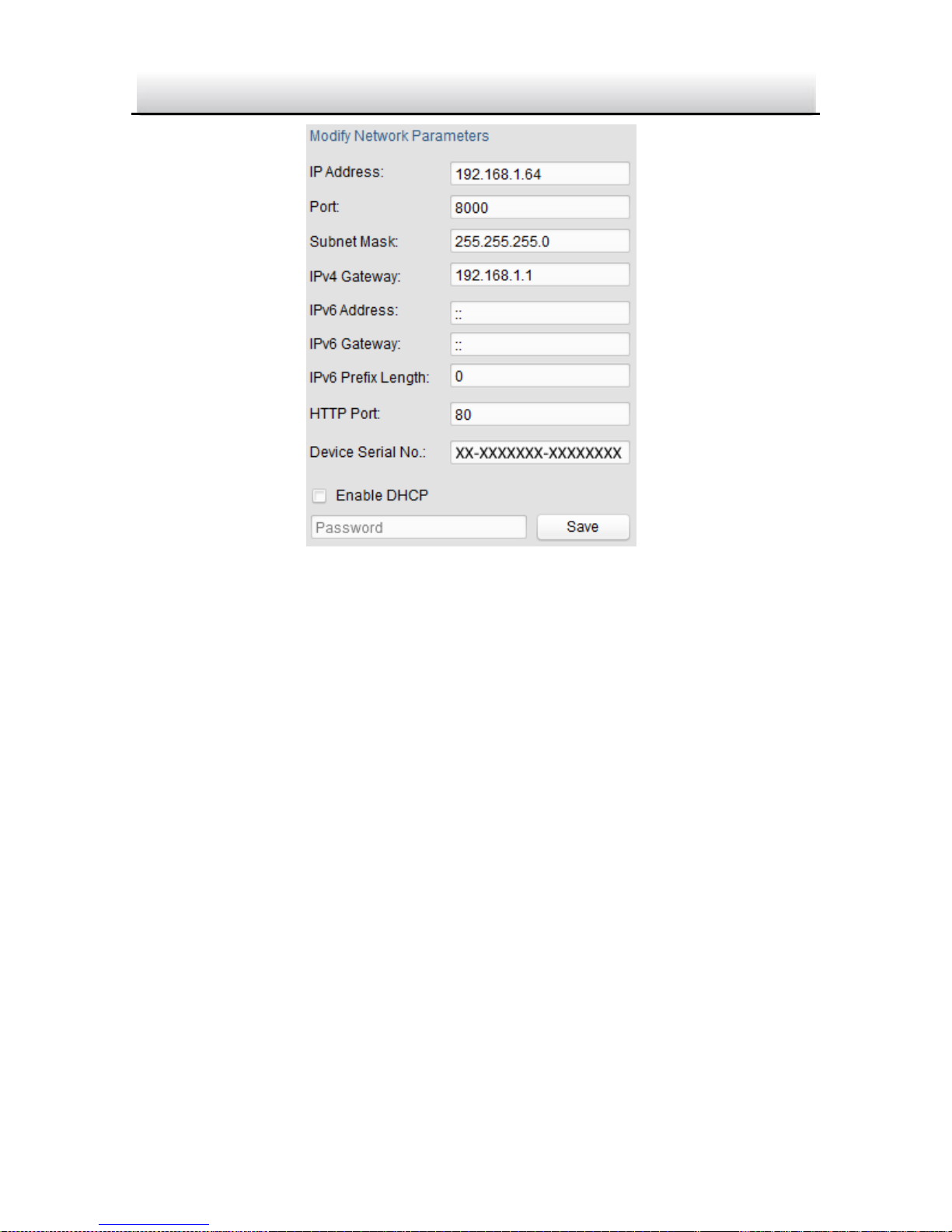

3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the SADP software or client software to search and
change the IP of network camera. We will take modifying the IP
Address via SADP software as an example to introduce the IP address
modification.
Steps:
1. Run the SADP software.
2. Select an activate device.
Note:
Please refer to Section 3.2 to activate the camera if the camera is
inactive.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Page 31
Network Bullet Camera·Quick Start Guide
30
30
Figure 3-5 Modify the IP Address
4. Input the password to activate your IP address modification.
The batch IP address modification is supported by the SADP. Please
refer to the User Manual of SADP for details.
Page 32
Network Bullet Camera·Quick Start Guide
31
31
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64.
If the camera is not activated, please activate the camera first
according to Section 3.2.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
Page 33
Network Bullet Camera·Quick Start Guide
32
32
4. Click Login.
Figure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the
plug-in.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Figure 4-2 Download Plug-in
Page 34
Network Bullet Camera·Quick Start Guide
33
33

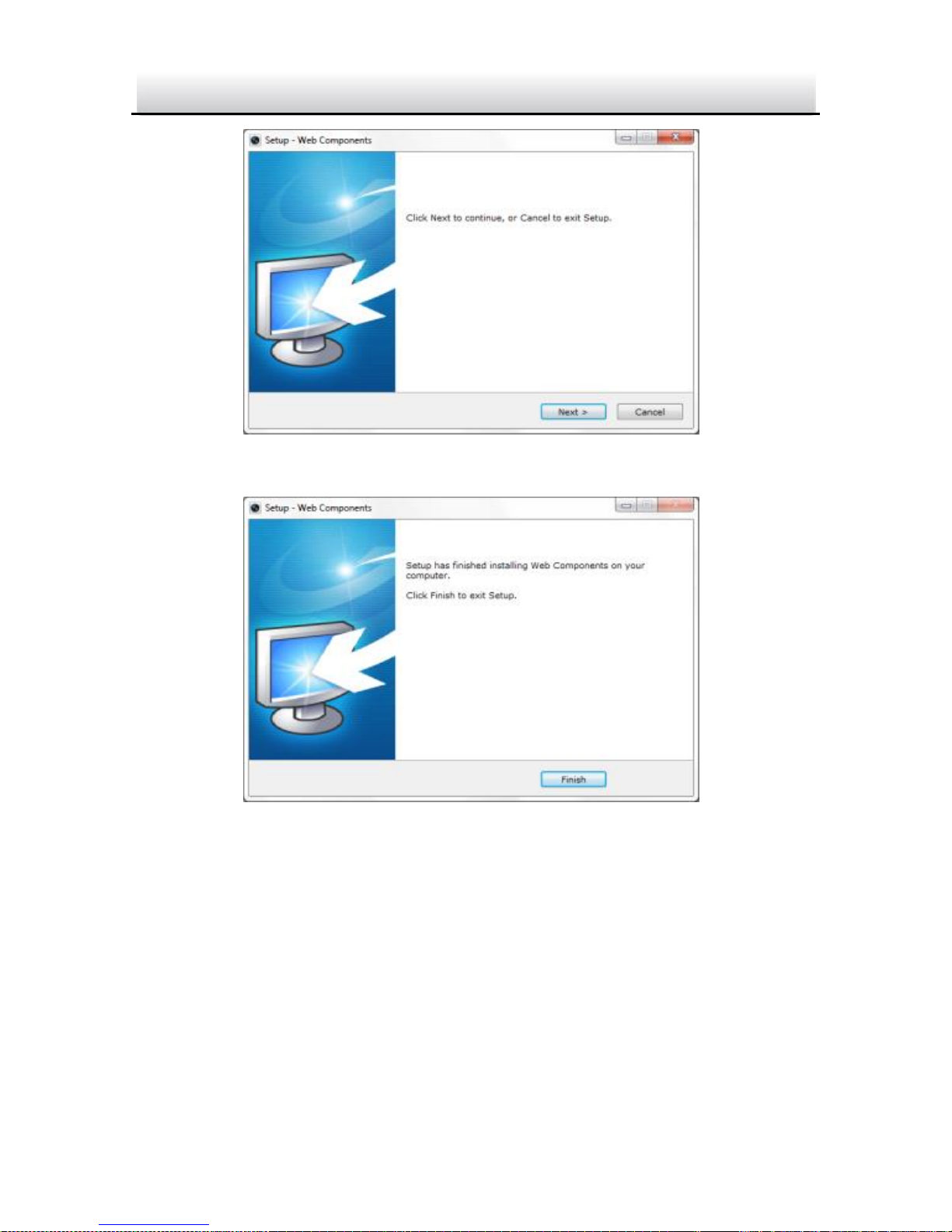

Figure 4-3 Install Plug-in (1)
Figure 4-4 Install Plug-in (2)
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual of network camera.
Page 35
0
Loading...
