Nortel Contivity 1700, Contivity 1740 Installing Manual

Part No. 314711-D Rev 00
June 2004

600 Technology Park Drive
Billerica, MA 01821-4130

Installing the Contivity 1700

*314711-D_Rev_00*

2

Copyright © 2004 Nortel Networks

All rights reserved. June 2004.

The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel Networks Inc.

Trademarks

Nortel Networks, the Nortel Networks logo, the Globemark, Unified Networks, and Contivity are trademarks of
Nortel Networks.

Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated.

Hi/fn and LZS are trademarks of Hi/fn, Inc.

HyperTerminal is a trademark of Hilgraeve, Inc.

Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation.

Netscape and Netscape Navigator are trademarks of Netscape Communications Corporation.

Ethernet is a trademark of Xerox Corporation.

The asterisk after a name denotes a trademarked item.

Statement of conditions

In the interest of improving internal design, operational function, and/or reliability, Nortel Networks Inc. reserves the
right to make changes to the products described in this document without notice.

Nortel Networks Inc. does not assume any liability that may occur due to the use or application of the product(s) or
circuit layout(s) described herein.

USA requirements only

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy. If it is not installed and used in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which
case users will be required to take whatever measures may be necessary to correct the interference at their own expense.

European requirements only

EN 55 022 statement

This is to certify that the Nortel Networks Contivity 1700 is shielded against the generation of radio interference in
accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application
of EN 55 022 Class A (CISPR 22).

Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which
case, the user may be required to take appropriate measures.

314711-D Rev 00

Achtung: Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention: Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l’utilisateur de prendre les mesures spécifiques appropriées.

EC Declaration of Conformity

This product conforms (or these products conform) to the provisions of the R&TTE Directive 1999/5/EC.

Japan/Nippon requirements only

Voluntary Control Council for Interference (VCCI) statement

3

Taiwan requirements

Bureau of Standards, Metrology and Inspection (BSMI) statement

Canada requirements only

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (Contivity 1700) does not exceed the Class A limits for radio-noise emissions from digital
apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (Contivity 1700) respecte les limites de bruits radioélectriques visant les appareils numériques
de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada.

Installing the Contivity 1700

4

Nortel Networks Inc. software license agreement

This Software License Agreement (“License Agreement”) is between you, the end-user (“Customer”) and Nortel
Networks Corporation and its subsidiaries and affiliates (“Nortel Networks”). PLEASE READ THE FOLLOWING
CAREFULLY. YOU MUST ACCEPT THESE LICENSE TERMS IN ORDER TO DOWNLOAD AND/OR USE THE
SOFTWARE. USE OF THE SOFTWARE CONSTITUTES YOUR ACCEPTANCE OF THIS LICENSE
AGREEMENT. If you do not accept these terms and conditions, return the Software, unused and in the original shipping
container, within 30 days of purchase to obtain a credit for the full purchase price.

“Software” is owned or licensed by Nortel Networks, its parent or one of its subsidiaries or affiliates, and is copyrighted
and licensed, not sold. Software consists of machine-readable instructions, its components, data, audio-visual content
(such as images, text, recordings or pictures) and related licensed materials including all whole or partial copies. Nortel
Networks grants you a license to use the Software only in the country where you acquired the Software. You obtain no
rights other than those granted to you under this License Agreement. You are responsible for the selection of the
Software and for the installation of, use of, and results obtained from the Software.

1. Licensed Use of Software. Nortel Networks grants Customer a nonexclusive license to use a copy of the Software
on only one machine at any one time or to the extent of the activation or authorized usage level, whichever is applicable.
To the extent Software is furnished for use with designated hardware or Customer furnished equipment (“CFE”),
Customer is granted a nonexclusive license to use Software only on such hardware or CFE, as applicable. Software
contains trade secrets and Customer agrees to treat Software as confidential information using the same care and
discretion Customer uses with its own similar information that it does not wish to disclose, publish or disseminate.
Customer will ensure that anyone who uses the Software does so only in compliance with the terms of this Agreement.
Customer shall not a) use, copy, modify, transfer or distribute the Software except as expressly authorized; b) reverse
assemble, reverse compile, reverse engineer or otherwise translate the Software; c) create derivative works or
modifications unless expressly authorized; or d) sublicense, rent or lease the Software. Licensors of intellectual property
to Nortel Networks are beneficiaries of this provision. Upon termination or breach of the license by Customer or in the
event designated hardware or CFE is no longer in use, Customer will promptly return the Software to Nortel Networks or
certify its destruction. Nortel Networks may audit by remote polling or other reasonable means to determine Customer’s
Software activation or usage levels. If suppliers of third party software included in Software require Nortel Networks to
include additional or different terms, Customer agrees to abide by such terms provided by Nortel Networks with respect
to such third party software.

2. Warranty. Except as may be otherwise expressly agreed to in writing between Nortel Networks and Customer,
Software is provided “AS IS” without any warranties (conditions) of any kind. NORTEL NETWORKS DISCLAIMS
ALL WARRANTIES (CONDITIONS) FOR THE SOFTWARE, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE AND ANY WARRANTY OF NON-INFRINGEMENT. Nortel Networks is not obligated to
provide support of any kind for the Software. Some jurisdictions do not allow exclusion of implied warranties, and, in
such event, the above exclusions may not apply.

3. Limitation of Remedies. IN NO EVENT SHALL NORTEL NETWORKS OR ITS AGENTS OR SUPPLIERS BE
LIABLE FOR ANY OF THE FOLLOWING: a) DAMAGES BASED ON ANY THIRD PARTY CLAIM; b) LOSS OF,
OR DAMAGE TO, CUSTOMER’S RECORDS, FILES OR DATA; OR c) DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS),
WHETHER IN CONTRACT, TORT OR OTHERWISE (INCLUDING NEGLIGENCE) ARISING OUT OF YOUR
USE OF THE SOFTWARE, EVEN IF NORTEL NETWORKS, ITS AGENTS OR SUPPLIERS HAVE BEEN
ADVISED OF THEIR POSSIBILITY. The forgoing limitations of remedies also apply to any developer and/or supplier
of the Software. Such developer and/or supplier is an intended beneficiary of this Section. Some jurisdictions do not
allow these limitations or exclusions and, in such event, they may not apply.

314711-D Rev 00

4. General

a. If Customer is the United States Government, the following paragraph shall apply: All Nortel Networks

Software available under this License Agreement is commercial computer software and commercial computer
software documentation and, in the event Software is licensed for or on behalf of the United States
Government, the respective rights to the software and software documentation are governed by Nortel
Networks standard commercial license in accordance with U.S. Federal Regulations at 48 C.F.R. Sections

12.212 (for non-DoD entities) and 48 C.F.R. 227.7202 (for DoD entities).

b. Customer may terminate the license at any time. Nortel Networks may terminate the license if Customer fails

to comply with the terms and conditions of this license. In either event, upon termination, Customer must
either return the Software to Nortel Networks or certify its destruction.

c. Customer is responsible for payment of any taxes, including personal property taxes, resulting from

Customer’s use of the Software. Customer agrees to comply with all applicable laws including all applicable
export and import laws and regulations.

d. Neither party may bring an action, regardless of form, more than two years after the cause of the action arose.

e. The terms and conditions of this License Agreement form the complete and exclusive agreement between

Customer and Nortel Networks.

f. This License Agreement is governed by the laws of the country in which Customer acquires the Software. If

the Software is acquired in the United States, then this License Agreement is governed by the laws of the state
of New York.

5

Installing the Contivity 1700

6

314711-D Rev 00

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Text conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 1

Installing the Contivity 1700 chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Description of the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Preparing to install the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Shipment contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Additional equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Site requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installing the chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installing the chassis on a flat surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installing the chassis in an equipment rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Hardware for mounting the chassis in an equipment rack . . . . . . . . . . . . . . . 22

Rack-mount recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Attaching the shelf in the equipment rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Mounting the chassis in the equipment rack . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 2

Cabling the gateway and turning the power on . . . . . . . . . . . . . . . . . . . . . 29

Connecting communications cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Verifying a successful installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Installing the Contivity 1700

8 Contents

Understanding the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Chapter 3

Configuring the management IP interface. . . . . . . . . . . . . . . . . . . . . . . . . . 43

Required information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Configuring the management IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Testing the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Front panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

LEDs on the system 10/100BASE Ethernet port . . . . . . . . . . . . . . . . . . . . . . . . . . 35

10/100BASE Ethernet interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

56/64K CSU/DSU WAN interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

ADSL WAN interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

T1/E1 CSU/DSU WAN interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Quad T1/E1 CSU/DSU WAN interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . 40

Single V.35/X.21 WAN interface card LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Chapter 4

Installing option cards and DIMMs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Shutting down the system to add or replace hardware . . . . . . . . . . . . . . . . . . . . . . . . 54

Removing the front bezel and top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Attaching the antistatic wrist strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Installing and replacing option cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Installing and replacing DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Appendix A

Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Chassis specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

System ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

10/100BASE Ethernet LAN port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Serial port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Modem cable specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Hardware option cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Hardware Accelerator card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

10/100BASE Ethernet interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

314711-D Rev 00

Contents 9

56/64K CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

ADSL WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

ISDN BRI interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Quad T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

V.90 modem interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Single V.35/X.21 WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Dual V.35 WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

HSSI WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Installing the Contivity 1700

10 Contents

314711-D Rev 00

Figures

Figure 1 Front view of the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 2 Placement of rubber feet on the bottom of the chassis . . . . . . . . . . . . . . 23

Figure 3 Attaching the cage nuts to the rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 4 Installing the shelf in the equipment rack . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 5 Removing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 6 Replacing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 7 Rear view of the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

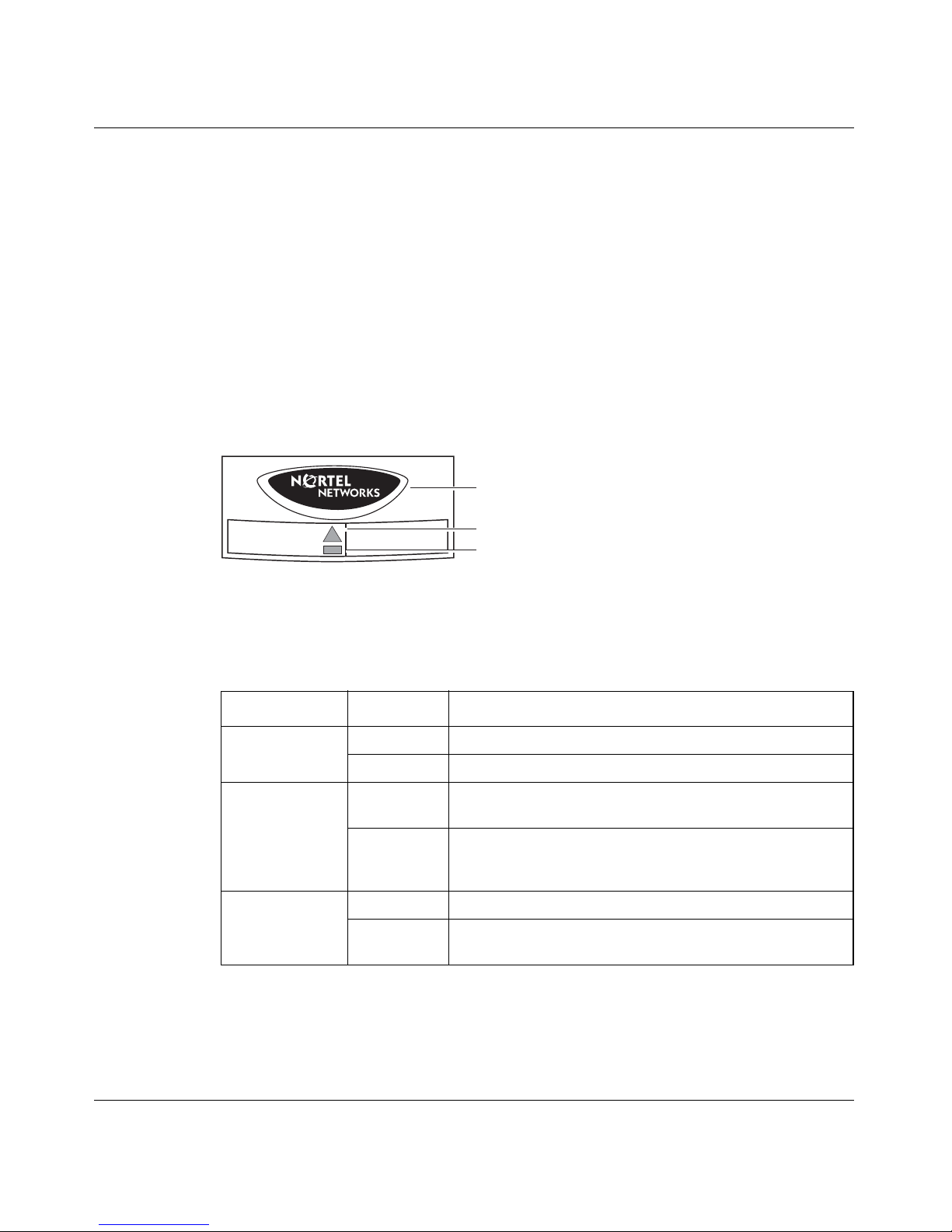

Figure 8 Front panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Figure 9 LEDs on the system 10/100BASE Ethernet port . . . . . . . . . . . . . . . . . . . 35

Figure 10 LEDs on the 10/100BASE Ethernet interface card . . . . . . . . . . . . . . . . . . 36

Figure 11 LEDs on the 56/64K CSU/DSU WAN interface card . . . . . . . . . . . . . . . . 37

Figure 12 LEDs on the ADSL WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Figure 13 LEDs on the T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . 39

Figure 14 LEDs on the quad T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . 40

Figure 15 LEDs on the single V.35/X.21 WAN interface card . . . . . . . . . . . . . . . . . . 41

Figure 16 Welcome screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Figure 17 Removing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 18 Removing the top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

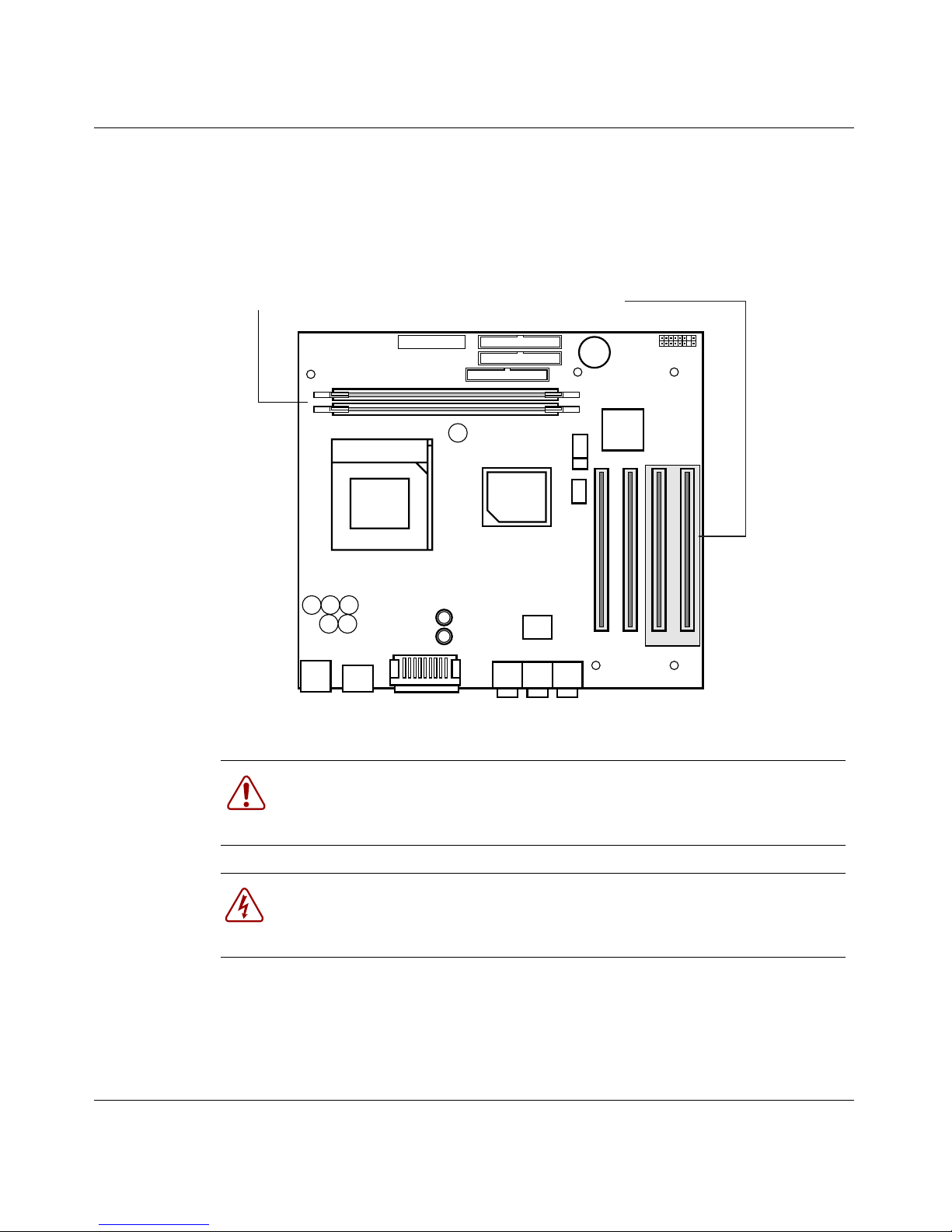

Figure 19 Location of option card slots and DIMMs on the system board . . . . . . . . 57

Figure 20 Location of the grounding jack for the antistatic wrist strap . . . . . . . . . . . 58

Figure 21 Removing an option card or a filler panel . . . . . . . . . . . . . . . . . . . . . . . . . 61

Figure 22 Installing an option card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Figure 23 Replacing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 24 Installing and removing a DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Figure 25 10/100BASE Ethernet connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Figure 26 Modem cable (9-pin D-sub plug to RS-232-C modem plug) . . . . . . . . . . . 70

Figure 27 10/100BASE Ethernet interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 28 56/64K CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 29 ADSL WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

11

Installing the Contivity 1700

12 Figures

Figure 30 ISDN BRI S/T interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Figure 31 ISDN BRI U interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Figure 32 T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Figure 33 Quad T1/E1 CSU/DSU WAN interface card . . . . . . . . . . . . . . . . . . . . . . . 79

Figure 34 V.90 modem interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Figure 35 Single V.35/X.21 WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Figure 36 Dual V.35 WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure 37 HSSI WAN interface card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

314711-D Rev 00

Tables

Table 1 Items shipped with the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 2 Interfaces and cables for the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . . . 30

Table 3 Power cord requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 4 Front panel LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 5 LED indicators on the system 10/100BASE Ethernet port . . . . . . . . . . . . 35

Table 6 LED indicators on the 10/100BASE Ethernet interface card . . . . . . . . . . 36

Table 7 LED indicators on the 56/64K CSU/DSU WAN interface card . . . . . . . . . 37

Table 8 LED indicators on the ADSL WAN interface card . . . . . . . . . . . . . . . . . . . 38

Table 9 LED indicators on the T1/E1 CSU/DSU WAN interface card . . . . . . . . . . 39

Table 10 LED indicators on the quad T1/E1 CSU/DSU WAN interface card . . . . . . 40

Table 11 LED indicators on the single V.35/X.21 WAN interface card . . . . . . . . . . . 41

Table 12 Supported option cards for the Contivity 1700 . . . . . . . . . . . . . . . . . . . . . 59

Table 13 Physical, electrical, and environmental specifications . . . . . . . . . . . . . . . 67

Table 14 10/100BASE Ethernet port pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Table 15 Multiple DB9 and DB25 connector pinouts . . . . . . . . . . . . . . . . . . . . . . . . 69

Table 16 Modem cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Table 17 56/64K CSU/DSU cable pinouts for crossover connection . . . . . . . . . . . . 73

Table 18 56/64K CSU/DSU cable pinouts for straight-through connection . . . . . . . 74

Table 19 ADSL cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Table 20 ISDN BRI S/T cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Table 21 ISDN BRI U cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Table 22 T1/E1 CSU/DSU cable pinouts for crossover connection . . . . . . . . . . . . . 78

Table 23 T1/E1 CSU/DSU cable pinouts for straight-through connection . . . . . . . . 78

Table 24 V.90 modem cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Table 25 V.35 cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Table 26 X.21 cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Table 27 DB26-to-V.35 cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Table 28 T3 cable pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

13

Installing the Contivity 1700

14 Tables

314711-D Rev 00

Preface

15

The Contivity* 1700 is part of the Nortel Networks* Contivity Secure IP Services
Gateway product family. Contivity Secure IP Services Gateways support secure,
reliable IP VPNs in a single, integrated hardware device. Throughout this guide,
the Contivity 1700 is also referred to as the gateway.

This guide provides instructions on how to install the Contivity 1700 in an
equipment rack and how to install and replace option cards and dual inline
memory modules (DIMMs). This guide also provides some initial configuration
information and includes technical specifications for the gateway.

For complete information about configuring and monitoring the Contivity 1700,
see the documentation on the software CD. (For information about Contivity
documentation, see

“Related publications” on page 17.)

Before you begin

This guide is intended for qualified service personnel who are installing the
Contivity 1700 for the first time or who need to install or replace any of the
following field replaceable units (FRUs):

• LAN, WAN, and serial interface cards

• Hardware Accelerator card

• Dual inline memory modules (DIMMs)

Before you install the Contivity 1700, make sure that all network wiring has been
installed on the premises using standard cable system practices.

Installing the Contivity 1700

16 Preface

Text conventions

This guide uses the following text conventions:

Acronyms

bold Courier text

italic text Indicates new terms and book titles.

plain Courier
text

separator ( > ) Shows menu paths.

This guide uses the following acronyms:

ADSL asymmetric digital subscriber line

Indicates command names and options and text that
you need to enter.

Example: Use the show health command.
Example: Enter terminal paging {off | on}.

Indicates system output, for example, prompts and
system messages.

Example: File not found.

Example: Choose Status > Health Check.

314711-D Rev 00

AIS alarm indication signal

CSU/DSU channel service unit/digital service unit

DIMM dual inline memory module

DTE data terminal equipment

HSSI High Speed Serial Interface

IP Internet Protocol

IPsec IP Security

ISDN Integrated Services Digital Network

LAN local area network

LED light emitting diode

LOS loss of signal

OOF out of frame

PCI peripheral component interconnect

URL uniform resource locator

VPN virtual private network

WA N wide area network

Related publications

For complete information about configuring, monitoring, and managing the
Contivity 1700, refer to the following publications (included on the software CD):

• Release notes provide the latest information, including brief descriptions of
the new features, problems fixed in this release, and known problems and
workarounds.

Preface 17

• Configuring Basic Features for the Contivity Secure IP Services Gateway
introduces the product and provides information about initial configuration.

• Configuring Servers, Authentication, and Certificates for the Contivity Secure
IP Services Gateway provides instructions for configuring authentication

servers and services, as well as digital certificates.

• Configuring Firewalls, Filters, NAT, and QoS for the Contivity Secure IP
Services Gateway provides instructions for configuring the Contivity Stateful

Firewall, NAT, and Contivity interface and tunnel filters.

• Configuring Tunneling Protocols for the Contivity Secure IP Services
Gateway provides instructions for configuring the tunneling protocols IPsec,

L2TP, PPTP, and L2F.

• Configuring Advanced Features for the Contivity Secure IP Services Gateway
provides instructions for configuring 802.1Q VLANs, circuitless IP, advanced
WAN settings, PPP, PPPoE, frame relay, ADSL and ATM, T1/E1 CSU/DSU
interfaces, dial services and BIS, DLSw, IPX, and hardware accelerator cards.

• Configuring Routing for the Contivity Secure IP Services Gateway provides
instructions for configuring RIP, OSPF, and VRRP, as well as instructions for
configuring ECMP, routing policy services, and client address redistribution.

• Reference for the Contivity Secure IP Services Gateway Command Line
Interface provides syntax, descriptions, and examples for the commands that
you can use to configure, manage, and monitor the gateway.

Installing the Contivity 1700

18 Preface

• Managing and Troubleshooting the Contivity Secure IP Services Gateway
provides information about backup and recovery, file management, upgrading
software, and troubleshooting. This guide also provides instructions for
monitoring gateway status and performance.

You can print selected technical manuals and release notes free, directly from the
Internet. Go to the
product for which you need documentation. Then locate the specific category and
model or version for your hardware or software product. Use Adobe* Acrobat
Reader* to open the manuals and release notes, search for the sections you need,
and print them on most standard printers. Go to Adobe Systems at the

www.adobe.com URL to download a free copy of the Adobe Acrobat Reader.

How to get help

If you purchased a service contract for your Nortel Networks product from a
distributor or authorized reseller, contact the technical support staff for that
distributor or reseller for assistance.

www.nortelnetworks.com/documentation URL. Find the

If you purchased a Nortel Networks service program, contact Nortel Networks
Technical Support. To obtain contact information online, go to the

www.nortelnetworks.com/cgi-bin/comments/comments.cgi URL, then click on

Technical Support.

From the Technical Support page, you can open a Customer Service Request
online or find the telephone number for the nearest Technical Solutions Center.
If you are not connected to the Internet, you can call 1-800-4NORTEL
(1-800-466-7835) to learn the telephone number for the nearest Technical
Solutions Center.

An Express Routing Code (ERC) is available for many Nortel Networks products
and services. When you use an ERC, your call is routed to a technical support
person who specializes in supporting that product or service. To locate an ERC for
your product or service, go to the

http://www.nortelnetworks.com/help/contact/

erc/index.html URL.

314711-D Rev 00

Chapter 1
Installing the Contivity 1700 chassis

This chapter describes how to install the Contivity 1700 chassis.

Note: Before you install the chassis, make sure that all network wiring
has been installed on the premises using standard cable system practices.

This chapter contains the following topics:

Topic Page

Description of the Contivity 1700 19

Preparing to install the Contivity 1700 20

19

Installing the chassis 23

Description of the Contivity 1700

The Contivity 1700 enables scalable, secure, and robust IP VPNs across the public
data network. The Contivity 1700 uses the infrastructure of the Internet to replace
traditional remote access gear.

The Contivity 1700 provides routing, firewall, bandwidth management,
encryption, authentication, and data integrity services to ensure secure tunneling
across IP networks and the Internet. An individual user or group of users can be
associated with a set of attributes that provide custom access to an extranet.

Installing the Contivity 1700

20 Chapter 1 Installing the Contivity 1700 chassis

Figure 1 shows the front view of the Contivity 1700.

Figure 1 Front view of the Contivity 1700

The Contivity 1700 chassis provides the following:

• One 10/100 Ethernet* LAN port on the base system

• One serial port for out-of-band management of the Contivity 1700

• Two expansion PCI slots that can contain interface cards and one Hardware
Accelerator card

Alert/Fail

Boot/Ready

CS160001A

• One 10/100 Ethernet interface card installed in PCI slot 1

• 128 MB memory upgradable to 256 MB total

Preparing to install the Contivity 1700

Before you begin the installation, verify that:

• Your shipment is complete and undamaged.

• You have the cables, tools, and other equipment that you need.

• Your installation site meets the physical, electrical, and environmental
requirements.

The sections that follow provide information to help you prepare for installation.

314711-D Rev 00

Chapter 1 Installing the Contivity 1700 chassis 21

Shipment contents

In addition to the gateway and this guide, the shipping container for the Contivity
1700 contains a number of hardware accessories and other items.

Note: Unless you specifically ordered a power cable, no power cable is
shipped with the Contivity 1700.

Tab le 1 lists the hardware accessories and other items shipped with the gateway.

Table 1 Items shipped with the Contivity 1700

Quantity Item Description

1 Rack mount shelf Used to support the chassis in an equipment

rack

4 10-32 panhead screws Secures the rack mount shelf to the equipment

rack and the chassis to the shelf

4 10-32 panhead cage nuts Used only if the equipment rack does not have

threaded rail holes

4 Rubber feet Used to install the chassis on a surface

1 Antistatic wrist strap Used to direct the discharge of static electricity

from your body to the chassis to prevent
damage to sensitive electronic components

1 Molded serial cable

DB9/DB25-to-DB9/DB25

1

1 Recovery diskette Used to restore the software image and file

1 Contivity software kit Contains Contivity Secure IP Services software

1 Contivity client kit Contains Contivity VPN Client software and

Installing the Contivity 1700

(this book)

Used to connect the Contivity 1700 to a PC or to
a local terminal

Provides instructions for installing the chassis
and hardware options

system

and documentation on CD

documentation on CD

Inspect all items for shipping damage. If you detect any damage, do not install the
Contivity 1700. Call the Nortel Networks Technical Solutions Center in your area
(see

“How to get help” on page 18).

Installing the Contivity 1700

22 Chapter 1 Installing the Contivity 1700 chassis

Additional equipment

You may need items that are not included in the Contivity 1700 shipping
container. Before you begin the installation, make sure that you have all the
cables, tools, and other equipment that you need.

Cables

You will need cables that are not included in the Contivity 1700 shipping
container. For information about which cables are shipped and which ones you
can order, see
have the proper cables, contact your network administrator.

Hardware for mounting the chassis in an equipment rack

To install the Contivity 1700 in an equipment rack, you need a Phillips
screwdriver and an equipment rack that meets the following specifications:

“Connecting communications cables” on page 30. If you do not

• Heavy-duty steel construction

• Width of 19 in. (48.26 cm) and depth of 24 in. (60.96 cm)

• Electronic Industries Association (EIA) standard hole-spacing

If the rack does not have threaded rail holes, you must use the cage nuts shipped
with the Contivity 1700.

Site requirements

The installation site must provide sufficient free space around the Contivity 1700
to ensure proper ventilation and access for servicing. For information about the
physical, electrical, and environmental requirements for the Contivity 1700, see

“Chassis specifications” on page 67.

314711-D Rev 00

Installing the chassis

To install the Contivity 1700, do one of the following:

• Position the chassis on a flat, sturdy, horizontal surface.

• Mount the chassis in a standard equipment rack (see “Installing the chassis in

an equipment rack” on page 24).

Installing the chassis on a flat surface

If you decide to place the Contivity 1700 on a flat surface, make sure that the
surface is large enough for the gateway and sturdy enough to support the
combined weight of the Contivity 1700 and the cables that you attach to it.

The Contivity 1700 accessory kit includes four rubber feet that can be attached to
the bottom of the gateway.

Chapter 1 Installing the Contivity 1700 chassis 23

Figure 2 shows the placement of these rubber feet.

Figure 2 Placement of rubber feet on the bottom of the chassis

Attach feet (4)

CS160016A

Installing the Contivity 1700

24 Chapter 1 Installing the Contivity 1700 chassis

Installing the chassis in an equipment rack

To mount the Contivity 1700 in an equipment rack, you need the following
equipment:

• Standard 19-inch equipment rack

• 4 screws (supplied with the chassis)

• 4 cage nuts (supplied with the chassis) if the rack does not have threaded rail
holes

• #2 Phillips screwdriver

Rack-mount recommendations

When you mount the chassis in the rack, observe the following standard
recommendations:

• The maximum recommended ambient temperature is 40oC (104oF). Make
sure that the internal temperature of the rack does not exceed 40

o

C (104oF).

• Do not block the power supply vents or otherwise restrict air flow when
installing the chassis in a rack.

• Stabilize your rack so that it does not tip over under the weight of the gateway
and other devices.

• Make sure that the electrical branch circuits can handle the Contivity 1700
and other units in the rack before you install and turn on the gateway.

• Maintain a reliable earth-ground path in the rack system. The gateway is
intended to connect to an earth ground.

Attaching the shelf in the equipment rack

The Contivity 1700 ships with a rack-mount shelf to support the chassis in the
equipment rack.

To attach the shelf to the inside of the equipment rack:

1 If the holes in the rack’s vertical supports are not threaded, attach a cage nut in

four locations at the front of the rack

(Figure 3).

314711-D Rev 00

Chapter 1 Installing the Contivity 1700 chassis 25

Figure 3 Attaching the cage nuts to the rack

Rail
without
threaded
holes

Cage nut

CS260003A

2 Position the rack-mount shelf inside the rack as shown in Figure 4.

3 Align the holes in the shelf with holes in the front of the rack.

Figure 4 Installing the shelf in the equipment rack

Rack edge

Flange

CS260003A

4 Make sure that the support flange snaps into place (Figure 4).

5 Insert one of the supplied panhead screws through the top hole on each side of

the shelf into the hole in the rack and tighten the screw

(Figure 4).

Installing the Contivity 1700

26 Chapter 1 Installing the Contivity 1700 chassis

Mounting the chassis in the equipment rack

Nortel Networks recommends that two people install the chassis in the rack.

To install the Contivity 1700 in the equipment rack:

1 Set the Contivity 1700 on the rack-mount shelf.

2 Remove the front bezel from the Contivity 1700 (Figure 5).

a Using the Phillips screwdriver, turn each of the 2 screws on the front bezel

a quarter turn counterclockwise.

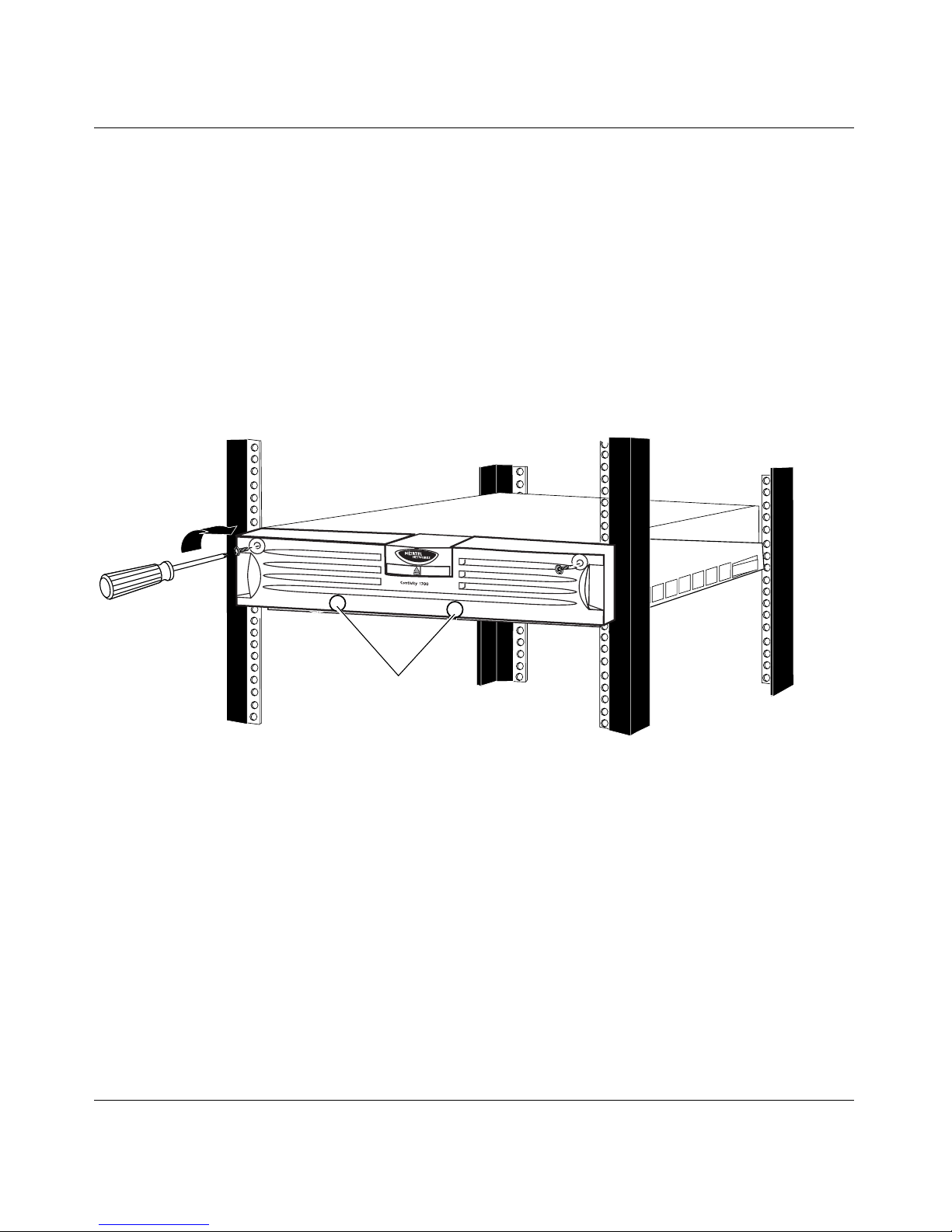

Figure 5 Removing the front bezel

b Grip the two handles and firmly pull the bezel toward you to unsnap it

from the chassis.

Caution: Do not use the piece with the Nortel Networks logo and the
LEDs as a handle.

The first few times that you remove the front bezel, it may be somewhat
difficult to remove because the ball studs and socket clips are new.

314711-D Rev 00

CS160014A

3 Insert one of the supplied panhead screws through the bottom hole on each

side of the shelf into the hole in the rack and tighten the screws (see

on page 25).

4 Replace the front bezel (Figure 6).

a Hold the two handles on the bezel and push it onto the chassis.

b Using the Phillips screwdriver, tighten the 2 screws to secure the bezel to

the chassis.

Figure 6 Replacing the front bezel

Chapter 1 Installing the Contivity 1700 chassis 27

Figure 4

Press here

CS160015A

Installing the Contivity 1700

28 Chapter 1 Installing the Contivity 1700 chassis

314711-D Rev 00

Chapter 2
Cabling the gateway and turning the power on

This chapter provides information about how to connect communications cables
and the power cord to the Contivity 1700.

Caution: Connect the cables to the built-in Ethernet port and to the
interfaces on the option cards installed in the Contivity 1700 before you
plug the power cord into the outlet.

This chapter contains the following topics:

Topic Page

29

Connecting communications cables 30

Connecting the power cord 32

Verifying a successful installation 33

Understanding the LEDs 34

Caution: Cabling for all WAN, LAN, and serial connections is not to be
routed outside the building environment.

Installing the Contivity 1700

30 Chapter 2 Cabling the gateway and turning the power on

Connecting communications cables

Gather the cables that you will attach to the Contivity 1700.

Tab le 2 lists the system ports and the ports provided on the optional interface

cards that you can install in the Contivity 1700. The table also indicates whether
you can obtain cables for the ports from Nortel Networks.

Table 2 Interfaces and cables for the Contivity 1700

Cable available from Nortel Networks

Interface Included Ordered separately Contact supplier

10/100 Ethernet system port X

Serial port X

10/100BASE Ethernet X

56/64K CSU/DSU WAN X

ADSL WAN X

ISDN BRI X

V.90 modem X

T1/E1 CSU/DSU WAN X

Quad T1/E1 CSU/DSU WAN X

Single V.35/X.21 WAN X

Dual V.35 WAN X

HSSI WAN X

1 Order either the V.35 cable or the X.21 cable.

1

For information about the connectors and cable pinouts, see Appendix A,

“Technical specifications,” on page 67.

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 31

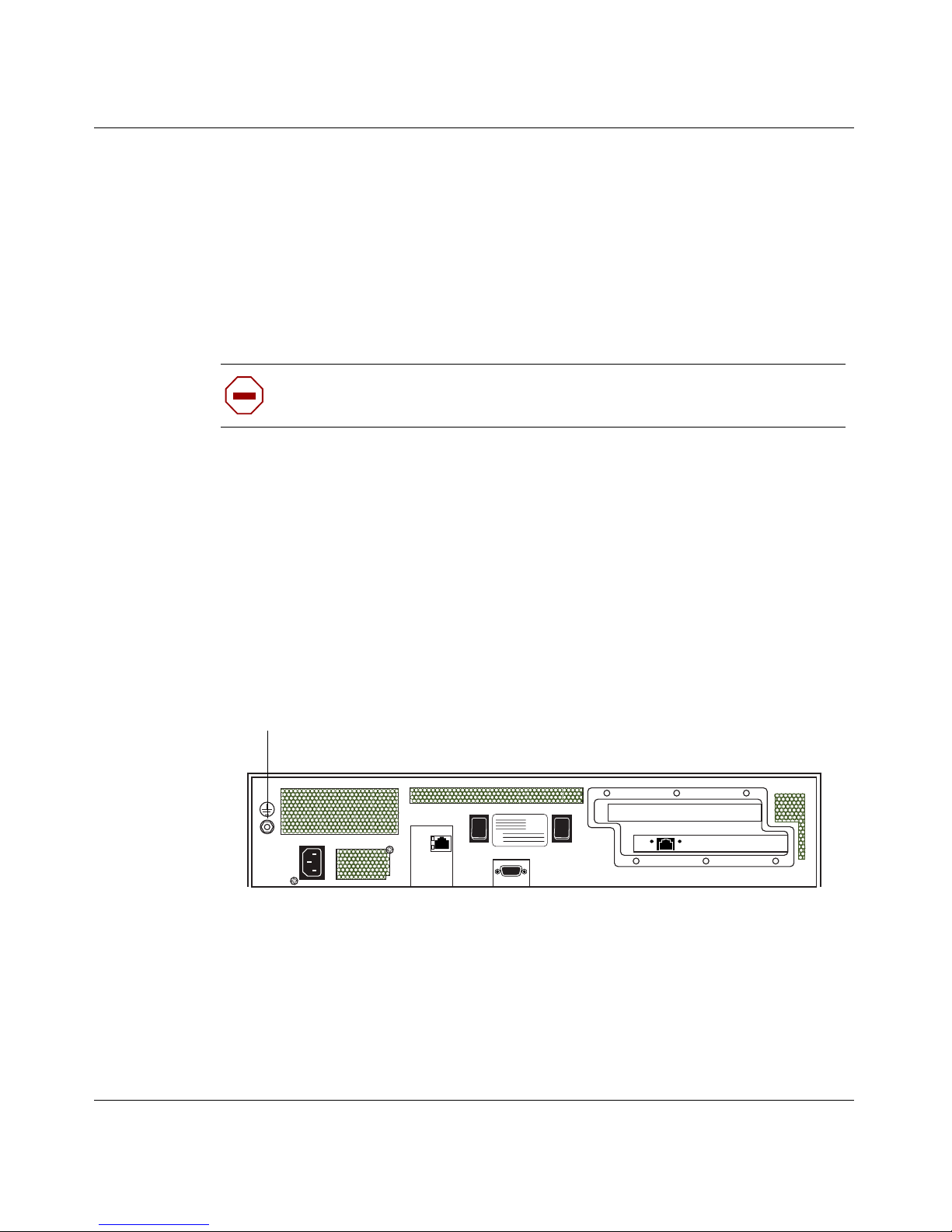

Figure 7 shows the back of the Contivity 1700. All interface cables and the power

cord attach to the rear of the gateway.

Figure 7 Rear view of the Contivity 1700

1

LAN

100-2240VAC

2-1A

50-60Hz

On/Off Reset

Serial

2

CS160002A

Connect the interface cables to the Contivity 1700 in this order:

1 Connect the 10/100BASE RJ-45 cable to the built-in 10/100BASE Ethernet

LAN port on the gateway (see

Figure 7 on page 31).

2 If you plan to connect a terminal or PC to the gateway, connect the serial cable

shipped with the Contivity 1700 to the serial port (see

Figure 7 on page 31).

3 Connect all other cables to the ports on the installed interface cards.

If you ordered optional interface cards, connect the cables for these interfaces
to the ports.

Installing the Contivity 1700

32 Chapter 2 Cabling the gateway and turning the power on

Connecting the power cord

You must order the power cord for the Contivity 1700 separately.

Warning: Do not modify or use the AC power cord if it is not the exact
type that is required for your power outlet.

The power cord must meet the requirements described in Tabl e 3.

Table 3 Power cord requirements

Requirement Description

Current rating The power cord must be rated for the available AC voltage and

must have a current rating that is at least 125 percent of the
gateway’s current rating (2 A @ 100 VAC or 1A @ 220 VAC).

Certification The power cord must have certification marks from an

acceptable regional agency.

Cord length and flexibility The power cord must be less than 4.5 meters (14.7 feet) long.

It must be a flexible HAR (harmonized) cord or VDE-certified
cordage to comply with the gateway’s safety certifications.

Power supply connector The connector that you plug into the AC receptacle on the

gateway must be an IEC 320, Sheet C13 female.

Wall outlet connector The power cord must terminate in a male plug with

appropriate grounding.

To connect the power cord and turn on the system power:

1 Connect the power cord to the AC receptacle on the back of the gateway (see

Figure 7 on page 31).

2 Connect the power cord to the power outlet.

Caution: You should protect the Contivity 1700 by plugging it into a

surge suppressor.

3 Press and release the power switch on the rear of the Contivity 1700 (see

Figure 7 on page 31) and wait for the gateway to boot.

See the next section, “Verifying a successful installation.”

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 33

Verifying a successful installation

After you connect the gateway to the power outlet and turn it on, you can verify a
successful installation by checking the LEDs on the front panel

The following sequence of LEDs should occur:

1 The power LED (the Nortel Networks logo) lights blue.

2 As the gateway boots, the Boot/Ready LED lights yellow.

3 When the boot process completes successfully, the Boot/Ready LED lights

green, indicating that the gateway is operational.

4 The Alert/Fail LED lights yellow because the gateway is not configured.

For a newly installed Contivity 1700, a yellow Alert/Fail LED does not
indicate an alarm condition. After you configure the management IP address
on the gateway, the Alert/Fail LED turns off. (See

management IP interface,” on page 43.)

(Figure 8).

Chapter 3, “Configuring the

If the LEDs on the front panel light in this sequence, your installation is
successful. If the LEDs do not light in this sequence, check that the bezel is on the
gateway and that the power cord is properly attached to the power supply (see

“Connecting the power cord” on page 32).

If the Contivity 1700 still does not boot, contact your local Nortel Networks
Technical Solutions Center (see

“How to get help” on page 18).

Installing the Contivity 1700

34 Chapter 2 Cabling the gateway and turning the power on

Understanding the LEDs

This section describes the LEDs on the front panel of the Contivity 1700 and on
the interface cards that have LEDs. You can confirm that the LAN and WAN
interfaces are cabled properly by examining the LEDs.

Front panel LEDs

The front panel of the Contivity 1700 has a lighted Nortel Networks logo and two
LEDs

Figure 8 Front panel LEDs

(Figure 8). These LEDs indicate the status of the Contivity 1700.

Power

Alert/Fail

Boot/Ready

Alert/Fail

Boot/Ready

CS160013A

Tab le 4 describes the LEDs on the Contivity 1700 front panel.

Table 4 Front panel LED indicators

LED Indicator Description

Power (Nortel
Networks logo)

Alert/Fail Ye l l o w A non-fatal alarm condition exists. The yellow alert

Boot/Ready Ye l l o w The gateway is booting and is in a non-ready state.

On The gateway is receiving AC power.

Off The gateway is not receiving AC power.

condition is described in the health check display.

Red A serious alarm condition exists that requires attention.

A red alert usually indicates a hardware error. The red
alert condition is described in the health check display.

Green The boot process has completed successfully and the

gateway has reached a state of readiness.

For complete information about the health check, event log, and system log, see
Managing and Troubleshooting the Contivity Secure IP Services Gateway.

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 35

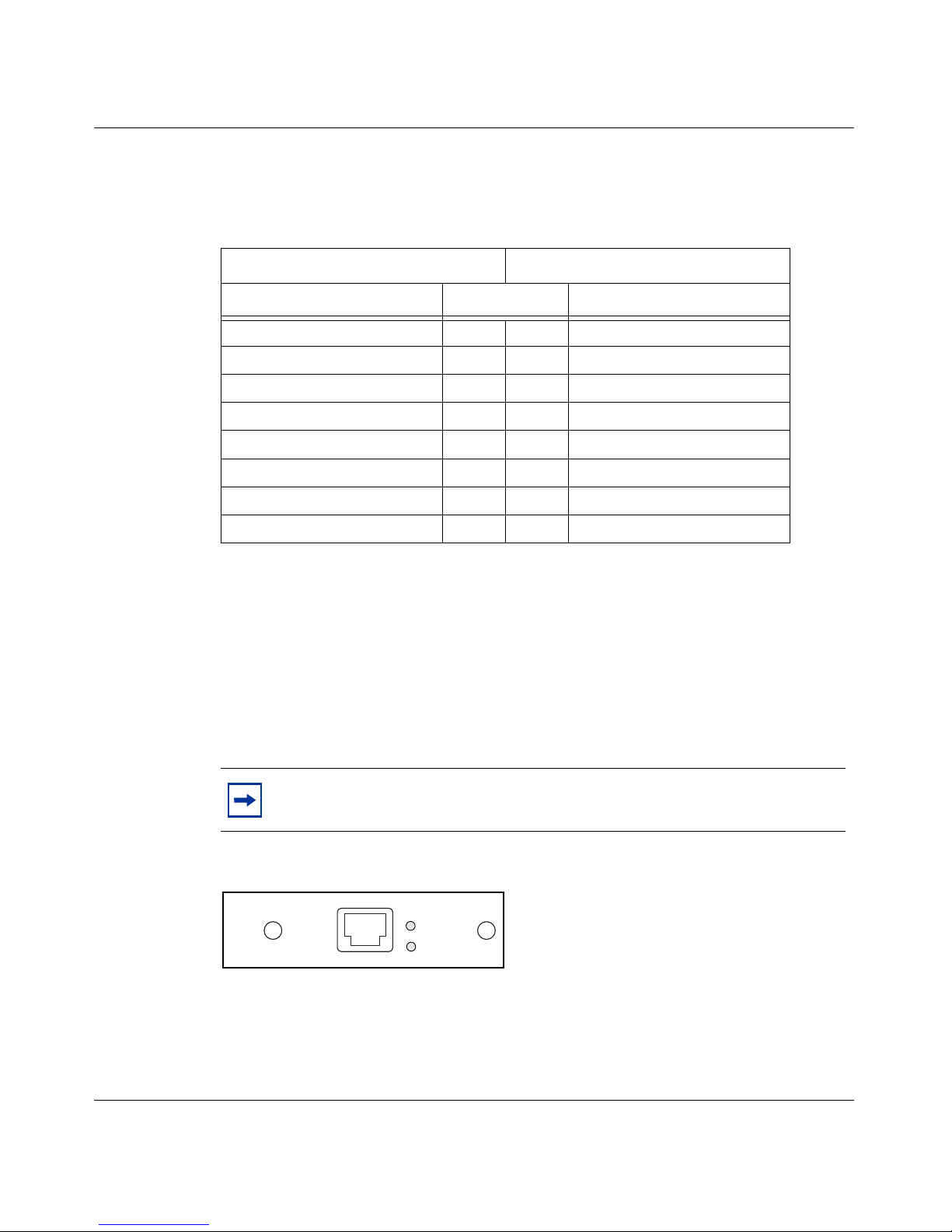

LEDs on the system 10/100BASE Ethernet port

Figure 9 shows the LEDs for the 10/100BASE Ethernet port located on the rear of

the Contivity 1700.

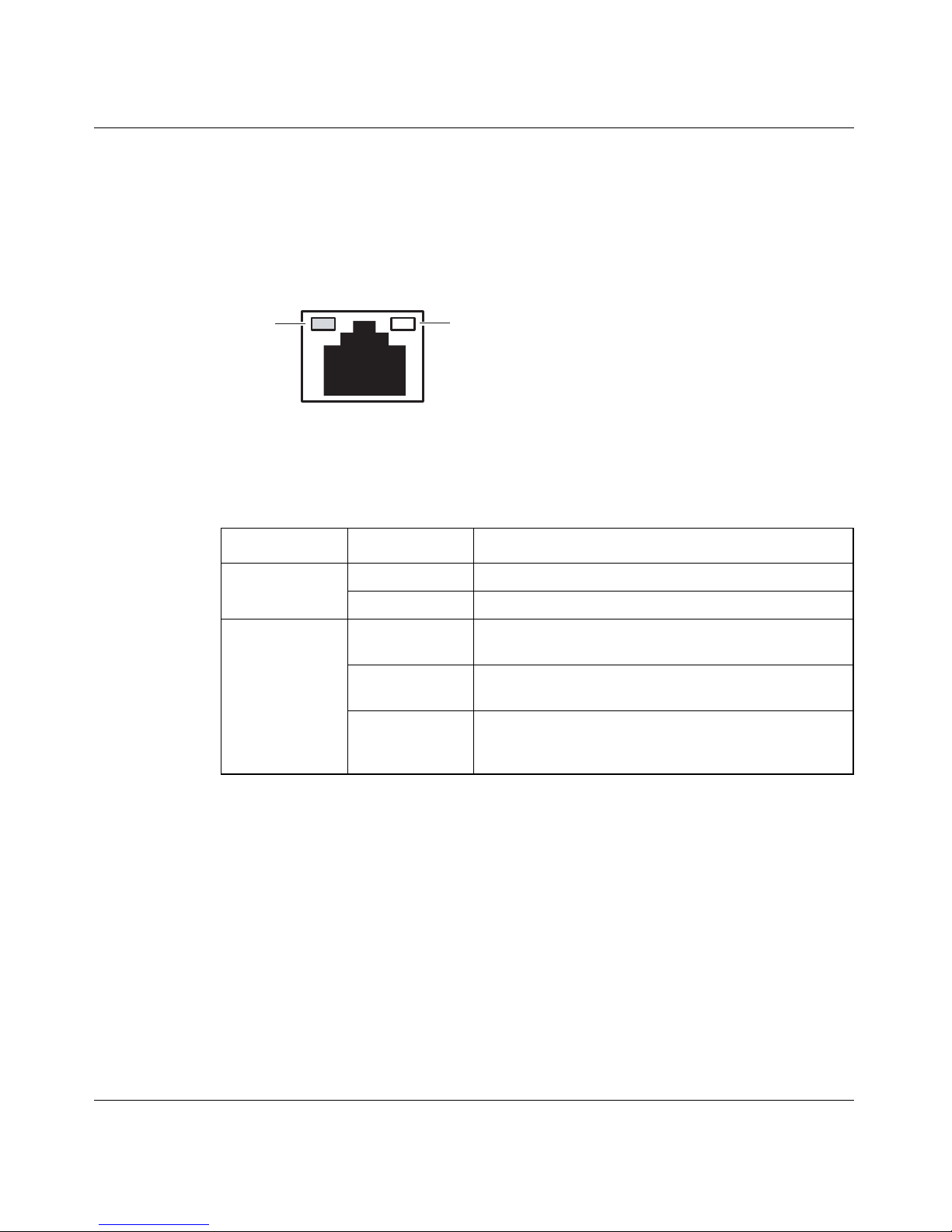

Figure 9 LEDs on the system 10/100BASE Ethernet port

Green

CS260011A

Yellow

Tab le 5 describes the LEDs on the system 10/100BASE Ethernet port.

Table 5 LED indicators on the system 10/100BASE Ethernet port

LED Indicator Description

Green On The LAN port is operating at 100 Mb/s.

Off The LAN port is operating at 10 Mb/s.

Ye l l o w On The cable connections between the LAN port and the

hub are good.

Off The cable connections between the LAN port and the

hub are faulty.

Flashing The LAN port is sending or receiving network data.

The frequency of the flashes increases with
increased traffic.

Installing the Contivity 1700

36 Chapter 2 Cabling the gateway and turning the power on

10/100BASE Ethernet interface card LEDs

Figure 10 shows the LEDs on the 10/100BASE Ethernet interface card.

Figure 10 LEDs on the 10/100BASE Ethernet interface card

DATA

ACT/LINK

Activity/Link

100TX

10/100 Mb/s

CS260009A

Tab le 6 describes the LEDs on the 10/100BASE Ethernet interface card.

Table 6 LED indicators on the 10/100BASE Ethernet interface card

LED Indicator Description

ACT/LINK Steady green or

Flashing green

Off The card is not sending or receiving data.

10/100TX Green The port is operating at 100 Mb/s.

Off The port is operating at 10 Mb/s.

The card is sending or receiving network data. The
frequency of the flashes increases with increased
traffic.

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 37

56/64K CSU/DSU WAN interface card LEDs

Figure 11 shows the LEDs on the 56/64K CSU/DSU WAN interface card.

Figure 11 LEDs on the 56/64K CSU/DSU WAN interface card

Blue LED

56/64K

DDS

Green LED

Red LED

Yellow LED

10972EA

Tab le 7 describes the LEDs on the 56/64K CSU/DSU WAN interface card.

Table 7 LED indicators on the 56/64K CSU/DSU WAN interface card

LED Description

Blue Blue alarm LED is lit when receiving an upstream failure denoted

by an alarm indication signal (AIS).

Red Red alarm LED is lit when a loss-of-signal (LOS) or out-of-frame

(OOF) condition is detected on the receive signal.

Ye l l o w Yellow alarm LED is lit when the far-end equipment is in the red

alarm condition.

Green Normal operation.

Installing the Contivity 1700

38 Chapter 2 Cabling the gateway and turning the power on

ADSL WAN interface card LEDs

Figure 12 shows the LEDs on the ADSL WAN interface card.

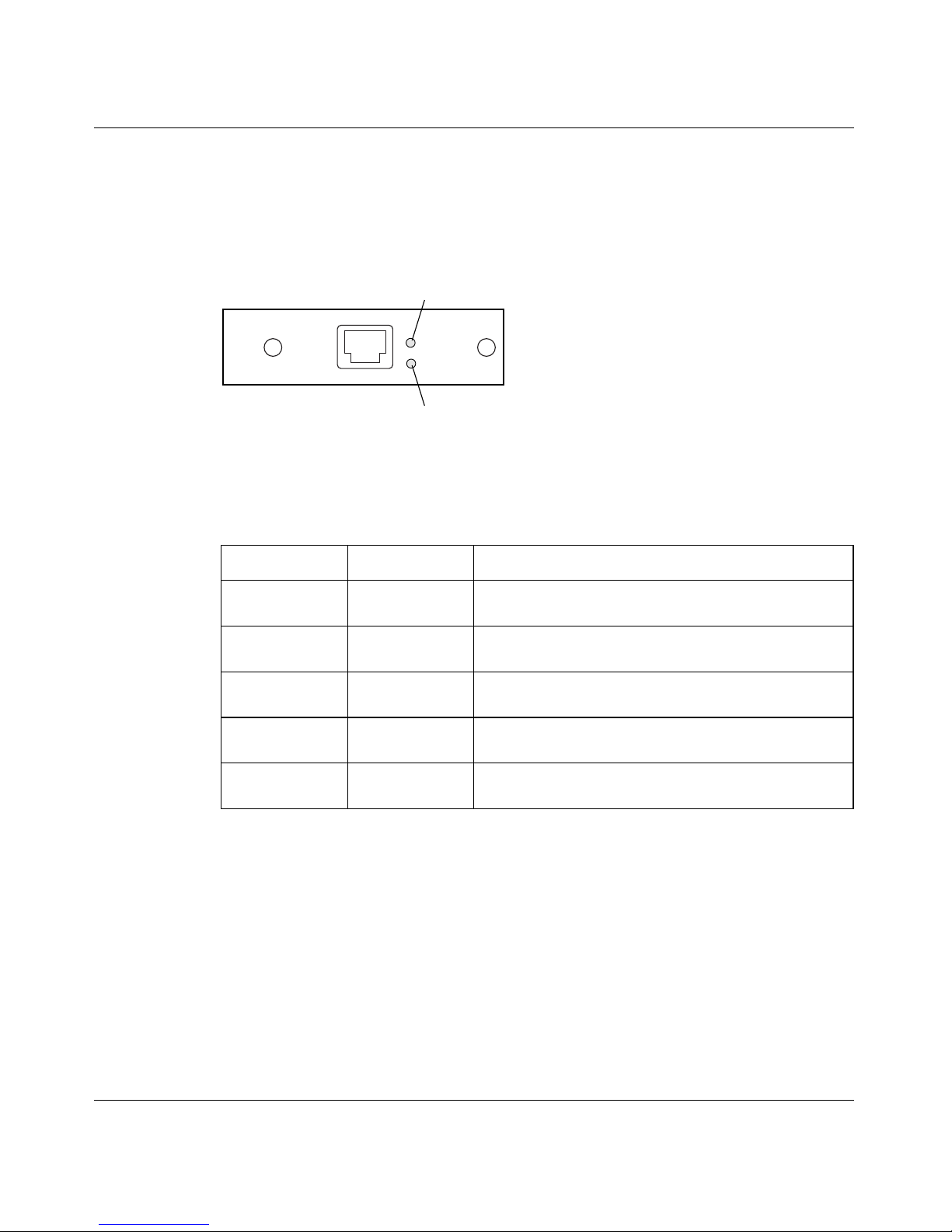

Figure 12 LEDs on the ADSL WAN interface card

Tx/Rx LED

ADSL

Tx/Rx

CONN

CONN LED

10972EA

Tab le 8 describes the LEDs on the ADSL WAN interface card.

Table 8 LED indicators on the ADSL WAN interface card

CONN LED Tx/Rx LED Description

Steady green Steady green The ADSL interface card is not initialized; the

software driver is not installed.

Off Off The ADSL interface card is initialized, but has not

established a link with the ADSL network.

Flashing green Off The ADSL interface card is attempting to establish a

link with the ADSL network.

Steady green Off The ADSL interface card has established a link with

the ADSL network.

Steady green Flashing green The ADSL interface card is sending or receiving

network data. (The LED may be dim.)

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 39

T1/E1 CSU/DSU WAN interface card LEDs

Figure 13 shows the LEDs on the T1/E1 CSU/DSU WAN interface card.

Figure 13 LEDs on the T1/E1 CSU/DSU WAN interface card

LED 1, Red LED 2, Blue

LED 4, Green LED 3, Yellow

CS160012A

Tab le 9 describes the LEDs on the T1/E1 CSU/DSU WAN interface card.

Table 9 LED indicators on the T1/E1 CSU/DSU WAN interface card

LED Indicator Description

LED 1 Red Red alarm LED is lit when a loss-of-signal (LOS) or

out-of-frame (OOF) condition is detected on the receive
signal.

LED 2 Blue Blue alarm LED is lit when receiving an upstream failure

denoted by an alarm indication signal (AIS).

LED 3 Ye l l o w Yellow alarm LED is lit when the far-end equipment is in

the red alarm condition.

LED 4 Green Normal operation.

Installing the Contivity 1700

40 Chapter 2 Cabling the gateway and turning the power on

Quad T1/E1 CSU/DSU WAN interface card LEDs

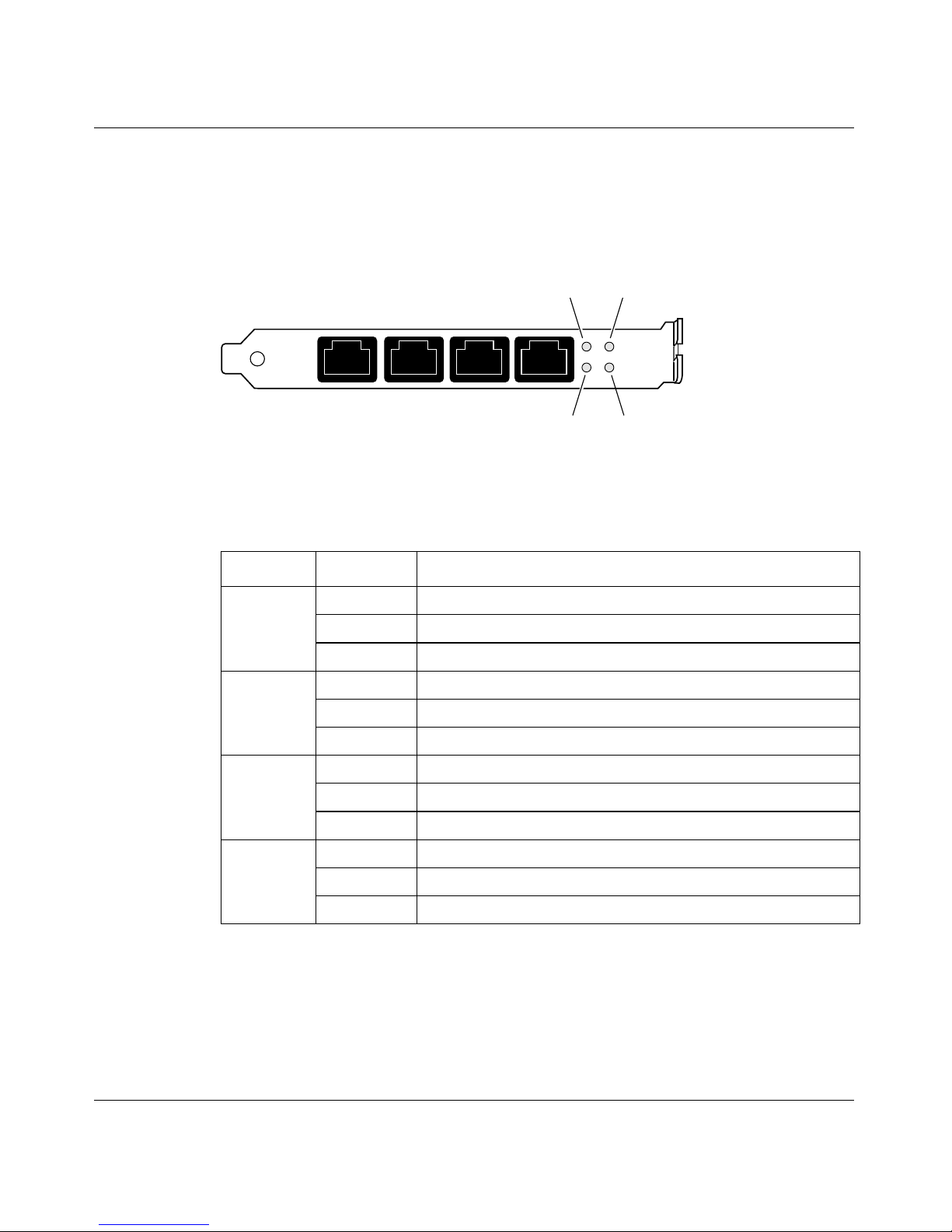

Figure 14 shows the LEDs on the quad T1/E1 CSU/DSU WAN interface card.

Figure 14 LEDs on the quad T1/E1 CSU/DSU WAN interface card

LED 1 LED 2

LED 3 LED 4

Tab le 10 describes the LEDs on the quad T1/E1 CSU/DSU WAN interface card.

Table 10 LED indicators on the quad T1/E1 CSU/DSU WAN interface card

CS160012A

LED Indicator Description

LED 1 Off Port 1 is disabled.

On Port 1 is enabled and operating normally.

Flashing Port 1 is enabled and in an alarm state (red, yellow, or blue).

LED 2 Off Port 2 is disabled.

On Port 2 is enabled and operating normally.

Flashing Port 2 is enabled and in an alarm state (red, yellow, or blue).

LED 3 Off Port 3 is disabled.

On Port 3 is enabled and operating normally.

Flashing Port 3 is enabled and in an alarm state (red, yellow, or blue).

LED 4 Off Port 4 is disabled.

On Port 4 is enabled and operating normally.

Flashing Port 4 is enabled and in an alarm state (red, yellow, or blue).

314711-D Rev 00

Chapter 2 Cabling the gateway and turning the power on 41

Single V.35/X.21 WAN interface card LEDs

Figure 15 shows the LEDs on the single V.35/X.21 WAN interface card.

Figure 15 LEDs on the single V.35/X.21 WAN interface card

LED 1, Red LED 2, Green

LED 4, Green LED 3, Green

CS160011A

Tab le 11 describes the LEDs on the single V.35/X.21 WAN interface card.

Table 11 LED indicators on the single V.35/X.21 WAN interface card

LED Indicator Description

LED 1 Red No external transmit clock source is available.

LED 2 Green The signals CDC and DSR are on between the DSU

and the adapter. LED 2 detects receive link status.

LED 3 Green Power to the adapter is on and the onboard

microcode is loaded.

LED 4 Green Cable is detected.

Installing the Contivity 1700

42 Chapter 2 Cabling the gateway and turning the power on

314711-D Rev 00

Chapter 3
Configuring the management IP interface

This chapter describes how to configure a management IP address, subnet mask,
and default gateway address on a newly installed Contivity 1700. After you
complete the procedures in this chapter, you will be able to configure and manage
the Contivity 1700 using a Web browser from a PC.

To configure the management IP interface, you use the serial interface
configuration menu. You must connect a PC or terminal to the serial port on the
Contivity 1700.

This chapter contains the following topics:

43

Topic Page

Required information 44

Configuring the management IP address 45

Testing the configuration 49

Troubleshooting 51

Installing the Contivity 1700

44 Chapter 3 Configuring the management IP interface

Required information

Before you configure the management interface, collect this information:

• IP address for the management interface

The management IP address must be accessible from one of the private
physical interfaces on the Contivity 1700. For example, if you plan to assign
IP address 10.2.3.3 with subnet mask 255.255.0.0 to the private physical
interface, the management IP address must reside in the 10.2 network.

• Subnet mask

The subnet mask specifies which IP addresses are directly reachable on the
network and which ones must be routed through a gateway. For example, the
IP address 10.2.3.3 with a subnet mask of 255.255.0.0 indicates that all hosts
with addresses 10.2.n.n are directly reachable.

• Default gateway (optional)

The default gateway routes packets to destinations for which there is no
specific route in the routing table. You can configure a default gateway when
you assign the management IP address, or you can configure it at a later time.

Note: Write down and save the management IP address. You will need it
to configure the Contivity 1700.

314711-D Rev 00

Chapter 3 Configuring the management IP interface 45

Configuring the management IP address

You use the serial interface to assign the Contivity 1700 a management IP address
and subnet mask so that you can then use a Web browser for management.

To configure the management IP address using the serial interface:

1 Turn on the terminal or PC.

The terminal or PC should be configured as follows:

• 9600 baud

• 8 data bits

•1 stop bit

• No parity

• No flow control

2 Connect the serial cable (supplied with the Contivity 1700) from the

gateway’s serial port to a terminal or to the communications port on a PC.

3 On the PC, start HyperTerminal* or another terminal emulation program and

press Enter.

The Welcome screen appears.

Welcome to the Contivity Secure IP Services Gateway
Copyright (c) 1999-2004 Nortel Networks, Inc.

Version: V04_90.230
Creation date: July 27, 2004, 20:51:06
Date: 07/27/2004
Unit Serial Number: 317563

Please enter the administrator's user name:

4 Enter the default user name and password for the administrator.

The factory default user name is admin and the default password is setup. The
user name and password are case sensitive.

Please enter the administrator's user name: admin

Please enter the administrator's password: *****

Installing the Contivity 1700

46 Chapter 3 Configuring the management IP interface

The serial main menu appears.

Main Menu: System is currently in NORMAL mode.

1) Interfaces

2) Administrator

3) Default Private Route Menu

4) Default Public Route Menu

5) Create A User Control Tunnel (IPsec) Profile

6) Restricted Management Mode FALSE

7) Allow HTTP Management TRUE

8) Firewall Options

9) Shutdown
B) System Boot Options
P) Configure Serial Port
C) Controlled Crash
L) Command Line Interface
R) Reset System to Factory Defaults
E) Exit, Save and Invoke Changes

Please select a menu choice (1 - 9,B,P,C,L,R,E):

5 Type 1 and press Enter.

The Interface menu appears.

- Interface Menu

0) Slot 0, Port 1, Private LAN

Interface IP Address =
Subnet Mask = 0.0.0.0
Speed/Duplex = AutoNegotiate

1) Slot 1, Port 1, Public LAN

IP Address =
Subnet Mask = 0.0.0.0
Speed/Duplex = AutoNegotiate

R) Return to the Main Menu.

Please select a menu choice:

314711-D Rev 00

Chapter 3 Configuring the management IP interface 47

6 Type 0 and press Enter to configure the management IP address.

The default settings appear, followed by the prompt for the management IP
address. The old management IP address field is blank on a new gateway.

0) Slot 0, Port 1, Private LAN

Interface IP Address =
Subnet Mask = 0.0.0.0
Speed/Duplex = AutoNegotiate

* Type 0.0.0.0 to delete.
* Just type <CR> to skip.

Old Management IP Address =
New Management IP Address* =

7 At the New Management IP Address prompt, type the management IP address

and press Enter.

The prompt for the interface IP address appears.

Old Interface IP Address =
New Interface IP Address* =

8 Enter the IP address for the private LAN or press Enter to skip this prompt.

The subnet mask prompt appears.

Old Subnet Mask = 0.0.0.0
New Subnet Mask =

9 At the New Subnet Mask prompt, type the subnet mask for the management

IP address and press Enter.

The Speed/Duplex prompt appears.

Installing the Contivity 1700

48 Chapter 3 Configuring the management IP interface

10 Press Enter to leave the speed and duplex settings unchanged.

The Interface menu appears again with the changes you made.

- Interface Menu

0) Slot 0, Port 1, Private LAN

Management IP Address = 47.33.245.66, (Subnet Mask =

255.255.0.0)
Interface IP Address = 47.33.245.64
Subnet Mask = 255.255.0.0
Speed/Duplex = AutoNegotiate

1) Slot 1, Port 1, Public LAN

IP Address =
Subnet Mask = 0.0.0.0
Speed/Duplex = AutoNegotiate

R) Return to the Main Menu.

Please select a menu choice:

11 Type R and press Enter to return to the serial main menu.

12 From the serial main menu, type E and press Enter to save the new

management IP address and mask and to exit the serial menu.

13 Go to the next section, “Testing the configuration,” to verify that you can

access the Contivity 1700 from a Web browser.

For detailed information about configuring and managing the Contivity 1700,
refer to the documentation on the Contivity software CD.

314711-D Rev 00

Chapter 3 Configuring the management IP interface 49

Testing the configuration

After you assign a management IP address to the Contivity 1700, start your Web
browser to verify that you can access the gateway from the browser.

To manage the Contivity 1700 using the GUI, your PC must be running one of the
following browsers:

• Internet Explorer Version 5.5 or later

• Netscape* Navigator 4.79 or 6.2

To test the management IP address on the Contivity 1700:

1 Open a Web browser.

2 In the URL field, enter http:// followed by the management IP address that

you assigned to the Contivity 1700.

For example, if the management IP address is 10.2.3.2, enter http://10.2.3.2.

If the Welcome screen (Figure 16) appears, you correctly configured the
management IP address for the Contivity 1700.

Note: If the Welcome screen does not appear, see “Troubleshooting” on

page 51.

3 Go to Configuring Basic Features for the Contivity Secure IP Services

Gateway for information about configuring the Contivity 1700.

Installing the Contivity 1700

50 Chapter 3 Configuring the management IP interface

Figure 16 Welcome screen

314711-D Rev 00

Troubleshooting

If you cannot connect to the Contivity 1700 using your browser, check the
following items:

• Make sure that you entered the correct IP address in the browser window.

• Type a known URL in the browser window to make sure that your network
connection is good.

• Check that the management IP address that you configured is on the same
subnet as the physical LAN attached to the gateway.

• Make sure that your PC is running a supported browser, either Internet
Explorer Version 5.5 or later, or Netscape Navigator

• Check the physical connections on the Contivity 1700, especially the LAN
cable and the power cord.

Chapter 3 Configuring the management IP interface 51

*

4.79 or 6.2.

If you still cannot connect to the Contivity 1700 using a browser, connect a
terminal or PC to the gateway with the serial cable and check the management IP
address listed in the serial menu (see

“Configuring the management IP address”

on page 45). Reconfigure the management IP address if necessary.

If you cannot resolve the problem, contact the Nortel Networks Technical
Solutions Center closest to you (see

“How to get help” on page 18).

Installing the Contivity 1700

52 Chapter 3 Configuring the management IP interface

314711-D Rev 00

Chapter 4
Installing option cards and DIMMs

This chapter provides instructions on how to install and replace the following field
replaceable units (FRUs) in the Contivity 1700:

• LAN, WAN, and serial interface cards

• Hardware Accelerator card

• Dual inline memory modules (DIMMs)

This chapter contains the following topics:

Topic Page

53

Shutting down the system to add or replace hardware 54

Removing the front bezel and top cover 55

Attaching the antistatic wrist strap 58

Installing and replacing option cards 59

Installing and replacing DIMMs 64

Installing the Contivity 1700

54 Chapter 4 Installing option cards and DIMMs

Shutting down the system to add or replace hardware

To install or replace an option card or a DIMM, you must first shut down the
Contivity 1700 and unplug it.

Caution: Shut down the Contivity 1700 as described in this section
before you attempt to add or replace an option card or DIMM.

To shut down the Contivity 1700:

1 Use the Web GUI or the command line interface to shut down the gateway.

• Web GUI: Choose Admin > Shutdown. Select the option to power off the

gateway after shutdown.

• Command line interface: Use the reload command to shut down the

system. For example, enter

“Upgrade hardware”

reload power-off disable-logins

For the complete syntax of the reload command, see the Reference for
the Contivity Secure IP Services Gateway Command Line Interface.

2 Wait for the system to shut down.

3 Disconnect the power cord from the power outlet and then disconnect the cord

from the Contivity 1700.

The power receptacle is located on the rear of the Contivity 1700 (see Figure 7

on page 31).

Danger: Make sure to turn off the Contivity 1700 and unplug the power
cord before you attempt to remove or install an option card or DIMM.

314711-D Rev 00

Chapter 4 Installing option cards and DIMMs 55

Removing the front bezel and top cover

To install option cards or DIMMs, you must remove the front bezel and the top
cover from the gateway.

To remove the front bezel:

1 Shut down the Contivity 1700 using the Web GUI or the command line

interface and then unplug it as described in

or replace hardware” on page 54.

Danger: Make sure to turn off the Contivity 1700 and unplug it before
you attempt to install an option card or DIMM.

2 Using a screwdriver, turn each of the 2 screws on the front bezel a quarter turn

counterclockwise

(Figure 17).

“Shutting down the system to add

Figure 17 Removing the front bezel

CS160014A

3 Grip the two handles and firmly pull the bezel toward you to unsnap it from

the chassis.

Caution: Do not use the piece with the Nortel Networks logo and the
LEDs as a handle.

Installing the Contivity 1700

56 Chapter 4 Installing option cards and DIMMs

The first few times that you remove the front bezel, it may be somewhat
difficult to remove because the ball studs and socket clips are new.

To remove the top cover:

1 If the Contivity 1700 is installed in an equipment rack, remove it from the

rack.

a At the front of the chassis, remove the 2 panhead screws that secure the

bottom of the chassis to the equipment rack.

b Remove the Contivity 1700 from the rack-mount shelf and set it on a

sturdy surface.

2 Using a Phillips screwdriver, remove the 4 screws that secure the cover to the

chassis

Figure 18 Removing the top cover

(Figure 18).

Remove these 4 screws

Alert/Firm

Boot/Ready

A

le

r

t

/

F

a

i

l

B

o

o

t

/

R

e

a

d

y

Slide cover forward and lift up

3 Slide the top cover forward approximately 1/4 inch.

CS160003A

314711-D Rev 00

Chapter 4 Installing option cards and DIMMs 57

4 Lift the lid 2 or 3 inches and pull it off the chassis.

The Contivity 1700 system board is now exposed. Figure 19 shows the
location of the option card slots and the DIMMs on the system board.

Figure 19 Location of option card slots and DIMMs on the system board

DIMMs (1 and 2)

Option card slots

(only two are usable)

2
1

DIMM
slots

1 2

PCI
slots

CS160004A

Warning: Beware of danger if battery is incorrectly replaced. Replace
with the same or an equivalent battery only, as recommended by the
manufacturer’s instructions.

Danger: In spite of the above warning, which is mandated for
regulatory approval, you should not change the battery. If you suspect a
dead battery, contact Nortel Networks Customer Support.

Installing the Contivity 1700

58 Chapter 4 Installing option cards and DIMMs

Attaching the antistatic wrist strap

Nortel Networks ships the Contivity 1700 with an antistatic wrist strap. The
antistatic wrist strap directs the discharge of static electricity from your body to
the chassis of the gateway to avoid damage to sensitive electronic components.

You must wear an antistatic wrist strap on your arm whenever you remove, install,
or handle option cards and DIMMs.

Caution: Electrostatic discharge can damage hardware. Follow the
procedure in this section to protect your equipment from damage.

To attach the antistatic wrist strap:

1 Locate the antistatic wrist strap and verify that the cable is attached to the

wrist strap.

2 Place the strap around your wrist and adjust it to ensure that the metal buckle

inside the strap touches your skin.

3 Insert the banana plug into the grounding jack at the rear of the chassis

(Figure 20).

Figure 20 Location of the grounding jack for the antistatic wrist strap

Grounding jack

1

LAN

100-2240VAC

2-1A

50-60Hz

On/Off Reset

Serial

2

CS160002A

314711-D Rev 00

Chapter 4 Installing option cards and DIMMs 59

Installing and replacing option cards

The Contivity 1700 has two slots for option cards (see Figure 19 on page 57). This
section provides instructions on adding new option cards to the Contivity 1700 or,
if necessary, replacing an existing card.

Tab le 12 lists the option cards that you can install in the Contivity 1700.

Table 12 Supported option cards for the Contivity 1700

Maximum

Option card

Hardware Accelerator 1 The CSA card is not supported.

10/100 Ethernet LAN interface 2

56/64K CSU/DSU WAN interface

ADSL WAN interface

2

ISDN BRI S/T or U interface

1

3

number

2

2

2

Restrictions

T1 CSU/DSU WAN interface (full-height) 2

For E1 support, you must install

T1/E1 CSU/DSU WAN interface

2

the half-height interface card.

(half-height)

Quad T1/E1 CSU/DSU WAN interface

V.90 modem interface

3

1

1

2

Single V.35/X.21 WAN interface 2

Dual V.35 WAN interface

HSSI WAN interface

1 The Contivity 1700 must be running Version 5.0 or later.

2 The Contivity 1700 must be running Version 4.90 or later.

3 The Contivity 1700 must be running Version 4.80 or later.

4 This option card is no longer available for purchase.

5 The gateway must be running Version 4.76 or later, or the hardware revision must be at least 03.

4

5

1 Install in slot 1 only.

1 Install in slot 1 only.

Installing the Contivity 1700

60 Chapter 4 Installing option cards and DIMMs

To install or replace an interface card or a Hardware Accelerator card:

1 Shut down the Contivity 1700 using the Web GUI or the command line

interface and then unplug it as described in

or replace hardware” on page 54.

Danger: Turn off the Contivity 1700 and unplug it before you attempt
to install an option card.

2 Remove the front bezel from the chassis, then remove the chassis from the

equipment rack (see

“Removing the front bezel and top cover” on page 55).

3 Remove the top cover from the chassis (see “Removing the front bezel and top

cover” on page 55).

4 Attach the antistatic wrist strap that was shipped with the Contivity 1700 (see

“Attaching the antistatic wrist strap” on page 58).

5 Locate the slot where you plan to install the new or replacement option card.

“Shutting down the system to add

Note: If no option cards are installed in the Contivity 1700, install the
new option card in the lower slot.

314711-D Rev 00

Chapter 4 Installing option cards and DIMMs 61

6 Remove the filler panel screw and pull out the filler panel (or the option card

that you are replacing) from the slot

Figure 21 Removing an option card or a filler panel

(Figure 21).

Screwdriver
slots

Phillips
screw

Option card

Option card
slot 1

Option card
slot 2

Motherboard

CS160020A

Installing the Contivity 1700

62 Chapter 4 Installing option cards and DIMMs

7 Slide the option card into the intended slot (Figure 22).

Make sure that the card is seated firmly in the slot. If the card is not seated
properly, it will not work.

Figure 22 Installing an option card

Option card

Option card
slot

8 Replace the screw that secures the card to the slot (see Figure 21 on page 61).

9 Replace the top cover on the chassis (see Figure 18 on page 56).

a Hold the cover at an angle and slide it onto the chassis.

b Using a screwdriver, insert and tighten the 4 screws that secure the cover

to the chassis.

314711-D Rev 00

Motherboard

CS160019A

10 If the Contivity 1700 is installed in an equipment rack, mount it in the rack.

a Set the Contivity 1700 on the rack-mount shelf in the rack.

b Insert one of the panhead screws through the bottom hole on each side of

the shelf into the hole in the rack and tighten the screws.

11 Replace the front bezel (Figure 23).

a Hold the bezel by its two handles and push it onto the chassis.

b Using a screwdriver, tighten the 2 screws to secure the bezel to the

chassis.

Figure 23 Replacing the front bezel

Chapter 4 Installing option cards and DIMMs 63

Press here

CS160015A

Installing the Contivity 1700

64 Chapter 4 Installing option cards and DIMMs

Installing and replacing DIMMs

The Contivity 1700 has two slots for dual inline memory modules (DIMMs) (see

Figure 19 on page 57). Unless you ordered additional memory, the Contivity 1700

is shipped with one 128 MB DIMM installed. You can upgrade memory in the
gateway by installing a second 128 MB DIMM.

This section provides instructions on adding a second DIMM to the Contivity
1700 or, if necessary, replacing an existing DIMM.

Caution: Make sure to install the same type of DIMM that is already
installed in your gateway. For example, do not install a 256 MB DIMM
in the Contivity 1700.

To install or replace a DIMM:

1 Shut down the Contivity 1700 using the Web GUI or the command line

interface and then unplug it as described in

or replace hardware” on page 54.

“Shutting down the system to add

Danger: Turn off the Contivity 1700 and unplug it before you attempt
to install a DIMM.

2 Remove the front bezel from the chassis, then remove the chassis from the

equipment rack (see

“Removing the front bezel and top cover” on page 55).

3 Remove the top cover from the chassis (see “Removing the front bezel and top

cover” on page 55).

4 Attach the antistatic wrist strap that was shipped with the Contivity 1700 (see

“Attaching the antistatic wrist strap” on page 58).

5 If you are replacing a DIMM, remove the installed DIMM as follows:

a Press down the locking lever on either side of the DIMM (Figure 24).

b Pull the DIMM up to remove it from the slot.

6 Press down the locking lever on either side of the slot where you plan to

install the DIMM

(Figure 24).

314711-D Rev 00

Chapter 4 Installing option cards and DIMMs 65

7 Place the new or replacement DIMM in the slot (Figure 24).

Use the alignment keys to properly position the DIMM in the slot.

8 Press the DIMM firmly into the socket.

9 Pull up the locking lever on either side of the DIMM to snap it into position.

Figure 24 Installing and removing a DIMM

Alignment keys

To remove DIMMs, pull back
locking levers and pull out DIMM.

To install DIMMs, pull back locking
levers and push in DIMM.

Locking lever

CS160008A

Installing the Contivity 1700

66 Chapter 4 Installing option cards and DIMMs

10 Replace the top cover on the chassis (see Figure 18 on page 56).

a Hold the cover at an angle and slide it onto the chassis.

b Using a screwdriver, insert and tighten the 4 screws to secure the cover to

the chassis.

11 If the Contivity 1700 is installed in an equipment rack, mount it in the rack.

a Set the Contivity 1700 on the rack-mount shelf in the rack.

b Insert one of the panhead screws through the bottom hole on each side of

the shelf into the hole in the rack and tighten the screws.

12 Replace the front bezel (see Figure 23 on page 63).

a Hold the bezel by its two handles and push it onto the chassis.

b Using the screwdriver, tighten the 2 screws to secure the bezel to the

chassis.

314711-D Rev 00

Appendix A
Technical specifications

This appendix provides technical specifications for the Contivity 1700 chassis and
its interfaces.

Chassis specifications

Tab le 13 lists physical, electrical, and environmental specifications for the chassis.

Table 13 Physical, electrical, and environmental specifications

Specification Description

67

Physical

Height 3.5 in. (8.89 cm)

Width 17 in. (43.18 cm)

Depth 16 in. (40.64 cm)

Weight 26 lbs. (11.79 kg)

Electrical

Voltage 100–120 VAC; 220–240 VAC

Current 2 A @ 100 VAC; 1 A @ 220 VAC

Frequency 50–60 Hz

Environmental

Operating temperature 32–104oF (0–40oC)

Storage temperature -40–185oF (-40–85oC)

Operating humidity 10–90% noncondensing

Storage humidity 10–95% noncondensing

Operating altitude 7000 ft (2133.6 m) maximum

Storage altitude 40,000 ft (12,192 m) maximum

Installing the Contivity 1700

68 Appendix A Technical specifications

System ports

The Contivity 1700 system board provides the following built-in interfaces:

• 10/100BASE Ethernet LAN port

• Serial port

This section provides information about the 10/100BASE Ethernet LAN port and
the serial port on the system board.

10/100BASE Ethernet LAN port

The system board provides one 10/100BASE Ethernet LAN interface on the rear
of the chassis. This LAN interface, which accommodates an RJ-45 straight­through cable, is generally used for Web management. Depending on whether you
will use the interface for 10BASE-T or 100BASE-TX operation, select cables for
the interface as follows:

• 100BASE-TX connections require Category 5 twisted-pair wire. The
100BASE-TX specification supports 100 Mb/s transmission over two pairs of
Category 5 twisted-pair Ethernet wiring: one pair each for transmit and
receive operations.

The maximum recommended cable segment length is 100 meters between a
100BASE-TX repeater and a workstation (due to signal timing requirements).
This wiring scheme complies with the EIA 568 wiring standard.

• 10BASE-T connections can use Category 3, 4 or 5 twisted-pair wiring.

Figure 25 shows the 10/100BASE connector and its pinouts.

Figure 25 10/100BASE Ethernet connector

RD+RD- TD-TD+

12345678

CS260010A

314711-D Rev 00

Appendix A Technical specifications 69

Tab le 14 provides the 10/100BASE Ethernet port pinouts.

Table 14 10/100BASE Ethernet port pinouts

Pin Description

1 RD +

2 RD -

3 TD +

6 TD -

Serial port

The system board provides a serial port on the rear of the chassis to enable
out-of-band management. Using the serial port, you can assign the management
IP address and subnet mask to the newly installed gateway (for more information,
see

Chapter 3, “Configuring the management IP interface,” on page 43).

The serial cable provided with the Contivity 1700 is a DB9/DB25-to-DB9/DB25
cable. This cable provides a crossover connection (transmit-to-receive and
receive-to-transmit). The DB9 connector goes into the gateway and the other DB9
or DB25 connector goes into your workstation.

Tab le 15 provides the multiple DB9/DB25 serial interface cable pinouts.

Table 15 Multiple DB9 and DB25 connector pinouts

Serial port
DB9 connector

Pinout Signal Pinout Signal Pinout Signal Pinout Signal

2 RXD 3 TXD > 2 RXD 3 TXD

3 TXD 2 RXD > 3 TXD 2 RXD

4 DTR 20 DSR > 6 DTR 6 DSR

5 Ground 7 Ground > 7 Ground 5 Ground

6 DSR 6 DTR > 20 DSR 4 DTR

7 RTS 4 RTS > 5 CTS 8 CTS

8 CTS 5 CTS > 4 RTS 7 RTS

Serial port
DB25 connector

Serial port
DB25 connector

Serial port
DB9 connector

Installing the Contivity 1700

70 Appendix A Technical specifications

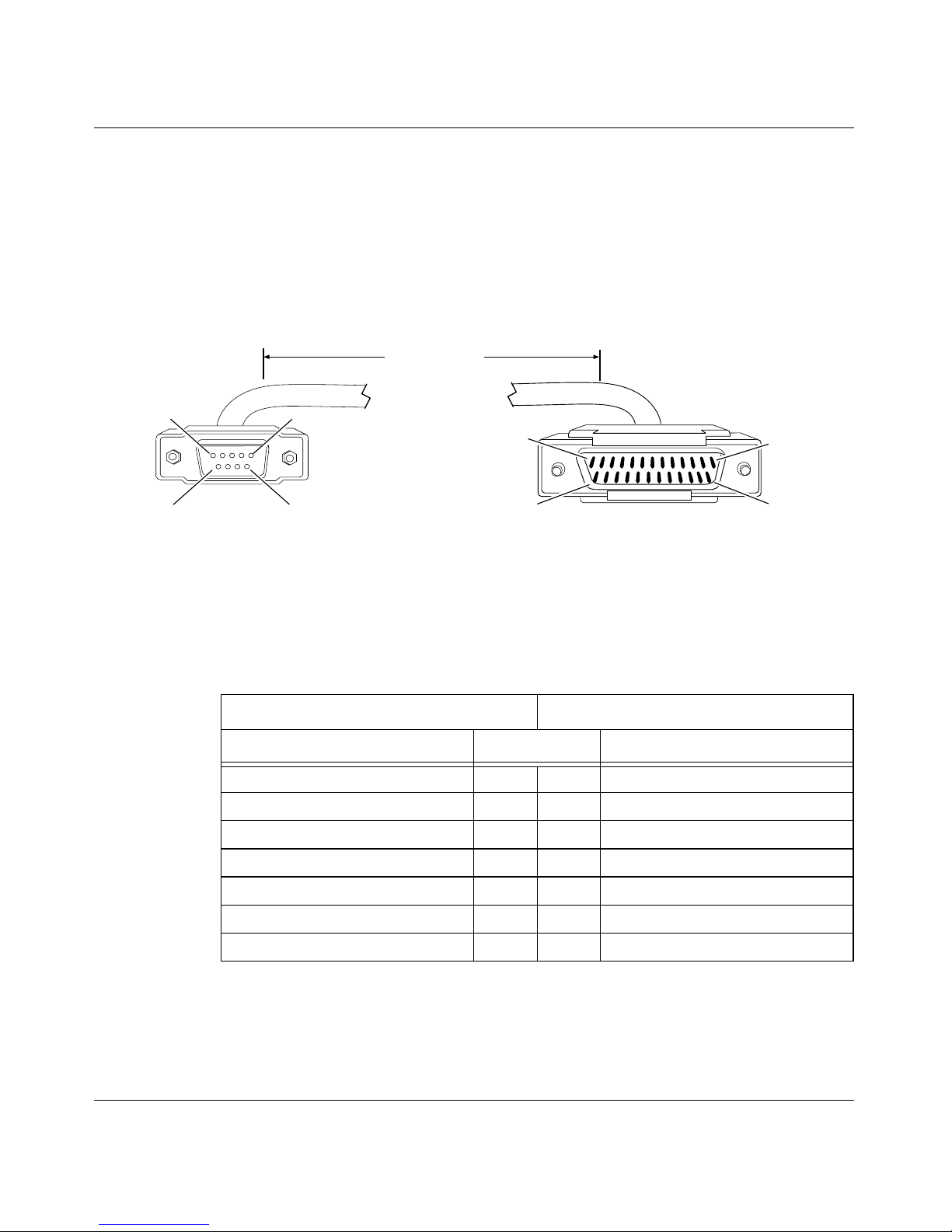

Modem cable specifications

If you need to connect a modem to a Contivity 1700, you must obtain an
appropriate modem cable. The modem cable must have a 9-pin D-sub plug that
connects to the Contivity 1700 serial port and a 25-pin D-sub plug that connects to
the RS-232-C modem port

Figure 26 Modem cable (9-pin D-sub plug to RS-232-C modem plug)

Pin 1Pin 5

(Figure 26).

10 ft

(3.05 m)

Pin 1

Pin 13

Pin 6Pin 9

9-position D-sub receptacle with screw locks

(ground shield connected to backshell)

Tab le 16 provides the modem cable pinouts.

Table 16 Modem cable pinouts

Nortel Networks termination Modem termination

Signal Pin # to Pin # Signal

Data Carrier Detect 1 8 Data Carrier Detect

Transmit Data (TXD) 2 2 Transmit Data (TXD)

Receive Data (RXD) 3 3 Receive Data (RXD)

Data Set Ready 4 6 Data Set Ready

Data Terminal Ready 6 20 Data Terminal Ready

Clear to Send 7 5 Clear to Send

Request to Send 8 4 Request to Send

Pin 14

25-position D-sub plug with screw locks

(ground shield connected to backshell)

Pin 25

CAB0056A

314711-D Rev 00

Hardware option cards

The Contivity 1700 provides two PCI slots that support a combination of the
following option cards:

• Hardware Accelerator card

• 10/100BASE Ethernet interface card

• 56/64K CSU/DSU WAN interface card

• ADSL WAN interface card

• ISDN BRI interface card

• T1 CSU/DSU WAN interface card (full-height card)

• T1/E1 CSU/DSU WAN interface card (half-height card)

• Quad T1/E1 CSU/DSU WAN interface card

• V.90 modem interface card

Appendix A Technical specifications 71

• Single V.35/X.21 WAN interface card

• Dual V.35 WAN interface card

• HSSI WAN interface card

This section provides information about the option cards, including the connector
and the cable pinouts for each supported network interface card.

Hardware Accelerator card

The Hardware Accelerator card performs bulk encryption and compression
algorithms for IPsec tunnel traffic. The Hardware Accelerator card uses a single

*

Hifn

7811 chip for encryption and compression. It performs triple DES and DES

cryptography, LZS

At startup, whenever a Hardware Accelerator card is manually enabled, or
whenever the card recovers from a failure, the power-on self-test (POST) verifies
the integrity of the hardware. This test includes validation of the accelerator card’s
encryption, MAC, and compression algorithms against their software
counterparts. In the event POST fails, the Hardware Accelerator card is set offline.

*

compression, and MD5 or SHA-1 authentication.

For more information about the Hardware Accelerator card and instructions for
configuring it, see the guide Configuring Advanced Features for the Contivity
Secure IP Services Gateway.

Installing the Contivity 1700

72 Appendix A Technical specifications

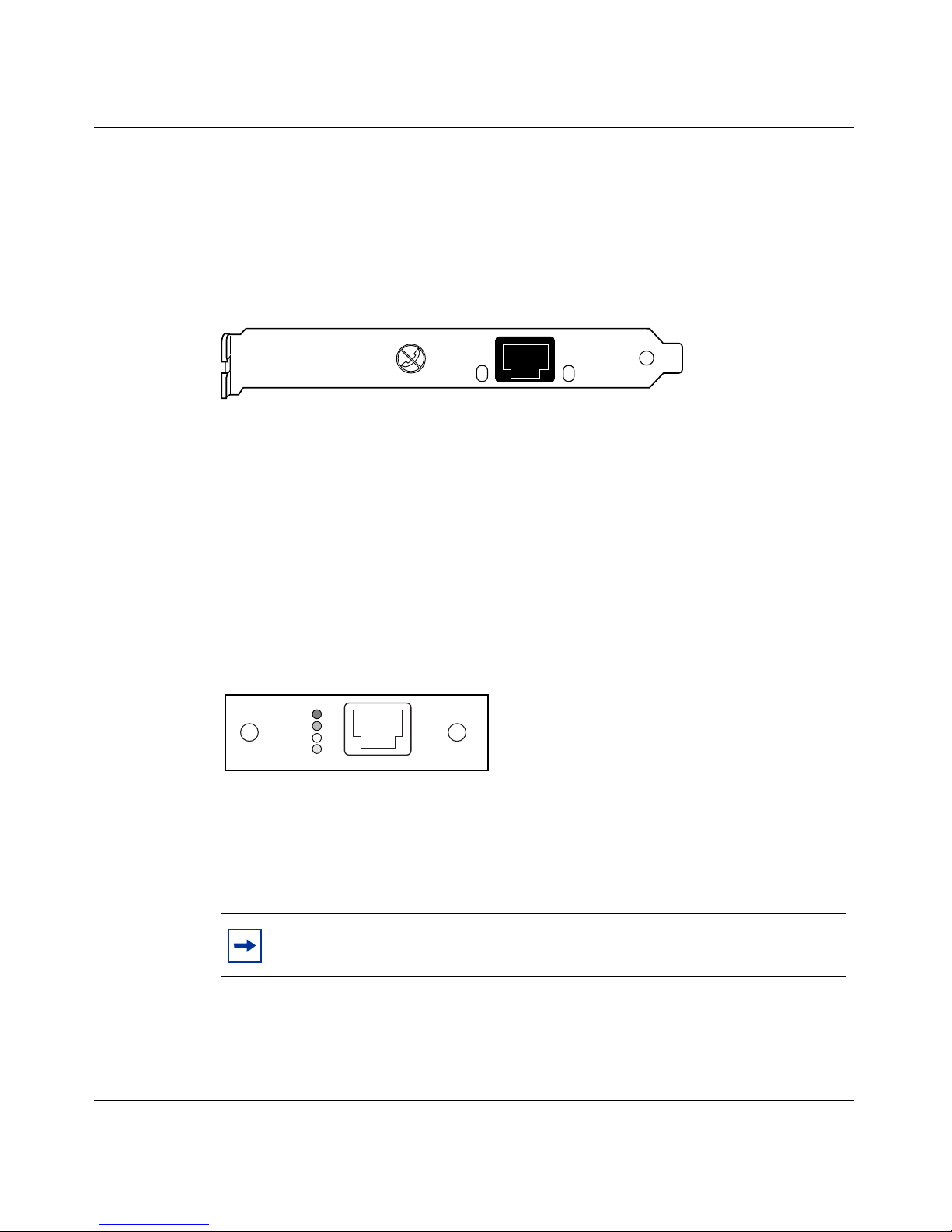

10/100BASE Ethernet interface card

The 10/100BASE Ethernet interface card has a single RJ-45 connector that
provides the signals needed to interface to 10BASE-T and 100BASE-TX Ethernet
equipment.

Figure 27 10/100BASE Ethernet interface card

Figure 27 shows the 10/100BASE Ethernet interface card.

DATA

ACT/LINK

For information about the cables that you can connect to this interface and the
cable pinouts, see

“10/100BASE Ethernet LAN port” on page 68.

56/64K CSU/DSU WAN interface card

The 56/64K CSU/DSU WAN interface card has a single RJ-48 connector that
provides the signals needed to interface to network equipment.
the 56/64K CSU/DSU WAN interface card.

Figure 28 56/64K CSU/DSU WAN interface card

56/64K

DDS

10972EA

100TX

CS260009A

Figure 28 shows

The connector on the 56/64K CSU/DSU WAN interface card accommodates an
8-pin RJ-48 modular patch cord. These cables are commonly sold as Category 5,
or Ethernet, cables.

Note: Nortel Networks does not supply an interface cable with the
56/64K CSU/DSU WAN interface card.

314711-D Rev 00

Appendix A Technical specifications 73

The cable you use should be wired in accordance with EIA-568-A wiring style.
This wiring style ensures that the transmit signal (pins 1 and 2) and the receive
signal (pins 7 and 8) are carried on a twisted pair inside the patch cord. The use of
factory-made patch cords is strongly recommended.

You connect the 56/64K CSU/DSU WAN interface card to the service provider
network using a straight-through cable or a crossover cable, depending on how the
service provider wired its jack.

• For a straight-through connection, you can use a standard Category 5
(Ethernet) straight-through cable.

• For a crossover connection, you cannot use a standard Category 5 crossover
cable. The 56/64K CSU/DSU crossover cable and the Ethernet crossover
cable are not interchangeable.

Tab le 17 provides the 56/64K CSU/DSU cable pinouts for a crossover connection.

Table 17 56/64K CSU/DSU cable pinouts for crossover connection

Nortel Networks termination Remote termination

Signal Pin # to Pin # Signal

Transmit tip 1 7 Receive tip

Transmit ring 2 8 Receive ring

not used 3 3 not used

not used 4 4 not used

not used 5 5 not used

not used 6 6 not used

Receive tip 7 1 Transmit tip

Receive ring 8 2 Tr an sm i t r i n g

The cable will operate properly if pins 3, 4, 5, and 6 are not connected.

Caution: For crossover connections, do not use Ethernet cable. The link
will not be established.

Installing the Contivity 1700

74 Appendix A Technical specifications

Tab le 18 provides the 56/64K CSU/DSU cable pinouts for a straight-through

connection.

Table 18 56/64K CSU/DSU cable pinouts for straight-through connection

Nortel Networks termination Remote termination

Signal Pin # to Pin # Signal

Transmit tip 1 1 Transmit tip

Transmit ring 2 2 Tra ns mi t r i n g

not used 3 3 not used

not used 4 4 not used

not used 5 5 not used

not used 6 6 not used

Receive tip 7 7 Receive tip

Receive ring 8 8 Receive ring

ADSL WAN interface card

The ADSL Annex A and Annex B WAN interface cards have a single RJ-11
connector that provides the signals needed to interface to the digital subscriber
line access multiplexer (DSLAM) and to telephone equipment.

Figure 29 shows the ADSL WAN interface card.

Note: The ADSL Annex A and ADSL Annex B cards look identical.

Figure 29 ADSL WAN interface card

ADSL

Included in the accessory box is a 7-foot RJ-11 cable to attach to the DSLAM.

Tx/Rx

CONN

10972EA

314711-D Rev 00

Appendix A Technical specifications 75

Tab le 19 provides the ADSL port pinouts.

Table 19 ADSL cable pinouts

Pin Function

1 N/C

2 Tip

3 Ring

4 N/C

ISDN BRI interface card

The ISDN BRI S/T and ISDN BRI U interface cards have a single RJ-45
connector that provides the signals needed to interface to ISDN equipment. (To
connect the ISDN S/T interface to the ISDN network, you must attach an external
NT-1 device to the RJ-45 connector.)

Figure 30 shows the ISDN BRI S/T interface card.

Figure 30 ISDN BRI S/T interface card

ISDN-ST

Figure 31 shows the ISDN BRI U interface card.

Figure 31 ISDN BRI U interface card

ISDN-U

10972EA

10972EB

Installing the Contivity 1700

76 Appendix A Technical specifications

The connector on the ISDN BRI S/T and ISDN BRI U interface cards
accommodates an 8-pin RJ-45 modular patch cord. These cables are commonly
sold as Category 5, or Ethernet, cables.

Note: Nortel Networks does not supply a cable with the ISDN BRI
interface cards.

Tab le 20 provides the ISDN BRI S/T cable pinouts.

Table 20 ISDN BRI S/T cable pinouts

Pin Function

1 N/C

2 N/C

3 Receive +

4 Tra ns mi t +

5 Tra ns mi t -

6 Receive -

7 N/C

8 N/C

Tab le 21 provides the ISDN BRI U cable pinouts.

Table 21 ISDN BRI U cable pinouts

Pin Function

1 N/C

2 N/C

3 N/C

4 U interface network connection (tip)

5 U interface network connection (ring)

6 N/C

7 N/C

8 N/C

314711-D Rev 00

Appendix A Technical specifications 77

T1/E1 CSU/DSU WAN interface card

The T1/E1 CSU/DSU WAN interface card has a single connector that provides the
signals needed to interface to T1 or E1 equipment.
CSU/DSU WAN interface card. This interface card ships as a half-height card and
as a full-height card.

Figure 32 T1/E1 CSU/DSU WAN interface card

Note: For E1 service, you must install the half-height version of the

T1/E1 CSU/DSU WAN interface card.

Figure 32 shows the T1/E1

CS160012A

The connector on the T1/E1 CSU/DSU WAN interface accommodates an 8-pin
RJ-48 modular patch cord. These cables are commonly sold as Category 5, or
Ethernet, cables.

Note: Nortel Networks does not supply the T1/E1 CSU/DSU WAN
interface cable with the WAN interface card.

The cable you use should be wired in accordance with EIA-568-A wiring style.
This wiring style ensures that the transmit signal (pins 4 and 5) and the receive
signal (pins 1 and 2) are carried on a twisted pair inside the patch cord. The use of
factory-made patch cords is strongly recommended.

You connect the T1/E1 CSU/DSU WAN interface card to the service provider
network using a straight-through cable or a crossover cable, depending on how the
service provider wired its jack.

• For a straight-through connection, you can use a standard Category 5
(Ethernet) straight-through cable.

• For a crossover connection, you cannot use a standard Category 5 crossover
cable. The T1/E1 CSU/DSU crossover cable and the Ethernet crossover cable
are not interchangeable.

Installing the Contivity 1700

78 Appendix A Technical specifications

Tab le 22 provides the T1/E1 CSU/DSU cable pinouts for a crossover connection.

Table 22 T1/E1 CSU/DSU cable pinouts for crossover connection

Standard-wired
end 8-pin male Signal name

1 RXDA<-TXDA wht/org pair 2A 5

2 RXDB<-TXDB orange pair 2B 4

3 not used wht/grn pair 3A 3

4 TXDB->RXDB blue pair 1B 2

5 TXDA->RXDA wht/blu pair 1A 1

6 not used green pair 3B 6

7 not used wht/brn pair 4A 7

8 not used brown pair 4B 8

Pair number
and conductor

Special-wired
end 8-pin male

The cable will operate properly if pins 3, 6, 7, and 8 are not connected.

Caution: For crossover connections, do not use Ethernet cable. The
T1/E1 CSU/DSU will not work to specifications. Data may be corrupted.

Tab le 23 provides the T1/E1 CSU/DSU cable pinouts for a straight-through

connection.

314711-D Rev 00

Table 23 T1/E1 CSU/DSU cable pinouts for straight-through connection

Nortel Networks termination Remote termination

Signal Pin # to Pin # Signal

Receive A (RXDA) 1 1 Receive A (RXDA)

Receive B (RXDB) 2 2 Receive B (RXDB)

not used 3 3 not used

Transmit B (TXDB) 4 4 Transmit B (TXDB)

Transmit A (TXDA) 5 5 Transmit A (TXDA)

not used 6 6 not used

not used 7 7 not used

not used 8 8 not used

Appendix A Technical specifications 79

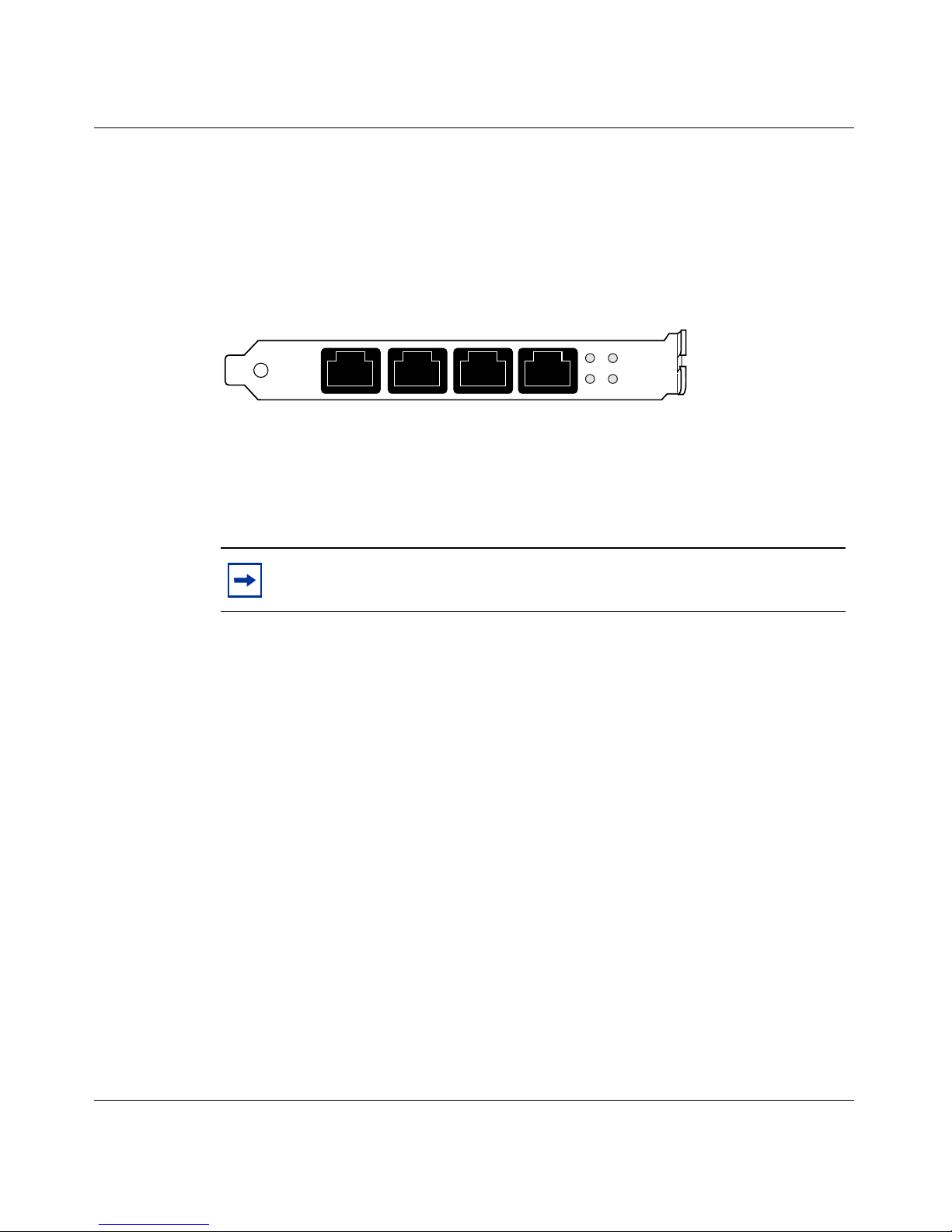

Quad T1/E1 CSU/DSU WAN interface card

The quad T1/E1 CSU/DSU WAN interface card has four connectors that provide
the signals needed to interface to T1 or E1 equipment.
T1/E1 CSU/DSU WAN interface card.

Figure 33 Quad T1/E1 CSU/DSU WAN interface card

Each connector on the quad T1/E1 CSU/DSU WAN interface card accommodates
an 8-pin RJ-48 modular patch cord. These cables are commonly sold as Category
5, or Ethernet, cables.

Figure 33 shows the quad

CS160012A

Note: Nortel Networks does not supply cables with the quad T1/E1
CSU/DSU interface card.

The cables you use should be wired in accordance with EIA-568-A wiring style.
This wiring style ensures that the transmit signal (pins 4 and 5) and the receive
signal (pins 1 and 2) are carried on a twisted pair inside the patch cord. The use of
factory-made patch cords is strongly recommended.

You connect the quad T1/E1 CSU/DSU WAN interface card to the service
provider network using a straight-through cable or a crossover cable, depending
on how the service provider wired its jack.

• For a straight-through connection, you can use a standard Category 5
(Ethernet) straight-through cable.

• For a crossover connection, you cannot use a standard Category 5 crossover
cable. The T1/E1 CSU/DSU crossover cable and the Ethernet crossover cable
are not interchangeable.

For information about the cable pinouts for a crossover connection, see Table 22

on page 78. For information about the cable pinouts for a straight-through

connection, see Tabl e 23 on page 78.

Installing the Contivity 1700

80 Appendix A Technical specifications

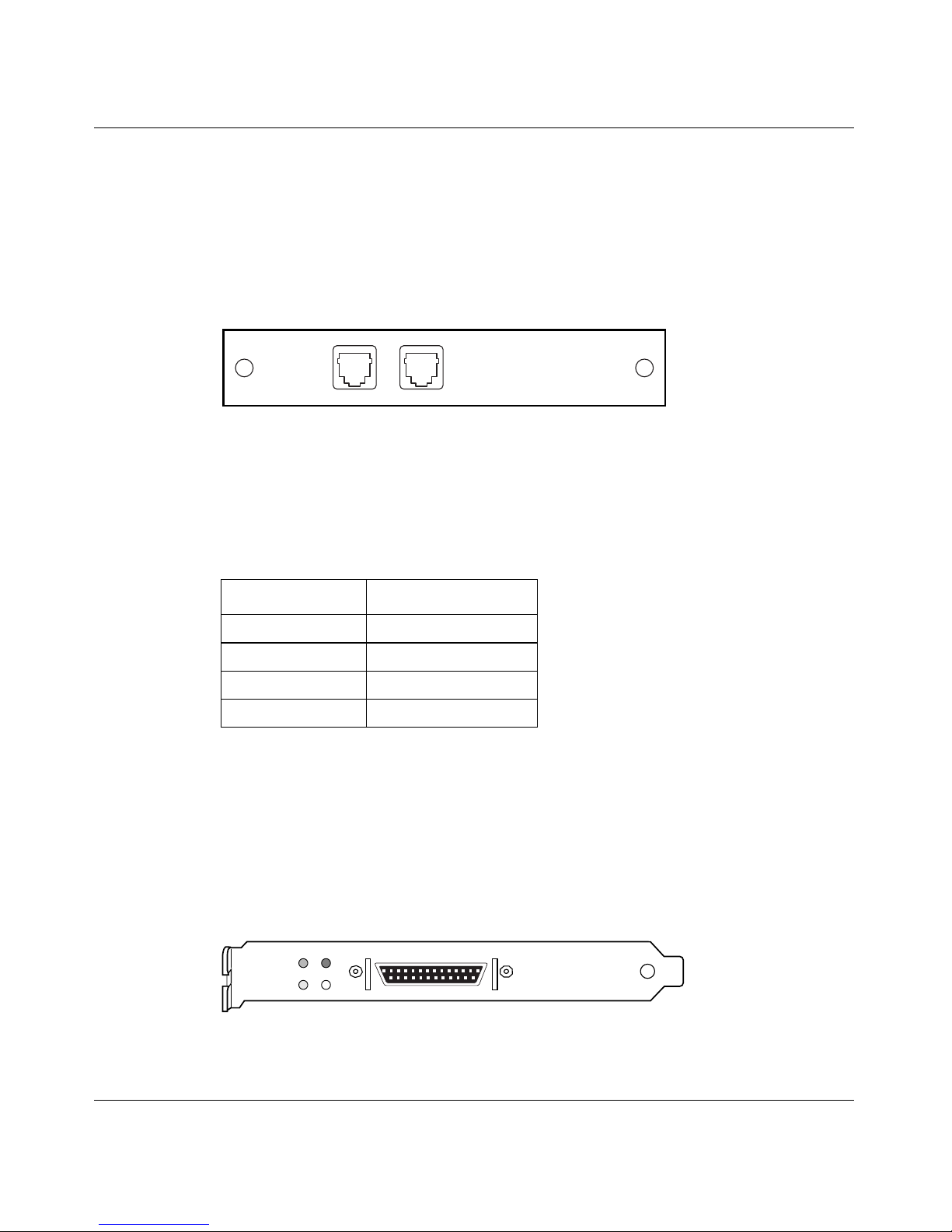

V.90 modem interface card

The V.90 modem interface card has two RJ-11 connectors that provide the signals
needed to interface to an incoming telephone line and to telephone equipment.

Figure 34 shows the V.90 modem interface card.

Figure 34 V.90 modem interface card

PHONE

LINE

Included in the accessory box is a 7-foot RJ-11 cable to attach to a telephone jack.

Tab le 24 provides the V.90 modem port cable pinouts.

Table 24 V.90 modem cable pinouts

Pin Function

1 N/C

2 Tip

3 Ring

4 N/C

Single V.35/X.21 WAN interface card

The single V.35/X.21 WAN interface card has a single DB28S connector that
provides the signals needed to interface to V.35 and X.21 equipment.
shows the single V.35/X.21 WAN interface card.

10973EA

Figure 35

Figure 35 Single V.35/X.21 WAN interface card

314711-D Rev 00

CS160011A

You need a DSU/CSU (digital service unit/channel service unit) between the
WAN connection and the gateway. You can order a V.35 or X.21 cable to attach to
the connector. This cable enables the WAN adapter to function as DTE (data
terminal equipment).

Tab le 25 provides the V.35 cable pinouts. Tabl e 26 on page 82 provides the X.21

cable pinouts. (The pair suffix A or B refers to an individual wire within a twisted
pair.)

Table 25 V.35 cable pinouts

Appendix A Technical specifications 81

Standard-wired
end 28-pin male Signal name

2 TXDA pair 1A P

14 TXDB pair 1B S

3 RXDA pair 2A R

16 RXDB pair 2B T

15 TXCA pair 3A Y

12 TXCB pair 3B AA

17 RXCA pair 4A V

9 RXCB pair 4B X

24 SCTEA pair 5A U

11 SCTEB pair 5B W

4 RTSA pair 6A C

19 RTSB pair 6B no conn Note 1

5 CTSA pair 7A D

13 CTSB pair 7B no conn Note 1

6 DSRA pair 8A E

Pair number
and conductor

Special-wired
end 34-pin male Notes

22 DSRB pair 8B J

20 DTRA pair 9A H

23 DTRB pair 9B no conn Note 1

8 DCDA pair 10A F

10 DCDB pair 10B no conn Note 1

18 LL pair 11A L

21 RL pair 11B N

Installing the Contivity 1700

82 Appendix A Technical specifications

Table 25 V.35 cable pinouts (continued)

Standard-wired
end 28-pin male Signal name

Pair number
and conductor

Special-wired
end 34-pin male Notes

25 TM pair 12A NN

26 M0<-SIGNAL GROUND pair 12B B Note 2

27 M1<-SIGNAL GROUND pair 13A B Note 2

28 M2 pair 13B no conn Note 1

1 SHIELD pair 14A A Notes 3,4

7 SIGNAL GROUND pair 14B B Notes 2,4

The following notes apply to the single V.35 DTE cable:

1. The term “no conn” means the wire is not connected to a pin in the 34-pin connector.

2. Wires 12B, 13A, and 14B connect to pin B in the 34-pin connector.

3. At each end, the cable shield and connector shell must connect respectively to pin A of the 34-pin connector and
pin 1 of the standard 28-pin connector.

4. Do not connect Shield to Signal Ground because these are separate signals.

Tab le 26 provides the X.21 cable pinouts. (The pair suffix A or B refers to an

individual wire within a twisted pair.)

Table 26 X.21 cable pinouts

Standard-wired
end 28-pin male Signal name

2 TXDA pair 1A 2

14 TXDB pair 1B 9

3 RXDA pair 2A 4

16 RXDB pair 2B 11

15 TXCA pair 3A 6

12 TXCB pair 3B 13

17 RXCA pair 4A pair 5A Note 1

9 RXCB pair 4B pair 5B Note 1

24 SCTEA pair 5A pair 4A Note 1

11 SCTEB pair 5B pair 4B Note 1

4 RTSA pair 6A 3

19 RTSB pair 6B 10

Pair number
and conductor

Standard-wired
end 15-pin male Notes

314711-D Rev 00

Table 26 X.21 cable pinouts (continued)

Appendix A Technical specifications 83

Standard-wired
end 28-pin male Signal name

Pair number
and conductor

Standard-wired
end 15-pin male Notes

5 CTSA pair 7A 5

13 CTSB pair 7B 12

6 DSRA pair 8A no conn Note 2

22 DSRB pair 8B no conn Note 2

20 DTRA pair 9A no conn Note 2

23 DTRB pair 9B no conn Note 2

8 DCDA pair 10A no conn Note 2

10 DCDB pair 10B no conn Note 2

18 LL pair 11A no conn Note 2

21 RL pair 11B no conn Note 2

25 TM pair 12A no conn Note 2

26 M0 pair 12B no conn Note 2

27 M1 pair 13A no conn Note 2

28 M2<-SIGNAL GROUND pair 13B 8 Note 3

1 SHIELD pair 14A 1 Note 4,5

7 SIGNAL GROUND pair 14B 8 Note 3,5

The following notes apply to the single X.21 cable:

1. Wires of pair 4 connect to wires of pair 5, but not to any pins in the DA-15.

2. The term “no conn” means the wire is not connected to a pin in the 15-pin connector.

3. Wires 13B and 14B connect to pin 8 in the 15-pin connector.

4. At each end, the cable shield and connector shell must connect to pin 1 of the connector.

5. Do not interconnect Shield to Signal Ground because these are separate signals.

Installing the Contivity 1700

84 Appendix A Technical specifications

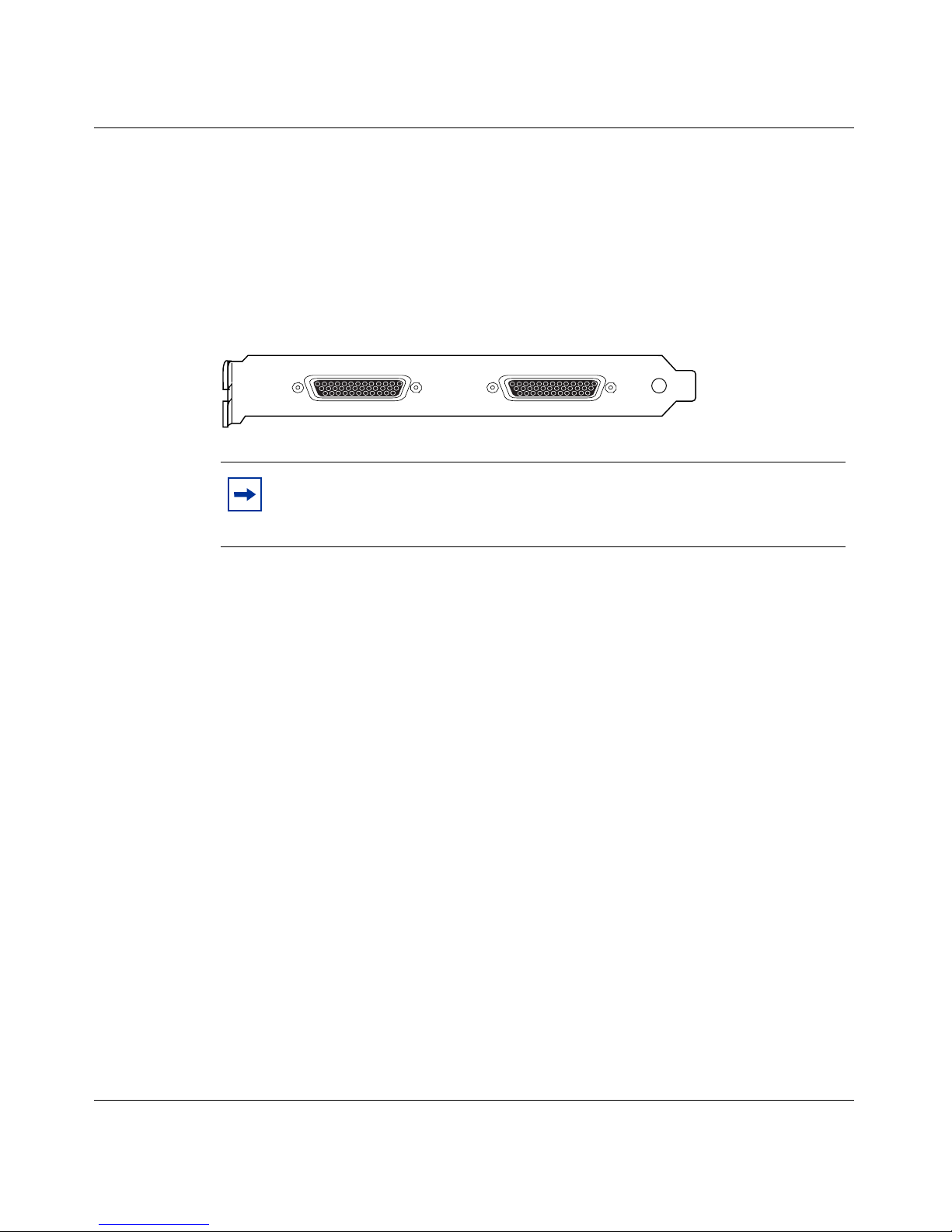

Dual V.35 WAN interface card

The dual V.35 WAN interface card has two DB26 connectors that provide the
signals needed to interface to V.35 equipment.

Figure 36 shows the dual V.35 WAN interface card.

Figure 36 Dual V.35 WAN interface card

Note: The dual V.35 WAN interface card is no longer available for

purchase. Version 5.0 is the last release of Contivity software that will
support the dual V.35 WAN interface card.

CS260016A

You need a DSU/CSU (digital service unit/channel service unit) between the
WAN connection and the gateway. This section describes the connector and cables
used with V.35 WAN synchronous adapters.

If you build your own V.35 DTE cables, observe the following guidelines:

• All connector hoods must be metal.

• Braid must enter and make contact inside the metal connector hood.

• V.35 conn strain relief must be conductive.

Included in the accessory box are two cables to attach to the V.35 connectors.
These cables enable the WAN adapter to function as DTE (data terminal
equipment).

314711-D Rev 00

Tab le 27 provides the DB26-to-V.35 cable pinouts.

Table 27 DB26-to-V.35 cable pinouts

Appendix A Technical specifications 85

Standard-wired end
26-pin male

2 TDA pair 1A P

14 TDB pair 1B S

3 RDA pair 2A R

16 RDB pair 2B T

24 ETA pair 3A U

11 ETB pair 3B W

17 RCA pair 4A V

9 RCB pair 4B X

15 TCA pair 5A Y

12 TCB pair 5B AA

4 RTS pair 6A C

5 CTS pair 7A D

6 DSR pair 8A E

Signal name

Pair number
and conductor

pair 6B no conn

pair 7B no conn

Special-wired end
34-pin male

pair 8B no conn

8 DCD pair 9A F

pair 9B no conn

20 DTR pair 10A H

pair 10B no conn

7 SGND pair 11A B

pair 11B no conn

1 CGND pair 12A A

pair 12B no conn

Installing the Contivity 1700

86 Appendix A Technical specifications

HSSI WAN interface card

The HSSI WAN interface card has a 50-pin SCSI II female connector that
provides the signals needed to interface to a T3 modem or modem eliminator.

Figure 37 shows the HSSI WAN interface card.

Figure 37 HSSI WAN interface card

Included in the accessory box is a cable that maps the T3 signals out to a 50-pin
SCSI II male connector.

Tab le 28 provides the T3 cable pinouts.

Table 28 T3 cable pinouts

CS460003A

50-pin SCSI male Signal name 50-pin SCSI male

1 GND 1

2 RCB 2

3 CAB 3

4 RDB 4

5 LCB 5

6 STB 6

7 GND 7

8 TA B 8

9 TTB 9

10 LAB 10

11 TDB 11

12 LBB 12

13 GND 13

19 GND 19

24 TESTB 24

25 GND 25

314711-D Rev 00

Appendix A Technical specifications 87

Table 28 T3 cable pinouts (continued)

50-pin SCSI male Signal name 50-pin SCSI male

26 GND 26

27 RCA 27

28 CAA 28

29 RDA 29

30 LCA 30

31 STA 31

32 GND 32

33 TA A 33

34 TTA 34

35 LAA 35

36 TDA 36

37 LBA 37

38 GND 38

44 GND 44

49 TESTA 49

50 GND 50

Installing the Contivity 1700

88 Appendix A Technical specifications

314711-D Rev 00

Index

89

Numbers

10/100BASE Ethernet interface card

cable specifications 68
connector 68
described 72
installing 59
LEDs 36

10/100BASE system LAN port

cable specifications 68
connector 68
LEDs 35

56/64K CSU/DSU WAN interface card

cable pinouts 73
connector 72
described 72
installing 59
LEDs 37

A

AC power cord

connecting 32
ordering 21
requirements 32

accelerator card, hardware encryption

described 71
installing 59

accessories, hardware, shipped with the

gateway 21

acronyms 16

ADSL WAN interface card

cable pinouts 75
connector 74
described 74

installing 59
LEDs 38

antistatic wrist strap, attaching 58

B

bezel, front

removing 26, 55
replacing 27, 63

browsers, supported 49

C

cables

available from Nortel Networks 30
connecting to the gateway 31
ordering 30
power. See AC power cord
technical specifications

100BASE-TX connector 68
10BASE-T connector 68
56/64K CSU/DSU WAN interface 72
ADSL WAN interface 74
dual V.35 WAN interface 84
HSSI WAN interface 86
ISDN BRI interface 76
modem 70
quad T1/E1 CSU/DSU WAN interface 79
serial interface 69
single V.35/X.21 WAN interface 81
T1/E1 CSU/DSU WAN interface 77
V.90 modem interface 80

cage nuts, when used 22, 24

Category 5 wiring requirements 68

Installing the Contivity 1700

90 Index

chassis

installing 23
removing

front bezel 26, 55
top cover 56

replacing

front bezel 27, 63
top cover 62

specifications 67

configuring the management IP address 45

connecting

cables 31
power cord 32
serial cable to the gateway 45
to the gateway using a browser 49

connectors

10/100BASE Ethernet interface 72
10/100BASE system LAN port 68
56/64K CSU/DSU WAN interface 72
ADSL WAN interface 74
dual V.35 WAN interface 84
HSSI WAN interface 86
ISDN BRI S/T interface 75
ISDN BRI U interface 75
quad T1/E1 CSU/DSU WAN interface 79
single V.35/X.21 WAN interface 80
T1/E1 CSU/DSU WAN interface 77
V.90 modem interface 80

Contivity 1700

configuring management IP address for 43
connecting cables to 29
connecting power cord 32
description 19
installing option cards and DIMMs 53
installing the chassis 23
shipment contents 21
shutting down 54
technical specifications 67
verifying a successful installation 33
verifying connectivity 49

conventions, text 16

cover, top

removing 56
replacing 62

customer support 18

D

default gateway, defined 44

DIMMs (dual inline memory modules),

installing 64

dual V.35 WAN interface card

connector 84
installing 59
pinouts 85

E

electrical specifications 67

encryption accelerator card, hardware

described 71
installing 59

environmental specifications 67

equipment rack, specifications 22

F

field replaceable units (FRUs), installing 53

front bezel

removing 26, 55
replacing 27, 63

front panel LEDs 34

G

gateway, default, defined 44

GUI, Web-based 49

H

Hardware Accelerator card

described 71
installing 59

314711-D Rev 00

Index 91

hardware accessories shipped with the gateway 21

hardware option cards

installing 59
specifications 71
See also 10/100BASE Ethernet interface card,

Hardware Accelerator card, serial interface
cards, WAN interface cards

HSSI WAN interface card

cable pinouts 86
connector 86
installing 59

I

installing DIMMs 64

installing option cards 59

installing the chassis

in an equipment rack 24
on a flat surface 23
prerequisites 20

interfaces, option card, technical specifications 71

interfaces, system, technical specifications 68

Internet Explorer, supported versions 49

IP address for managing the gateway. See

management IP address

ISDN BRI S/T interface card

cable pinouts 76
connector 75
installing 59

ISDN BRI U interface card

cable pinouts 76
connector 75
installing 59

L

LAN interface card

connector 68
installing 59
LEDs 36
specifications 72

LAN port, system

cable specifications 68
connector 68
LEDs 35

LEDs

10/100BASE Ethernet interface card 36
56/64K CSU/DSU WAN interface card 37
ADSL WAN interface card 38
front panel 34
quad T1/E1 CSU/DSU WAN interface card 40
single V.35/X.21 WAN interface card 41
system LAN port 35
T1/E1 CSU/DSU WAN interface card 39
used to verify correct installation 33

M

main menu, serial interface 46

management IP address

configuring 45
defined 44
troubleshooting configuration of 51
verifying 49

mask, subnet, defined 44

memory modules, adding and replacing 64

modem cable

described 70
pinouts 70

N

Netscape Navigator, supported versions 49

NT-1 device, required for ISDN BRI S/T 75

O

option cards

installing 59
specifications 71
See also 10/100BASE Ethernet interface card,

Hardware Accelerator card, serial interface
cards, WAN interface cards

Installing the Contivity 1700

92 Index

P

physical specifications 67

pinouts

10/100BASE Ethernet connector 68
56/64K CSU/DSU WAN interface 73
ADSL WAN interface 75
dual V.35 WAN interface 85
HSSI WAN interface 86
ISDN BRI S/T interface 76
ISDN BRI U interface 76
modem cable 70
quad T1/E1 CSU/DSU WAN interface 78
serial interface cable 69
single V.35 WAN interface 81
single X.21 WAN interface 82
T1/E1 CSU/DSU WAN interface 78
V.90 modem interface 80

plug, AC power, specifications 32

power cord

connecting 32
ordering 21
requirements 32

powering down the gateway 54

product support 18

publications

hard copy 18
related 17

Q

quad T1/E1 CSU/DSU WAN interface card

cable pinouts 78
connector 79
described 79
installing 59
LEDs 40

R

rack, equipment, specifications 22

rack-mount considerations 24

rack-mount shelf 24

requirements, site 22

RJ-45, pinouts 68

S

serial cable, connecting to the gateway 45

serial interface

cable pinouts 69
connecting modem to 70
described 69
using to configure the management IP

address 45

serial interface cards

installing 59
specifications

ISDN BRI 75
V. 9 0 m o d e m 80

serial main menu 46

shelf for rack-mount installation 24

shipment contents 21

shutting down the gateway 54

single V.35/X.21 WAN interface card

connector 80
installing 59
LEDs 41
V.35 pinouts 81
X.21 pinouts 82

site requirements 22

specifications

chassis 67
equipment rack 22
option cards 71
serial port 69
system ports 68

subnet mask, defined 44

support, Nortel Networks 18

system LAN port

cable specifications 68
connector 68
LEDs 35

system ports, specifications 68

314711-D Rev 00

Index 93

T

T1/E1 CSU/DSU WAN interface card

cable pinouts 78
connector 77
installing 59
LEDs 39

T3 HSSI WAN interface card. See HSSI WAN

interface card

technical publications 18

technical specifications 67

technical support 18

testing connectivity to the gateway 49

text conventions 16

top cover

removing 56
replacing 62

troubleshooting the management IP address 51

turning off the gateway 54

U

W

WAN interface cards

installing 59
LEDs

56/64K CSU/DSU 37
ADSL 38
quad T1/E1 CSU/DSU 40
single V.35/X.21 41
T1/E1 CSU/DSU 39

specifications

56/64K CSU/DSU 72
ADSL 74
dual V.35 84
HSSI 86
quad T1/E1 CSU/DSU 79
single V.35/X.21 80
T1/E1 CSU/DSU 77

Web interface to the gateway 49

Welcome screen 50

wiring requirements, Category 5 68

wrist strap, antistatic, attaching 58

user interface, Web 49

V

V.35 WAN interface card. See dual V.35 WAN

interface card

V.35/X.21 WAN interface card. See single

V.35/X.21 WAN interface card

V.90 modem interface card

cable pinouts 80
connectors 80
installing 59

verifying a successful installation 33

verifying the management IP interface 49

X

X.21 WAN interface card. See single V.35/X.21

WAN interface card

Installing the Contivity 1700

94 Index

314711-D Rev 00
