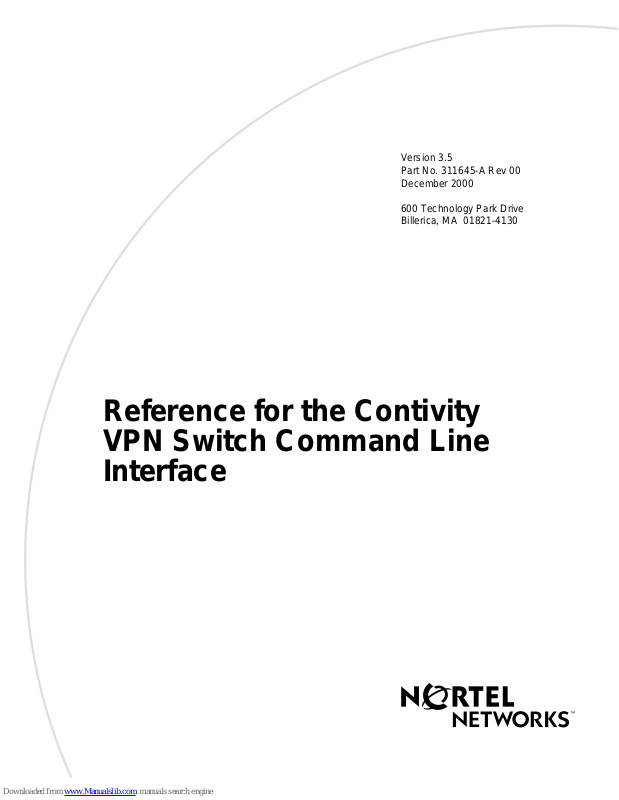

Nortel Contivity1510D Reference

Version 3.5
Part No. 311645-A Rev 00
December 2000

600 Technology Park Drive
Billerica, MA 01821-4130

Reference for the Contivity
VPN Switch Command Line
Interface

2

Copyright © 2000 Nortel Networks

All rights reserved. December 2000.
The information in this document is subject to change without notice. The statements, configurations, tech nical data,

and recommendations in this document are believed to be accurate and reliable, but are presented without express or
implied warranty . Users must take full responsibility for their applications of any products specified in this document.
The information in this document is proprietary to Nortel Networks NA Inc.

Trademarks

NORTEL NETWORKS is a trademark of Nortel Networks.
Bay Networks, Nortel Networks Extranet Switch 1500, Contivity, Extranet Ready, Personal Extranets, and

Infrastructure for Extranets are trademark s of Nortel Networks.
Microsoft, MS, MS-DOS, Win32, Windows, and Windows NT are registered trademar ks of Microsoft Corporation.
All other trademarks and registered trademarks are the property of their respective owners.

Restricted Rights Legend

Use, duplication, or disclosu re by the United States Government i s subject to restrictions as set forth in sub paragraph
(c)(1)(ii) of th e Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Notwithstanding any other license agreement that may pert ain to, or accompany the deliv ery of, this computer
software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in
the Commercial Computer Software-Restr icted Rights clause at FAR 52.227-19.

Statement of Conditions

In the interest of imp rov in g inte rn al d esi gn , ope ratio na l fun c tio n, and /or re lia bi lity, Nortel Networks NA Inc. re serves
the right to make changes to the products described in this document without notice.

Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s)
or circuit layout(s) describe d herein.

Portions of the code in this software product may be Copyright © 1988, Regents of the University of California. All
rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the
above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advert ising
materials, and other materials related to such distribution an d use acknowledge that such portions of the software were
developed by the University of California, Berkeley. The name of the University may not be used to endorse or
promote products derived from such portions of the software without specific prior written permission .

SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A P ARTICULAR PURPOSE.

In addition, the progra m and information contained herein are licensed onl y pursuant to a license agreem ent that
contains restrict ions on use and disclo sure (that may incor porate by reference certain limita tions and notices imposed
by third parties).

USA Requirements Only

311645-A Rev 00

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment gen erates, uses, and can radiate radio
frequency energy. If it is not installed and used in accordance with the instruct i on manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case users will b e required to take whatever measures ma y be necessary to correct the
interference at their own expense.

European Requirements Only

EN 55 022 Statement

This is to certify that the Nortel Networks Contivity Extranet Switch is shielded against the generation of radio
interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared
by the application of EN 55 022 Class A (CI SPR 22).

Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which
case, the user may be required to take appropriate measures.

Achtung: Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich
ist.

Attention: Ceci est un pro duit de Classe A. Dans un environnement domestique, ce pr oduit risque de créer des
interférences radioélectriques, il appartiendra alors à l’utilisateur de prendre les mesures spécifi ques appropriées.

3

EC Declaration of Conformity

This product co nforms (or these products conform) to the provision s of Council Directive 89/336/EEC and
73/23/EEC. Go to http://libra2.corpwest.baynetworks.com/cgi-bin/ndCGI.exe/DocView/ on the Nortel Networks
World Wide Web site for a copy of the Declaration of Conformity.

Japan/Nippon Requirements Only

Voluntary Control Council for Interference (VCCI) Statement

Canada Requirements Only

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (Contivity Extranet Switch) does not exceed the Class A limits for radio-noise emissions from
digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Reference for the Contivity VPN Switch Command Line Interface

4

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (Contivity Extranet Switch) respecte les limites de bruits radioélectriques visant les appareils
numériques de classe A pr escrites dans le R èglement sur le brouillage radioél ectrique du ministère des
Communications du Canada.

Nortel Networks NA Inc. Software License Agreement

NOTICE: Please carefully read this license agreement before copy in g or using the accompanyin g soft ware or
installing the hardware unit with pre-enabled software (each of which is referred to a s “Software” in this Agreement).
BY COPYING OR USING THE SOFTWARE, YOU ACCEPT ALL OF THE TERMS AND CONDITIONS OF
THIS LICENSE AGREEMENT. THE TERMS EXPRESSED IN THIS AGREEMENT ARE THE ONLY TERMS
UNDER WHICH NORTEL NETWORKS WILL PERMIT YOU TO USE THE SOFTWARE. If you do not accept
these terms and con ditions, return the product, unused and in the original shipping container, within 30 days of
purchase to obtain a credit for the full purchase price.

1. License grant. Nortel Netwo r ks NA Inc. (“Nortel Networks”) grants the end user of the Software (“Licensee”) a
personal, nonexclusive , nontran sferable license: a) to use the So ftware e ither on a singl e compu ter or, if applicable, on
a single authorized device identified by ho st ID, for which it was originally acquired; b) to copy the Software solely
for backup purposes in suppor t of authorized use of the Software; and c) t o use and copy the associated user ma nual
solely in support of authori zed use o f the Software by Licensee . This license a pplies to the So ftware on ly and does not
extend to Nortel Networks Agent software or other Nortel Networks software products. Nor tel Networks Agent
software or other Nortel Networks software products are licensed for use under the terms of the applicable Nortel
Networks NA Inc. Software License Agreement that accompanies such software and upon payment by the end user of
the applicable license fees for such software.

2. Restrictions on use; reservation of rights. The S oft ware and user manuals are protected und er copyright laws.
Nortel Networks and/or its licensors retain all title and ownership in both the Software and user manuals, including
any revisions made by Nortel Networks or its licensors. The co pyright notice must be reproduced and included with
any copy of any portion of the Software or user manuals. Licensee may not modify, translate, decompile, disassemble,
use for any co mpetitive analysis , r ev erse engineer , di s t ri b u te, or create derivativ e works from the Software or us e r
manuals or any copy, in whole or in part. Except as express ly provided in this Agreement, Licensee may not copy or
transfer the Software or user manuals, in whol e or in part. The Software and user manuals embo dy Nortel Networks ’
and its licens ors’ con fide n tia l an d pro pr iet ary intellectual property . Li cen see sh a ll n o t su bli cen se, a ssign , or oth e rwise
disclose to any thi rd party the Sof tware, or any infor mation about t he operation, design, performance, or
implementation of the Software and user manuals that is confidential to Nortel Networks and its licensors; however,
Licensee may grant permission to its consultants, subcontractors, and agents to use the Software at Licensee’s facilit y,
provided they have agreed to use the Soft ware only in accordance with the terms of this lic ense.

3. Limited warranty. Nortel Networks warrants each item of Software, as delivered by Nortel Networks and properly
installed and operated on Nortel Networks hardware or other equipment it is originally licensed for, to function
substantially as describ ed in its accompanying user manual during its warranty period, which b egins on the date
Software is first shipped to Licensee. If any item of Software fails to so function during its warranty period, as the so le
remedy Nortel Networks will at its discretion provide a suitable fix, patch, or workaround for the problem that may be
included in a future Software release. Nortel Networks further warrants to Licensee that the media on which the
Software is provided will be free from defects in materials and workmanship under normal use for a period of 90 days
from the date Software is first shipped to Licensee. Nortel Networks will replace defective media at no charge if it is
returned to Nortel Networks during the warranty period al ong with proof of t he date of shipment. This warranty does
not apply if the media ha s been damaged as a result of accident, misuse, or abuse. The Licensee assumes all
responsibility for selection of the Software to achieve License e’s intende d results and for the installation, use, and
results obtained from the Software. Nortel Networks does not warrant a) that the functions contained in the software
will meet the Licensee’s requirements, b) that the Software will ope rate in the ha rdware or softwar e combination s that
the Licensee may select, c) that the operation of the Software will be uninterrupted or error free, or d) th at al l d efect s
in the operation of the Software will be corrected. Nortel Networks is not obligated to remedy any Software defect

311645-A Rev 00

that cannot be reproduced with the late st Software r elease. Th ese warrantie s do no t apply to the S oftware if it ha s been
(i) altered, except by Nortel Networks or in accordance with its instructions; (ii) used in conjunction with another
vendor’s product, resulting in the defect; or (iii) damaged by improp er environ m ent, abuse , mi suse, acci dent , or
negligence. THE FOREGOING WARRANTIES AND LIMITATIONS ARE EXCLUSIVE REMEDIES AND ARE
IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMIT ATION
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Licensee is
responsible for the security of its own data and information and for maintaining adequate procedures apart from the
Software to reconstruct lost or altered files, data, or programs.

4. Limitation of liability. IN NO EVENT WILL NORTEL NETWORKS OR ITS LICENSORS BE LIABLE FOR
ANY COST OF SUBSTITUTE PROCUREMENT; SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES; OR ANY DAMAGES RESULTING FROM INACCURATE OR LOST DATA OR LOSS OF USE OR
PROFITS ARISING OUT OF OR IN CONNECTION WITH THE PERFORMANCE OF THE SOFTWARE, EVEN
IF NORTE L NETWORKS HAS BEEN ADVIS ED OF THE POSSIBILITY OF S UCH DAMAGES. IN NO EVENT
SHALL THE LIABILITY OF NORTEL NETWORKS RELATING TO THE SOFTWARE OR T HIS AGREEM ENT
EXCEED THE PRICE PAID TO NORTEL NETWORKS FOR THE SOFTWARE LICENSE.

5. Government licensees. This provision applies to all Software and docume ntation acquired d irectly o r indirec tly by
or on behalf of the United States Government. The Software and documentation are commercial products, licensed on
the open market at market prices, and were developed enti r ely at private expense and w ithout the use of any U.S.
Government funds. The license to the U.S. Gov ernm e nt is gran ted o nly with restric te d rights, and use , du p licat ion , or
disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1) of the Commercial
Computer Software––Restricted Rights c lause o f FAR 52.227-19 and th e limitations set out in this license for civilian
agencies, and subparagraph (c)(1)(ii) of the Rights in Technical Data and Co mputer Software clause of DFARS

252.227-7013, for agencies of the Department of Defense or their successors, whichever is applicab le.

6. Use of software in the European Community. This provision applies to all Software acquired for use within the
European Community. If Licensee uses the Software within a country in the European Community, the Software
Directive enacted by the Council of European Communities Directive dated 14 May, 1991, will apply to the
examination of the Software to facilitate interoperability. Licensee agrees to notify Nortel Networks of any such
intended examination of the Software and may procure support and assistance from Nortel Networks.

7. Term and termination. This license is effective until terminated; however, all of the restrictions with respect to
Nortel Networks’ copyright in the Software and user manuals will cease being e ffective at th e date of expiration of the
Nortel Networks copyright; those restric tions relatin g to use and disclosu re of Nortel Netwo rks’ co n fiden tia l
information shall continue in effect. Licensee may terminate this license at any time. The license will automatically
terminate if Licensee fails to comply with any of the terms and conditions of the license. Upon termination for any
reason, Licensee will immediat ely destroy or return to Nortel Networks the Software, user manuals, and all copies.
Nortel Networks is not liabl e to Licensee for damages in any form solely by reason of the termination of this license.

8. Export and r e-e xport. Li censee agrees not to export, directly or indirectly, the Software or related technical data or
information without first obtaining any required export licenses or other governmental approvals. Without limiting the
foregoing, Licensee, on beh alf of itself and its subsidiaries and a ffi liates, agre es that it will no t, without first obt aining
all export licenses a nd approvals required by the U.S. Government: (i) export, re-export, transfer, or divert any such
Software or technical data, or any direct product t hereof, to any country to which such exports or re-exports are
restricted or embargoed under United States expor t cont rol law s an d regu latio ns, or to any nationa l or re side nt of s uch
restricted or embargo ed coun trie s; or (ii) pro v ide the So ftwa re or related te c hnic al dat a or inform a tion to an y milita ry
end user or for any military end use, including the design, development, or production of any chemical, nuclear, or
biological weapons.

9. General. If any provision of this Agreement is held to be invalid or unenforceable by a court of competent
jurisdiction, the remainder of the provisions of this Agreement shall remain in full force and effect. This Agreement
will be governed by the laws of the state of California.

Should you have any qu estions concerning this Agreement, contact Nortel Networks, 4401 Great America Parkway,
P.O. Box 58185, Santa Clara, California 95054-8185.

5

Reference for the Contivity VPN Switch Command Line Interface

6

LICENSEE ACKNOWLEDGES THAT LICENSEE HAS READ THIS AGREEMENT, UNDERSTANDS IT, AND
AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. LICENSEE FURTHER AGREES THAT TH IS
AGREEMENT IS THE ENTIRE AND EXCLUSIVE AGREEMENT BETWEEN NORTEL NETWORKS AND
LICENSEE, WHICH SUPERSEDES ALL PRIOR ORAL AND WRITTEN AGREEMENTS AND
COMMUNICATIONS BETWEEN THE PARTIES PERTAINING TO THE SUBJECT MATTER OF THIS
AGREEMENT. NO DIFFERENT OR ADDITIONAL TERMS WILL BE ENFORCEABLE AGAINST NORTEL
NETWORKS UNLESS NORTEL NETWORKS GIVES ITS EXPRESS WRITTEN CONSENT, INCLUDING AN
EXPRESS WAIVER OF THE TERMS OF THIS AGREEMENT.

311645-A Rev 00

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Hard-copy technical manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

User interface help button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Nortel Networks Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Chapter 1

Introduct ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Contents 7

Accessing the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Access from a Telnet session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Access from the serial port menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Command modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

User Exec Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Privileged Exec Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Global Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Key bindings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 2

CLI Command Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

arp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

audible alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Reference for the Contivity VPN Switch Command Line Interface

8 Contents

clear arp-cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

clear ip route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

clear logging events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

311645-A Rev 00

Contents 9

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

console mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Reference for the Contivity VPN Switch Command Line Interface

10 Contents

enable password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

exception backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

host address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

311645-A Rev 00

Contents 11

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

hostname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

interface management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

ip http server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

kill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Reference for the Contivity VPN Switch Command Line Interface

12 Contents

ldap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

ldap-server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

ldap-server source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

311645-A Rev 00

Contents 13

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

logging history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

more . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Reference for the Contivity VPN Switch Command Line Interface

14 Contents

reload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

reload at . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

reload cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

reload in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

311645-A Rev 00

Contents 15

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

reload no-sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

server backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

server restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Reference for the Contivity VPN Switch Command Line Interface

16 Contents

server start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

server stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

show arp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

311645-A Rev 00

Contents 17

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

show exception backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

show file systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

show flash: contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

xample . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

show health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Reference for the Contivity VPN Switch Command Line Interface

18 Contents

show ip access-list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

show ip ospf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

show ip ospf database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

show ip ospf interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

311645-A Rev 00

Contents 19

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

show ip ospf neighbor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

show ip rip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

show ip rip database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

show ip rip interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Reference for the Contivity VPN Switch Command Line Interface

20 Contents

show ip route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

show ip route-policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

show ip traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

show ip vrrp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

311645-A Rev 00

Contents 21

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

show ldap-server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

show logging config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

show logging events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

show logging history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Reference for the Contivity VPN Switch Command Line Interface

22 Contents

show logging syslog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

show reload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

show logging security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

311645-A Rev 00

Contents 23

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

show sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

show version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

snmp-server contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

snmp-server location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Reference for the Contivity VPN Switch Command Line Interface

24 Contents

snmp-server name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

suffix remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

who . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Next command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

311645-A Rev 00

Contents 25

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Related commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188

Chapter 3

Bulk Load Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Load command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Command file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

File format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191

User commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Add User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193

Delete User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Add Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Modify Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Purge Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Delete Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Delete All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Branch office commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Add branch office connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Modify branch office connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Delete branch office connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Add branch office group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Modify branch office group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Contivity VPN Switch configuration commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Network definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Address pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210

Automatic backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

SYSLOG forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Licensing commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Usage notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Deletion of groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .219

Reference for the Contivity VPN Switch Command Line Interface

26 Contents

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

Required fields for user and branch records . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Group name syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

Certificate Distinguished Name order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

311645-A Rev 00

Preface

This book is intended for Nortel NetworksTM ContivityTM VPN Switch managers
and administrators. It provides reference information for each of the Web browser
configuration screens.

Conventions

This guide refers to the Contivity VPN Switch as the switch.. This guide assumes
that you are fa miliar with Web browsers and their general operation.

Documentation

27

This document uses the following conventions to distinguish among notes of
varying importance.

Note:

materials contained in this document.

Caution:

could result in damage to the equipment or loss of data.

Warning:

Before working on equipment, beware of the haza rds involved with
electrical cir cuitry and standard practices for preventing accidents, such
as disconnecting equipment from its power source.

Take notice. Notes contain helpful suggestions or references to

Be careful. In this situat ion, you might do something that

Danger. You are in a situat ion t hat co uld cause bodil y inj ury.

Reference for the Contivity VPN Switch Command Line Interface

28 Preface

Related publications

The follow ing list shows the associated documentation that you will need to
configure and manage the switch and describes the document’s objectives.

• Contivity VPN Switch Release Notes provide the latest inf orma ti on, i ncl uding
known problems, workarounds, and special considerations.

• Configuring the Contivity VPN Switch (included on the CD) provides
complete details to configure, monitor, and troubleshoot the switch.

• Reference for the Contivity VPN Switch provides reference information for
each of the Web browser configuration screens.

Text

This guide uses the following text conventions:

angle brackets (< >) Indicate that you choose the text to enter based on the

description inside the brackets. Do not type the
brackets when entering the command.

Example: If the command syntax is

bold Courier text

ping <ip_address>
ping 192.32.10.12

Indicates command names, options, and text that you

, you enter

need to enter.
Example: Use the
Example: Enter

show ip

dinfo

command.

{alerts|routes}

.

braces ({}) Indicate require d elements in sy ntax descripti ons where

there is more than one option. You must choose only
one of the options. Do not type the braces when
entering the command.

Example: If the command syntax is

show ip {alerts|routes}
show ip alerts

or

show ip routes

, you must enter either

, but not both.

311645-A Rev 00

Preface 29

brackets ([ ]) Indicate optional elements in syntax descriptions. Do

not type the brackets when entering the command.
Example: If the command syntax is

show ip interface [-alerts]

either

show ip interface -alerts

show ip interface

or

, you can enter

.

ellipsis points (. . . ) Indicate that you repeat the last element of the

command as needed.
Example: If the command syntax is

ethernet/2/1 [<parameter> <value>]...

you enter

ethernet/2/1

and as many

,

parameter-value pairs as needed.

italic text Indicat es new terms, book titles, and variables in

command syntax descriptions. Where a variable is two
or more words, the words are connected by an
underscore.

Example: If the command syntax is

show at <valid_route>, valid_route

is one

variable and yo u substitute one value for it.

plain Courier
text

Indicates command syntax and system output, for
example, prompts and system messages.

Example: Set Trap Monitor Filters

separator ( -> ) Shows menu paths.

Example: Protocols -> IP id entif ies t he IP opt ion on the
Protocols menu.

vertical line (

) Separates choices for command keywords and

|

arguments. Enter only one of the choices. Do not type
the vertical line when entering the command.

Example: If the command syntax is

show ip {alerts|routes}
show ip alerts or show ip routes

both.

, you enter either

, but not

Reference for the Contivity VPN Switch Command Line Interface

30 Preface

Acronyms

This guide uses the following acronyms:

AUI attachment unit interface
BootP Bootstrap Protocol
BRI basic rate interface
CSMA/CD carrier sense multiple access/collision detection
DLCMI Data Link Control Management Interface
HDLC High-level Data Link Control
IP Internet Protocol
ISDN Integrated Services Digital Network
ISO International Organization for St andardizat ion
ITU-T International Telecommunication

Union-Telecommunication Standardization Sector

(formerly CCITT)
MAC media accountants control
MAU media access unit
MDI-X medium dependent interface crossover
NBMA nonbroadcast multi-access
OSPF Open Shortest Path First
PPP Point-to-Point Protocol
SMDS Switched Multimegabi t Data Service
SNMP Simple Network Management Protocol
STP shielded twisted pair
TPE twisted pair Ethernet

311645-A Rev 00

Hard-copy technical manuals

You can print selected technical manuals and release notes free, directly from the
Internet. Go to the www25.nortelnetworks.com/library/tpubs/ URL. Find the
product for which you ne ed documentation. Then locate the specific category and
model or version for your hardware or software product. Use Adobe Acrobat
Reader to open the manuals and release notes, search for the sections you need,
and print them on most standard printers. Go to Adobe Systems at the

www.adobe.com URL to download a free copy of the Adobe Acrobat Reader.

You can purchase selected documentation sets, CDs, and technical publications
through the Internet at the www1.fatbrain.com/documentation/nortel/ URL.

You can purchase Nortel Networks documentation sets, CDs, and selected
technical publications through the Nortel Networks Collateral Catalog. The
catalog is located at support.baynetworks.com/catalog.html:

• The “CD ROMs” section lists available CDs.

Preface 31

• The “Guides/Books” section lists books on technical topics.

•

The “Technical Manuals” section lists available printed documentation sets.

Make a note of the part numbers and prices of the items that you want to order.
Use the “Marketing Collateral Catalog description” link to place an order and to
print the order form.

User interface help button

Click the Help button that is located in the upper right of displays to learn about
fields on a given page. Where appropriate, the information provides cause and
effect of an action; otherwise, it might offer troubleshoot

Reference for the Contivity VPN Switch Command Line Interface

32 Preface

Nortel Networks Customer Service

If you purchased a service contract for your Nortel Networks product from a
distributor or authorized reseller, contact the technical support staff for that
distributor or reseller for assistance.

If you purchased a Nortel Netw orks s ervic e progr am, c ontact on e of the f ollowing
Nortel Networks Technical Solutions Centers:

Technical Solutions Center Telephone

EMEA (33) (4) 92-966-968
North America (800) 2LANWAN or [phone]
Asia Pac i fic (61) (2) 9927-8800
China [phone]

An Express Routing Code (ERC) is available for many Nortel Networks produc ts
and services. When you use an ERC, your call is routed to a technical support
person who specia lizes in supporti ng that pro duct or ser vice. To locate an ERC for
your product or service, go to the www12.nortelnetworks.com/ URL and click
ERC at the bottom of the page.

311645-A Rev 00

Chapter 1
Introduction

This chapter provid es an int rodu ct ion to the Contivity VPN Switch Command
Line Interfac e (CLI).

Accessing the CLI

Access from a Telnet session

You access the CLI by starting a Telnet session to the switch’s Management IP
Address, for example:

telnet 10.0.16.247

33

You then log into the switch using an account with administrator privileges, for
example:

Login: admin
Password: *******
%%

Upon login, the CLI prompt appears (%%), indicating t hat you are in the CLI User
Exec Mode. You can execute any User Exec Mode commands or change the
command mode in order to execute other commands.

Note:

the CLI via a Telnet connection. Use the Services->Available screen to
enable the Telnet management protocol.

The Telnet protocol must be enabled on the switch in or der t o us e

Reference for the Contivity VPN Switch Command Line Interface

34 Chapter 1 Introduction

Access from the serial port menu

You can access the CLI through the Serial Port menu if you have a serial port
connection to the switch. Select L from the Serial Port menu, shown below, to
access the CLI.

Figure 1 Serial Port Menu

Command modes

The switch CLI has three comma nd modes.

• User Exec Mode

• Privileged Exec Mode

• Global Configuration Mode

311645-A Rev 00

Table 1 CLI Modes, Prompts and Access

Mode Prompt Access

Chapter 1 Introduction 35

User Exec Mode CES> Login via

Privileged Exec Mode CES# Enter the command

Global Config Mode

User Exec Mode

This is the initial command mode when the administrator first establishes a Telnet
connection to the switch. It is also called Exec mode.

This is a limited display mode. You cannot modify configuration parameters or
view the configuration file.

User Exec Mode prompt

CES>

User Exec Mode command s

CES(config)#

with

Telnet

and

password

Mode prompt.
Enter the command

the Privileged Exec Mode prompt.

.

administrator name

enable

configure terminal

at the User Exec

at

The follow ing table summarizes the User Exec Mode commands.

Table 2 User Exec Mode Commands

Command Description

clear ip route Remove a route from the route table
enable Enable privileged commands
exit Exit the Telnet session
help Display message about using help
ping Send ping message to a destination
show file systems List available file systems
show flash: contents Display flash settings

Reference for the Contivity VPN Switch Command Line Interface

36 Chapter 1 Introduction

Table 2 User Exec Mode Commands

Command Description

show ip access-list Display IP access lists
show ip ospf Display IP OSPF routing details
show ip ospf database Display IP OSPF database summary
show ip ospf interface Display IP OSPF interfaces
show ip ospf neighbor Display IP OSPF neighbor list
show ip rip Display IP RIP details
show ip rip database Display info about routes owned and

show ip rip interface Display info about interfaces

show ip route Display IP routing table
show ip route-policies Display IP route policies
show ip traffic Display information on IP traffic to/

imported by RIP

configured f o r RIP

from switch
show ip vrrp Display IP VRRP settings
show reload Show details of pending switch

reboot
show sessions Show current switch sessions
show version Show switch configuration and

hardware
trace Trace the route to a destination
who Display active Te lnet sessions on

switch

311645-A Rev 00

Privileged Exec Mode

This command mode is entered from User Exec mode with the enable command.
The administrator can e xi t fr om thi s mode wit h the disab le command, t he y will be
returned to User Exec mode.

This is a full display and configuration mode; it enables additional commands to
those in User Exec mode. Exec commands are typically one-time commands, for
example, show commands and clear commands.

Privileged Exec Mode prompt

CES#

Privileged Exec Mode commands

The follow ing table summarizes the Privileged Exec Mode commands

Chapter 1 Introduction 37

Table 3 Privileged Exec Mode commands

Command Description

clear arp-cache Clear ARP cache
clear logging events Clear event log
configure Enter configuration mode
disable Turn off privileged commands
help Display message about using help
kill Terminate a Telnet session
more Display the contents of a named file
reload Reboot switch immediately
reload at Schedule a switch reboot
reload cancel Cancel pending reboot
reload in Schedule a switch reboot
reload no-sessions Schedule switch reboot when no

more sessions
show arp Show ARP cache contents
show health Show overall system health
show logging config Show configuration log contents

Reference for the Contivity VPN Switch Command Line Interface

38 Chapter 1 Introduction

Table 3 Privileged Exec Mode commands

Command Description

show logging events Show event log contents
show logging history Show the logging history setting
show logging security Show security log co ntents
show logging syslog Show system log contents

Global Configuration Mode

This mode allows the administrator to make changes to the switch running
configuration. These changes are saved across reboots. This mode is also used to
access other configuration modes (Router, and so on, to be supported in
subsequent releases). The administrator enters this mode from Privileged Exec
mode using the configure command. To leave this mode and return to Privileged
Exec mode, the user enters Ctrl-Z.

Global Configuration Mode prompt

CES(config)#

Global Configuration Mode commands

The follow ing table summarizes the Global Configuration Mode commands.

Table 4 Global Configuration Mode commands

Command Description

arp Delete ARP cache entries
audible alarm Enable audible alarm
console mode Set administration console mode

(Mini-CLI)
control Maintain control tunnel connections

(Mini-CLI)
default logging history Set logging history level to default

value
enable password Assign privileged level password
end Exit from configure mode

311645-A Rev 00

Chapter 1 Introduction 39

Table 4 Global Configuration Mode commands

Command Description

exit Exit from configure mode
help Display message about using help
ip http server Enable/dis able HTTP management
ldap Control LDAP server (Mini-CLI)
load Bulk load configur ati on com m and s

(Mini-CLI)
logging history Control system logging level
logout Exit the Telnet session (Mini-CLI)
reset Set switch system boot mode

(Mini-CLI)
restore flash Restore factory default switch flash

settings
restore system Restore factory default switch

configuration
restrict Restrict management access to

save current_boot Save current boot config (Mini-CLI)
shutdown Shutdown the switch (Mini-CLI)
snmp-server contact Set the contact details for the switch
snmp-server locati on Set the locations details for the switch
snmp-server name Set the administrative name for the

Key bindings

You can use the Nortel Networks CLI (NNCLI) commands to edit command line
text entries. Table 2 describes key bindings for NNCLI.

Table 5 NNCLI key bindings

Keys Function

control-A start of line

(Mini-CLI)

switch

control-B back 1 character
control-C abort command

Reference for the Contivity VPN Switch Command Line Interface

40 Chapter 1 Introduction

Table 5 NNCLI key bindings

Keys Function

control-D delete 1 character
control-E end of line
control-F forward 1 character
control-H & delete character left of cursor
control-I & command/pa rameter com pletion
control-K delete all characters after cursor
control-L & control-R re-display line
control-N or down arrow next history command
control-P or up arrow previous history command
control-Q escape sequence for unprintables
control-T transpose characters
control-U delete entire line
control-W delete word left of cursor
control-X delete all characters before cursor

delete character at cursor
control-z “end” out of config mode
? context-sensitive help
esc-c & esc-u capitalize character at cursor
esc-l convert character at cursor to lowercase
esc-b backward 1 word
esc-d delete 1 word to the right
esc-f forward 1 word

311645-A Rev 00

Chapter 2
CLI Command Summary

This chapter provides a summary of all CLI commands. The Commands are listed
in alphabetical order.

arp

This command modifies the contents of the Address Resoluti on Protocol (ARP)
cache. On the Conti vit y VPN Switch, onl y the no f orm of the de f acto co mmand is
supported. There is no command to add a permanent entry to the ARP cache.

Syntax

41

no arp ip-address

Parameters

ip-address The IP address to be removed from the ARP cache.

Default

None

Command mode

Global Configuration

Reference for the Contivity VPN Switch Command Line Interface

42 Chapter 2 CLI Command Summary

Next command mode

Global Configuration

Related commands

show arp
clear arp-cache

311645-A Rev 00

audible alarm

This command enables and disables the audible alarm on the switch that is
sounded under certain error conditions.

Syntax

audible alarm
no audible alarm

Parameters

None

Default

Chapter 2 CLI Command Summary 43

Audible alarm is enabled.

Command mode

Global Configuration

Next command mode

Global Configuration

Related commands

show health

Example

CES(config)#no audible alarm

This example shows the audible alarm being switched off for the switch.

Reference for the Contivity VPN Switch Command Line Interface

44 Chapter 2 CLI Command Summary

clear arp-cache

This command deletes all dynamic entries from the ARP cache, to clear the
fast-switching cache, and to clear the IP route cache

Syntax

This command has no arguments or keywords.

clear arp-cache

Parameters

None

Default

None

Command mode

Privileged Exec

Next command mode

Privileged Exec

Related commands

arp
show arp

311645-A Rev 00

clear ip route

This command removes a route from the route table. Note that Static Routes are
not removed fro m the switch browser interface by this command. This command
is intended as a troubleshooting tool for use when routing problems are being
caused by the presence of a wrong route.

Syntax

Chapter 2 CLI Command Summary 45

clear ip route

address [mask]

Parameters

address The address of the network to remove from route table.

mask The mask associated with the address to remove.

Default

The mask defaults to 255.255.255.255.

Command mode

User Exec

Next command mode

User Exec

Warnings

Address not found in route table.

Reference for the Contivity VPN Switch Command Line Interface

46 Chapter 2 CLI Command Summary

Related commands

show ip route

Example

CES>clear ip route 10.11.0.12

311645-A Rev 00

clear logging events

This command is used to clear the contents of the system events log.

Syntax

clear logging events

Parameters

None

Default

None

Chapter 2 CLI Command Summary 47

Command mode

Privileged Exec

Next command mode

Privileged Exec

Related commands

show logging events

Example

CES>clear logging events

The example shows the command in use. This command does not give any
feedback to the user.

Reference for the Contivity VPN Switch Command Line Interface

48 Chapter 2 CLI Command Summary

configure

This command puts the CLI into global configuration mode. This allows the
administrator to access global configuration mode commands. To exit this mode,
the user can enter [control]-Z, the exit command, or the end command.

All global configuration commands are entered from the terminal.

Syntax

configure terminal

Parameters

None

Default

None

Command mode

Privileged Exec

Next command mode

Global configuration

Related commands

disable
enable
end

Examples

CES#configure

CES(config)#end

311645-A Rev 00

console mode

Chapter 2 CLI Command Summary 49

Note:

You must have a control tunnel es tablishe d before you can set this

command.

This is a mini-CLI c ommand tha t all o ws emul atio n of CLI c ommands available in
earlier versions of the Contivity VPN Switch software.

This command controls which menu items are visible on the serial port console
for the switch, and what CLI commands can be used.

When this command is used to set the switch in one of the two restricted modes,
the only CLI commands that are available are:

disable
enable
exit
reload
reload at
reload in
reload no-sessions

Because none of the Global Configuration mode commands are allowed, setting
the switch into a rest ricted mo de causes the CLI to return to Pri vile ged Ex ec mode
on the Telnet session wh ere t he command is issued. Other Telnet sessions wil l not
be forced back to Privileged Exec mode, but they will only supp ort the above CLI
command set.

The switch can be set back to an unrestricted mode on the System->Settings Web
management page.

Syntax

console mode {

restricted1|restricted2|show

Reference for the Contivity VPN Switch Command Line Interface

}

50 Chapter 2 CLI Command Summary

Parameters

restricted1 The system reset and reload commands to change the IP

interface address and mask are enabled.

restricted2 Only the system reload commands are enabled. The reload

command in the CLI only supports the boot-safe and
boot-normal parameters.

show Display the current console mode setting.

Default

The system boots in unrestricted mode, where all commands ar e enabled.

Command mode

Global configuration

Next command mode

Global configuration (console mode show) or Privileged Exec

Related commands

reload
reload at
reload in
reload no-sessions

Examples

CES(config)#console mode show

CONSOLE MODE is set to UNRESTRICTED

311645-A Rev 00

Chapter 2 CLI Command Summary 51

CES(config)#console mode restricted1

CONSOLE MODE has been set to RESTRICTED1.

CES#?

Exec commands:

disable Turn off privileged commands.

enable Turn on privileged commands.

exit Exit the Te lnet session.

reload Stop and perform a cold restart.

These examples show the default console mode setting, and how setting the
console mode to re strict ed force s the use r back t o Pri vile ged Ex ec mode and limi ts
the available CLI commands.

Reference for the Contivity VPN Switch Command Line Interface

52 Chapter 2 CLI Command Summary

control

This command allo ws emula tion of CLI commands a v aila ble in ear lier v ersions of
the switch software.

This command allows the administrator to create or delete control tunnels and to
display the currently existing control tunnels.

Control tunnels provide a secure means to manage the switch.

Syntax

control [

help

create|delete|show

] {

Parameters

help If present, the control command is not Executed, but some Help

about the command is displayed..

create Create control tunnels.

delete Delete control tunnels.

show Display the current control tunnels.

Command mode

Global configuration

Next command mode

}

Global configuration

Related commands

None

311645-A Rev 00

Examples

CES(config)#control Help delete

CES(config)#control create

CES(config)#control show

Chapter 2 CLI Command Summary 53

Reference for the Contivity VPN Switch Command Line Interface

54 Chapter 2 CLI Command Summary

disable

This command makes t he CLI pars er exit from Privileged Exec mode a nd return
to user Exec mode .

Syntax

disable

Parameters

None

Default

None

Command mode

Privileged Exec

Next command mode

User Exec

311645-A Rev 00

Related commands

configure

enable

end

Example

CES#disable

CES>

Chapter 2 CLI Command Summary 55

Reference for the Contivity VPN Switch Command Line Interface

56 Chapter 2 CLI Command Summary

enable

This command puts the CLI parser into Privileged Exec mode, allowing the
administrator to use additional CLI commands.

The administra tor i s p rompt ed for a case-sensitive password before the y can enter
privileged Exec mode. This password is created when the administrator user
account is set up using the Web management pages.

The user gets three at tempts to enter the password. After the third incorrect
attempt an error message is displayed (Bad secrets) and the User Exec prompt is
redisplayed.

Syntax

enable

Parameters

None

Default

None

Command mode

User Exec

Next command mode

Privileged Exec

Warnings

%Bad secrets

311645-A Rev 00

Related commands

configure

disable

enable password

Example

CES>enable

Password: fred (The password does not display.)

CES#disable

CES>

Chapter 2 CLI Command Summary 57

Reference for the Contivity VPN Switch Command Line Interface

58 Chapter 2 CLI Command Summary

enable password

This command allows the user to change the password used by the enable
command to get into privileged Exec mode. This is the same password as set on
the Profiles->Users Web page for the administator (user admin) account.

If the new password is not differ ent from the existing password, a warni ng
message is generated.

Syntax

enable password

password

Parameters

password The password is defined that the administrator types to enter

enable mode. This password is case sensitive.

Default

The default password is defined when the (administrator) user admin account is
created on the Profiles->Users Web management page.

Command mode

Global configuration

Next command mode

Global configuration

Warnings

New password is same as current one.

311645-A Rev 00

Related commands

configure

disable

enable

Examples

CES(config)#enable password fred
CES(config)#exit
CES#disable

CES>enable
Password: fred
CES#configure
CES(config)#enable password jane
CES(config)#exit
CES#disable

Chapter 2 CLI Command Summary 59

CES>enable
Password: fred
Password: joan
Password: charles
% Bad secrets

CES>enable
Password: jane
CES#configure
CES(config)#enable password jane

The enable password you have chosen is the same as your current
password.

This is not recommended. reenter the enable password.

This first e xample sho w s the passwor d being set in glob al conf igurat ion mode and
then asked for when the administrator tries to go from user Exec mode back to
privileged Exec mode. The administrator then changes the enable password and
enters an incorrect one three times.

The last example shows the error message displayed when the administrator tries
to reuse the existing password.

Reference for the Contivity VPN Switch Command Line Interface

60 Chapter 2 CLI Command Summary

exception backup

This command allows the administrator to define backup FTP servers for the
Contivity VPN Switch. A backup FTP server receives a copy of the LDAP
database, conf igurat ion f ile, a nd other sy stem f iles t hat ha ve changed si nce th e last
backup. A switch supports up to three backup FTP servers.

Syntax

exception backup {

hours

no exception backup {

default exception backup

] username user_name password userpassword

Parameters

1|2|3 The number of backup FTP se rvers being modified

backup_ip_add The IP address for backup server

backup_file_path If present, specifies the file path on the backup server

hours The time interval in hours between backups; range is 1 to

1|2|3

} backup-ip-add [

1|2|3

(defined/undefined)

where the files should be written.

8064 hours.

}

backup-filepath

interval

] [

user_name The user name that the switch uses to establish the FTP

user_password The user password that the switch use s to e stablis h th e FTP

Default

Defaults to 5 hours, if the interval is omitted.

311645-A Rev 00

connection to the backup server

connection to the backup server

Command mode

Global configuration

Next command mode

Global configuration

Related commands

show e xception backup

Example

CES(config)#exception backup 1 12.0.44.129 interval 4 username
BackupLogon password BackupPassword

Chapter 2 CLI Command Summary 61

Reference for the Contivity VPN Switch Command Line Interface

62 Chapter 2 CLI Command Summary

exit

This command allows the administrator to e xit a n y conf i gurat ion mo de or t o clos e
an active Telnet session if they use the command when in User Exec mode.

Syntax

exit

Parameters

None

Default

None

Command mode

Available in all command modes

Next command mode

Either the lower level command mode, or none because the Telnet session is
terminated

311645-A Rev 00

Related commands

end

Example

CES(config)#exit

CES#exit

CES>

This example shows a user starting in Global configuration mode and using the
exit command twice to end in User Exec mode.

Chapter 2 CLI Command Summary 63

Reference for the Contivity VPN Switch Command Line Interface

64 Chapter 2 CLI Command Summary

help

This command displays a message about how to use the Help system.

Syntax

help

Parameters

None

Command mode

Available in all command modes

Related commands

None

Example

CES#help

Help may be req uested at an y point in a command by ente ring a quest ion mark (? ).
If nothing matches, the Help list is empty and you must back up until entering a
question mark (?) shows the available options.

Two styles of Help are provided:

1

Full Help is available when you are ready to enter a command argument (for
example, show ?) and describes each possible argument.

2

Partial Help is provided when an abbreviated argument is entered and you
want to know what arguments match the input (for example, show arp?).

311645-A Rev 00

host address

This command establishes the IP address, port, bind DN, and bind password
settings for the external master and slave LDAP servers. The master server is the
primary server to process queries. If the master server becomes unavailable, the
switch attempts to use the slave LDAP servers. The switch reattempts connection
to the master server every 15 minutes or upon a configuration change. The switch
has read/write access to the master LDAP server. The slave servers are read-only.

Syntax

host address {master|slave1|slave2} [{port|ssl-port} [port_number]] [bind-dn
bind_dn_value] bind-password bind_password

no host {master|slave1|slave2}

Parameters

Chapter 2 CLI Command Summary 65

address The IP address for the LDAP server. Can be a dotted IP address

or a host name. The host name does not have to be fully
qualified if it is in the same domain as the switch.

master The settings for the master LDAP server

slave1 The settings for the slave 1 LDAP server

slave2 The settings are fo r the slave 2 LDAP server

port The port number that connects to the LDAP server

ssl-port The port number to connect to the LDAP server when using

SSL. In addition, the SSL encryption settings must be se.

port_number The port number to connect to on the LDAP server

bind-dn If pre sent, th e disti nguish ed name used to con nect to th e LDAP

server

Reference for the Contivity VPN Switch Command Line Interface

66 Chapter 2 CLI Command Summary

bind_dn_value The bind distinguished name (DN) used to connect to the

LDAP server. This is th e equivalent of a user ID for an LDAP
server. It can be omitted for an LDAP server that allows
anonymous access.

bind-password A password must be used during connection to the FTP server.

Default

Defaults to a non- SSL connection ma de to port 389. If ss l-port is speci fied wi thout
providing a port number value, the SSL connection attempt is made to port 636.

Command mode

Global configuration

Next command mode

Global configuration

Prerequisites

None

Related commands

ldap-server

show ldap-server

Example

See the example for the ldap-server command.

311645-A Rev 00

hostname

Syntax

Chapter 2 CLI Command Summary 67

This command allows the administrator to specify the DNS host name for the
switch. This name shou ld correspond t o the name in the DNS serv er to iden tify the
management address of the switch that is located on the private network.

hostname

string

Parameters

string The DNS name to assign to the s witch. This name can have up

to 64 characters.

Default

None

Command mode

Global configuration

Next command mode

Global configuration

Prerequisites

At least one DNS server should be specified.

Warnings

Validate against DNS server?

Reference for the Contivity VPN Switch Command Line Interface

68 Chapter 2 CLI Command Summary

Related commands

no hostname

ip domain-name

ip name-server

interface management

Example

CES(config)#hostnam e MarketingCES

This example assigns the name MarketingCES to the switch.

311645-A Rev 00

interface management

This command is used to specify the IP address that is used to connect to
systemfor the services such as HTTP, FTP, SNMP, and Telnet. The IP address
cannot be used for any other purpose.

Syntax

interface management

ip address address

exit

Parameters

address The IP address t hat i s used to connect to system serv ic es on the

switch

Chapter 2 CLI Command Summary 69

Command mode

Global configuration

Next command mode

Interface configuration

Warnings

IP Address is already in use on switch for other purposes.

Reference for the Contivity VPN Switch Command Line Interface

70 Chapter 2 CLI Command Summary

Related commands

ip http server

Example

CES(config)#interface management

Router(config-if)#ip address 10.0.3.33

Router(config-if)#exit

This command assigns th e IP address 10.0.3.33 to the switch for HTTP, FTP,
Telnet, and SNMP connections.

311645-A Rev 00

ip http server

This command allows the administrator to enable or disable management of the
switch using a Web browser . If HTTP management is disabled, t he switch can stil l
be managed using the Nortel Networks CLI.

Syntax

ip http server

no ip http server

Parameters

None

Default

Chapter 2 CLI Command Summary 71

This feat ure is enabled by default o n the switch.

Command mode

Global configuration

Next command mode

Global configuration

Reference for the Contivity VPN Switch Command Line Interface

72 Chapter 2 CLI Command Summary

Related commands

interface loopback

Example

CES(config)#no ip http server

This command disables management of the switch using a Web browser. The
switch can still be configured using the CLI.

311645-A Rev 00

kill

Chapter 2 CLI Command Summary 73

This command termi nates an identified Telnet session. The Telnet session ID can
be obtained using the who command.

Any in-progress session commands are completed and the session is then
terminated without any warning or message to the Telnet user.

If the session ID given by the administrator is not valid, or is not for a Telnet
session, the command displays an error message and does nothing.

Syntax

kill telnet_id

Parameters

telnet_id Session ID of Telnet session to be terminated

Command mode

Privileged Exec

Next command mode

Privileged Exec

Warnings

Invalid session ID.

Session is not a Telnet session.

Reference for the Contivity VPN Switch Command Line Interface

74 Chapter 2 CLI Command Summary

Related commands

who

show sessi ons

Example

CES# who

121: From 116.102.4.45
213: From 116.102.12.23
217: From 116.102.12.23
CES# kill 213

CES# who

121: From 116.102.4.45
217: From 116.102.12.23

This example shows a series of Telnet sessions active on the switch. One is
terminated using kill and the results are shown in the subsequent who command.

311645-A Rev 00

ldap

Chapter 2 CLI Command Summary 75

This is a mini-CLI command to allow emulation of CLI comm ands available in
versions of the switch software earlier than Release 3.0.

This command allows the administrator to:

• Start or stop the switch internal LDAP server

• Export the LDAP database to an LDIF file on the switch

• Import the LDAP database fr om an LDIF file on the switch

• Show the curren t LDAP server status

Syntax

help

ldap [

Parameters

help If present, the ldap command is not Executed, but some Help

export Export th e contents of the LDAP database to the na med LDIF

import Import the contents of the LDAP database from the named

show Display the status of the LDAP server.

start Start the LDAP server running. This command cannot be

export|import|show|start|stop

] {

about the command is displayed on the terminal.

file. The LDAP server must be stopped before an ldap export
can be performed.

LDIF file. The current LDAP database contents are replaced.
The LD AP serv er must be st opped befor e an ldap i mport can be
performed.

performed while the LDAP server is performing an export or
import command. This command cannot be Executed unless
the LDAP server is actually stopped.

}

Reference for the Contivity VPN Switch Command Line Interface

76 Chapter 2 CLI Command Summary

stop Stop the LDAP server running. This command cannot be

Executed unless the LDAP server is actually running.

Default

None

Command mode

Global configuration

Next command mode

Global configuration

Warnings

LDAP server is currently running.

LDAP server is already running.

LDAP server is already stopped .

Invalid LDIF file name.

LDIF file does n ot exist.

Example

CES(config)#ldap show

CES(config)#ldap stop

CES(config)#ldap export

CES(config)#ldap start

311645-A Rev 00

ldap-server

This command is used to configure the settings for the LDAP server used by the
switch to store the configuration settings that are not specific to an individual
switch. The LDAP server can be internal to the switch being administered, or can
be an external server that is shared by on e or more Contivities.

Syntax

Chapter 2 CLI Command Summary 77

ldap-server {

Parameters

internal Enter LDAP server co nfiguration mo de for the internal LDAP

external Enter LDAP server configuration mode for an external LDAP

Default

When initially configured, the switch has an internal LDAP server.

Command mode

Global configuration

internal|externa

server.

server.

l}

Next command mode

LDAP server configuration

Reference for the Contivity VPN Switch Command Line Interface

78 Chapter 2 CLI Command Summary

Related commands

ldap-server source

show ldap-server

Example

CES(config)#ldap-server source internal

CES(config)#ldap-server internal

Router(config-ldap)#server stop

Router(config-ldap)#server backup bk0901

Router(config-ldap)#server start

Router(config-ldap)#exit

This example sets the switch to use the interna l LD AP serv er , st ops the serv er, and
backs up the current server datab ase to an LD IF file named /ide0/system/slapd/
ldif/bk0901. The prompt returns after the backup is completed, then the
administrator restarts the LDAP server.

CES(config)#ldap-server external

Router(config-ldap)#domain-delimiter @ suffix
Router(config-ldap)#suffix remove
Router(config-ldap)#host 122.33.102.44 master bind-dn cn=Management
bind-password myPas4wd
Router(config-ldap)#base-dn ou=engineering, o=Nortel Networks, c=US
Router(config-ldap)#exit
CES(config)#ldap-server source external

This example specifies the settings for a master LDAP server at IP address

122.33.102.44 port number nnn, with a bind DN and base DN. The domain
delimiter is t he char acter @ and t he domain su f f i x is r emo ve d. Th e swit ch is set t o
use the exter nal LDAP server.

311645-A Rev 00

ldap-server source

This command set s the source of the LDAP server used by the switch to either t he
internal LDAP server on the switch itself, or an external LDAP server that can be
shared by one or more Contivities.

Syntax

ldap-server source {internal|external}

Parameters

internal Use the internal LDAP server for switch configuration data.

external Use the external LDAP server for switch configuration data.

Chapter 2 CLI Command Summary 79

Default

When initially configured, the switch has an internal LDAP server.

Command mode

Global configuration

Next command mode

Global configuration

Prerequisites

If setting to an external LDAP server, the settings must already have been
configured for the LDAP server.

Reference for the Contivity VPN Switch Command Line Interface

80 Chapter 2 CLI Command Summary

Warnings

External LDAP server not configured.

Cannot reach external LDAP server.

Related commands

ldap-server

show ldap-server

Example

See the example for the ldap-server command.

311645-A Rev 00

load

Chapter 2 CLI Command Summary 81

This is a mini-CLI command to allow emulation of CLI comm ands available in
earlier versions of the switch software.

This command allows the administrator to use t he Bulk Load facility to Execut e a
command file that has been previously copied to the switch using FTP. The
commands in the file can configure various settings on the switch. This facility is
used to bulk configure the switch.

Syntax

load filename

Parameters

filename The name of the file on the switch that contains the bulk load

commands.

Default

None

Command mode

Global configuration

Next command mode

Global configuration

Reference for the Contivity VPN Switch Command Line Interface

82 Chapter 2 CLI Command Summary

Prerequisites

The LDAP server must be running.

Related commands

ldap

Example

CES(config) #load /ide0 /system/t est.cmd

311645-A Rev 00

logging history

This command determines what types of messages are stored in the system logs.
Once the message type level has been established, future messages stored in the
system logs must be at or above this level for th em to be saved.

This is different from the IOS implementation, where this command only affects
syslog messages.

On the switch a warning is display ed if the level set w ith this com mand does not
agree with the level required for syslog message forwarding (as set in the logging
facility syslog command).

Syntax

Chapter 2 CLI Command Summary 83

logging history {

default logging history

Parameters

alerts Log all emergency and alert messages.

errors Previous level plus critical and erro r conditions.

notifications Previous level and warnings and notifications.

debugging All message levels.

default Sets logging level back to alerts for future messages.

Default

Defaults to a logging l evel of alerts.

alerts|errors|notifications|debugging

}

The default logging history command sets the level to errors for future messages.

Reference for the Contivity VPN Switch Command Line Interface

84 Chapter 2 CLI Command Summary

Command mode

Global configuration

Next command mode

Global configuration

Warnings

Does not agree with syslog forwarding settings.

Related commands

show logging history

logging facility syslog

show logging syslog

Example

CES(config)#logging history errors

This command sets the system logging on the switch to store emergency, alert,
critical, and error condition messages in the system log.

311645-A Rev 00

logout

Syntax

Parameters

Chapter 2 CLI Command Summary 85

This is a mini-CLI command to allow emulation of CLI comm ands available in
earlier versions of the switch software.

This command logs the administrator off the swi tch and terminates the Telnet
session. It is equivalent to using the exit command in User Exec mode.

logout

None

Command mode

Global configuration

Next command mode

Global configuration

Related commands

exit

Example

CES(config)#logout

This example disconnects the session.

Reference for the Contivity VPN Switch Command Line Interface

86 Chapter 2 CLI Command Summary

more

This command displays a readable file on the switch. The file is displayed on
T e lnet scree n at a time. The user can use the pagina tion ke ys to see the next scr een
or line in the file, or to quit from the display.

It differs from the de facto standard in that it cannot be used to display a file on a
remote file system. It also does not support the /ebcdic output switch that causes
the file to be printed in EBCDIC mode.

On the swi tch, this command is lim ited to files th at are 10KB or smaller. If the
user tries to use more on a file that is larger than 10KB, an error message is
displayed.

Syntax

more [/

Parameters

/ascii Display file in ASCII.

/binary Display file in binary.

file Fully qualif ied name of th e swit ch f i le t o disp lay. The name has

Default

The default depends on the type of file. If the file contains non-printable
characters, it defaults to binary output, otherwise it defaults to ASCII output. You
cannot print a binary file in ASCII for mat output. If you attempt to print a binary
file in ASCII output format, the switch is ignored.

ascii|/binary

the format :

diskn:[directory/]file.ext

where: diskn is either disk0 or disk1, there are zero or more
directory names and there is a file name.

] file

311645-A Rev 00

Printable chara cte rs ar e char acter s whose chara cte r code s are in the range dec imal
32 (space) to decimal 126 (~) inclusive, plus the characters \t (decimal 9),
\n (decimal 10), and \r (decimal 13). Non-pri ntable ch aracter s are repr esented b y a
period (.) in the ASCII part if the binary output format .

Command mode

Privileged Exec

Next command mode

Privileged Exec

Warnings

File not found.

Chapter 2 CLI Command Summary 87

Cannot display a file that is larger that 10KB.

Reference for the Contivity VPN Switch Command Line Interface

88 Chapter 2 CLI Command Summary

Example

CES#more disk0:system/config/CFG01022.DAT

+AccessLst[abc]
AccessLst[abc].Name=abc
+AccessLst[abc].Rule[11.4.1.6:1.1.1.1:DENY]
AccessLst[abc].Rule[11.4.1.6:1.1.1.1:DENY].Key=11.4.1.6:1.1.1.1:DENY
AccessLst[abc].Rule[11.4.1.6:1.1.1.1:DENY].Protocol=IP
AccessLst[abc].Rule[11.4.1.6:1.1.1.1:DENY].SourceAddr=11.4.1.6
AccessLst[abc].Rule[11.4.1.6:1.1.1.1:DENY].SourceWildcard=1.1.1.1
+AccessLst[abc].Rule[abdguiwfeh:255.255.0.0:Permit]
AccessLst[abc].Rule[abdguiwfeh:255.255.0.0:Permit].Action=PERMIT
AccessLst[abc].Rule[abdguiwfeh:255.255.0.0:Permit].Key=abdguiwfeh:255.255.0.0:Permit
AccessLst[abc].Rule[abdguiwfeh:255.255.0.0:Permit].SourceWildcard=255.255.0.0
+AccessLst[abc].Rule[2.0.0.0:255.0.0.:Permit]
AccessLst[abc].Rule[2.0.0.0:255.0.0.:Permit].Action=PERMIT
AccessLst[abc].Rule[2.0.0.0:255.0.0.:Permit].Key=2.0.0.0:255.0.0.:Permit
AccessLst[abc].Rule[2.0.0.0:255.0.0.:Permit].SourceAddr=2.0.0.0
+AccessLst[bar]
AccessLst[bar].Name=bar
+AccessLst[bar].Rule[1.2.0.0:255.255.0.0:0]
AccessLst[bar].Rule[1.2.0.0:255.255.0.0:0].Key=1.2.0.0:255.255.0.0:0

CES#

CES#more /binary disk0:system/config/CFG01022.DAT

00000000: 0A210A21 204C6173 7420636F 6E666967 .!.! Las t co nfig
00000010: 75726174 696F6E20 6368616E 67652061 urat ion chan ge a
00000020: 74203134 3A30333A 32322070 73742046 t 14 :03: 22 p st F
00000030: 72692041 75672032 37203139 39390A21 ri A ug 2 7 19 99.!
00000040: 204E5652 414D2063 6F6E6669 67206C61 NVR AM c onfi g la
00000050: 73742075 70646174 65642061 74203134 st u pdat ed a t 14
00000060: 3A30393A 30392070 73742046 72692041 :09: 09 p st F ri A
00000070: 75672032 37203139 39390A21 0A766572 ug 2 7 19 99.! .ver
00000080: 73696F6E 2031322E 300A7365 72766963 sion 12. 0.se rvic

This first example of using more to dis play the co ntents of a config file in ASCII
mode. The second example (with bogus file contents) of the binary output format.

311645-A Rev 00

ping

Chapter 2 CLI Command Summary 89

The ping (packe t internet groper function) command provid es a basic ping fa cility.
It sends three 100-byte ping packets.

The ping command does not recognize DNS names with hyphens.

Syntax

ping {

host | address

Parameters

address The IP address of system to ping

host The host name of system to ping

scr_host The source host name

scr_address The source IP address

Default

None

Command mode

scr_host | scr_address

} [

]

User Exec

Next command mode

User Exec

Reference for the Contivity VPN Switch Command Line Interface

90 Chapter 2 CLI Command Summary

Warnings

If the system cannot map an address for a ho st name, it returns a "% Unknown
Host" error message.

Related commands

trace ip {

Examples

CES>ping 122.104.11.112

PING 122.104.11.112: 56 data bytes

64 bytes from 122.104.11.112: icmp_seq=0. time= 16 ms

64 bytes from 122.104.11.112: icmp_seq=1. time=<16 ms

64 bytes from 122.104.11.112: icmp_seq=2. time=<16 ms

----122.104.11.112 PING Statistics----

3 packets transmitted, 3 packets received, 0% packet loss

round-trip (ms) min/avg/max = <16/<16/16

CES>ping badaddress.com

ping: unknown host baddaddress.com

host | address

}

CES>ping 10.0.4.44

PING 10.0.4.44: 56 data bytes

ping: timeout

no answer from 10.0.4.44

The examples show a successful ping command, an attempt to ping an unknown
host address, and an attempt to ping an unreachable IP address.

311645-A Rev 00

reload

Chapter 2 CLI Command Summary 91

This command forces the switch to reboot immediately. Options can be specified
to determine whether the switch turns off or reboots, which configuration to use
after a reboot, and other settings.

The user is prompted to confirm that they want to continue with the reload. If they
say yes and if the reload command is valid, the system reload commences in
approximately 10 seconds.

The Safe and Normal boot modes are used for secure management of the switch.
In Normal mode, the switch operates normally. In Safe mode, the HTTP, or FTP
traffic is allowed. No other VPN traffic is allowed through the secure management
tunnel or the switch.

Syntax

reload [power-off|restart] [boot-safe|boot-normal] [boot-drive {ide0|ide1}]
[config-file {latest|factory|config-name}] [disable-l ogins] [disable-after-restart]
[text]

Parameters

power-off If present, the switch powers down after it has completed

restart If present, the switc h restarts after it has completed shutdown.

boot-safe If present, switch restarts in safe boot mode.

boot-normal If present, switch restarts in normal boot mode.

boot-drive Specify the drive from which the switch will reboot.

shutdown.

ide0|ide1 Disk drive from which bootable image will be loaded.

config-file Specify which configuration should be used after a reboot.

Reference for the Contivity VPN Switch Command Line Interface

92 Chapter 2 CLI Command Summary

latest The switch should be reboot ed with t he late st configuration file.

factory The switch should b e reboot ed with the res et configuration file.

This file sets the swit ch to basic defaults. The contents of the
LDAP database and other settings are still maintained.

config-name Name of previously saved configuration to use on reboot.

disable-logins No more logins should be permitted before the reboot

disable-after-restart Logins should not be permitted after the reboot. This is

text If present, this explains the reason for a reload command.

occurs.

intended to support system maintenance tasks after a
reboot.

This reason will be displayed on the Admin->Shutdown
and Status->System Web management pages.

Default

The default settings fo r this command are determined by any previous reload
command. For the first reload command, the following defaults apply:

restart

boot-drive ide0

config-file latest

Command mode

Privileged Exec

If the value for the text parameter contains spaces, it may
be enclosed in double quotes so that it has a single
parameter value.

311645-A Rev 00

Next command mode

Privileged Exec

Prerequisites

A named configuration file can only be used after it has been created.

Warnings

Any warnings cause the command to fail. The user must reenter the command
after correcting the p arameters in error.

Configuration file does not exist.

Related commands

Chapter 2 CLI Command Summary 93

reload at

reload cancel

reload in

reload no-sessions

show reload

Reference for the Contivity VPN Switch Command Line Interface

94 Chapter 2 CLI Command Summary

Example

CES#reload restart boot-drive ide0 config-file factory
disable-after-restart Upgrade software

Reload Scheduled Shutdown

Reload Explanation: Upgrade software

After Shutdown: Restart

Disable New Logins: No

Disable Logins after Restart: Yes

Boot Mode: Normal

Config File: Reset Config File

Boot Drive: /ide0/

Proceed with reload? [confirm]y

This reboots the switch from ide0, using the factory installed defaults and
disabling logins after the reboot to allow for system maintenance. Reason is to
"Upgrade software." The user must press [CR], or any subset of the string “yes”,
to confirm tha t they want the re load to proc eed.

Comments

After a successful reload command, the switch will reboot in approximately 10
seconds. For most Telnet client software, the re boot wil l ca use the Telnet client to
close the connection to the switch.

If there are any outstanding reboot comman ds, they will be canceled. There can
only be one reboot scheduled at any time.

311645-A Rev 00

reload at

Syntax

Chapter 2 CLI Command Summary 95

This command sets a time in the future at which the switch will reboot. Options
can be specified to determine whether the switch turns off or reboots, which
configuration to use after a reboot, and other settings.

The user is prompted to confirm that they want to continue with the reload. If they
say yes and if the reload command is valid, the system reload will start at the
specified time.

reload at hh:mm [power-off|restart] [boot-safe|boot-normal]
[boot-drive {ide0|ide1}]

[config-file {latest|factory|config-name}] [disable-logins]
[disable-after-restart] [text]

Parameters

hh:mm The time at which the shutdown will commence. Values are

power-off If present, the switch will power down after it has completed

restart If present, the switc h restarts after it has completed shutdown.

boot-safe If present, switch restarts in safe boot mode.

boot-normal If present, switch restarts in normal boot mode.

boot-drive Specify the drive from which the switch will reboot.

ide0|ide1 Disk drive from which bootable image will be loaded.

config-file Specify which configuration should be used after a reboot.

based on a 24 hour clock. If this ti me has al ready passed today,
then the reload will occur at this time tomorrow.

shutdown.

latest The switch should be reboot ed with t he late st configuration file.

Reference for the Contivity VPN Switch Command Line Interface

96 Chapter 2 CLI Command Summary

factory The switch should b e reboot ed with the res et configuration file.

This file sets the switch to basic defaults, the contents of the
LDAP database and other settings are still maintained.

config-name Name of previously saved configuration to use on reboot.

disable-logins No more logins should be permitted before the reboot occurs.

disable-after-restart Logins should not be permitted after the reboot. This is

intended to support sy stem maintenance tasks after a reboot.

text If present, this gives the reason for a reload comm and. This

reason will be displayed on the Admin->Shutdown and
Status->System Web management pages.

If the value for the text parameter contains spaces, it may be
enclosed in double quotes so that it has a single parameter
value.

Default

The default settings fo r this command are determined by any previous reload
command. For the first reload command, the following defaults apply:

restart

boot-drive ide0

config-file latest

Command mode

Privileged Exec

Next command mode

Privileged Exec

311645-A Rev 00

Prerequisites

A named configuration file can only be used after it has been created.

Warnings

Any warnings cause the command to fail. The user must reenter the command
after correcting the p arameters in error.

Configuration file does not exist.

Related commands

reload

reload cancel

Chapter 2 CLI Command Summary 97

reload in

reload no-sessions

show reload

Reference for the Contivity VPN Switch Command Line Interface

98 Chapter 2 CLI Command Summary

Example

CES#reload at 22:00 restart boot-drive ide0

disable-after-restart Backup LDAP database

Reload Scheduled Shutdown at 22:00:00

Reload Explanation: Backup LDAP database

After Shutdown: Restart

Disable New Logins: No

Disable Logins after Restart: Yes

Boot Mode: Normal

Config File: latest

Boot Drive: /ide0/

Proceed with reload? [confirm]y

This reboots the switch from ide0, using the latest configuration and disabling
logins after the reboot to allow for system maintenance. Reason is to "Backup
LDAP database."

Comments

After a successful reload at command, the switch will reboot at the time specified
based on internal clock settings. For most Telnet client software, the reboot will
cause the Telnet client to close the connection to the switch.

If there are an y outs tanding r eboot commands , the y will be canceled. There can b e
only be one reboot scheduled at any time.

311645-A Rev 00

reload cancel

This command cancels any pending reload command. There can only be one
pending reload at any given time.

When a reload has been canceled the details for the pending reload are displayed.

Syntax

reload cancel

Parameters

None

Default

Chapter 2 CLI Command Summary 99

None

Command mode

Privileged Exec

Response

The command will output a message giving details about the type of reload
command that was canceled.

Reference for the Contivity VPN Switch Command Line Interface

100 Chapter 2 CLI Command Summary

Next command mode

Privileged ExecPrer equisites

A reload must already have been scheduled.

Warnings

No currently scheduled reload operation.

Related commands

reload

reload at

reload in

reload no-sessions

show reload

311645-A Rev 00
