Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

This guide summarizes how to get started using Contivity Conﬁguration Manager* (CCM) to conﬁgure Contivity 251 Virtual Private Network (VPN) switches in your network. This document is intended for network engineers who have some familiarity with the Nortel* Contivity 251 device.

Note: Contivity is also known as VPN Router, and Contivity Conﬁguration Manager is also known as VPN Router Multi-Element Manager.

Before you begin

For information about Contivity 251 and Contivity Conﬁguration Manager, see the following documents:

•

Conﬁguring and Troubleshooting the Contivity 251 VPN Switch

•

Contivity 251 VPN Switch Quick Start Guide

•

Contivity Conﬁguration Manager 2.2 User Guide

How to get help

This section explains how to get help for Nortel products and services.

Getting help from the Nortel web site

The best way to get technical support for Nortel products is from the Nortel Technical Support web site:

www.nortel.com/support

This site provides quick access to software, documentation, bulletins, and tools to address issues with Nortel products. From this site, you can:

•

download software, documentation, and product bulletins

• search the Technical Support Web site and the Nortel Knowledge Base

for answers to technical issues

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

8 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

•

open and manage technical support cases

Getting help over the phone from a Nortel Solutions Center

If you do not ﬁnd the information you require on the Nortel Technical Support web site, and you have a Nortel support contract, you can also get help over the phone from a Nortel Solutions Center.

In North America, call 1-800-4NORTEL (1-800-466-7835). Outside North America, go to the following web site to obtain the phone

number for your region:

www.nortel.com/callus

Getting help from a specialist by using an Express Routing Code

To access some Nortel Technical Solutions Centers, you can use an Express Routing Code (ERC) to quickly route your call to a specialist in your Nortel product or service. To locate the ERC for your product or service, go to:

www.nortel.com/erc

Getting help through a Nortel distributor or reseller

If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller.

New features for this release

New features for this release include:

•

"Bandwidth Management" (page 8)

•

"Certiﬁcate Management" (page 9)

•

"IPSec Tunnel Nail Up" (page 9)

•

"SSH/HTTPS for Remote Management" (page 9)

Bandwidth Management

With the Bandwidth Management feature, you can allocate the outgoing capacity of an interface to speciﬁc types of trafﬁc. You can also ensure that the Contivity 251 forwards certain types of trafﬁc (especially real-time applications) with minimum delay. This feature allows you to manage bandwidth for the Contivity 251 by conﬁguring classes and ﬁlters for LANs and WANs.

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 9

Certiﬁcate Management

The Contivity 251 uses certiﬁcates (also called digital IDs) to authenticate users. Certiﬁcates are based on public-private key pairs. Certiﬁcates provide a way to exchange public keys for use in authentication.

IPSec Tunnel Nail Up

This feature ensures that the Contivity 251 automatically renegotiates an IPSec tunnel when the IPSec Security Association (SA) lifetime expires. When the Contivity 251 restarts, it automatically renegotiates any nailed-up tunnels. In effect, the IPSec tunnel becomes an always on connection after the tunnel is initiated.

SSH/HTTPS for Remote Management

Secure Shell (SSH) is a secure communication protocol that combines authentication and data encryption to provide secure encrypted communication between two hosts over an unsecured network. Hypertext Transfer Protocol over SSL (HTTPS) is a web protocol that encrypts and decrypts web pages. The Contivity 251 device supports these protocols for remote management purposes.

Contivity 251 user notes

In certain cases, an object may be colored red to indicate that it is a duplicate even after the duplicated line is deleted. Because the line is in red, it is not exported to the device. To correct this situation so that the line can be exported, modify the duplicate object, select another object to remove the red, and then change the object back to the desired value.

The order of the SUA/NAT address mapping rules in the Contivity 251 device is important because they are processed in numeric order. Both CCM and Contivity 251 provide for gaps in the rules speciﬁcations, so that you can insert rules between other rules in the table. CCM expands on this capability by providing the ability to Copy a rule from one place in the table and Paste it to overwrite another rule in the table. Note that, when using this CCM capability, you need to write over other existing rules in the table; hence, leaving gaps within the table makes rearranging rules easier. (Q00857737)

Note: Do not enter special characters, such as ", into any text ﬁelds in CCM. CCM does not accept special characters in text ﬁelds.

Contivity 251 conﬁguration tasks

The CCM client must be connected to the CCM server to perform the conﬁguration tasks described in this guide. To perform conﬁguration operations on the Contivity devices in the network, the CCM server requires TCP/IP connectivity to the Contivity 251 device. Any other sessions to the Contivity 251 device should be logged out before attempting to access the Contivity 251 device with CCM.

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

10 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

The following is a list of conﬁguration tasks for new features:

•

"Conﬁguring Bandwidth Management" (page 10)

•

"Conﬁguring Certiﬁcate Management" (page 13)

•

"Conﬁguring IPSec Tunnel Nail Up" (page 16)

•

"Conﬁguring SSH/HTTPS for Remote Management" (page 17)

See the following sections for detailed explanations of these tasks. See previous versions of this document for an explanation of legacy conﬁguration tasks.

Conﬁguring Bandwidth Management

To conﬁgure Bandwidth Management:

Step Action 1

In the CCM navigation pane, select the Contivity 251 device and expand it.

Select Bandwidth Management and click the Properties tab.

Click the Summary tab, then select the appropriate Active check boxes. See Figure 1 "Contivity 251 Bandwidth Management" (page

10).

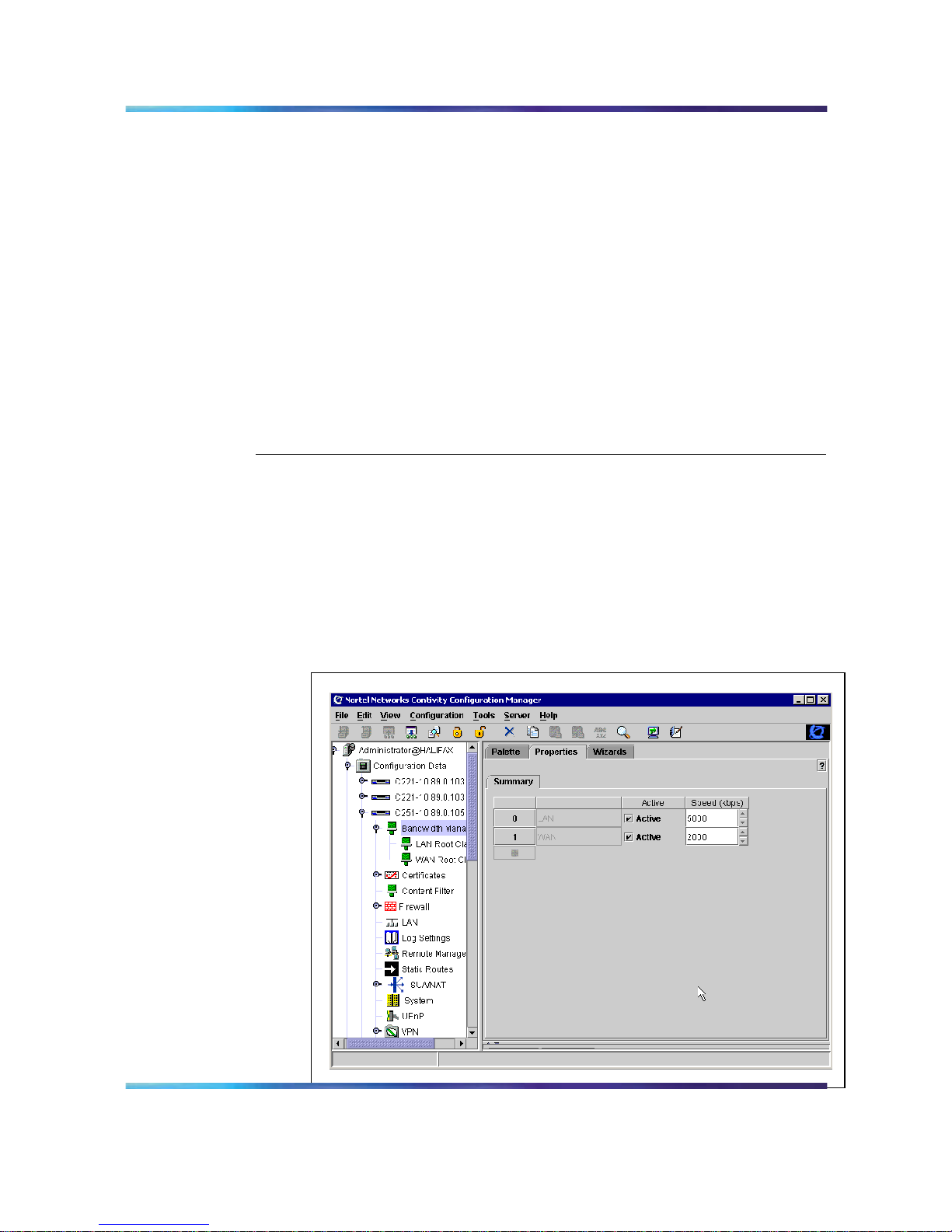

Figure 1 Contivity 251 Bandwidth Management

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 11

For the Active check boxes you selected, enter the appropriate speed.

In Bandwidth Management, select the LAN Root Class element.

Click the LAN Root Class Properties tab.

On the Properties page, select the Class Conﬁguration tab. The Class Name and Bandwidth Budget ﬁelds contain the values speciﬁed in the Bandwidth Management Properties tab. See Figure

2 "Contivity 251 Class Conﬁguration" (page 11).

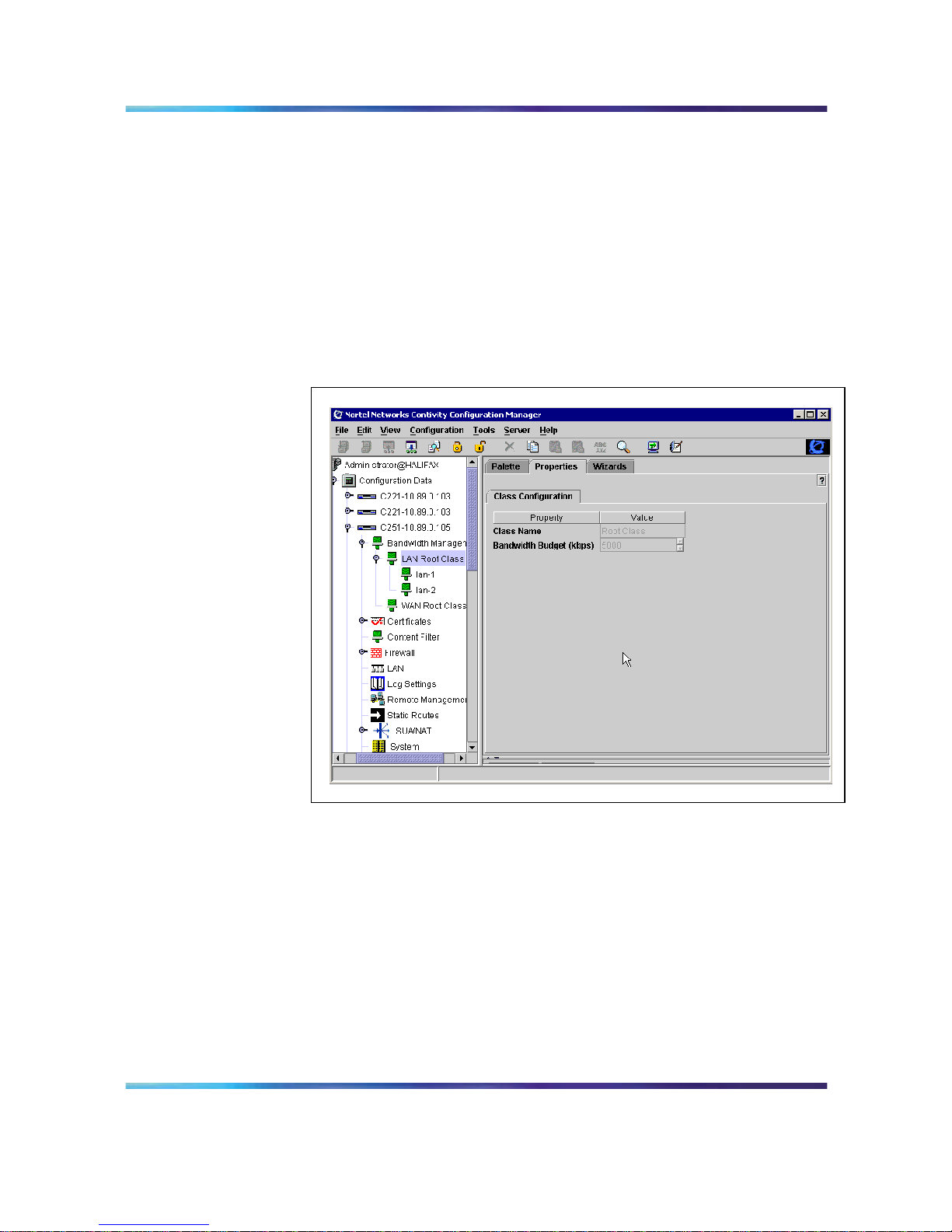

Figure 2 Contivity 251 Class Conﬁguration

In the LAN Root Class node, select a LAN class or create a new one if required.

Note: To create a new LAN class, select LAN Root Class, and click the Palette tab. Double-click Class Set-up.

On the LAN class Properties page, click the Class Conﬁguration tab.

Enter the Class Name and the Bandwidth Budget values in the boxes. See Figure 3 "Contivity 251 LAN Class Conﬁguration" (page

12).

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

12 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

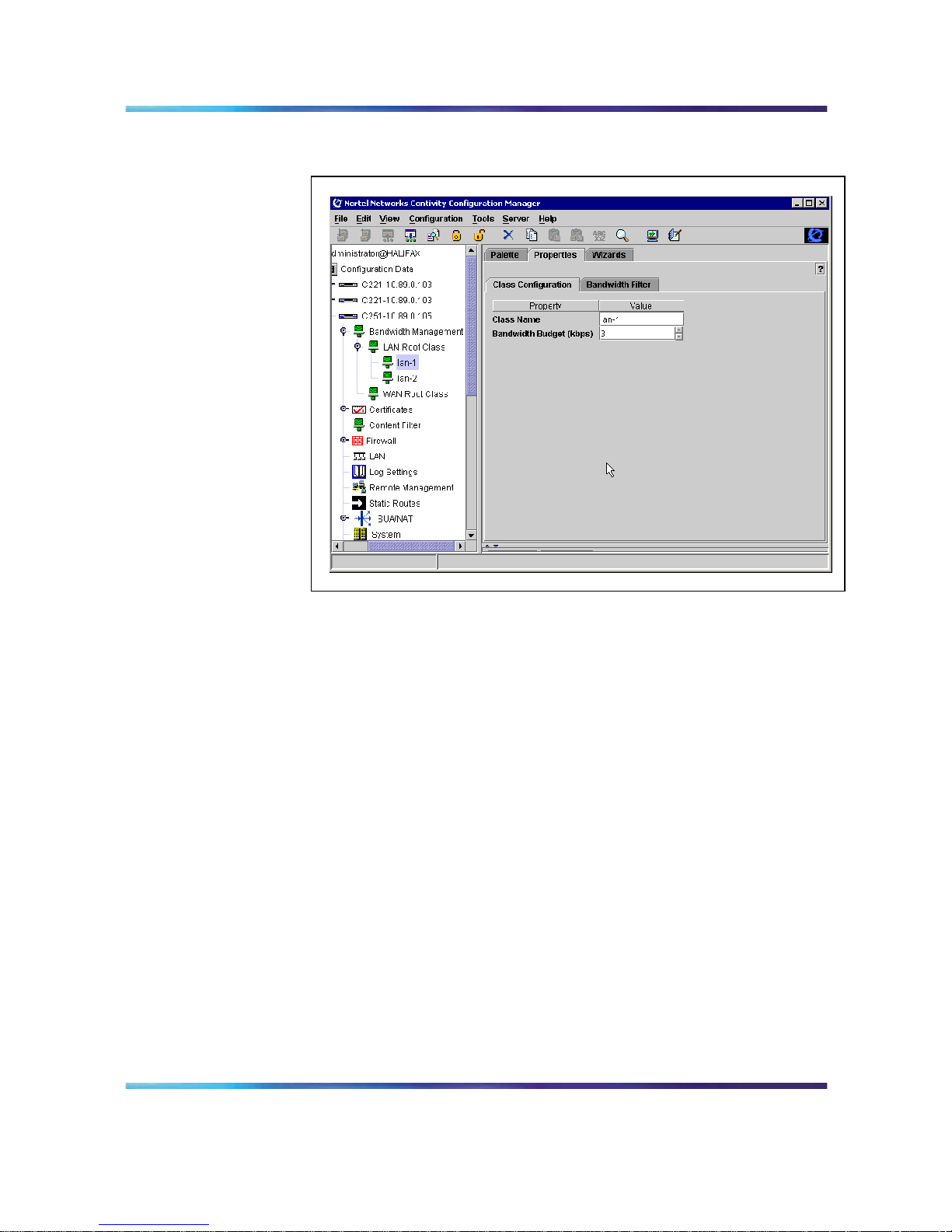

Figure 3 Contivity 251 LAN Class Conﬁguration

On the Properties page, select the Bandwidth Filter tab.

Conﬁgure the ﬁelds as required. See Figure 4 "Contivity 251

Bandwidth Filter" (page 13).

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 13

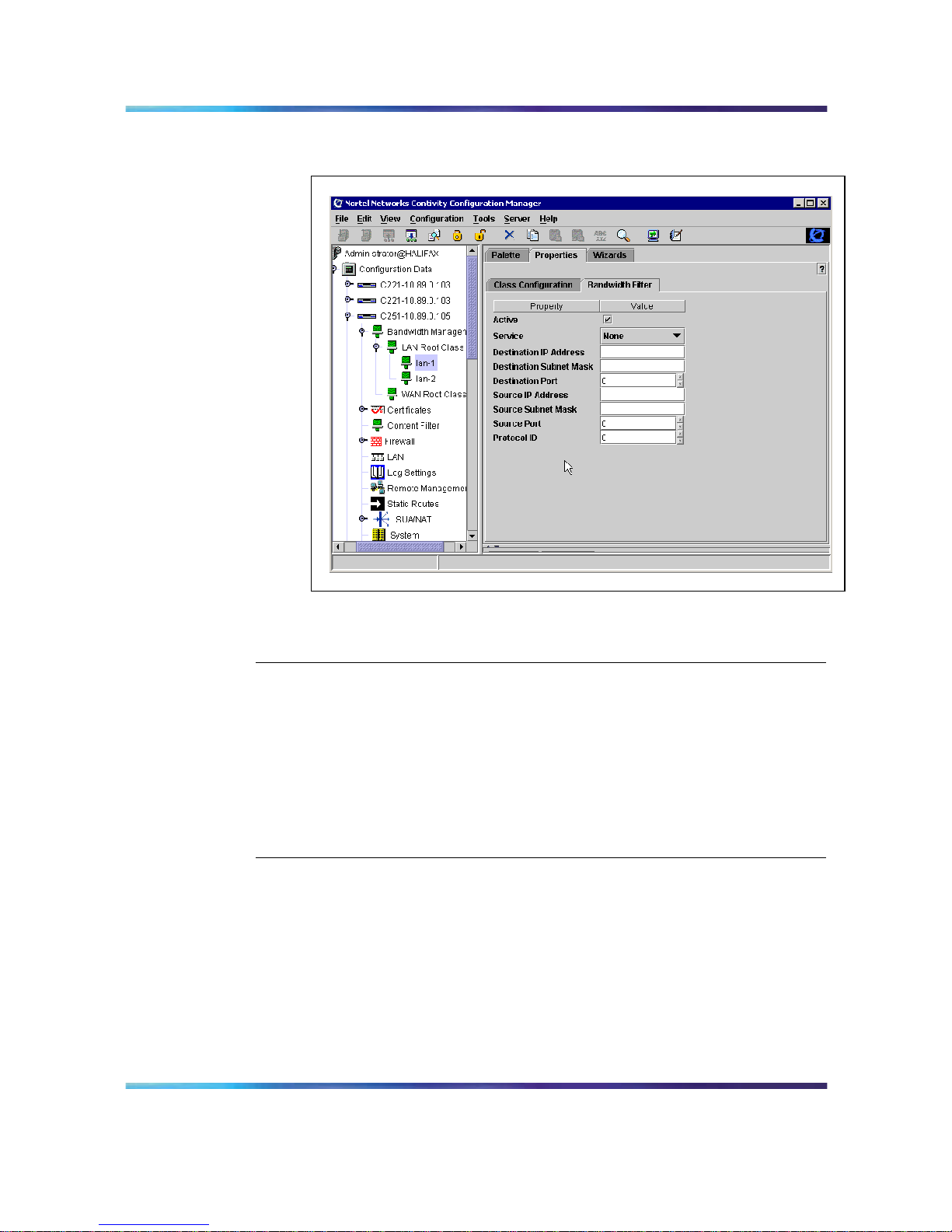

Figure 4 Contivity 251 Bandwidth Filter

Repeat steps 10 to 12 for each LAN class requiring conﬁguration.

—End—

Conﬁguring Certiﬁcate Management

Use the Certiﬁcate Create wizard to import and create certiﬁcates. Also, use this wizard for Contivity 251 devices or for Certiﬁcates, My Certiﬁcates, Trusted Certiﬁcates, and Trusted Remote Host Certiﬁcates.

To conﬁgure Certiﬁcate Management:

Step Action 1

In the CCM navigation pane, select the Contivity 251 device and expand it.

Select Certiﬁcates and expand it.

In the Certiﬁcates node, select the Trusted CAs node.

In the Trusted CAs node, import a trusted CA certiﬁcate by using the Certiﬁcate Create wizard. For more information about importing a trusted CA certiﬁcate, refer to the Certiﬁcate Create wizard in Contivity Conﬁguration Manager Wizards.

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

14 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

In the Trusted CAs node, delete any CA certiﬁcate that is no longer trusted.

In the Certiﬁcates node, select and expand the My Certiﬁcates node.

In the My Certiﬁcates node, select a self-signed certiﬁcate. See

Figure 5 "Contivity 251 My Certiﬁcates self-signed certiﬁcate" (page

14).

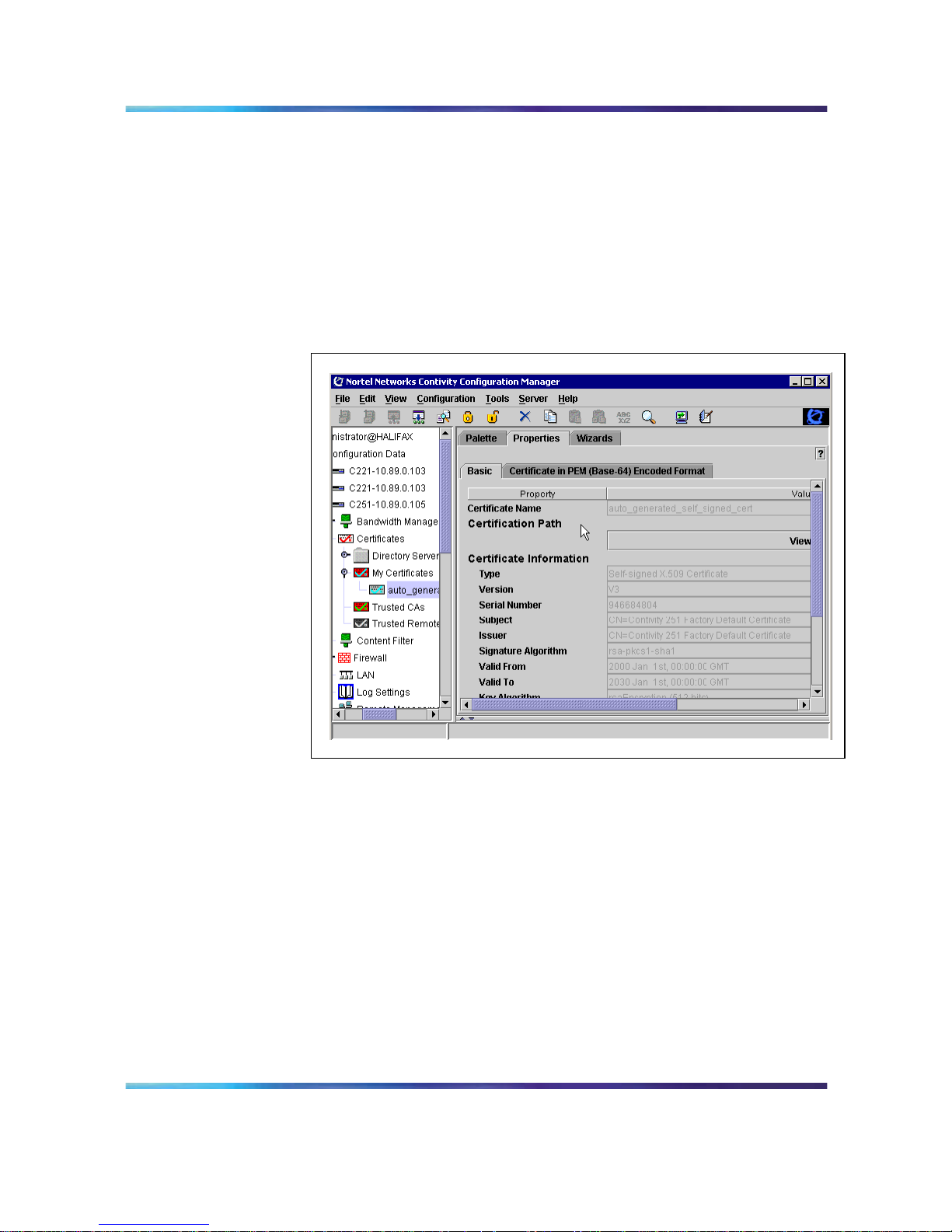

Figure 5 Contivity 251 My Certiﬁcates self-signed certiﬁcate

Note: Use the Certiﬁcate Create wizard to import a certiﬁcate issued by a certiﬁcation authority or to create a self-signed certiﬁcate or a certiﬁcate request. See Contivity Conﬁguration

Manager Wizards.

Click the Properties tab of the self-signed certiﬁcate. On the Basic page, the certiﬁcate name, properties, the certiﬁcation path, and other certiﬁcate information appears. If more than one self-signed certiﬁcate exists, you can select one of them as the default self-signed certiﬁcate by editing the chosen certiﬁcate’s property Default self-signed certiﬁcate, which signs the imported remote host certiﬁcates.

In the My Certiﬁcates node, select a certiﬁcate issued by a certiﬁcation authority.

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 15

Click the Properties tab of the certiﬁcate. On the Basic page, the certiﬁcate name, properties, the certiﬁcation path, and other certiﬁcate information appears.

In the My Certiﬁcates node, select a certiﬁcate request.

Click the Properties tab of the certiﬁcate request. On the Basic page, the certiﬁcate name, properties, the certiﬁcation path and other certiﬁcate information appears.

On the Certiﬁcates node, select the Trusted Remote Host Certiﬁcate node.

In Directory Servers, select a directory service.

Click the Properties tab of the directory service.

On the Basic page, enter the necessary information in the Directory Service Setting and Login Setting boxes. See Figure 6 "Contivity

251 Directory Services" (page 15).

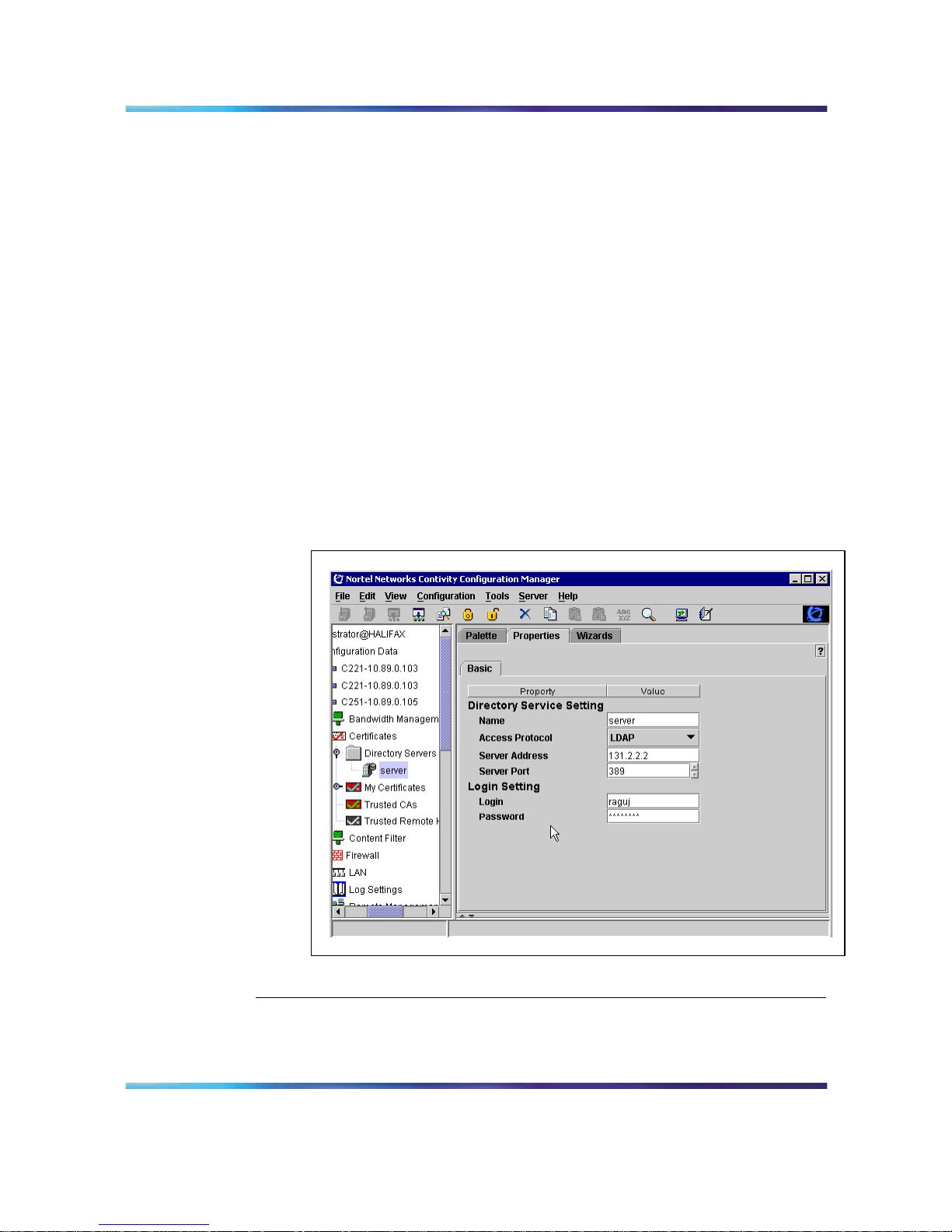

Figure 6 Contivity 251 Directory Services

—End—

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

16 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

Conﬁguring IPSec Tunnel Nail Up

To conﬁgure IPSec Tunnel Nail Up:

Step Action 1

In the CCM navigation pane, select the Contivity 251 device and expand it.

2 Select VPN and expand it. 3

In the VPN node, select a branch ofﬁce connection.

Click the Properties tab of the branch ofﬁce connection, then select the Basic tab.

Select the Nailed Up check box. See Figure 7 "Contivity 251 Nailed

Up option for branch ofﬁce connection" (page 16).

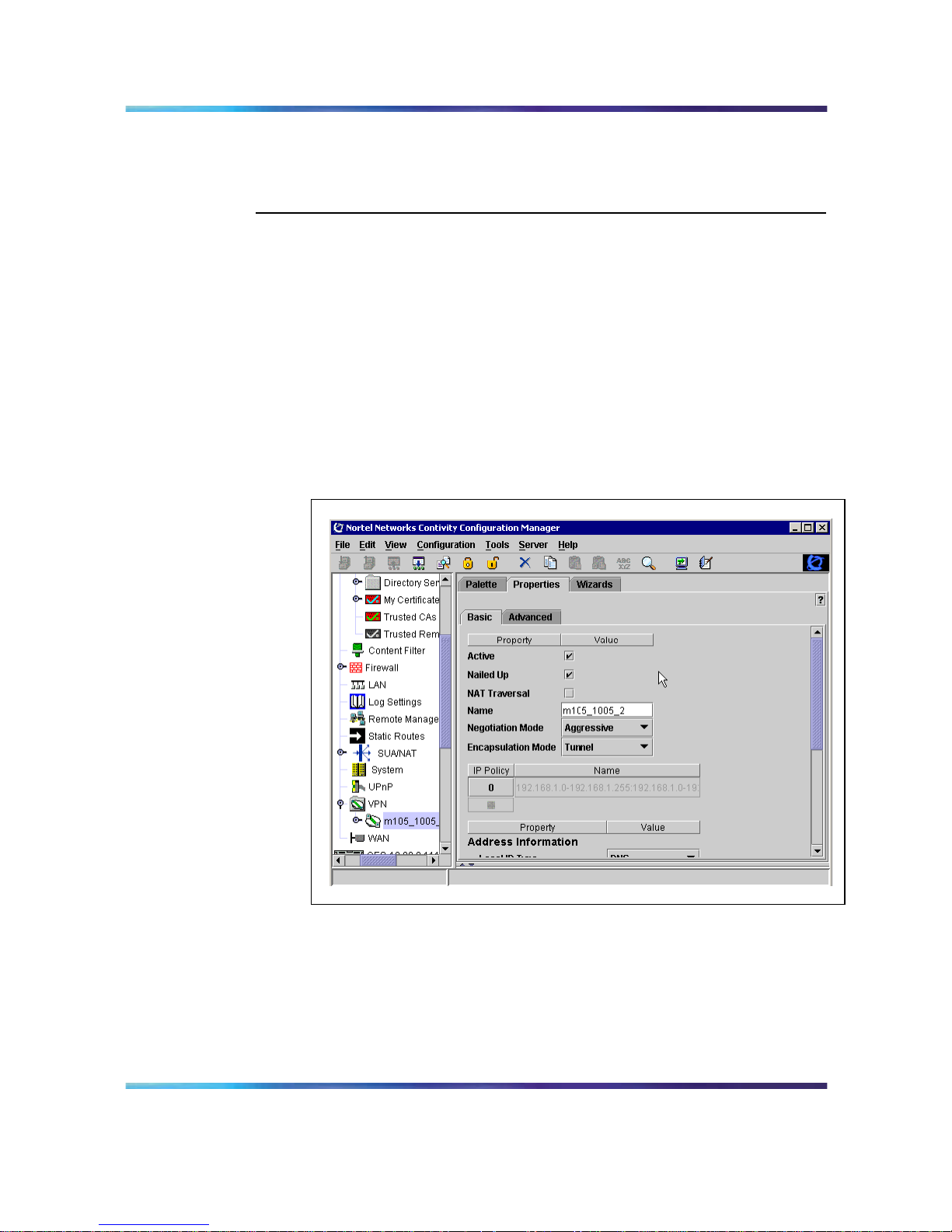

Figure 7 Contivity 251 Nailed Up option for branch ofﬁce connection

If required, for all IP Policies of the branch ofﬁce connection node, click the IP Policy tab, and select the Enable Control Ping check box. If you select Enable Control Ping, you must specify which IP is the endpoint of the control ping. See Figure 8 "Contivity 251

Control Ping" (page 17).

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 17

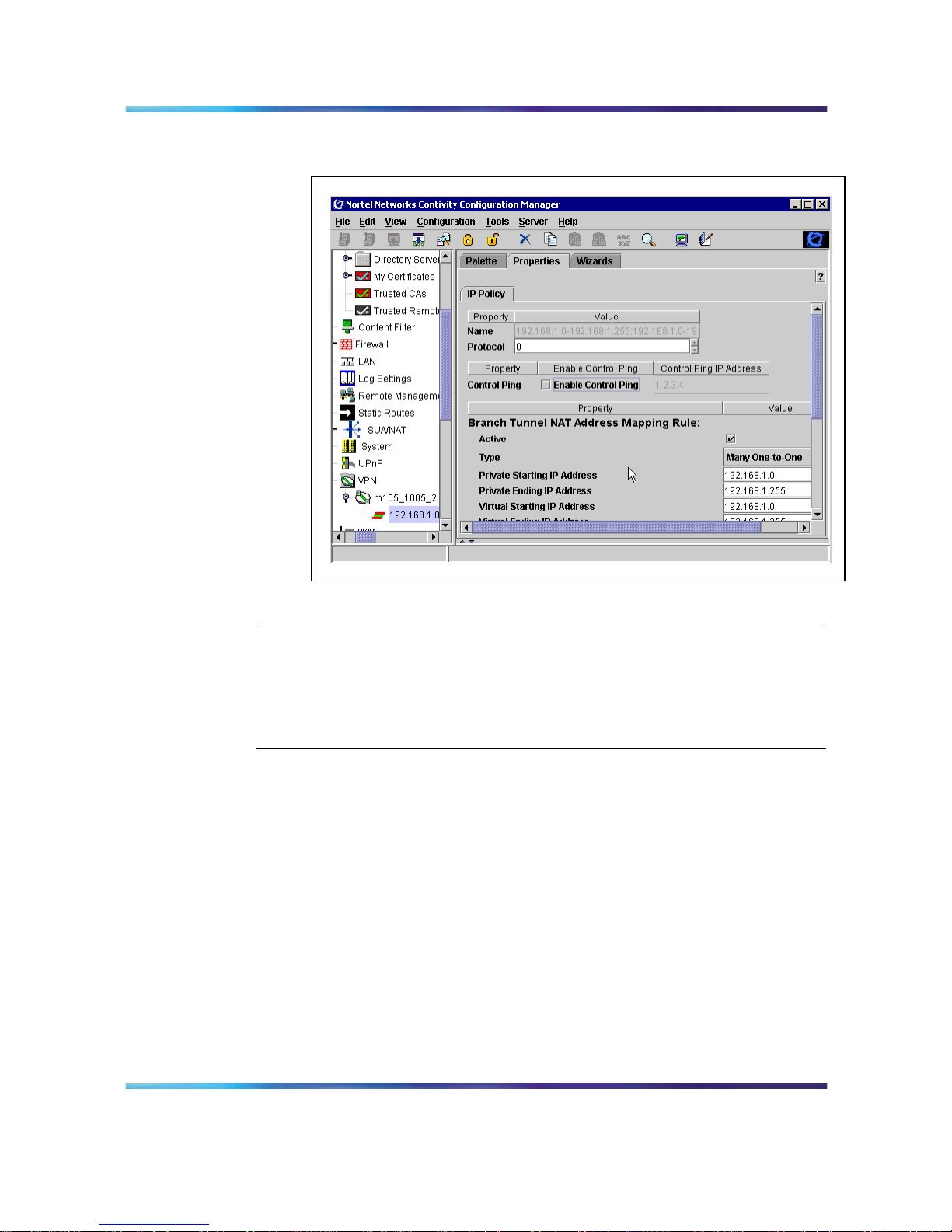

Figure 8 Contivity 251 Control Ping

—End—

Conﬁguring SSH/HTTPS for Remote Management

To conﬁgure SSH/HTTPS for Remote Management:

Step Action 1

In the CCM navigation pane, select the Contivity 251 device and expand it.

Select Remote Management and click the Properties tab.

Click the SSH tab.

From the Server Certiﬁcate list, select the appropriate server certiﬁcate. See Figure 9 "Contivity 251 SSH for Remote

Management" (page 18).

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

18 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

Figure 9 Contivity 251 SSH for Remote Management

From the Access Status list, select Enable or Disable.

In the Server Port box, enter the server port number.

In the Secured Client IP Address box, enter the IP address.

On the Properties page, select the HTTPS tab.

Select and enter the appropriate information in the boxes, lists, and check boxes. See Figure 10 "Contivity 251 HTTPS for Remote

Management" (page 19).

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

Contivity 251 conﬁguration tasks 19

Figure 10 Contivity 251 HTTPS for Remote Management

—End—

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

20 Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

318128-B 01.01 Standard

Release 2.3 March 2006

CCM

Using Contivity Conﬁguration Manager to Conﬁgure Contivity 251

Publication: 318128-B Document status: Standard Document version: 01.01 Document date: March 2006

Nortel 251 Using Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
