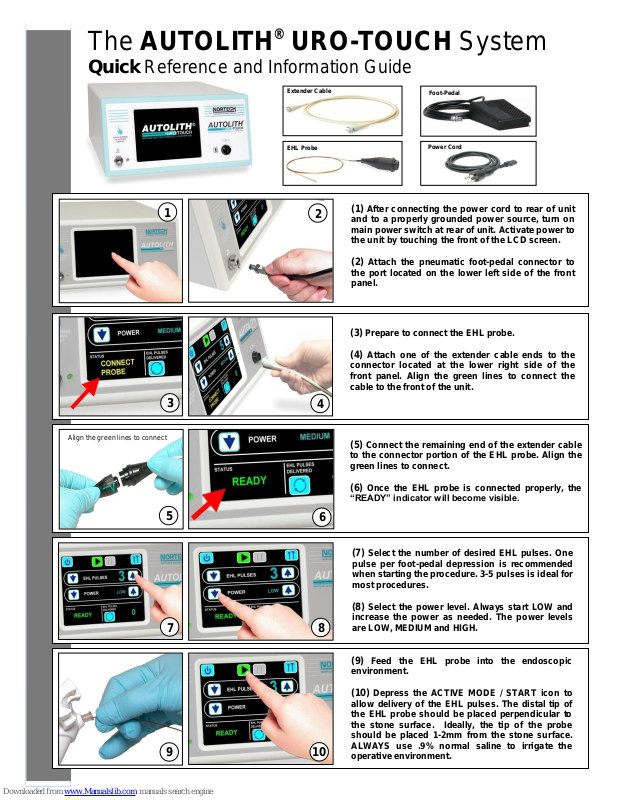

The AUTOLITH® URO-TOUCH System

Quick Reference and Information Guide

(1) After connecting the power cord to rear of unit

and to a properly grounded power source, turn on
main power switch at rear of unit. Activate power to
the unit by touching the front of the LCD screen.

(2) Attach the pneumatic foot-pedal connector to

the port located on the lower left side of the front
panel.

(3) Prepare to connect the EHL probe.
(4) Attach one of the extender cable ends to the

connector located at the lower right side of the
front panel. Align the green lines to connect the
cable to the front of the unit.

(5) Connect the remaining end of the extender cable

to the connector portion of the EHL probe. Align the
green lines to connect.

(6) Once the EHL probe is connected properly, the

“READY” indicator will become visible.

Align the green lines to connect

(7) Select the number of desired EHL pulses. One

pulse per foot-pedal depression is recommended
when starting the procedure. 3-5 pulses is ideal for
most procedures.

(8) Select the power level. Always start LOW and

increase the power as needed. The power levels
are LOW, MEDIUM and HIGH.

(9) Feed the EHL probe into the endoscopic

environment.

(10) Depress the ACTIVE MODE / START icon to

allow delivery of the EHL pulses. The distal tip of
the EHL probe should be placed perpendicular to
the stone surface. Ideally, the tip of the probe
should be placed 1-2mm from the stone surface.
ALWAYS use .9% normal saline to irrigate the
operative environment.

Extender Cable

Foot-Pedal

EHL Probe

Power Cord

6

1 5 3

7

8

9

10

2

4

(11) Once the number of pulses and the power

level have been selected, the user can begin the
EHL treatment by stepping on the foot-pedal.
Step off and re-depress the foot-pedal to deliver
another round of EHL pulses.

(12) The EHL treatment is always performed

under direct endoscopic visualization.

• 9-203-00 ………AUTOLITH® URO-TOUCH SYSTEM*, 100-230VAC, 50/60Hz. (For Urologic Stones)

*AUTOLITH® URO-TOUCH system includes: Extender Cable, Pneumatic Foot-Switch, Power Cord and Operator’s Manual

(Disposable EHL probes are sold separately)
Disposable BiPolar EHL Probes for use on the AUTOLITH® URO-TOUCH Generators

• 9-203-1203……1.9fr. (.63mm) Ureteral Probe (120cm) (Sterile) 3/Box

• 9-203-0543……9.0fr. (3.0mm) Urinary Bladder Probe (54cm) (Sterile) 3/Box

AUTOLITH® URO-TOUCH System Accessories

• 9-001-00 …............. Pneumatic Foot Switch

• 9-003-00…………… Hospital Grade Power Cord for U.S.A.

• 9-004-00…………… Extender Connection Cable

™/® trademarks and registered trademarks of or used under license by NORTHGATE Technologies Inc.

(13) Depress the STANDBY / PAUSE icon when

the EHL treatment is not required. This will
prevent an unintentional discharge of EHL pulses
if the foot-pedal is accidentally depressed.

(14) The total number of EHL pulses delivered

can be reset at any time by depressing the
RESET VALUE icon.

(15) The user can access the set-up menu at any time by depressing the SET-UP

MENU icon located in the upper right corner of the screen. Changes to Program
Defaults including Pulses and Power can be made. Also, Language setting
adjustments and Product Service Information is available.

Note: A complete explanation of all the product features are detailed in the
operator’s manual. Please be sure to read and understand the operator’s manual
thoroughly before using the AUTOLITH® URO-TOUCH system.

(16) EHL Probe life is dependent on the number
of pulses delivered and the power level selected.
A series of alerts and a final warning will be
displayed on the screen indicating when a new
probe will be required.

(17) When finished using the AUTOLITH® URO­TOUCH product, depress the POWER DOWN icon
located at the upper left side of the screen. To re­start the unit, see step #1.

11

13

14

15

16

17

Northgate Technologies Inc. 1591 Scottsdale Court Elgin, IL 60123 USA

800 348-0424 • 847 608-8900 • Fax: [phone] • www.northgate-tech.com

! CAUTION ! This Quick Reference Guide is not a replacement or substitute for the AUTOLITH® URO-TOUCH unit operator’s manual.
Please be sure to read and understand the AUTOLITH® URO-TOUCH system operator’s manual thoroughly before using the product.

12

Keeping the probe tip 1-2mm
from the stone surface is ideal.

82-00046-1 Rev. A
