Nortec E-DVKIT006 User Manual
Operation Manual
TWIN 7” portable DVD players
Model no. E-DVKIT006
p
panying
Important Safety
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
POWER SUPPLY:
Connect the supplied adapter to the side of the DVD player in the slot marked “Power In”.
Plug the two-prong end of the power cord to an AC100-120V outlet. If you have difficulty
inserting the plug, turn it over and reinsert it, if the unit will not be used for a long time,
disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric to
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accom
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
CAUTION: Laser radiation when open. Do not stare into beam.
ersons.
the appliance.
1
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7)
Do not block any ventilation openings. Maintain well ventilated conditions around the
product, Do not put product on bed, sofa or anything that blocks ventilation. Install
in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long period s of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
Note: Do not touch the color TFT LCD screen by hand directly.
Important Safety
Instructions
2
S
g
Important Safety
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Instructions
Region code information
DVD players and discs are coded by region. If the region number described on the DVD
disc does not correspond to the region number of this product, this product cannot play
the disc. The region code of this unit is 1.
IMPORTANT FOR LASER PRODUCT
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all
servicin
to qualified service personnel.
PROMPTS FOR USERS
These units should never be used by the vehicle's driver or left unsecured in
the vehicle while driving.
If these units are being used in your vehicle, be sure that they are secured or
held safely and that they do not obstruct any safety device including air bags
or seat belts.
All passengers should wear seat belts when using these units in a moving
vehicle.
If in doubt, please contact your vehicle manufacturer for further advice.
3
p
High-quality audio and video
Excellent sound: Dolby Decoder
delivers great sound.
Advanced Playing Functions
Compatibility: Compatible with
DVD, CD and
Particular Performance:
Multi-speed, fast forward, fast
backward and slow forward.
Last Memory Playback:
Memorizes the stopped playback
track and continues playing the disk
from this spot when the power is
kept to supply. (Only available for
DVD and CD disc).
JPEG.
Features
AV In : E xternal Audio, Video input
can be connected to most external
AV sources.
AV Ou t: Analog Audio output and
video out
On-screen Display: You are
supplied different On-screen Display
languages.
Search by Time: Search for a
certain track of a disk by selected
time.
Special Functions: Supports
screen aspect ratio changing,
screen saver, multi-languages
subtitle, multi-angles, zooming in or
out pictures etc. functions.
4
ut.
Accessories
Accessories List
ITEM
NAME
Remote Control
QTY
2
Cell for Remote Control
(To connect one player with TV,
Amplifier, and External AV source.)
Audio/Video Cable
Audio/Video Cable
(To connect two players)
Power Adapter
Car Adapter
Strap
Owner’s Manual
Earphone
2
2
1
4
1
1
1
2
NOTE
Accessories and their parts numbers are subject to modification without prior notice due
to improvements.
5
Important Safety Instructions
Features
Accessories
Contents
View of Front Panel
View of Side Panels
View of Main Unit Bottom

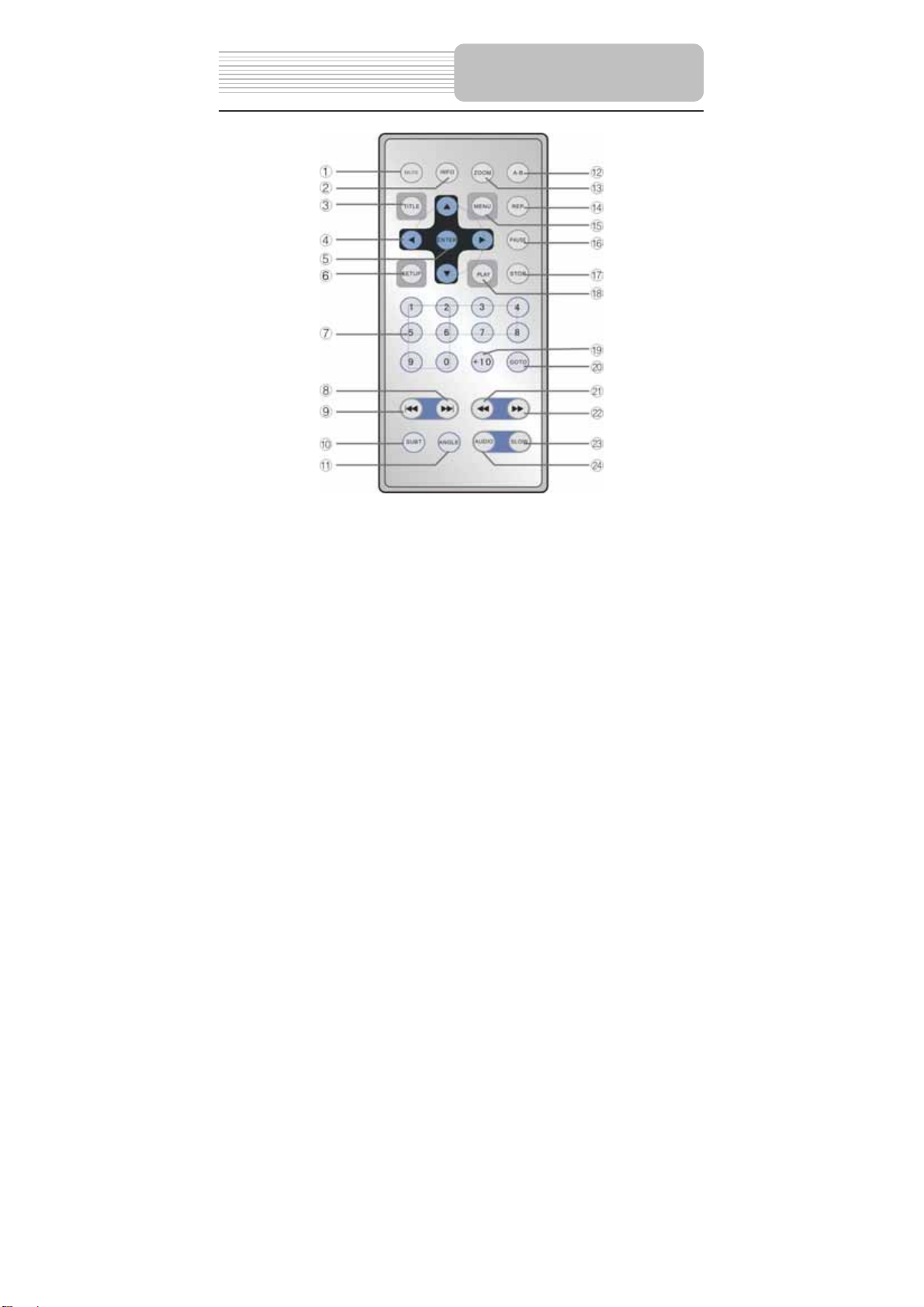

View of Remote Control

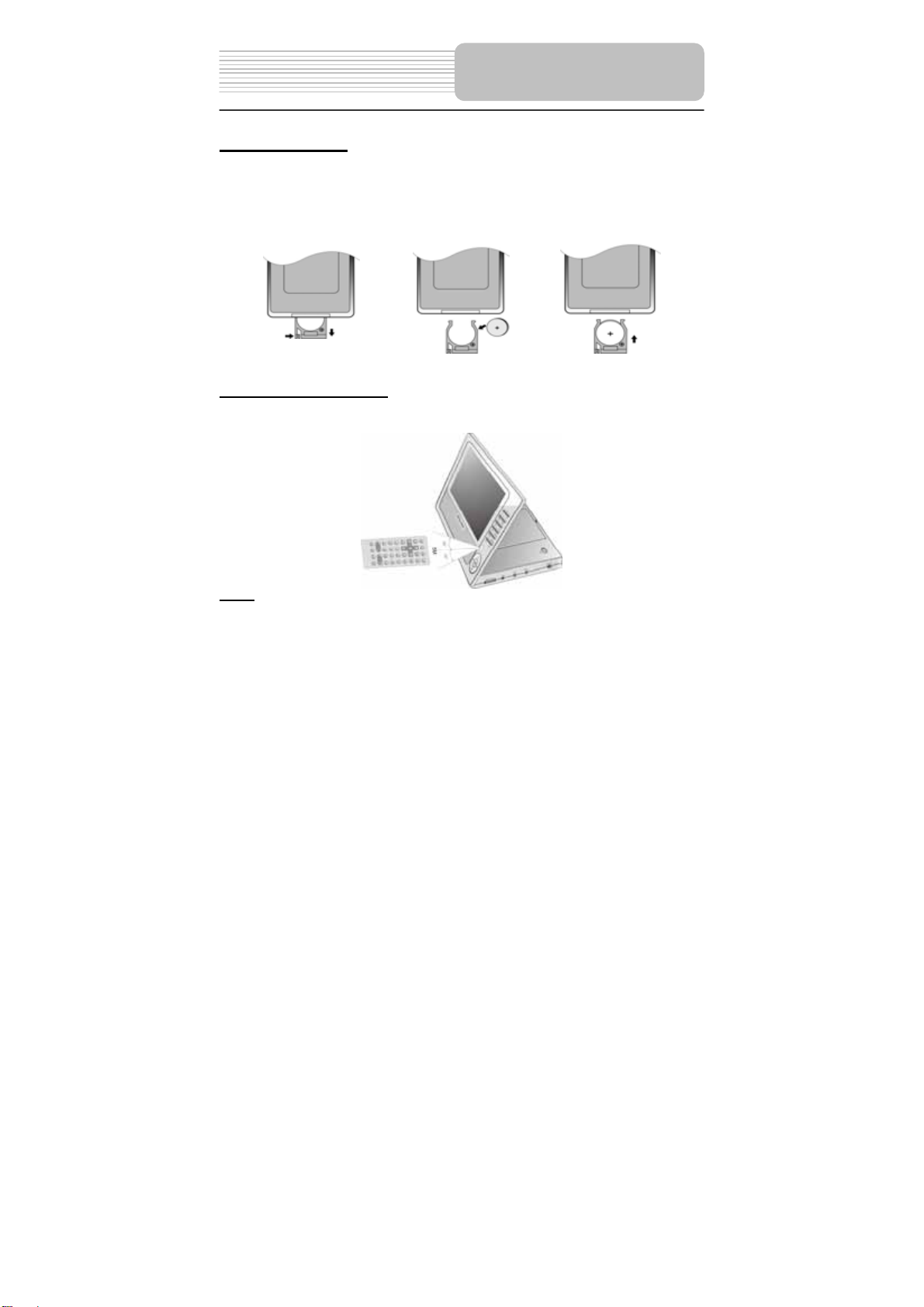

Preparation and Using of RC.

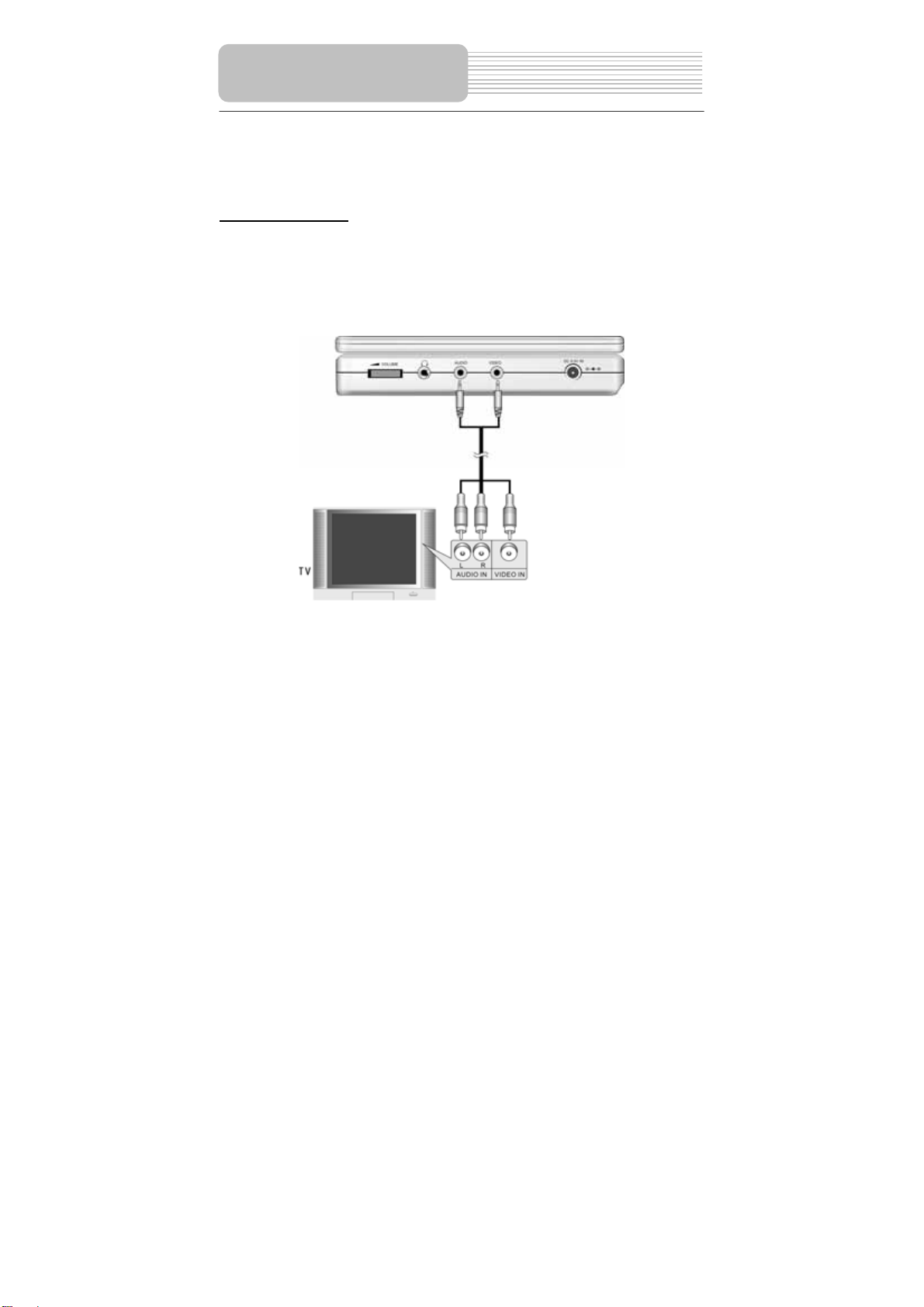

System Connections
Power Supply Preparation
Notes on Discs
Playback Operation
DVD Playback
CD Playback

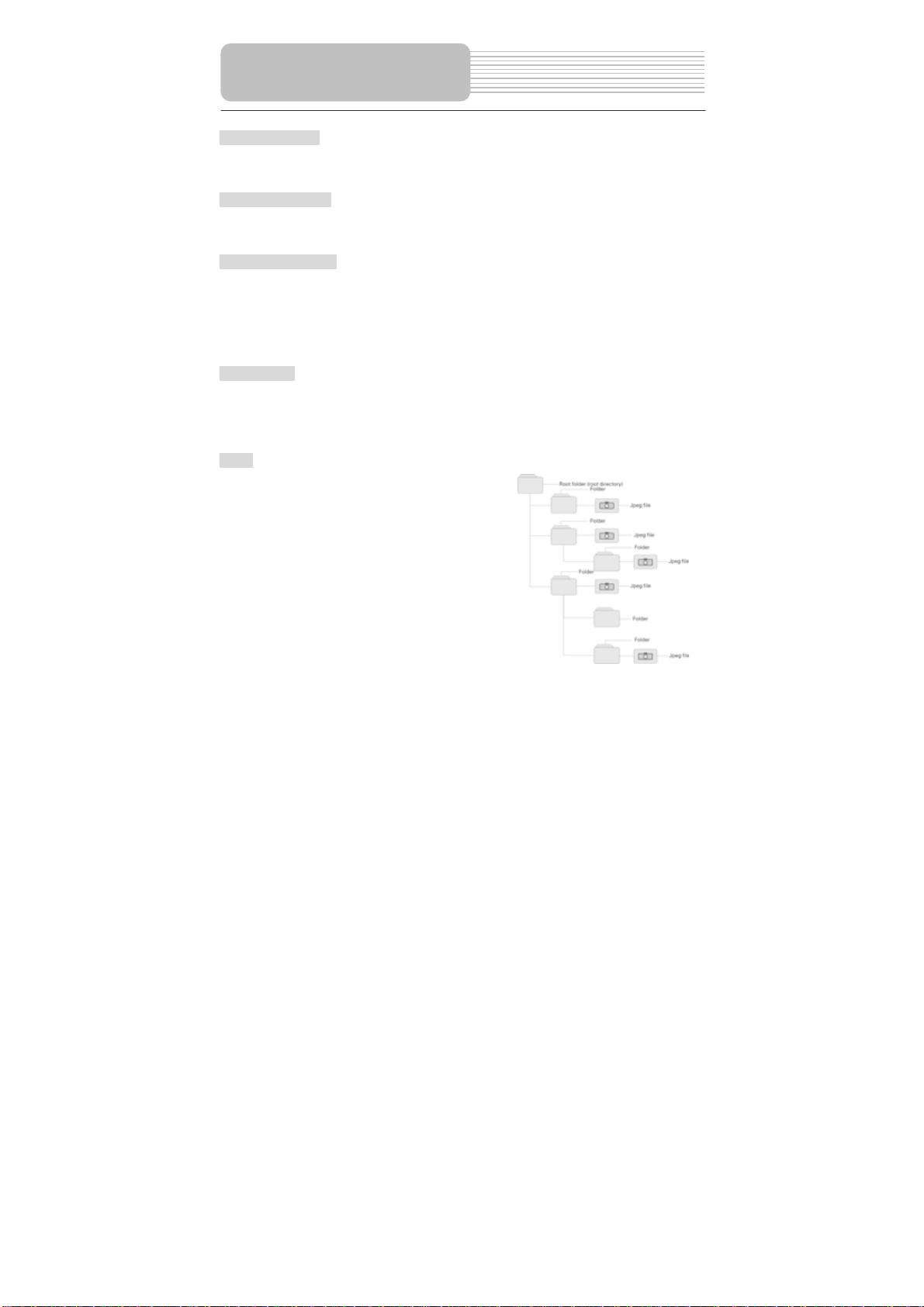

JPEG Playback
System Setup

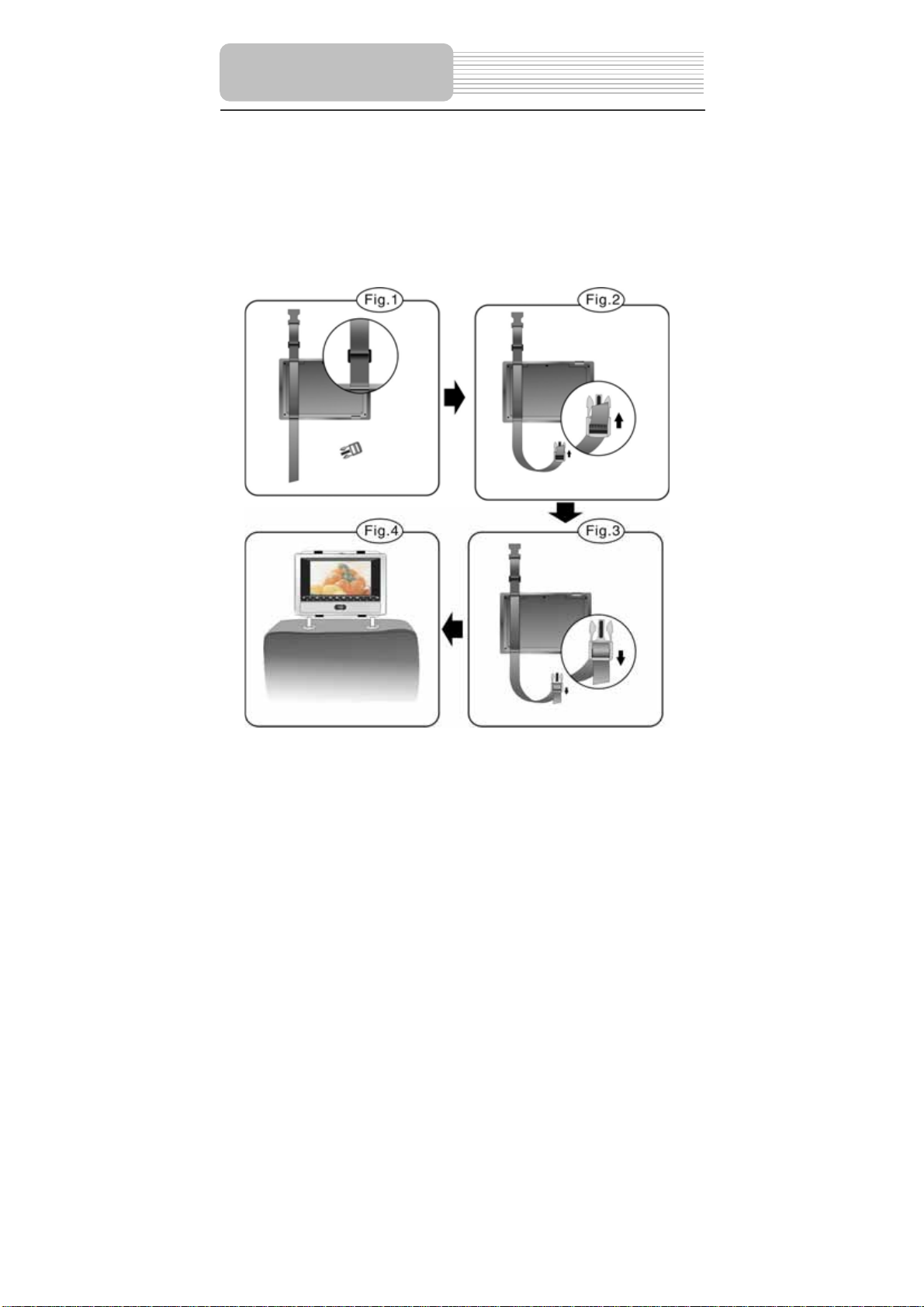

Use of Straps
Definitions
Troubleshooting
Specifications
Contents
…………………………………………..1
…………………………………………...4
…………………………………………...5
…………………………………………...6
…………………………………………...7
…………………………………..……….9
…………………………………………..11
…………………………………………..12
…………………………………………..14
…………………………………………..15
…………………………………………..18
…………………………………………..19
…………………………………………..20
…………………………………………..21
…………………………………………..25
…………………………………………..27
…………………………………………..29
…………………………………………..33
…………………………………………..35
…………………………………………..36
…………………………………………..38
6
View of Front Panel
1. -/+ button
Press to adjust the value of brightness and color.
2. AUDIO/ FUNC button
Press AUDIO button to select different languages when a DVD disc which contains
multiple audio languages is played. Press AUDIO button to select different audio
track when a CD disc is played.
Press the FUNC button to change the brightness and color level. Press FUNC
button and hold for 1-2 seconds to change the aspect ratio between 16:9 and 4:3.
3. SLOW/ A-B Repeat button
Press SLOW button to activate the slow playback function.
Press A-B Repeat button to play a certain selected segment repeatedly.
4. TITLE/ SETUP button
Press TITLE button to access to or exit from the title menu if it exists in the disc.
Press SETUP button to enter the player’s system setup.
7
5. MENU/ SOURCE button
Press MENU button to access to or exit from the menu.
Press SOURCE button to shift between AV MODE and DVD mode.
■ / button
6.
■ to stop playback. Then press the button to resume playback from the
Press
stopped spot. Press
Press
7. Remote Control Sensor
Receive the signal from the remote control for operation.
8. / button
Press button to select different options or to search forward fast.
Press button to select different options or to search backward fast.
Press button t o select different options or to return to the previous list, track or
chapter.
Press button to select different options or to skip to the next list, track or chapter.
9. ENT button
Press to access playback or confirm your selection.
10. Speaker
11. LCD Screen
once to pause the playback and press it again to resume the playback.
■ button twice to stop playback completely.
View of Front Panel
8
View of Side Panels
Right Side View
1. Volume Control
2. Headphone Jack
3. Audio input/output Jack
4. Video input/output Jack
5. DC 9.5V Input Jack
6. OPEN Switch
7. Disc tray cover
Adjust the volume of the headphone and speaker.
Connect headphones for private listening. When the headphones are connected to
this jack, the speaker will be turned off automatically.
For connecting an external amplifier or audio source.
For connecting an external monitor / video source.
For connecting Power supply / Car Adapter.
Push to open the disc tray cover.
When the disc is loaded gently, press the cover to close it.
9
View of Side Panels
Left Side View
1. Headphone Jack
2. Power Switch
Connect headphones for private listening. When the headphones are connected to
this jack, the speaker will be turned off automatically.
Turn the power on or off.
10
View of Main Unit Bottom
1. Rechargeable Battery Contacts
For connecting the rechargeable battery pack. You can use the AC adapter to
charge the battery as shown below.
Note:
¾ This unit comes without rechargeable battery. Please buy corresponding
rechargeable battery separately.
¾ Before charging, make sure that the power switch on the left side of the unit is
switched off.
¾ When charging the battery pack, the charge light at the pack side will turn red.
When the charging is complete, the light will turn green.
11
