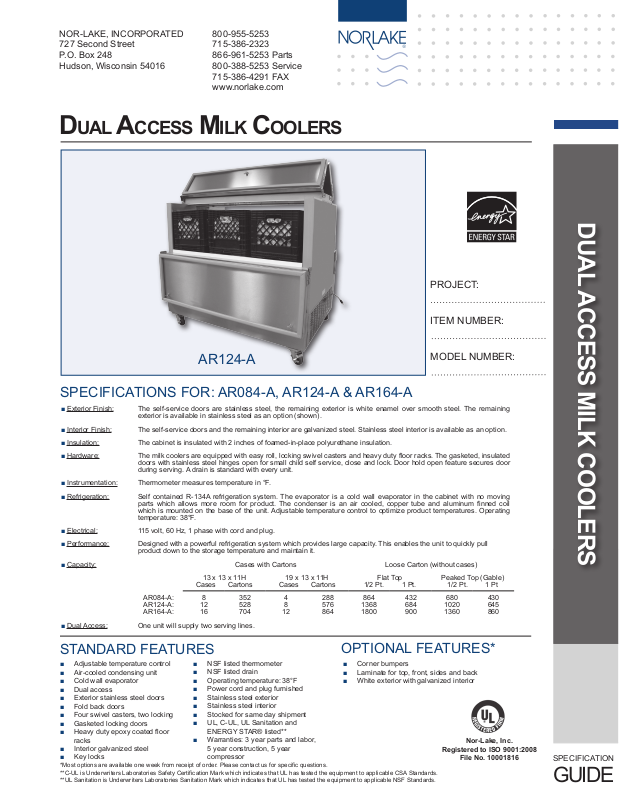

Dual access Milk coolers
DUAL ACCESS MILK COOLERS
PROJECT:
ITEM NUMBER:
AR124-A
MODEL NUMBER:
SPECIFICATIONS FOR: AR084-A, AR124-A & AR164-A
■ Exterior Finish: The self-service doors are stainless steel, the remaining exterior is white enamel over smooth steel. The remaining
■ Interior Finish: The self-service doors and the remaining interior are galvanized steel. Stainless steel interior is available as an option.
■ Insulation: The cabinet is insulated with 2 inches of foamed-in-place polyurethane insulation.
■ Hardware: The milk coolers are equipped with easy roll, locking swivel casters and heavy duty floor racks. The gasketed, insulated
■ Instrumentation: Thermometer measures temperature in °F.
■ Refrigeration: Self contained R-134A refrigeration system. The evaporator is a cold wall evaporator in the cabinet with no moving
■ Electrical: 115 volt, 60 Hz, 1 phase with cord and plug.
■ Performance: Designed with a powerful refrigeration system which provides large capacity. This enables the unit to quickly pull
■ Capacity: Cases with Cartons Loose Carton (without cases)
■ Dual Access: One unit will supply two serving lines.
STANDARD FEATURES
■ Adjustable temperature control
■ Air-cooled condensing unit
■ Cold wall evaporator
■ Dual access
■ Exterior stainless steel doors
■ Fold back doors
■ Four swivel casters, two locking
■ Gasketed locking doors
■ Heavy duty epoxy coated floor
racks
■ Interior galvanized steel
■ Key locks
*Most options are available one week from receipt of order. Please contact us for specific questions.
**C-UL is Underwriters Laboratories Safety Certification Mark which indicates that UL has tested the equipment to applicable CSA Standards.
**UL Sanitation is Underwriters Laboratories Sanitation Mark which indicates that UL has tested the equipment to applicable NSF Standards.
exterior is available in stainless steel as an option (shown).
doors with stainless steel hinges open for small child self service, close and lock. Door hold open feature secures door
during serving. A drain is standard with every unit.
parts which allows more room for product. The condenser is an air cooled, copper tube and aluminum finned coil
which is mounted on the base of the unit. Adjustable temperature control to optimize product temperatures. Operating
temperature: 38°F.
product down to the storage temperature and maintain it.
AR084-A:
AR124-A:
AR164-A:
13 x 13 x 11H
Cases Cartons
8
12
16
352
528
704
19 x 13 x 11H
Cases Cartons
4
8
12
288
576
864
Flat Top
1/2 Pt. 1 Pt.
864
1368
1800
432
684
900
Peaked Top (Gable)
1/2 Pt. 1 Pt
680
1020
1360
OPTIONAL FEATURES*
■ NSF listed thermometer
■ NSF listed drain
■ Operating temperature: 38°F
■ Power cord and plug furnished
■ Stainless steel exterior
■ Stainless steel interior
■ Stocked for same day shipment
■ UL, C-UL, UL Sanitation and
ENERGY STAR® listed**
■ Warranties: 3 year parts and labor,
5 year construction, 5 year
compressor
■ Corner bumpers
■ Laminate for top, front, sides and back
■ White exterior with galvanized interior
Registered to ISO 9001:2008
430
645
860
Nor-Lake, Inc.
File No. 10001816
SPECIFICATION
GUIDE
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
DRWG NO.
PART NO.
144554 A33221
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
ECN NO. DRW/ENG DATE
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
DRWG NO.
PART NO.
144555 A33222
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
DRWG NO.
PART NO.
144556 A33223
REV.
DESCRIPTION
REVISIONS
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
ECN NO. DRW/ENG DATE
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
HUDSON,
WIS.
DRWG NO.
DATE
DATE
DWG NO.
DATE:
REV NO.
APPROVED
SHEET NO.
PART NO.
05/01/09
1 of 1
B
A33223
144556 A33223
A RELEASED AT REV A CMB CMB 05/01/09
B 1 LENGTH AND WIDTH CHANGE 2384-11 DJK DJK 4/13/12
REV.
DESCRIPTION
REVISIONS
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
ECN NO. DRW/ENG DATE
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
PROPERTY
OF
HUDSON,
WIS.
Nor-Lake Inc.
DRWG NO.
DATE
DATE
DWG NO.
DATE:
REV NO.
APPROVED
SHEET NO.
PART NO.
SPEC SHEET DWG AR124
CMB
05/01/09
1 of 1
B
144555
A33222
144555 A33222
A RELEASED AT REV A CMB CMB 05/01/09
B 1 LENGTH AND WIDTH CHANGE 2384-11 DJK DJK 4/13/12
30"
REV.
DESCRIPTION
REVISIONS
UNLESS OTHERWISE NOTED
ALL DIMENSIONS IN INCHES
ALL TOLERANCES UNLESS NOTED
DECIMAL .00 0.03
ANGLES 00. 1 DEG.
FRACTIONAL 1/64
ECN NO. DRW/ENG DATE
±
.000 0.015
° ±
±
±
USE DIMENSIONS SHOWN
DO NOT SCALE DRAWING
OTHERWISE
PROPERTY
OF
HUDSON,
WIS.
Nor-Lake Inc.
DRWG NO.
DATE
DATE
DWG NO.
DATE:
REV NO.
APPROVED
SHEET NO.
PART NO.
SPEC SHEET DWG AR084
CMB
05/01/09
1 of 1
B
144554
A33221
144554 A33221
A RELEASED AT REV A CMB CMB 05/01/09
B 1 LENGTH AND WIDTH CHANGE 2384-11 DJK DJK 4/13/12
THERMOMETER
34"
38 5/8"
42 3/4"
43 5/8"
33 1/2"
32"
28"
25"
25"
4 1/8"
8 FT LEAD CORD
3 WIRE SERVICE
115V/60HZ/1PH
TOP
FRONT SIDE
AR084-A
4 1/8"
33 1/2"
32"
28"
44"
THERMOMETER
48"
38 5/8"
42 3/4"
43 5/8"
25"
TOP
FRONT SIDE
AR124-A
25"
8 FT LEAD CORD
3 WIRE SERVICE
115V/60HZ/1PH
SPECIFICATIONS
Model AR084-A AR124-A AR164-A
Crated Height
Crated Width
Crated Depth
Crated Weight (lbs.)
Interior Height
Interior Width
Interior Depth
Overall Height
Overall Width
Overall Depth
Gross Cubage (ft.3)
Number of Floor Racks
Number of Casters
Condensing Unit Size
Refrigerant
43” 43” 43”
37-1/2” 51-1/2” 65-1/2”
36” 36” 36”
326 352 484
25” 25” 25”
30” 44” 58”
28” 28” 28”
43-5/8” 43-5/8” 43-5/8”
34-5/8” 48-5/8” 62-5/8”
33-1/2” 33-1/2” 33-1/2”
12.2 17.8 23.5
2 3 4
4 4 4
1/5 HP 1/5 HP 1/5 HP
R-134a R-134a R-134a
Electrical Characteristics 115/60/1 115/60/1 115/60/1
33 1/2"
32"
58"
62"
THERMOMETER
38 5/8"
42 3/4"
43 5/8"
25"
4 1/8"
28"
TOP
FRONT SIDE
AR164-A
Cord and Plug Furnished Yes Yes Yes
Nema Plug Conguration
Total Amp Draw
25"
8 FT LEAD CORD
3 WIRE SERVICE
115V/60HZ/1PH
Specications subject to change without notice.
5-15P 5-15P 5-15P
3.3 3.3 3.4
Revision Date: 04/13
© 2013 NOR-LAKE, INC.
Printed in the U.S.A.
Part Number: 095157
