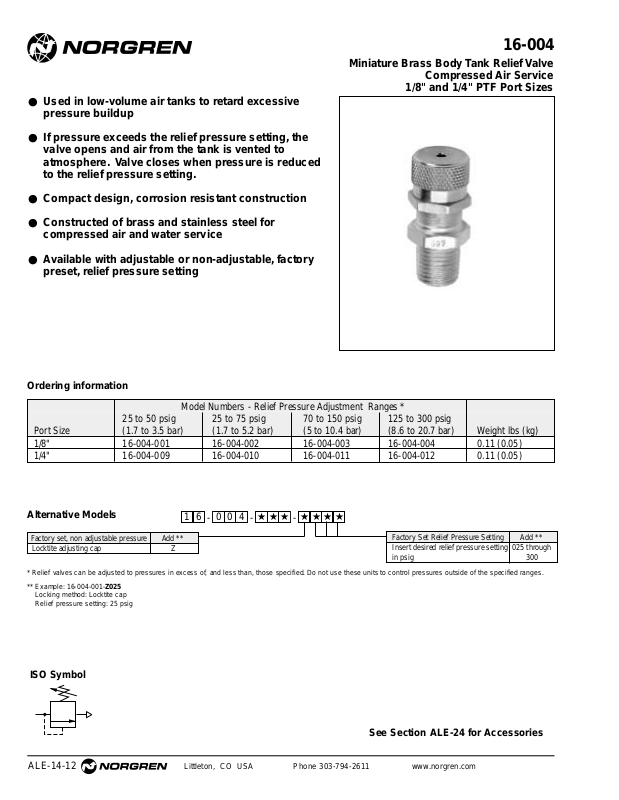

Norgren 16-004 Datasheet

See Section ALE-24 for Accessories

ALE-14-12

Littleton, CO USA Phone [phone] www.norgren.com

16-004

● Used in low-volume air tanks to retard excessive

pressure buildup

● If pressure exceeds the relief pressure setting, the

valve opens and air from the tank is vented to
atmosphere. Valve closes when pressure is reduced
to the relief pressure setting.

● Compact design, corrosion resistant construction

● Constructed of brass and stainless steel for

compressed air and water service

● Available with adjustable or non-adjustable, factory

preset, relief pressure setting

Miniature Brass Body Tank Relief Valve

Compressed Air Service

1/8" and 1/4" PTF Port Sizes

Ordering information

Model Numbers - Relief Pressure Adjustment Ranges *

25 to 50 psig 25 to 75 psig 70 to 150 psig 125 to 300 psig
Port Size (1.7 to 3.5 bar) (1.7 to 5.2 bar) (5 to 10.4 bar) (8.6 to 20.7 bar) Weight lbs (kg)
1/8" 16-004-001 16-004-002 16-004-003 16-004-004 0.11 (0.05)
1/4" 16-004-009 16-004-010 16-004-011 16-004-012 0.11 (0.05)

Alternative Models

Factory Set Relief Pressure Setting Add **
Insert desired relief pressure setting 025 through
in psig 300

00

-

★

★ ★★ ★

4

- -

6

1

★ ★

Factory set, non adjustable pressure Add **
Locktite adjusting cap Z

* Relief valves can be adjusted to pressures in excess of, and less than, those specified.Do not use these units to control pressures outside of the specified ranges.
** Example: 16-004-001-Z025

Locking method: Locktite cap
Relief pressure setting: 25 psig

ISO Symbol

16-004 T ank Relief Valve

ALE-14-13

All Dimensions in Inches (mm)

Littleton, CO USA Phone [phone] www.norgren.com

Technical Data

Fluid: Compressed air and water
Maximum pressure: 300 psig (20 bar)
Operating temperature*: -30° to 200°F (-34° to 93°C)

*Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).

Repeatability: ± 20% of relief pressure setting
Materials

Body, cap, springrest: Brass
Valve: Brass and nitrile
Regulating spring: Stainless steel

RELIEF FLOW CHARACTERISTICS - AIR

0 0.5 1 1.5 2 2.5 dm3/s

AIR FLOW

0 1 2 3 4 5 6 scfm

INLET PRESSURE

8

6

4

2

0

bar

100

80

60

40

20

0

psig

50 (3.5)

25 (1.7)

SET RELIEF
PRESSURE:
psig (bar)

PORT SIZE: 1/8", 1/4"
SPRING RANGE:
25 to 50 psig (1.7 to 3.5 bar)

Typical Performance Characteristics

RELIEF FLOW CHARACTERISTICS - AIR

0 0.5 1 1.5 2 2.5 dm3/s

AIR FLOW

0 1 2 3 4 5 6 scfm

INLET PRESSURE

8

6

4

2

0

bar

100

80

60

40

20

0

psig

75 (5.2)

50 (3.5)

25 (1.7)

SET RELIEF
PRESSURE:
psig (bar)

PORT SIZE: 1/8", 1/4"
SPRING RANGE:
25 to 75 psig (1.7 to 5.2 bar)

0.79 (20) Dia.

A

A: 1.56 (62) for 1/8" pipe size

1.75 (44) for 1/4" pipe size

psig

180

bar

12

160

10

140

120

8

100

6

80

60

4

INLET PRESSURE

40

2

20

0

0

0 1 2 3 4 5 6 scfm
0 0.5 1 1.5 2 2.5 dm3/s

RELIEF FLOW CHARACTERISTICS - AIR

PORT SIZE: 1/8", 1/4"
SPRING RANGE:
50 to 150 psig (2.4 to 10.4 bar)

AIR FLOW

50 (3.5)

150 (10.3)

SET RELIEF
PRESSURE:
(psig (bar)

100 (6.9)
