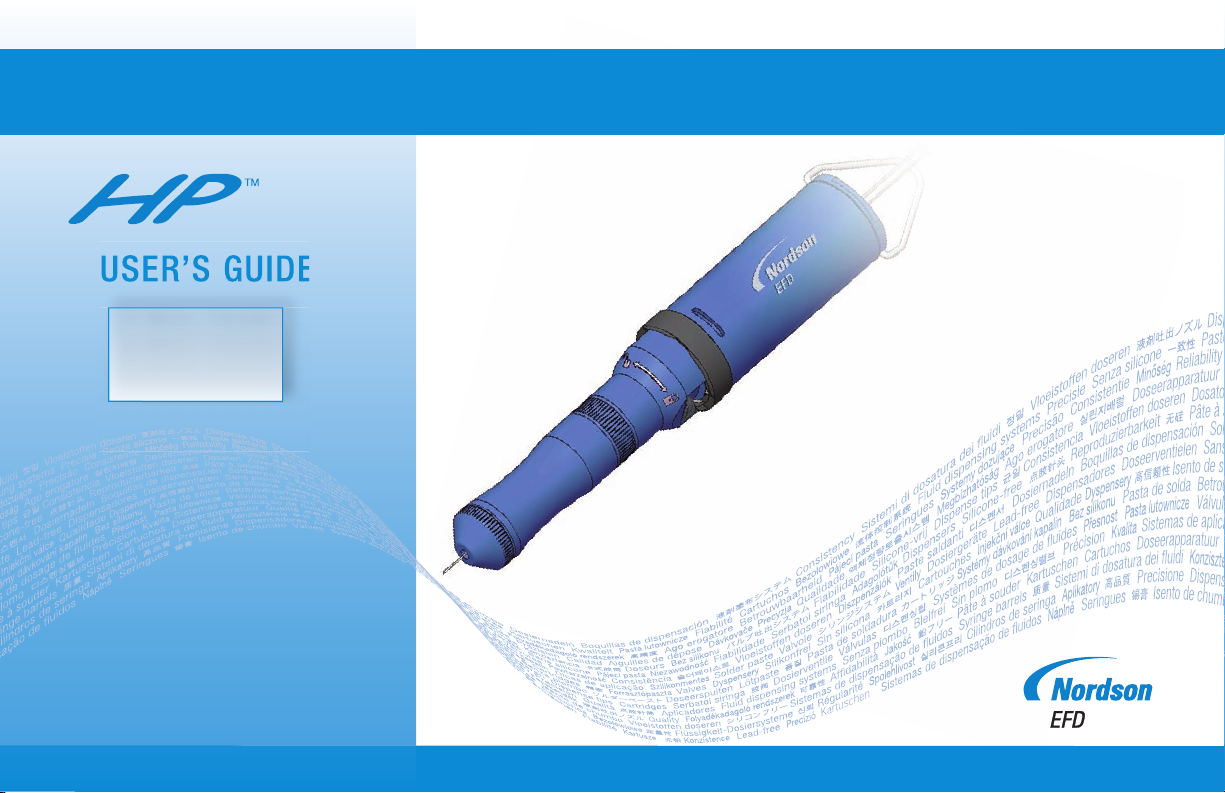

USER’S GUIDE

Series

•

HP3cc: 7023590

•

HP5cc: 7015289

•

HP10cc: 7012598

flange

alignment

Setup and Operation

Step 1.

Remove reservoir

retainer

Step 2.

Install dispensing tip on syringe

barrel. Insert filled syringe barrel

into retainer and align flange with

slot as shown.

reservoir

retainer

air

cylinder

plunger

Nordson EFD syringe
barrel dispensing tip

dispensing tip

IMPORTANT: Confirm that a piston

is between the fluid and the plunger.

Step 3.

Install retainer and rotate clockwise to

secure. Connect HP to EFD air-powered

dispenser. Insert air quick-connect into

air outlet and turn clockwise to lock.

quick-connect

tip retaining

cap

window

Note: Refer to Nordson EFD dispenser operating instructions to

control deposit size with time and pressure.

Do not reuse syringe barrels!

Wipe plunger clean (if necessary) before installing a new reservoir.

Changing Reservoirs

When a syringe barrel is empty, the
window in the air cylinder will turn red.
Remove syringe barrel retainer. Then,
remove empty syringe barrel and discard.

Changing Tips

Remove tip retaining cap and invert.
Align slot with wings on dispensing tip.
Turn tip retaining cap counterclockwise
to remove tip. Attach a new tip and
tighten tip retaining cap securely.

Setup and Operation

U-cup (Buna-N)

Piston and shaft includes

U-cup (Buna-N)

Drive plunger

HP5cc

7015987

7015984

7015985

HP10cc 7015988

7018932

7018937

Troubleshooting & Parts List

If the HP should cease to operate, service of the piston
U-cup and shaft bushing may be required.
Please follow procedure below:

1. Remove air cylinder cap.

2. Remove drive plunger.

3. Remove piston and shaft assembly. Replace pi

U-cup and lubricate lightly with O-ring grease.

4. Press shaft bushing out from bottom of cylinder

toward piston chamber. Replace with new bushing.

5. Install piston assembly and reinstall the air cylinder

cap and drive plunger.

HP3cc

Drive Plungers

7015986

Piston & Shift

7018915 7015985

ston

Piston Seal

For Nordson EFD sales and service in over
30 countries, contact Nordson EFD or go to
www.nordsonefd.com

East Providence, RI USA
USA & Canada: 800.556.3484;
+1.401.431.7000
[e-mail]

Dunstable, Bedfordshire, UK
0800 585733;
[phone]
Ireland 00800 8272 9444
[e-mail]

China: [phone]
[e-mail]

Singapore: [phone]
[e-mail]
