Nordson EFD 550 LP, 560 HP User Manual

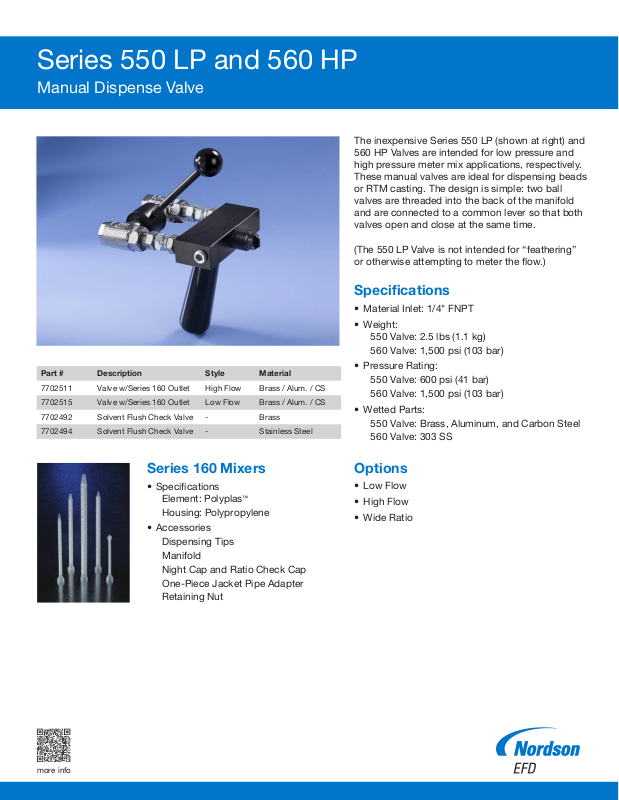

Series 550 LP and 560 HP

Manual Dispense Valve

Part # Description Style Material

7702511 Valve w/Series 160 Outlet High Flow Brass / Alum. / CS

7702515 Valve w/Series 160 Outlet Low Flow Brass / Alum. / CS

7702492 Solvent Flush Check Valve - Brass

7702494 Solvent Flush Check Valve - Stainless Steel

The inexpensive Series 550 LP (shown at right) and
560 HP Valves are intended for low pressure and
high pressure meter mix applications, respectively.
These manual valves are ideal for dispensing beads
or RTM casting. The design is simple: two ball
valves are threaded into the back of the manifold
and are connected to a common lever so that both
valves open and close at the same time.

(The 550 LP Valve is not intended for “feathering”
or otherwise attempting to meter the ow.)

Specifications

• Material Inlet: 1/4" FNPT

• Weight:
550 Valve: 2.5 lbs (1.1 kg)

560 Valve: 1,500 psi (103 bar)

• Pressure Rating:

550 Valve: 600 psi (41 bar)
560 Valve: 1,500 psi (103 bar)

• Wetted Parts:

550 Valve: Brass, Aluminum, and Carbon Steel
560 Valve: 303 SS

Series 160 Mixers

• Specications
Element: Polyplas

Housing: Polypropylene

• Accessories
Dispensing Tips
Manifold
Night Cap and Ratio Check Cap
One-Piece Jacket Pipe Adapter
Retaining Nut

™

Options

• Low Flow

• High Flow

• Wide Ratio

more info

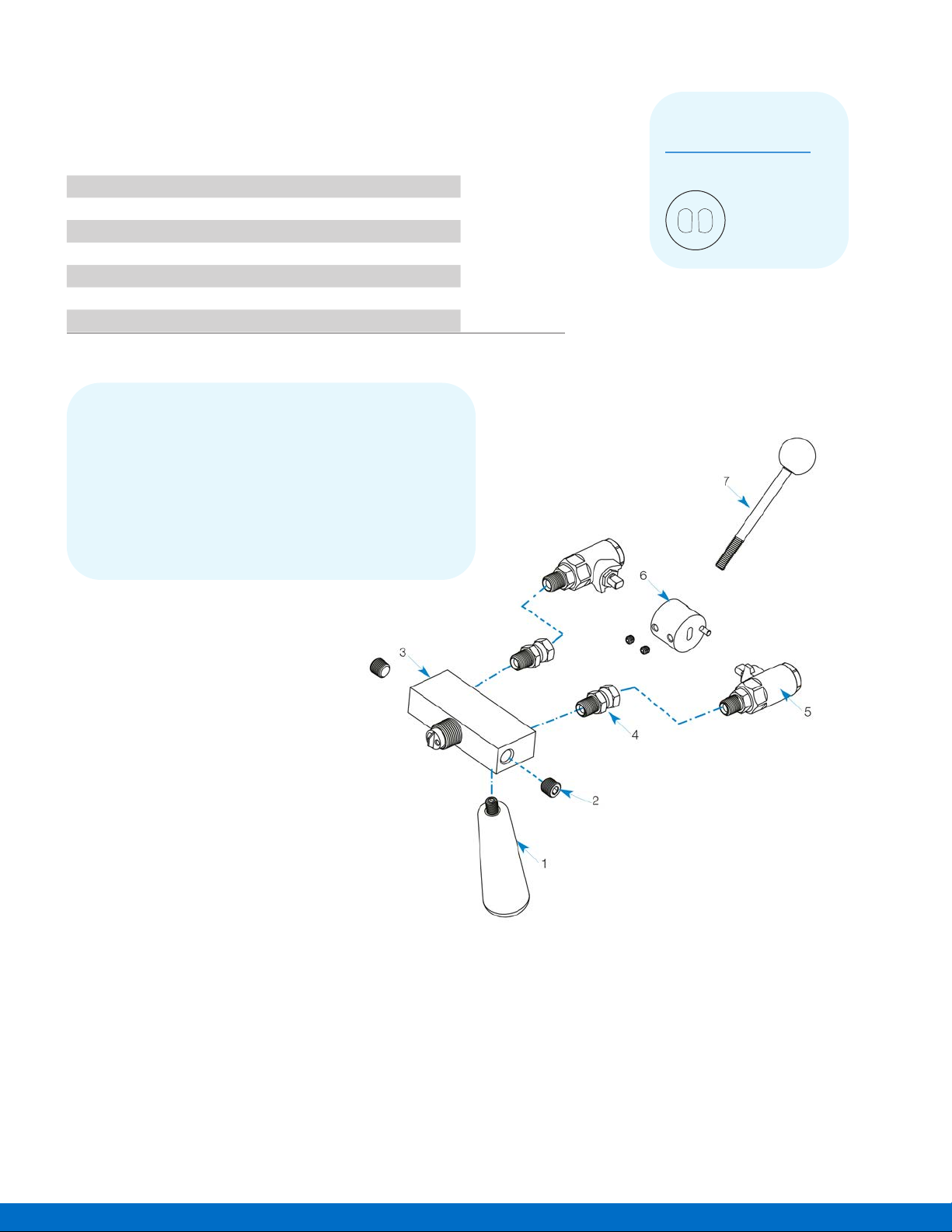

Series 550 LP Dispense Gun

(Brass, Aluminum & Carbon Steel Wetted Parts)
Maximum Working Pressure: 600 psi ( 40 bars)

Manifold Selection/
Orifice style

Ref. # Qty. Part # Description

1 1 7702522 Hand Grip

2 2 7702525 1/4" MNPT Plug (CS)

3A 1 7702526 Series 160 (A1) Manifold-LF

3B 1 7702527 Series 160 (A1) Manifold-HF

3C 1 7702528 Series 160 (A1) Manifold-DR

4 2 7702538 1/4" Swivel Connector (CS)

5 2 7702529 ON/Off Ball Valve (Brass)

6 1 7702539 One Pc. A1. Yoke Assembly*

7 1 7702533 Handle

Accessory A: Solvent Flush Check: Valve, Brass,

Part # 7702492, 7702494

Accessory C: Ratio Check cap,

Part # 7701184

Accessory D: Night Cap,

Part # 7701181

* Includes Set Screws

Low Flow-LF: 3A

High Flow-HF: 3B & 3E

Different ratio-DR: 3C

Series 560 LP Gun (Stainless Steel)

(All Stainless Steel Wetted Parts)

Maximum Working Pressure: 1500 psi ( 100 bars)

Manifold Selection/
Orifice style

Ref. # Qty. Part # Description

1 1 7702522 Hand Grip

2 2 7702554 1/4” MNPT Plug (CS)

3 1 7702565 1/2” MNPT (SS) Manifold-HF

5 2 7702529 ON/Off Ball Valve (Brass)

6 1 7702539 One Pc. A1. Yoke Assembly*

7 1 7702533 Handle

Accessory A: Solvent Flush Check: Valve, Brass,

Part # 7702492, 7702494

Accessory C: Ratio Check cap,

Part # 7701184

Accessory D: Night Cap,

Part # 7701181

* Includes Set Screws

High Flow-HF: 3
