OPERATING AND INSTALLATION
INSTRUCTIONS OF
BUILT-IN OVEN
SO313BL
SO313IX
Dear Customer,
We take offering quality products that more than meet your
expectations as our goal, offering you products produced in
modern factories that have been carefully and extensively
tested for quality.
Your manual is prepared in order to help you to use your
appliance that is manufactured by the most recent technology,
with confidence and maximum efficiency.
Before use of your appliance, carefully read this guide that
includes the basic information for right and safe installation,
maintenance and use. Contact your nearest Authorized
Service for installing your product.
1
Contents
1- Presentation and size of product
2- Warnings
3- Preparation for installation and use
4- Using the oven
5- Cleaning and maintenance of your product
6- Service and Transport
2
PART 1: PRESENTATION AND SIZE OF PRODUCT
LIST OF COMPONENTS :
1- Control panel
2- Handle
3- Oven Door
4- Child Lock
5- Tray
6- Lower Heating Element (behind the plate)
7- Upper Heating Element (behind the plate)
8- Wire Grill
9- Racks
10- Oven Light
11- Turbo Heating Element(behind the plate)
12- Fan (behind the plate)
13- Air Outlet Shutters
3
PART 2 SAFETY WARNINGS
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR
APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE
MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY
ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE
OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Danger of fire: do not store items
on the cooking surfaces.
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.
4
- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
- During use, handles held for short periods in
normal use can get hot.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the surface,
which may result in shattering of the glass or
damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
- CAUTION: Accessible parts may be hot when
the cooking or grilling is in use. Young children
should be kept away.
- Your appliance is produced in accordance with all applicable local and international
standards and regulations.
- Maintenance and repair work must be made only by authorized service technicians.
Installation and repair work that is carried out by unauthorized technicians may endanger you.
It is dangerous to alter or modify the specifications of the appliance in any way.
- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas
pressure or electricity voltage and frequency) and the requirements of the appliance are
compatible. The requirements for this appliance are stated on the label.
- CAUTION: This appliance is designed only for cooking food and is intended for indoor
domestic household use only and should not be used for any other purpose or in any other
application, such as for non-domestic use or in a commercial environment or room heating.
- Do not try to lift or move the appliance by pulling the door handle.
- All possible security measures have been taken to ensure your safety. Since the glass may
break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on
the glass with accessories.
- Ensure that the supply cord is not wedged during the installation. If the supply cord is
damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to prevent a hazard.
- While the oven door is open, do not let children climb on the door or sit on it.
Installation Warnings
- Do not operate the appliance before it is fully installed.
- The appliance must be installed by an authorized technician and put into use. The producer
is not responsible for any damage that might be caused by defective placement and
installation by unauthorized people.
- When you unpack the appliance, make sure that it is not damaged during transportation. In
case of any defect; do not use the appliance and contact a qualified service agent
immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause
harmful effects to children, they should be collected and removed immediately.
- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun,
rain, snow etc.
- The surrounding materials of the appliance (cabinet) must be able to withstand a
temperature of min 100°C.
During usage
- When you first run your oven a certain smell will emanate from the insulation materials and
the heater elements. For this reason, before using your oven, run it empty at maximum
temperature for 45 minutes. At the same time you need to properly ventilate the environment
in which the product is installed.
- During usage, the outer and inner surfaces of the oven get hot. While opening the oven
door, step back to avoid the hot steam coming out of the oven. There may be a risk of burns.
- Do not put flammable or combustible materials, in or near the appliance when it is operating.
- Always use oven gloves to remove and replace food in the oven.
- Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on
condition of extreme heating. Never pour water on to flames that are caused by oil. Cover the
saucepan or frypan with its cover in order to choke the flame that has occurred in this case
and turn the cooker off.
- If you will not use the appliance for a long time, plug it off. Keep the main control switch off.
Also when you do not use the appliance, keep the gas valve off.
- Make sure the appliance control knobs are always in the "0" (stop) position when it is not
used.
- The trays incline when pulled out. Be careful not to let hot liquid spill over.
- When the door or drawer of the oven is open, do not leave anything on it. You may
unbalance your appliance or break the cover.
- Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper,
cloth...etc) into the drawer. This includes cookware with plastic accessories (e.g. handles).
- Do not hang towels, dishcloths or clothes from the appliance or its handles.
During cleaning and maintenance
- Always turn the appliance off before operations such as cleaning or maintenance. You can
do it after plugging the appliance off or turning the main switches off.
- Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE
RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR
AUTHORIZED SERVICE AGENTS IN CASE OF NEED.
5
6
PART 3: PREPARATION FOR INSTALLATION AND USE
Figure 1
When choosing a place for the oven, attention should be paid that there are no flammable
or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which quickly
catch fire.
Furniture surrounding the oven must be made of materials resistant to heat more than 50
C° of the room temperature.
Required changes to wall cabinets and exhaust fans above the built-in combined product
as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the
exhaust fan should be at a minimum height of 65 cm from the hob board. If there is no
exhaust fan the height should not be less than 70 cm.
Manufactured with best quality parts and materials, this modern, functional and practical
oven will meet your needs in all respects. Make sure to read the manual to obtain successful
results and not to experience any problems in the future. The information given below contain
rules that are necessary for correct positioning and service operations. They should be read
without fail especially by the technician who will position the appliance.
CONTACT THE AUTHORIZED SERVICE FOR INSTALLATION OF YOUR OVEN!
3.1. CHOOSING A PLACE FOR THE OVEN
There are several points to pay attention to when choosing a place for your oven.
Make sure to take into account our recommendations below in order to prevent any
problems and dangerous situations, which might occur later!
7
C DETAIL
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in
the holes located on the oven frame. While the product frame touches the wooden surface of
cabinet, tighten the screws.
Cabinet cut-out sizes
You can use either cabinet 1
or cabinet 2 cut-out sizes
2
A
B
595mm
Min 25mm
580mm
560mm
600mm
1
555mm
575mm
560mm
A DETAIL
20mm
Minimum 40mm(The wooden
part can be extended up
to cut-out depth)
Product sizes
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop snd
top panel of built-in
oven
3.2. INSTALLATION OF BUILT_IN OVEN
Front
frame
Spacer
Mounting
screw
Wooden
part
C
555mm
595mm
570mm
555mm
Mounting screws
570mm
590mm
8
The dimensions and material of the cabinet in which the oven will be installed must be
correct and resistant to increases in temperature. In a correct installation, contact with
electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to
ensure that they cannot be removed by using any kind of tool. Installing the appliance in the
close vicinity of a refrigerator or a deep-freezer is not recommended. Otherwise, the
performance of the above-mentioned appliances will be negatively affected due to
emanating heat. After removing your oven from its packaging, be sure that the oven is not
harmed. In case, you suspect of any damage to the appliance, do not use it; immediately
contact Authorized Service.

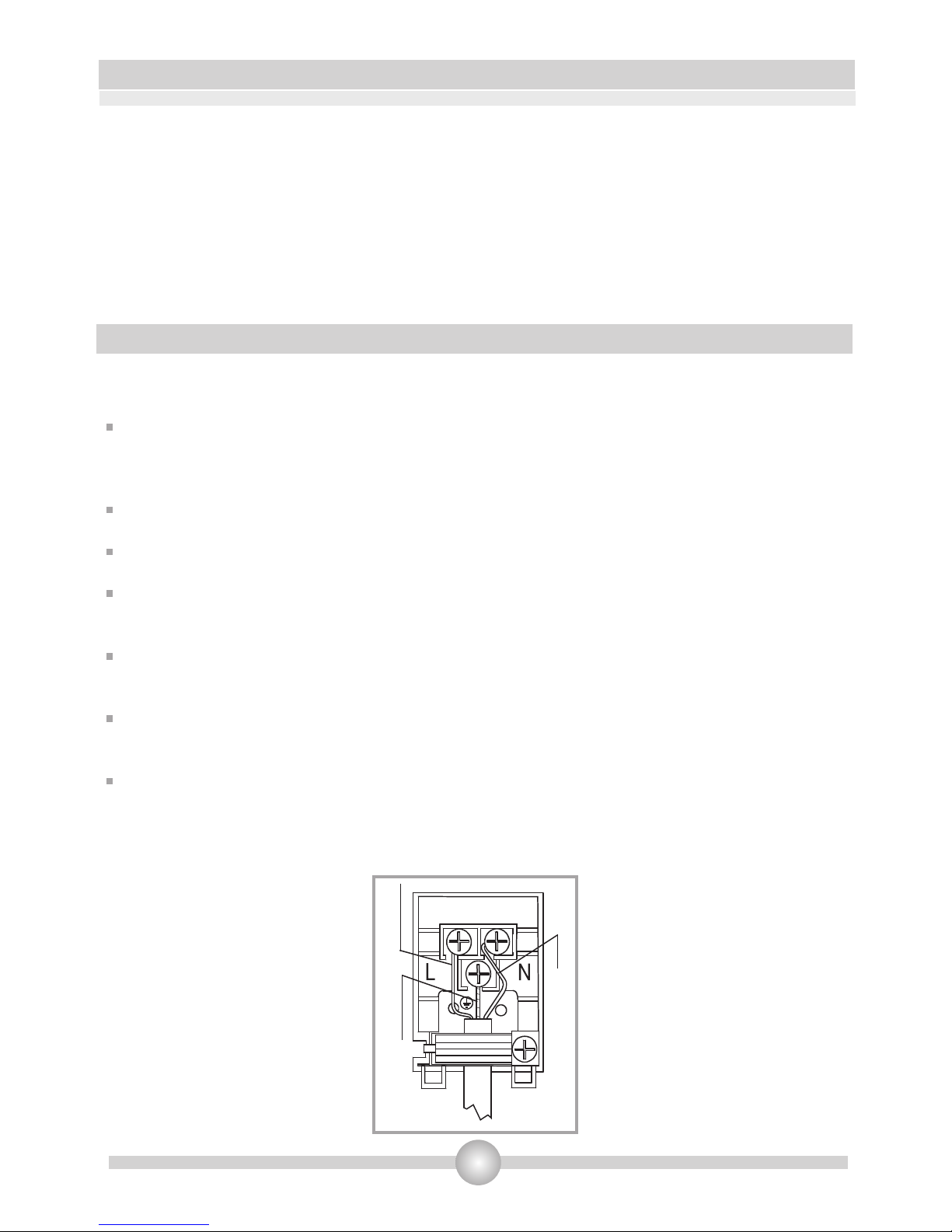

3.3. WIRING AND SAFETY OF BUILT_IN OVEN
The instructions given below must be followed without fail during wiring :
The earthing cable must be connected via the screw with the earthing mark. Supply cable
connection must be as shown in Figure 6. If there is no earthed outlet conforming to
regulations in the installation environment, call the Authorized Service immediately.
The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.
The supply cable should not contact the product’s hot surface.
In case of any damage to the supply cable, make sure to call the Authorized Service. The
cable must be replaced by the Authorized Service.
Wiring of the appliance must be performed by the Authorized Service. H05VV-F type
supply cable must be used.
Faulty wiring may damage the appliance. Such a damage will not be covered under the
warranty.
The appliance is designed to connect to 220-240V~ electricity is different than the value
given above, call the Authorized Service immediately.
The Manufacturer Firm declares that its bears no responsibility whatsoever for any
kind of damage and loss arising from not complying with safety norms!
Figure 6
BLUE
BROWN
YELLOW+GREEN
9
PART 4: USING THE OVEN
4.1 CONTROL PANELS
Oven Function
Control Knob
Digital Timer
Oven Thermostat Knob
Oven Thermostat LightOven Operation Light
Built_in Oven
Figure 11
Figure 12
Oven Function Control Knob:
To select the desired cooking function, turn the knob
to the related symbol(Figure 11). the details of the
oven functions have been explained in Table 1 and
next part.
Oven Thermostat Knob:
After cooking function set, desired temperature can
be adjusted by oven thermostat knob (figure 12) and
oven start to operate (timer must be adjusted, if
available).
Thermostat signal light will be on or off according to
thermostat operation.
50°
200°
Max
250°
100°
150°
50°
200°
Max
250°
100°
150°
10
4. USE OF YOUR PRODUCT
Oven Lamp
Static Cooking Function
Defrost Function
* The functions of your oven may be different due to the model of your product.
Only the oven light will be turned on and it remains on in all the cooking functions.
The oven lights will be turned on, the lower and upper heating
elements will start operating.
The static cooking function emits heat, ensuring even cooking of the lower and upper food. This is
ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes
is recommended and it is best to cook on only one shelf at a time in this function.
's thermostat and warning
The oven lights will be turned on, the fan starts operating.
To use the defrost function, take your frozen food and place it in the oven on a shelf placed in the
third slot from the bottom. It is recommended that you can place an oven tray under the
defrosting food, to catch the water accumulated due to melting ice. This function will not cook or
bake your food, it will only help to defrost it.
's warning
4.2. USING THE OVEN FUNCTION CONTROL BUTTON
Turbo Function
Fan Function
The oven lights will be turned on, the ring heating element and fan will
start operating.
The turbo function evenly disperse the heat in the oven. All foods on all racks will be cooked
evenly. It is recommended to pre-heat the oven about 10 minutes.
's thermostat and warning
The oven lights will be turned on, the upper and lower heating
elements and fan will start operating.
This function is very good for obtaining results in baking pastry. Cooking is carried out by the lower
and upper heating element within the oven and by the fan providing air circulation, which will
give a slight grill effect to the food. It is recommended to pre-heat the oven about 10 minutes.
's thermostat and warning
Grilling Function
Faster Grilling Function
11
4. USE OF YOUR PRODUCT
The oven lights will be turned on, the grill heating element will start
operating.
The function is used for grilling and toasting foods, use the upper shelves of oven. Lightly brush
the wire grid with oil to stop foods sticking and place foods in the centre of the grid. Always place
a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10
minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
0
adjusted to 190 C.
's thermostat and warning
The oven lights will be turned on, the grill and upper heating
elements will start operating.
The function is used for faster grilling and for covering a larger surface area, such as grilling meats,
use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place
foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is
recommended to pre-heat the oven about 10 minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
0
adjusted to 190 C.
's thermostat and warning
Pizza Function
The oven lights will be turned on, the ring and lower heating elements
and fan will start operating.
Fan and lower heating function is ideal for baking food, such as pizza, equally in a short time.
While the fan evenly disperses the heat of the oven, the lower heating element ensures the
baking of food dough.
's thermostat and warning
Double Grill and Fan Function
The oven lights will be turned on, the grill and upper heating
elements and fan will start operating.
The function is used for faster grilling of thicker foods and for covering a larger surface area. Both
the upper heating elements and grill will be energised along with the fan to ensure even cooking.
Use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place
foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is
recommended to pre-heat the oven about 10 minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
0
adjusted to 190 C.
's thermostat and warning
12
During use of electrical cookers , it is required to use saucepans having flat bases.
Choose a cookware of proper size.
Using a lid will reduce cooking times.
Minimize the amount of liquid or fat to reduce cooking times.
When liquid starts boiling ,reduce the temperature setting.
Oven door should not be opened often during cooking period.
ENERGY SAVING
13
4. USE OF YOUR PRODUCT
Use of digital timer
Time Adjustment:
The time must be adjusted before starting to use the oven.
Following the power supply to the oven, the symbol (A) and
the three “0” on the screen will begin to flash. Press the (+)
and (-) keys simultaneously. The symbol will appear on the
screen. Also, the dot in the middle of the screen will begin to
flash. Using the (+) and (-) buttons, adjust the day's time
while this dot is flashing. After the adjustment, it should be
expected that the dot will be lit continuously.
Following the power supply to the oven, when the symbol (A)
and the three “0” on the screen begin to flash, the oven can
not be operated using the control buttons. When the (+) and
(-) buttons are pressed simultaneously for time adjustment,
the symbol will appear on the screen. When this symbol
appears on the screen, you can manually operate the oven
part. As the adjusted time will be reset in the event of a power
failure, time adjustment operation willl have to performed
again.
-
+
MODE
A
4.3. USING TIMER
14
4. USE OF YOUR PRODUCT
Audible Warning Time Adjustment:
The time must be adjusted before starting to use the oven.
Following the power supply to the oven, the symbol (A) and
the three “0” on the screen will begin to flash. Press the (+)
and (-) keys simultaneously.
The symbol will appear on the screen. Also, the dot in the
middle of the screen will begin to flash. Using the (+) and (-)
keys, adjust the day’s time while this dot is flashing. After the
adjustment, it should be expected that the dot will be lit
continuously. This function can be used to recieve audible
warning at the completion of the adjusted time period.
Press the MODE key in the middle. The symbol will flash on
the screen. Also three “0”s will appear. Adjust the desired
time period for the warning by using (+) and (-) keys while the
symbol is flashing. Some time after the completion of the
adjustment, the symbol will begin to light continuously.
When the symbol begins to light continuously, the audible
warning time adjustment is done.
The audible warning time can be set to a time between the
time range of 0 and 23.59.
When the set time is up, the timer gives an audible warning
and the symbol begins to flash on the screen. Pressing any
key will stop the audible warning and the symbol
disappears on the screen.
Audible Warning time adjustment is for warning purposes
only. The oven will not be activated at this function.
Semi - Automatic Time Adjustment According to Cooking
Period:
This function is used to cook in the desired time range. The
foods to be cooked are put into the oven. The oven is
adjusted to the desired cooking function. The oven
thermostat is adjusted to the desired degree depending on
the dish to be cooked. Keep pressing on the MODE button
until you see “stop” on the timer screen. When you see
“stop” on the timer screen, the symbol (A) will begin to flash.
Adjusted the cooking period for the food you wish to cook, by
-
+
MODE
A
-
+
MODE
A
du
r
15
4. USE OF YOUR PRODUCT
using the (+) and (-) buttons while the timer is in his position.
Some time after the adjustment operation is completed, the
day’s time wil appear on the screen and the symbols (A) and
will begin to continuously light on the screen. While doing
this, the oven will also start to operate.
A cooking period between the time range of 0 and 10 hours
can be set.
At the completion of the set duration, the timer wil stop the
oven and give an audible warning. Also, the symbol (A) will
begin to flash on the screen. After bringing the oven button
and oven thermostat button to 0 position, pressing any
button of the timer will end the audible warning. Also, the
timer wil be brought to manual use function.
Semi - Automatic Programming According to Finish Time:
This function is used to cook according to desired finishing
time. The food to be cooked is put into the oven. The oven is
adjusted to the desired cooking function. The oven
thermostat is adjusted to the desired degree depending on
the dish to be cooked. Keep pressing on the MODE button
until you see “end” on the timer screen, the symbol (A) and
the day’s time will respectively begin to flash.
Adjust the finishing time for the food you wish to cook, by
using the (+) and (-) keys while the timer is in this position.
Some time after the adjustment operation is completed, the
day’s time will appear on the screen and the symbols (A) and
will begin to continuously light on the screen. While doing
this, the oven will also start to operate.
You can set a time which can be up to 10 hours after the
day’s time.
At the completion of the set duration, the timer will stop the
oven and give audible warning. Also the symbol (A) will begin
to flash on the screen. After bringing the oven button and
oven thermostat button to 0 position, pressing any button of
the timer will end the audible warning. Also, the timer will be
brought to manual use function.
-
+
MODE
A
En
d
16
4. USE OF YOUR PRODUCT
Full- Automatic Programming:
This function is used to cook after a certain period of time,
within a certain duration. The food to be cooked is put into
the oven. The oven is adjusted to the desired cooking
function. The oven thermostat is adjusted to the desired
degree depending on the dish to be cooked.
First; keep pressing on the MODE button until you see “stop”
on the timer screen. When you see “stop” on the timer
screen, the symbol (A) will begin to flash. Adjust the cooking
period for the food you wish to cook, by using the (+) and (-)
keys while timer is in this position. Some time after the
adjustment operation is completed, the day’s time will
appear on the screen and the symbols (A) and will begin to
continuously light on the screen.
A cooking period between the time range of 0 and 10 hours
can be set.
Second; keep pressing on the MODE button until you see
“end” on the timer screen. When you see “end” on the timer
screen, the symbol (A) and the day’s time will begin to flash,
with the addition of the cooking period. Adjust the finishing
time for the food by using the (+) and (-) keys while the timer
is in this position. Some time after the adjustment operation
is completed, the day’s time will appear on the screen and
the symbol (A) will begin to continuously light on the screen.
You can set a time which can be up 23.59 hours after the
time obtained by adding the cooking period to the day’s
time.
The oven will start operating at the time calculated by
deducting the cooking period from the set finishing time, and
will stop at the set finishing time. The timer will give an
audible warning and the symbol (A) will begin to flash. After
bringing the oven button and oven thermostat button to 0
position, pressing any button of the timer will end the audible
warning. Also, the time will be brought to manual use
-
+
MODE
A
En
d
-
+
MODE
A
du
r
17
min
min
min
min
4
3-4
4
1-2
1-2
1-2-3
1-2-3
1-2-3
2
1-4
1-4
1-2
1-2
2
1-2
1-2-3
1-2-3
2
1-2
18
5. rack
4. rack
3. rack
2. rack
1. rack
4.8. ACCESSORIES USED IN THE OVEN
It is recommended that you use the containers indicated on the table depending on the food
you will cook in your oven, you can also use glass containers, cake cutters, special oven
trays suitable for use in your oven, available in the market. Pay attention to the information
given by the manufacturer firm concerning this issue. If small sized containers are used,
place this container on the inner grill wire so it will be precisely on the middle of the wire. The
information given below should be implemented for enamelled containers.
If the food to be cooked does not completely cover the oven tray, if the food is taken out of the
deep-freezer or if the tray is used to collect the dripping juices of the foods during the grill
operation; deformation might be observed on the tray due to high temperatures forming
during the cooking/frying operation. This is normal, physical state that results during the heat
transfer. Do not leave a glass tray or container in a cold environment immediately after
cooking in them. Do not place them on cold and wet surfaces. Ensure that they slowly cool off
placing them on a dry piece of cloth. Otherwise, the glass tray or container might break. If you
are going to perform a grill operation in your oven, we recommend that you use the grill on
tray, supplied together with your product (if your product includes this equipment). This way,
splattering and dripping oils will not make the oven interior dirty. If you are going to use the
large wire grill, insert a tray into one of the lower racks to avoid accumulation of the oils. To
make cleaning easier, add some water into it as well. In a grilling operation, use the 3. Or the
4.rack and ail the grill to prevent the food to be grilled from sticking to the grill.
Wire grid: Used for grills or placing
different containers other than the cooking
tray on it.
Shallow tray: Used for baking pastry such
as flans etc.
Deep tray: Used for baking stews.
Figure 22
19
Installation of the Shelves
5. Rack
4. Rack
3. Rack
2. Rack
1. Rack
WARNING- Fit the
grid correctly into
any correspondent
rack in the oven
cavity and push it to
the end.
20
PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN
5.1. CLEANING
Before starting to clean your oven, be sure that all control buttons are off and your appliance
is cooled off. Unplug the appliance.
Do not use cleaning materials containing particles that might scratch the enamelled and
painted parts of your oven. Use cream cleaners or liquid cleaners, which do not contain
particles. As they might harm the surfaces, do not use caustic creams, abrasive cleaning
powders, rough wire wool or hard tools. In the event the excess liquids spilling over your
oven should burn, it may cause a damage to the enamel. Immediately clean up the split
liquids. Do not use steam cleaners for cleaning the oven.
Cleaning the interior of the oven
Make sure to unplug the oven before starting to clean it. You will obtain best results if you
clean the oven interior while the oven is slightly warm. Wipe your oven with a soft piece of
cloth dampened with soap water after each use. Then wipe it again, this time with a wetted
cloth, and wipe it dry. A complete cleaning using dry and powder type cleaners. For product
with catalytic enamel frames, the rear and side walls of the inner frame do not require
cleaning. However; depending on usage, it is recommended that you replace them after a
certain period of time.
Clearing of the hob part of the Built-in Oven
For built-in combined products, hobs should be cleaned wiping with a dampened cloth.
Cleaning of the stainless steel parts should be done only with water and such parts should
be wiped dry with a soft cloth or chamois. Gaps and corners should be cleaned using liquid
detergents or lukewarm vinegar. When cleaning the lids of the models with upper glass lids,
use hot water and rough cloth. Try to clean up without rubbing / scrubbing. You can use liquid
detergents if necessary. Another point to pay attention to that the glass lid should not be
closed until the job boar is completely cooled off.
Cleaning the vitroceramic glass burner
Unplug the appliance before starting the cleaning.
Wait for the vitroceramic glass to completely cool off before starting the cleaning.
Make sure that the cleaning materials you will use do not contain particles that might
scratch the glass. Use cream detergents or liquid detergents.
The vitroceramic surface shoul be wiped with cold water and wiped dry with a soft piece of
cloth until no cleaning material as is left on the surface.
You can use the cleaning spatula supplied together with your product, for the cleaning of
split foods and residues.
Dessert type of foods should be cleaned immediately after day spill without waiting for the
vitroceramic glass to cool off.
Scrubbing with steel cleaning wires may harm the vitroceramic glass surface. Formation of
dust on the surface should be cleaned up using a dampened cloth.
Changes in colour which might occur on the ceramic glass surface do not affect the
functional structure or permanence of the vitroceramic. The reason for the changes in
colour is not the change in the material; it may be because the burnt residues on the
surface are not cleaned up or the pots used have worn the glass surface or because
unsuitable cleaning materials were used.
The cleaning spatula should always be used prior to chemical cleaning substances. With
this spatula, you can clean up the tiniest of dirt on the vitroceramic surface. Dirts that are
difficult to remove, such as melted plastic, heavy oils, sweet substances, can be removed
easily with the spatula. As the spatula includes a razor, it is dangerous and must be kept out
of reach of children.
During cleaning with spatula, pay attention not to scrape off the silicon adhesives found on
the sides of the glass.
21
5.2. MAINTENANCE
Replacing the Oven Light
The change of oven lamp must be done by authorized technician. The rating of the bulb
should be 230V, 25Watt, Type E14,T300 before changing the lamp,the oven should be
plugged off and it should be cool.
The lamp design is specific for the use in household cooking appliances and it is not suitable
for household room illumination.
22
PART 6: SERVICE AND TRANSPORT
6.1. REQUIREMENTS BEFORE CONTAINING TO SERVICE
If the oven does not operate :
The oven may be plugged off, there has been a black out. On models fitted with a timer, time
may not be regulated.
If the oven does not heat :
The heat may be not adjusted with oven’s heater control switch.
If the interior lighting lamp does not light :
The electricity must be controlled. It must be controlled whether the lamps are defective. If
they are defective, you can change them as following the guide.
Cooking (if lower-upper part does not cook equally) :
Control the shelf locations, cooking period and heat values according to the manual.
Except these, if you still have any problem with your product, please call to the
“Authorized Service”.
6.2. INFORMATION RELATED TO TRANSPORT
If you need any transport :
Keep the original case of product and carry it with its original case when need to be carried.
Follow the transport signs on case. Tape the cooker on upper parts, hats and heads and
saucepan carriers to the cooking panels.
Place a paper between the upper cover and cooking panel, cover the upper cover, than tape
to the side surfaces of oven.
Tape cardboard or paper onto the front cover on interior glass of oven as it will be suitable to
the trays, for the wire grill and trays in your oven not damage to the oven’s cover during
transport. Also tape the oven’s covers to the side walls.
If does not have the original case :
Take measure for external surfaces (glass and painted surfaces) of oven against possible
blows.
Trademark
Model
Energy Consumption at
Load E (kWh)
B
C
D
E
F
Useable Volume(lt)
Size
Small
Medium
Large
Cooking Duration
Energy Consumption when the
heating function is not in use(Wh)
Cooking Surface Area (cm2)
1200
E < 0.80
0.80 < E < 1.00
1.00 < E < 1.20
1.20 < E <1.40
1.40 < E < 1.60
1.60 < E <1.80
1.80 < E
56
0.9
Energy Efficiency Class
A(High Efficiency)
G(Low Efficiency)
Energy Consumption (kWh)
(Min)
Standard
Conventional : 0.89
Forced Air convection : 0.79
Conventional : 45
Forced Air convection : 40
SO313IX
22
Trademark
Model
Energy Consumption at
Load E (kWh)
B
C
D
E
F
Useable Volume(lt)
Size
Small
Medium
Large
Cooking Duration
Energy Consumption when the
heating function is not in use(Wh)
Cooking Surface Area (cm2)
1200
E < 0.80
0.80 < E < 1.00
1.00 < E < 1.20
1.20 < E <1.40
1.40 < E < 1.60
1.60 < E <1.80
1.80 < E
56
0.9
Energy Efficiency Class
A(High Efficiency)
G(Low Efficiency)
Energy Consumption (kWh)
(Min)
Standard
Conventional : 0.89
Forced Air convection : 0.79
Conventional : 45
Forced Air convection : 40
SO313BL
The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this
product, please contact your local city office, your household
waste disposal service or the shop where you purchased the
product.
Loading...
