Nordmende NM451IX User Manual

Microwave Oven
INSTRUCTION MANUAL
MODEL: NM451IX
Read these instructions carefully before using your microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.
Specifications
Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave):
Rated Input Power(Grill):
Rated Input Power(Convection): Oven Capacity:
Turntable Diameter: External Dimensions: Net Weight:
NM451IX1
230V~50Hz 1650W 900W
1750W
1750W
44L
360mm
594 454.5
Approx. 41 kg
2
568 mm
IMPORTANT SAFETY INSTRUCTIONS WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:
1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
3
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15.This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven.
4
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
5
31.WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
33.Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
6
To Reduce the Risk of Injury to Persons Grounding Installation
DANGER
Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.
WARNING
Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubtexists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
2)The extension cord must be a grounding-type 3-wire cord.
3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.
7
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
8
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminium foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish
Dinnerware
Glass jars
Glassware
Oven cooking bags
Paper plates and cups
Paper towels
Parchment paper
Plastic
Plastic wrap
Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture.
Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
9
Materials to be avoided in microwave oven
Utensils Remarks
Aluminium tray Food carton with
May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish.
metal handle Metal or metal-
trimmed utensils Metal twist ties
Paper bags Plastic foam
Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may split or crack.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity Your oven comes
with the Enamel Tray 1 Turntable ring assembly 1 Instruction Manual 1
following accessories:
.
1
2
3
4
5
6
7
1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7.
Turntable shaft
8
9
10
8. Short Grill Rack
9. Long Grill Rack
10.Grill Pan
10

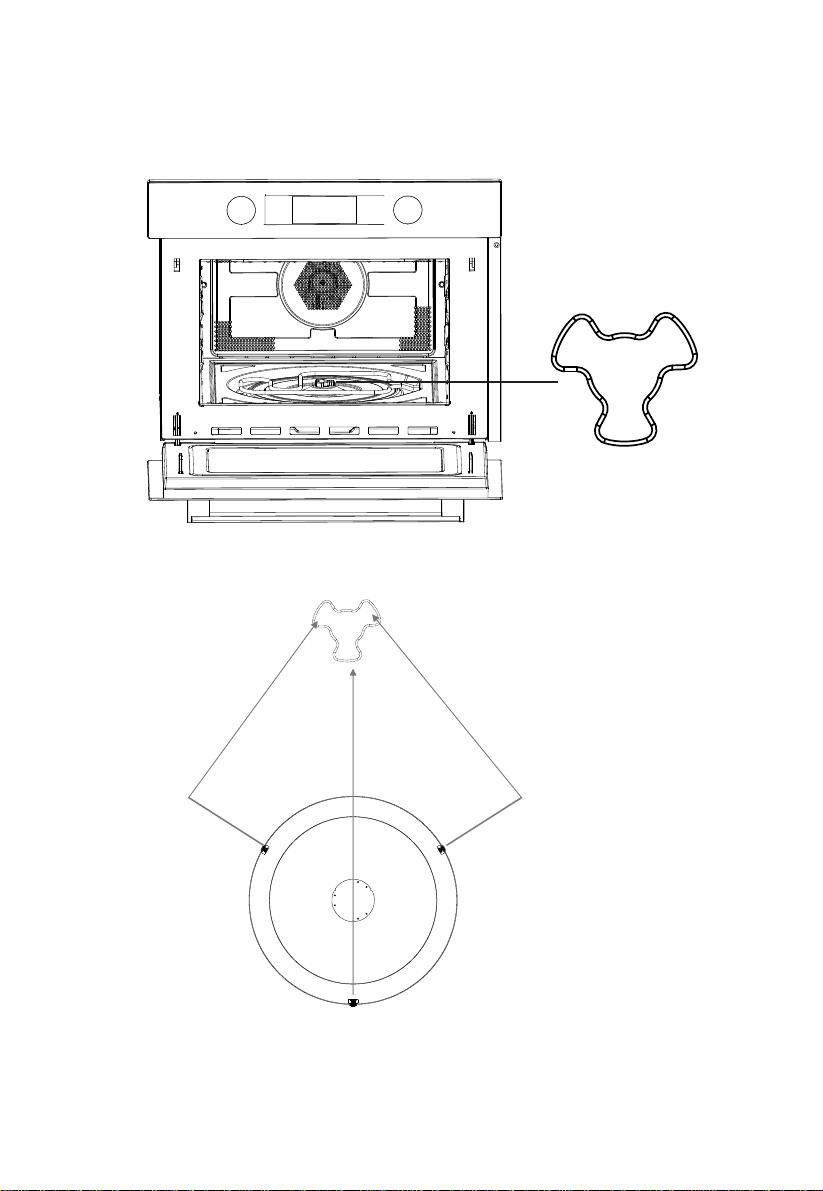

Turntable Installation
Hub (underside)
Enamel tray
Turntable shaft
a. Never place the tray should never be restricted. b.
The
enamel tray
c. All food and containers of food are always placed on the d. If
nearest authorized service
enamel tray
enamel tray
enamel tray
always be used during cooking.
must
for cooking.
cracks or
upside down. The enamel
breaks, contact your
centre
.
Important information about installing
• This appliance is NOT intended for use in a commercial
environment.
• Please observe the installation instructions provided and
note that this appliance should only be installed by a qualified technician.
• The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
• In case a new socket is needed, installation and cable
connection must only be done by a qualied electrician. If the plug is no longer accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm.
• Adapters, multiway strips and extension cords must not be
used. Overloading can result in fire.
The accessible surface may be hot during operation.
11
Placement
Danger! Do not disassemble this appliance. Touching internal components of this appliance can cause serious personal injury or death.
Place the microwave oven on a firm, flat surface. Make sure that there is suffi
cient ventilation around the micr owave oven. At the rear and sides keep at least 10 cm free. Do not cover the air vents. The adjustable feet should not be removed.
Do not place the microwave oven near a heat source. Transmitting and receiving equipment such as radios and televisions can affect the operation of the micr owave oven.
Installation dimensions
100
100
560
558-568
22
20
454.5
455
595
594
542
450
560-568
560
600
600
min 550
22
20
454.5
455
595
594
542
min. 550
458+2
min
min 460
min. beluchtingsopp.
min. aeration surface
250 cm
250 cm
540
2
2
2
min. beluchtingsopp. 250 cm
min. aeration surface 250 cm
2
min 580
min 580
Note: There should be gap above the oven.
Building in
• Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may br eak off.
1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the micr owave with the screws that were supplied.
12
Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not be closed by
additional battens.
13
INSTALL THE GRILL PAN
1. Be sure the angle of the shaft.
2. Adjust the angel of the grill pan and the shaft.
5:1
3. Put the pan into the cavity and adjust slightly.
14
OPERATION
Control Panel and Features
hrhr
minmin
1
4
3
2
1) Function knob
2) Power/Weight button
3) Quickly preheating button
4) On/Off Button
5) Temperature/automenu button
6) Clock button
7) Start/Pause button
8) Selection knob
7
6
5
8
15
OPERATION INSTRUCTION
This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.
1.Clock Setting
When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.
1) Turn knob to set the right time(between 00:00 and 23:59.)
2) After you have set the right time, press " ". The clock has been set. Note: 1) If you want to change the time, you have to press and hold the " " button for 3 seconds. The actual time disappears and then the time will
blink in the display.
Turn knob to set the new time and press the " " to confirm the setting.
2) If you do not want to see the clock in the display, press " " button briefly. The time disappears. Press " " again, and the clock appears in the display again.
2. Microwave Cooking
1) Press the " " button to activate the microwave function. "01:00" is blinking in the display and the microwave icon appears. If no operation in 10 seconds, the
current power will be confirmed automatically.
2) Turn knob to set the cooking time. The max. cooking time depends on the power that has been set. When the power is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
3) Press " " button to adjust the power microwave power.
4) Turn knob to set the microwave power (between 100W to 900W)
button
5) Press " " button to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 1 second 1---5 min : 10 seconds 5---15 min : 30 seconds 15---60 min : 1 minute 60 min : 5 minutes
Microwave Power Chart
Microwave Power
Display
100%
900W 700W 450W 300W 100W
80% 50%
30%
10%
16
You can see from the table below from which  which foods the power levels are suitable.
Power level Food
900 W - Boiling water, reheating
- Cooking chicken,  sh, vegetables
700 W - Reheating
- Cooking mushrooms, shell sh
- Cooking dishes containing eggs and cheese 450 W - Cooking rice, soup 300 W - Defrosting
- Melting chocolate and butter 100 W - Defrosting sensitive/delicate foods
- Defrosting irregularly-shaped foods
- Softening ice cream
- Allowing dough to rise
Functions
Function Mode
Microwave Microwave Microwave
Heating
power levels you can choose and for
Hot air Hot air
Grill with fan Grill with fan
Use the microwave function to cook and reheat vegetables, potatoes, rice,  sh and meat.
With hot air you can prepare meals in the same way as you do with a conventional oven. The microwave is not activated. You are advised to preheat the oven before putting the meal in the oven.
Use this function to roast meals evenly and at the same time give the meal a brown crust.
Grill Grill
The grill is very suitable to prepare thin pieces of meat and  sh.
17
Function Mode
Hot air+
Heating
Combination
+
Bottom heat
Hot air Microwave + Hot air
Grill with fan Microwave + Grill with
Grill Microwave + Grill
Use this function to roast big pieces of meat, pizza,
etc.
Use this function to roast meals quickly.
fan
Use this function to cook meals quickly and at the same time give the meal a brown crust (also au gratin). The microwave and the grill are activated at the same time. The microwave is cooking and the grill is roasting.
Hot air+ Bottom heat
Auto­programs
Defrost d01 + d02 Defrost
P01 - P13
Use this function to roast
big pieces of meat, pizza, etc.
Automatic cooking programs
18
3. Grill Cooking
19
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
F
3) Turn " " to select grill mode. The default grill power is the third level.
" " indicator will light when grill function is selected.
" " indicator lights.
4) Press "
" to enter to the grill level.
5) Turn " " to select the level 3(the MAX.), level 2 or level 1(the MIN.).
Press " " to select the time setting mode. The default time is 10 minutes.
6) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes.
7) Press " " button to start cooking.
4. Convection Cooking
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
F
3) Turn " " to select convection mode. " " lights.
The default temperature is 180 degrees..
4) Press "
" to enter to the temperature mode.
5) Turn " " to select temperature. The temperature is from 50 to 230 degrees.
Press " " to select the time setting mode. The default time is 10 minutes.
" " indicator lights.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
7) Press " " button to start cooking.
5. Grill Fan Cooking
20
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
F
" " indicator lights.
3) Turn " " to select grill fan mode. The default temperature is 180 degrees.
" " indicator will light when grill fan function is selected.
4) Press " " to enter to the temperature selection.
5) Turn " " to select the temperature between 100 to 230 degrees. The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160, 165,170,175,180,185,190,195,200,205,210,215,220,225,230.
Press" " to select the time setting mode. The default time is 10 minutes.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
7) Press " " button to start cooking.
6. Convection+ Bottom heat Cooking
1) Press " " button to activate the microwave function.
2) Turn " " to select
3) Turn " " to select mode.
F
cooking mode.
bottom+ convection
" " indicator lights.
The default temperature is 180 degrees.
" indicator will light when convection + bottom function is selected.
"
4) Press " " to enter to the temperature selection.
5) Turn " " to select the temperature between 100 to 230 degrees. The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160, 165,170,175,180,185,190,195,200,205,210,215,220,225,230.
press" " to select the time setting mode. The default time is 10 minutes.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
7) Press " " button to start cooking.
7. Microwave + Grill Cooking
21
1) Press " " button to activate the microwave function.
2) Turn " " to select the combination mode." " and " " will light.
F
3) Turn " " to select mode. The default power is level 3.
" " indicator will light when grill function is selected.
4) Press " " to enter to the temperature selection.
5) Turn " " to select the power.
6) Press "
" to select the power. The default power is 300W
7) Turn " " to select 700W,450W,300W and 100W.
8) Press" " to select the time setting mode. The default time is 10 minutes.
9) Turn " " to select the cooking time. The MAX.time is 90 minutes.
10) Press " " button to start cooking.
8. Microwave + Convection Cooking
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode. " " and " " will light.
3) Turn " " to select convection mode. The default temperature is 180 degrees.
F
" " lights.
4) Press " " to enter to the temperature selection.
5) Turn " " to select the temperature between 50 to 230 degrees.
6) Press " " to select the power. The default power is 300W
7) Turn " " to select 700W,450W,300W and 100W.
8) Press" " to select the time setting mode. The default time is 10 minutes.
9) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes..
10) Press " " button to start cooking.
9. Microwave + Grill Fan Cooking
22
1) Press " " button to activate the microwave function.
2) Turn " " to select the combination mode." " and " " will light.
F
3) Turn " " to select cooking mode. The default temperature is 180 degrees.
" " indicator will light when this function is selected.
4) Press " " to enter to the temperature selection.
5) Turn " " to select the temperature between 100 to 230 degrees.
6) Press " " to select the power. The default power is 300W
7) Turn " " to select 700W,450W,300W and 100W.
8) Press" " to select the time setting mode. The default time is 10 minutes.
9) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes..
10) Press " " button to start cooking.
10. Microwave + Bottom + Convection Cooking
1) Press " " button to activate the microwave function.
2) Turn " " to select the combination mode." " and " " will light.
F
3) Press " " to select convection mode. The default temperature is 180 degrees.
" indicator will light when this function is selected.
"
4) Press " " to enter to the temperature selection.
5) Press " " to select the teerature between 100 to 230 degrees.
6) Press " " to select the power. The default power is 300W
7) Press " " to select 700W,450W,300W and 100W.
8) Turn " " to select the time setting mode. The default time is 10 minutes.
9) Press " " to select the cooking time of grill. The MAX.time is 90 minutes.
10) Press " " button to start cooking.
11. Auto Cook
23
There are 15 automatic cooking programs. You only have to choose the program and set the weight. The power, the time and the temperature are already set.
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode."
F
" or will light when defrost
" "
auto menu selected. Time, weight,the first number of the automatic programs are shown in the display.
3)
Turn " "
to select auto menu.
" d01","d02" or "P01","P02"...."P13" will display
4) Press " " button.
5) Turn " " to select weight of the menu.
6) Press " " button to start cooking.
Program Category Item
d01 (defrost)** If you hear a beep, the combi microwave d02 (defrost)** Bread, cake and fruit
P01** Vegetables Fresh vegetables P02** Side dishes Potatoes - peeled/cooked P03* Side dishes Potatoes - roasted
P04
P05* Bakery Cake P06* Bakery Apple pie P07* Bakery Quiche P08** Reheat Drink/soup P09** Reheat Plated meal P10** Reheat Sauce/stew/dish P11* Convenience Frozen - pizza P12* Convenience Oven chips
P13* Convenience Frozen - lasagne
The programmes with a * are preheated. During pr eheating, the cooking time pauses and the preheating symbol is on. After preheating, you wil hear an alarm and the preheating symbol will blink.
The programmes with ** only use the microwave function.
Meat, poultry and fish
oven stops. Turn the food and pr ess the start/pause button to continue the defrosting program.
If you hear a beep, turn the food. The combi micr owave oven starts the next phase automatically.
Chicken pieces/  Fish piecesPoultry/ Fish
If you hear a beep, turn the food. The combi micr owave oven starts the next phase automatically.
If you hear a beep, turn the food. The combi microwave
oven starts the next phase automatically.
12. Preheating Function
24
The preheating function can be activated after you have chosen the functions: Convection, Grill fan, bottom -convection,MW-convection,MW-Grill fan and Microwave -Bottom-convection.
1) Press " " button. The preheat icon appears in the display.
2) Press " " button to start preheating. If the right temperature is reached, you will hear three beeps. You can stop the preheating by opening the oven door or by pressing the " " button.
Note: The preheating function only works if you have already chosen one of the modes above. During preheating, the microwave function is switched off.
13. Lock-out Function for Children
Lock: In waiting state, press " " and " " at the same time, there will be a long "beep" denoting entering into the children-lock state and " " indicator will light.
Unlock : In locked state, press " " and " " for 3 seconds, there will be a long
"beep" denoting that the lock is released, and " " indicator will disappear.
14. Display Specification
(1) When setting, if no other operation,it will confirm automatically after 10 seconds.
Except clock setting for the first time.
(2) During setting program, after adjusted for 3 seconds, it will confirm after 3 seconds. (3) When the oven is in setting state or pause state, including auto menu and defrost program,
if no operation in 5 minutes, it will enter into the off state.
(4) The oven lamp will light all the time if the door is open.
(5) The oven lamp will light all the time if the oven is paused.
(6) " " button must be pressed to continue cooking if the oven door is open
during cooking process.
Trouble shooting
25
It is forbidden to run the unit without any food inside. It is very dangerous.
According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
Loading...
