WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
NordicTrack is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local NordicTrack dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 325 lbs. (147 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
14), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
Page 4
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
5.3 treadmill. The T5.3 treadmill offers an impressive
T
selection of features designed to make your workouts
at home more enjoyable and effective. And when
youʼre not exercising, the unique treadmill can be
olded up, requiring less than half the floor space of
f
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Tray
Handrail
Upright
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Power Switch
Power Cord
Platform Cushion
5
Page 6
ASSEMBLY
Base Foot Spacer
(94)–2
#8 x 3/4" Screw
(1)–10
3/8" Star
Washer (11)–6
#8 x 1" Tek Screw
(5)–4
3/8" Nut (10)–3
5/16" Star
Washer (13)–2
#10 Star
Washer (12)–4
#8 x 1" Screw
(53)–4
#10 x 3/4" Screw
(2)–4
1/4" x 1/2"
Bolt (9)–4
3/8" x 1 1/2"
Bolt (3)–2
5/16" x 1" Flat
Head Bolt (14)–4
5/16" x 1"
Bolt (4)–2
3/8" x 4" Bolt (7)–4
3/8" x 1 3/4" Bolt (6)–1
3/8" x 2" Bolt (8)–3
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
ant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
c
Assembly requires the included hex key and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
6
Page 7
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
1
Hole
87
90
5
95
94
55
90
5
90
5
90
94
5
2. See the inset drawing. Cut the plastic tie near
the Upright Wire (87).
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
2
Plastic Tie
89
8
95
96
10
Cut
87
7
Page 8
. Identify the Right Upright (85), which is marked
3
with a “Right” sticker. Hold the Right Upright
near the Base (95) as shown.
ee the inset drawing. Tie the wire tie in the
S
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
of the wire tie until the Upright Wire is routed
ompletely through the Right Upright.
c
3
5
8
87
Wire Tie
87
95
85
Wire
Tie
87
4. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright Wire
(87). Insert two 3/8" x 4" Bolts (7) and a 3/8" x
1 1/2" Bolt (3) with three 3/8" Star Washers (11)
into the Right Upright.
Partially tighten the 3/8" x 4" Patch Bolts (7) until
the heads of the Patch Bolts touch the Right
Upright (85); do not fully tighten the Patch
Bolts yet. Partially tighten the 3/8" x 1 1/2" Bolt
(3).
4
7
85
3
11
11
87
95
8
Page 9
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
o not fully fold the Frame yet.
d
ttach a Wheel (96) to the Base (95) with a 3/8"
A
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
89
8
5
5
95
6. Hold the Left Upright (84) against the Base (95).
Insert two 3/8" x 4" Bolts (7) and a 3/8" x 1 1/2"
Bolt (3) with three 3/8" Star Washers (11) into
the Left Upright.
Partially tighten the 3/8" x 4" Patch Bolts (7) until
the heads of the Patch Bolts touch the Left
Upright (84); do not fully tighten the Patch
Bolts yet. Partially tighten the 3/8" x 1 1/2" Bolt
(3).
With the help of a second person, tip the treadmill so that the Base (95) is flat on the floor.
96
10
6
7
3
84
11
11
95
7. Identify the Left Base Cover (88) and the Right
Base Cover (91). Slide the Left Base Cover onto
the Left Upright (84). Slide the Right Base Cover
onto the Right Upright (85).
7
84
85
88
91
9
Page 10
8. Identify the Left Upright Cover (80). Slide the
Left Upright Cover onto the Left Upright (84).
dentify the Left Handrail (82). Remove the tie
I
from the 5/16" Cage Nut (38). If necessary,
ress the Cage Nut back into place.
p
8
4
38
13
Attach the Left Handrail (82) to the Left Upright
(84) with two 5/16" x 1" Flat Head Bolts (14), a
5/16" x 1" Bolt (4), and a 5/16" Star Washer (13)
as shown. Do not tighten the Bolts yet.
9. Slide the Right Upright Cover (86) onto the
Right Upright (85). Remove the tie from the
5/16" Cage Nut (38). If necessary, press the
Cage Nut back into place.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the bracket on the bottom of the Right
Handrail. Pull the Upright Wire out of the end of
the Right Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with two 5/16" x 1" Flat Head Bolts
(14), a 5/16" x 1" Bolt (4), and a 5/16" Star
Washer (13) as shown. Do not tighten the
Bolts yet.
82
14
84
80
9
87
Bracket
38
14
4
13
83
86
10. Set the console assembly face down on a soft
surface to avoid scratching the console assembly. Remove the two #8 x 3/4" Screws (1). Lift
off the Crossbar (107).
10
10
Console
Assembly
85
1
107
Page 11

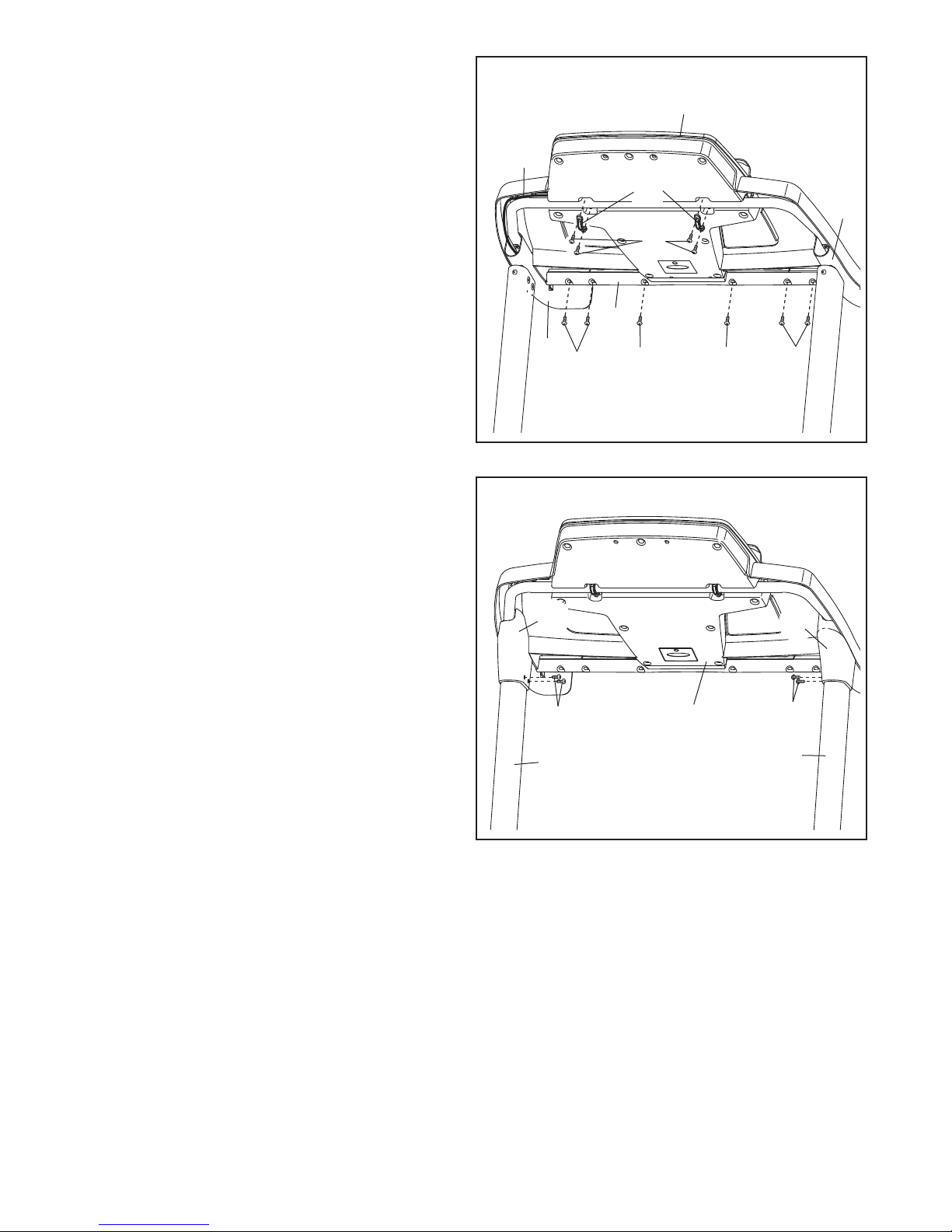

11. IMPORTANT: To avoid damaging the
Crossbar (107), do not use power tools and
do not overtighten the #10 x 3/4" Screws (2).
rient the Crossbar (107) as shown. Attach the
O
Crossbar to the Handrails (82, 83) with four #10
x 3/4" Screws (2) and four #10 Star Washers
(12); do not tighten the Screws yet.
Insert the Console Frame (102) into the
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1/2" Bolts (9); do not tighten
the Bolts yet. Be careful not to pinch the
Upright Wire (87).
11
First
8
102
9
2
12
107
2
irst
F
9
2
12
87
Tighten one #10 x 3/4" Screw (2) in each end
of the Crossbar (107); do not overtighten the
Screws. Then, tighten the other #10 x 3/4"
Screw (2) in each end of the Crossbar.
Tighten the four 1/4" x 1/2" Bolts (9).

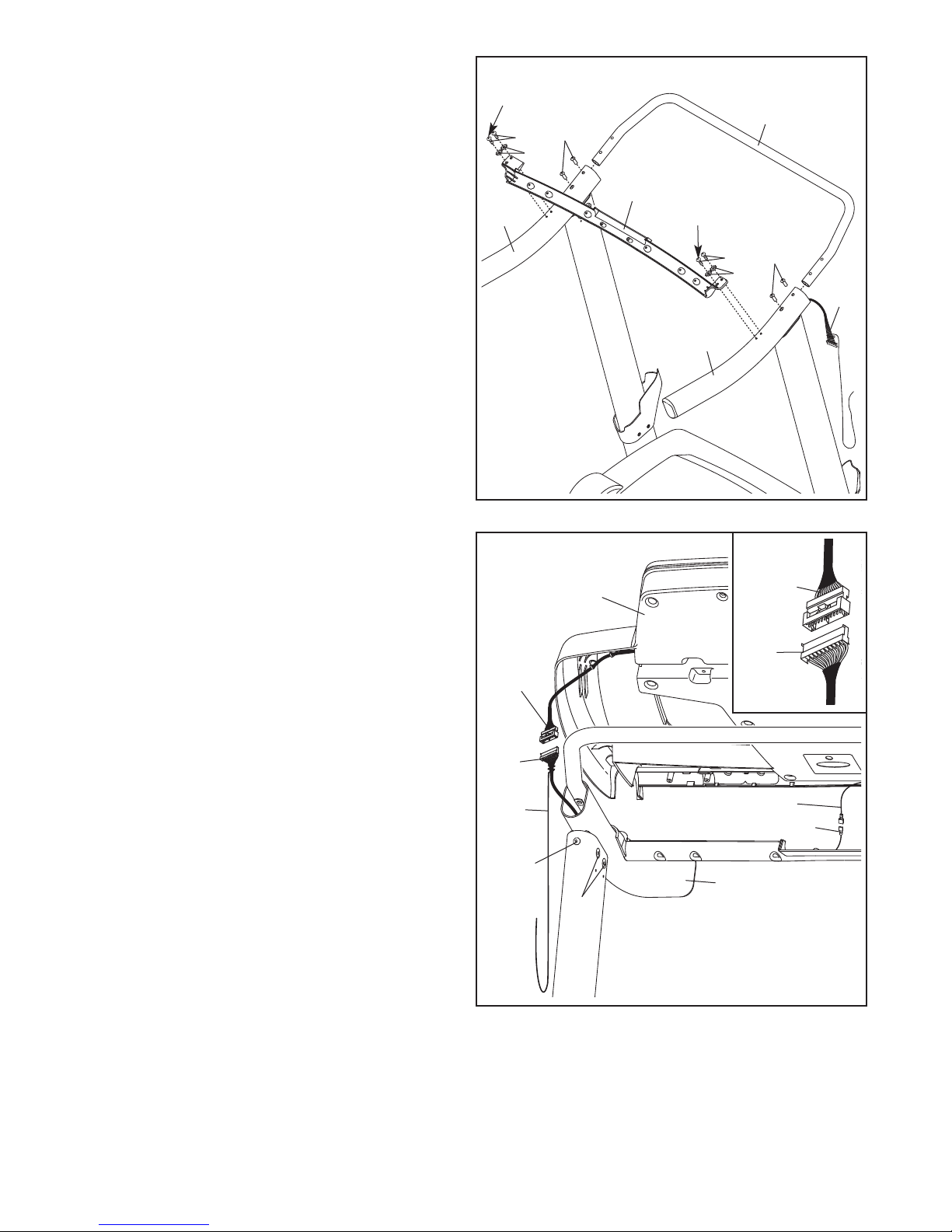

12. Firmly tighten two 5/16" x 1" Bolts (4) and the
four 5/16" x 1" Flat Head Bolts (14) (only one
side is shown).
With the help of a second person, hold the console assembly near the Right Handrail (83) and
the Left Handrail (not shown).
Connect the Upright Wire (87) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Remove the wire tie from the
Upright Wire.
Connect the ground wire from the console assembly to the Console Ground Wire (52).
12
Console
Wire
87
Wire
Tie
4
Console
Assembly
14
83
Console
Wire
87
Ground Wire
52
83
11
Page 12
13. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires. Insert the excess Upright Wire (87) into
the Right Handrail.
13
onsole
C
Assembly
Attach the console assembly to the Crossbar
(107) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten each of them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
14. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x 3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
14
87
83
86
105
82
53
107
1
1
1
1
80
See steps 4 and 6. Tighten the 3/8" x 4" Bolts
(7) and the 3/8" x 1 1/2" Bolts (3).
85
1
Console
1
Assembly
84
12
Page 13

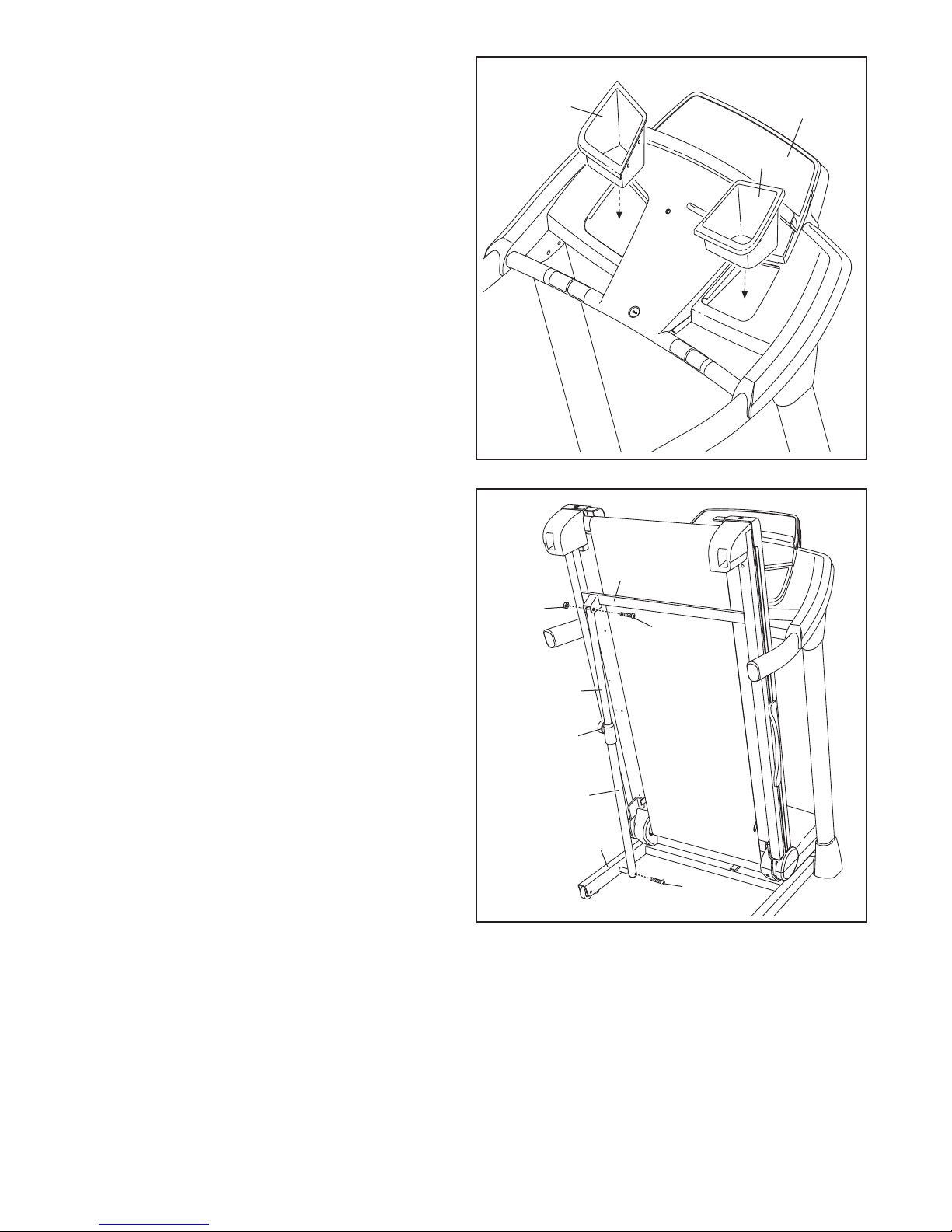

15. If necessary, press the Left Tray (103) and the
Right Tray (104) into the console assembly.
15
103
C
Assembly
04
1
onsole

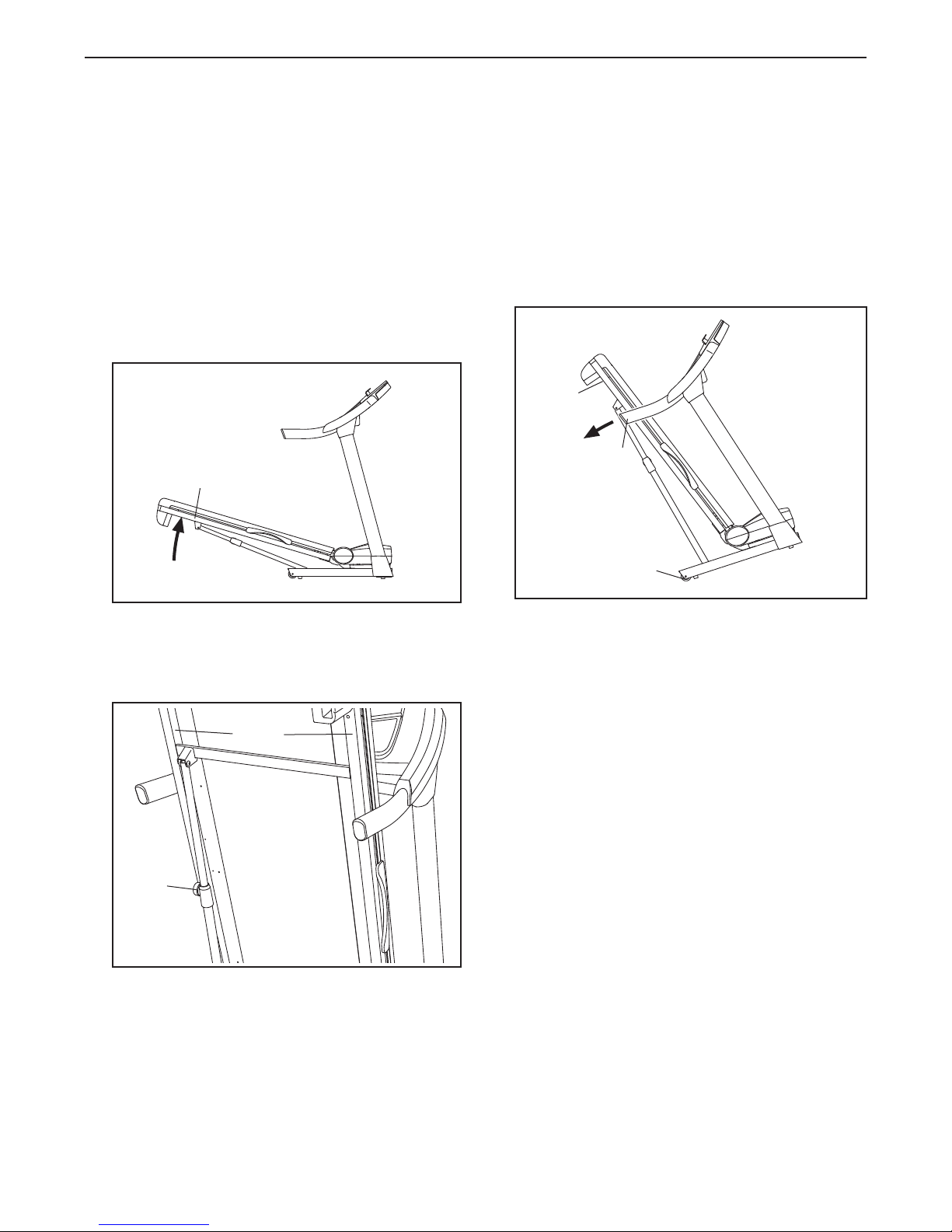

16. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10).
Attach the lower end of the Storage Latch (51) to
the Base (95) with a 3/8" x 1 3/4" Bolt (6). Note:
It may be necessary to move the Frame (55)
back and forth to align the Storage Latch with
the Base.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
16
55
10
8
51
Latch
Knob
Large
Barrel
95
6
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 23 and 24).
13
Page 14
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
ance with all local codes and ordinances.
d
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets and may not be compatible
with AFCI-equipped outlets.

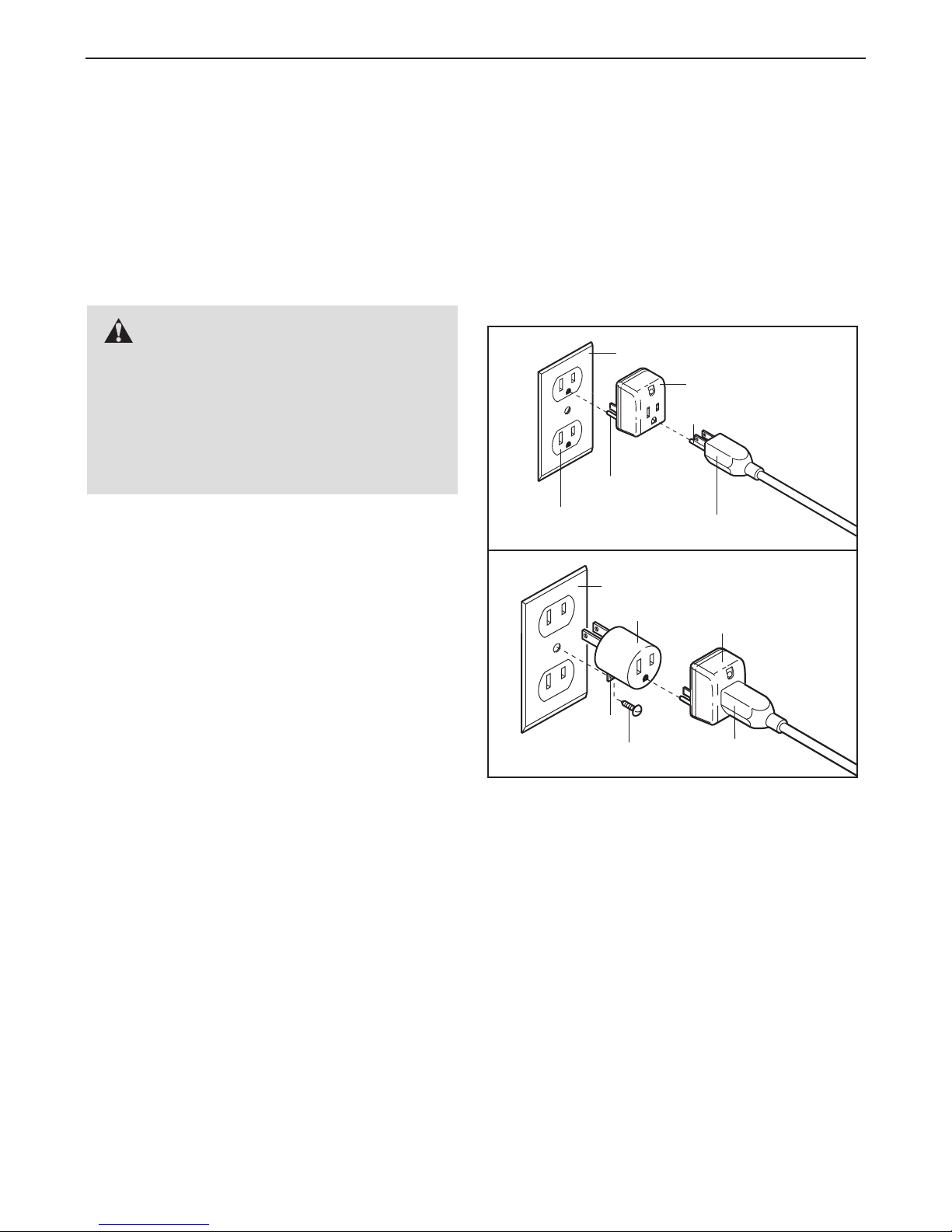

This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
that is properly installed and grounded in accor-
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Surge Suppressor
14
Page 15

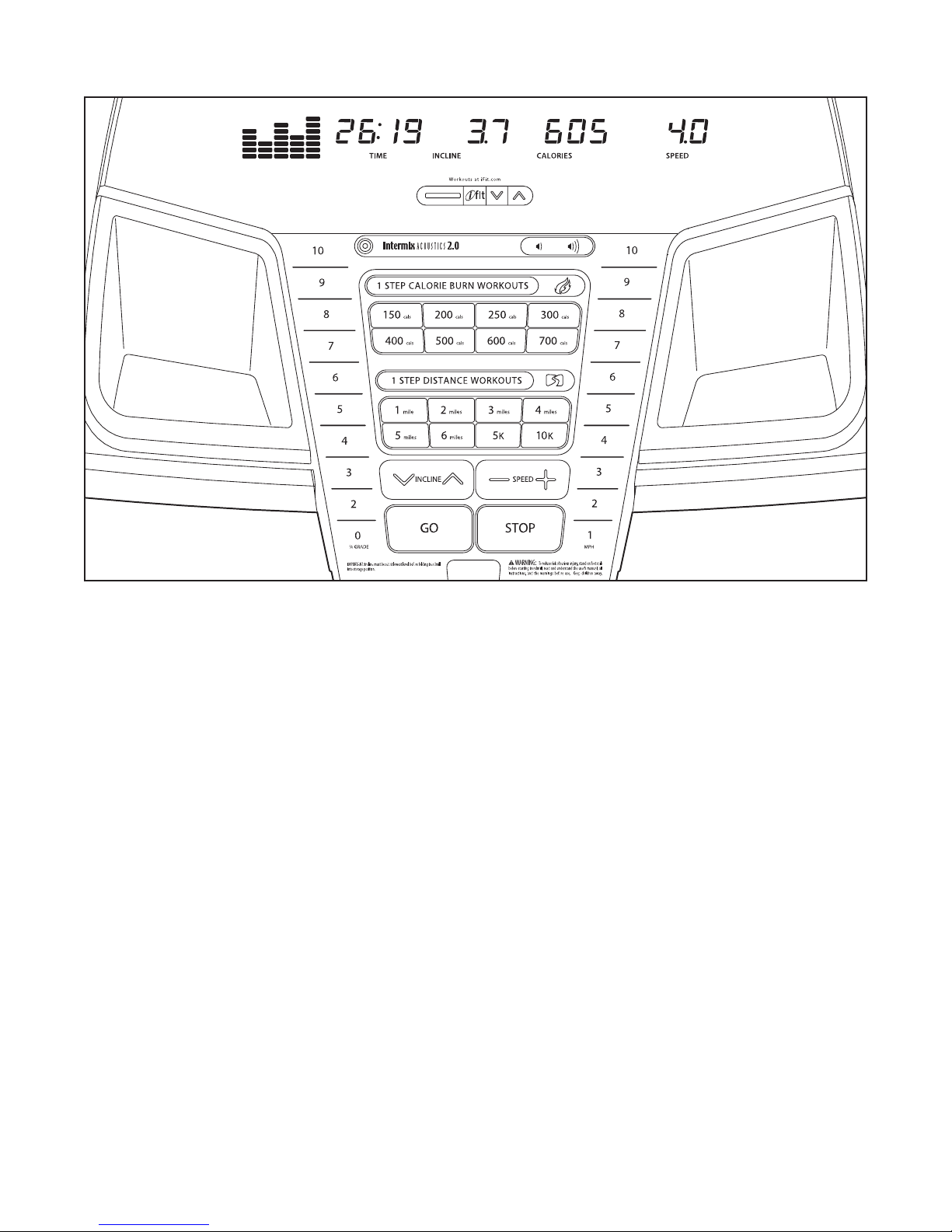

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable.
When the manual mode of the console is selected, you
can change the speed and incline of the treadmill with
the touch of a button. As you exercise, the console will
display instant exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.
In addition, the console offers sixteen preset workouts—eight calorie burn workouts and eight distance
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
The console also features the iFit interactive workout
system. The iFit system accepts iFit cards with workouts that help you achieve specific fitness goals. For
example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts automatically con-
trol the treadmill. iFit cards are available separately. To
purchase iFit cards at any time, go to www.iFit.com
or call the telephone number on the front cover of
this manual. iFit cards are also available at select
stores.
You can even listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 16. To use the manual mode, see page 16. To use a preset workout,
see page 18. To use an iFit workout, see page 19.
To use the information mode, see page 20. To use
the stereo sound system, see page 20.
IMPORTANT: If there is a sheet of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time the treadmill is used, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).
15
Page 16
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.

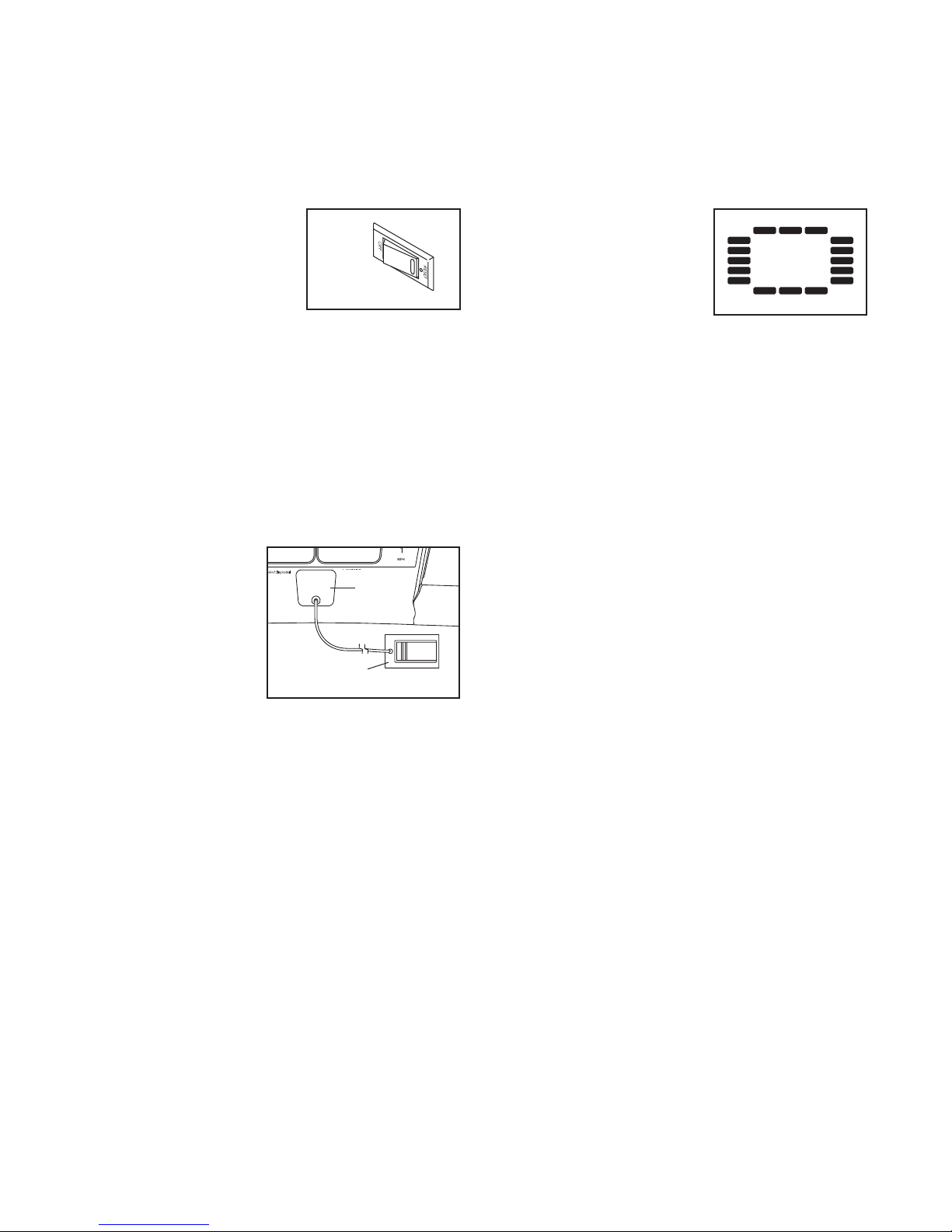

Plug in the power cord (see
page 14). Next, locate the
power switch on the treadmill frame near the power
cord. Make sure that the
Reset
switch is in the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
20 to turn off the demo mode.
Next, stand on the
foot rails of the treadmill. Find the clip at-
Key
tached to the key and
slide the clip onto the
waistband of your
clothes. Then, insert
the key into the con-
Clip
sole. After a moment,
the displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking a
few steps backward; if the key is not pulled from
the console, adjust the position of the clip. Note:
The first time you insert the key into the console, the
incline will automatically rise to the maximum incline
level and then return to the minimum incline level.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When the key is inserted, the manual mode
will be selected and a
track will appear in the
matrix. If a preset workout has been
selected, remove the
key and then reinsert it.
3. Start the walking belt.
To start the walking belt, press the Go button, the
Speed increase button, or one of the speed buttons numbered 1 through 10.
If you press the Go button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
one of the buttons, the speed setting will change
by 0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. Note:
After you press the buttons, it may take a moment
for the walking belt to reach the selected speed
setting.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Go button, the
Speed increase button, or one of the speed buttons numbered 1 through 10.
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page
20. For simplicity, all instructions in this section refer to
miles.
16
Page 17
4. Change the incline of the treadmill as desired.
To change the incline of
he treadmill, press the
t
Incline increase and de-
rease buttons or one
c
of the numbered incline
buttons. Each time you
press one of the incline buttons, the treadmill will
gradually adjust to the selected incline setting.

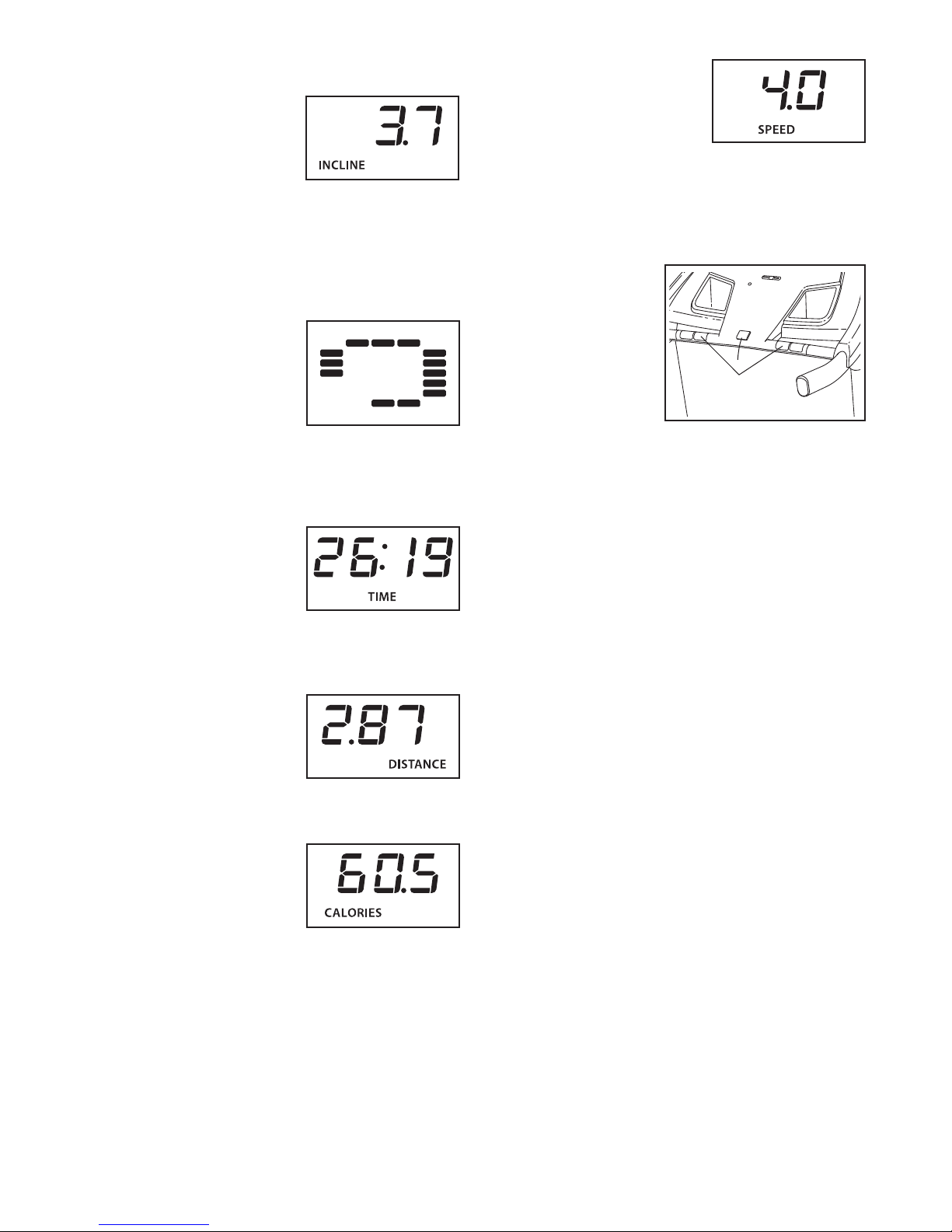

Speed display—This
display shows the speed
of the walking belt.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
6. Measure your heart rate if desired.
5. Monitor your progress with the matrix and the
displays.
The matrix—When the
manual mode is selected, the display will
show a track that represents 1/4 mile (400 meters). As you exercise,
the indicators around
the track will light in succession until the entire
track is lit. The track will then darken and the indicators will again begin to light in succession.
Time display—When
the manual mode is selected, this display will
show the elapsed time.
When a workout is selected, the display will
show the time remaining in the workout rather than
the elapsed time.
Distance/Incline display—This display
shows the distance that
you have walked or run.
This display will also
show the incline setting
for several seconds, each time the incline changes.
Calories/Pulse
display—This display
shows the approximate
number of calories you
have burned. The display will also show your
heart rate when you use the handgrip pulse sensor
or the volume level when you press the Volume increase or decrease button.
Before using the
handgrip pulse
sensor, first remove the sheets
of plastic from the
metal contacts. In
addition, make
Contacts
sure that your
hands are clean.
To use the handgrip pulse sensor, stand on the
foot rails and hold the metal contacts—avoid
moving your hands. When your pulse is detected,
your heart rate will be shown. For the most accurate heart rate reading, continue to hold the
contacts for about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
17
Page 18
HOW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a preset workout.
To select a preset workout, press one of the 1 Step
Calorie Burn Workouts buttons or one of the 1 Step
Distance Workouts buttons.
When a preset workout is selected, the maximum
incline setting and the maximum speed setting of
the workout will appear in the displays. If you select a 1 step calorie burn workout, the workout duration and the calorie goal will also appear in the
display. In addition, a profile of the speed settings
of the workout will scroll across the matrix.
3. Start the walking belt.
Press the Go button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for consecutive segments.

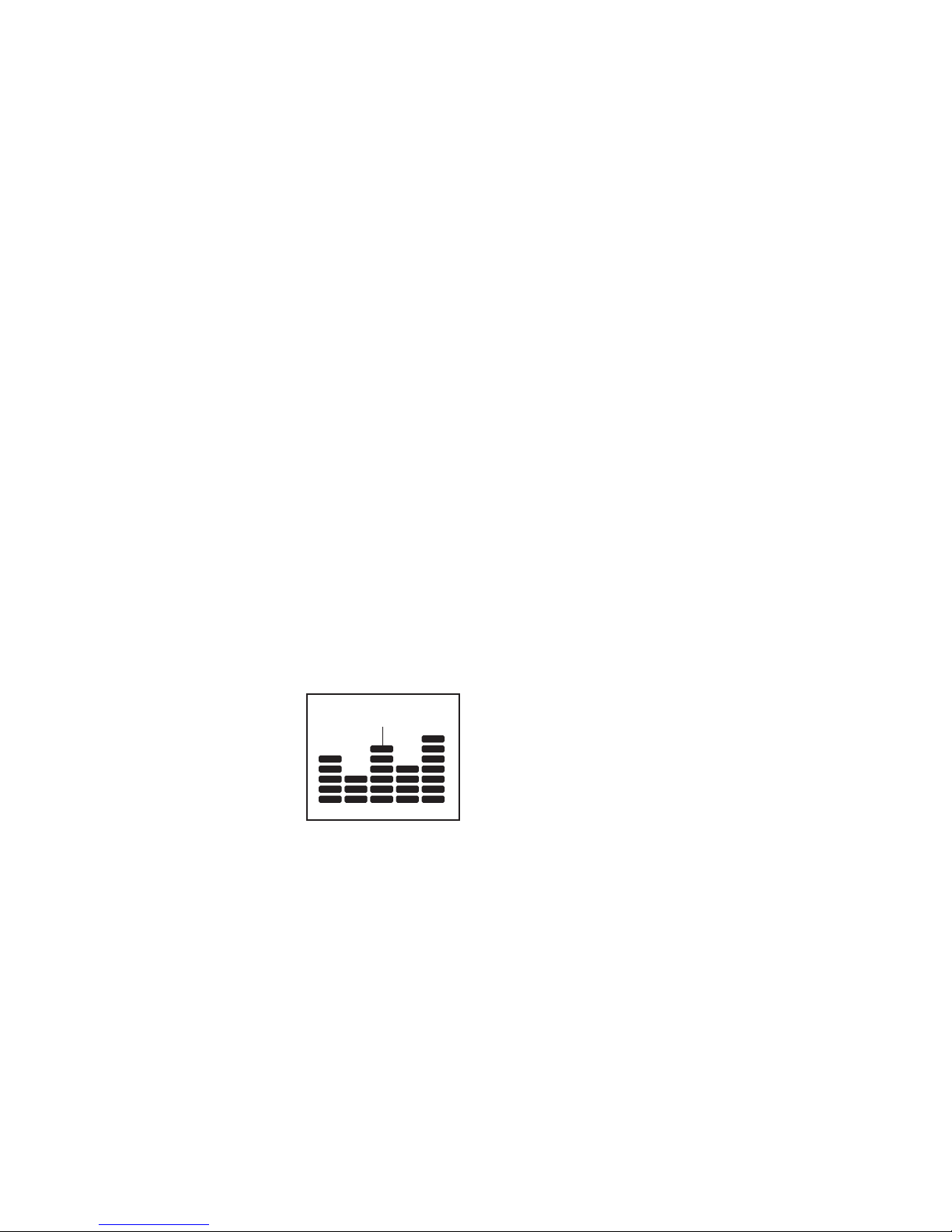

If you select a calorie
burn workout, the pro-
Current Segment
file will show your
progress. The flashing
segment of the profile
represents the current
segment of the workout.
The height of the flashing segment indicates the speed setting for the current segment.
At the end of each segment, a series of tones will
sound. If a different speed or incline setting is pro-
grammed for the next segment, the speed or incline setting will flash in the display to alert you.
The treadmill will then automatically adjust to the
peed and incline settings for the next segment.
s
ote: The calorie goal is an estimate of the
N
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. In addition, if you manually change the speed or incline of the treadmill during the workout, the
number of calories you burn will be affected.
The workout will continue in this way until the last
segment ends. The walking belt will then slow to a
stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline buttons; however, when the next segment
of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Go button.
The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Monitor your progress with the matrix and the
displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 17.
18
Page 19
HOW TO USE AN IFIT WORKOUT
3. Start the walking belt.
To purchase iFit cards at any time, go to www.iFit.com
r call the telephone number on the front cover of this
o
manual. iFit cards are also available at select stores.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.

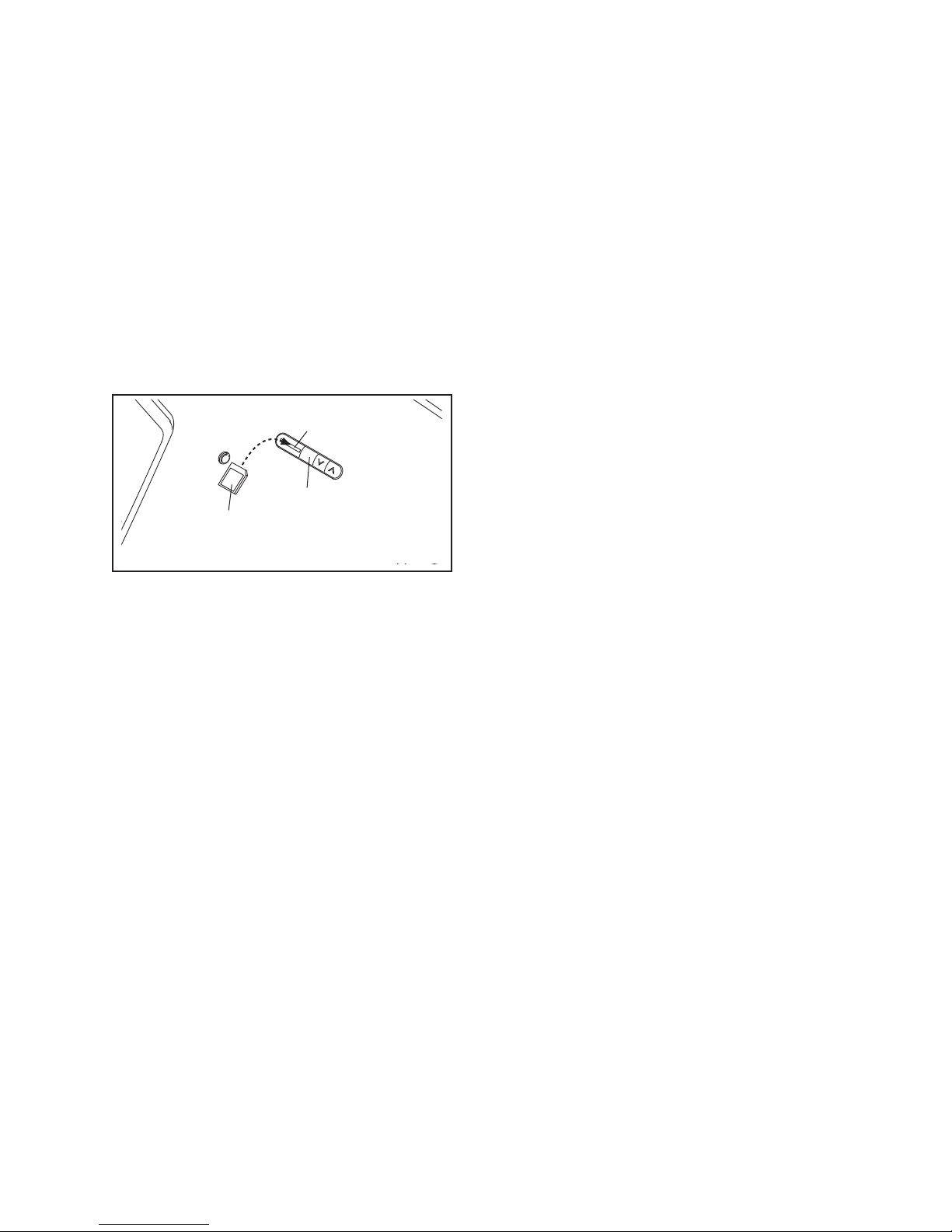

2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot. When the iFit card is correctly inserted, the iFit logo will light up.
iFit Slot
iFit Logo
iFit Card
Press the Go button or the Speed increase button
o start the workout. A moment after you press the
t
button, the treadmill will automatically adjust to the
irst speed and incline settings of the workout. Hold
f
the handrails and begin walking.
During the workout, the voice of a personal trainer
will guide you through the workout.
If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the Speed or Incline
buttons; however, when the next segment be-
gins, the treadmill will automatically adjust to
the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings
for the next segment.
Next, select an iFit workout by pressing the iFit increase and decrease buttons next to the iFit slot.
When an iFit workout is selected, the workout duration, the maximum incline setting, the name, and
the maximum speed setting of the workout will appear in the displays. In addition, a profile of the
speed settings of the workout will scroll across the
matrix.
Each iFit workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
4. Monitor your progress with the matrix and the
displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 17.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
19
Page 20
THE INFORMATION MODE
HOW TO USE THE STEREO SOUND SYSTEM
The console features an information mode that keeps
rack of the total number of hours that the treadmill has
t
been used and the total distance that the walking belt
as moved. The information mode also allows you to
h
select miles or kilometers as the unit of measurement
and to turn on and turn off the display demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:

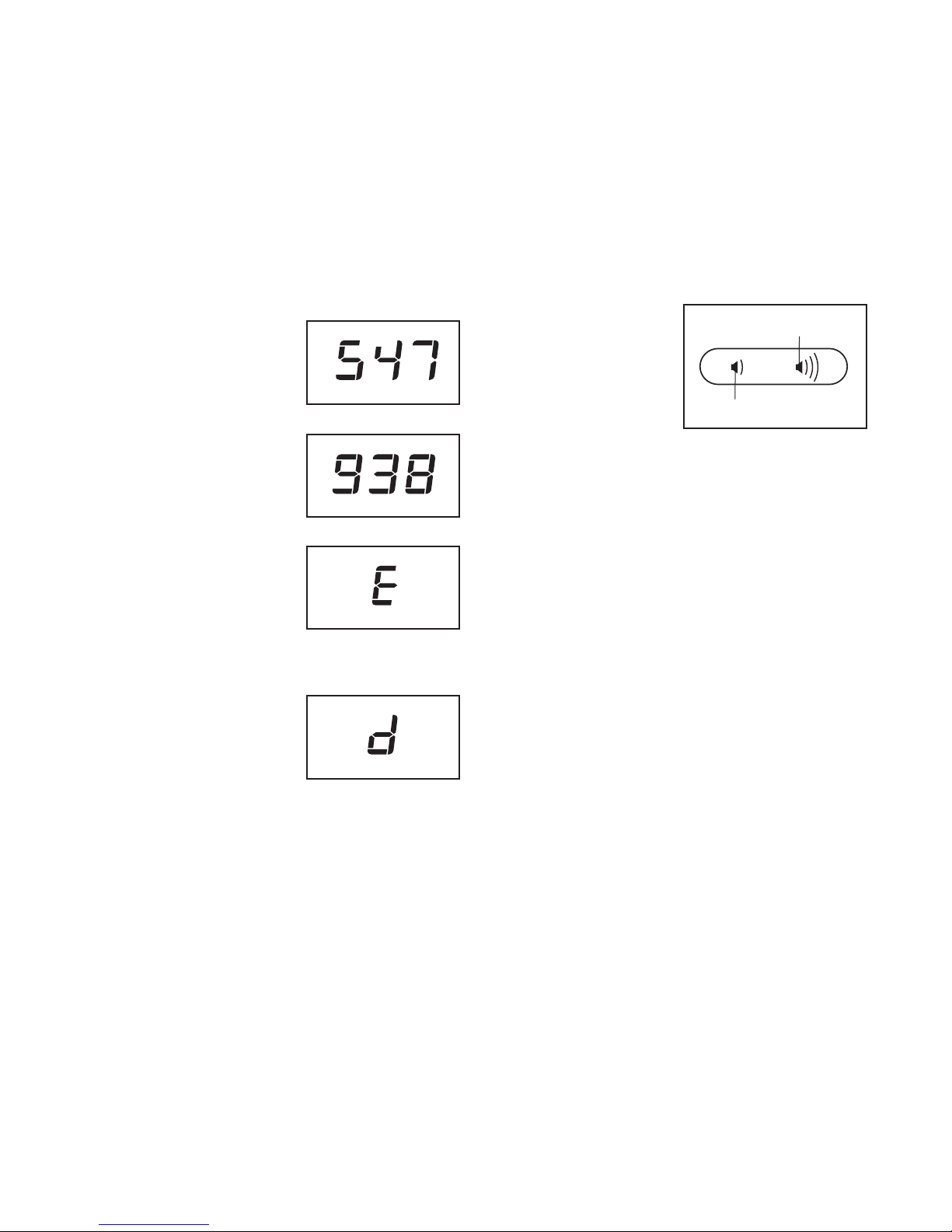

The Time display will show
the total number of hours
the treadmill has been
used.
The Distance/Incline display will show the total
number of miles (or kilometers) that the walking belt
has moved.
An “E” for English miles or
an “M” for metric kilometers
will appear in the
Calories/Pulse display.
Press the Speed increase
button to change the unit of
measurement if desired.
To play music or audio books through the consoleʼs
tereo speakers, you must connect your MP3 player,
s
CD player, or other personal audio player to the con-
ole through the audio jack.
s
To use the audio jack, locate the audio wire and plug it
into the audio jack near the iFit slot. Then, plug the
audio wire into a jack on your MP3 player, CD player,
or other personal audio player. Make sure that the
audio wire is fully plugged in.
Next, press the Play
button on your MP3
Volume Increase
player, CD player, or
other personal audio
player. Adjust the volume on your personal
audio player or press
Volume Decrease
the Volume increase
and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
The console features a display demo mode, designed
to be used if the treadmill is
displayed in a store. While
the demo mode is turned
on, the console will function
normally when you plug in the power cord, press the
power switch into the reset position, and insert the key
into the console. However, when you remove the key,
the displays will remain lit, although the buttons will not
function. If the demo mode is turned on, a “d” will appear in the Speed display while the information mode
is selected. To turn on or turn off the display demo
mode, press the Speed decrease button.
To exit the information mode, remove the key from the
console.
20
Page 21
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
o the lowest position before you fold the treadmill.
t
Then, remove the key and unplug the power cord.
AUTION: You must be able to safely lift 45 lbs. (20
C
kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
eft. CAUTION: Make sure that the latch knob is
l
locked in the storage position. Moving the tread-
ill may require two people.
m
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
Wheel
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
frame with your right hand. Pull the latch knob to
the left; if necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
21
Page 22
TROUBLESHOOTING
ost treadmill problems can be solved by following the simple steps below. Find the symptom that
M
applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge suppressor that meets all of the specifications described on page 14. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets and may not be compatible with AFCI-equipped
outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.

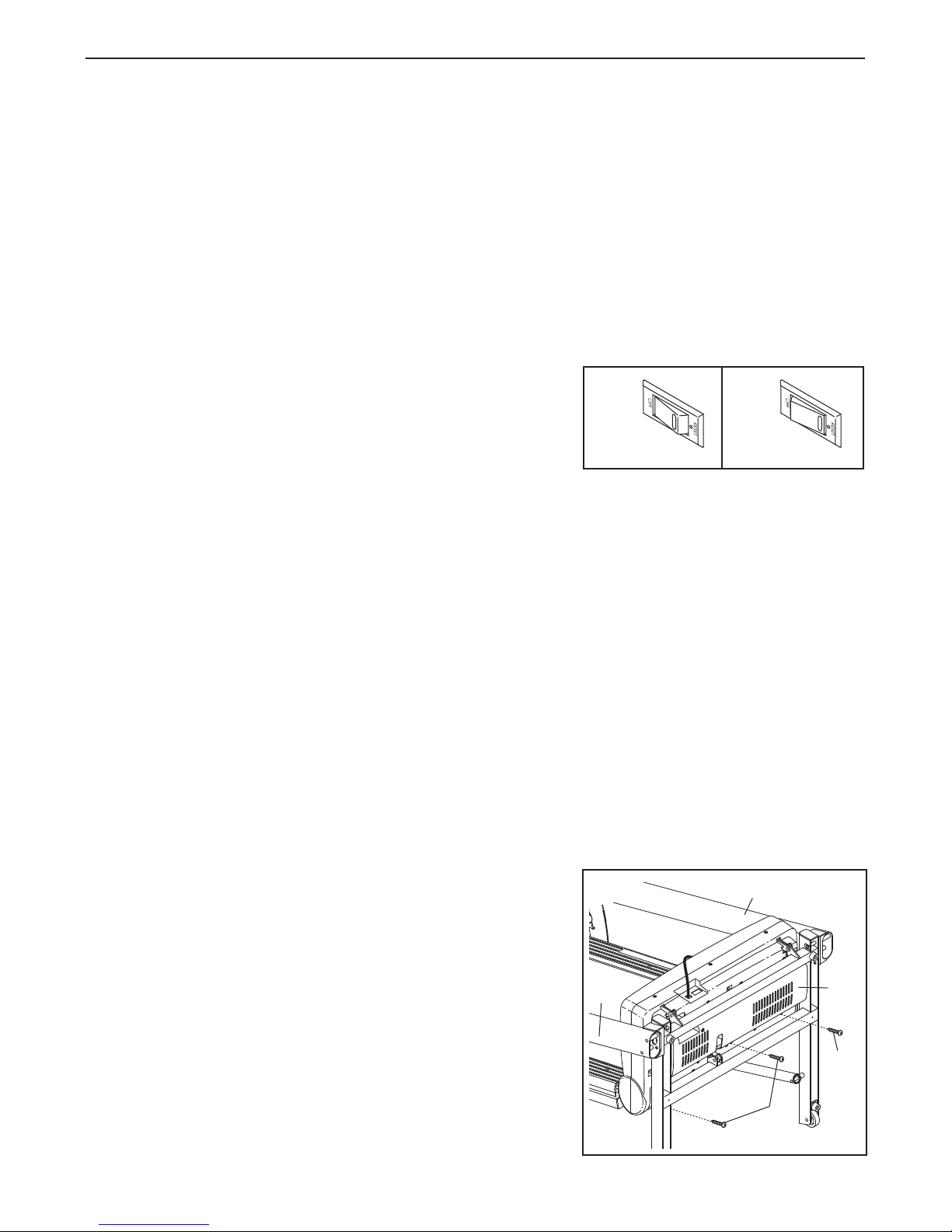

c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
switch, wait for five minutes and then press the
switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes
and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 20 to turn off the demo mode.
c
Tripped Reset
PROBLEM:The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG
THE POWER CORD. With the help of a second per-
son, carefully tip down the Uprights (84, 85). There
may be three #8 x 2" Screws (16) in the bottom of
the Belly Pan (75). If there are, remove them. Note:
A Phillips screwdriver with a shaft at least 5 in. (13
cm) long is required.
Then, raise the Uprights (84, 85).
22
a
85
84
75
16
16
Page 23

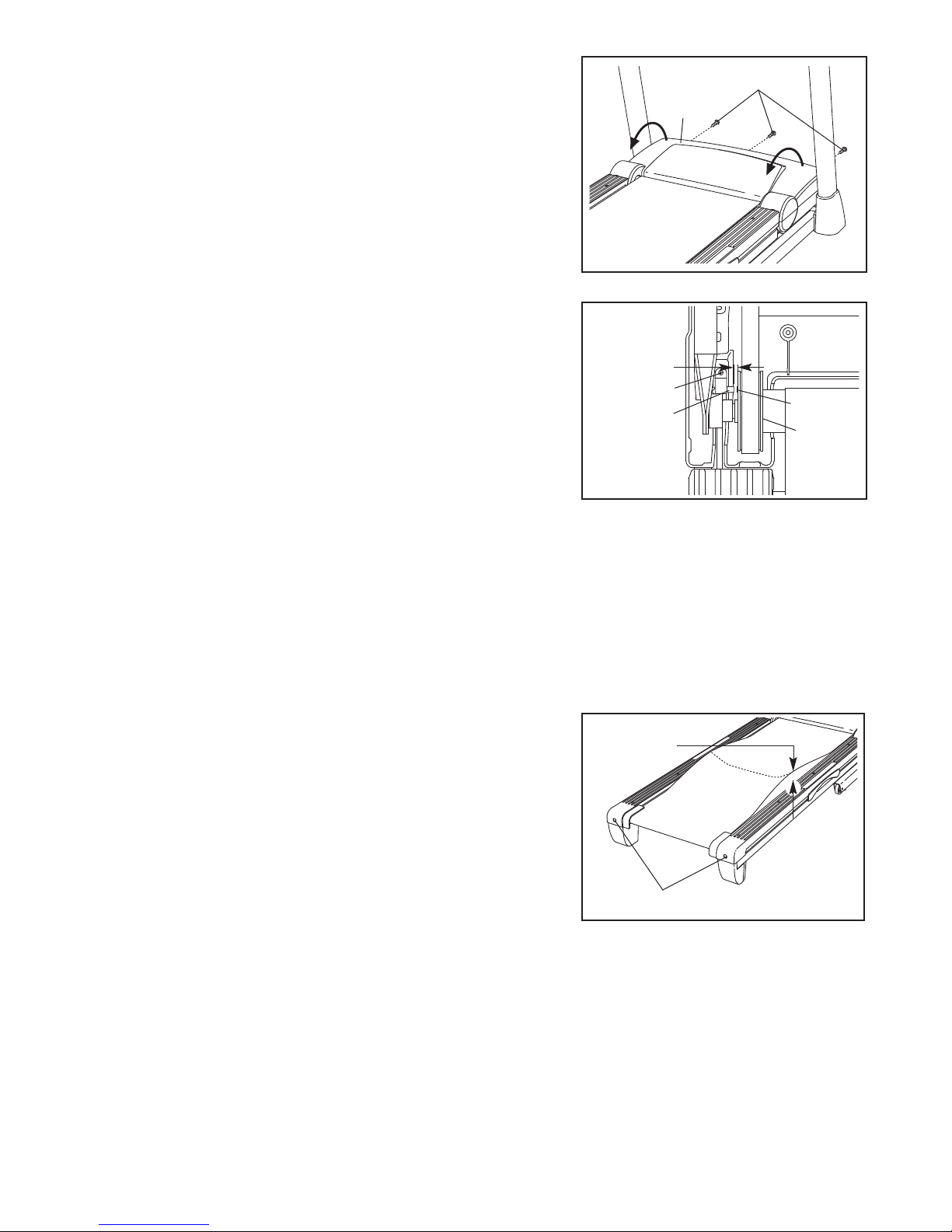

Remove the three #8 x 3/4" Screws (1) and carefully
pivot the Motor Hood (62) off.
Locate the Reed Switch (73) and the Magnet (47)
on the left side of the Pulley (48). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the #8 x 3/4" Truss Head Screw (18),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Motor Hood (not shown)
with the #8 x 3/4" Screws. Reattach the #8 x 2"
Screws if necessary. Run the treadmill for a few
minutes to check for a correct speed reading.
1/8 in.
Top
View
18
73
1
62
47
48
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 14.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG
b
2–3 in.
THE POWER CORD. Using the hex key, turn both
idler roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt 2
to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in
the power cord, insert the key, and run the treadmill
for a few minutes. Repeat until the walking belt is
Idler Roller Bolts
properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
23
Page 24

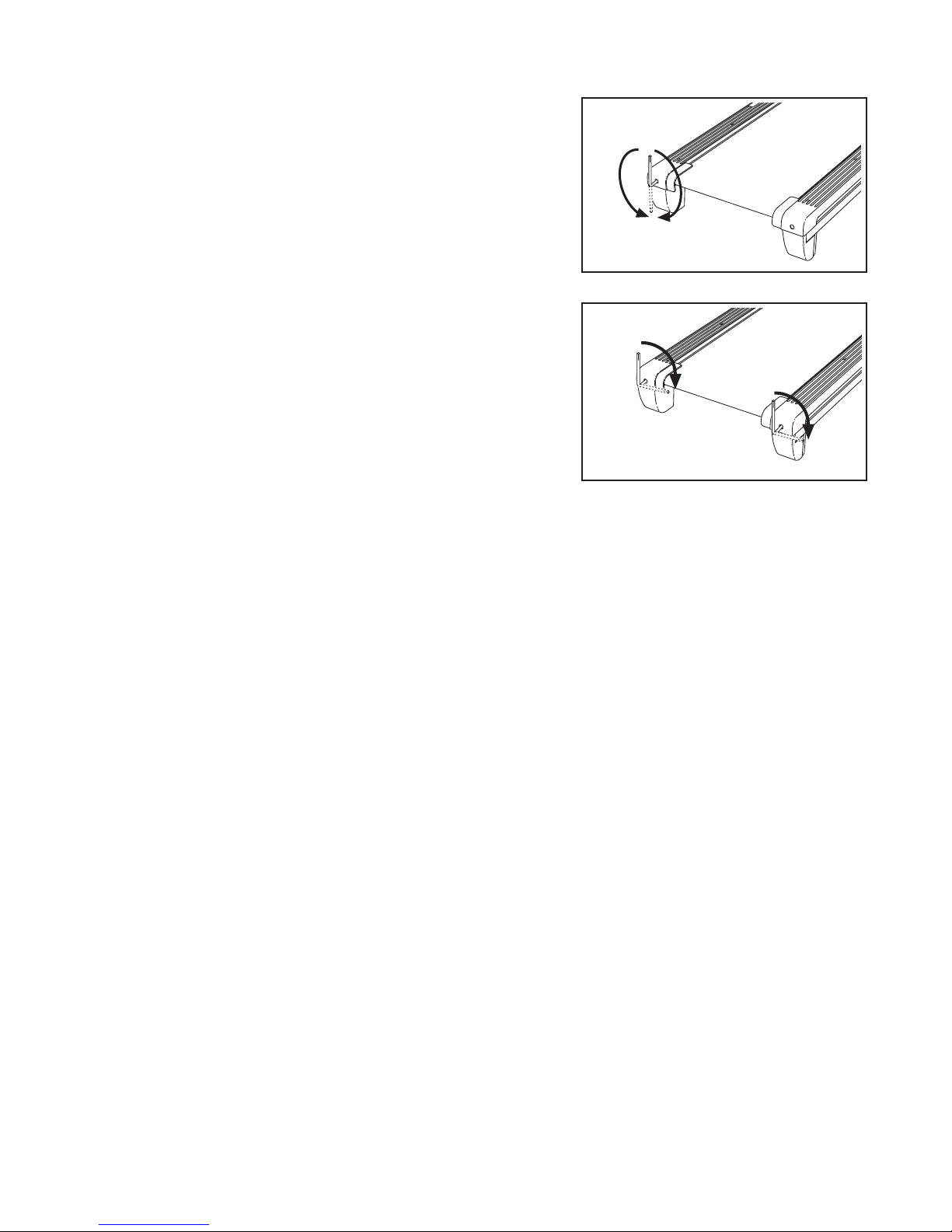

PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the
ey and UNPLUG THE POWER CORD. If the
k
walking belt has shifted to the left, use the hex
ey to turn the left idler roller bolt clockwise 1/2 of a
k
turn; if the walking belt has shifted to the right,
turn the left idler roller bolt counterclockwise 1/2 of a
turn. Be careful not to overtighten the walking belt.
Then, plug in the power cord, insert the key, and
run the treadmill for a few minutes. Repeat until the
walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge
of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt
centered. Then, plug in the power cord, insert the
key, and carefully walk on the treadmill for a few
minutes. Repeat until the walking belt is properly
tightened.
a
b
24
Page 25
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

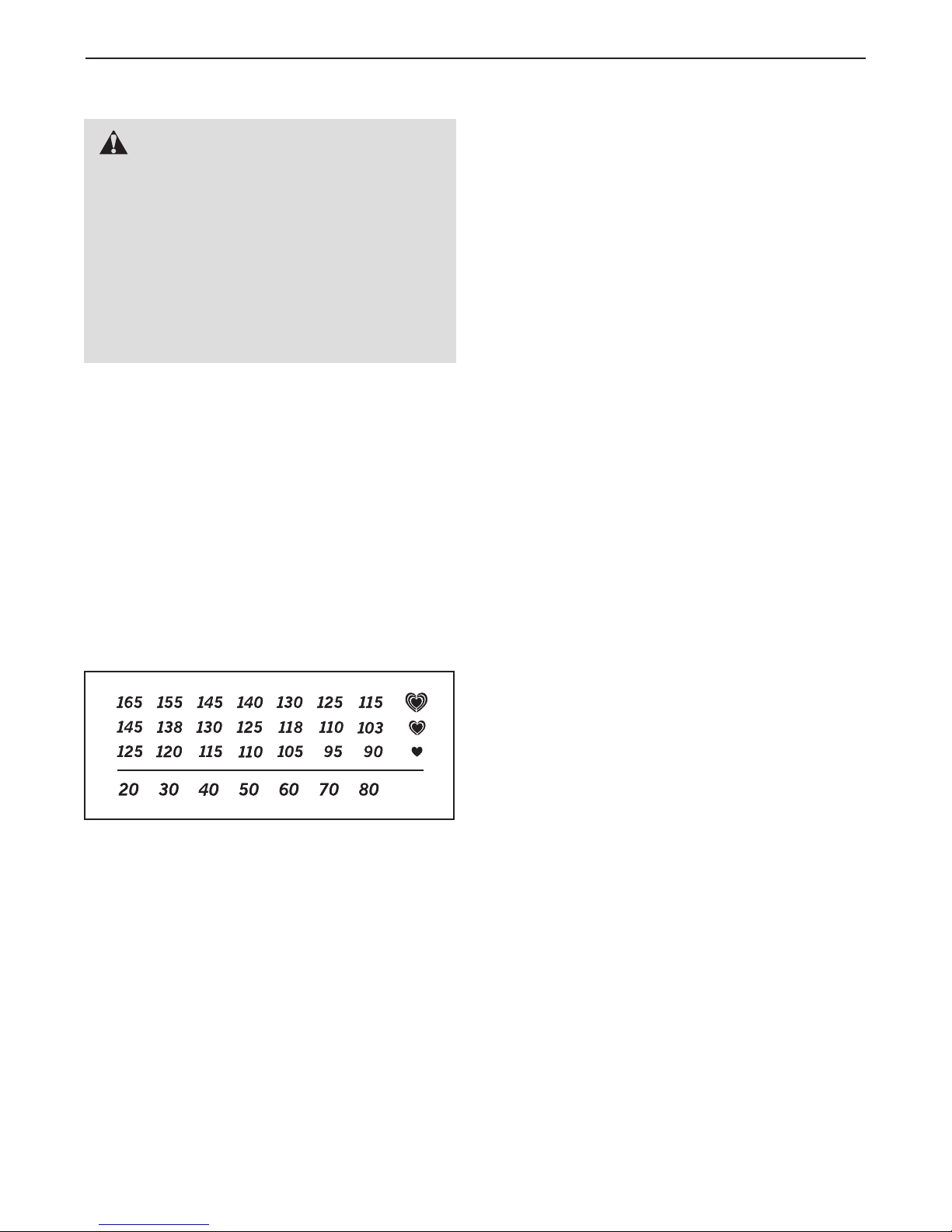

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
Page 26
PART LIST Model No. NTL60010.2 R1210A

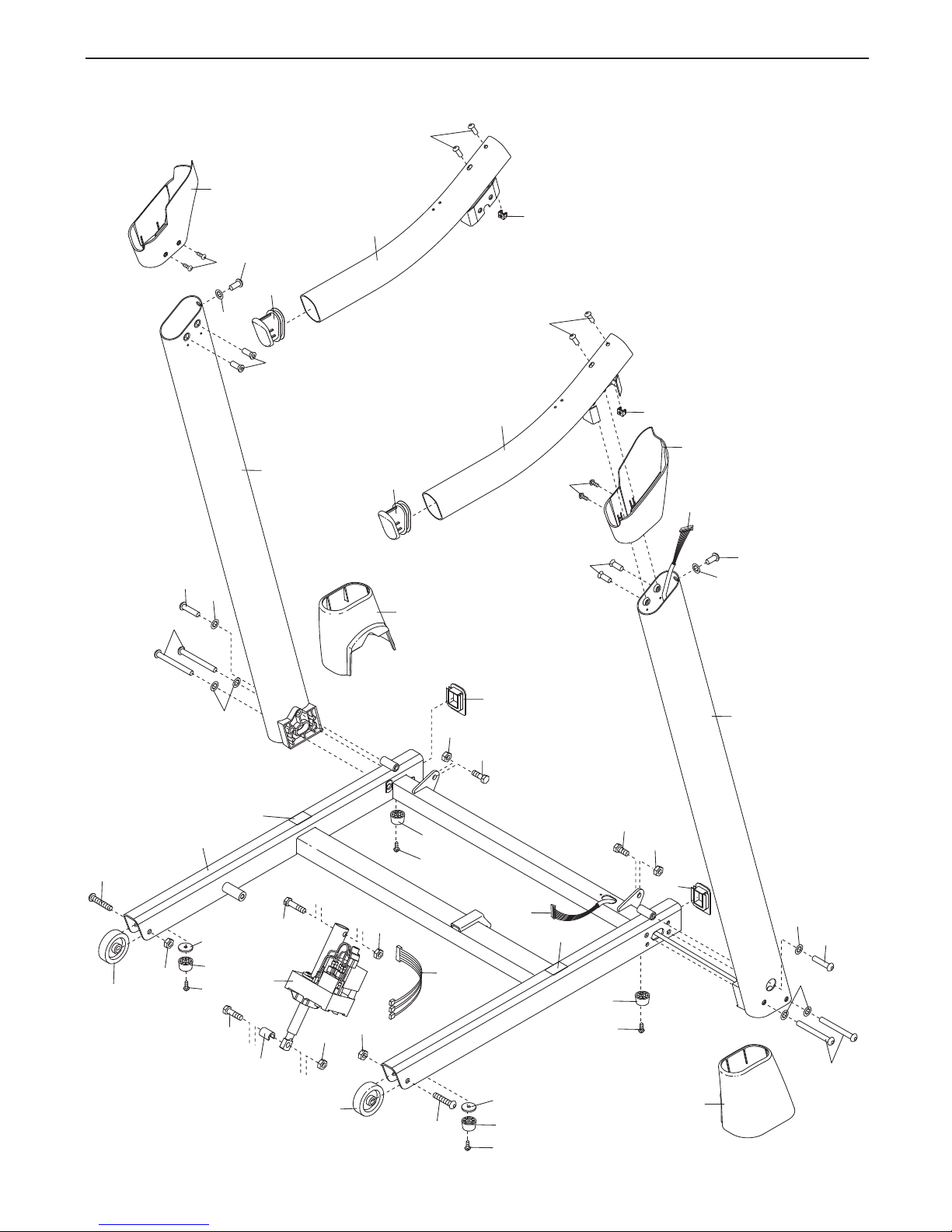

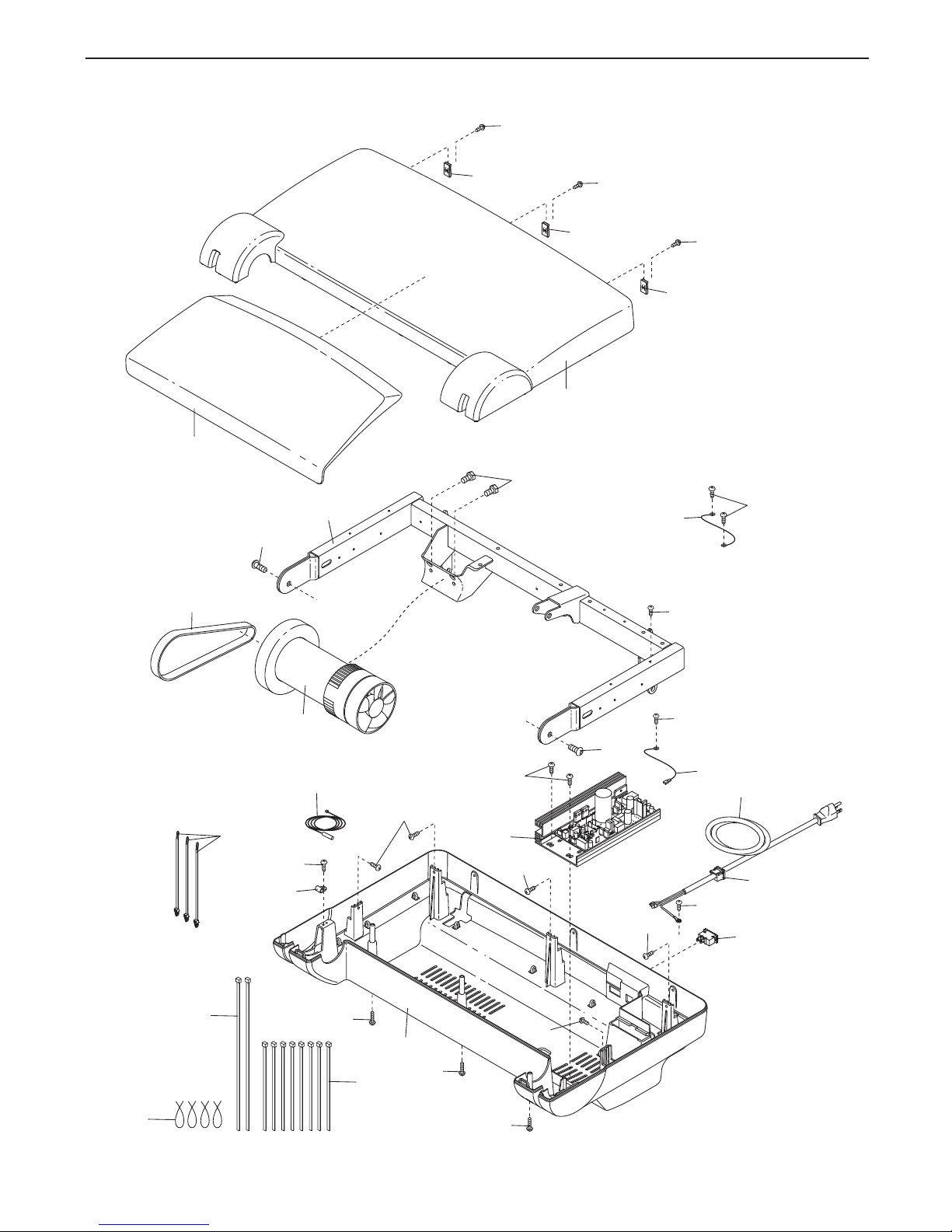

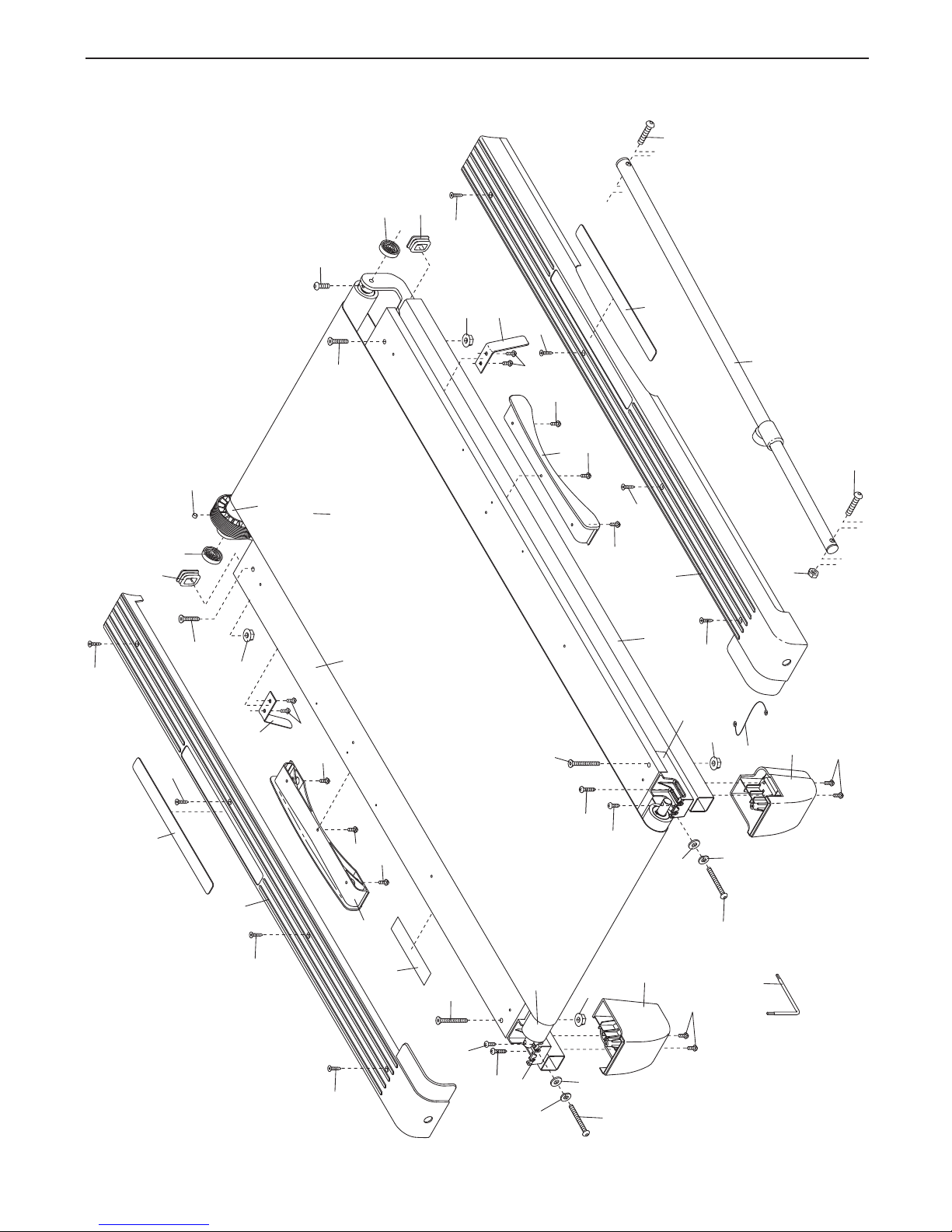

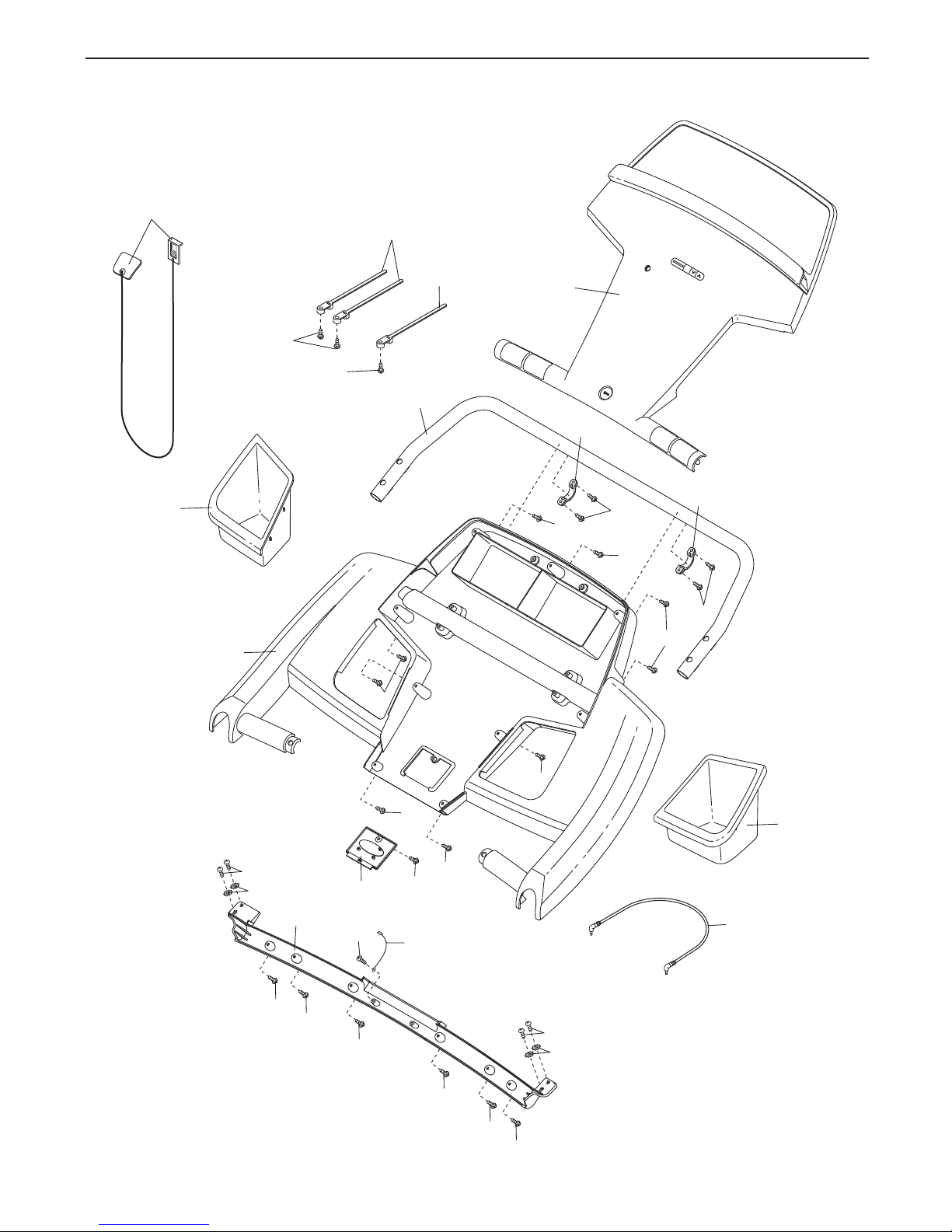

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 25 #8 x 3/4" Screw
24#10 x 3/4" Screw
3
425/16" x 1" Bolt
54#8 x 1" Tek Screw
613/8" x 1 3/4" Bolt
743/8" x 4" Bolt
833/8" x 2" Bolt
941/4" x 1/2" Bolt
10 3 3/8" Nut
11 6 3/8" Star Washer
12 4 #10 Star Washer
13 2 5/16" Star Washer
14 4 5/16" x 1" Flat Head Bolt
15 5 #8 x 3/4" Tek Screw
16 3 #8 x 2" Screw
17 3 #8 x 1/2" Pan Head Screw
18 11 #8 x 3/4" Truss Head Screw
19 2 #8 x 1 1/2" Screw
20 2 5/16" x 1 1/2" Bolt
21 2 5/16" x 3 5/8" Bolt
22 2 3/8" x 1" Bolt
23 1 1/4" x 1" Bolt
24 2 Idler Roller Bolt
25 1 3/8" x 1 3/4" Bolt
26 1 3/8" x 1 1/2" Bolt
27 2 3/8" x 3/4" Bolt
28 7 #8 x 1/2" Bright Screw
29 1 #8 x 1/2" Ground Screw
30 8 #12 x 1 1/4" Screw
31 2 Motor Bolt
32 4 #8 Belt Guide Screw
33 2 1/4" Washer
34 2 1/4" Split Washer
35 4 3/8" Jam Nut
36 4 5/16" Flange Nut
37 3 Hood Clip
38 2 5/16" Cage Nut
39 2 Foot Rail Decal
40 1 Left Foot Rail
41 1 Latch Warning Decal
42 2 Platform Cushion
43 2 Belt Guide
44 1 Walking Platform
45 2 Frame Cap
46 2 Frame Spacer
47 1 Magnet
48 1 Front Roller/Pulley
49 1 Walking Belt
50 1 Audio Wire
2 3/8" x 1 1/2" Bolt
51 1 Storage Latch
52 1 Console Ground Wire
3 4 #8 x 1" Screw
5
54 1 Right Foot Rail
55 1 Frame
56 2 Roller Bracket
57 1 Roller Ground Wire
58 1 Right Rear Foot
59 1 Left Rear Foot
60 1 Idler Roller
61 1 Hex Key
62 1 Motor Hood
63 1 Hood Accent
64 1 Lift Frame
65 1 Lift Frame Ground Wire
66 1 Drive Motor Belt
67 1 Drive Motor
68 1 Controller Ground Wire
69 1 Power Cord
70 1 Grommet
71 1 Power Switch
72 1 Controller
73 1 Reed Switch
74 1 Reed Switch Clamp
75 1 Belly Pan
76 3 Wire Tie
77 8 8" Tie
78 2 15" Tie
79 4 Releasable Tie
80 1 Left Upright Cover
81 2 Handrail Cap
82 1 Left Handrail
83 1 Right Handrail
84 1 Left Upright
85 1 Right Upright
86 1 Right Upright Cover
87 1 Upright Wire
88 1 Left Base Cover
89 2 Base Cap
90 4 Base Foot
91 1 Right Base Cover
92 2 Caution Decal
93 1 Incline Wire
94 2 Base Foot Spacer
95 1 Base
96 2 Wheel
97 1 Incline Motor
98 1 Incline Motor Spacer
99 1 Key/Clip
100 3 Cable Tie
26
Page 27
Key No. Qty. Description Key No. Qty. Description
101 1 Console
102 1 Console Frame
103 1 Left Tray
04 1 Right Tray
1
106 1 Console Base
107 1 Crossbar
108 1 Access Door
*
– Userʼs Manual
105 2 Console Clamp
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
Page 28
8
6
51
20
21
21
34
33
34
33
28
32
32
43
43
30
45
30
30
30
39
40
36
36
36
47
45
46
36
44
41
49
48
54
39
60
55
56
56
46
58
59
61
57
18
42
10
24
23
18
18
18
18
18
18
18
19
19
20
24
30
30
30
30
28
42
EXPLODED DRAWING A Model No. NTL60010.2 R1210A
28
Page 29
15
15
15
15
74
18
73
37
37
37
1
1
1
17
22
22
28
28
69
70
71
68
62
64
76
75
72
65
16
28
28
31
67
66
63
77
79
78
16
16
EXPLODED DRAWING B Model No. NTL60010.2 R1210A
29
Page 30
90
5
90
5
90
5
96
96
8
7
11
7
11
27
35
89
89
85
95
92
92
94
90
5
94
25
26
35
35
97
98
87
10
10
8
93
87
86
83
82
81
81
80
38
38
1
1
14
14
4
4
13
13
9
9
27
35
84
3
3
11
11
88
91
EXPLODED DRAWING C Model No. NTL60010.2 R1210A
30
Page 31
9
9
53
1
108
103
101
12
107
1
2
52
29
104
102
106
1
1
1
1
1
12
2
1
1
1
1
1
1
1
100
1
17
100
105
105
50
53
EXPLODED DRAWING D Model No. NTL60010.2 R1210A
31
Page 32
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
T
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.nordictrackservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twenty-five (25) years from the date of purchase. Parts and labor are warranted for one
(1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 309309 R1210A Printed in USA © 2010 ICON IP, Inc.
Loading...
