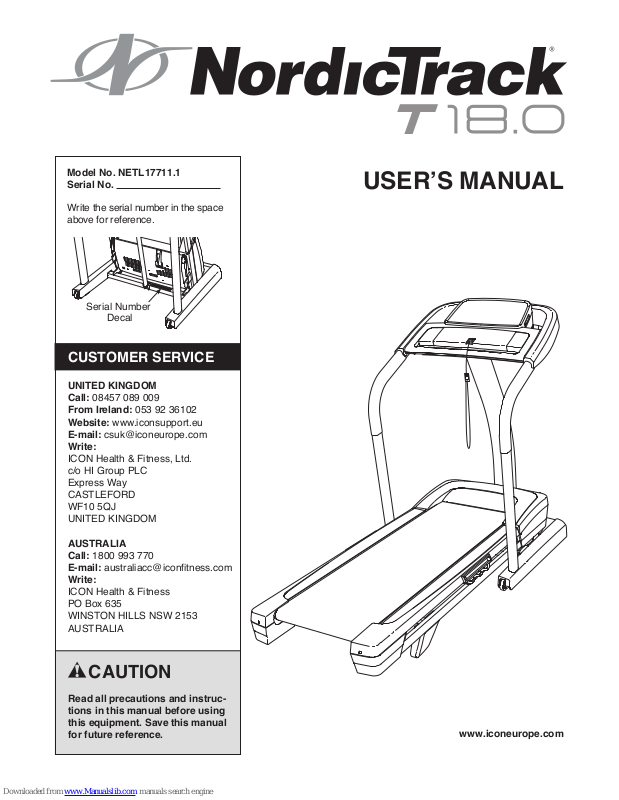

NordicTrack T18.0 Treadmill, NETL17711.1 User Manual

Download

Page 1

Model No. NETL17711.1 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

CUSTOMER SERVICE

UNITED KINGDOM Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write:

ICON Health & Fitness, Ltd. c/o HI Group PLC Express Way CASTLEFORD WF10 5QJ UNITED KINGDOM

USER’S MANUAL

AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com Write:

ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

www.iconeurope.com

Page 2

256836

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

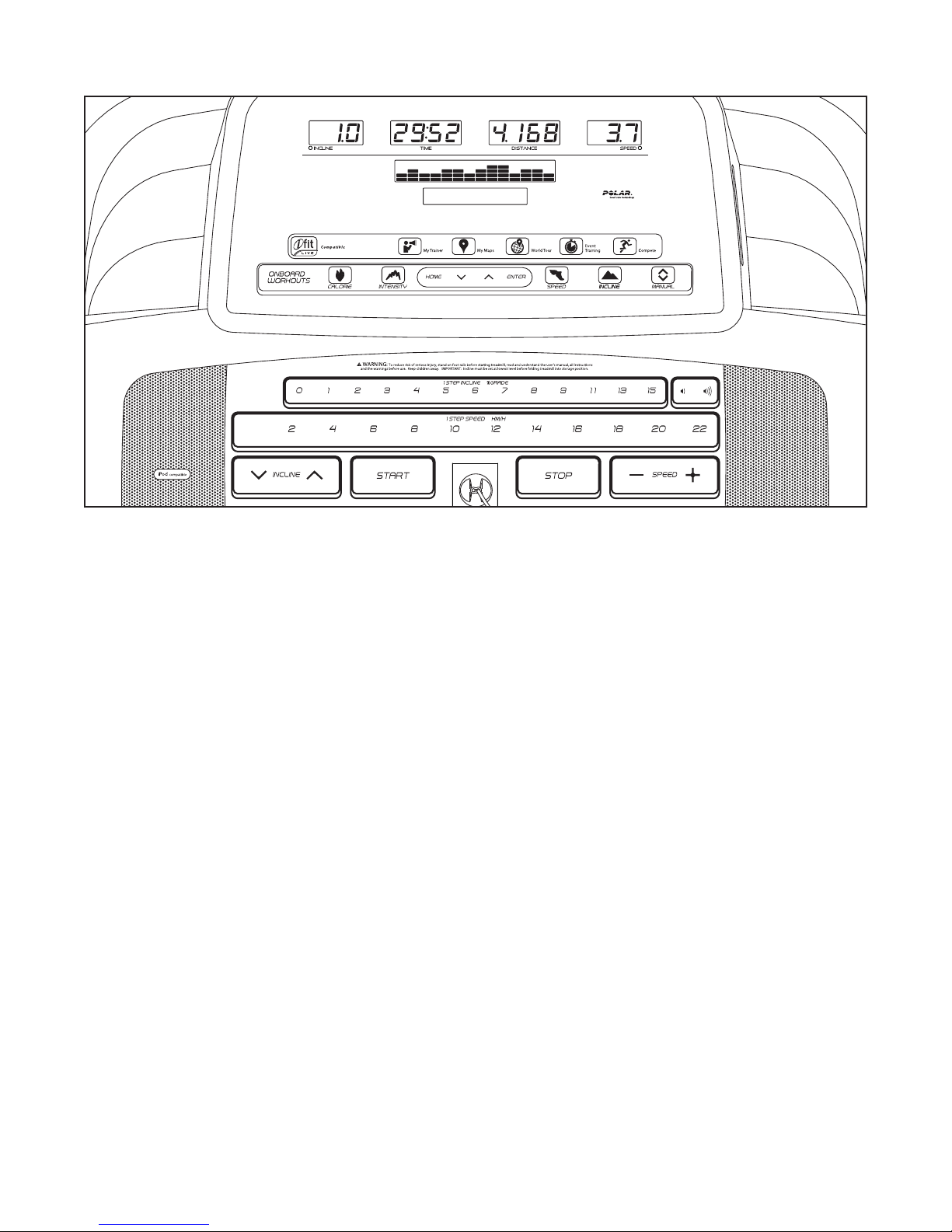

OPERATION AND ADJUSTMENT .............................................................15

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLESHOOTING ......................................................................24

EXERCISE GUIDELINES ....................................................................27

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

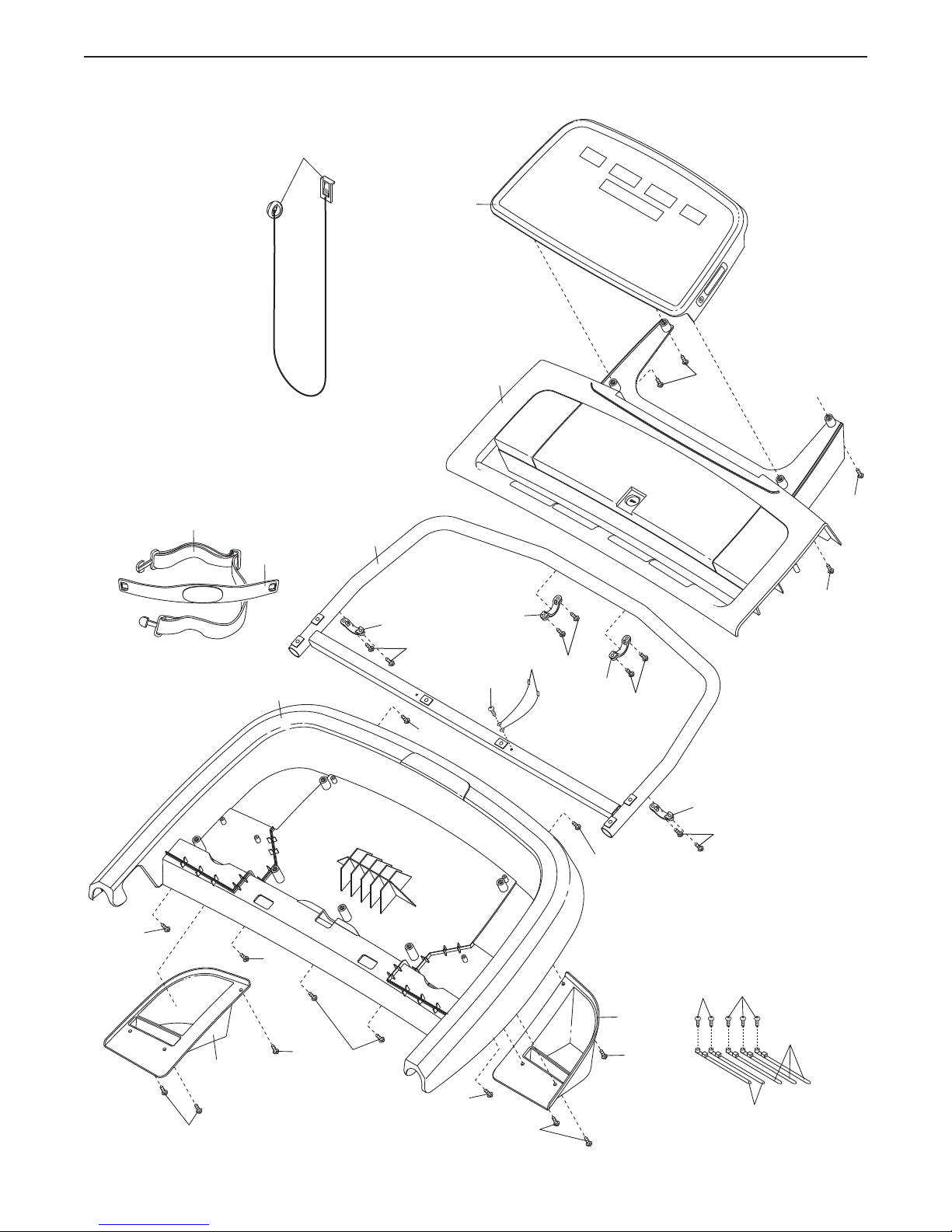

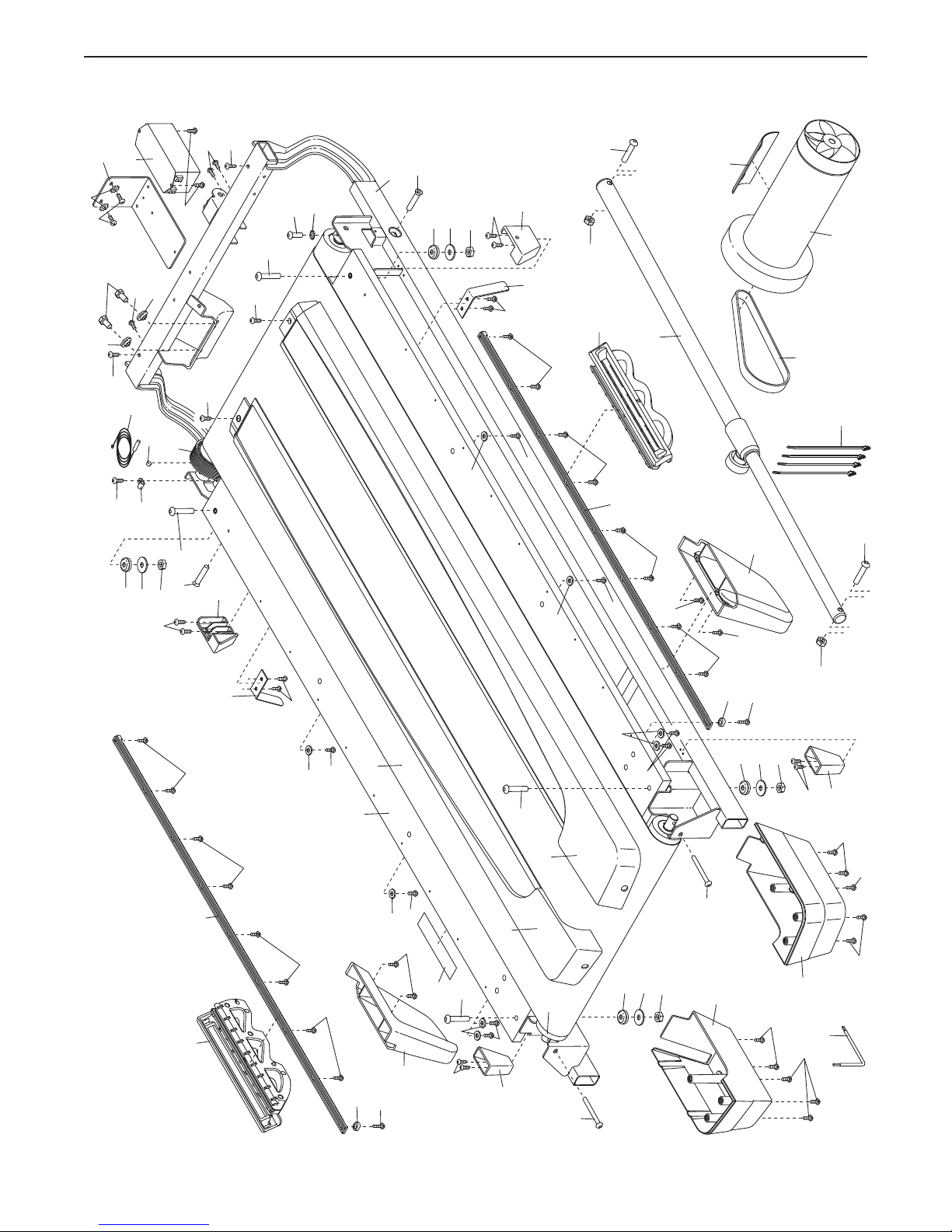

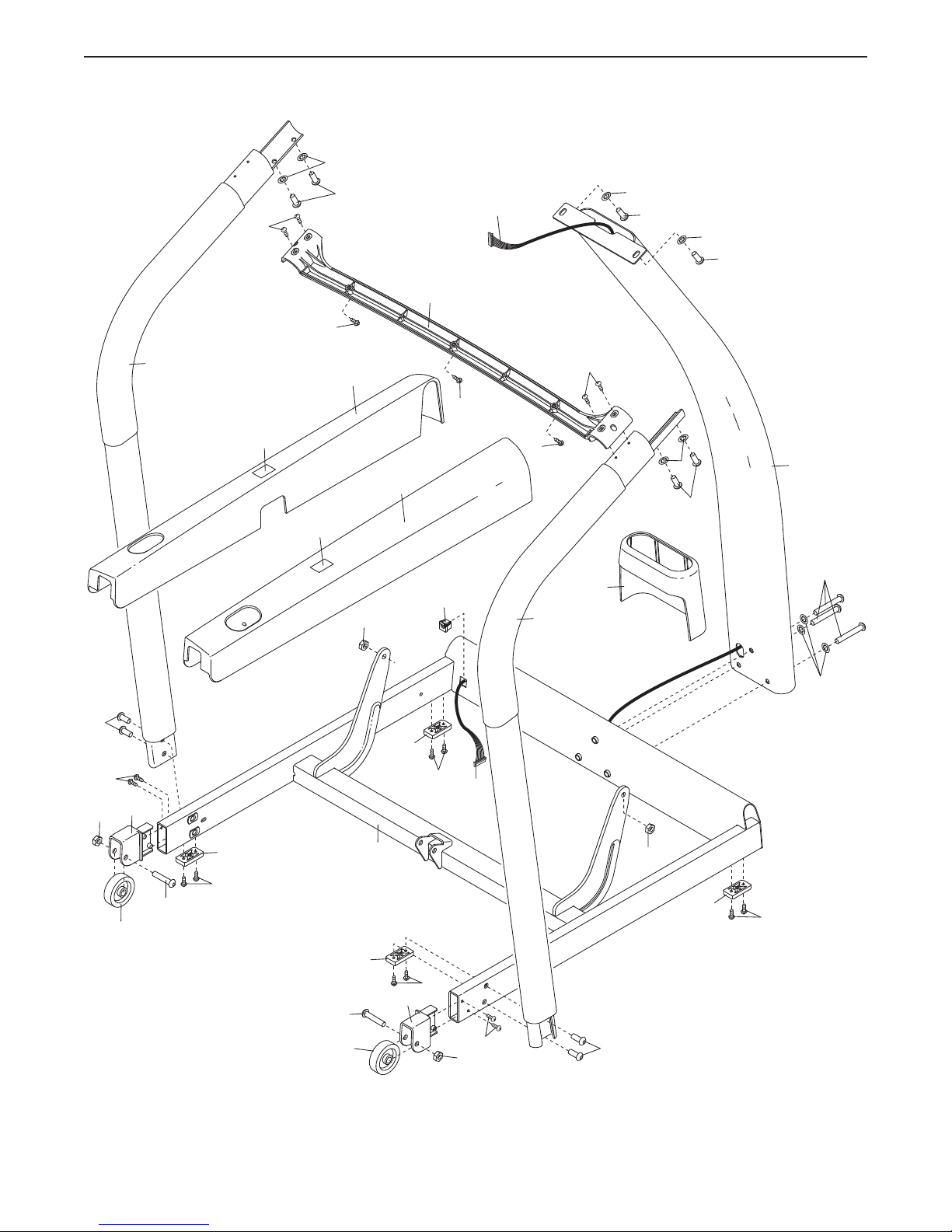

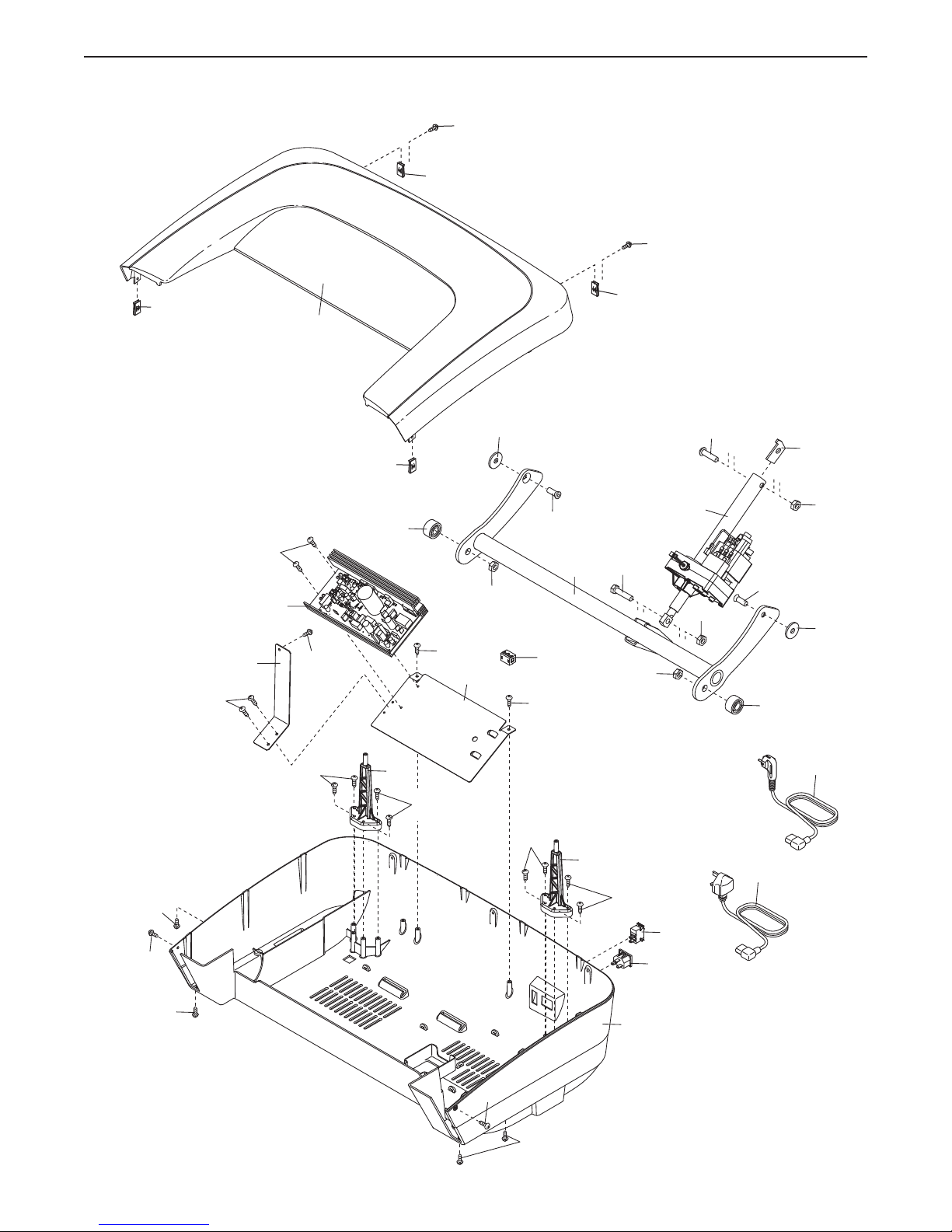

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible,

call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decals may not

be shown at actual size.

NORDICTRACK is a registered trademark of ICON IP, Inc.

Page 3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all

important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the treadmill only as described in this manual.

4. This treadmill is intended for home use only. Do not use this treadmill in a commercial, rental, or institutional setting.

5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

8. Keep children under age 12 and pets away from the treadmill at all times.

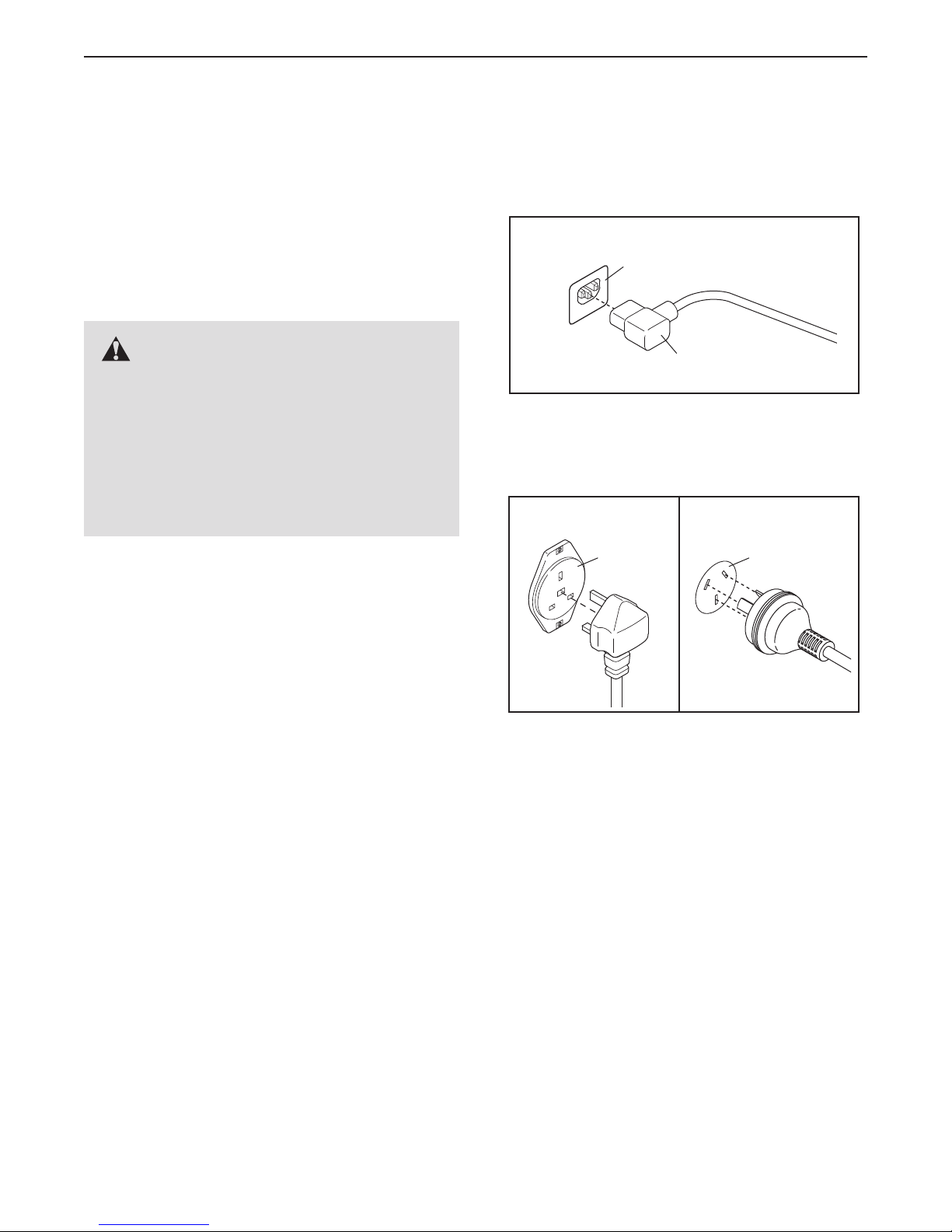

12. When connecting the power cord (see page

15), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse in the power cord adapter, insert an ASTA-approved BS1362, 13-amp fuse into the fuse carrier.

13. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

14. Keep the power cord away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 24 if the treadmill is not working properly.)

16. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 17).

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

18. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

9. The treadmill should be used only by persons weighing 350 lbs. (159 kg) or less.

10. Never allow more than one person on the treadmill at a time.

11. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

19. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

20. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and press the power switch into the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the power switch.)

Page 4

21. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 7, and HOW TO FOLD AND MOVE THE TREADMILL on page 23.) You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

23. Never insert any object into any opening on the treadmill.

24. Inspect and properly tighten all parts of the treadmill regularly.

SAVE THESE INSTRUCTIONS

26. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

Page 5

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NORDICTRACK® T18.0 treadmill. The T18.0 treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable and effective. And when you’re not exercising, the unique treadmill can be folded up, requiring less than half the

oor space of other treadmills.

For your benet, read this manual carefully before using the treadmill. If you have questions after

Length: 6 ft. 8 in. (203 cm) Width: 3 ft. 2 in. (97 cm) Weight: 282 lbs. (128 kg)

Handrail

Tray

reading this manual, please see the front cover of this manual. To help us assist you, please note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Console

Heart Rate

Monitor

Key/Clip

Walking Belt

Foot Rail

Idler Roller Adjustment Screws

Power Switch

Adjustable Platform

Cushion

Page 6

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra parts may be included.

#8 x 1/2" Screw

(1)–9

3/8" x 1"

Patch Bolt (4)–4

3/8" x 2" Bolt (3)–1

#8 x 3/4" Screw

(2)–4

5/16" x 1 1/4"

Patch Bolt (5)–6

#10 x 3/4" Screw

(8)–4

3/8" x 1 3/4"

Patch Bolt (6)–1

3/8" x 2 3/4" Patch Bolt (7)–3

5/16" Star

Washer (9)–6

3/8" Star

Washer (11)–3

3/8" Nut (10)–2

Page 7

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish assembly.

• After shipping, there may be an oily substance

on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

1. Go to www.iconsupport.eu and register your

product.

Registration provides the following benefits:

• activates your product manufacturer’s warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex key

one adjustable wrench

one Phillips screwdriver

scissors

To avoid damaging parts, do not use power tools

for assembly.

Note: If you do not have Internet access, call

CUSTOMER CARE (see the front cover of this manual) to register your product.

2. Make sure that the power cord is unplugged.

Attach the Right Wheel Cap (90) to the Base (94)

with two #8 x 3/4" Screws (2).

Attach the Left Wheel Cap (not shown) to the

left side of the Base (94) in the same way.

Cut the shipping tie holding the Upright Wire (79)

to the Base (94).

Tie

Page 8

3. Slide the Upright Cover (87) onto the bottom of the Upright (86) as shown.

Have a second person hold the Upright (86) near

the Base (94).

See the inset drawing. Tie the wire tie in the

Upright (86) securely around the end of the Upright Wire (79). Then, pull the other end of the wire tie until the Upright Wire is routed through the Upright.

Wire

Tie

4. Hold the Upright (86) against the Base (94). Be

careful not to pinch the Upright Wire (79).

Insert three 3/8" x 2 3/4" Patch Bolts (7) with three 3/8" Star Washers (11) into the Upright.

Partially tighten the 3/8" x 2 3/4" Patch Bolts

(7) until the heads of the Patch Bolts touch the Upright (86); do not fully tighten the Patch

Bolts yet.

Wire

Tie

Hole

Page 9

5. Slide the Adjustable Cushions (39) to rmness

setting 5 (only one side is shown).

Identify the Right Handrail (82) and the Right

Base Cover (84), which are marked "Right." Slide the Right Base Cover onto the Right Handrail.

Hold a 3/8" x 1" Patch Bolt (4) on the end of a

hex key and insert the Patch Bolt into the Right Handrail (82). Repeat this step with a second 3/8" x 1" Patch Bolt (4).

Partially tighten the two 3/8" x 1" Patch Bolts

(4) into the Right Handrail (82) and the Base (94) until the heads of the Patch Bolts touch the Right Handrail; do not fully tighten the Patch

Bolts yet. Do not press the Right Base Cover (84) into place yet.

Slide the Left Base Cover (not shown) onto

the Left Handrail (not shown). Attach the

Left Handrail to the Base (94) as described above.

6. Set the console assembly face down on a soft surface to avoid scratching the console assembly. Remove the Screw (A) and lift off the Crossbar (80). Discard the Screw.

Console

Assembly

Page 10

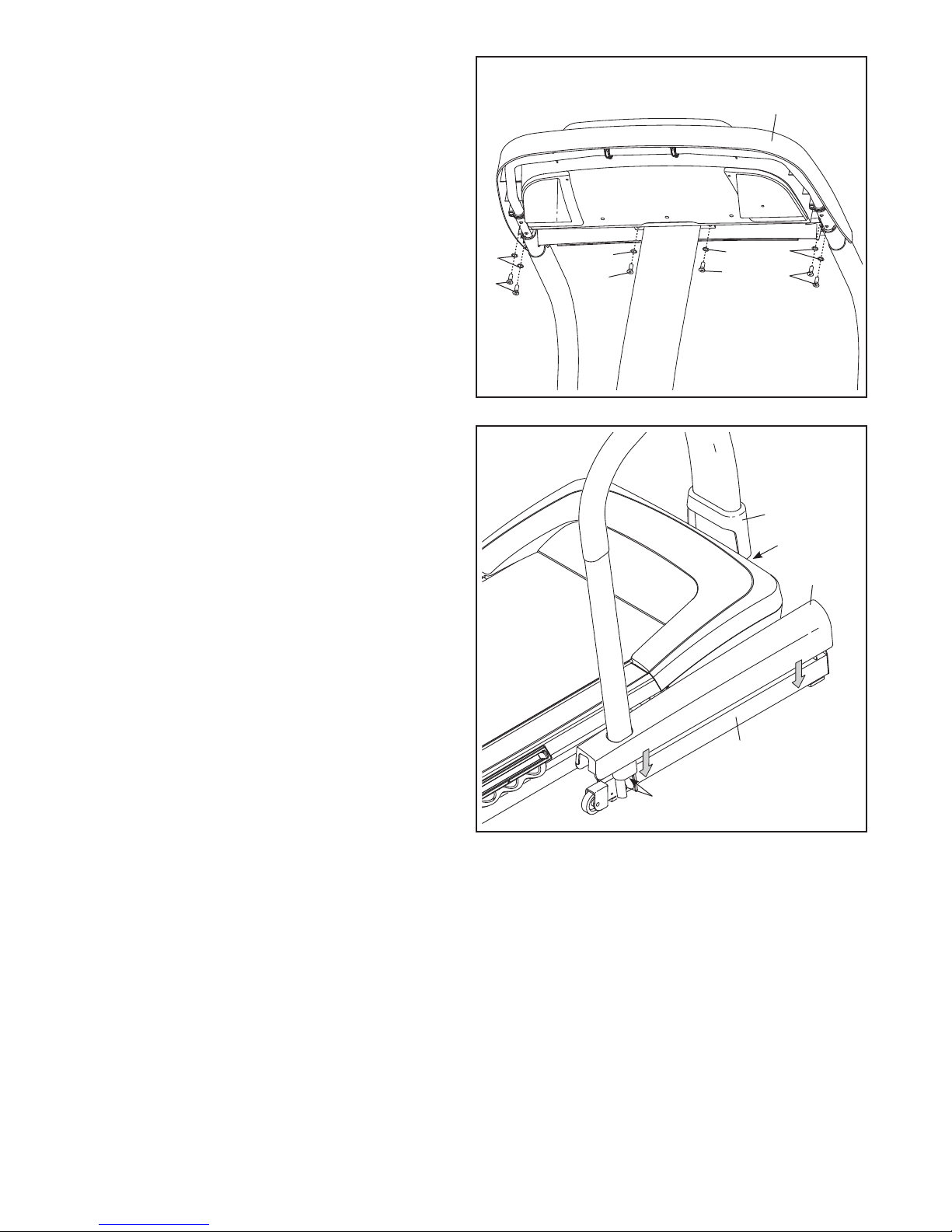

7. IMPORTANT: To avoid damaging the Crossbar (80), do not use power tools and do not overtighten the #10 x 3/4" Screws (8).

Orient the Crossbar (80) as shown. Attach the

Crossbar to the Handrails (81, 82) with four #10 x 3/4" Screws (8). Start all four Screws, and

then tighten each of them.

8. Attach the Left Tray (101) and the Right Tray (102) to the console assembly with six #8 x 1/2" Screws (1).

102

Console

Assembly

101

Page 11

9. With the help of a second person, hold the console assembly near the Upright (86).

Connect the Upright Wire (79) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY BECOME DAMAGED WHEN YOU TURN ON THE POWER. Remove the wire tie from the

Upright Wire.

Console

Wire

Console

Assembly

Console

Wire

Tie

10. Set the console assembly on the Handrails (81,

82) and the Upright (86). Be careful not to pinch any wires. Insert the excess Upright Wire (not shown) into the Upright.

Attach the console assembly to the Crossbar

(not shown) with three #8 x 1/2" Screws (1). Do not fully tighten the Screws yet.

Console

Assembly

Page 12

11. Tighten six 5/16" x 1 1/4" Patch Bolts (5) with six 5/16" Star Washers (9) into the console assembly. Start all six Patch Bolts, and then tighten

them.

See step 9. Tighten the three #8 x 1/2" Screws

(1).

Console

Assembly

12. Firmly tighten the four 3/8" x 1" Patch Bolts (4)

(only one side is shown). Then, rmly tighten the

three 3/8" x 2 3/4" Patch Bolts (7).

Slide the Upright Cover (87) down against the

Base (94).

Press the Right Base Cover (84) and the Left

Base Cover (not shown) onto the Base (94).

Page 13

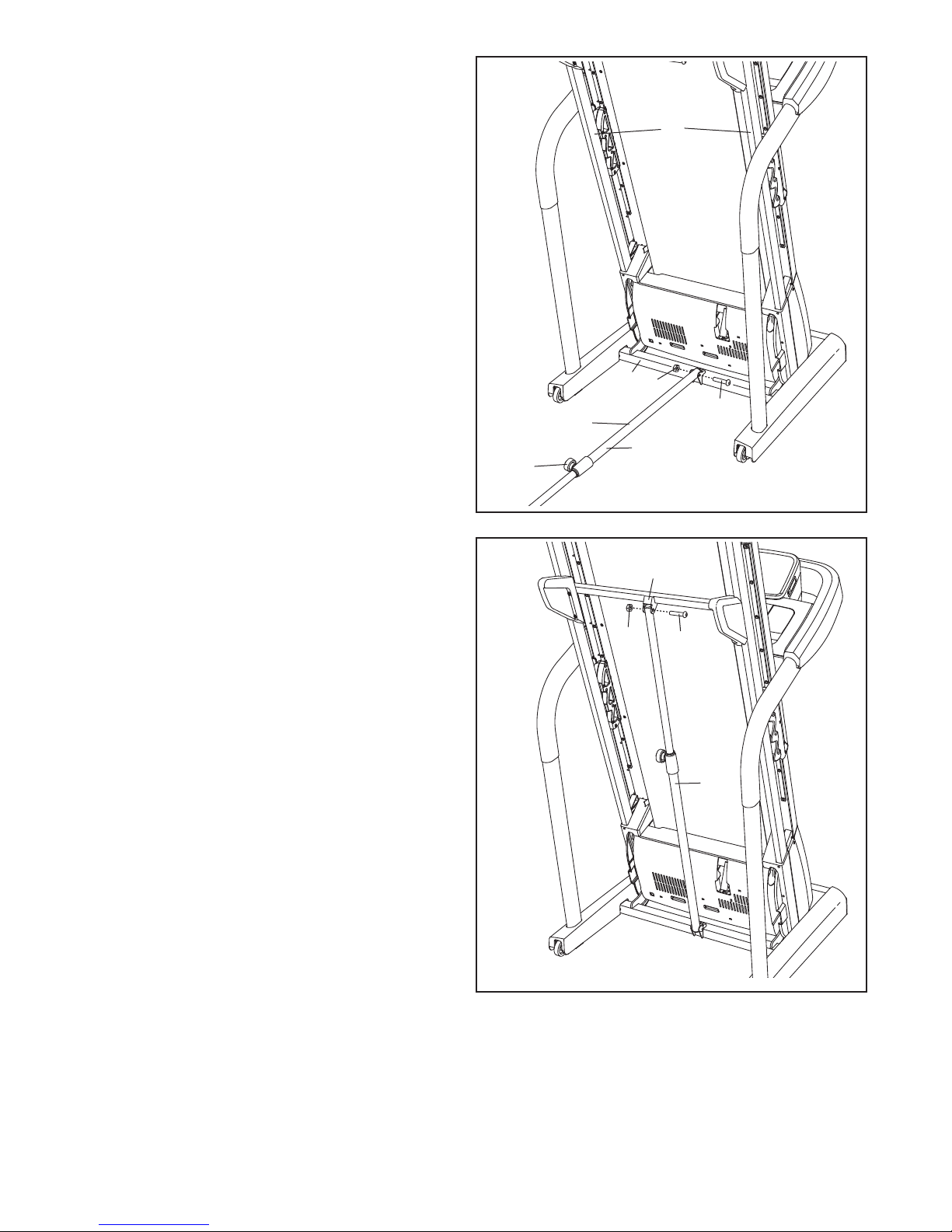

13. Raise the Frame (60) to the position shown.

Have a second person hold the Frame until step 13 is completed.

Orient the Storage Latch (61) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (61) to

the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8" Nut (10).

Latch Knob

Large Barrel

14. Attach the upper end of the Storage Latch (61) to the bracket on the Frame (60) with a 3/8" x 1 3/4" Patch Bolt (6) and a 3/8" Nut (10).

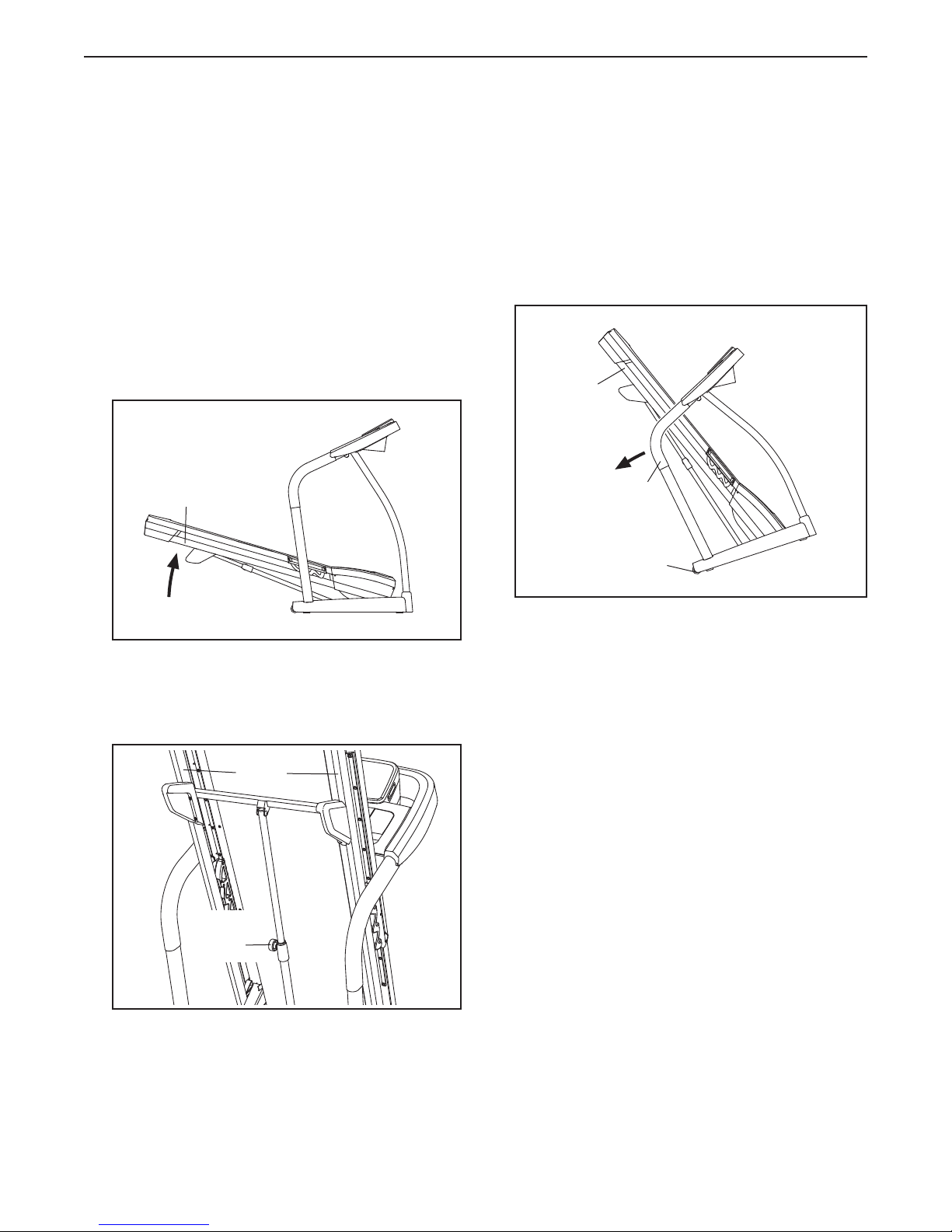

Lower the Frame (60) (see HOW TO LOWER

THE TREADMILL FOR USE on page 23).

15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.

Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see pages 25 and 26).

Page 14

THE CHEST HEART RATE MONITOR

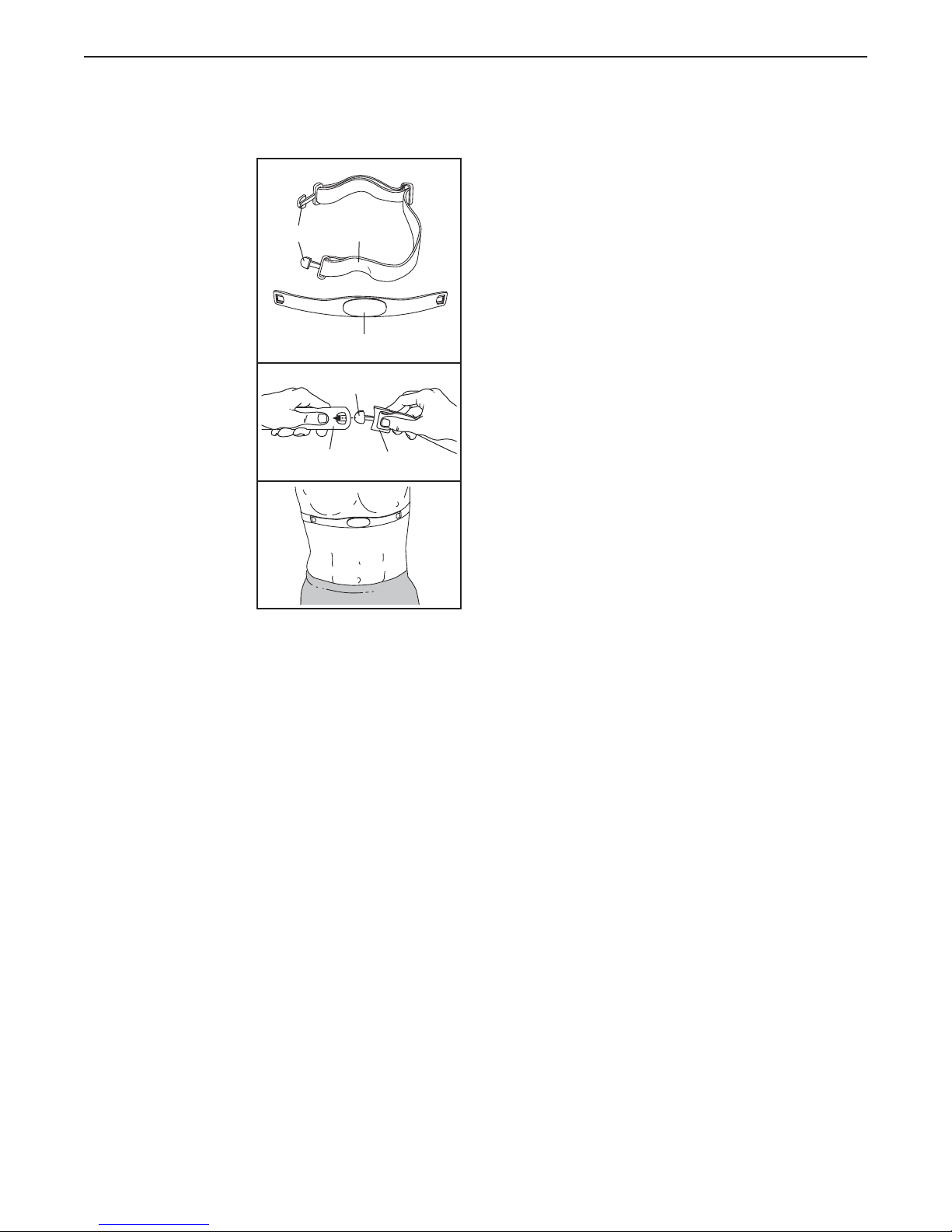

HOW TO PUT ON THE HEART RATE MONITOR

The heart rate monitor consists of a chest strap and a sensor. Insert the tab on one end of the chest strap into the hole in one end of the sensor as shown. Then, press the end of the sensor under the buckle on the chest strap. The tab should be flush with the front of the sensor.

The heart rate monitor must be worn under your clothes, tight against your skin. Wrap the heart rate monitor around your chest in the location shown. Make sure that the logo is rightside-up. Then, attach the other end of the chest strap to the sensor. Adjust the length of the chest strap, if necessary.

Pull the sensor away from your body a few inches and locate the two electrode areas, which are covered by shallow ridges. Using saline solution such as saliva or contact lens solution, wet the electrode areas. Then, return the sensor to a position against your chest.

CARE AND MAINTENANCE

Tabs

Chest

Strap

Sensor

Tab

Sensor

Buckle

• Do not expose the heart rate monitor to direct sunlight for extended periods of time; do not expose it to temperatures above 122° F (50° C) or below 14° F (-10° C).

• Do not excessively bend or stretch the sensor when

using or storing the heart rate monitor.

• To clean the sensor, use a damp cloth and a small

amount of mild soap. Then, wipe the sensor with a damp cloth and thoroughly dry it with a soft towel. Never use alcohol, abrasives, or chemicals to clean the sensor. Hand wash and air dry the chest strap.

TROUBLESHOOTING

If the heart rate monitor does not function properly, try the steps below.

• Make sure that you are wearing the heart rate monitor as described at the left. If the heart rate monitor does not function when positioned as described, move it slightly lower or higher on your chest.

• If heart rate readings are not displayed until you

begin perspiring, rewet the electrode areas.

• For the console to display heart rate readings, you

must be within arm’s length of the console.

• If there is a battery cover on the back of the sensor,

replace the battery with a new battery of the same type.

• The heart rate monitor is designed to work with

people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.

• Thoroughly dry the sensor with a soft towel after

each use. Moisture may keep the sensor activated, shortening the life of the battery.

• Store the heart rate monitor in a warm, dry place. Do

not store the heart rate monitor in a plastic bag or other container that may trap moisture.

• The operation of the heart rate monitor can be

affected by magnetic interference from high power lines or other sources. If you suspect that magnetic interference is causing a problem, try relocating the fitness equipment.

Page 15

OPERATION AND ADJUSTMENT

AUS

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunc-

tion or break down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product’s power cord has an equipment-earthing conductor and an earthing plug.

IMPORTANT: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.

DANGER: Improper connection of

the equipment-earthing conductor can result in an increased risk of electric shock. Check

with a qualied electrician or serviceman if

you are in doubt as to whether the product is properly earthed. Do not modify the plug

provided with the product—if it will not t

the outlet, have a proper outlet installed by a

qualied electrician.

Follow the steps below to plug in the power cord.

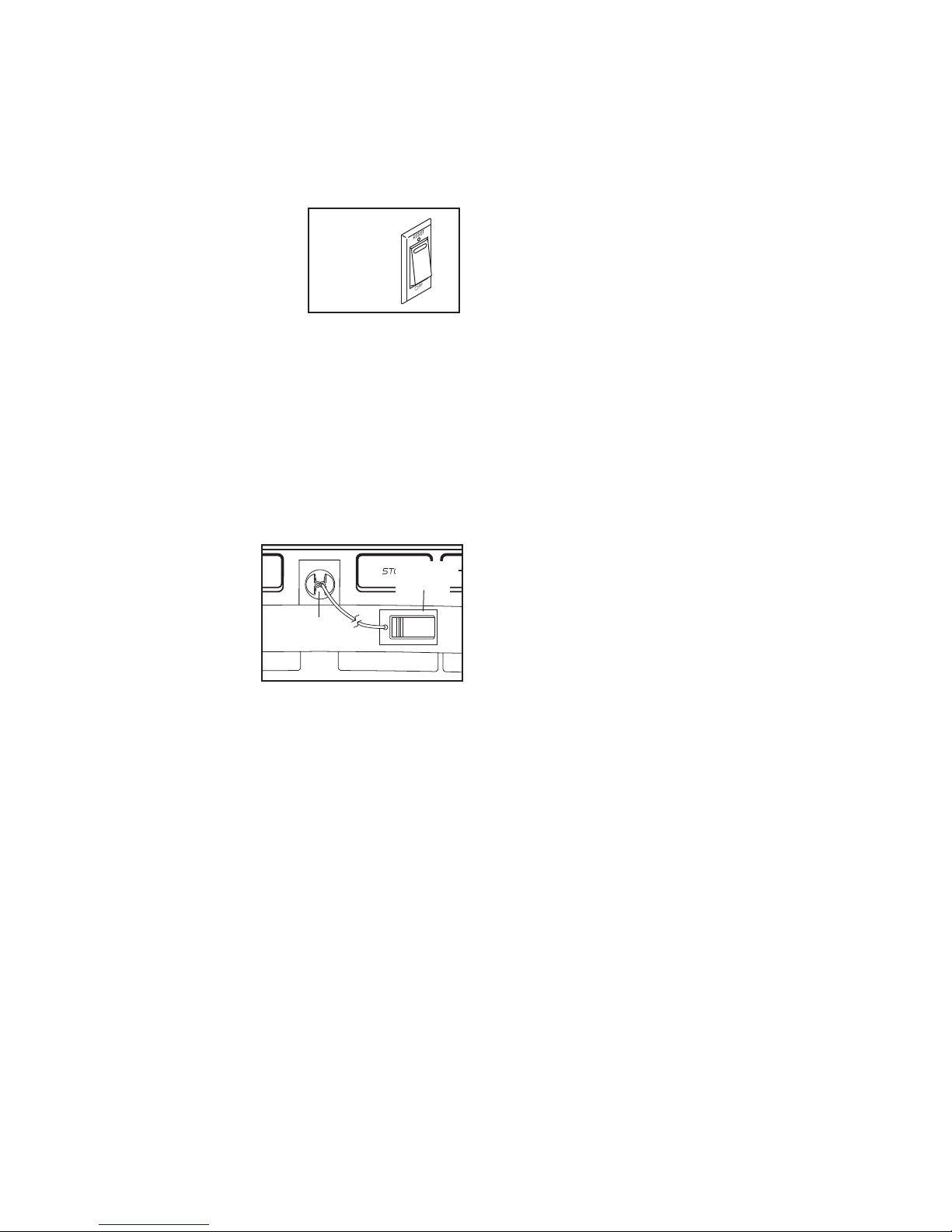

1. Plug the indicated end of the power cord into the

socket on the treadmill.

Socket on Treadmill

Power Cord

2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.

Outlet

Australia

Outlet

Page 16

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective and enjoyable. When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or the chest heart rate monitor.

In addition, the console features twenty-eight onboard workouts—seven calorie workouts, seven intensity workouts, seven speed workouts, and seven incline workouts. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

The console also features an iFit mode that enables the treadmill to communicate with your wireless network through an optional iFit module. With the iFit mode, you can download personalized workouts, create your own workouts, track your workout results, race against other iFit users, and access many other features. To purchase an iFit module at any time, go

to www.iFit.com or call the telephone number on the front cover of this manual.

You can even listen to your favorite workout music or audio books with the console’s stereo sound system while you exercise.

To turn on the power, see page 17. To use the manual mode, see page 17. To use an onboard workout, see page 19. To use an iFit workout, see page 20. To use the information mode, see page 21. To use the stereo sound system, see page 22.

Note: The console can display speed and distance

in either miles or kilometers. To nd which unit of

measurement is selected, see THE INFORMATION MODE on page 21. For simplicity, all instructions in this manual refer to kilometers.

IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 26).

Page 17

HOW TO TURN ON THE POWER

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before turning on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 15). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

IMPORTANT: The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as you plug in the power cord and press the power switch into the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page 21 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. IMPORTANT:

In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

Reset

Clip

Key

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

If the manual mode is not selected, press the

Manual button on the console.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the numbered 1 Step Speed buttons.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 2 Km/H. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press one of the buttons, the speed setting will change by 0.1 Km/H; if you hold down the button, the speed setting will change in increments of 0.5 Km/H. Note: After you press the button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the numbered 1 Step Speed

buttons, the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To restart

the walking belt, press the Start button or the Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the numbered 1 Step Incline buttons. Each time you press one of the buttons, the treadmill will gradually adjust to the selected incline setting.

Page 18

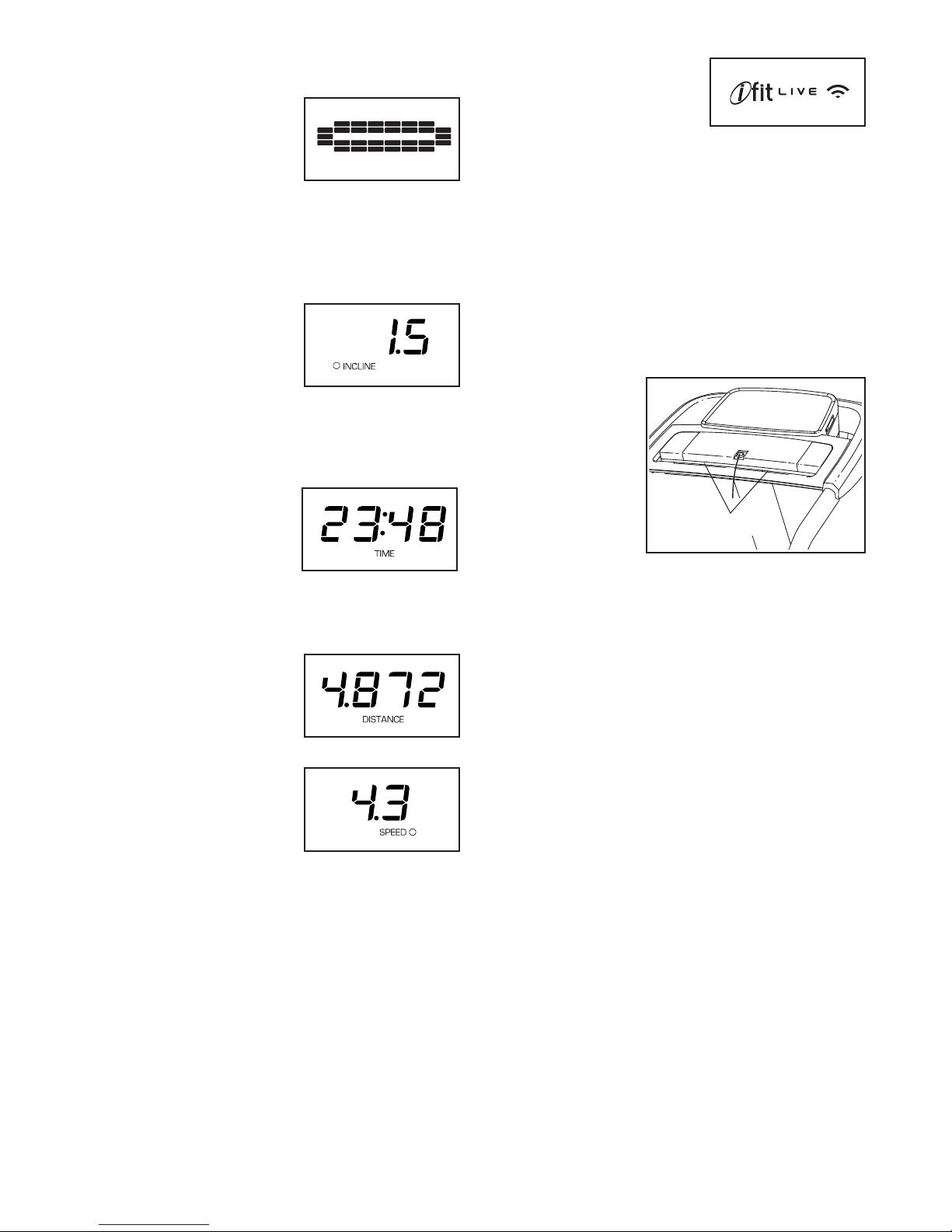

5. Follow your progress with the displays.

The matrix—When

you select the manual mode, the matrix will display a track that represents 400 m (1/4 mile). As you exercise, the indicators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.

The Calories/Incline

display—This display will show the approximate number of calories you have burned. The display will also show the incline of the treadmill for a few seconds each time the incline of the treadmill changes.

The Time display—

This display will show the elapsed time. Note: When an onboard workout is selected, the display will show the time remaining in the workout instead of the elapsed time.

The Distance dis-

play—This display will show the distance that you have walked or run.

When an iFit module is

connected to www.iFit. com, the iFit symbol will light in the center display.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Note: If you use the handgrip heart rate moni-

tor and the chest heart rate monitor at the same time, the console will not display your heart rate accurately. For information about the chest

heart rate monitor, see page 14.

Before using

the handgrip heart rate monitor, remove the sheets of plastic from the metal contacts on the pulse bar. In addition, make sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the metal contacts; avoid moving your hands. When your pulse is detected, several dashes will appear and then your heart rate will be shown. For the

most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

Contacts

The Speed/Pulse display—This display

will show the speed of the walking belt. The display will also show your heart rate when you use a heart rate monitor (see step 6).

The center display—This display will show work-

out instructions.

Press the Home button to return to the start mode

(see THE INFORMATION MODE on page 21 to set the start mode). If necessary, press the Home button again.

7. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting or you may damage the treadmill when you fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

Page 19

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

and/or incline setting will appear in the displays for a few seconds and the treadmill will automatically adjust to the new speed and/or incline setting.

See HOW TO TURN ON THE POWER on page 17.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Intensity button, the Speed button, or the Incline button repeatedly until the desired workout appears in the display.

When you select an onboard workout, the displays

will show the maximum incline, the duration, the distance, the maximum speed, and the name of the

workout. In addition, a prole of the speed settings

of the workout will appear in the matrix. If you select a calorie workout, the approximate number of calories you will burn will appear in the name of the workout.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for each segment. Note: The same speed setting and/ or incline setting may be programmed for consecutive segments.

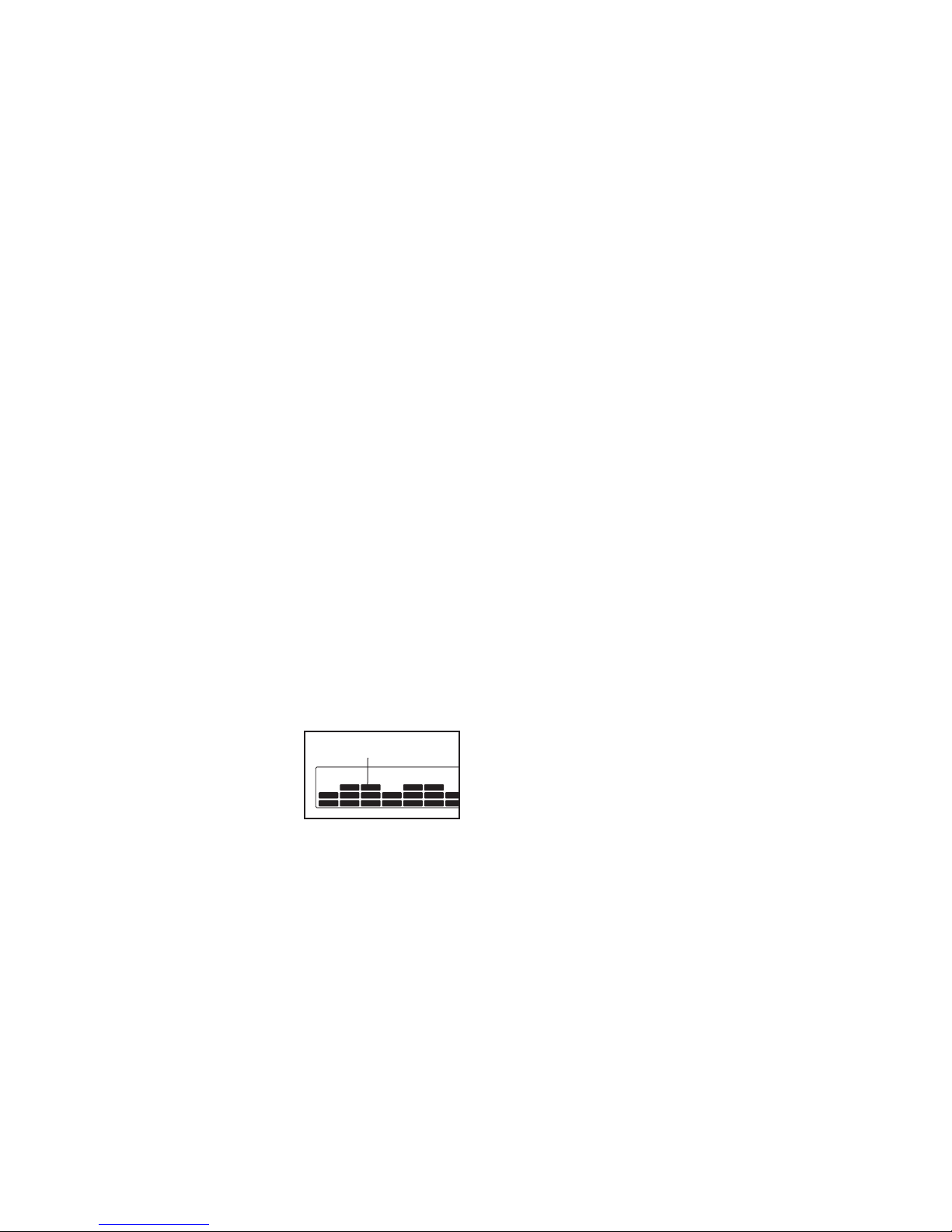

During the workout, the

prole will show your progress. The ashing segment of the prole

represents the current segment of the work-

out. The height of the ashing segment indicates

the speed setting for the current segment. At the end of each segment, a series of tones will sound

and the next segment of the prole will begin to ash. If a new speed and/or incline setting is pro-

grammed for the next segment, the new speed

Current Segment

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during the workout. The actual number of calories that you burn will depend on various factors such as your weight. In addition, if you manually change the speed or incline of the treadmill during the workout, the number of calories you burn will be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually override the setting by pressing the Speed or Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 2 Km/H. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Follow your progress with the displays.

See step 5 on page 18.

5. Measure your heart rate if desired.

See step 6 on page 18.

6. When you are nished exercising, remove the

key from the console.

See step 7 on page 18.

Page 20

HOW TO USE AN IFIT WORKOUT

Note: To use an iFit workout, you must have an optional iFit module. To purchase an iFit module at

any time, go to www.iFit.com or call the telephone number on the front cover of this manual. You must

also have access to a computer with a USB port and an internet connection. In addition, you must have access to a wireless network including an 802.11b/g/n router with SSID broadcast enabled (hidden networks are not supported). An iFit.com membership is also required.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Insert the iFit module into the console.

To insert the iFit module, see the instructions in-

cluded with the iFit module.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in the iFit module must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered, you can switch

users in the iFit main screen. Press the increase and decrease buttons next to the Enter button to select a user.

iFit workouts, please see www.iFit.com. Note: If there are no workouts of the selected type in your schedule, the next workout in your schedule will be downloaded.

When you select an iFit workout, the display will

show the duration of the workout, the distance you will walk or run, the approximate number of calories you will burn, and the name of the workout. If you select a competition workout, the display will count down to the beginning of the race.

5. Start the workout.

See step 3 on page 17.

During some workouts, the voice of an audio

coach will guide you through your workout. You can select a setting for your audio coach (see THE INFORMATION MODE on page 21).

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or the Speed increase button. The walking belt will begin to move at the speed setting for the rst segment of the workout. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

6. Follow your progress with the displays.

See step 5 on page 18.

4. Select an iFit workout.

To select an iFit workout, press one of the iFit but-

tons. Before some workouts will download, you must add them to your schedule on www.iFit.com.

Press the iFit button to download the next workout

in your schedule. Press the My Trainer button, the My Maps button, the World Tour button, or the Event Training button to download the next workout of that type in your schedule. Press the Compete button to compete in a race that you have previously scheduled. For more information on the

7. Measure your heart rate if desired.

See step 6 on page 18.

8. When you are nished exercising, remove the

key from the console.

See step 7 on page 18.

For more information on the iFit mode, go to www.iFit.com.

Page 21

THE INFORMATION MODE

The console features an information mode that keeps track of treadmill information and allows you to personalize console settings.

To select the information mode, hold down the Stop button while inserting the key into the console, and then release the Stop button. When the information mode is selected, the following information will be shown:

function. If the demo mode is turned on, the word ON will appear in the center display. To turn on or turn off the demo mode, press the Enter button or the Speed decrease button.

3. CONTRAST LVL: Press the Incline increase and

decrease buttons to adjust the contrast level of the displays. Then, press the Enter button.

If a module is connected, you may also select the following screens:

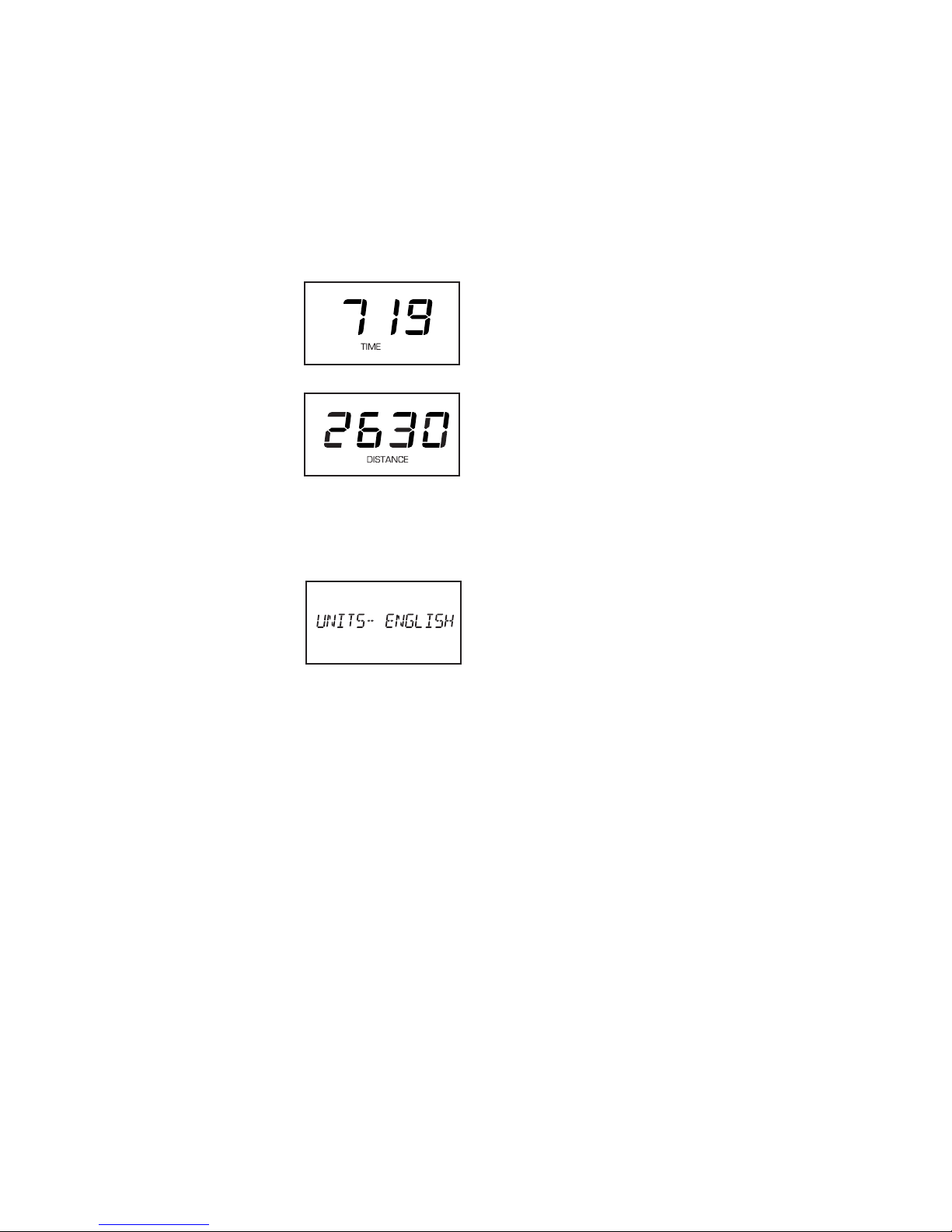

The Time display will show the total number of hours the treadmill has been used.

The Distance display will show the total number of miles or kilometers that the walking belt has moved.

While the information mode is selected, press the decrease button next to the Enter button to select each of the following screens in the center display:

1. UNITS: To change the

unit of measurement, press the Enter button. To view distance in miles, select ENGLISH. To view distance in kilometers, select METRIC.

2. DEMO MODE: The console features a display

demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, press the power switch into the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not

4. MODULE: If an iFit module is connected, the dis-

play will show the word WIFI. If a USB module is connected, the display will show the word USB/SD.

5. AUDIO COACH: To turn on or turn off the audio

coach, press the Enter button.

If an iFit module is connected, you may also select the following screens:

6. START MODE: The start mode (default menu) will

appear when you insert the key into the console or when you press the Home button. Press the Enter button repeatedly to select the manual mode or the iFit mode as the default menu.

7. CHECK WIFI: Press the Enter button. The center

display will show the software version number, the network SSID, the network encryption type, the wireless signal strength, the IP address of the module, the number of registered users and their names, the results of the DNS lookup, the status of the iFit server, and whether the check passed.

8. SEND/OBTAIN DATA: To send and receive work-

outs, workout logs, and updates, press the Enter

button. When the process is nished, the words

TRANSFERS DONE will appear in the display.

To exit the information mode, remove the key from the console.

Page 22

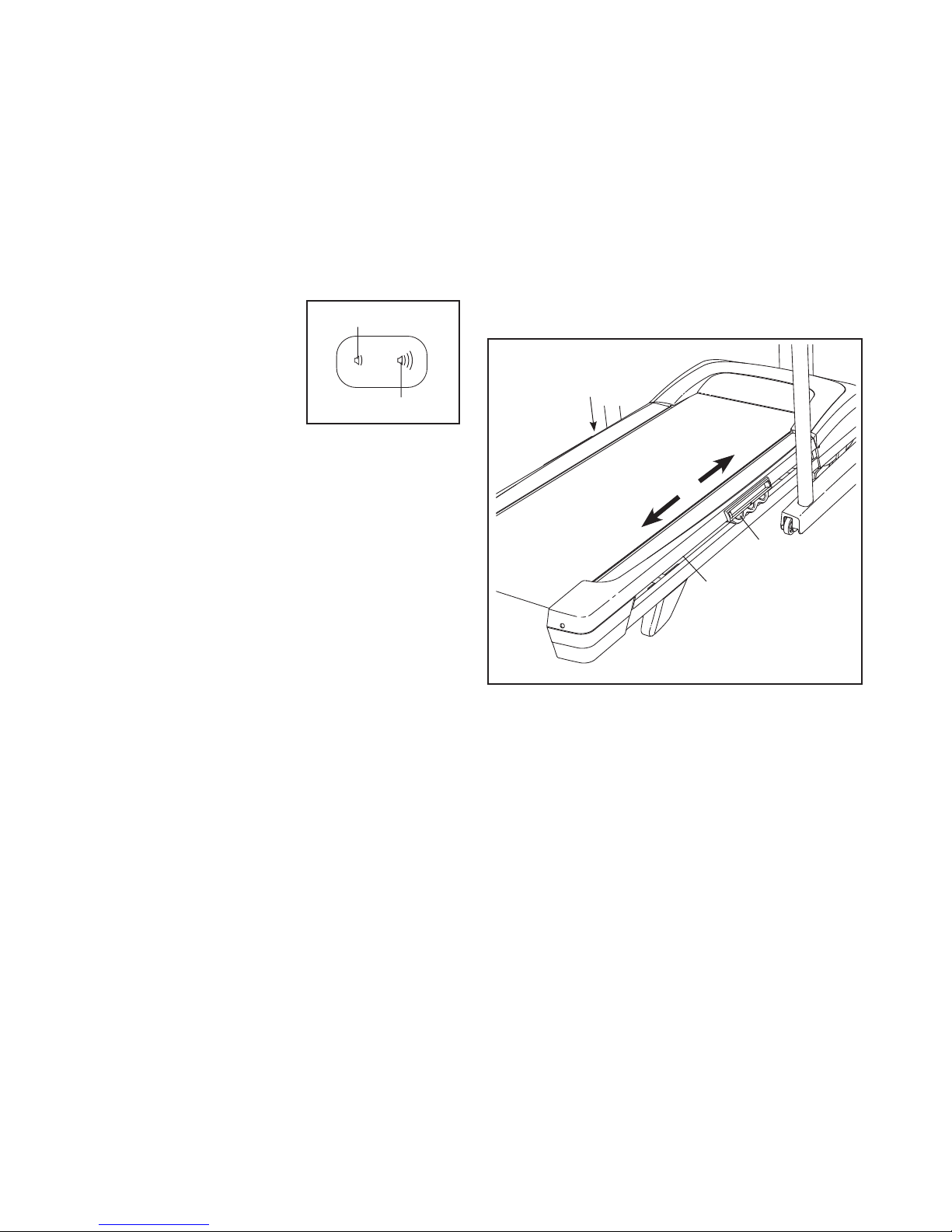

HOW TO USE THE STEREO SOUND SYSTEM

HOW TO ADJUST THE CUSHIONING SYSTEM

To play music or audio books through the console’s stereo speakers, you must connect your MP3 player, CD player, or other personal audio player to the console through the audio jack.

To use the audio jack, plug your audio wire into the audio jack on the side of the console. Then plug the audio wire into a jack on your MP3 player, CD player, or other personal audio player. Make sure that the audio wire is fully plugged in.

Next, press the play button on your MP3 player, CD player, or other personal audio player. Adjust the volume on your personal audio player or press the volume increase and decrease buttons on the console.

If you are using a personal CD player and the CD skips, set the CD player on the oor or another at surface and not on the console.

Volume Decrease

Volume Increase

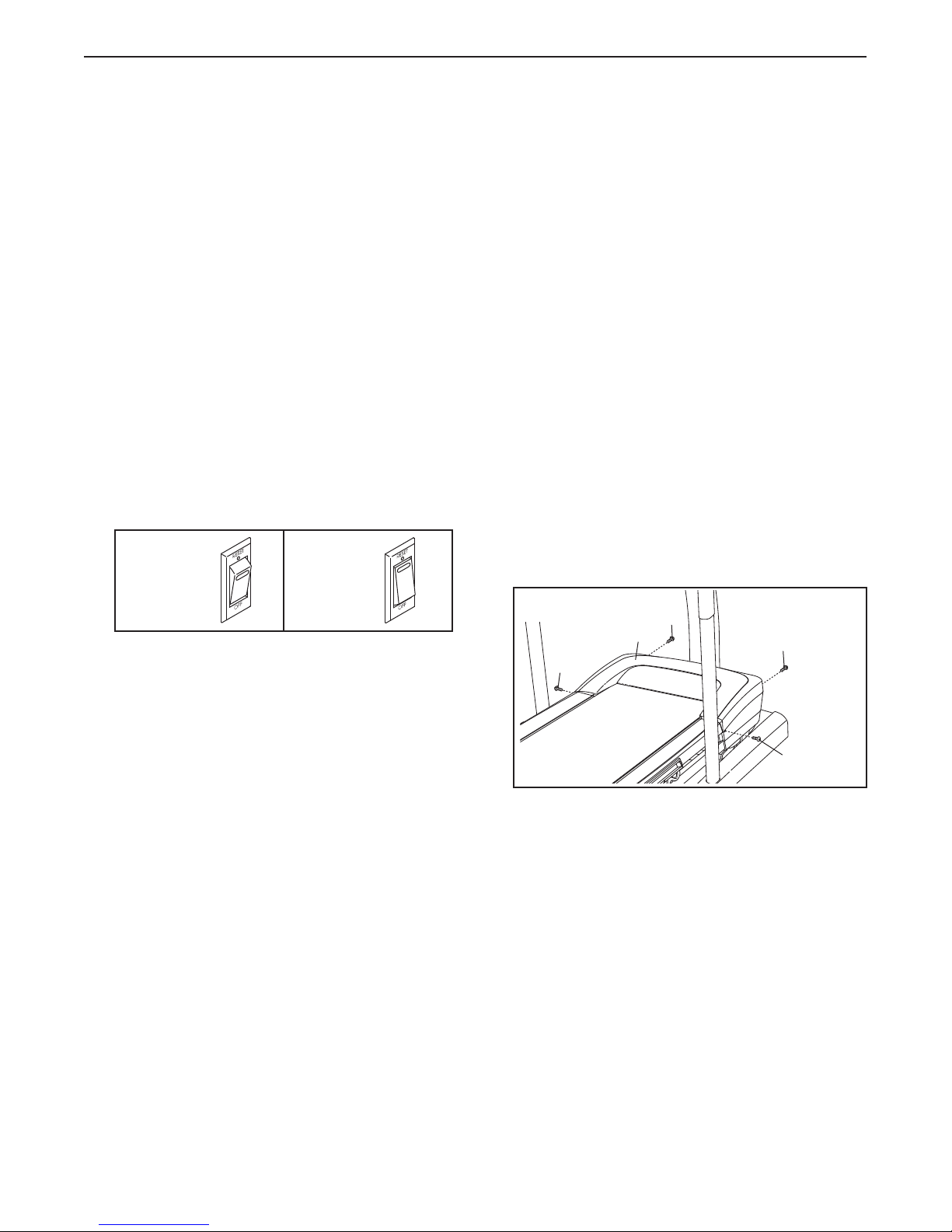

Remove the key from the console and unplug the power cord. The treadmill features a cushioning

system that reduces the impact as you walk or run on

the treadmill. To increase the rmness of the walking

platform, step off the treadmill and slide the platform cushions toward the front of the treadmill. To decrease the rmness, step off the treadmill and slide the platform cushions toward the back of the treadmill. Note:

Make sure that both cushions are set at the same

rmness level. The faster you run on the treadmill, or the more you weigh, the rmer the walking plat-

form should be.

Platform Cushion

Increase

Decrease

Platform Cushion

Walking Platform

Page 23

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline to the lowest position and slide the adjustable

cushions to rmness setting 1 before you fold the

treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the frame by the plastic foot rails. Bend your legs and keep your back straight.

Frame

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

Frame

Handrail

Wheel

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

Frame

Latch Knob

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the tread-

mill frame with your right hand. Then, pull the latch knob to the left. IMPORTANT: Do not turn the latch knob. If necessary, push the frame forward slightly. Pivot the frame downward a few inches, and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic foot rails, and do not drop the frame. Bend your legs and keep your back straight.

Page 24

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

properly earthed outlet (see page 15). If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the

power switch, wait for ve minutes and then press

the switch back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 21 to turn off the demo mode.

SYMPTOM: The displays of the console do not function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Remove the four #8 x 3/4"

Screws (2). Carefully pivot the Motor Hood (67) off.

Tripped

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

If the switch has tripped, wait for ve minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

Reset

Page 25

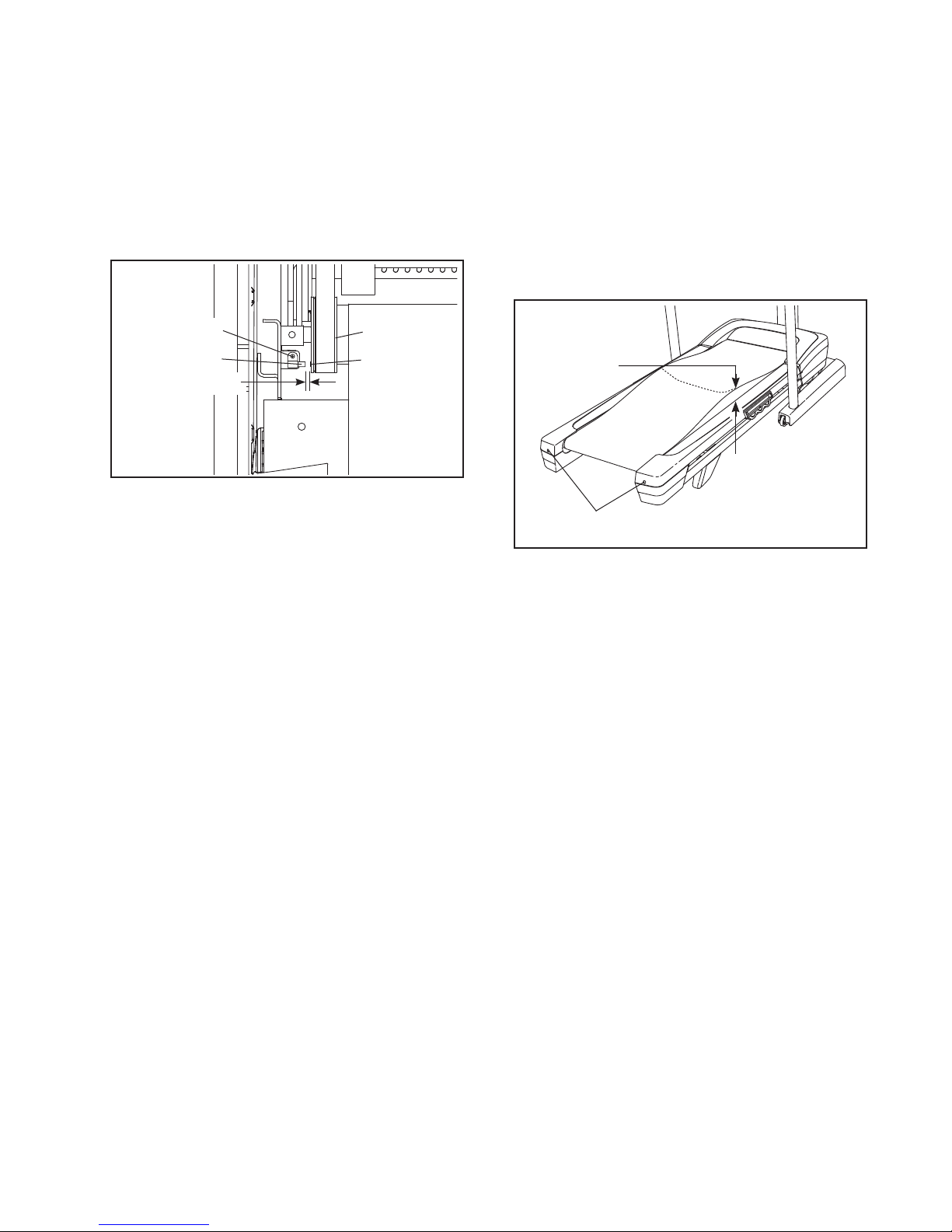

Locate the Reed Switch (57) and the Magnet (55)

on the left side of the Pulley (56). Turn the Pulley until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Tek Screw (12), move the Reed Switch slightly, and then retighten the Screw. Reattach the Motor Hood (not shown) and run the treadmill for a few minutes to check for a correct speed reading.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

1/8 in.

Top

View

SYMPTOM: The incline of the treadmill does not change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then release the Stop button and the Speed increase button. Press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline does not calibrate, press the Stop button again, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.

SYMPTOM: The walking belt slows when walked on

2–3 in.

Idler Roller Screws

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deteriorate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

a. If an extension cord is needed, use only a 3-con-

ductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

Page 26

SYMPTOM: The walking belt is not centered between the foot rails. IMPORTANT: If the walking belt rubs against the foot rails, the walking belt may be damaged.

a. First, remove the key and UNPLUG THE POWER

CORD. If the walking belt has shifted to the left,

use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

Foot Rails

SYMPTOM: The walking belt slips when walked on

a. First, remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

Page 27

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Page 28

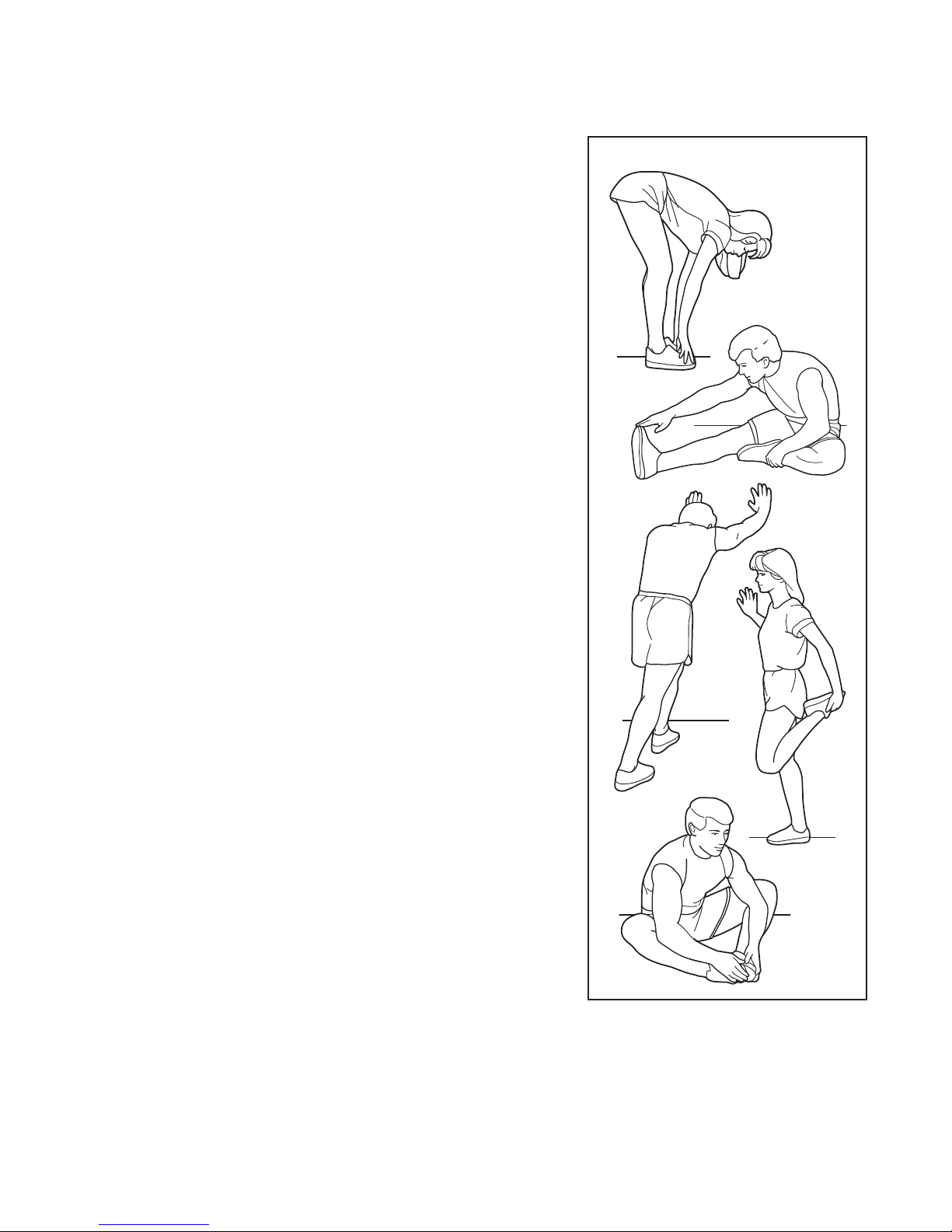

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

Page 29

NOTES

Page 30

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. NETL17711.1 R1112A

1 21 #8 x 1/2" Screw 2 66 #8 x 3/4" Screw 3 1 3/8" x 2" Bolt 4 4 3/8" x 1" Patch Bolt 5 6 5/16" x 1 1/4" Patch Bolt 6 1 3/8" x 1 3/4" Patch Bolt 7 3 3/8" x 2 3/4" Patch Bolt 8 4 #10 x 3/4" Screw 9 6 5/16" Star Washer 10 2 3/8" Nut 11 3 3/8" Star Washer 12 1 #8 x 3/4" Tek Screw 13 2 Idler Roller Screw 14 1 3/8" x 1 1/2" Hex Head Bolt 15 2 3/8" x 1 3/4" Bolt 16 4 #8 x 1/2" Ground Screw 17 2 #8 x 1 3/4" Screw 18 4 #8 Belt Guide Screw 19 16 #8 x 3/4" Track Screw 20 2 #8 x 1" Track Screw 21 2 5/16" Motor Screw 22 2 1/2" x 2 1/4" Bolt 23 2 3/8" x 1" Bolt 24 4 5/16" x 3 5/8" Bolt 25 1 1/4" x 1 1/4" Screw 26 8 #8 x 1" Screw 27 2 #12 x 1" Screw 28 2 Motor Bushing 29 2 #8 Star Washer 30 1 1/4" Star Washer 31 8 #8 Flat Washer 32 4 5/16" Flat Washer 33 2 1/2" Jam Nut 34 6 3/8" Jam Nut 35 4 5/16" Jam Nut 36 4 Hood Clip 37 4 Rubber Cushion 38 7 #8 x 1/2" Hex Head Screw 39 2 Adjustable Cushion 40 2 Cushion Stop 41 2 Cushion Track 42 1 Left Rear Foot 43 1 Right Rear Foot 44 2 Rear Platform Support 45 1 Idler Roller 46 1 Left Foot Rail 47 1 Right Foot Rail 48 1 Warning Decal 49 1 Walking Platform 50 1 Walking Belt

51 2 Belt Guide 52 1 Front Left Platform Support 53 1 Front Right Platform Support 54 1 Reed Switch Clamp 55 1 Magnet 56 1 Drive Roller/Pulley 57 1 Reed Switch 58 1 Filter Bracket 59 1 Filter 60 1 Frame 61 1 Storage Latch 62 1 Drive Motor 63 1 Motor Belt 64 4 Cable Tie 65 1 Right Frame Cover 66 1 Left Frame Cover 67 1 Motor Hood 68 2 Incline Frame Spacer 69 1 Incline Motor 70 1 Incline Frame 71 2 Frame Spacer 72 1 Controller 73 1 Controller Plate 74 2 Belly Pan Post 75 1 Power Switch 76 1 Belly Pan 77 1 Power Cord 78 1 Grommet 79 1 Upright Wire 80 1 Crossbar 81 1 Left Handrail 82 1 Right Handrail 83 1 Left Base Cover 84 1 Right Base Cover 85 2 Caution Decal 86 1 Upright 87 1 Upright Cover 88 4 Base Pad 89 1 Left Wheel Cap 90 1 Right Wheel Cap 91 2 Wheel 92 1 Key/Clip 93 1 Console 94 1 Base 95 1 Console Base 96 1 Sensor 97 1 Console Frame 98 4 Console Clamp 99 2 Ground Wire 100 1 Console Back

Page 31

Key No. Qty. Description Key No. Qty. Description

101 1 Left Tray 102 1 Right Tray 103 5 Cable Tie 104 1 UK Power Cord 105 1 Hex Key 106 1 Motor Isolator 107 1 3/8" x 2" Incline Motor Bolt

Note: Specications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

108 1 Incline Stop Bracket 109 1 Grounding Bracket 110 1 Receptacle 111 1 Ferrite Box 112 1 Chest Strap * – User’s Manual

Page 32

EXPLODED DRAWING A

Model No. NETL17711.1 R1112A

106

105

Page 33

EXPLODED DRAWING B

Model No. NETL17711.1 R1112A

109

111

107

108

104

110

Page 34

EXPLODED DRAWING C

Model No. NETL17711.1 R1112A

Page 35

EXPLODED DRAWING D

Model No. NETL17711.1 R1112A

112

100

101

102

103

Page 36

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

RECYCLING INFORMATION

This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.

Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.

NordicTrack T18.0 Treadmill, NETL17711.1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
