Model No. NETL15713.0
219lbs
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
USER’S MANUAL
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
www.iconeurope.com
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

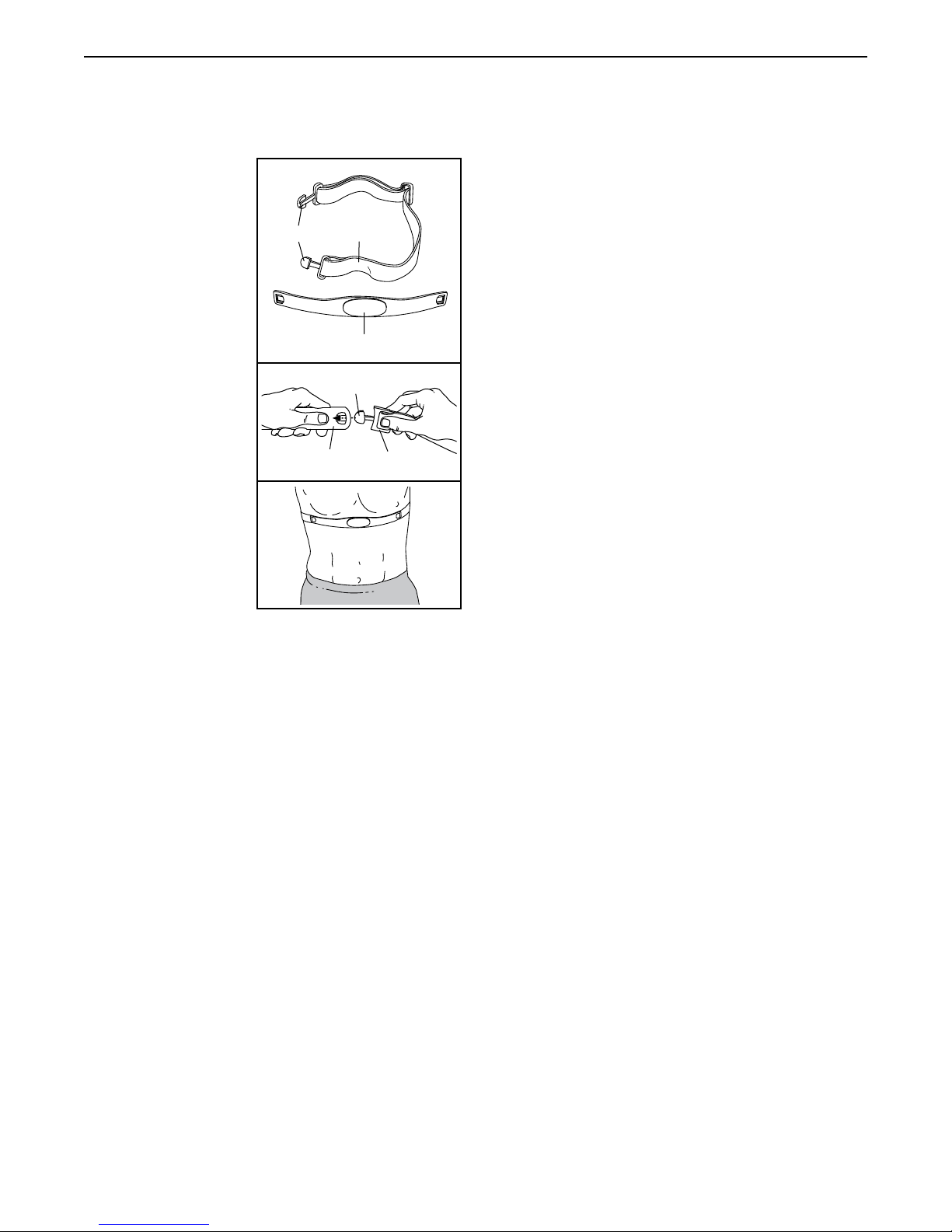

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
OPERATION AND ADJUSTMENT .............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING ......................................................................26
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

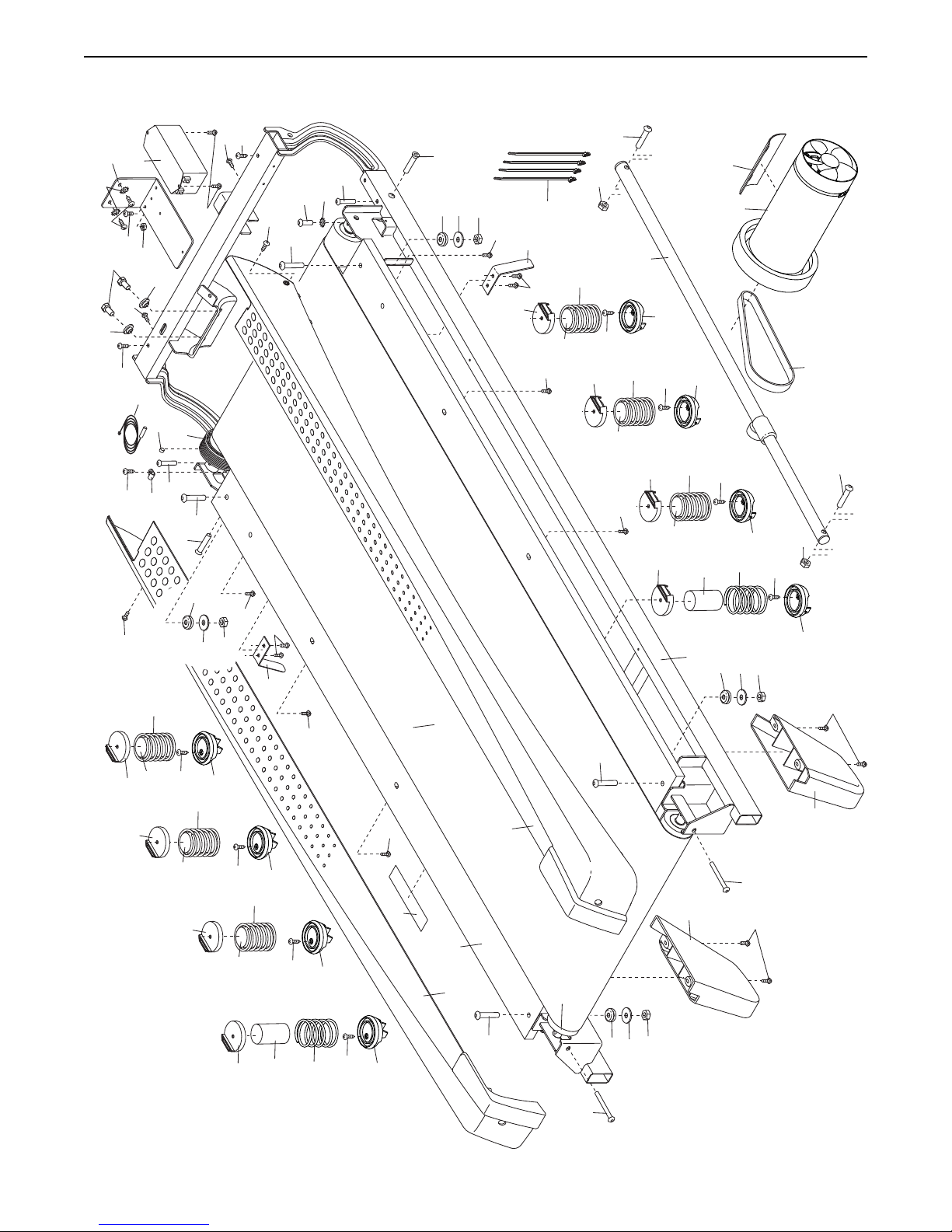

EXPLODED DRAWING A ....................................................................32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or
illegible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal in
the location shown. Note: The decals may
not be shown at actual size.
NORDICTRACK is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
7. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
8. Keep children under age 12 and pets away
from the treadmill at all times.
12. When connecting the power cord (see page
16), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
13. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
14. Keep the power cord away from heated
surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 26 if the
treadmill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 18).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
9. The treadmill should be used only by persons weighing 350 lbs. (159 kg) or less.
10. Never allow more than one person on the
treadmill at a time.
11. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
19. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
3
Page 4
21. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO FOLD AND MOVE THE
TREADMILL on page 25.) You must be able
to safely lift 45 lbs. (20 kg) to raise, lower, or
move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
SAVE THESE INSTRUCTIONS
26. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK® T 16.0 treadmill. The T 16.0 treadmill
offers an impressive selection of features designed
to make your workouts at home more enjoyable and
effective. And when you’re not exercising, the unique
treadmill can be folded up, requiring less than half the
oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
Length: 6 ft. 9 in. (206 cm)
Width: 3 ft. 1 in. (94 cm)
Weight: 219 lbs. (99 kg)
Handrail
Upright
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Tray
Heart Rate Monitor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Platform Cushion
5
Page 6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is
preattached. Extra parts may be included.
#10 Star
Washer (5)–4
#8 x 1/2" Silver
Screw (10)–1
3/8" x 1 1/4"
Screw (8)–4
5/16" Star
Washer (11)–8
#8 x 1/2"
Screw (1)–16
3/8" Star
Washer (13)–4
#8 x 3/4" Screw
(2)–2
3/8" x 2 1/4" Screw (7)–6
5/16" x 2 3/4"
Screw (28)–4
3/8" Nut (12)–2
#10 x 3/4" Screw
(9)–4
6
Page 7
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex key
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
1
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) to register your product.
2. Pull the Upright Wire (81) and the ground wire
(A) through the indicated hole in the Base (94).
Attach the ground wire (A) to the Base (94) with a
#8 x 1/2" Silver Screw (10).
Press the Grommet (77) into the square hole in
the Base (94).
See the inset drawing. Cut the plastic tie near
the Upright Wire (81).
2
Square
Hole
Hole
81
A
10
77
94
Cut
81
7
Page 8
3. Identify the Left Upright (89), which is marked
“Left.” Have a second person hold the Left
Upright near the Base (94).
See the inset drawing. Tie the wire tie in the
Left Upright (89) securely around the end of the
Upright Wire (81). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Left Upright.
3
81
89
94
Wire
Tie
81
89
81
Wire
Tie
4. Hold the Left Upright (89) against the Base (94).
Be careful not to pinch any wires. Insert two
3/8" x 2 1/4" Screws (7) and two 3/8" x 1 1/4"
Screws (8) with two 3/8" Star Washers (13) into
the Left Upright.
Partially tighten the 3/8" x 2 1/4" Screws (7) and
the 3/8" x 1 1/4" Screws (8) until the heads of the
Screws touch the Left Upright (89); do not fully
tighten the Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the right
side.
4
89
7
13
8
13
94
8
Page 9
5. Identify the Left Base Cover (82) and the Right
Base Cover (83). Slide the Left Base Cover onto
the Left Upright (89). Slide the Right Base Cover
onto the Right Upright (90). Do not press the
Base Covers into place yet.
5
90
83
89
82
6. Identify the left handrail assembly (B).
Hold the left handrail assembly (B) near the Left
Upright (89). Insert the wire tie on the Upright
Wire (81) into the bottom and pull it out of the
top of the left handrail as shown. Then, pull the
Upright Wire through the left handrail.
Attach the left handrail assembly (B) to the Left

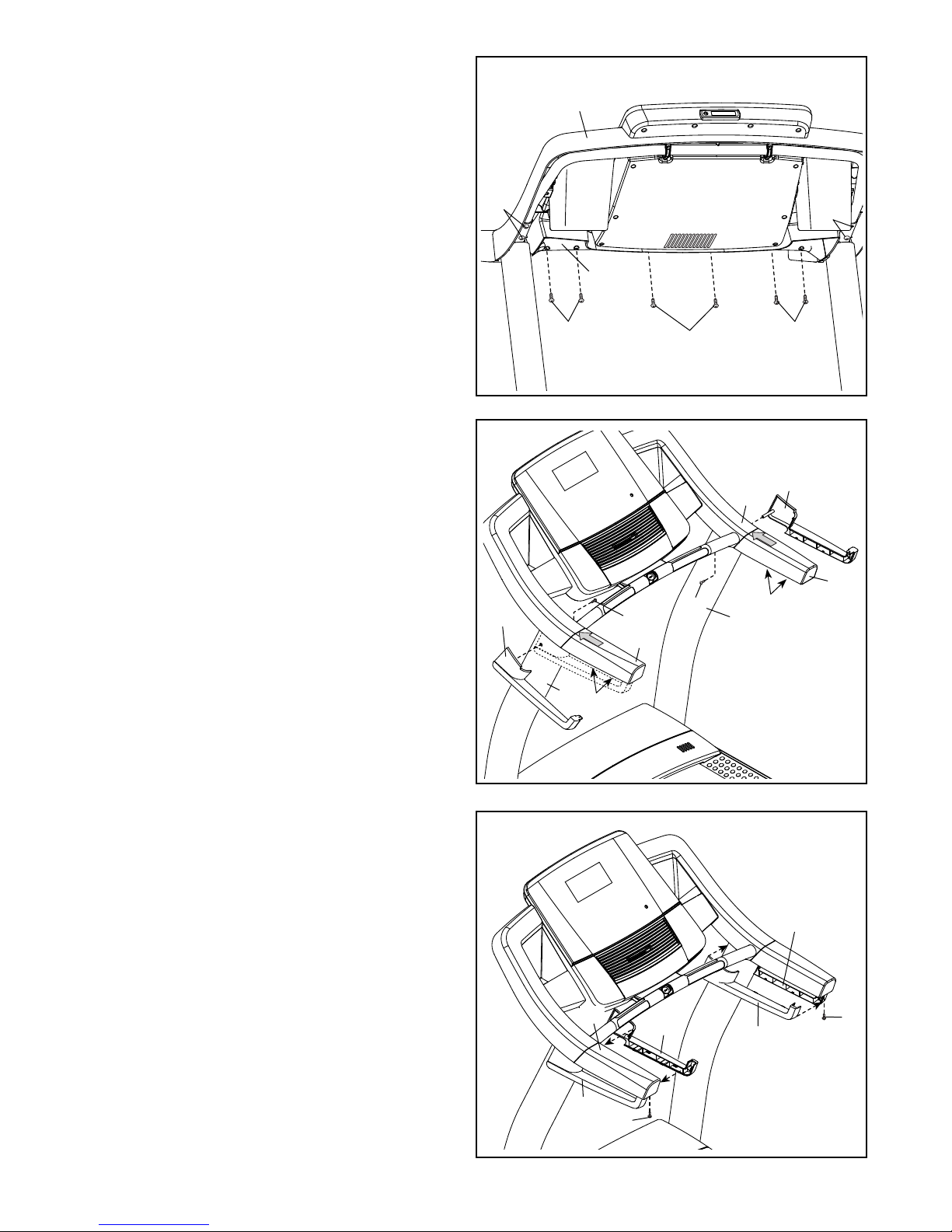

Upright (89) with two 5/16" x 2 3/4" Screws (28)
and two 5/16" Star Washers (11). Make sure
not to pinch the Upright Wire (81). Start both
Screws, but do not tighten them yet.
Remove and discard the two indicated screws
(C) from the left handrail assembly (B).
6
81
Wire
Tie
28
11
C
B
89
9
Page 10
7. Attach the right handrail assembly (D) to the
Right Upright (90) with two 5/16" x 2 3/4" Screws
(28) and two 5/16" Star Washers (11). Start both
Screws, but do not tighten them yet.
Remove and discard the two indicated screws
(C) from the right handrail assembly (D).
7
28
11
C
D
90
8. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove the two screws (E) from the Pulse
Crossbar (93). Remove the Pulse Crossbar and
discard the screws.
Remove and save the four 5/16" x 3/4"
Screws (4) from the Console Frame (104). The
Screws will be used in step 12.
8
4
4
104
64
E
4
93
10
Page 11
9. Identify the Left and Right Trays (36, 27).
9
Attach the Trays (36, 27) to the Console
Base (64) with eight #8 x 1/2" Screws (1).
Note: It may be easier to start the two inside
Screws and then slide the Trays into place
before tightening the other six Screws.
Note: It may be necessary to rotate the
Console Frame (104) upward when attaching
the Trays (36, 27).
10. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (86) with
four #10 x 3/4" Screws (9) and four #10 Star
Washers (5). First, start all four Screws. Next,
slide the Crossbar as far as possible in the
direction shown by the arrow. Then, tighten
the Screws.
10
1
81
27
9
104
1
36
64
1
1
86
93
1
9
5
28
Make sure that the Upright Wire (81) isn’t
pinched. Firmly tighten the four 5/16" x 2 3/4"
Screws (28).
5
86
28
11
Page 12

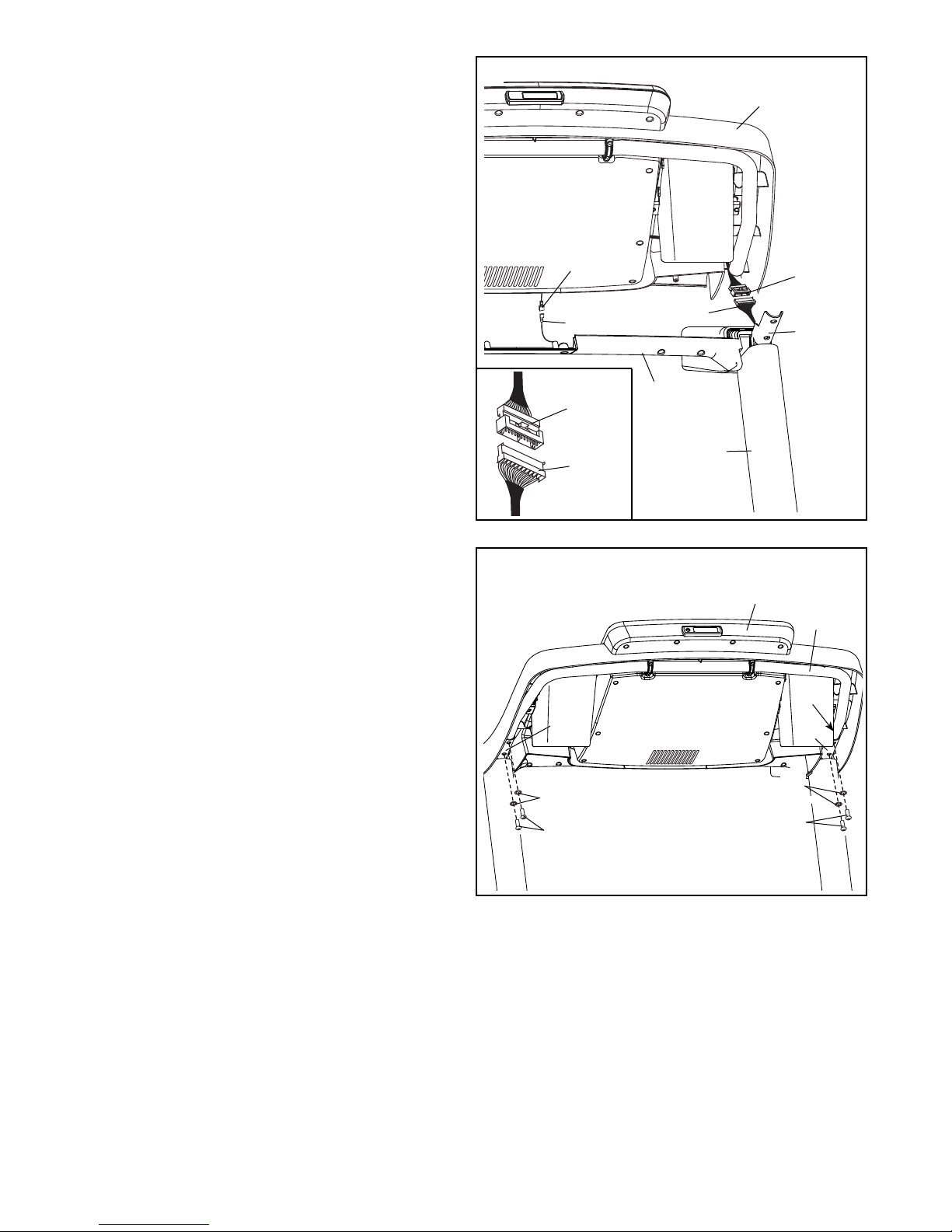

11. With the help of a second person, hold the console assembly near the left Handrail (86) and the
right Handrail (not shown).
Connect the ground wire from the console
assembly to the Console Ground Wire (105) on
the Pulse Crossbar (93).
Connect the Upright Wire (81) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
11
Ground
Wire
105
Console
Assembly
Console
Wire
81
86
12. Set the console assembly on the brackets on the
Handrails (86). Make sure that no wires are
pinched. Insert the excess Upright Wire (81)
behind the Console Frame (104).
Attach the console assembly to the brackets
on the Handrails (86) with the four 5/16" x 3/4"
Screws (4) you removed in step 8 and four 5/16"
Star Washers (11). Start all four Screws, but
do not tighten them yet.
12
Console
Wire
81
86
11
4
93
Wire
Tie
Console
Assembly
104
81
86
11
4
12
Page 13
13. Attach the Pulse Crossbar (93) to the console
assembly with six #8 x 1/2" Screws (1). Start all
six Screws, and then tighten them.
Firmly tighten the four 5/16" x 3/4" Screws (4).
13
Console
Assembly
14. Check the gaps between the handrail assemblies (B, D) and the console assembly (F).
If necessary, loosen the #8 x 3/4" Screws (2)
under the handrails and slide the handrails
forward against the console assembly. Then,
retighten the Screws.
Attach the Left Outside Upright Cover (87) and
the Right Outside Upright Cover (96) to the Left
and Right Uprights (89, 90) with two #8 x 1/2"
Screws (1). Note: Rotate the Covers at an
angle as you set them against the Uprights.
Make sure not to overtighten the Screws.
14
4
87
4
93
1
1
B
1
F
1
90
1
96
D
2
15. Tighten a #8 x 3/4" Screw (2) into the Left
Outside Upright Cover (87) and into the bottom
of the left handrail assembly (B). Make sure not
to overtighten the Screw.
Press the Left Inside Upright Cover (88) against
the Left Outside Upright Cover (87) until they
snap together.
Repeat the steps above on the other side of
the treadmill with the Right Inside Upright
Cover (95) and the Right Outside Upright
Cover (96).
15
89
87
2
96
B
88
2
95
2
13
Page 14
16. Firmly tighten the four 3/8" x 2 1/4" Screws (7).
Then, tighten the four 3/8" x 1 1/4" Screws (8)
(only one side is shown).
Press the Left Base Cover (82) and the Right
Base Cover (83) onto the Base (94) until they
snap into place.
16
83
82
7
8
94

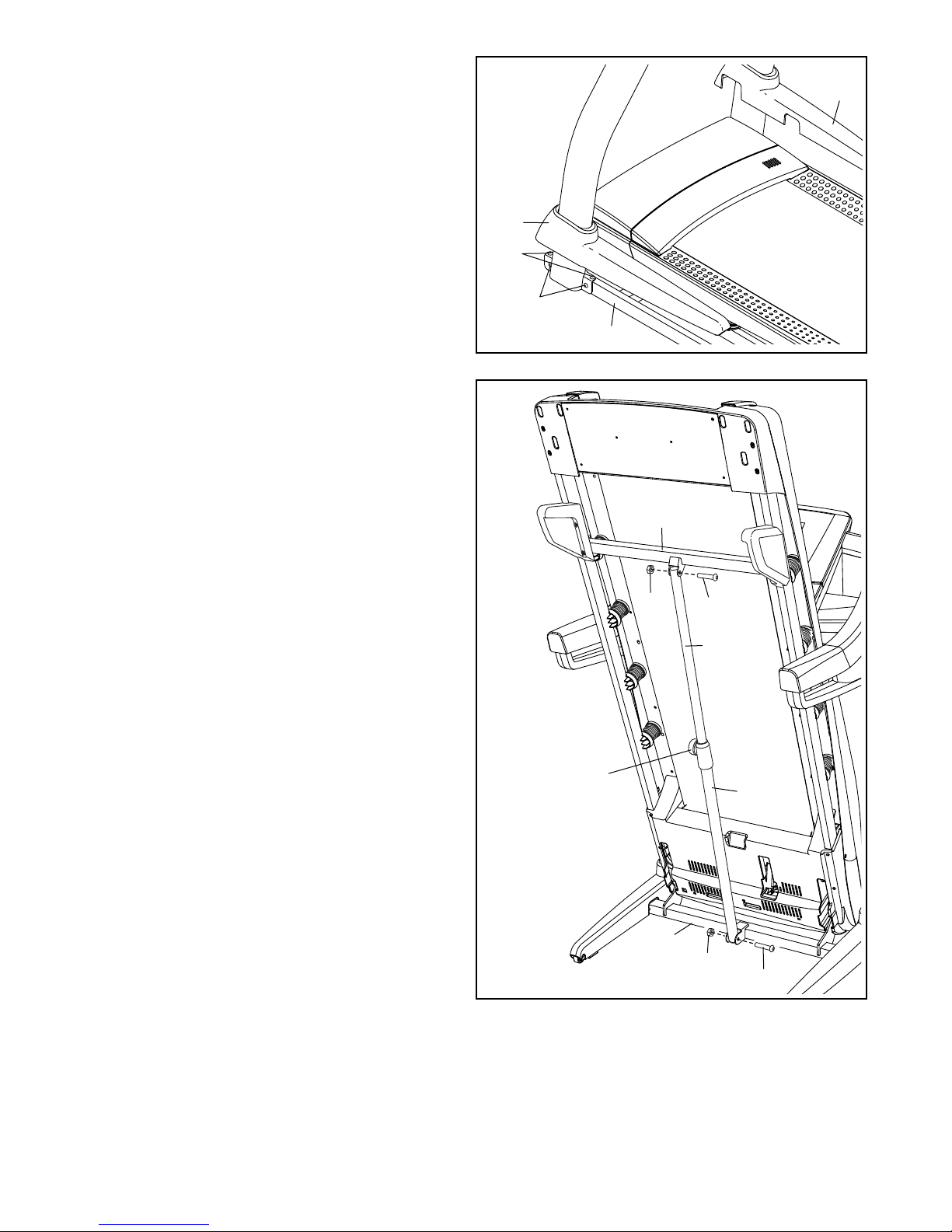

17. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
the step is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2 1/4" Screw (7) and
a 3/8" Nut (12).
Attach the upper end of the Storage Latch (53)
to the Frame (56) with a 3/8" x 2 1/4" Screw (7)
and a 3/8" Nut (12).
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
17
Latch
Knob
12
56
7
53
Large
Barrel
18. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see pages 27 and 28).
94
12
7
14
Page 15
THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sensor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
The heart rate monitor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is rightside-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
Tabs
Chest
Strap
Sensor
Tab
Sensor
Buckle
• Do not expose the heart rate monitor to direct sunlight for extended periods of time; do not expose it to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical conditions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
15
Page 16
OPERATION AND ADJUSTMENT
FR/SP
UK
UK
AUS
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
Follow the steps below to plug in the power cord.

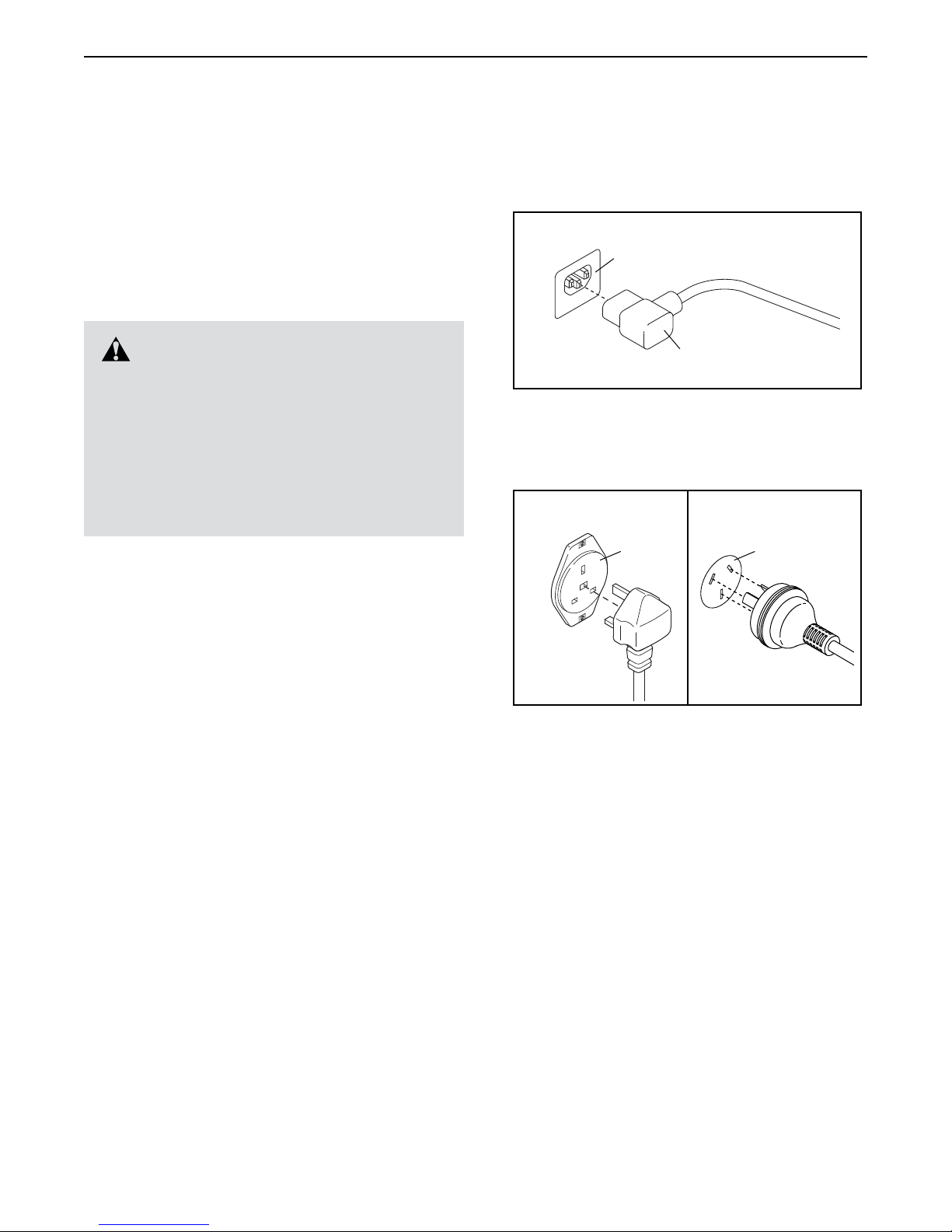

1. Plug the indicated end of the power cord into the
socket on the treadmill.
Socket on Treadmill
Power Cord
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
UK
Outlet
Australia
Outlet
16
Page 17

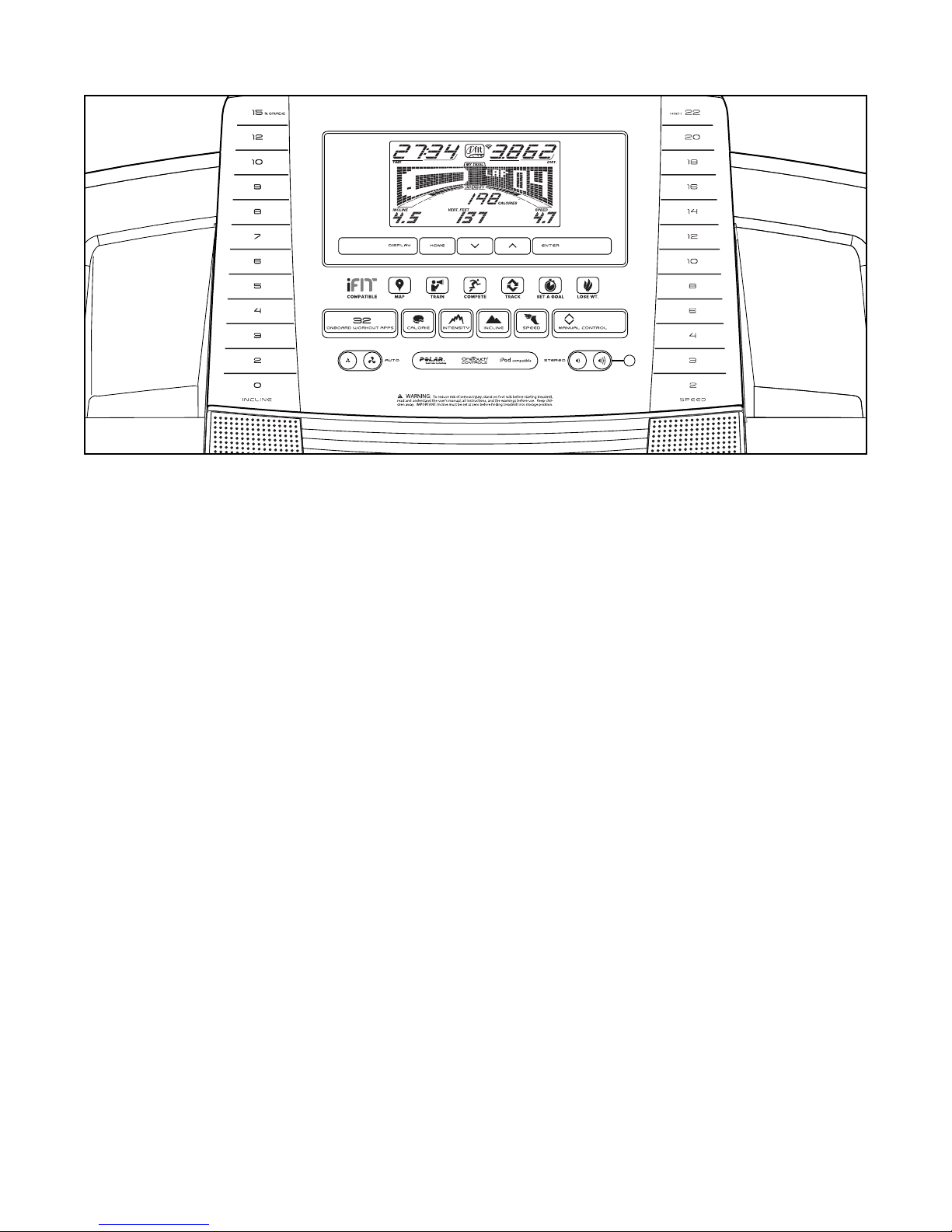

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more
effective and enjoyable. When you use the manual
mode, you can change the speed and incline of the
treadmill with the touch of a button. As you exercise,
the console will display instant exercise feedback. You
can even measure your heart rate using the chest
heart rate monitor.
In addition, the console features a selection of
onboard workouts. Each workout automatically controls
the speed and incline of the treadmill as it guides you
through an effective exercise session.
The console also features an iFit mode that enables
the treadmill to communicate with your wireless
network through an optional iFit module. With the
iFit mode, you can download personalized workouts,
create your own workouts, track your workout results,
race against other iFit users, and access many other
features. To purchase an iFit module at any time, go
to www.iFit.com or call the telephone number on
the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 18. To use the manual mode, see page 18. To use an onboard workout,
see page 21. To use a set-a-goal workout, see page
22. To use an iFit workout, see page 22. To use the
sound system, see page 23. To use the information
mode, see page 24.
Note: The console can display speed and distance in
either miles or kilometers. To nd which unit of measurement is selected, see THE INFORMATION MODE
on page 24. For simplicity, all instructions in this section refer to kilometers.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The rst time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 28).
17
Page 18
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room temperature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.

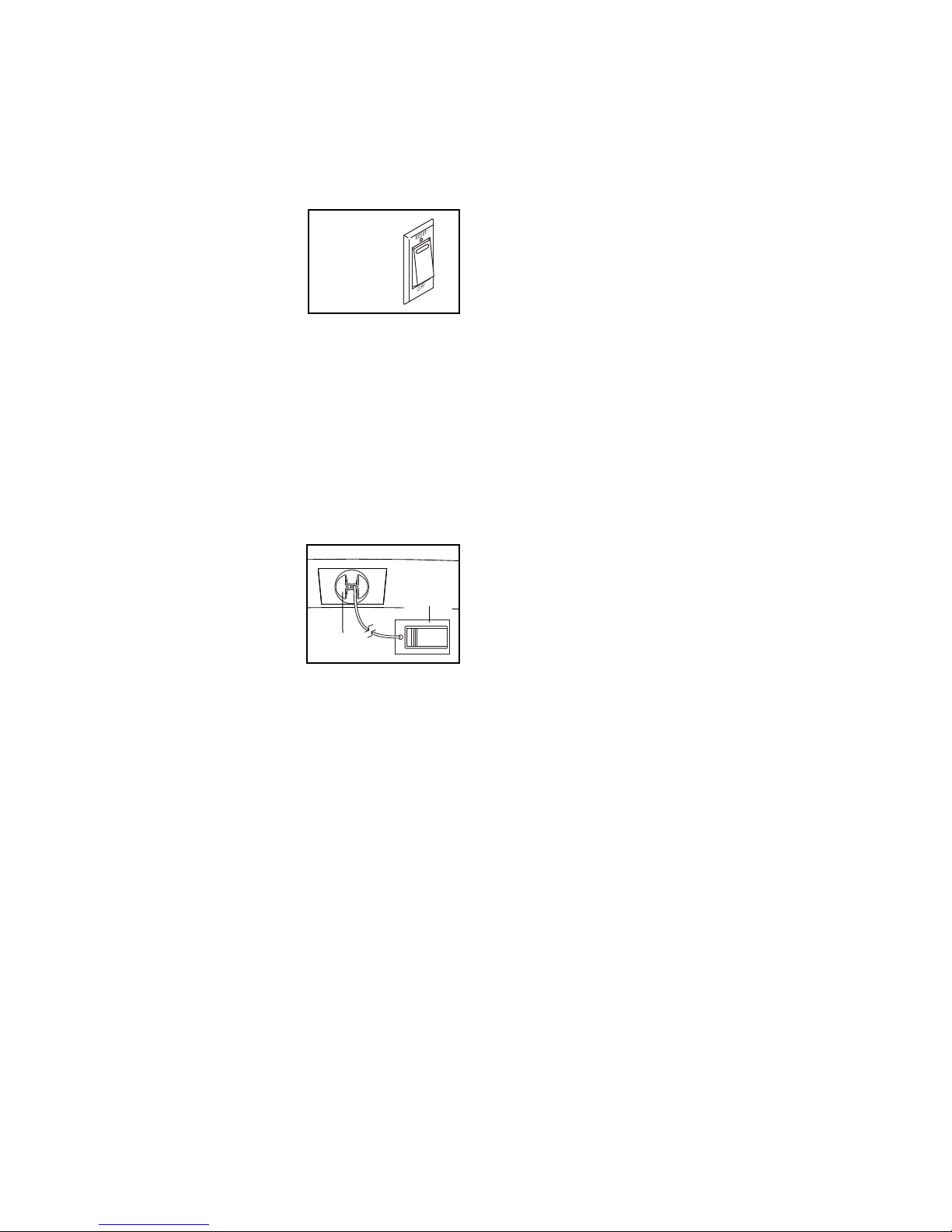

Plug in the power cord (see
page 16). Next, locate the
power switch on the treadmill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
24 to turn off the demo mode.

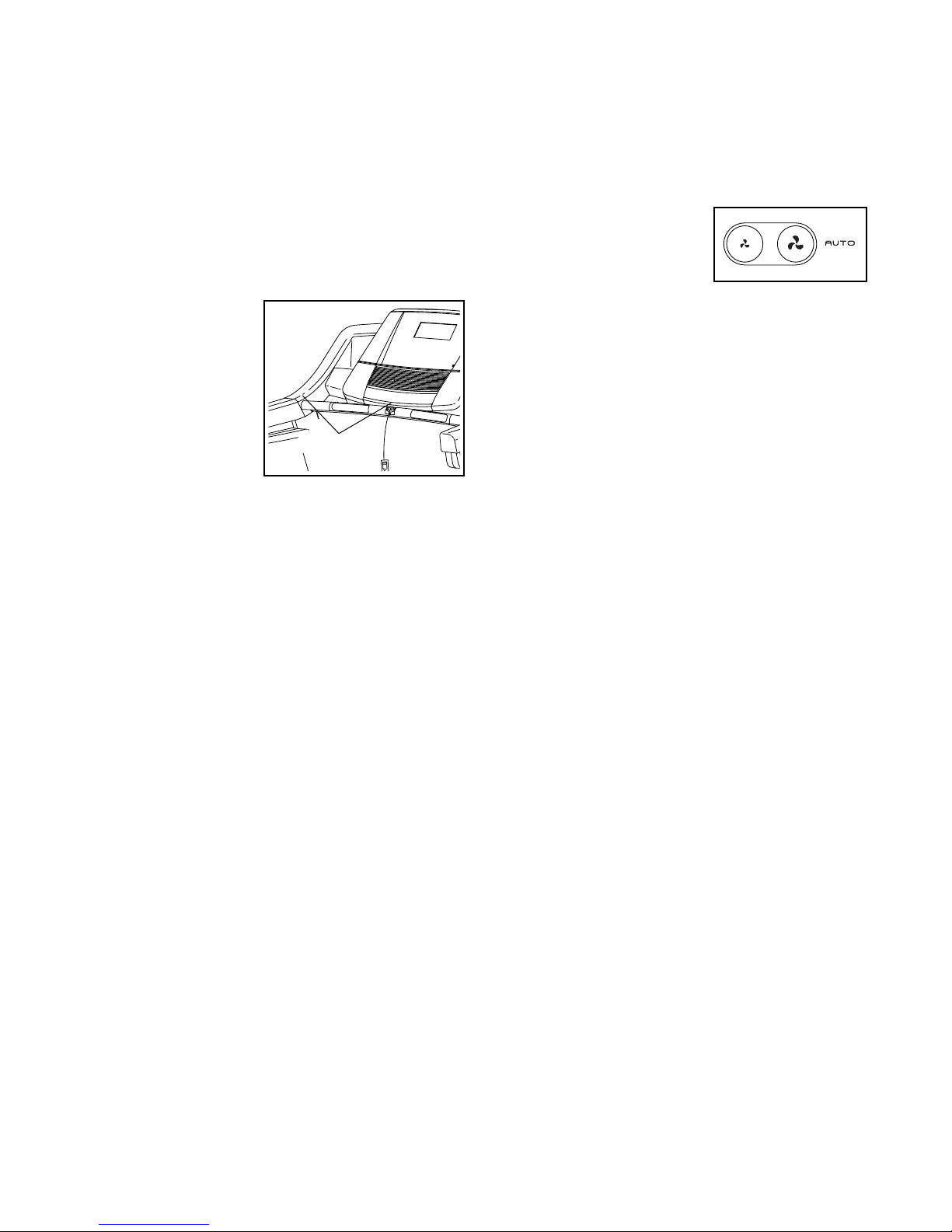

Next, stand on the foot
rails of the treadmill. Find
the clip attached to the key
and slide the clip onto the
waistband of your clothes.
Then, insert the key into the
console. After a moment,
the displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Reset
Clip
Key
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
If the manual mode is not selected, press the
Manual Control button on the console.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed buttons
numbered 2 through 22.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at
2 Km/H. As you exercise, change the speed of
the walking belt as desired by pressing the Speed
increase and decrease buttons. Each time you
press one of the buttons, the speed setting will
change by 0.1 Km/H; if you hold down the button,
the speed setting will change in increments of
0.5 Km/H. Note: After you press the button, it may
take a moment for the walking belt to reach the
selected speed setting.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to ash in the display. To restart
the walking belt, press the Start button or the
Speed increase button.
18
Page 19
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
numbered Incline buttons. Each time you press one
of the buttons, the treadmill will gradually adjust to
the selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The workout intensity bar
• The approximate number of calories you have
burned
The My Trail tab will show a track that represents
400 m (1/4 mile). As you exercise, the ashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
The Calorie tab will show the approximate amount
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment. When the Calorie tab is
selected, the calorie display will show the approximate number of calories burned per hour.

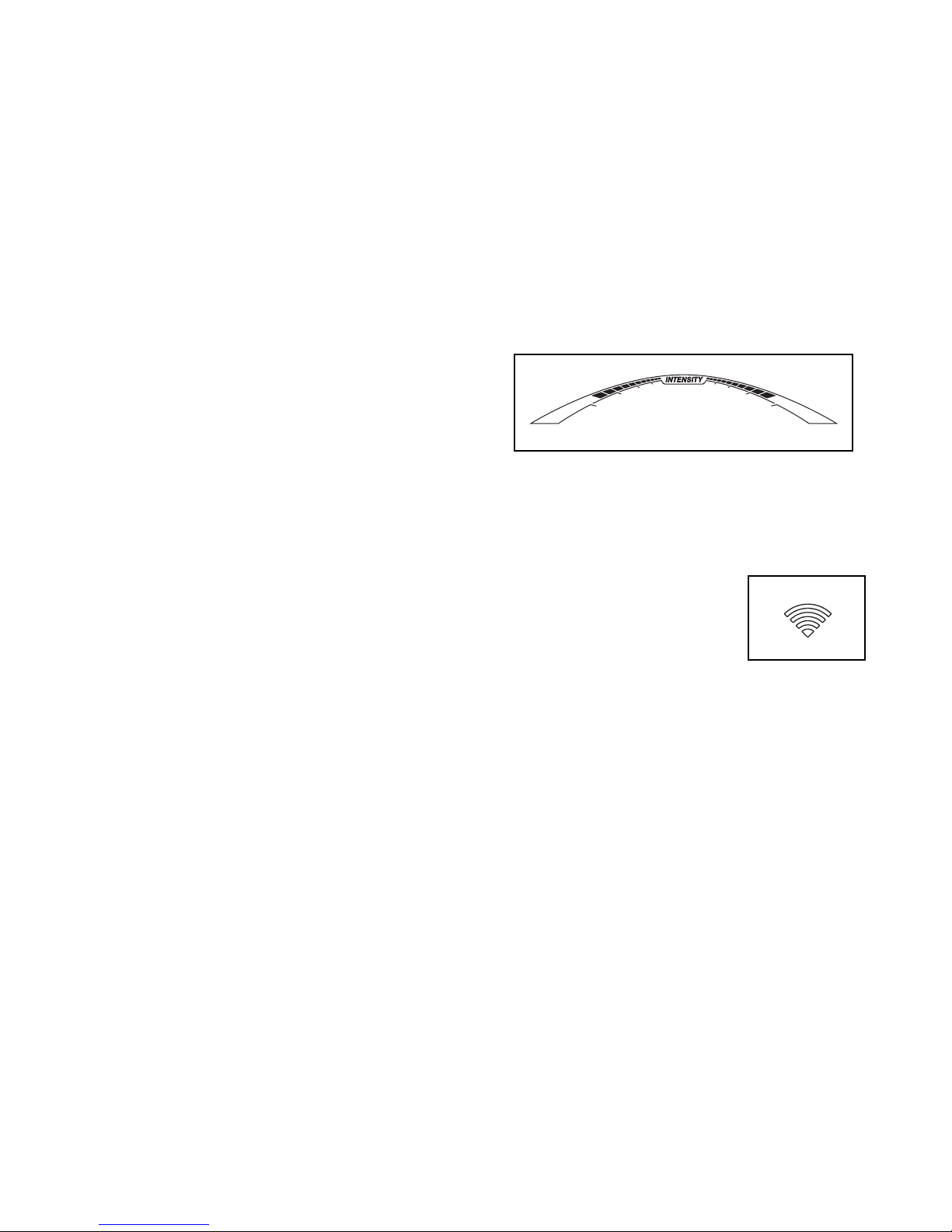

As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
• The incline level of the treadmill
• The number of vertical meters you have climbed
• The speed of the walking belt
• Your heart rate (see step 6 on page 20)
• The matrix
The matrix offers several display tabs. Press the
increase and decrease button next to the Enter
button until the desired tab is shown.

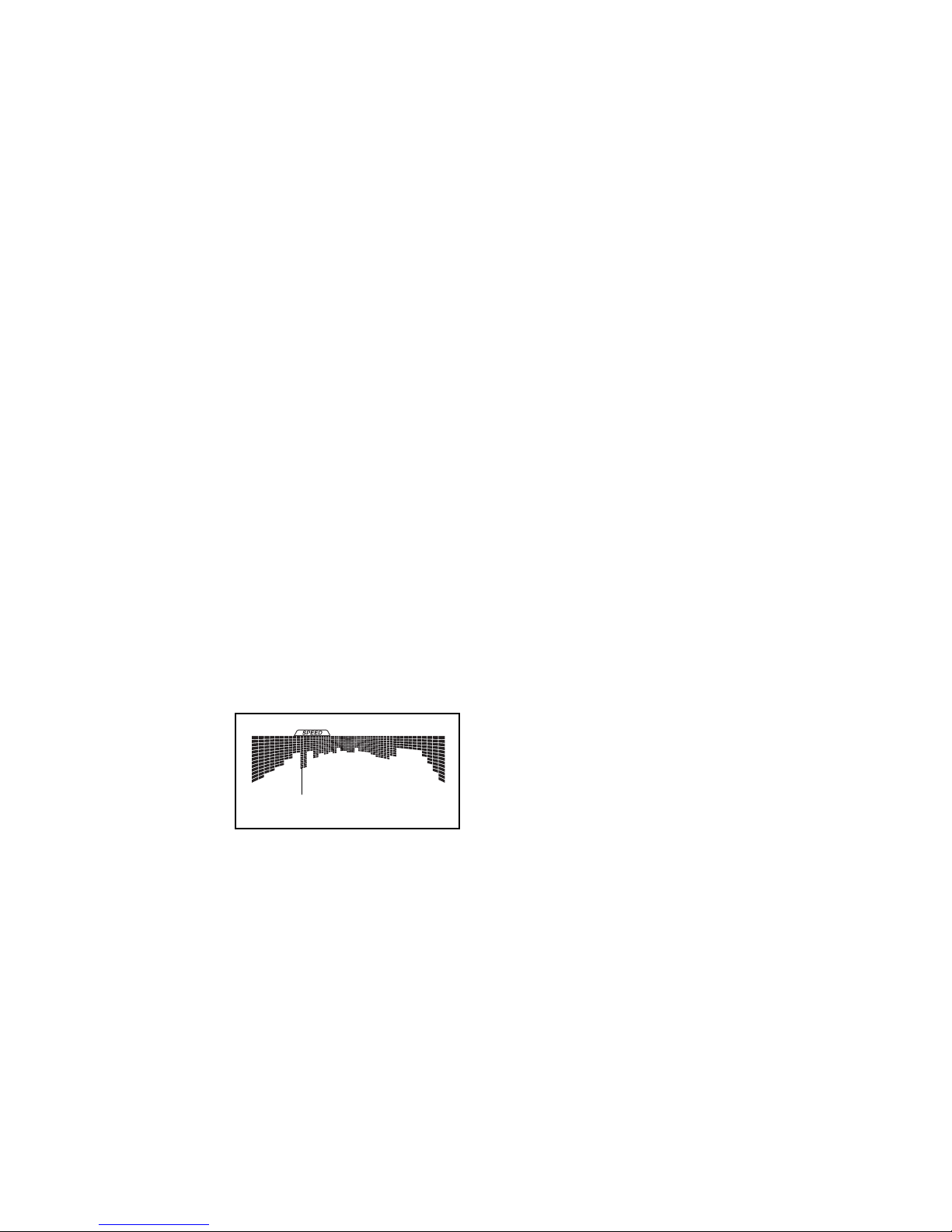

The Incline tab will show a prole of the incline set-
tings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
prole of the speed settings of the workout.
Press the Home button to return to the default
menu (see THE INFORMATION MODE on page
24 to set the default menu). If necessary, press the
Home button again.
When an iFit module is con-
nected, the wireless symbol
at the top of the display will
show the strength of your
wireless signal. Four arcs
indicate full signal strength.
To reset the displays, press the Stop button,
remove the key, and then reinsert the key.
19
Page 20
6. Measure your heart rate if desired.
7. Turn on the fan if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the console will not display your heart
rate accurately. For information about the chest
heart rate monitor, see page 15.
Before using the handgrip heart rate monitor, re-
move the sheets of plastic from the metal contacts
on the pulse bar. In addition, make sure that your
hands are clean.
To measure your
heart rate, stand
on the foot rails
and hold the
pulse bar with
your palms on the
metal contacts;
avoid moving
your hands.
When your pulse
is detected, a
heart symbol in the calorie display will ash each
time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For
the most accurate heart rate reading, continue
to hold the contacts for about 15 seconds.
Contacts
The fan features multiple speed settings and an
auto mode. When the auto mode is selected,
the speed of the fan will automatically increase
and decrease as the speed of the walking belt
increases and decreases.
Press the small fan
button repeatedly to
select a fan speed or to
turn off the fan. Press
the large Auto fan button
to select the auto mode
or to turn off the fan.
8. When you are nished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to zero. The
incline must be at zero or you may damage the
treadmill when you fold it to the storage position. Next, remove the key from the console and
put it in a secure place.
When you are nished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
20
Page 21
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Select an onboard workout.
To select an onboard workout, press the Calorie
button, the Intensity button, the Incline button, or
the Speed button repeatedly until the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. In addition, a prole of the speed
settings of the workout will appear in the matrix. If
you select a calorie workout, the approximate
number of calories you will burn will appear in the
name of the workout.
3. Start the workout.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
rst speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting and/
or incline setting may be programmed for consecutive segments.
During the
workout, the
proles on
the speed
and incline
tabs will
show your
progress.
The ashing segment of the prole represents the
current segment of the workout. The height of the
ashing segment indicates the speed or incline
setting for the current segment. At the end of each
segment, a series of tones will sound and the next
segment of the prole will begin to ash. If a different speed and/or incline setting is programmed for
the next segment, the speed and/or incline setting
will ash in the display to alert you and the treadmill
will automatically adjust to the new speed and/or
incline setting.
Current Segment
The workout will continue in this way until the last
segment of the prole ashes in the display and the
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manually change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to ash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 2 Km/H. When the next segment
of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the
next segment.
4. Follow your progress with the displays.
See step 5 on page 19. If you select an onboard
workout, the display will show the time remaining
instead of the elapsed time.
5. Measure your heart rate if desired.
See step 6 on page 20.
6. Turn on the fan if desired.
See step 7 on page 20.
7. When you are nished exercising, remove the
key from the console.
See step 8 on page 20.
21
Page 22
HOW TO USE A SET-A-GOAL WORKOUT
HOW TO USE AN IFIT WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Set a calories, distance, or time goal.
Press the Set A Goal button repeatedly until the
name of the desired goal appears in the display.
Then, press the increase and decrease buttons
next to the Enter button to set the desired goal.
3. Start the workout.
Press the Start button to start the workout. A
moment after you press the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
The workout will function in the same way as the
manual mode (see pages 18 to 20).
The workout will continue until you reach the goal
that you set. The walking belt will then slow to a
stop.
Note: To use an iFit workout, you must have an
optional iFit module. To purchase an iFit module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual. You must
also have access to a computer with a USB port and
an internet connection. In addition, you must have
access to a wireless network including an 802.11b/g/n
router with SSID broadcast enabled (hidden networks
are not supported). An iFit.com membership is also
required.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Insert the iFit module into the console.
To insert the iFit module, see the instructions
included with the iFit module.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in
the iFit module must be at least 8 in. (20 cm)
from all persons and must not be near or connected to any other antenna or transmitter.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on various factors such as
your weight.
4. Follow your progress with the displays.
See step 5 on page 19.
5. Measure your heart rate if desired.
See step 6 on page 20.
6. Turn on the fan if desired.
See step 7 on page 20.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
3. Select a user.
If more than one user is registered, you can switch
users in the iFit main screen. Press the increase
and decrease buttons next to the Enter button to
select a user.
4. Select an iFit workout.
To download an iFit workout in your schedule,
press the Map, Train, or Lose Wt. button to download the next workout of that type in your schedule.
To compete in a race that you have previously
scheduled, press the Compete button.
To re-run a recent iFit workout from your sched-
ule, first press the Track button. Next, press the
increase and decrease buttons to select the
desired workout. Then, press the Enter button to
start the workout.
22
Page 23
For more information about the iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the display will
show the name, duration, maximum speed setting,
and distance of the workout. The display will also
show the approximate number of calories you will
burn during the workout and a profile of the speed
settings of the workout.
If you select a competition workout, the display may
count down to the beginning of the race.
7. Measure your heart rate if desired.
See step 6 on page 20.
8. Turn on the fan if desired.
See step 7 on page 20.
9. When you are nished exercising, remove the
key from the console.
See step 8 on page 20.
Note: Each iFit button can also run two demo work-
outs. To use the demo workouts, remove the iFit
module from the console and press one of the iFit
buttons.
5. Start the workout.
See step 3 on page 21.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see THE INFORMATION MODE on page 24).
To stop the workout at any time, press the Stop
button. The time will begin to ash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at the speed setting for the rst
segment of the workout. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
6. Follow your progress with the displays.
See step 5 on page 19.
The My Trail tab will show a map of the trail you
are walking or running or it will show a track and
the number of laps you complete.
For more information about the iFit mode, go to
www.iFit.com.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.

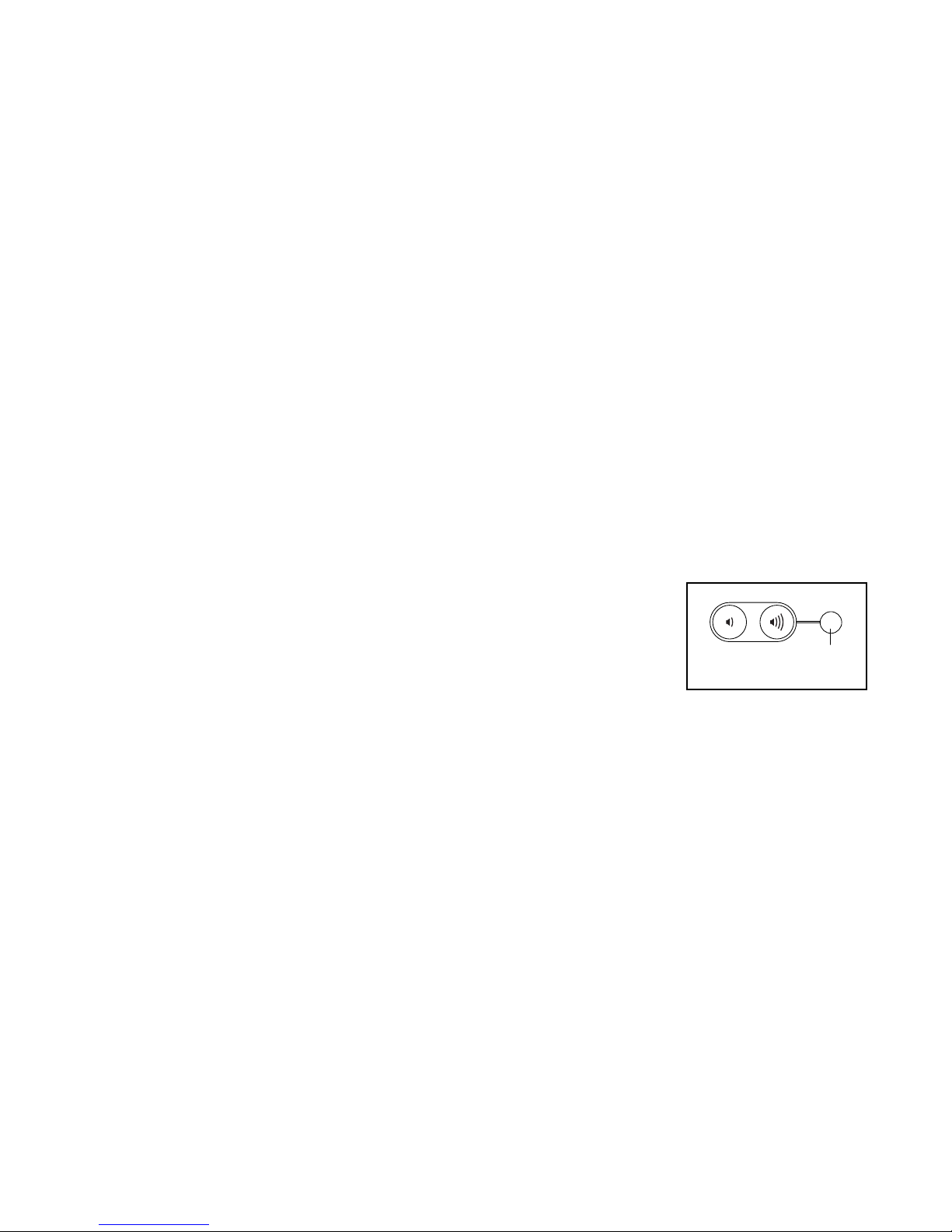

Next, press the play
button on your personal
audio player. Adjust the
volume level using the
volume increase and
decrease buttons on the
console or the volume
control on your personal
audio player.
If you are using a personal CD player and the CD
skips, set the CD player on the oor or another at
surface instead of on the console.
Audio
Jack
During a competition workout, the Competition tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
your top four competitors. The end of the matrix
represents the end of the race.
23
Page 24
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill information and allows you to personalize console settings.
1. Select the information mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and
then release the Stop button. When the information
mode is selected, the following information will be
shown:
into the reset position, and insert the key into the
console. However, when you remove the key, the
displays will remain lit, although the buttons will not
function. If the demo mode is turned on, the word
ON will appear in the matrix. To turn on or turn off
the demo mode, press the Enter button.
CONTRAST LVL—Press the Incline increase and
decrease buttons to adjust the contrast level of the
display.
If an iFit module is connected, you may also
select the following screens:
The time display will show the total number of
hours that the treadmill has been used.
The distance display will show the total number
of kilometers (or miles) that the walking belt has
moved.
The lower section of the display will show the
status of an iFit module. If an iFit module is connected, the display will show the words WIFI
MODULE. If a USB module is connected, the
display will show the words USB/SD MODULE. If
no module is connected, the display will show the
words NO IFIT MODULE.
2. Select the optional screens.
While the information mode is selected, the matrix
will display several optional screens. Press the
decrease button next to the Enter button to select
each of the following screens:
UNITS—To change the unit of measurement, press
the Enter button. To view distance in miles, select
ENGLISH. To view distance in kilometers, select
METRIC.
DEMO—The console features a display demo
mode, designed to be used if the treadmill is
displayed in a store. While the demo mode is
turned on, the console will function normally when
you plug in the power cord, press the power switch
TRAINER VOICE—To turn on or turn off the voice
of the audio coach, press the Enter button.
DEFAULT MENU—The default menu will appear
when you insert the key into the console or when
you press the Home button. Press the Enter button
repeatedly to select the manual main screen or the
iFit screen as the default menu.
CHECK WIFI STATUS—Press the Enter button
to check the status of your iFit module. The lower
display will show the software version number, the
network SSID, the network encryption type, the
connection status, the wireless signal strength, the
IP address of the module, the number of registered
users and their names, the results of the DNS
lookup, and the status of the iFit server.
SEND/RECEIVE DATA—To send and receive
workouts, workout logs, and updates, press the
Enter button. When the process is nished, the
words TRANSFERS DONE will appear in the
display.
3. Exit the information mode.
To exit the information mode, remove the key from
the console.
24
Page 25
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the treadmill.

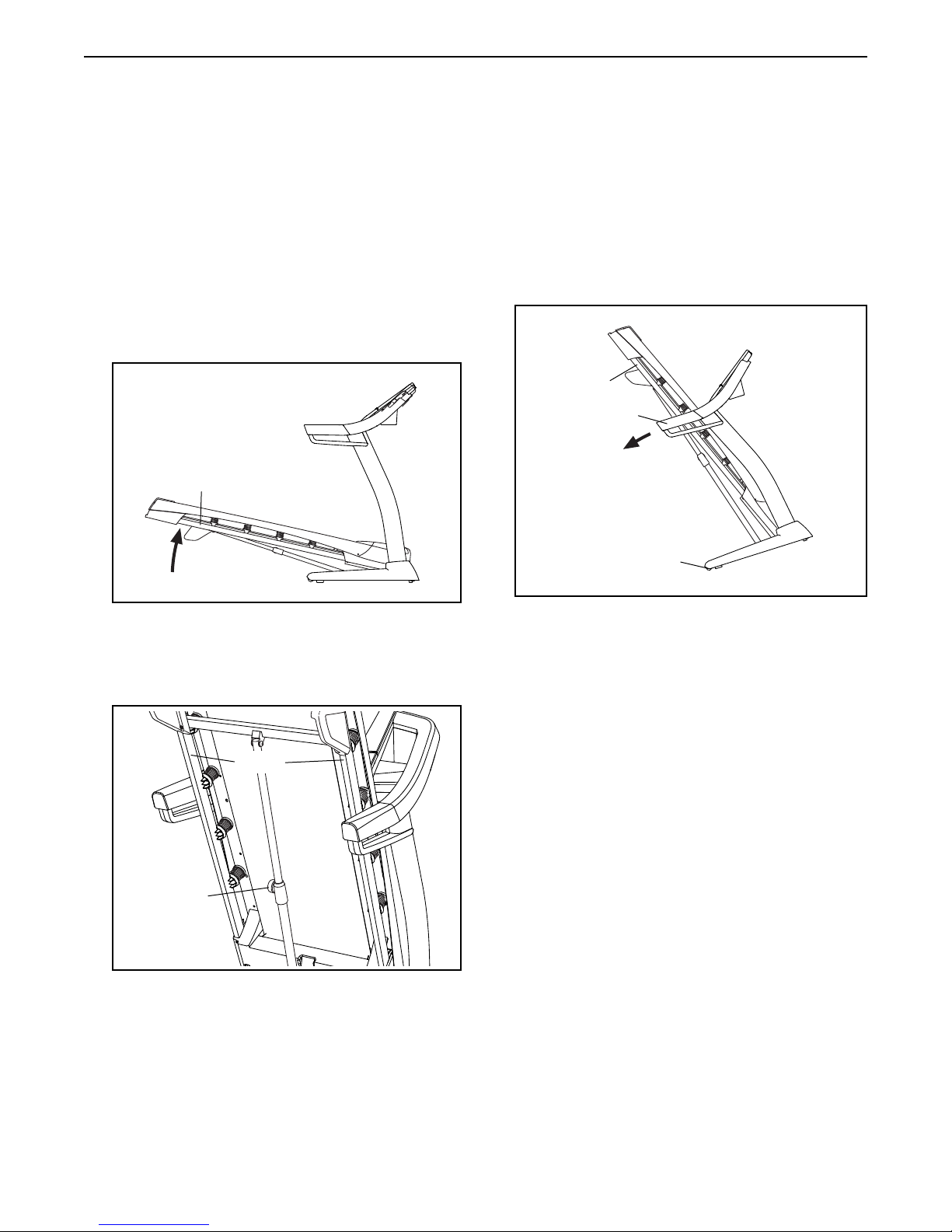

1. Hold the metal frame rmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch knob is
locked in the storage position. Moving the treadmill
may require two people.
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
Wheel
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the oor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the tread-
mill frame with your right hand. Then, pull the latch
knob to the left. IMPORTANT: Do not turn the
latch knob. If necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
rmly with both hands, and lower it to the oor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
25
Page 26
TROUBLESHOOTING
Most treadmill problems can be solved by following
the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into
a properly earthed outlet (see page 16). If an
extension cord is needed, use only a 3-conductor,
14-gauge (1 mm2) cord that is no longer than
5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.

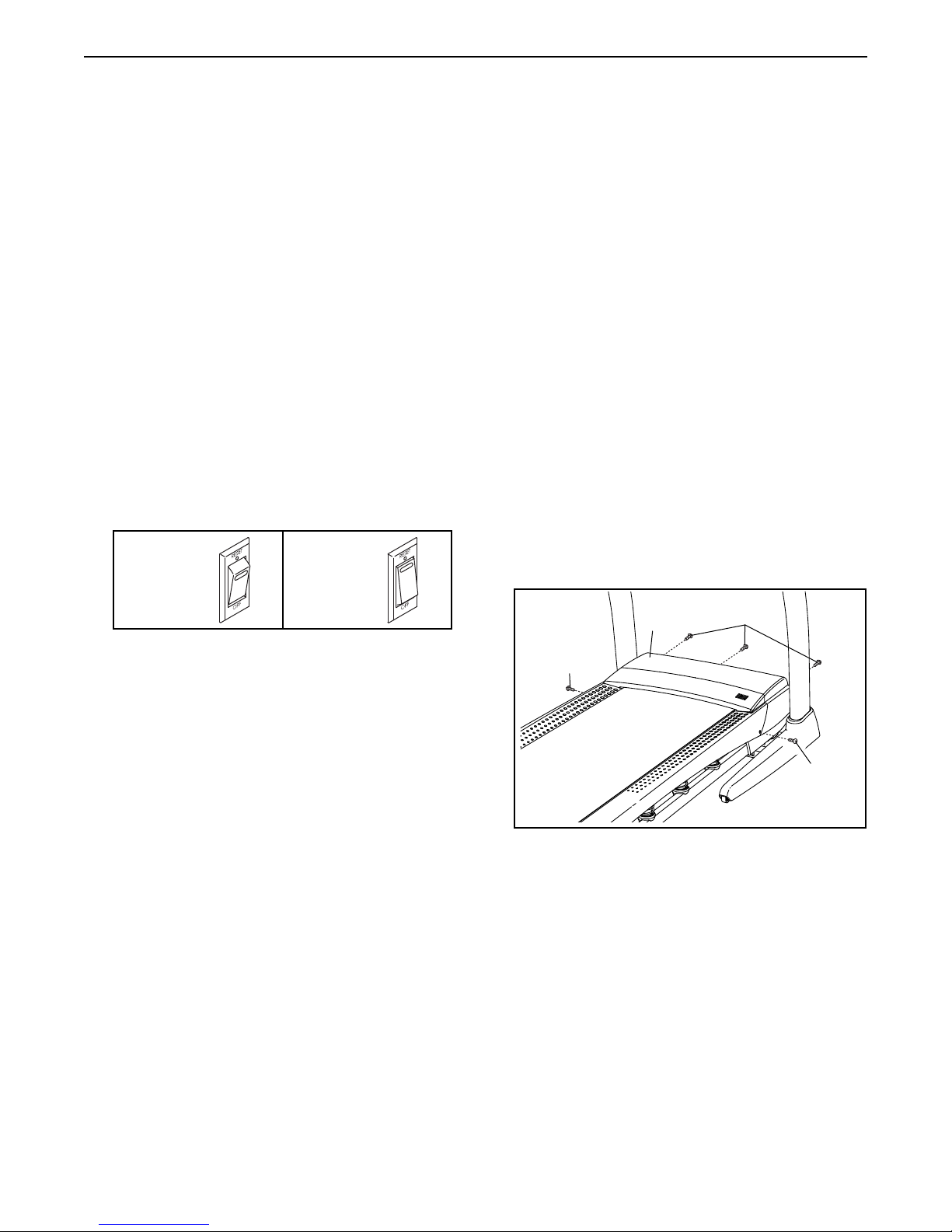

c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for ve minutes and then press
the switch back in.
c
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed in
a store. If the displays remain lit when you remove
the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a
few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 24 to turn off the
demo mode.
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Remove the ve #8 x 3/4"
Screws (2). Carefully pivot the Motor Hood (65) off.
Tripped
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for ve minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for ve
minutes, and then plug it back in.
Reset
a
65
2
2
2
26
Page 27

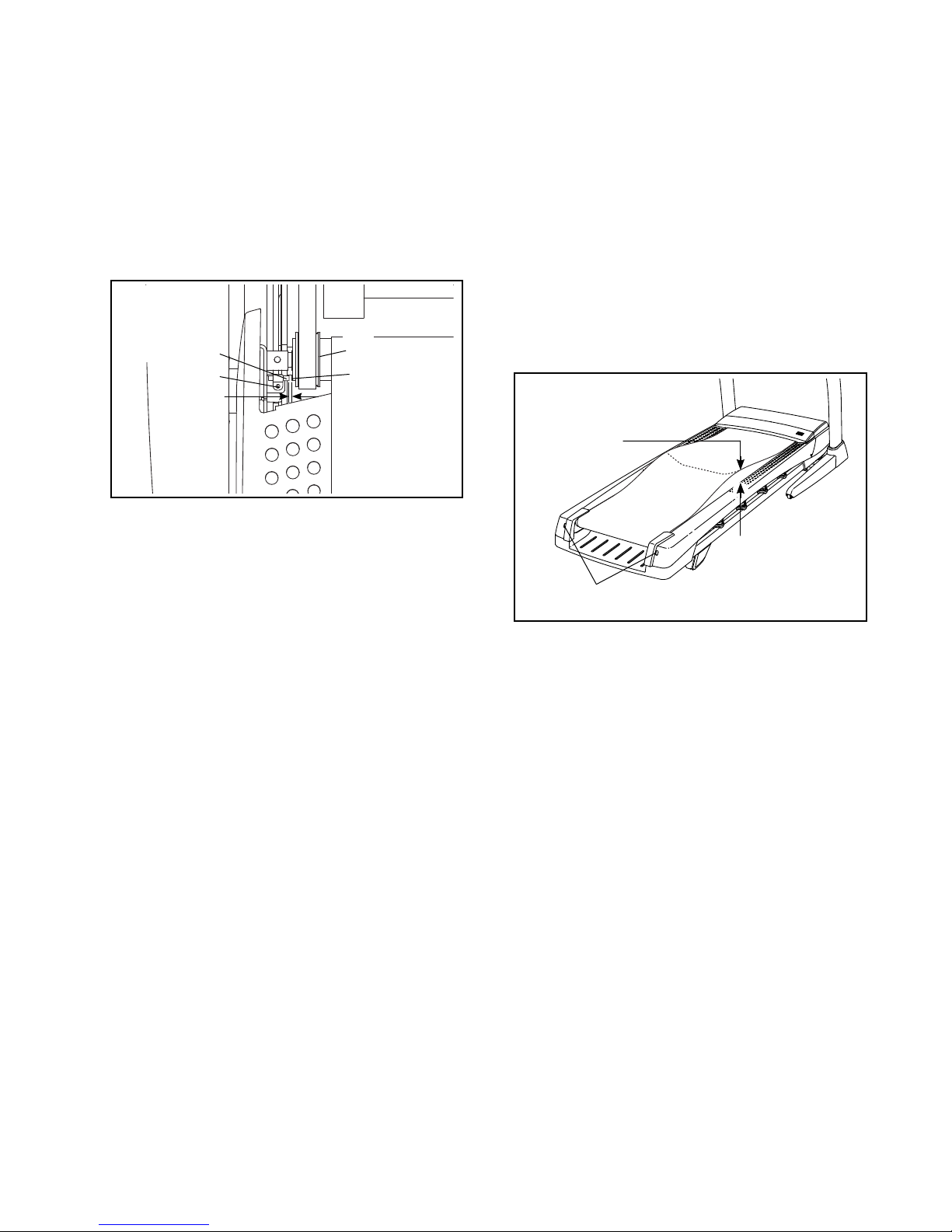

Locate the Reed Switch (52) and the Magnet (50)
on the left side of the Pulley (49). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If nec-
essary, loosen the #8 x 3/4" Tek Screw (14), move
the Reed Switch slightly, and then retighten the
Screw. Reattach the Motor Hood (not shown) with
the ve #8 x 3/4" Screws (not shown) and run the
treadmill for a few minutes to check for a correct
speed reading.
Top
View
52
14
1/8 in.
49
50
extension cord is needed, use only a 3-conductor,
14-gauge (1 mm2) cord that is no longer than
5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
b
2–3 in.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then
release the Stop button and the Speed increase
button. Press the Stop button and then press the
Incline increase or decrease button. The treadmill will automatically rise to the maximum incline
level and then return to the minimum level. This will
recalibrate the incline system. If the incline does not
begin calibrating, press the Stop button again, and
then press the Incline increase or decrease button
again. When the incline is calibrated, remove the
key from the console.
SYMPTOM: The walking belt slows when walked on
a. Make sure that the power cord is plugged into
a properly earthed outlet (see page 16). If an
Idler Roller Screws
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deteriorate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
27
Page 28

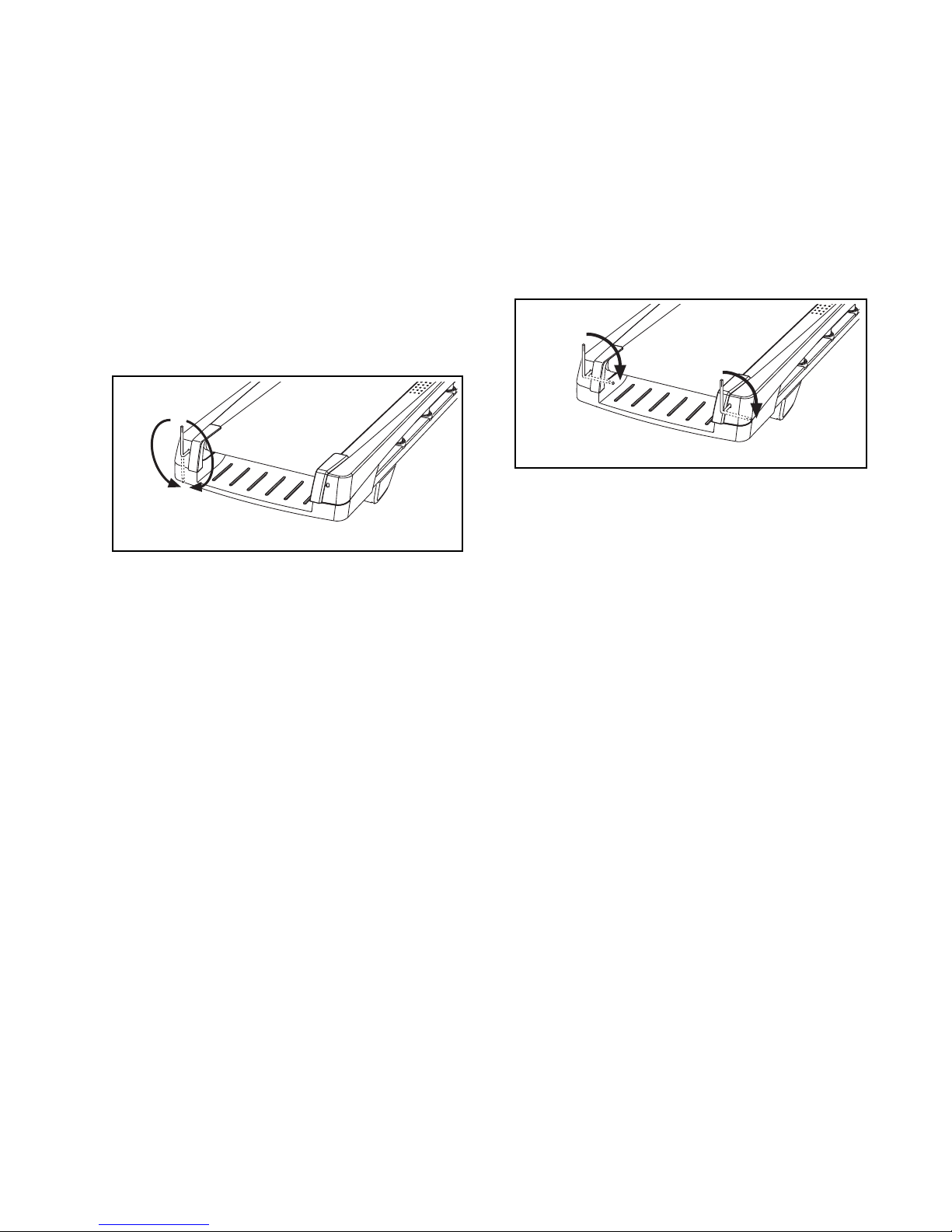

SYMPTOM: The walking belt is not centered
between the foot rails
IMPORTANT: If the walking belt rubs against the
foot rails, the walking belt may become damaged.
a. First, remove the key and UNPLUG THE POWER
CORD. If the walking belt has shifted to the left,
use the hex key to turn the left idler roller screw
clockwise 1/2 of a turn; if the walking belt has
shifted to the right, turn the left idler roller screw
counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the
power cord, insert the key, and run the treadmill
for a few minutes. Repeat until the walking belt is
centered.
a
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
SYMPTOM: The console display has lines running
through it
a. If lines appear in the console display, see THE
INFORMATION MODE on page 24 and adjust the
contrast level of the display.
28
Page 29
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
29
Page 30
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. NETL15713.0 R0513A
1 16 #8 x 1/2" Screw
2 34 #8 x 3/4" Screw
3 1 Warning Decal
4 4 5/16" x 3/4" Screw
5 4 #10 Star Washer
6 2 1/2" Nut
7 6 3/8" x 2 1/4" Screw
8 4 3/8" x 1 1/4" Screw
9 4 #10 x 3/4" Screw
10 7 #8 x 1/2" Silver Screw
11 8 5/16" Star Washer
12 2 3/8" Nut
13 4 3/8" Star Washer
14 9 #8 x 3/4" Tek Screw
15 2 1/4" x 2 1/2" Screw
16 1 3/8" x 1 1/2" Bolt
17 2 3/8" x 1 1/4" Wheel Bolt
18 2 #8 x 1 3/4" Screw
19 4 #8 x 7/16" Screw
20 2 5/16" Motor Screw
21 2 3/8" Pin
22 2 3/8" x 1" Bolt
23 4 5/16" x 1 3/4" Shoulder Bolt
24 1 1/4" x 1 3/4" Screw
25 4 #8 x 1" Screw
26 6 #10 x 1/2" Screw
27 1 Right Tray
28 4 5/16" x 2 3/4" Screw
29 1 3/8" x 2" Hex Head Bolt
30 4 5/16" Flat Washer
31 5 #8 x 3/4" Truss Head Screw
32 2 Incline Motor Spacer
33 6 3/8" Jam Nut
34 4 5/16" Nut
35 1 1/4" Star Washer
36 1 Left Tray
37 6 #8 x 5/8" Screw
38 8 Isolator Top
39 8 Isolator
40 8 Isolator Bottom
41 8 Isolator Spring
42 1 Left Foot Rail
43 1 Caution Decal
44 1 Walking Platform
45 1 Walking Belt
46 2 Belt Guide
47 1 Right Rear Foot
48 4 Cable Tie
49 1 Drive Roller/Pulley
50 1 Magnet
51 1 Reed Switch Clip
52 1 Reed Switch
53 1 Storage Latch
54 1 Drive Motor
55 1 Motor Belt
56 1 Frame
57 1 Left Rear Foot
58 1 Frame Endcap Cover
59 4 Rubber Cushion
60 1 Right Foot Rail
61 1 Idler Roller
62 1 Frame Endcap
63 2 #8 x 1/2" Machine Screw
64 1 Console Base
65 1 Motor Hood
66 1 Hood Accent
67 2 Incline Frame Spacer
68 3 Hood Clip
69 1 Incline Motor
70 1 Incline Frame
71 2 Frame Spacer
72 1 Controller
73 1 Controller Plate
74 2 Hood Post
75 1 Power Switch
76 1 Power Cord
77 2 Grommet
78 1 Belly Pan
79 1 Left Handrail Grip
80 20 #8 x 3/4" Pan Head Tek Screw
81 1 Upright Wire
82 1 Left Base Cover
83 1 Right Base Cover
84 1 Right Inside Handrail Cover
85 1 Left Inside Handrail Cover
86 2 Handrail
87 1 Left Outside Upright Cover
88 1 Left Inside Upright Cover
89 1 Left Upright
90 1 Right Upright
91 2 Warning Decal
92 4 Base Pad
93 1 Pulse Crossbar
94 1 Base
95 1 Right Inside Upright Cover
96 1 Right Outside Upright Cover
97 2 Wheel
98 1 Key/Clip
99 2 Cable Tie
100 2 1/4" x 1 1/2" Screw
30
Page 31
Key No. Qty. Description Key No. Qty. Description
101 1 Incline Stop Bracket
102 2 Console Clamp
103 1 Console
104 1 Console Frame
105 1 Console Ground Wire
106 1 Right Handrail Grip
107 1 Chest Strap
108 1 Chest Sensor
109 1 Grounding Bracket
Note: Specications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
110 4 #8 Star Washer
111 1 Receptacle
112 2 Motor Bushing
113 1 #8 Nut
114 1 #8 x 3/4" Machine Bolt
115 1 Electronics Bracket
116 1 Filter
117 1 Motor Isolator
* – User’s Manual
31
Page 32
EXPLODED DRAWING A
Model No. NETL15713.0 R0513A
110
10
112
115
20
18
31
114
63
14
41
38
12
23
80
7
117
54
53
40
55
7
12
80
40
80
39
37
41
38
38
80
39
41
40
56
39
80
59
41
30
40
34
63
18
45
21
59
30
34
37
48
46
19
38
39
37
116
34
37
31
23
19
46
113
52
51
41
10
112
50
49
100
23
21
59
30
24
100
35
37
39
80
39
38
41
40
80
39
38
41
40
39
80
41
38
38
40
80
40
37
43
44
42
32
23
60
61
15
59
30
34
57
47
15
80
Page 33

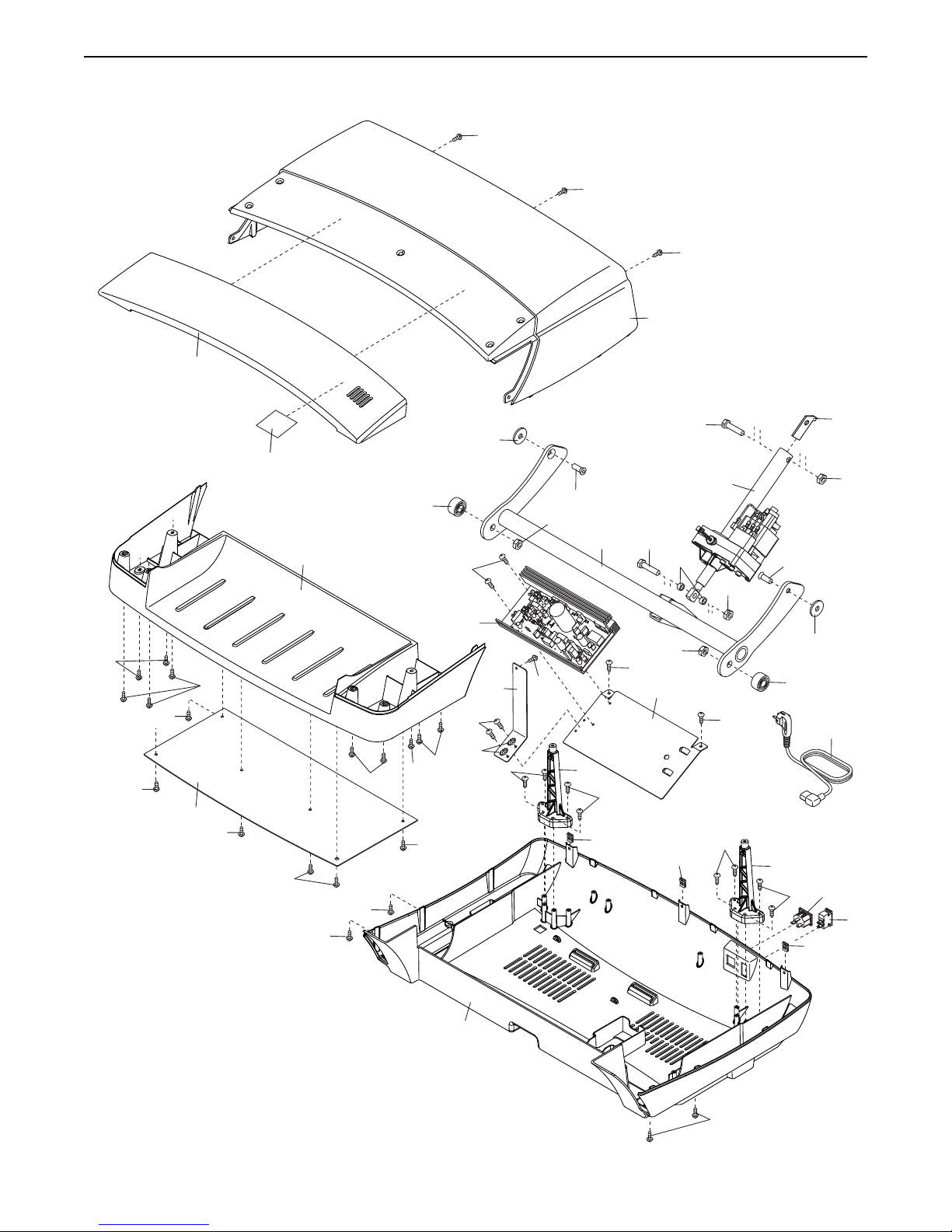

EXPLODED DRAWING B
66
Model No. NETL15713.0 R0513A
31
31
31
65
80
26
26
58
71
2
101
33
67
76
111
75
68
29
67
3
69
10
22
6
16
70
74
68
32
33
6
2
73
2
2
2
68
22
74
71
62
2
2
26
26
80
80
10
72
109
10
110
80
2
26
2
78
80
33
Page 34

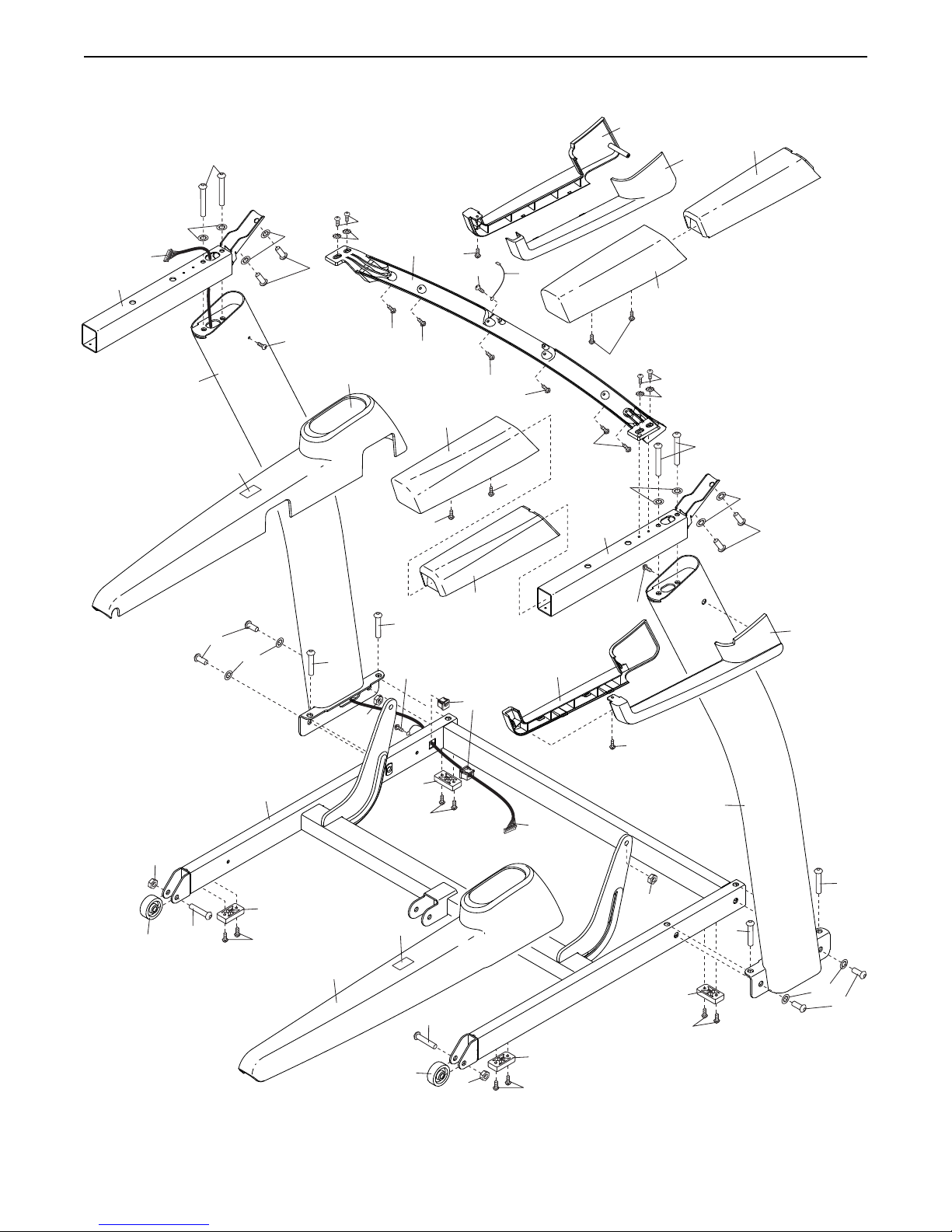

EXPLODED DRAWING C
28
Model No. NETL15713.0 R0513A
87
85
88
86
81
11
89
11
4
1
91
8
13
9
5
93
1
82
7
7
10
2
10
1
106
2
84
105
79
2
1
1
1
2
95
11
86
9
5
28
11
4
1
96
97
33
17
94
14
92
83
33
91
97
92
14
17
33
77
14
81
92
2
90
7
33
7
92
14
13
8
34
Page 35

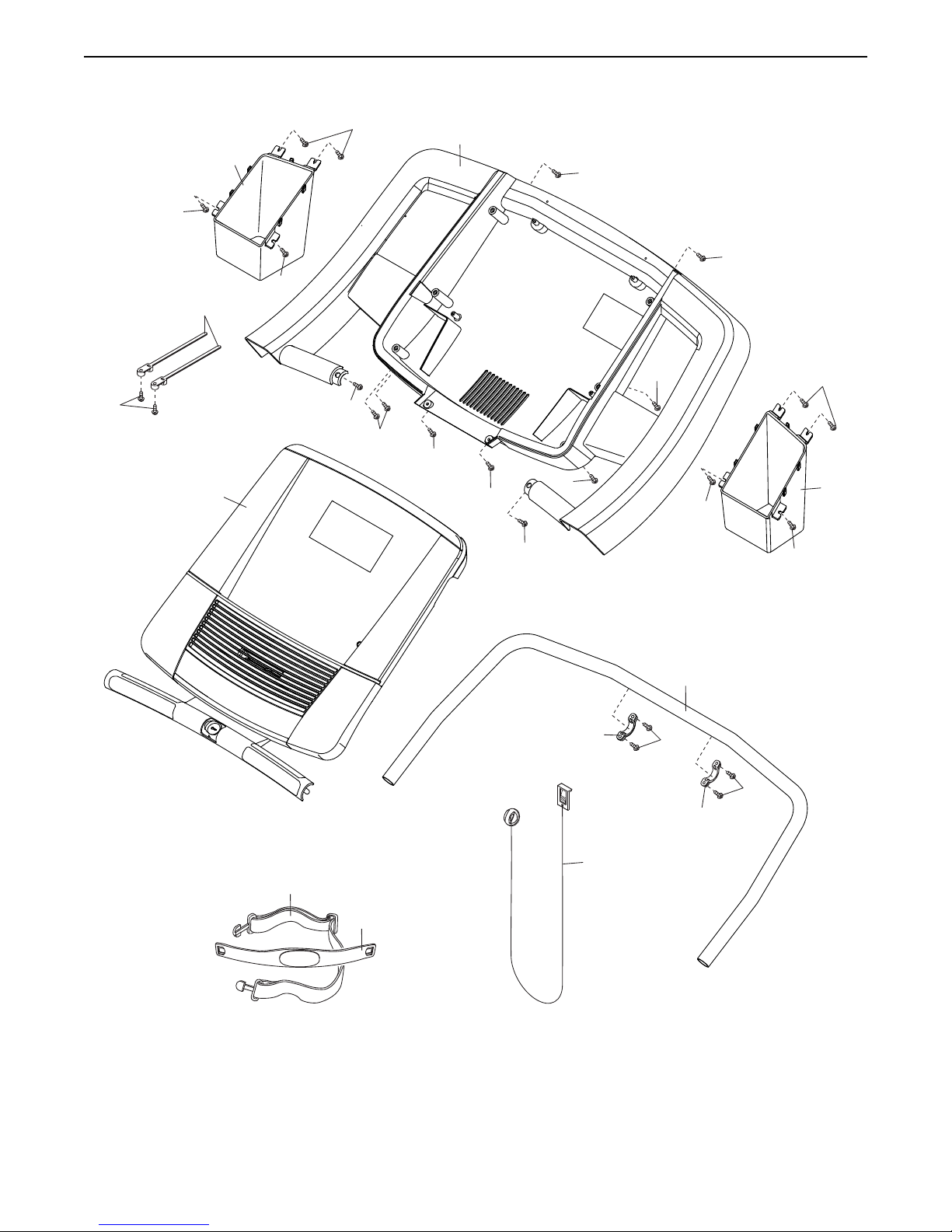

EXPLODED DRAWING D
Model No. NETL15713.0 R0513A
1
36
1
1
99
2
103
2
2
64
2
2
2
2
2
2
1
2
1
27
1
107
108
102
98
104
25
25
102
35
Page 36
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
Part No. 344255 R0513A Printed in USA © 2013 ICON IP, Inc.
Loading...
