NordicTrack NTTL15080 Owner's Manual

Customer Information

At NordicTrack, we’re available to answer any questions you have regarding assembly, use, or maintenance of your treadmill. Please contact our Customer Service Department at the numbers or addresses listed below:

Call us: 1-800-688-6737

or 1-612-368-5600

Mon. to Fri., 8 a.m. to 7 p.m. Central Time

Relay us:

Hearing impaired customers with TDD access, please call

1-800-821-1317

Write us:

NordicTrack Customer Service 103 Peavey Road Chaska, Minnesota 55318 M600

E-mail us:

Send us your questions and comments via e-mail at

service@nordictrack.com

CAUTION:

Read this owner’s guide carefully before using the treadmill. Save this owner’s guide for future reference.

Owner’ s Guide

Table of Contents

Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

How to Use the CardioTrack™ Heart Rate Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Treadmill Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

How to Use the Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

How to Use the Heart Rate Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

How to Use the Incline Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

How to Create Custom Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

How to Use Custom Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

How to Fold and Move the Treadmill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

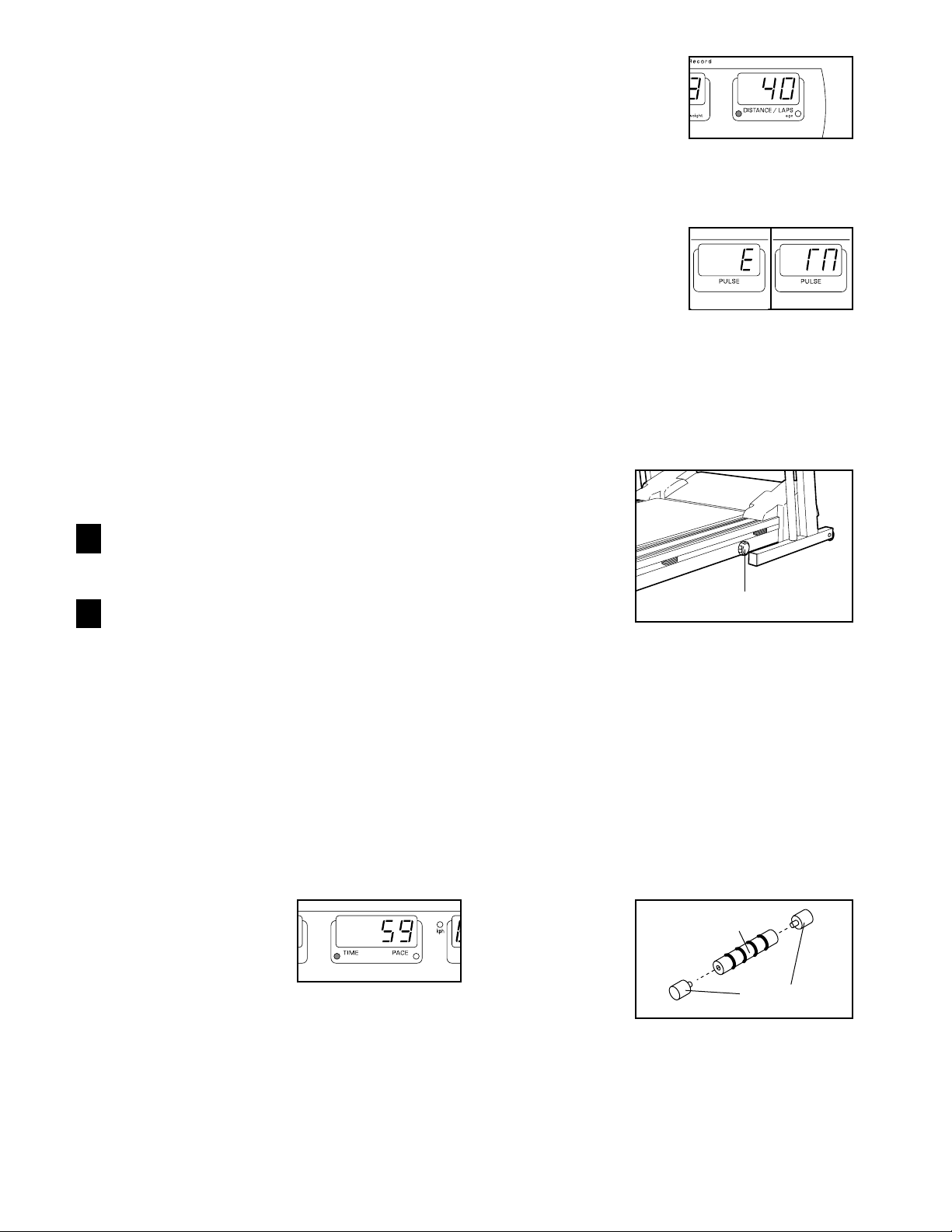

Maintenance and Trouble-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

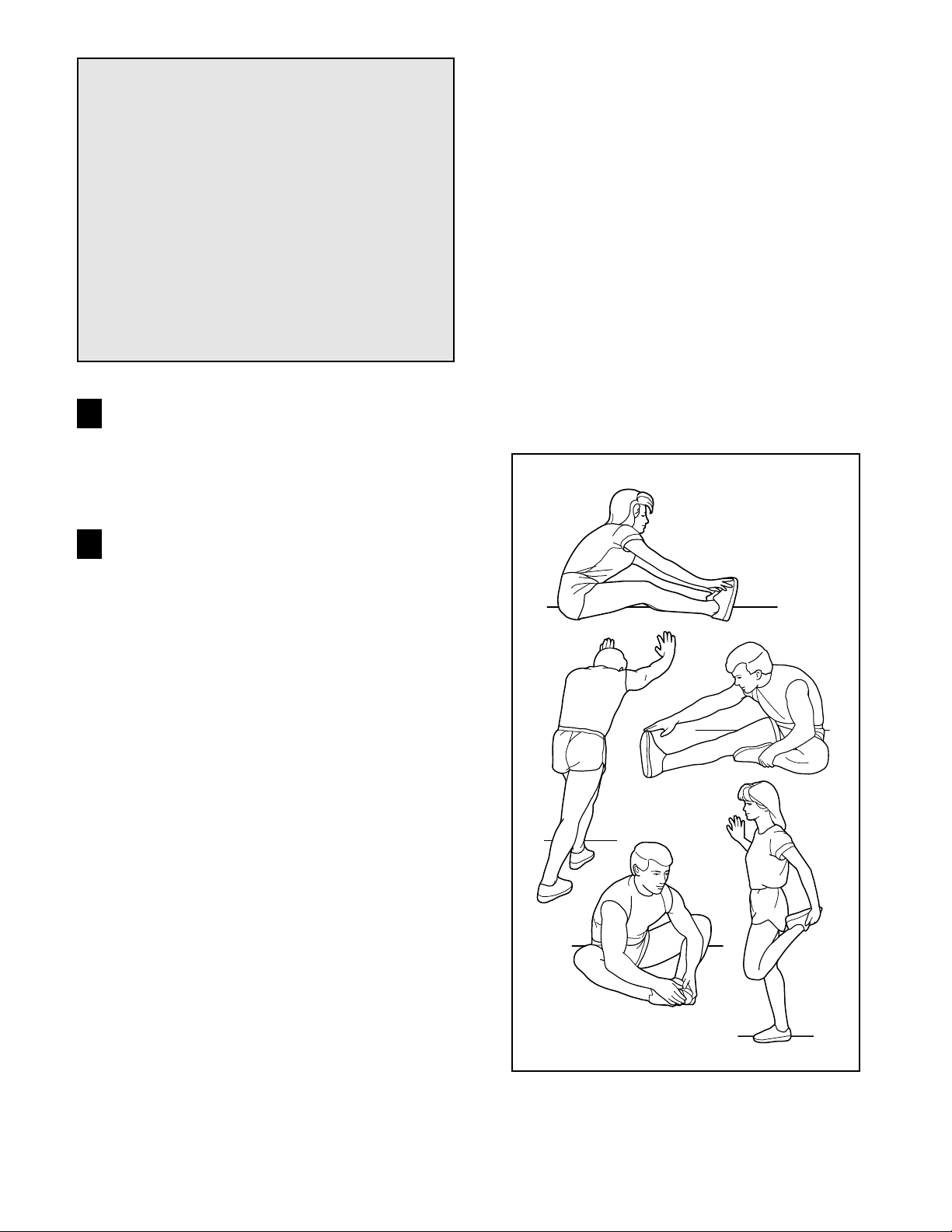

Conditioning Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

How to Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

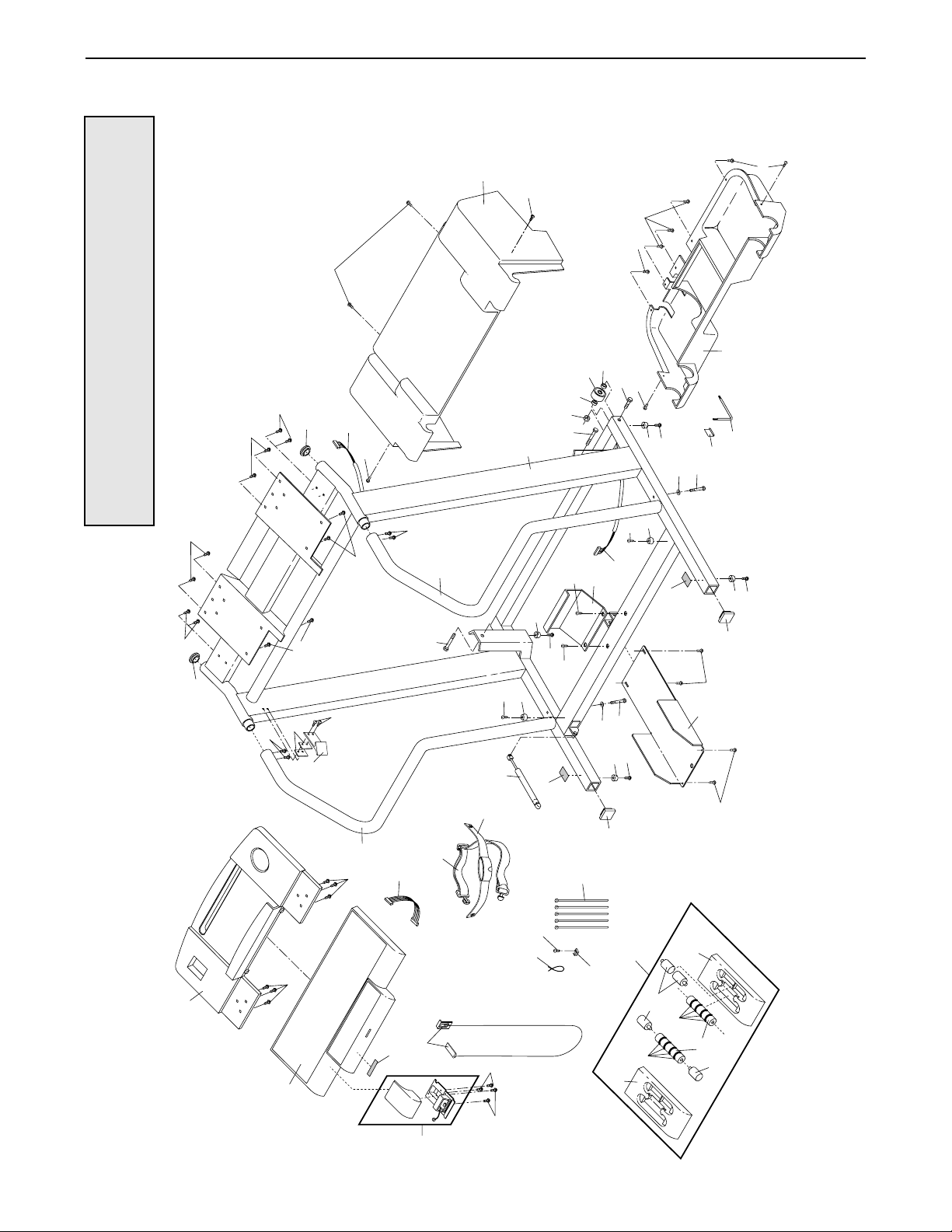

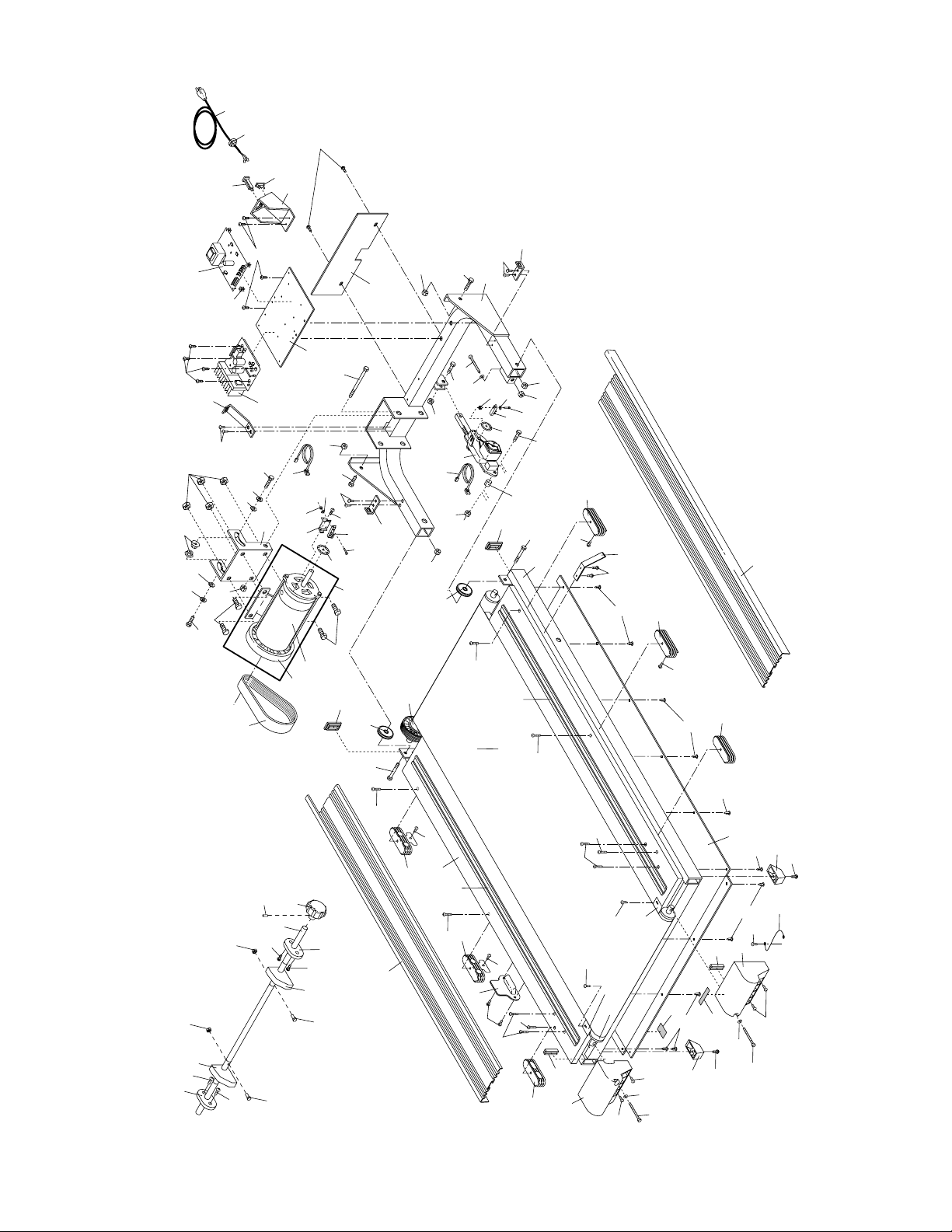

Note: An Exploded Drawing is attached in the center of this owner’s guide.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this owner’s guide.

3. Place the treadmill on a level surface, with eight feet of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds. Never allow more than one person on the treadmill at a time.

8. Wear appropriate clothing when using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.

9. Always wear athletic shoes when using the treadmill. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see How to Plug in the Power Cord on page 10), plug the power cord into a surge protector (not included) and plug the surge protector into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit.

11. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector away from heated surfaces.

13. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See Before You Begin on page 5 if the treadmill is not working properly.)

14. Never start the treadmill while you are standing on the walking belt.

15. Always hold the handrails while running on the treadmill. When walking, hold the handrails or use the included hand weights.

16. Do not perform exercises with the hand weights at speeds higher than a walk. Using weights and not holding the handrails may compromise your ability to maintain your balance. Exercises using weights should be attempted only by experienced users.

17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

18. To reduce the possibility of the treadmill overheating, do not operate the treadmill continuously for longer than one hour.

19. The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

20. Never leave the treadmill unattended while it is running. When the treadmill is not in use, remove the key and press the on/off switch to the “off” position. (See the drawing on page 5 for the location of the on/off switch.)

21. During the last ten seconds of any program except the manual mode, the incline of the treadmill will automatically decrease to 1.0%. Keep your feet and objects from beneath the treadmill.

WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

Important Precautions

The decals shown below have been placed on your treadmill. If A decal is missing, or if it is not legible, please call our Customer Service Department at 1-800-688-6737 to order a free decal.

22. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

Assembly on page 6, and How to Move the Treadmill on page 22.) You must be able to

safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

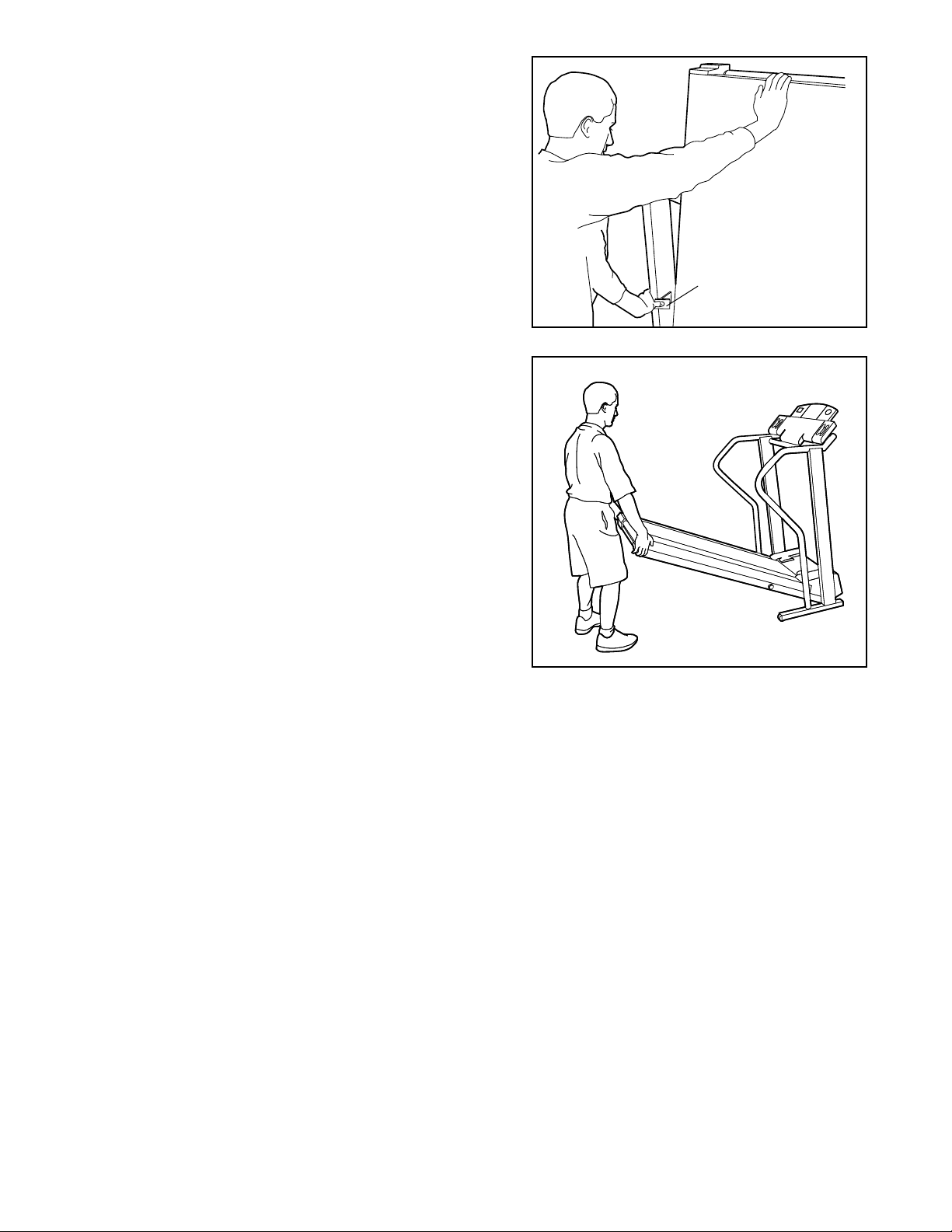

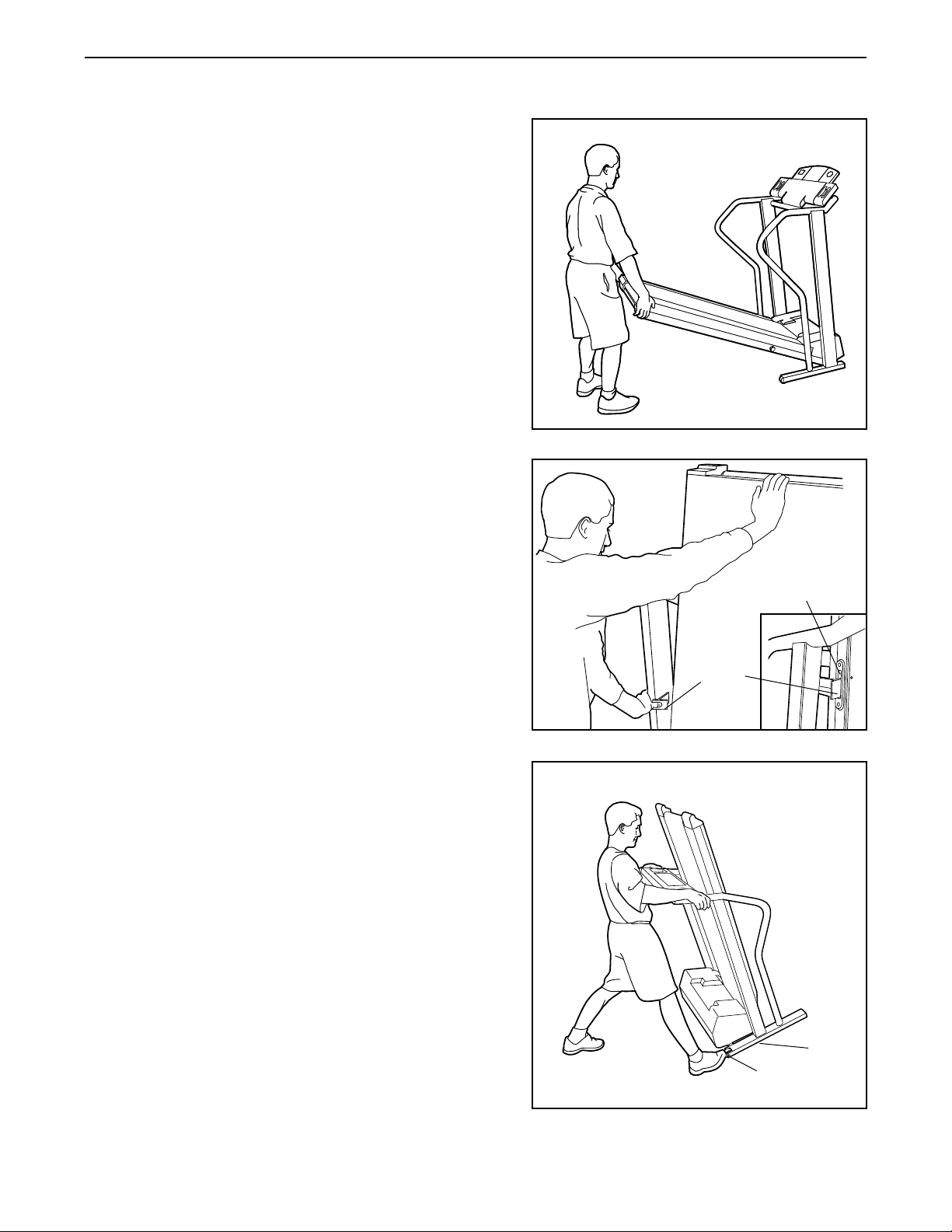

23. When folding or moving the treadmill, make

sure that the frame is held securely by the storage latch.

24. Inspect and tighten all parts of the treadmill

every three months.

25. Never insert any object into any opening.

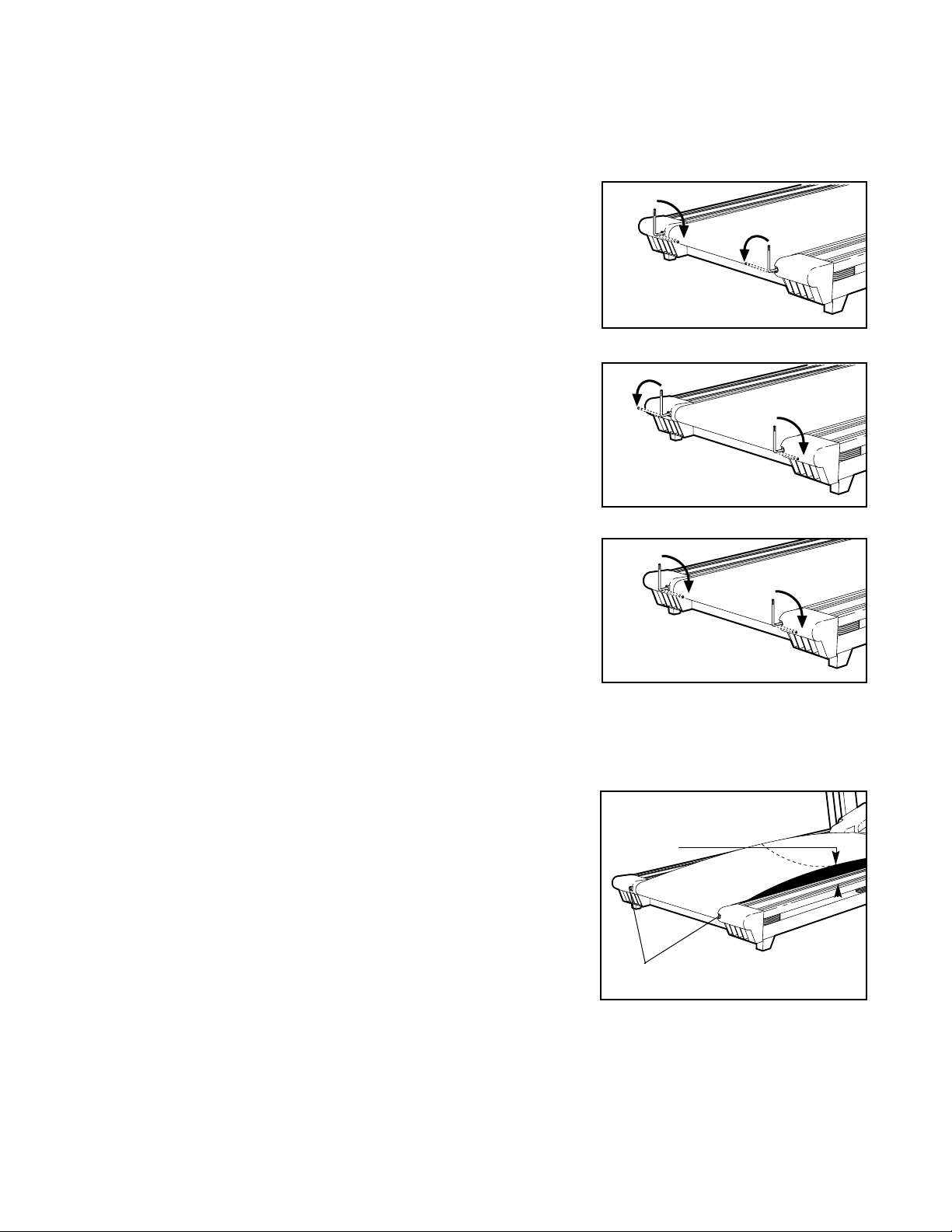

26. The roller guards must be 1/8 inch from the

rear roller (see the drawing on page 5).

Unplug the power cord and adjust the roller guards, if necessary.

27. Unplug the power cord before performing the maintenance and adjustment procedures described in this owner’s guide. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this owner’s guide should be performed by an authorized service representative only.

27. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

Save These Instructions

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. NordicTrack assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

(There is one decal

on each side)

AVIS IMPORTANT: Réglez le degré d'inclinaison au minimum avant de plier le tapis roulant.

Incline must be set at lowest

IMPORTANT:

level before folding treadmill into storage position.

Thank you for selecting the PowerTread™ 2000 treadmill by NordicTrack. The PowerTread PT 2000 offers an impressive array of features designed to help you meet your fitness goals in the convenience and privacy of your home. And when you’re not exercising, the PowerTread PT 2000 can be folded up, requiring less than half the floor space of other treadmills. Before you use the PowerTread PT 2000, please read this owner’s guide.

We’re available to answer any of your questions regarding assembly, use, or maintenance of the PowerTread 2000 treadmill. Please refer to the front cover of this manual if you wish to contact our Customer Service Department.

Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.

Before You Begin

Handrails

Console

Storage Latch

Key/Clip*

Circuit

Breaker

On/off

Switch

Uprights

Walking Belt

Adjustment

Knob

Cushioned Walking Platform

Roller Guards

Foot Rails

Power Cord

Rear Roller Adjustment Bolts

Water Bottle Holder

(Bottle not included)

Reading Rack

Accessory Tray Weights

*IMPORTANT: Always wear the clip while operating the treadmill. If the key is pulled from the

console, the walking belt will stop.

2. Slide the upper end of a Handrail (101) onto the right Upright (70) as shown. Note: It will be necessary to

pivot the Handrail to the side and back repeatedly (see arrow A) while pushing on the Handrail (see arrow B) to slide it fully onto the Upright. Next, pivot the lower end of the Handrail down, push it toward the right Upright, and then align it with the indicated hole.

Tighten two Handrail Screws (103) into the upper end of the Handrail (101) and the right Upright (70).

Attach the other Handrail (101) to the left Upright (70) as described above.

1. With the help of a second person, carefully raise the Uprights (70) until the Wheels (30) are resting flat on the floor.

101

103

101

102

101

3. With the help of a second person, carefully tip the Uprights (70) down as shown.

Tighten a Handrail Bolt (95) with a Handrail Washer (102) into the right Upright (70) and the lower end of the right Handrail (101) as shown.

Next, tighten a Handrail Bolt (95) with a Handrail Washer (102) into the left Upright (70) and the lower end of the left Handrail (101) (not shown).

With the help of a second person, carefully tip the Uprights (70) back to the upright position.

Hole

Assembly

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Assembly requires the included allen wrench and your own phillips screwdriver and adjustable wrench .

5. Attach a Weight Rack (112) to each Upright (70) with two Screws (43) as shown.

Refer to the inset drawing. Insert a 2-lb. Handle (115) and two 1-lb. Weights (114) into each Weight Rack (112).

7. Remove the backing from the Wrench Clip (88). Press the Wrench Clip onto the Upright (70) in the indicated location. Press the Allen Wrench (87) into the Wrench Clip

8. Make sure that all parts of the treadmill are properly tightened. Place a mat beneath the treadmill to protect the floor or carpet.

Tabs

6. Remove the two indicated Screws (43) from the left Upright

(70). Attach the Storage Latch (5) and the two Latch Spacers

(93) to the left Upright (70) with the two Screws (43). Be

careful not to overtighten the Screws.

Note: If it is difficult to fold or lower the treadmill, remove one or both of the Latch Spacers (93).

112

4. Locate the two tabs on the Reading Rack (12). Slide the tabs up into the two slots in the front of the Console (78). Attach the Reading Rack to the Console with the six Screws (43).

115

114

112

The unique CardioTrack heart rate monitor is specially designed for accuracy, comfort, and durability. To get

the best performance from the heart rate monitor, please read the instructions below.

HOW TO PUT ON THE HEART RATE MONITOR

The heart rate monitor consists of two components: the chest strap and the transmitter. Follow the steps below to put on the heart rate monitor.

1. Refer to the inset drawing above. Insert the tab on

one end of the chest strap through the hole in one end of the transmitter. Press the end of the transmitter under the buckle on the chest strap. The tab should be flush with the front of the transmitter.

2. Wrap the

heart rate monitor around your chest and attach the other end of the chest strap to the transmitter. Adjust the length of the chest strap, if necessary. The heart rate monitor should be under your clothing, against your skin, and as high under the pectoral muscles or breasts as is comfortable. Make sure that the NordicTrack logo is facing forward and is right-side-up.

3. Pull the transmitter away from your body a few inches and locate the two electrode areas on the inner side. The electrode areas are the two long, grooved rectangles. Using saline solution such as saliva or contact lens solution, wet both electrode areas. Return the transmitter to a position against your chest.

HEART RATE MONITOR TROUBLE-SHOOTING

The instructions on pages 11 to 17 of this owner’s guide explain how the heart rate monitor is used with the console. If the letters “PLS” appear in the PULSE display, or if the displayed heart rate is excessively high or low when the heart rate monitor is used, try the trouble-shooting steps below.

1. Make sure that the heart rate monitor is under your clothing, against your skin, and as high under the pectoral muscles or breasts as is comfortable. Note: If the heart rate monitor does not function when positioned as described, try moving it slightly lower or higher on your chest.

2. Make sure that the NordicTrack logo on the transmitter is facing forwards and is right-side-up.

3. Use saline solution such as saliva or contact lens solution to wet the two electrode areas on the transmitter. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.

4. As you walk or run on the treadmill, position yourself near the center of the walking belt. For the

console to display heart rate readings, the user must be within arm’s length of the console.

5. The heart rate monitor is designed to work with people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.

6. The operation of the heart rate monitor can be affected by magnetic interference caused by high power lines or other sources. If it is suspected that magnetic interference may be causing a problem, try relocating the treadmill.

7. If the heart rate monitor still does not function properly, test it by having another person try it.

8. The CR2032 battery may need to be replaced (see page 9).

How to Use the CardioTrack™Heart Rate Monitor

Chest Strap

Tabs

Transmitter

Tab

Buckle

IMPORTANT: If a user has an implanted medical device such as a pacemaker, the user must check with his or her physician prior to using the heart rate monitor.

NordicTrack

Logo

HEART RATE MONITOR CARE AND MAINTENANCE

• Thoroughly dry the heart rate monitor after each use. The heart rate monitor is activated when the electrode areas are wetted and the heart rate monitor is put on; the heart rate monitor shuts off when it is removed and the electrode areas are dried. If the heart rate monitor is not dried after each use, it may remain activated longer than necessary.

• Store the heart rate monitor in a warm, dry place. Do not store the heart rate monitor in a plastic bag or other container that may trap moisture.

• Do not expose the heart rate monitor to direct sunlight for extended periods of time. Do not expose the heart rate monitor to temperatures above 122° Fahrenheit (50° Celsius) or below 14° Fahrenheit (-10° Celsius).

• Do not excessively bend or stretch the transmitter when using or storing the heart rate monitor.

• Clean the transmitter using water and mild soap— never use alcohol, abrasives, or chemicals. The chest strap may be hand washed and air dried.

• If the heart rate monitor does not function properly, the CR 2032 bat- tery may need to be replaced. To replace the battery, locate the battery cover on the back of the transmitter. Insert a coin into the slot in the cover and turn the cover counterclockwise to the “open” position. Remove the cover.

Remove the old battery and insert a new CR 2032 battery, making sure that the battery is turned so the writing is on top. In addition, make sure that the rubber gasket is in place in the transmitter. Replace the battery cover and turn it to the closed position.

Battery Rubber

Gasket

Treadmill Operation

THE PERFORMANT LUBETMWALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBE

, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. They will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the

possibility of your treadmill being damaged, always use a surge protector (not included) with your treadmill.

Surge protectors are sold at most hardware stores and department stores. Use only a ULlisted surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

This product must be grounded. If it should

malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug

the power cord into a surge protector, and plug the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge protector to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

DANGER:Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Treadmill Power Cord

Grounding Plug

Grounding Pin

Surge Protector

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Plug

Grounding Pin

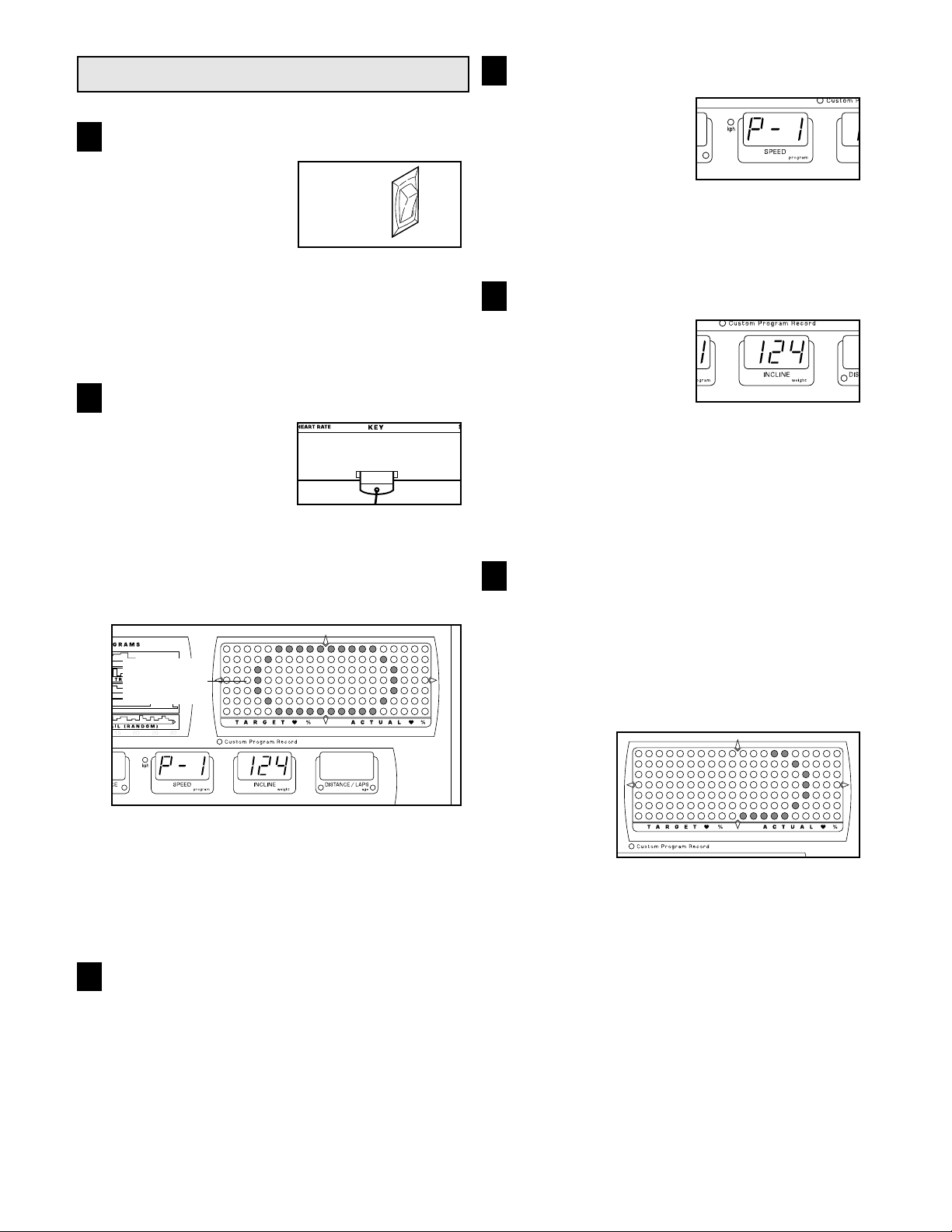

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective.

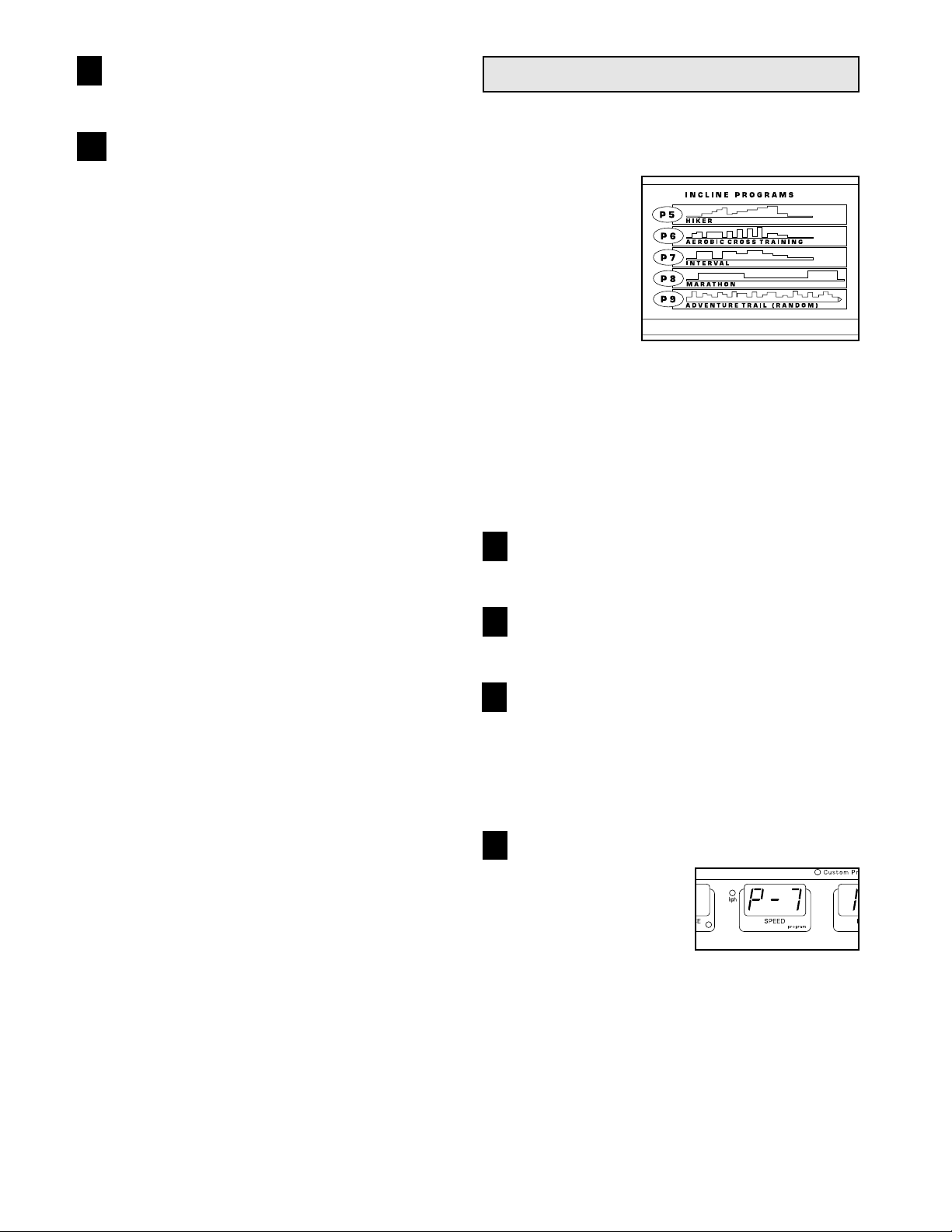

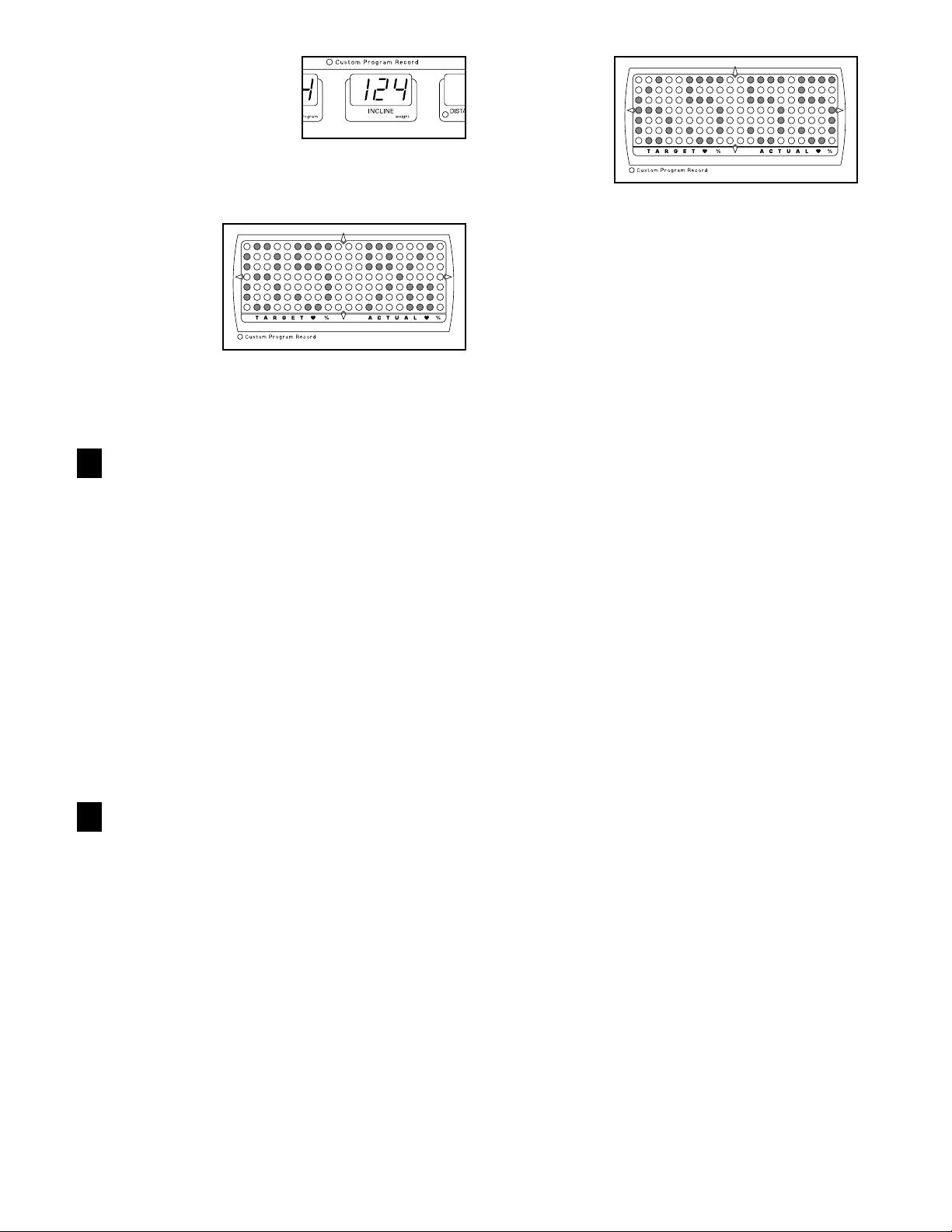

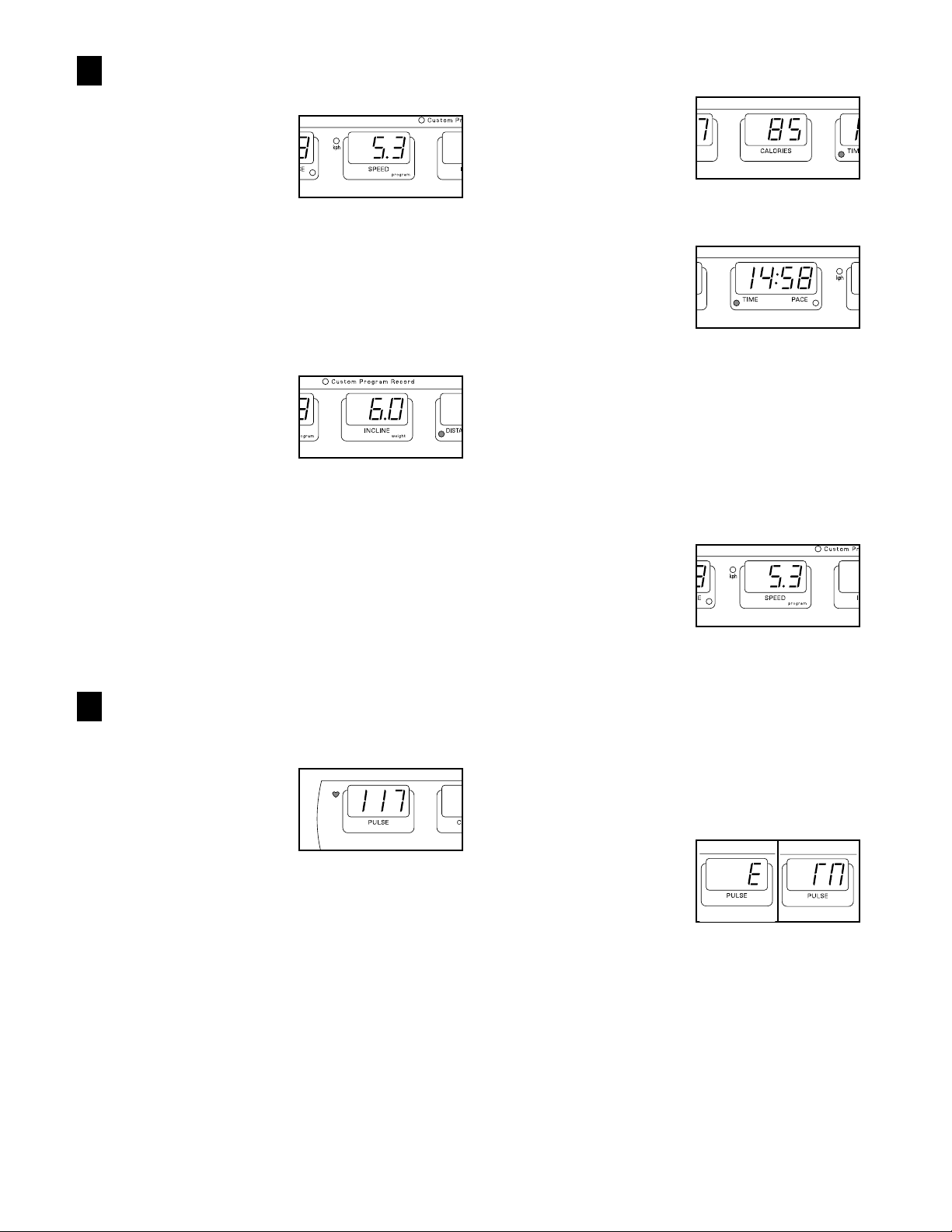

When the console is in the manual mode, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, you can watch your progress on the LED “track” while the six displays provide continuous exercise feedback. Eight preset programs are also offered: three HEART RATE programs automatically control the speed and incline of the treadmill to keep your heart rate near predetermined settings, and five INCLINE programs automatically control the incline of the treadmill as they guide you through effective workouts. The console also features two CUSTOM programs that allow you to create your own programs and store them in the console’s memory for future use.

To use the manual mode, follow the steps beginning on page 12. To use the HEART RATE programs, see page 15. To use the INCLINE programs, see page 17. To create a CUSTOM program, see page 19. To use a CUSTOM program, see page 20.

Note: The console can display speed and distance in either miles or kilometers (see Speed Display on page

13). For simplicity, all instructions in this owner’s guide refer to miles.

Clip

Key

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turning on the power or starting the walking belt.

• Always wear the clip (see the drawing above) while operating the treadmill. If the key is pulled from the console, the walking belt will stop.

• The treadmill is capable of high speeds. Adjust the speed in small increments.

• The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

• If you have heart problems, or if you are over 60 years of age and have been inactive, do not use the HEART RATE programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.

• To reduce the risk of electric shock, keep the console dry. Use a sealable water bottle.

Note: If there is a thin sheet of plastic on the console, remove it.

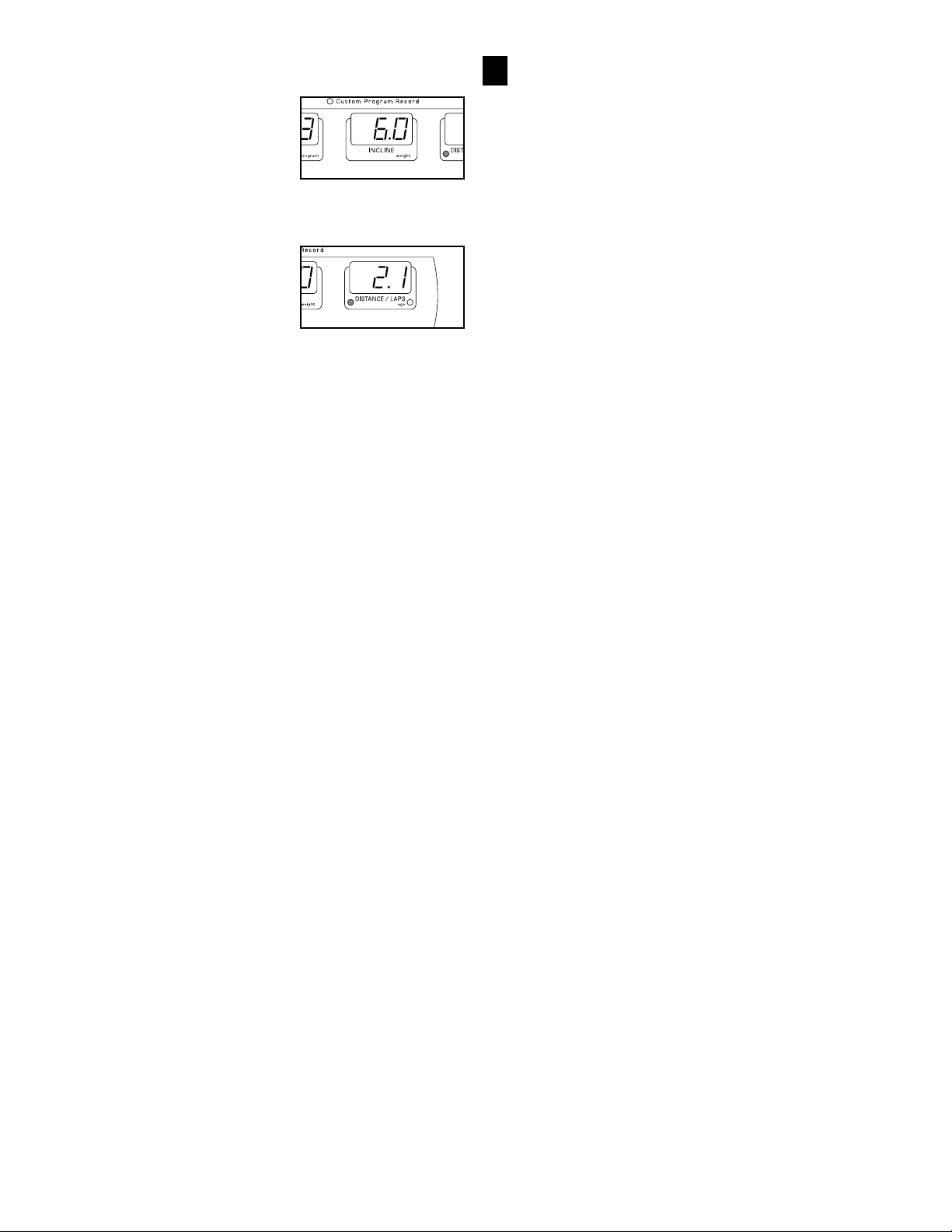

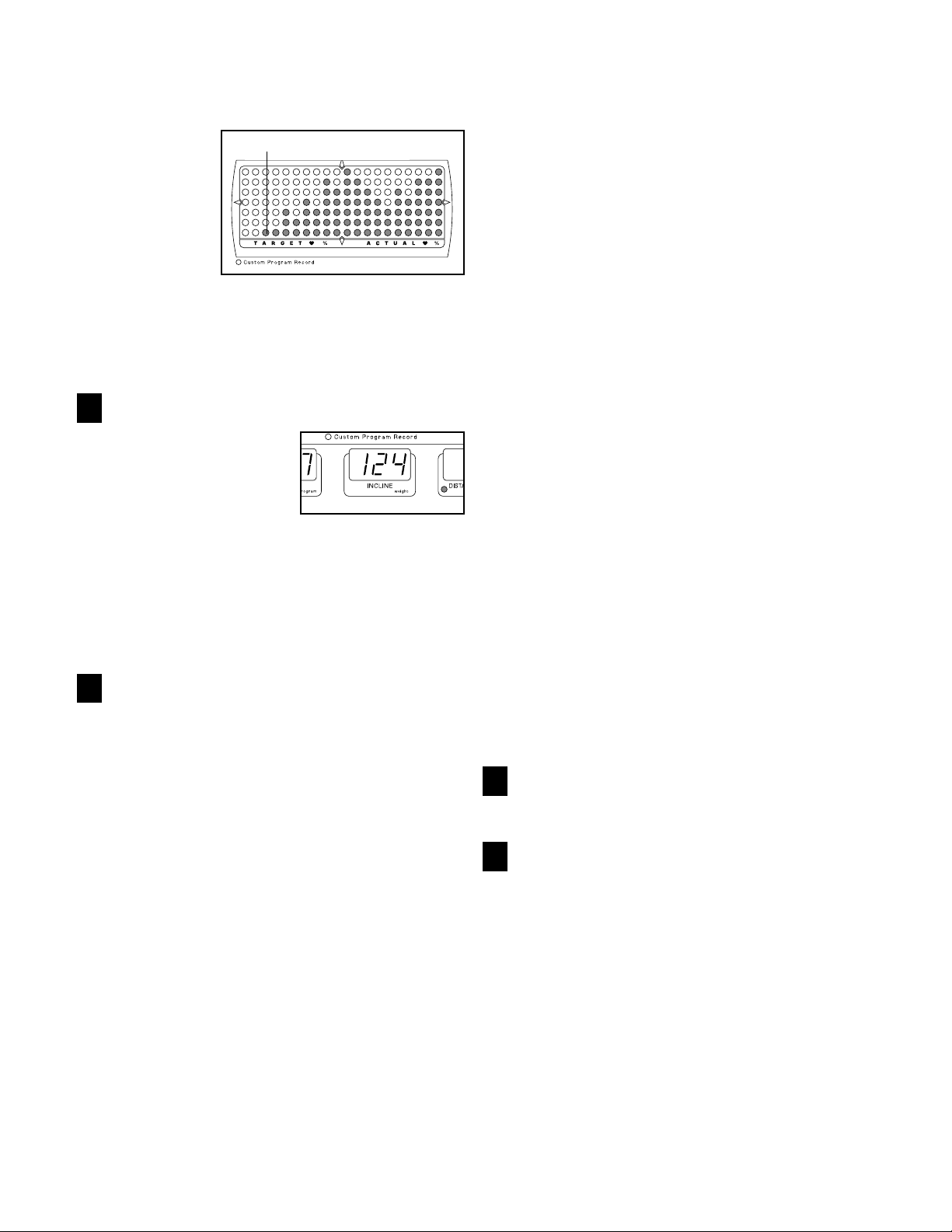

LED Track/LED Matrix
