Model No. NTIVEX83016.0 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

CUSTOMER SERVICE

UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: [email protected] Write:

ICON Health & Fitness, Ltd. Unit 1D, The Gateway Fryers Way, Silkwood Park OSSETT WF5 9TJ UNITED KINGDOM

USER’S MANUAL

AUSTRALIA Call: 1800 993 770 E-mail: [email protected] Write:

ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

www.iconeurope.com

Page 2

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

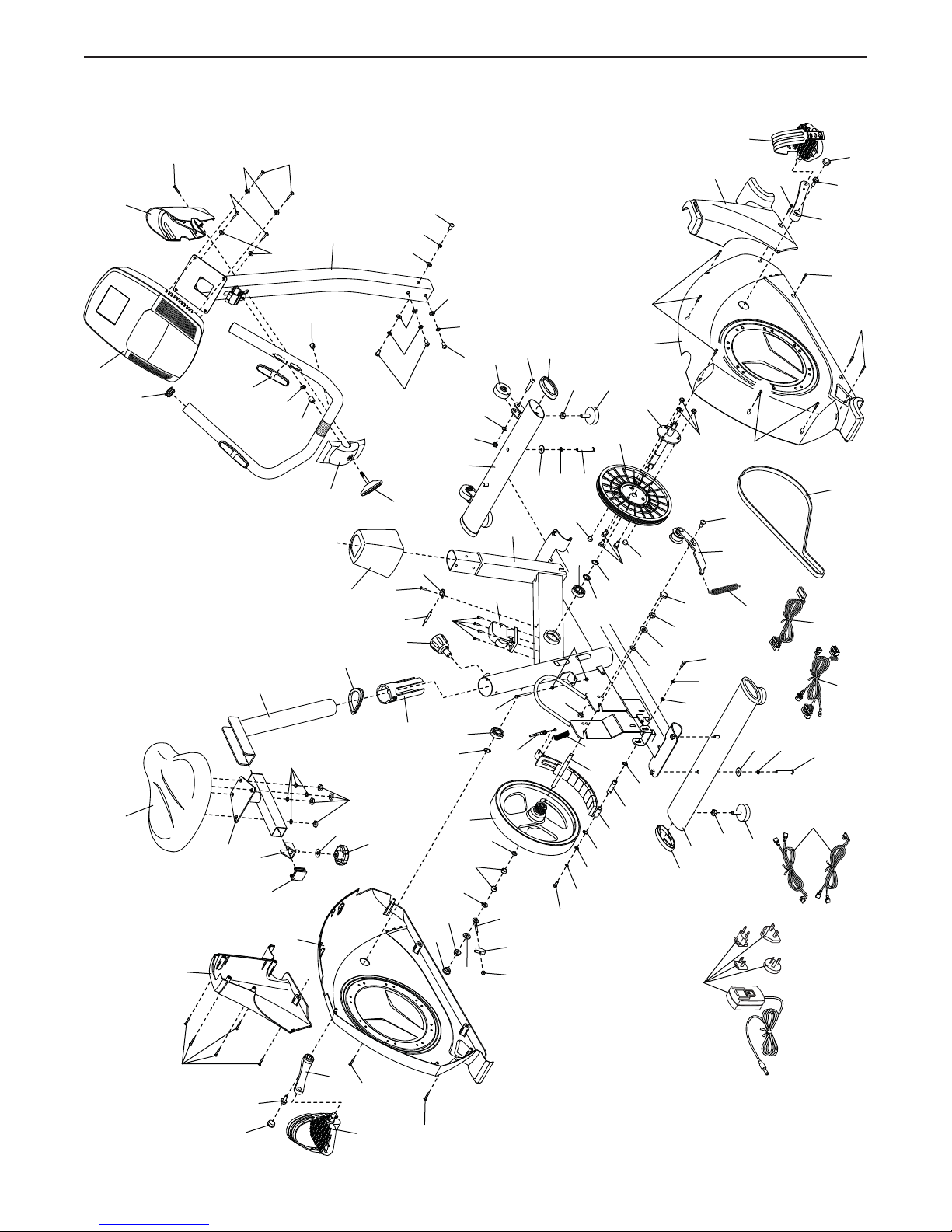

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Page 3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of the exercise bike are adequately informed of all precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. The exercise bike is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are given supervision or instruction about use of the exercise bike by someone responsible for their safety. Use the exercise bike only as described in this manual.

4. The exercise bike is intended for home use only. Do not use the exercise bike in a commercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from moisture and dust. Do not put the exercise bike in a garage or covered patio, or near water.

6. Place the exercise bike on a level surface with at least 2 ft. (0.6 m) of clearance around the exercise bike. To protect the floor or carpet from damage, place a mat under the exercise bike.

7. Inspect and properly tighten all parts each time the exercise bike is used. Replace any worn parts immediately.

8. Keep children under age 13 and pets away from the exercise bike at all times.

9. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise bike. Always wear athletic shoes for foot protection.

10. The exercise bike should not be used by persons weighing more than 253 lbs. (115 kg).

11. Be careful when mounting and dismounting the exercise bike.

12. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

13. Always keep your back straight while using the exercise bike; do not arch your back.

14. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

Page 4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NORDICTRACK® GX 4.6 exercise bike. Cycling is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. The GX 4.6 exercise bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the exercise bike. If you have questions after

Heart Rate Monitor

Handlebar Knob

reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Handlebar

Seat

Seat Knob

Leveling Foot

Seat Post Knob

Wheel

Pedal/Strap

Length: 3 ft. 4 in. (102 cm) Width: 1 ft. 11 in. (61 cm) Weight: 88 lbs. (40 kg)

Page 5

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you ﬁ nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

1. Go to www.iconsupport.eu on your computer

and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Service (see the front cover of this manual) and register your product.

• In addition to the included tool(s), assembly requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of wrenches. To avoid damaging parts, do not use power tools.

2. If there is a shipping insert (not shown) in the

front of the Frame (1), remove and discard it.

Identify the Front Stabilizer (2). Attach the Front

Stabilizer to the Frame (1) with two M8 x 58mm Screws (13), two M8 Split Washers (14), and two M8 Curved Washers (15).

15 14

Page 6

3. If there is a shipping insert (not shown) in the

rear of the Frame (1), remove and discard it.

Attach the Rear Stabilizer (3) to the Frame (1)

with two M8 x 58mm Screws (13), two M8 Split Washers (14), and two M8 Curved Washers (15).

15 14

4. Identify the Right Pedal (18).

Using an adjustable wrench, firmly tighten the

Right Pedal (18) clockwise into the Right Crank Arm (17).

Firmly tighten the Left Pedal (not shown)

counterclockwise into the Left Crank Arm (not shown). IMPORTANT: You must turn the Left Pedal counterclockwise to attach it.

Next, adjust the strap (A) on the Right Pedal

(18) to the desired position, and press the ends of the strap onto the tabs (B) on the Right Pedal. Adjust the strap on the Left Pedal (not

shown) in the same way.

Page 7

5. Orient the Handlebar Post (4) and the Post Cover (23) as shown. Slide the Post Cover upward onto the Handlebar Post.

While a second person holds the Handlebar

Post (4) and the Post Cover (23) near the Frame (1), connect the Upper Wire (21) to the Lower Wire (22).

6. Tip: Avoid pinching the wires. Slide the Handlebar Post (4) onto the Frame (1). Attach the Handlebar Post with four M8 x 15mm Screws (19), four M8 Split Washers (14), and four M8 Washers (7); start all the Screws, and then

tighten them.

Then, press the Post Cover (23) onto the Right

and Left Shields (79, 80).

Avoid pinching

the wires

Page 8

7. Orient the Handlebar (5) as shown. While a second person holds the Handlebar near the Handlebar Post (4), route the Pulse Wires (39) in the Handlebar upward through the Handlebar Post.

Tip: Avoid pinching the Pulse Wires (39).

Insert the Handlebar (5) into the clamp (C) on the Handlebar Post (4). Have the second person hold the Handlebar and the clamp in place.

Attach the Handlebar (5) to the Handlebar Post

(4) with the Handlebar Knob (36), the Handlebar Spacer (26), an M8 Washer (7), and the Rear Handlebar Cover (86).

pinching

the Pulse

Wires (39)

Avoid

8. While a second person holds the Console (35) near the Handlebar Post (4), plug the Upper Wire (21) and the Pulse Wires (39) into the receptacles on the Console.

The connectors on the Upper Wire (21) and

the Pulse Wires (39) should slide easily into the receptacles and snap into place. If

a connector does not slide easily into a receptacle, turn the connector and try again. If you

do not connect the connectors properly, the Console (35) may become damaged when you use the exercise bike.

Insert the excess wires into the Handlebar

Post (4).

Tip: Avoid pinching the wires. Attach the

Console (35) to the Handlebar Post (4) with four M4 x 16mm Screws (37) and four M4 Washers (84); start all the Screws, and then tighten

them.

Avoid pinching

the wires

Page 9

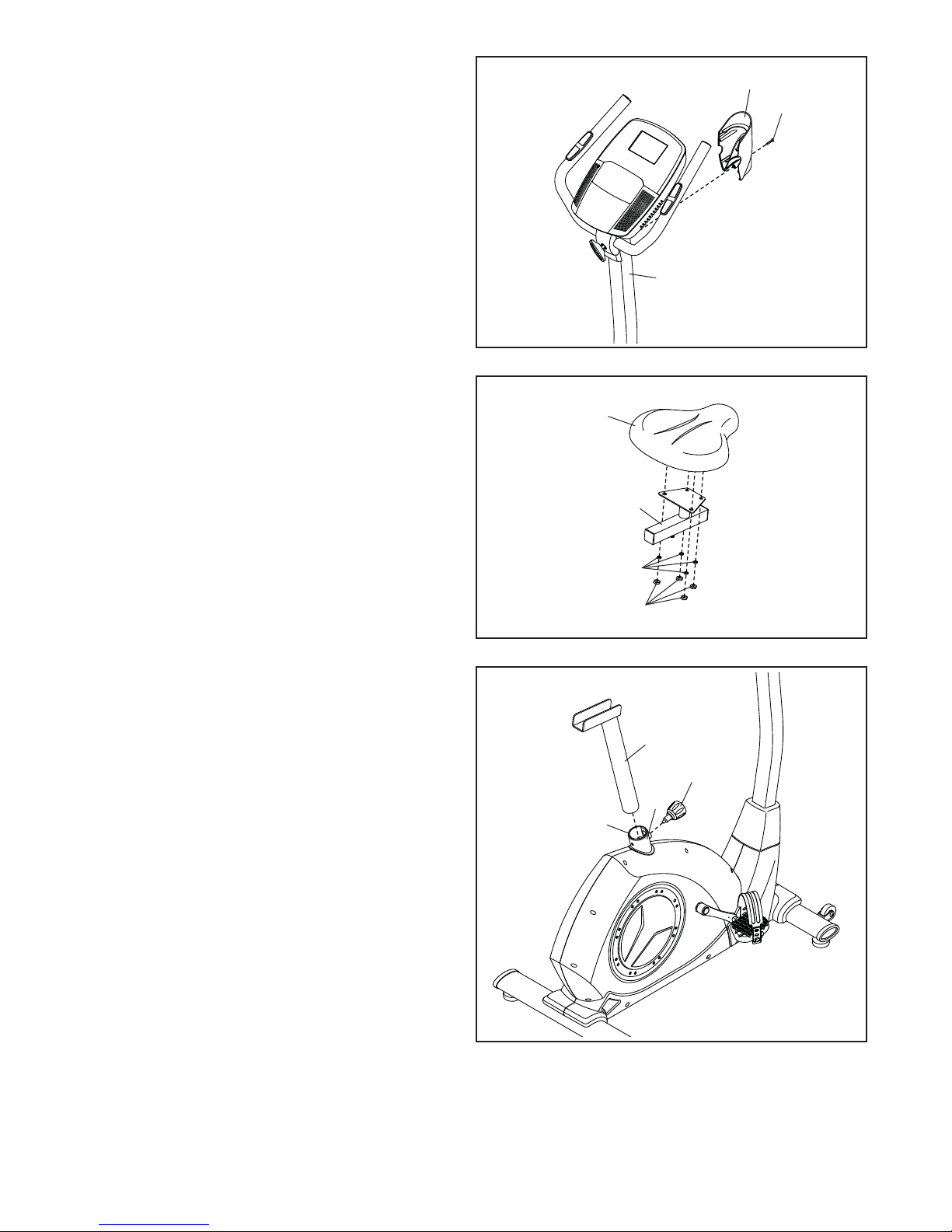

9. Attach the Front Handlebar Cover (25) to the Handlebar Post (4) with an M4 x 18mm Screw (24).

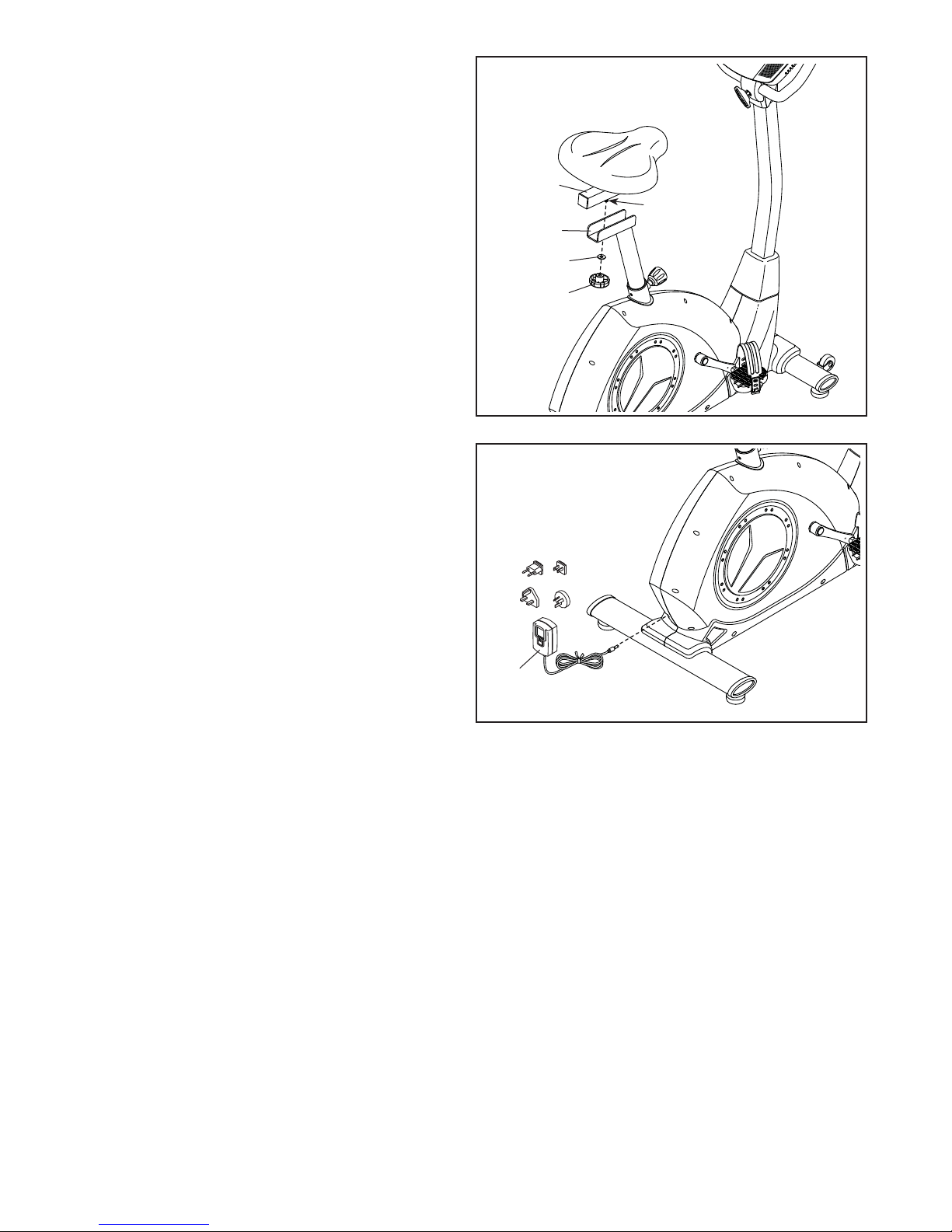

10. Orient the Seat (34) and the Seat Carriage (33) as shown. Attach the Seat to the Seat Carriage with four M8 Seat Locknuts (41) and four M8 Seat Split Washers (40).

11. Insert the Seat Post (28) into the Post Sleeve (46). Then, tighten the Seat Post Knob (20) firmly into the Frame (1) and into an adjustment hole in the Seat Post.

Move the Seat Post (28) upward or downward

slightly to make sure that the Seat Post Knob (20) is engaged in one of the adjustment holes in the Seat Post.

Page 10

12. Hold the Seat Carriage (33) on the Seat Post (28). Insert the Carriage Knob (29) with the Carriage Washer (30) upward into the Seat Post, and tighten the Carriage Knob into the Carriage Clamp (31) inside the Seat Carriage.

13. Plug the Power Adapter (38) into the receptacle on the frame of the exercise bike.

Note: To plug the Power Adapter (38) into an

outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 11.

14. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it

functions properly. Make sure that all parts are properly tightened before you use the exercise bike.

Extra parts may be included. Place a mat under the exercise bike to protect the floor or carpet.

Page 11

HOW TO USE THE EXERCISE BIKE

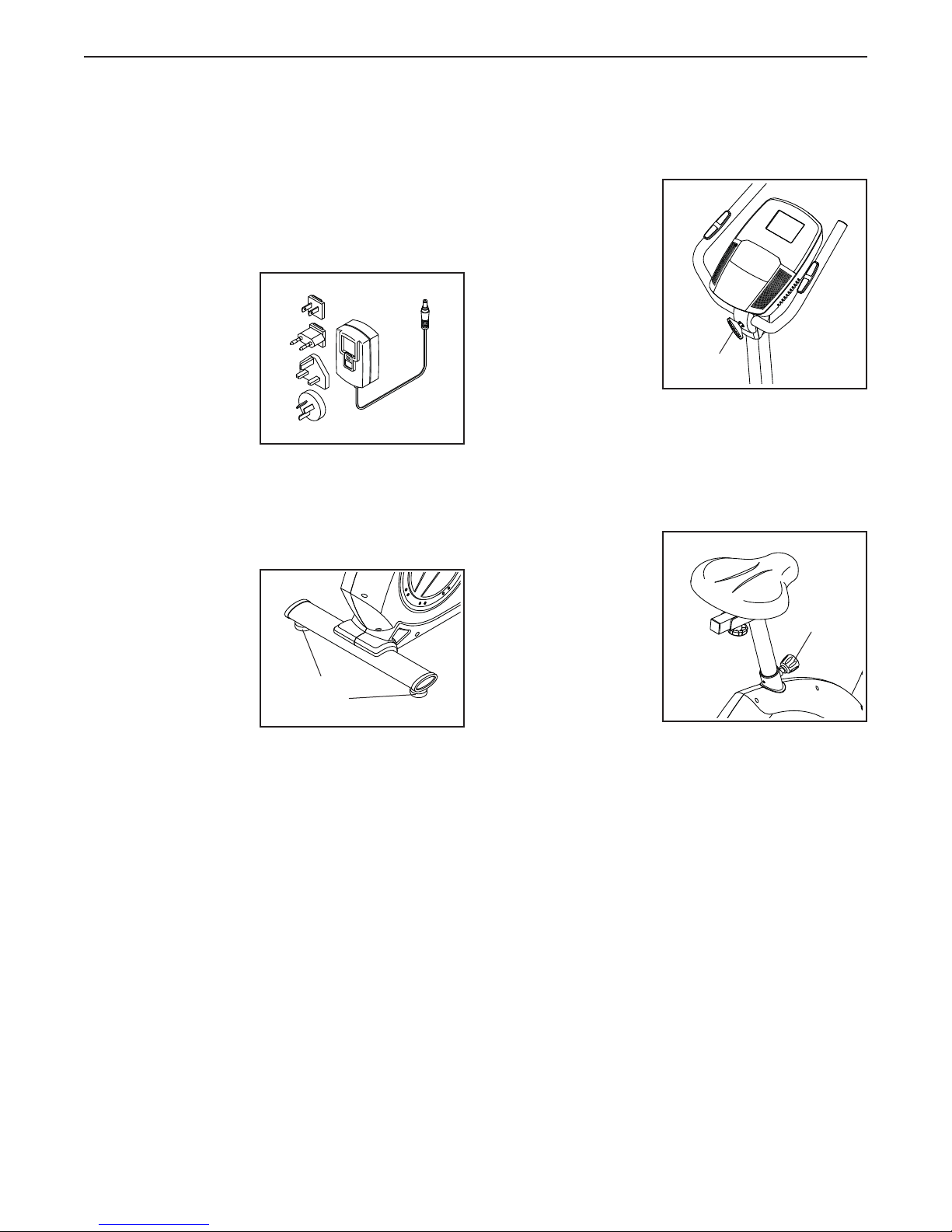

HOW TO PLUG IN THE POWER ADAPTER

IMPORTANT: If the exercise bike has been exposed to cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If you do not do this, you may damage the console displays or other electronic components.

Plug the power adapter into the receptacle on the rear of the exercise bike. Insert the appropriate plug adapter into the power adapter if necessary. Then, plug the power adapter into an appropriate outlet that is properly installed in accordance with all local codes and ordinances.

HOW TO LEVEL THE EXERCISE BIKE

If the exercise bike rocks slightly on your floor during use, adjust one or both of the leveling feet beneath the rear stabilizer or the front stabilizer (not shown) until the rocking motion is eliminated. To adjust a leveling foot, loosen the nut on the leveling foot, turn the leveling foot to the desired height, and then tighten the nut against the underside of the stabilizer.

Leveling

Feet

HOW TO ADJUST THE ANGLE OF THE HANDLEBAR

To adjust the angle of the handlebar, loosen the handlebar knob, rotate the handlebar to the desired angle, and then tighten the handlebar knob.

Knob

HOW TO ADJUST THE HEIGHT OF THE SEAT

For effective exercise, the seat should be at the proper height. As you pedal, there should be a slight bend in your knees when the pedals are in the lowest position.

To adjust the seat, first loosen the seat post knob a few turns and pull it outward. Next, slide the seat post upward or downward to the desired position, and release the seat post knob into an adjustment hole in the seat post. Move the seat

post upward or downward slightly to make sure that the seat post knob is engaged in one of the adjustment holes. Then, tighten the seat post knob.

Knob

Page 12

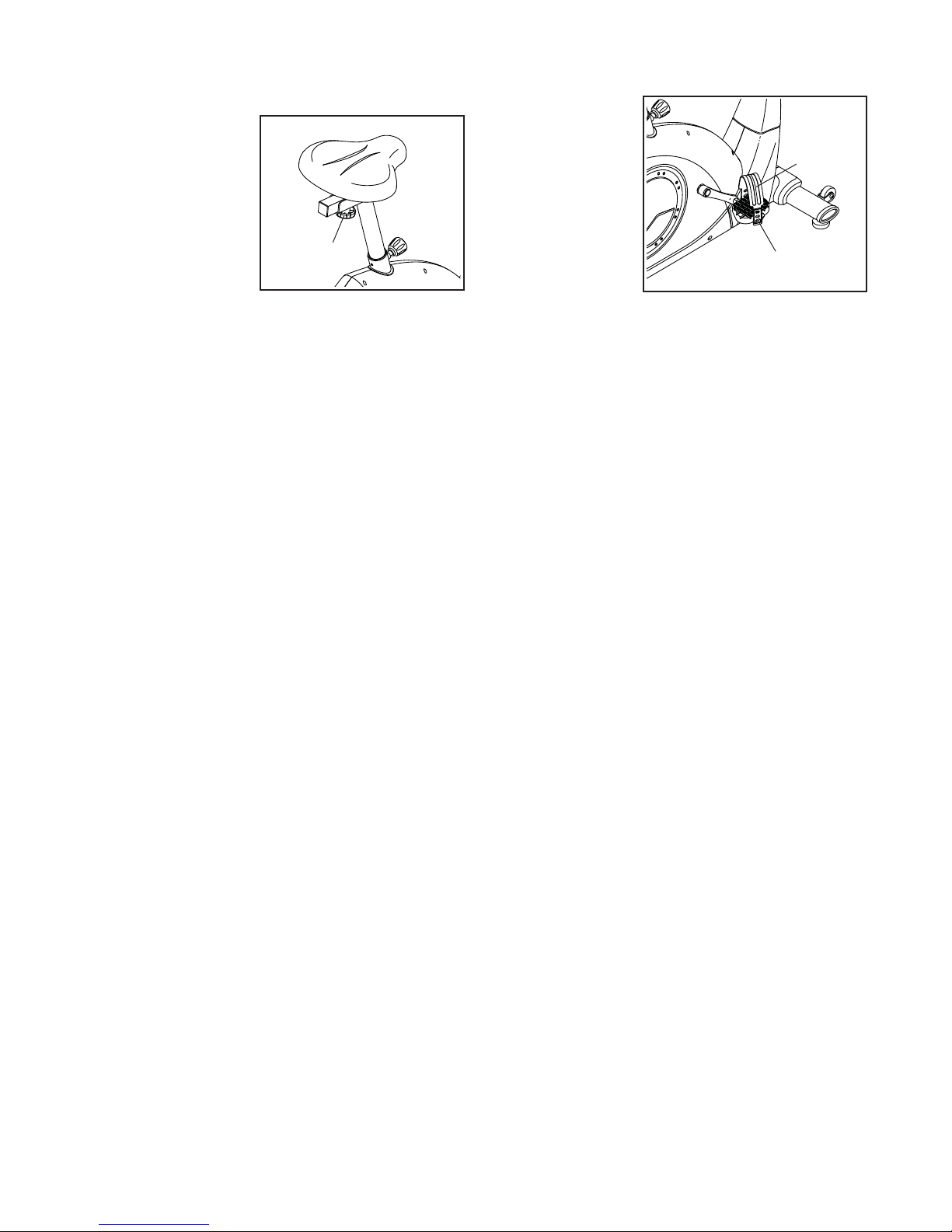

HOW TO ADJUST THE HORIZONTAL POSITION OF THE SEAT

To adjust the horizontal position of the seat, loosen the seat knob a few turns, move the seat forward or backward to the desired position, and then firmly tighten the seat knob.

Knob

HOW TO ADJUST THE PEDAL STRAPS

To adjust the pedal straps, first pull the ends of the straps off the tabs on the pedals. Then, adjust the straps to the desired position, and press the ends of the straps onto the tabs.

Strap

Ta b

Page 13

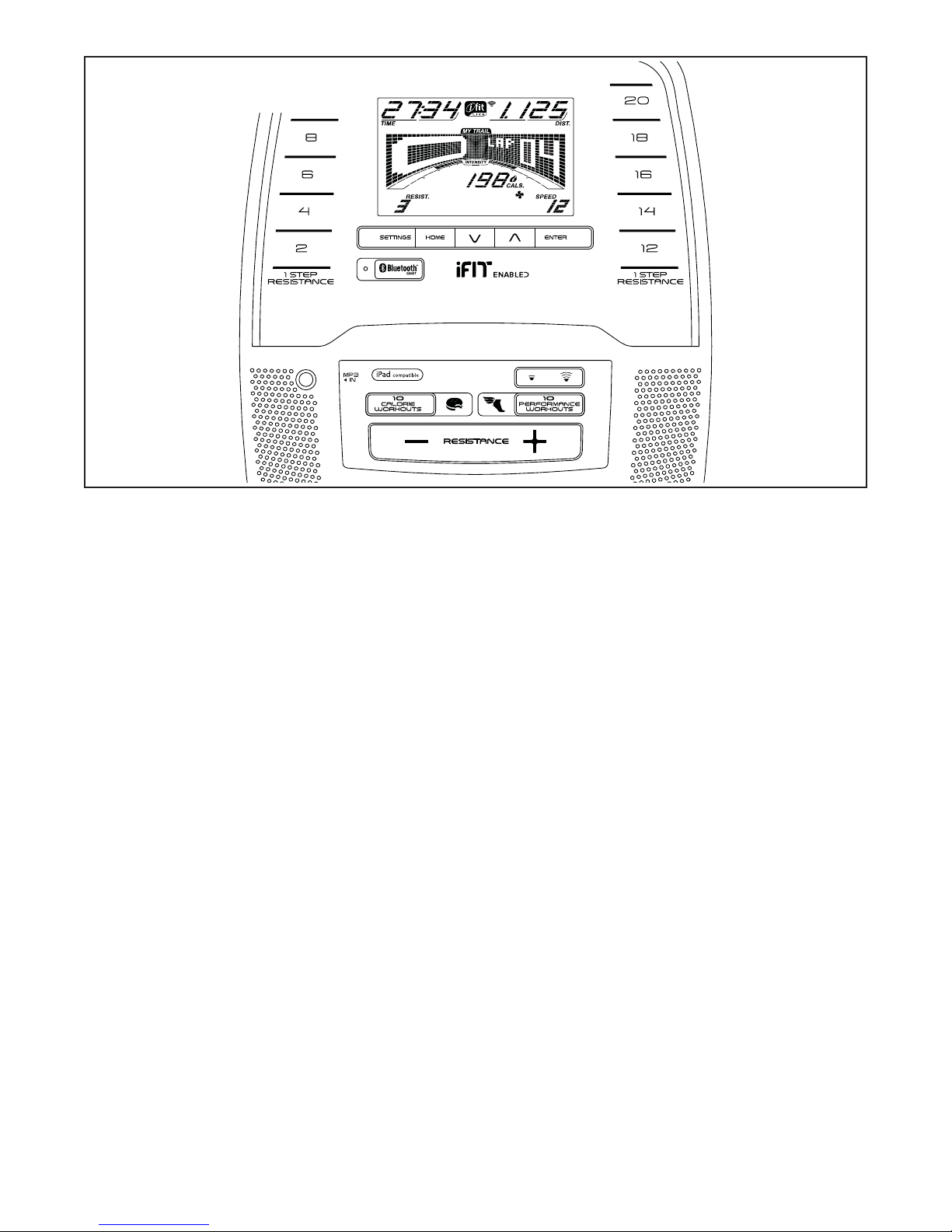

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The advanced console offers an array of features designed to make your workouts more effective and enjoyable.

When you use the manual mode, you can change the resistance of the pedals with the touch of a button.

As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or a compatible heart rate monitor. See page 17 for

information about purchasing an optional chest heart rate monitor.

You can also connect your smart device to the console and use an iFit® app to record and track your workout information.

The console also offers a selection of onboard workouts. Each workout automatically controls the resistance of the pedals and prompts you to vary your

pedaling speed as it guides you through an effective workout.

You can also listen to your favorite workout music or audio books with the console sound system while you exercise.

To use the manual mode, see page 14. To use an onboard workout, see page 16. To use the sound system, see page 17.

To connect your smart device to the console, see page 18. To connect your heart rate monitor to the console, see page 18. To change console settings, see page 19.

If there is a sheet of plastic on the display, remove the plastic.

Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see step 3 on page 19.

Page 14

HOW TO USE THE MANUAL MODE

1. Turn on the console.

Begin pedaling or press any button on the console

to turn on the console.

When you turn on the console, the display will turn

on and the console will be ready for use.

2. Select the manual mode.

Calories (Cals.)—When the manual mode is

selected, this display mode will show the approximate number of calories you have burned. When a workout is selected, this display mode will show either the approximate number of calories remaining to be burned or the approximate number of calories you have burned.

Calories per Hour (Cals./Hr)—This display mode

will show the approximate number of calories you are burning per hour.

When you turn on the console, the manual mode

will be selected automatically.

If you have selected a workout, reselect the manual

mode by pressing the Home button, the Calorie Workouts button, or the Performance Workouts button repeatedly.

3. Change the resistance of the pedals as desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease buttons or by pressing one of the numbered 1 Step Resistance buttons.

Note: After you press a button, it will take a

moment for the pedals to reach the selected resistance level.

4. Follow your progress with the display.

The display can show the following workout

information:

Distance (Dist.)—This display mode will show

the distance that you have pedaled in miles or kilometers.

Pulse—This display mode will show your heart rate

when you use the handgrip heart rate monitor or the optional chest heart rate monitor (see step 5).

Resistance (Resist.)—This display mode will

show the resistance level of the pedals.

RPM—This display mode will show your pedaling

speed in revolutions per minute (rpm).

Speed—This display mode will show your pedaling

speed in miles per hour or kilometers per hour.

Time—When the manual mode is selected, this

display mode will show the elapsed time. When a workout is selected, this display mode will show either the time remaining in the workout or the elapsed time.

The matrix offers several display tabs. Press the

increase and decrease buttons next to the Enter button repeatedly until the desired tab is shown.

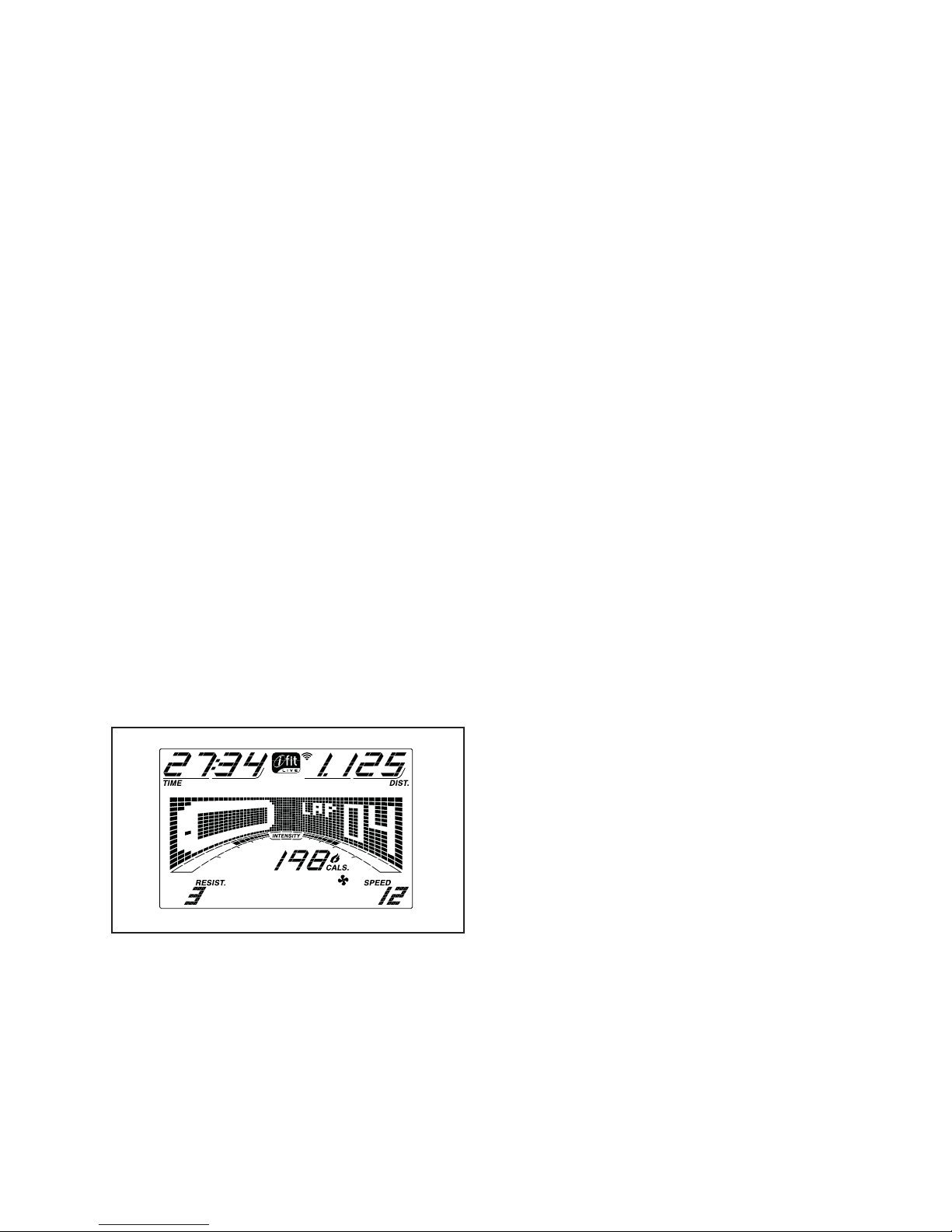

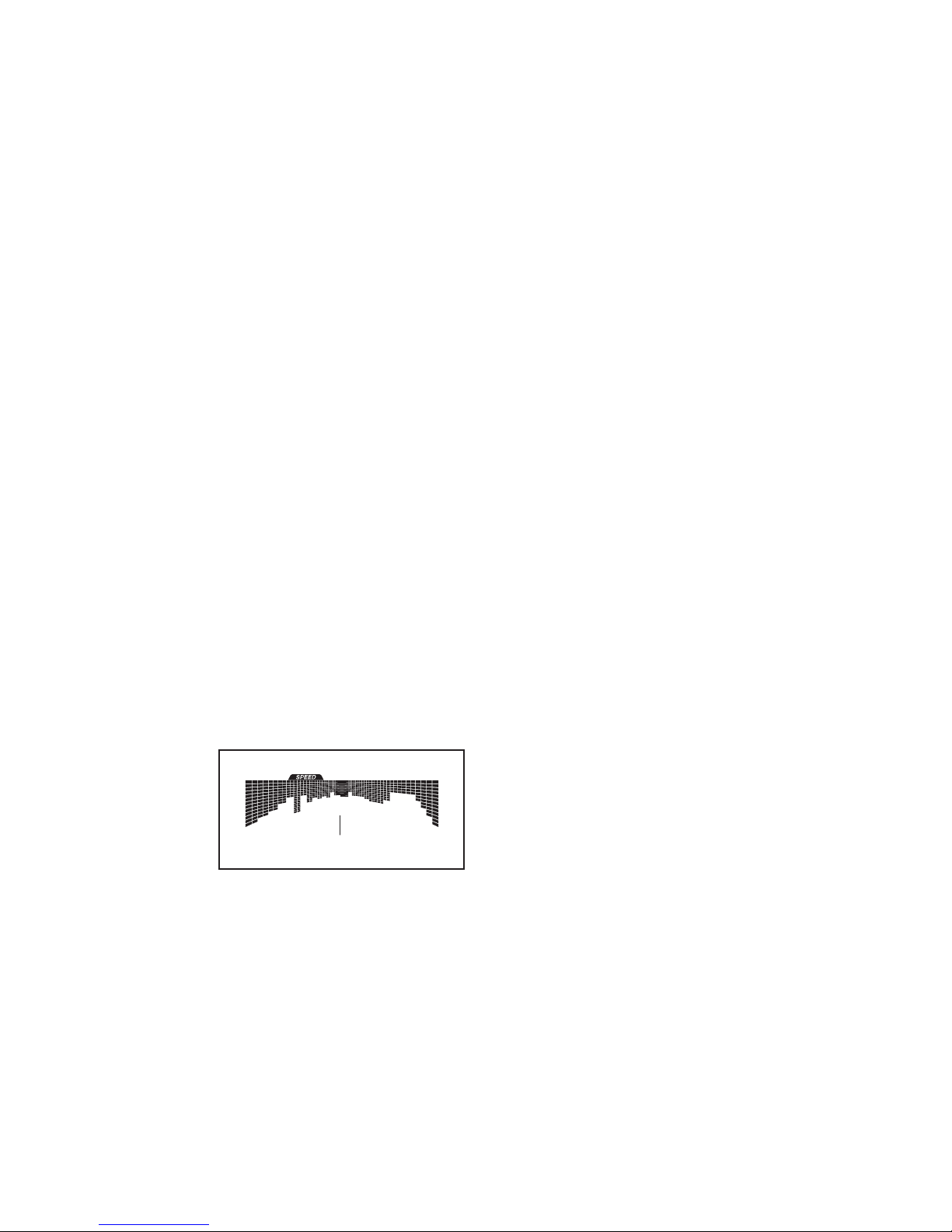

Speed—This tab will show a profile of the speed

settings of the workout. A new segment will appear at the end of each minute.

Page 15

My Trail—This tab will show a track that represents

1/4 mile (400 m). As you exercise, the flashing rectangle will show your progress. The My Trail tab will also show the number of laps you complete.

Calorie—This tab will show the approximate

amount of calories you have burned. The height of each segment represents the amount of calories burned during that segment.

Resistance—This tab will show a profile of the

approximate resistance settings of the workout A new segment will appear at the end of each minute. Note: A text heading for this tab will not appear in the matrix.

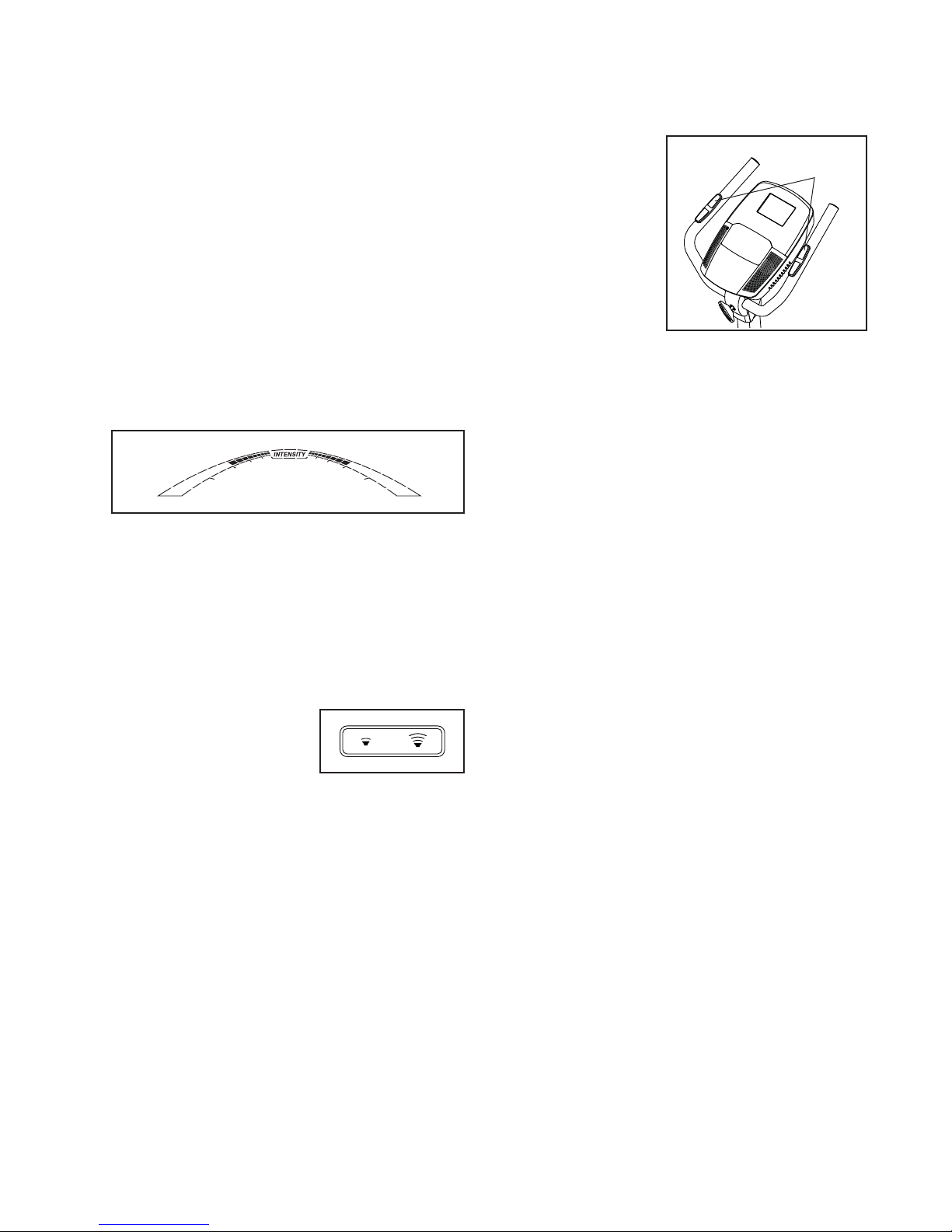

As you exercise, the workout intensity level bar

will indicate the approximate intensity level of your exercise.

To pause the console, press the Home button or

simply stop pedaling. When the console is paused, the time will flash in the display. To continue your workout, simply resume pedaling.

Press the Home button repeatedly to pause the

workout, view your workout results, and exit the workout and return to the manual mode.

Note: If you use both heart rate monitors at the

same time, the chest heart rate monitor will have priority.

If there are

sheets of plastic on the metal contacts on the handgrip heart rate monitor, remove the plastic. To measure

your heart rate, hold the handgrip heart rate monitor with your palms resting against the contacts. Avoid moving your

hands or gripping the contacts tightly.

When your pulse is detected, one or two dashes

will appear, and then your heart rate will be shown. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.

If the display does not show your heart rate, make

sure that your hands are positioned as described. Be careful not to move your hands excessively or to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never

use alcohol, abrasives, or chemicals to clean the contacts.

6. When you are finished exercising, the console will turn off automatically.

Contacts

Change the volume level

of the console by pressing the volume increase and decrease buttons.

5. Measure your heart rate if desired.

You can measure your heart rate using either the

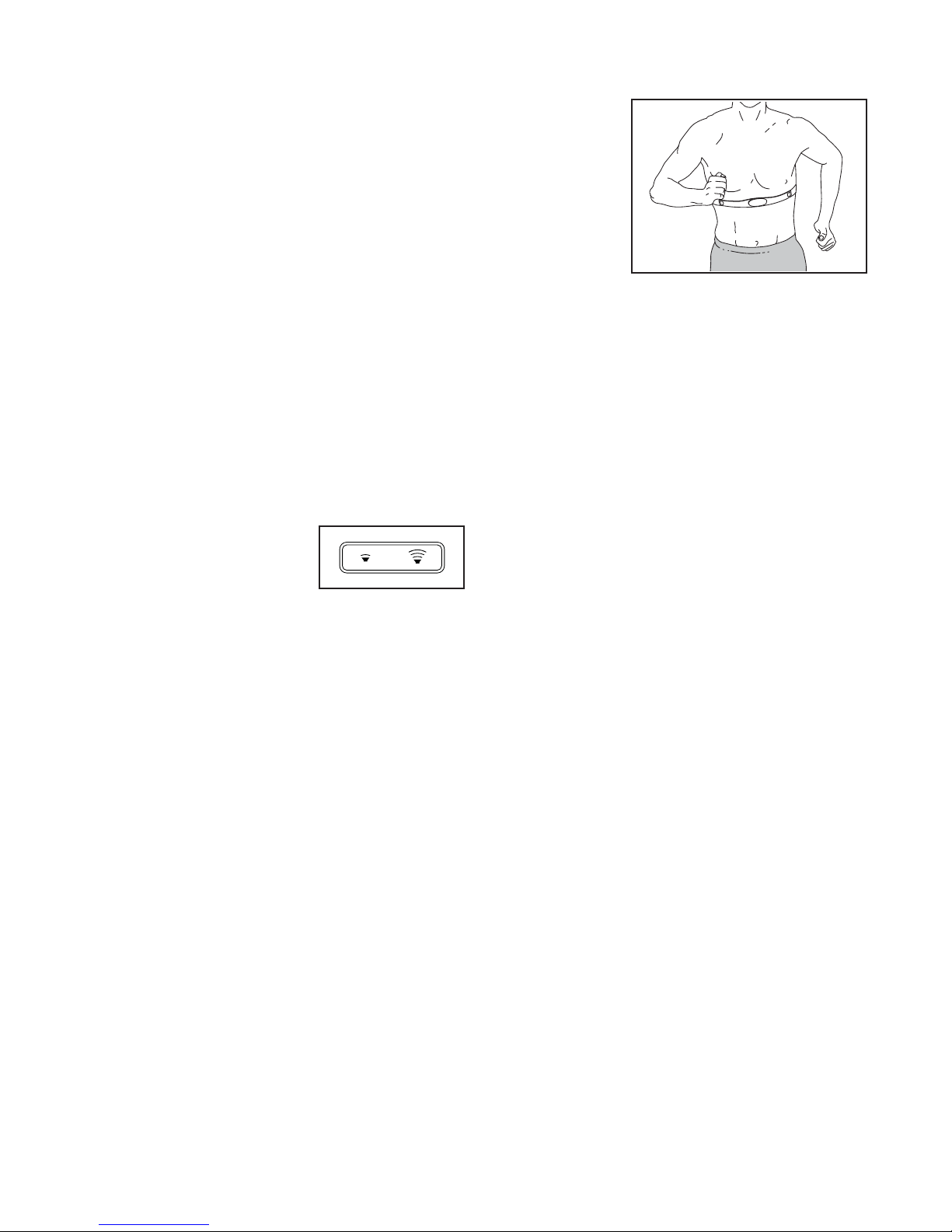

handgrip heart rate monitor or an optional chest heart rate monitor (see page 17 for infor-

mation about the optional chest heart rate monitor). Note: The console is compatible with

BLUETOOTH® Smart heart rate monitors.

If the pedals do not move for several seconds, a

series of tones will sound, the console will pause, and the time will flash in the display.

If the pedals do not move for several minutes, the

console will turn off and the display will be reset.

Page 16

HOW TO USE AN ONBOARD WORKOUT

1. Turn on the console.

At the end of each segment of the workout, a

series of tones will sound and the next segment of the profile will begin to flash.

Begin pedaling or press any button on the console

to turn on the console.

When you turn on the console, the display will turn

on and the console will be ready for use.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

Workouts button or the Performance Workouts button repeatedly until the name of the desired workout appears in the display.

When you select an onboard workout, the display

will show the duration of the workout or the approximate number of calories to be burned during the workout. A profile of the speed settings of the workout will appear in the matrix.

3. Start the workout.

Begin pedaling to start the workout.

Each workout is divided into segments. One resis-

tance level and one target speed are programmed for each segment. Note: The same resistance level and/or target speed may be programmed for consecutive segments.

The resistance level and the target speed for the

first segment will appear in the display and the matrix.

If a different resistance level is programmed for the

next segment, the resistance level will appear in the display and the resistance level will change.

If a different target speed is programmed for the

next segment, the target speed will appear in the matrix for a few seconds to alert you.

As you exercise, you will be prompted to keep your

pedaling speed near the target speed for the current segment. When an upward-pointing arrow

appears in the display, increase your pace. When a downward-pointing arrow appears, decrease

your pace. When no arrow appears, maintain your current pace.

IMPORTANT: The target speed is intended only

to provide motivation. Your actual pedaling speed may be slower than the target speed. Make sure to pedal at a speed that is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the setting by pressing the Resistance buttons.

IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level programmed for the next segment.

The workout will continue in this way until the last

segment ends.

During

the workout, the profile on the speed tab will show your progress. The flashing segment of the profile represents the current segment of the workout. The height of the flashing segment indicates the target speed for the current segment.

Profile

To pause the console, press the Home button or

simply stop pedaling. When the console is paused, the time will flash in the display. To continue your workout, simply resume pedaling.

Press the Home button repeatedly to pause the

workout, view your workout results, and exit the workout and return to the default menu.

Page 17

4. Follow your progress with the display.

THE OPTIONAL CHEST HEART RATE MONITOR

See step 4 on page 14.

5. Measure your heart rate if desired.

See step 5 on page 15.

6. When you are finished exercising, the console will turn off automatically.

See step 6 on page 15.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player, CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics store.

Next, press the play button on your personal audio player. Adjust the volume level using the volume increase and decrease buttons on the console or the volume control on your personal audio player.

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-

tor, please see the front cover of this manual.

Note: The console is compatible with all BLUETOOTH Smart heart rate monitors.

Page 18

HOW TO CONNECT YOUR SMART DEVICE TO THE CONSOLE

HOW TO CONNECT YOUR HEART RATE MONITOR TO THE CONSOLE

The console supports BLUETOOTH connections to smart devices via the iFit app and to compatible heart rate monitors. Note: Other BLUETOOTH connections are not supported.

1. Download and install the iFit app on your smart device.

On your iOS® or Android™ smart device, open the

App Store℠ or the Google Play™ store, search for the free iFit app, and then install the app on your smart device. Make sure that the BLUETOOTH option is enabled on your smart device.

Then, open the iFit app and follow the instructions

to set up an iFit account and customize settings.

2. Connect your smart device to the console.

Follow the instructions in the iFit app to connect

your smart device to the console.

When a connection is established, the LED on the

console will flash blue. Press the Bluetooth Smart button on the console to confirm the connection; the LED on the console will then turn solid blue.

The console is compatible with all BLUETOOTH Smart heart rate monitors.

To connect your BLUETOOTH Smart heart rate monitor to the console, press the Bluetooth Smart button on the console. When a connection is established, the LED on the console will flash red twice.

Note: If there is more than one compatible heart rate monitor near the console, the console will connect to the heart rate monitor with the strongest signal.

To disconnect your heart rate monitor from the console, press and hold the Bluetooth Smart button on the console for 5 seconds; the LED on the console will light while the button is held and turn off when the button is released.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

3. Record and track your workout information.

Follow the instructions in the iFit app to record and

track your workout information.

4. Disconnect your smart device from the console if desired.

To disconnect your smart device from the console,

press and hold the Bluetooth Smart button on the console for 5 seconds; the LED on the console will light while the button is held and turn off when the button is released.

Note: All BLUETOOTH connections between the

console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

Page 19

HOW TO CHANGE CONSOLE SETTINGS

3. Change settings as desired.

1. Select the settings mode.

To select the settings mode, press the Settings

button. The settings information will appear in the display.

Note: If you have selected a workout, you must

exit the workout before you can select the settings mode.

2. Navigate the settings mode.

While the settings mode is selected, the matrix of

the display will display several optional screens.

Press the increase button next to the Enter button repeatedly to select the desired optional screen.

The lower section of the display will show instruc-

tions for the selected screen. Make sure to follow

the instructions shown in the lower part of the display.

Units—The currently selected unit of measurement

will appear in the display. To change the unit of measurement, press the Enter button repeatedly. To view distance in miles, select ENGLISH. To view distance in kilometers, select METRIC.

Note: The version number of the console software

will also appear on this optional screen.

Usage Information—The display will show the

total number of hours that the exercise bike has been used and the total distance (in miles or kilometers) that has been pedaled on the exercise bike.

Contrast Level—The currently selected con-

trast level will appear in the display. To adjust the contrast level, press the Resistance increase and decrease buttons.

4. Exit the settings mode.

Press the Settings button to exit the settings mode.

Page 20

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regular maintenance is important for optimal performance and to reduce wear. Inspect and properly tighten all parts each time the exercise bike is used. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from the console and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

If the console does not turn on, make sure that the power adapter is fully plugged in.

If lines appear in the console display, see HOW TO CHANGE CONSOLE SETTINGS on page 19 and adjust the contrast level of the display.

If the handgrip heart rate monitor does not function properly, see step 5 on page 15.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the reed switch should be adjusted.

To adjust the reed switch, first unplug the power

adapter.

See the EXPLODED DRAWING on page 23.

Identify the Right and Left Shields (79, 80). Remove all the M4 x 18mm Screws (24) from the Right and Left Shields. Then, gently pull the Shields apart.

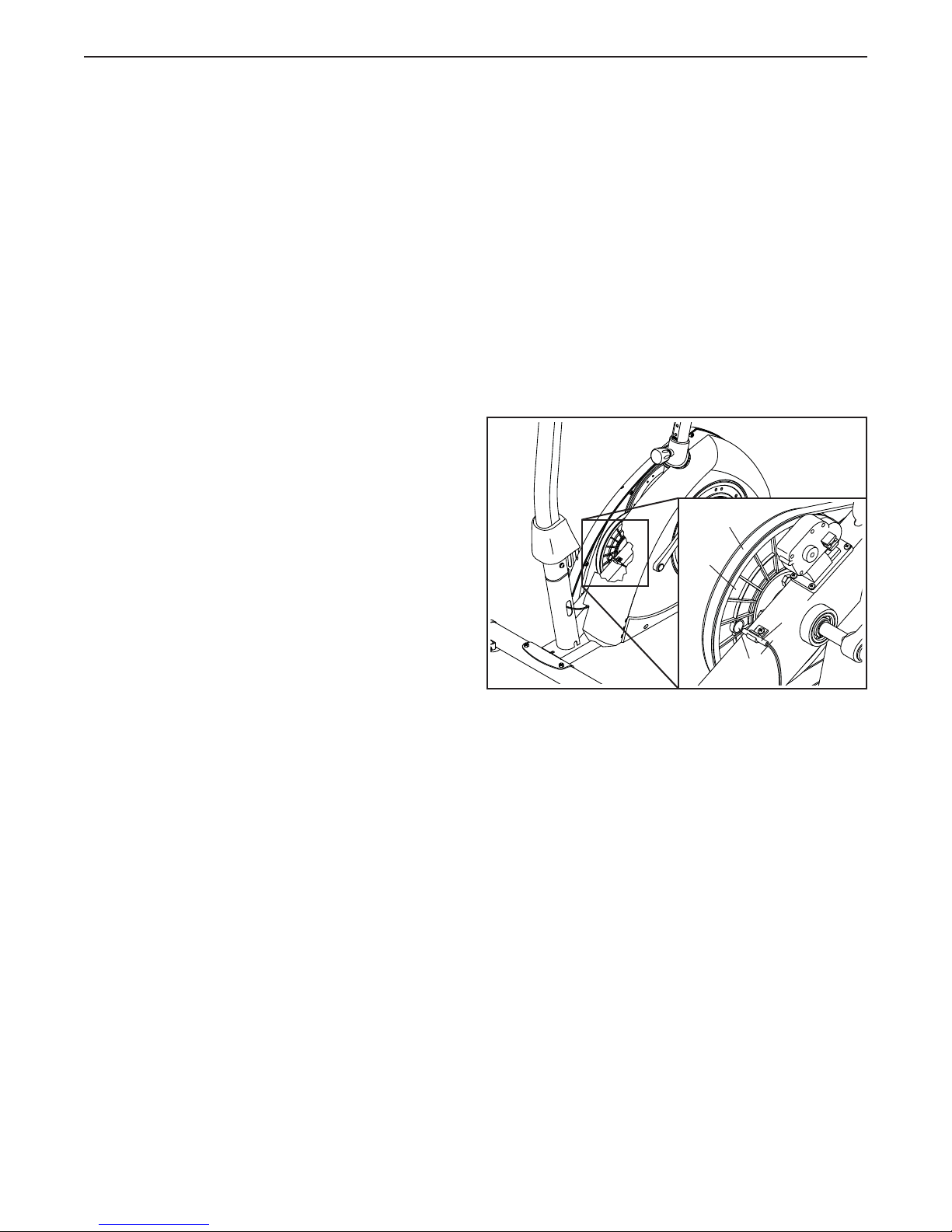

Locate the Reed Switch (51) and slide it slightly toward or away from a Pulley Magnet (82) on the Pulley (54).

If a replacement power adapter is needed, call the telephone number on the cover of this manual. IMPORTANT: To avoid damaging the console, use only a manufacturer-supplied regulated power adapter.

Plug in the power adapter and rotate the Pulley (54) for a moment. Repeat these actions until the console displays correct feedback.

When the reed switch is correctly adjusted, reattach the shields.

Page 21

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise ; never hold your breath.

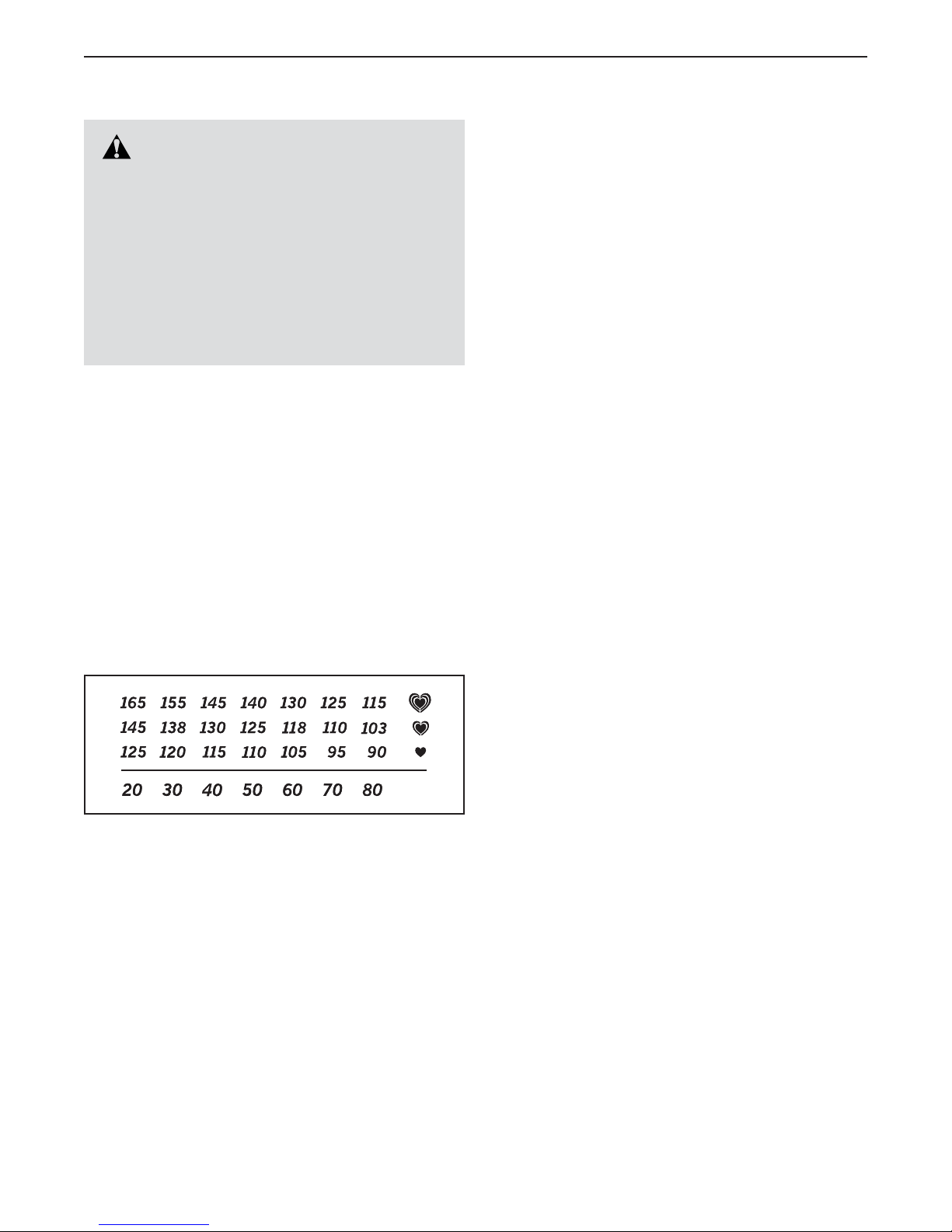

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Page 22

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. NTIVEX83016.0 R0116A

1 1 Frame 2 1 Front Stabilizer 3 1 Rear Stabilizer 4 1 Handlebar Post 5 1 Handlebar 6 6 M8 Locknut 7 7 M8 Washer 8 2 Wheel 9 2 M8 x 40mm Bolt 10 2 Front Stabilizer Cap 11 4 M10 Nut 12 4 Leveling Foot 13 4 M8 x 58mm Screw 14 8 M8 Split Washer 15 4 M8 Curved Washer 16 2 Rear Stabilizer Cap 17 1 Right Crank Arm 18 1 Right Pedal/Strap 19 7 M8 x 15mm Screw 20 1 Seat Post Knob 21 1 Upper Wire 22 1 Lower Wire 23 1 Post Cover 24 22 M4 x 18mm Screw 25 1 Front Handlebar Cover 26 1 Handlebar Spacer 27 2 Handlebar Cap 28 1 Seat Post 29 1 Carriage Knob 30 1 Carriage Washer 31 1 Carriage Clamp 32 2 Carriage Cap 33 1 Seat Carriage 34 1 Seat 35 1 Console 36 1 Handlebar Knob 37 4 M4 x 16mm Screw 38 1 Power Adapter 39 2 Pulse Wire 40 4 M8 Seat Split Washer 41 4 M8 Seat Locknut 42 2 M10 Washer 43 2 Bearing 44 1 Resistance Cable 45 1 Resistance Motor 46 1 Post Sleeve

47 1 Post Grommet 48 2 Crank Arm Cap 49 1 M5 Stop Bolt 50 2 M5 Nut 51 1 Reed Switch/Wire 52 2 M8 Flange Screw 53 1 M17 Washer 54 1 Pulley 55 1 Crank 56 1 Drive Belt 57 1 Idler 58 1 Left Crank Arm 59 1 M8 Bolt 60 1 Idler Spring 61 2 M6 x 16mm Screw 62 2 M6 Spring Washer 63 2 M6 Washer 64 2 Small Snap Ring 65 1 Magnet Axle 66 1 C-magnet 67 1 Left Pedal/Strap 68 1 Resistance Spring 69 2 Nut Cap 70 2 M10 x 1mm Nut 71 1 Eyebolt 72 1 Adjustment Bracket 73 1 M6 Nut 74 2 M10 Jam Nut 75 2 Large Flywheel Spacer 76 1 Small Flywheel Spacer 77 1 Flywheel Axle 78 1 Flywheel 79 1 Right Shield 80 1 Left Shield 81 1 Right Shield Cover 82 2 Pulley Magnet 83 2 Large Snap Ring 84 4 M4 Washer 85 2 Pulse Sensor 86 1 Rear Handlebar Cover 87 1 Pulse Wire Grommet 88 1 Left Shield Cover 89 1 Holder * – Assembly Tool * – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

Page 23

EXPLODED DRAWING

Model No. NTIVEX83016.0 R0116A

51 20

Page 24

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

RECYCLING INFORMATION

This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.

Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.
